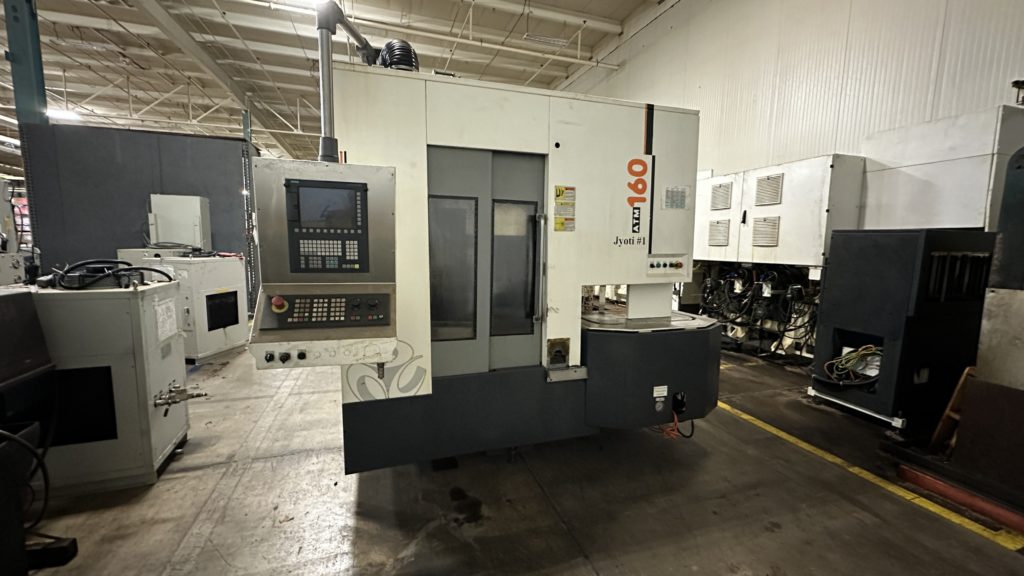

Jyoti ATM 160 Inverted VTL, 2016 – Y Axis

$119,900.00

Request a Quote to Instantly See Pricing

Machine Type: Vertical Turret Lathes
Make: Jyoti
Model: ATM 160
Year: 2016
Machine Location: Upon Request
Stock #: 581757

YouTube video

Capacity
Standard Chuck Size: 6”
Maximum Turning Length: 7.87”
Max. Turning Dia: 6”

Travels
Cross (X-Axis) Travel: 27.5
Longitudinal (Z-Axis) Travel: 11.8”
Traverse (Y-Axis):7.87”
Rapid Feed m/min: 50

Main Spindle
Spindle Motor Power: 9/75 kW
Spindle Nose: Flat dia. 140
Speed Range: 50-7000 RPM
Full Power Speed Range: 1500-4500 RPM
C axis resolution: 0001°

Customized Tooling
Table Size: 13.3” x 16.9”

Turret
Type: Live Tool Servo
No. of Stations: 12
Max. Boring Bar Dia: 1.5
Tool Size (Cross Sectional): .98” x .98”
Max no. of rotating tools: 12
Live tool spindle power: 41 kW

Auto Loader
Type of drive: ACservo
Max. job size: Dia 6.3” x Height 7.9”
Max possible job weight: 22 lbs
Max no of job with max size: 22

Accuracy (As per VDI / DGQ 3441)
Positioning Uncertainty (P): mm 0.010
Repeatability (Ps medium): mm 0.005

Other Data
Weight (Approx): 16,000
Dimension (Approx) (Lx W x H): 98” x 100” x 102”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
