Kent KGS-1020AHD Surface Grinder, 2006 – Equipped with Magnetic Vice

$11,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Grinders
Model:
KGS-1020HD
Make:
Kent
Year:
2006

Overall table working area: 10 x 20
Longitudinal table travel: 23.25
Crossfeed table travel: 10.8
Distance spindle center to table: 19.2
Wheel dimension (Dia. x W x Bore): 8 x 1 x 1 1/4
Spindle speed: 3480 RPM
Spindle motor: 3HP
Machine height: 70″
Floor space: 94″ x 71″
Net weight: 3150
Gross weight: 3590

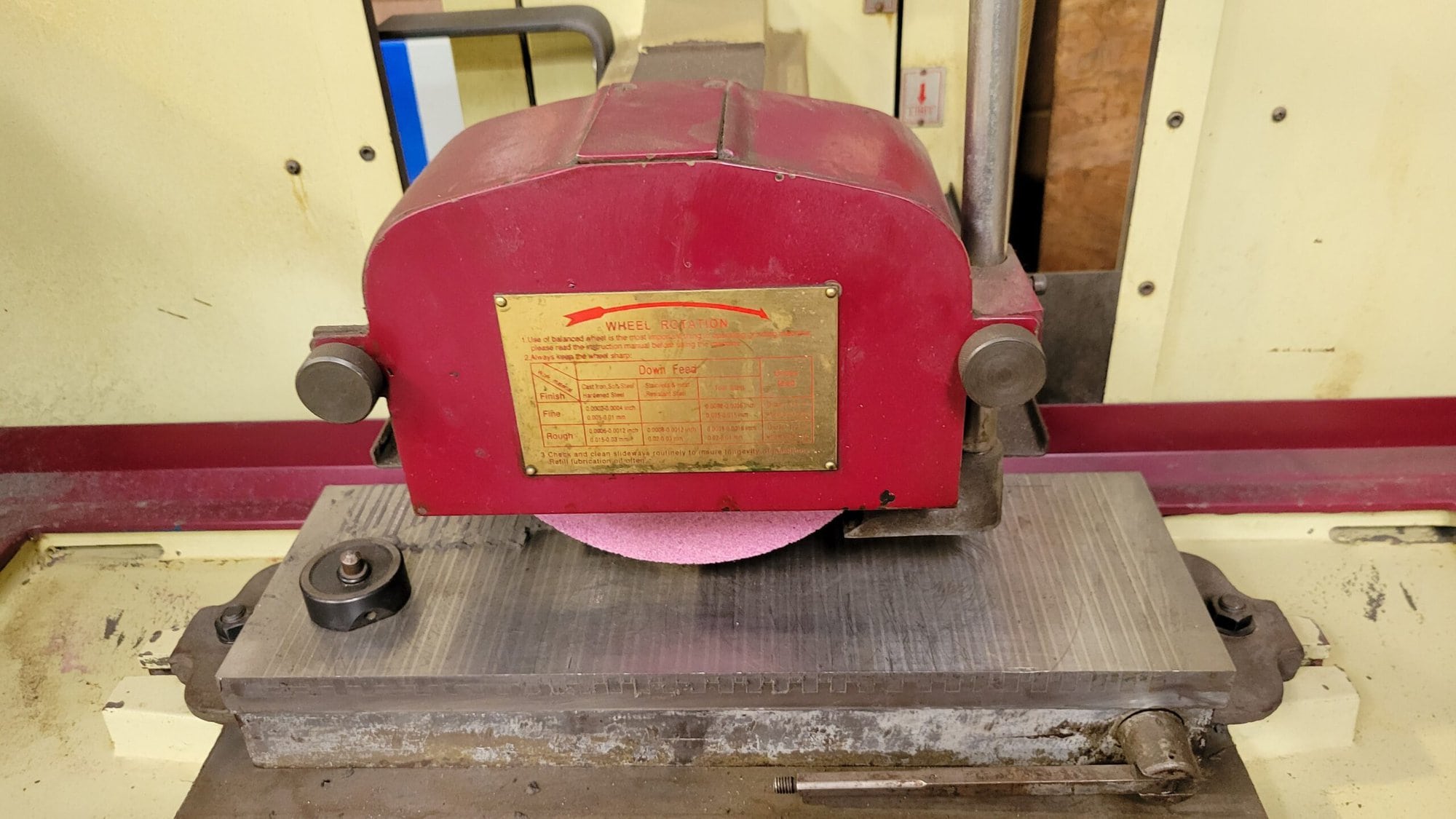

Comes Equipped with Magnetic Vice

Features and Capabilities:
Longitudinal on V-flat scraped guideways
Saddle traveling crossfeed
Motorized rapid elevation
Overhead hydraulic wheel dresser
Surface grinding
Plunge grinding

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
