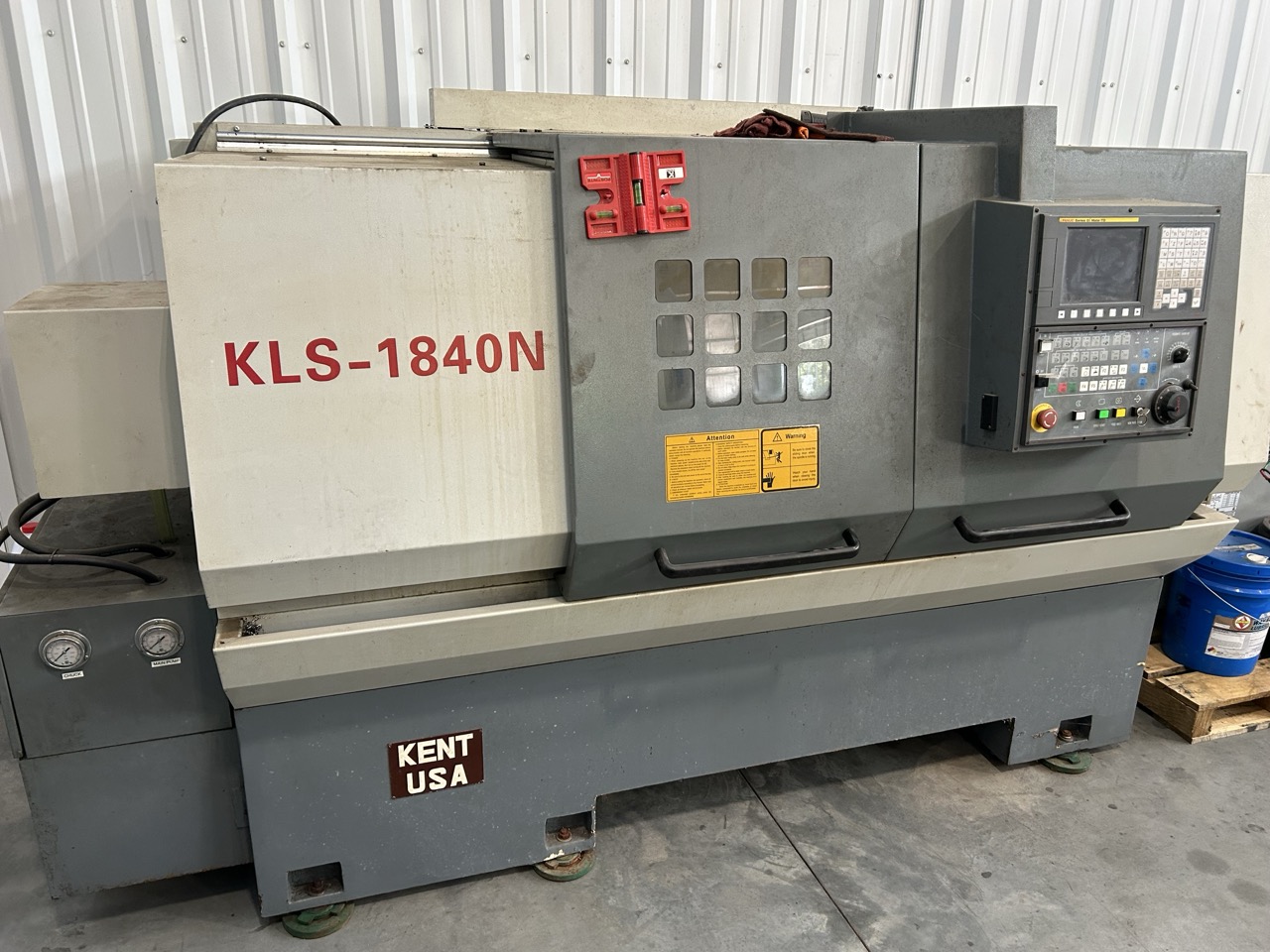

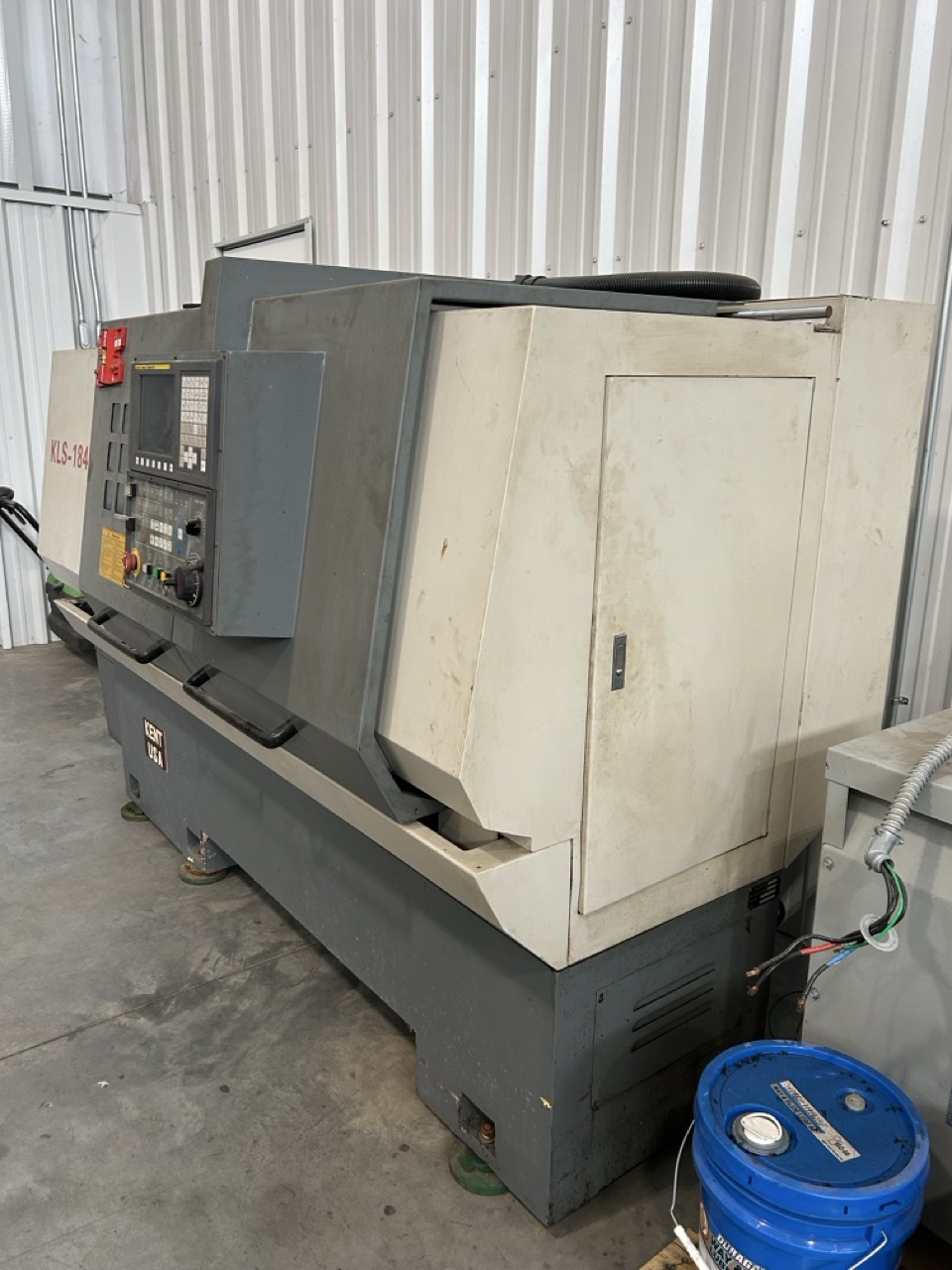

Kent KLS-1840N CNC Lathe, 2013 – Fanuc Oi Mate-TD

Bar Capacity: 3″

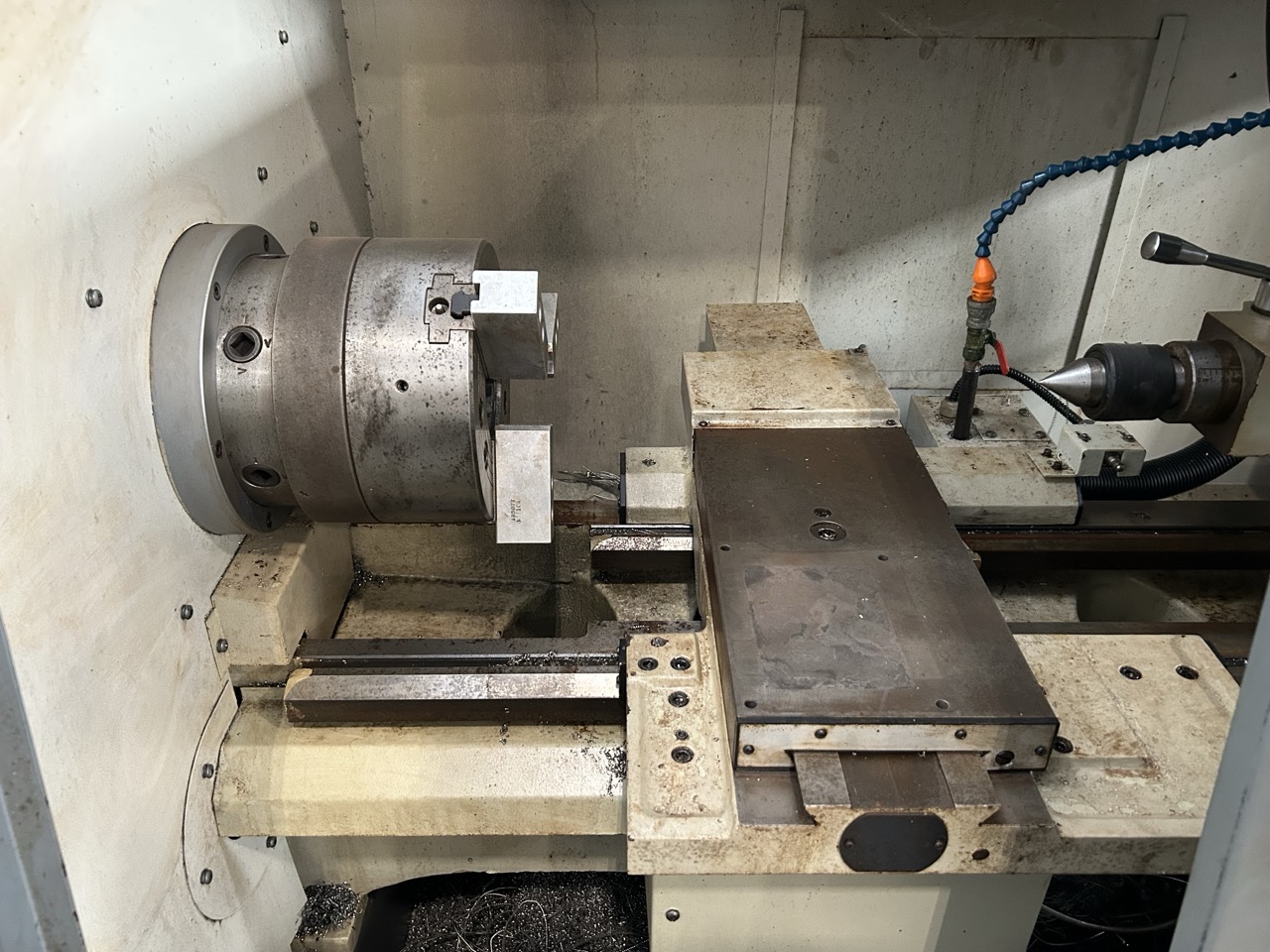

Chuck Size: 10″
Max Swing Over Bed: 18.11″
Max Swing Over Cross slide: 9.45″
Distance Between Centers: 39.37″
Max Turning Length: 39.37″
Max Turning Diameter: 18.11″
Bed Width: 11.81″

Spindle Bore: 2.04″
Spindle Nose: A2-6
Spindle Speed: 2,500 RPM

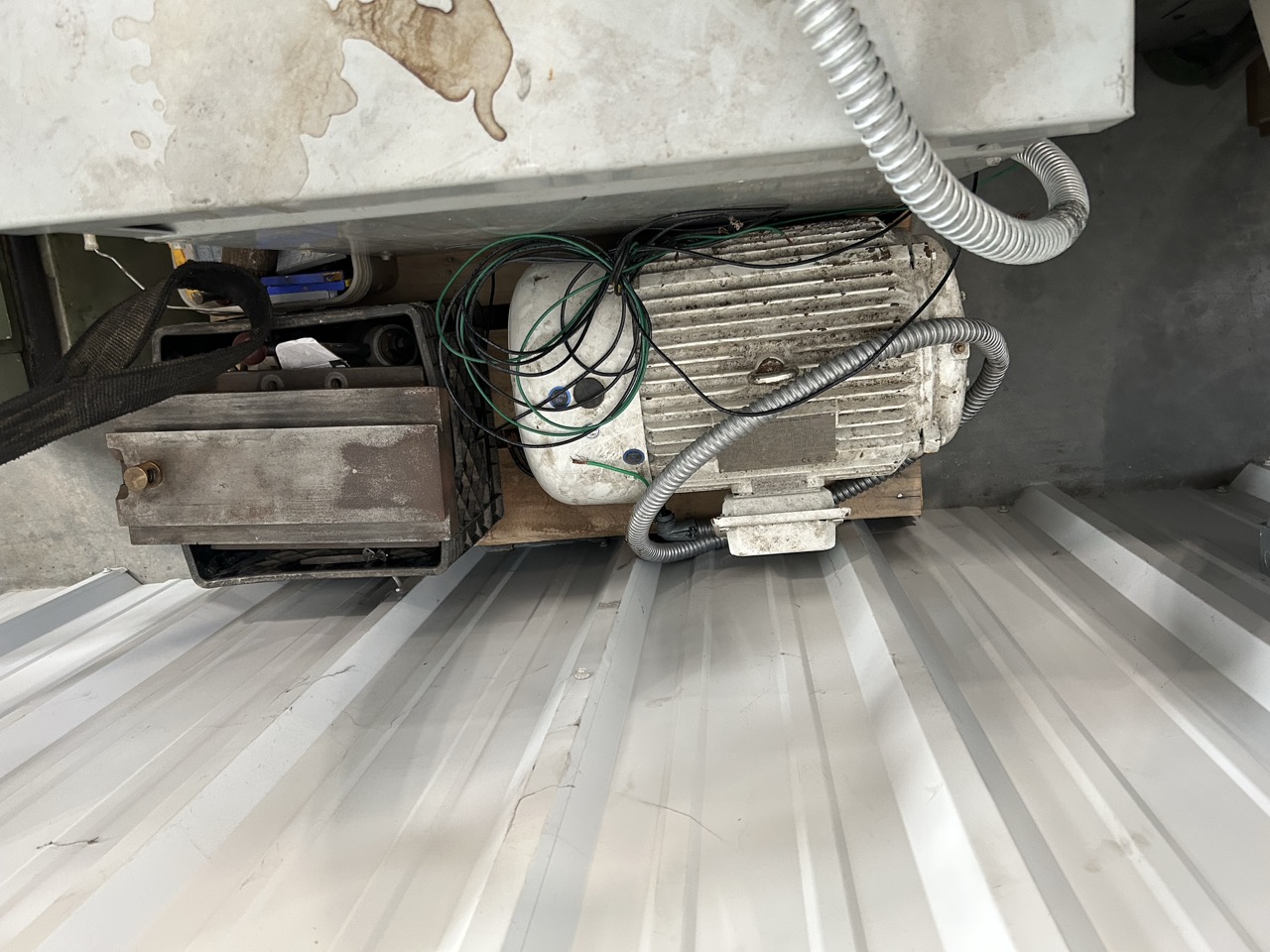

Main Spindle Motor: 7.5 HP
ATC: 8-Station Turret
X-Axis Travels: 9.84″
Z-Axis Travels: 33.46″
Tailstock Quill Diameter: 2.32″

Approximate Machine Weight: 4,840lbs
Approximate Machine Dimensions: 102″ x 56″ x 68″

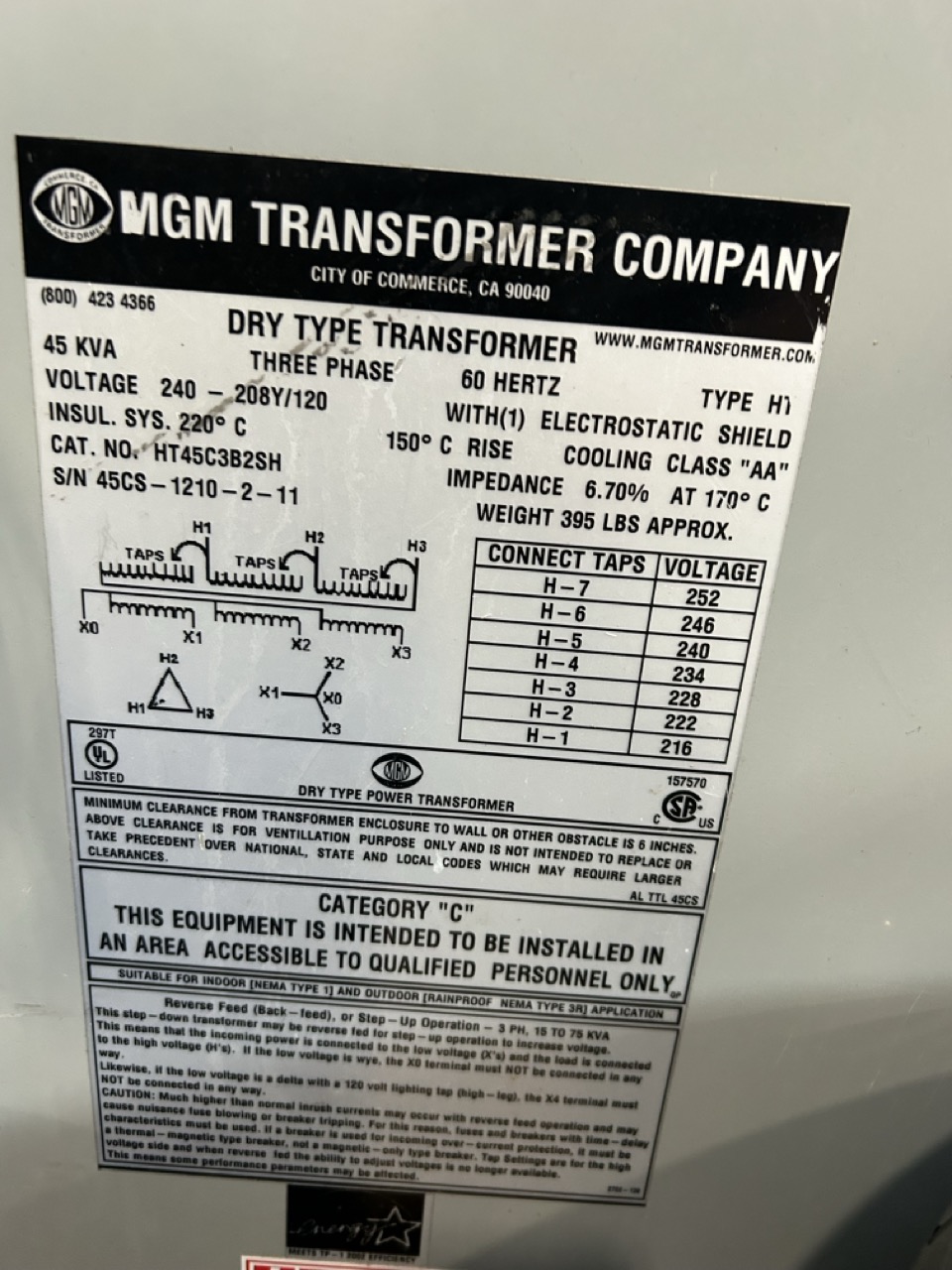

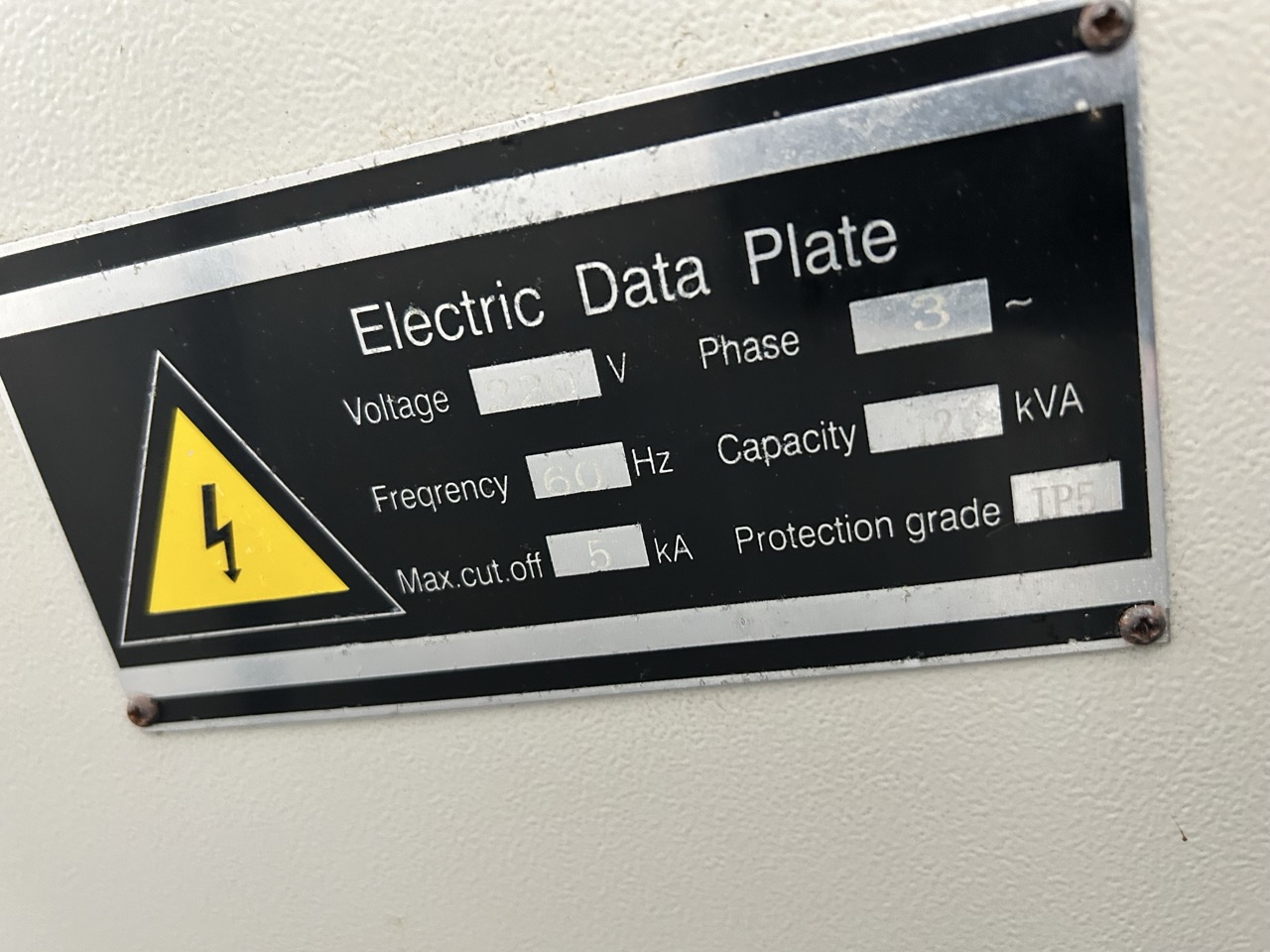

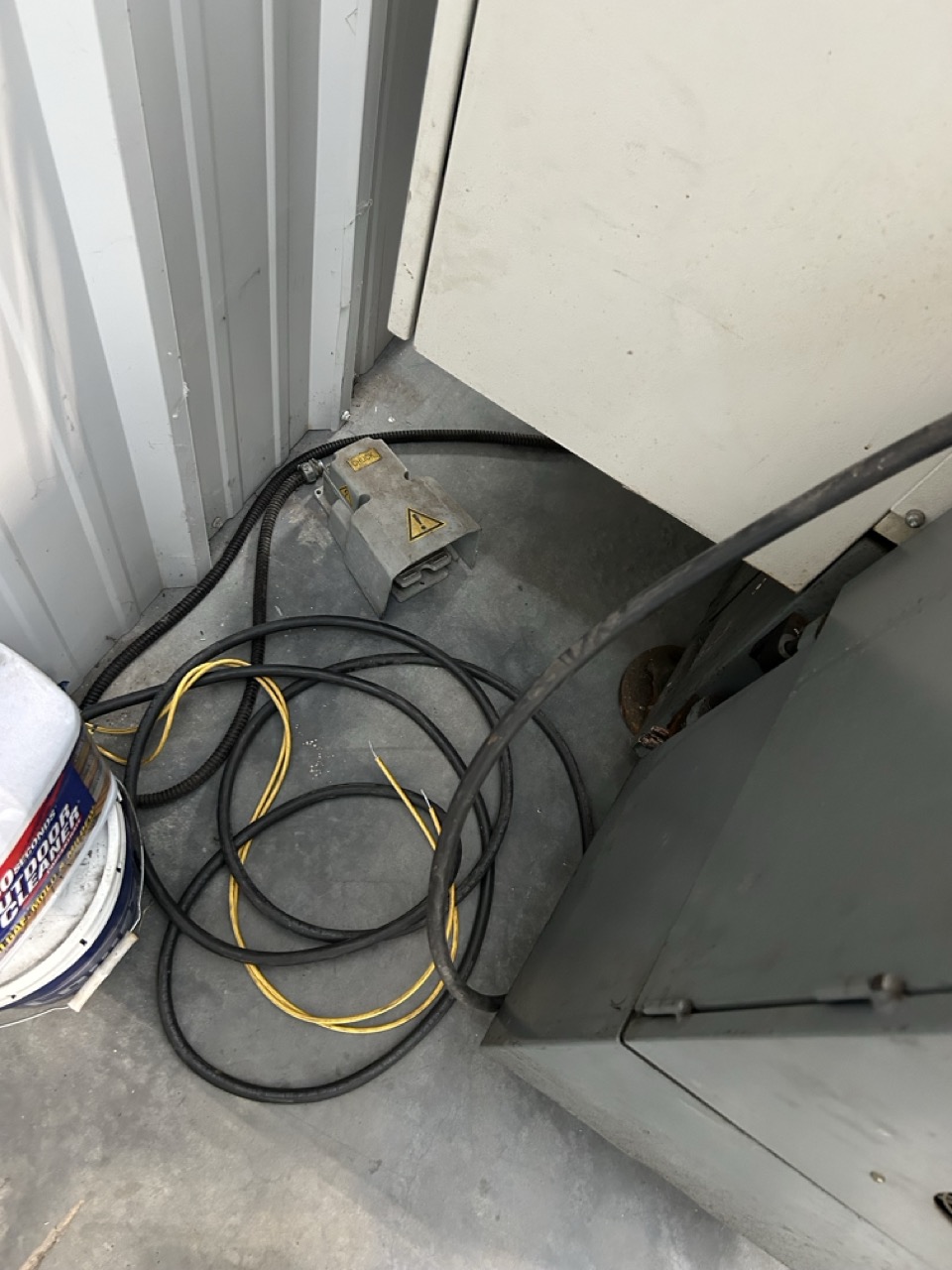

Electrical: 220V, 3-Phase

Equipped With

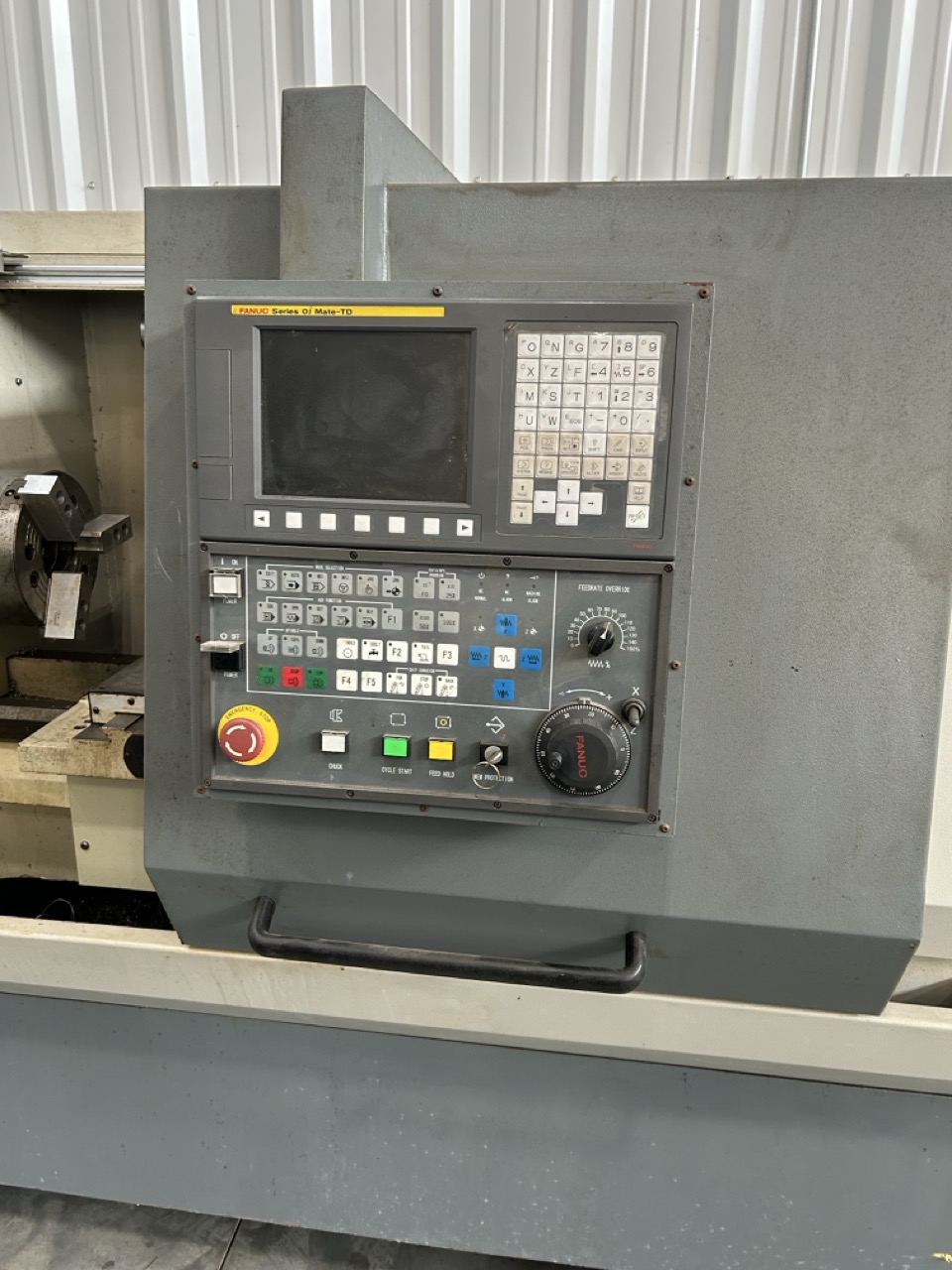

Fanuc Series Oi Mate-TD Controller

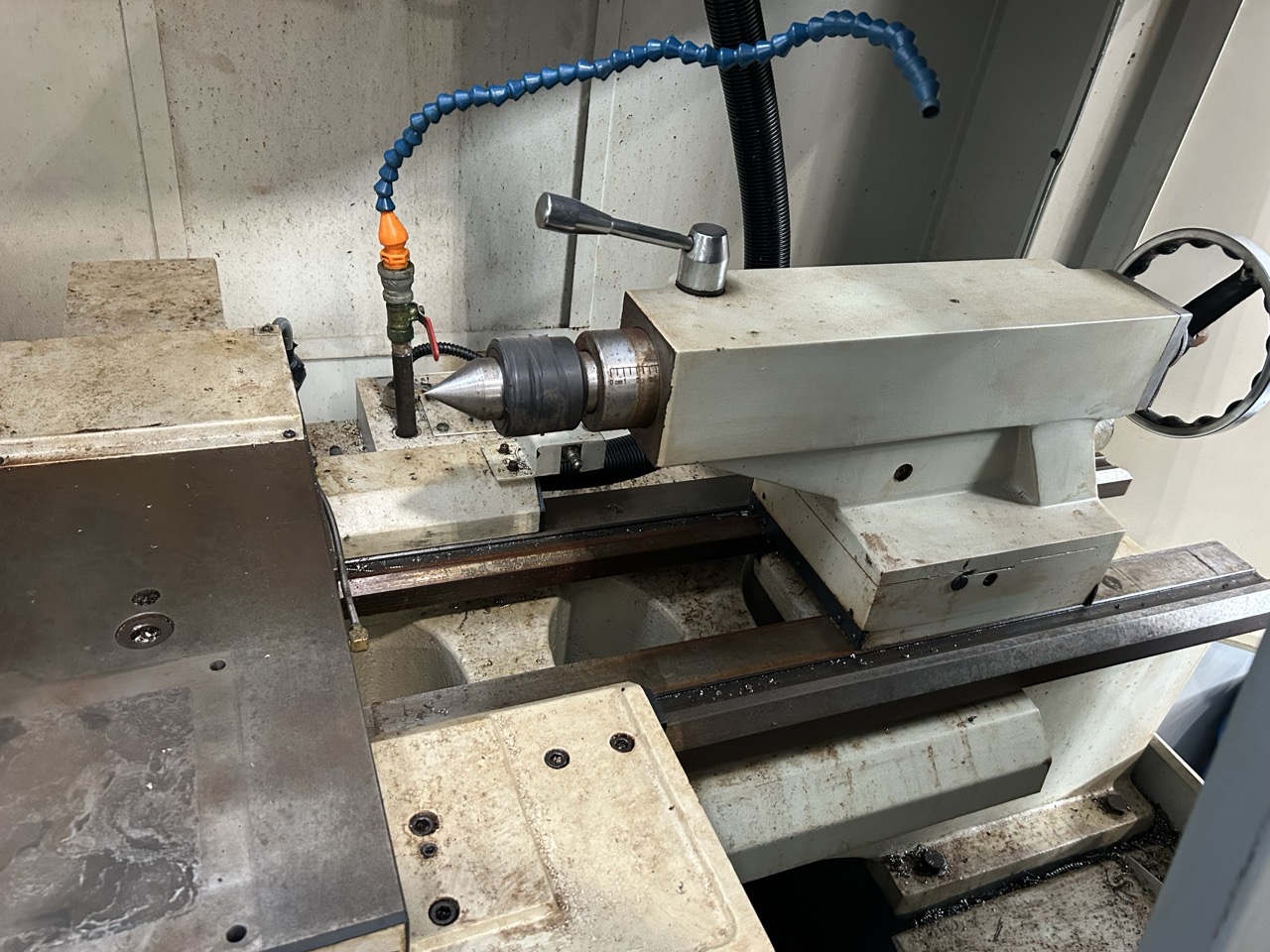

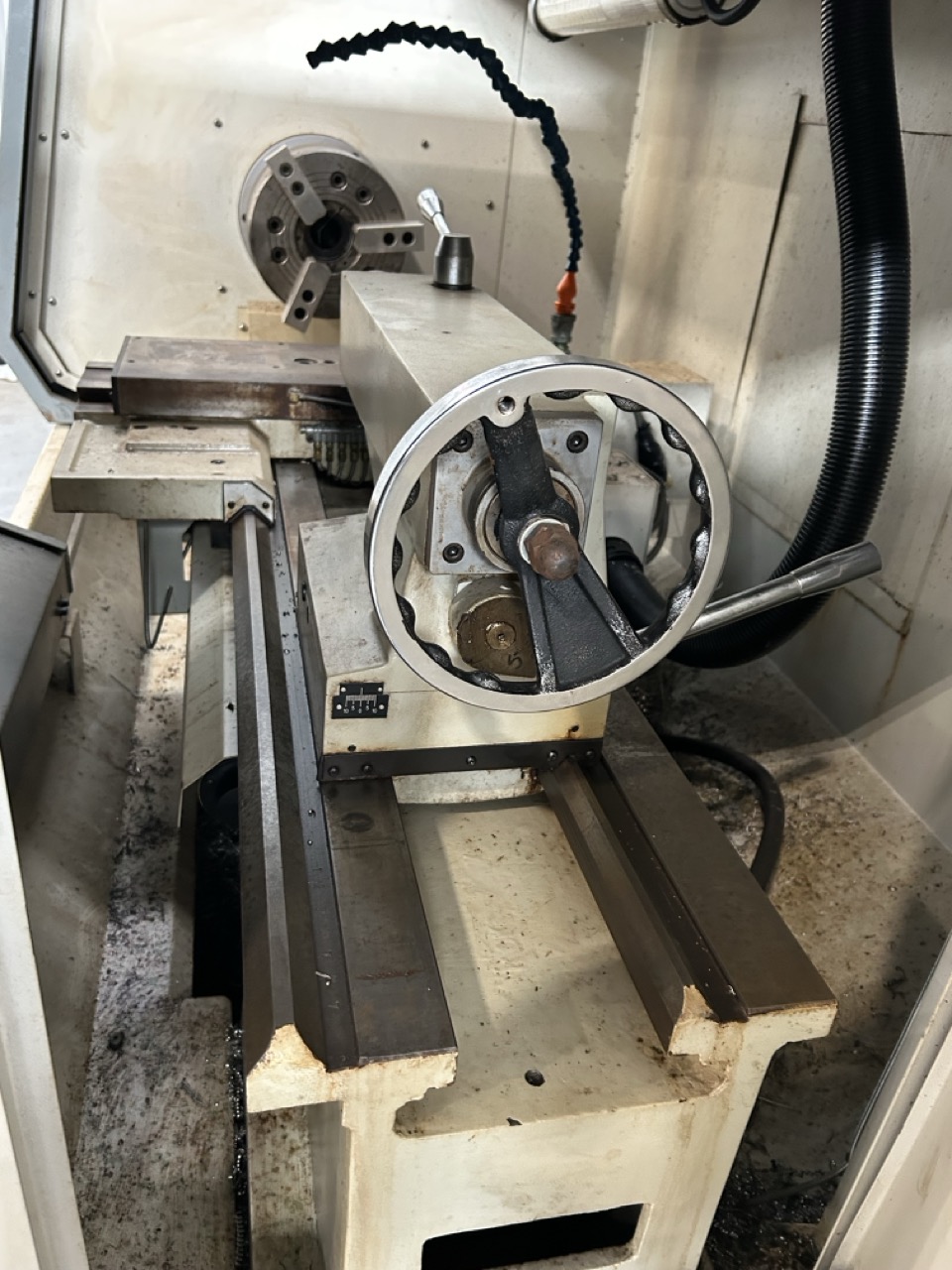

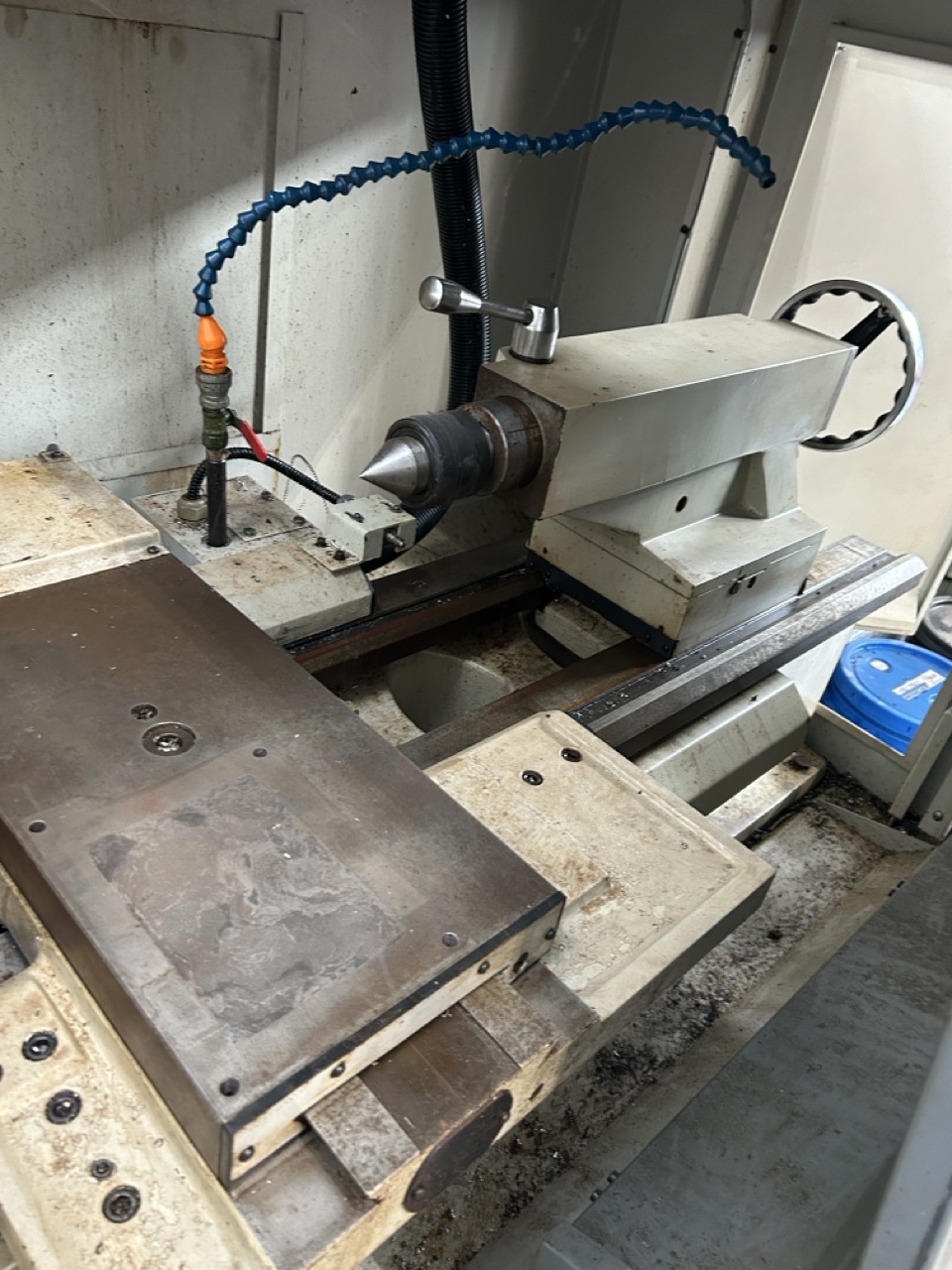

Manual Tailstock
