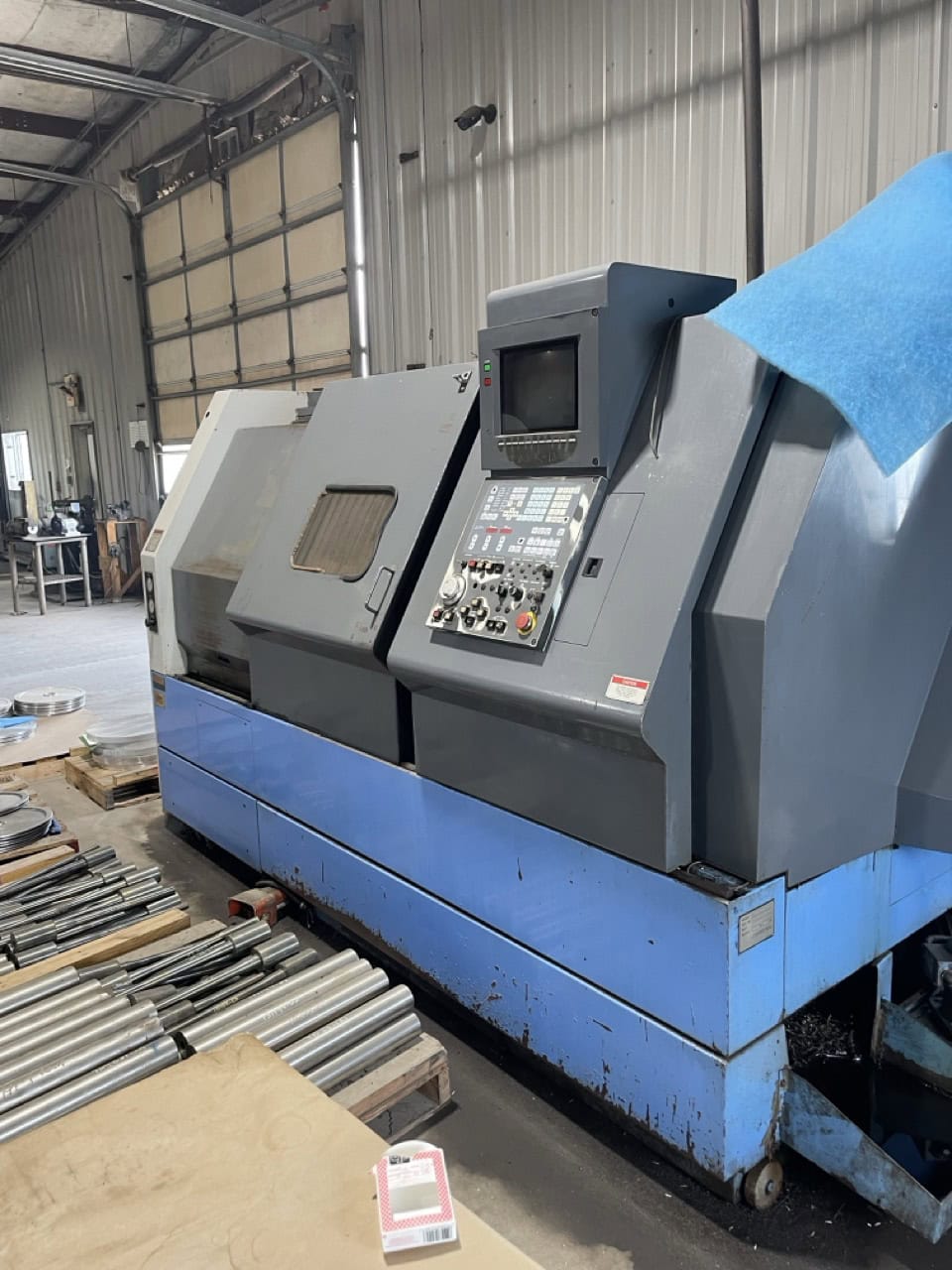

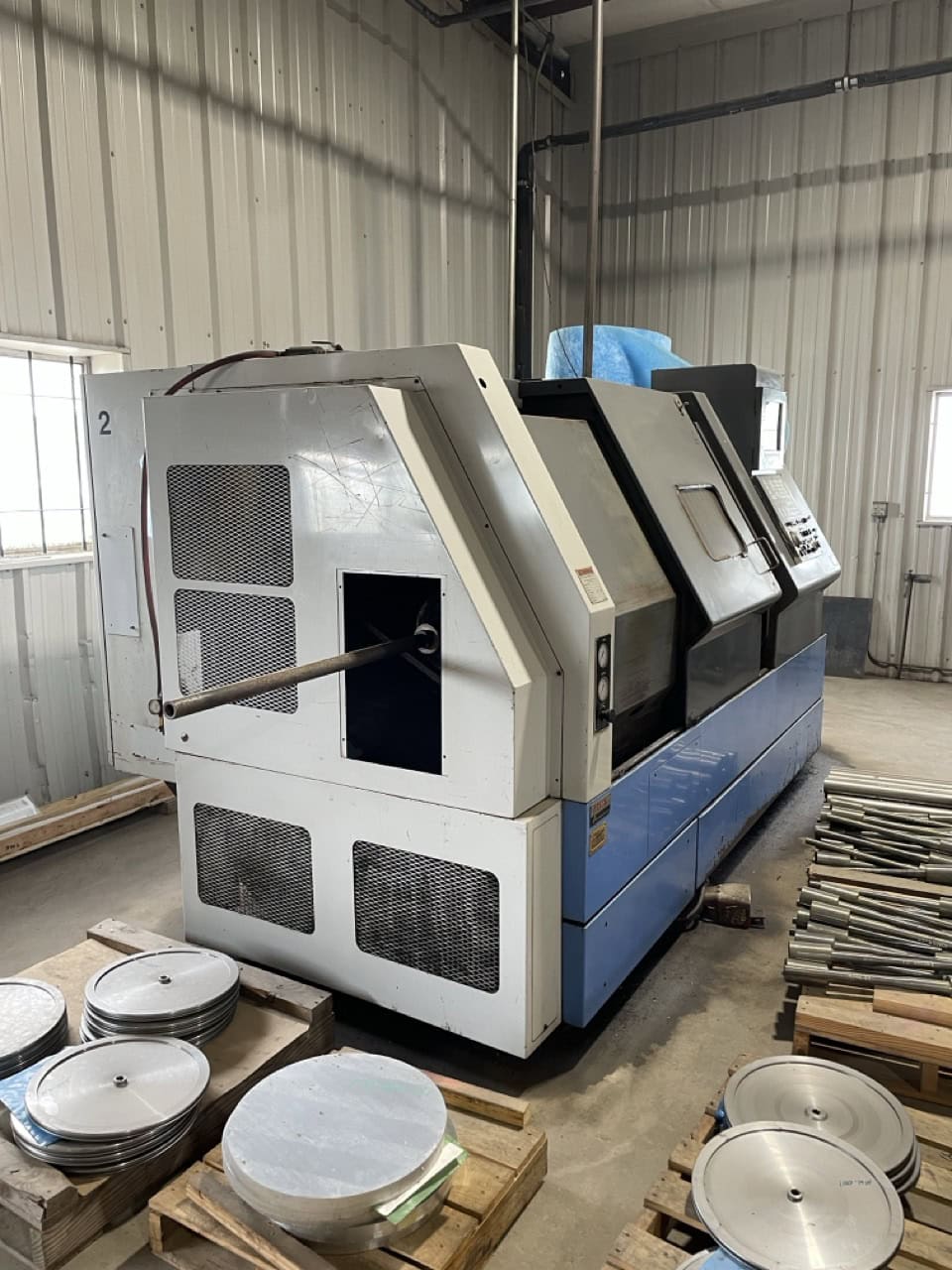

Mazak QT-35XS CNC Lathe, 1998 – 5″ Spindle Bore, 16″ Air Chuck

Max Turning Diameter: 18.35″
Max Turning Length (Distance Between Centers): 40.75″
Swing Over Bed: 25.93″
Max Bar Capacity: 4.5″
X‑Axis Travel: 10.63″
Z‑Axis Travel: 40.55″
Rapid Traverse (X & Z): 945 IPM
Spindle Bore: 5″
Spindle Speed: 2500 RPM
Spindle Motor: 30/35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Power Source: AC 220 V, Three‑Phase, 60 Hz
Power Requirement: 68 Amps
Machine Weight: Approximately 12,000 Lbs

Equipped With:
16″ Air Chuck
