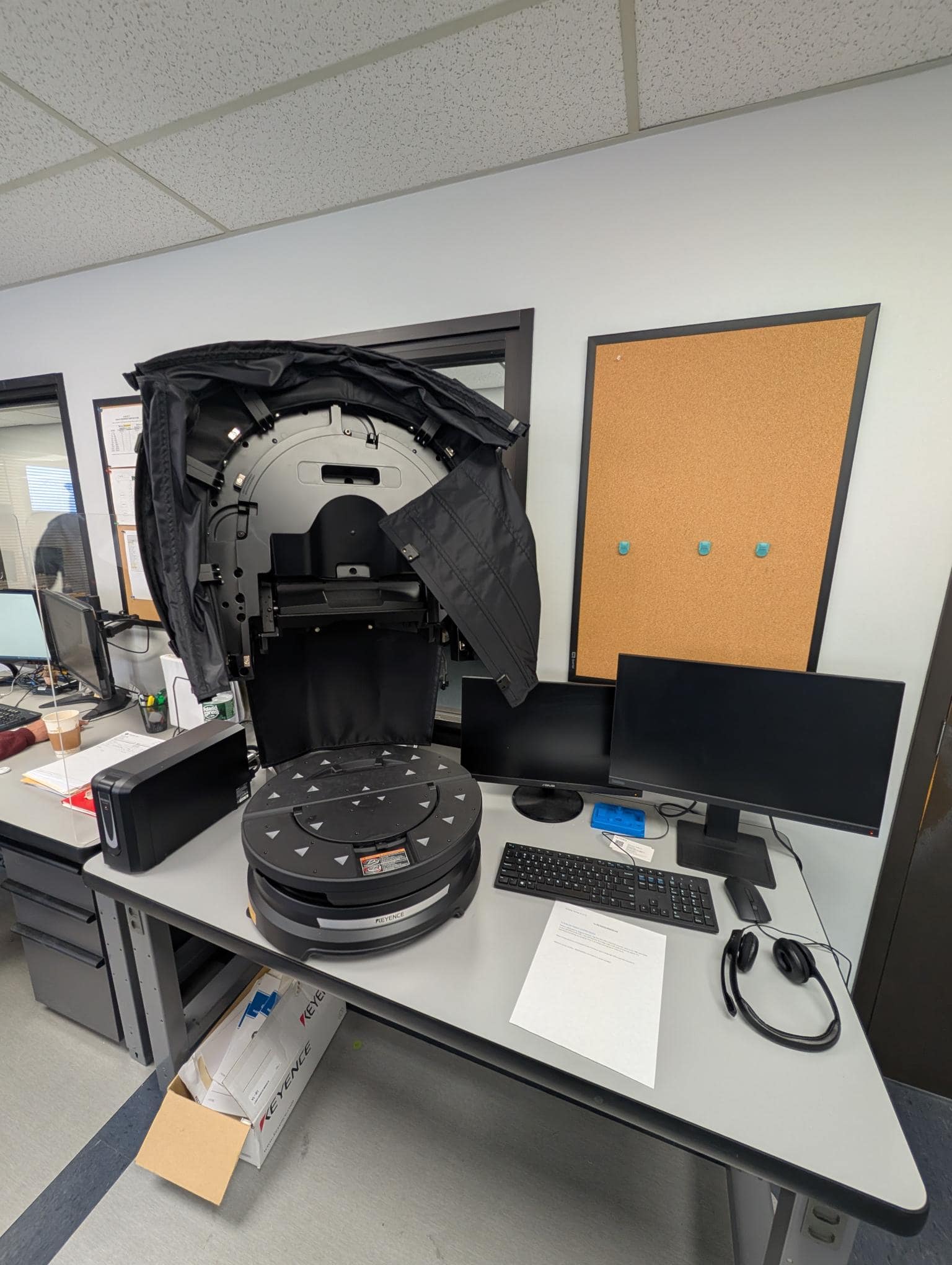

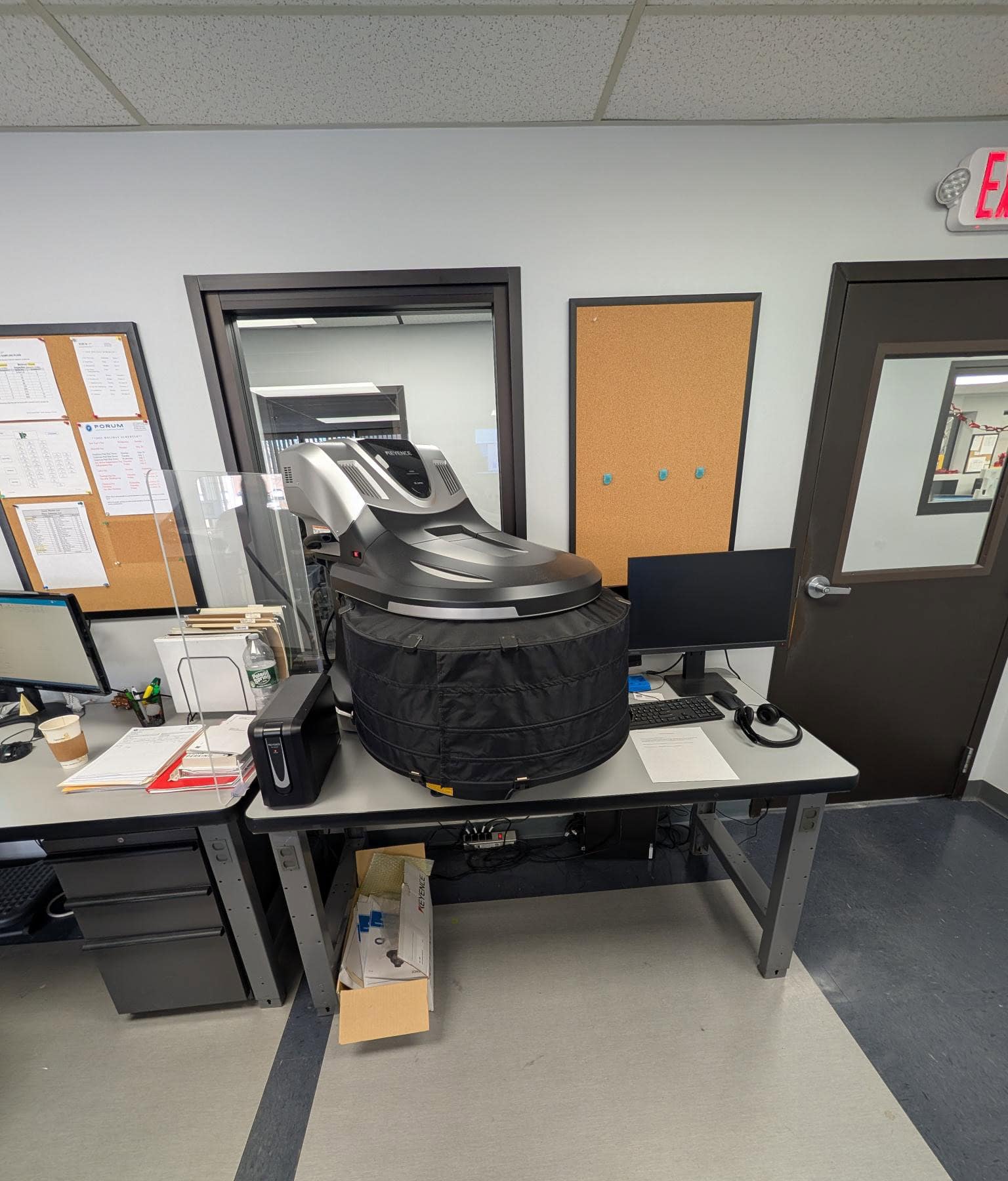

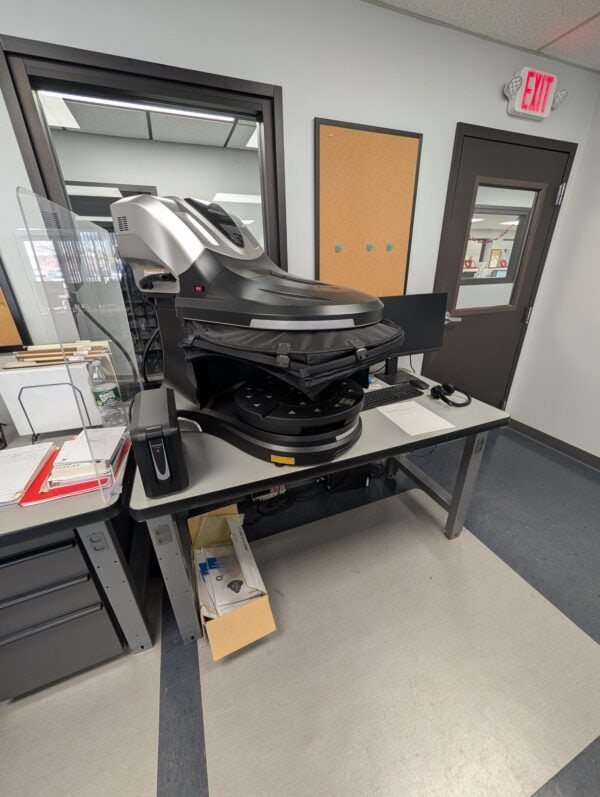

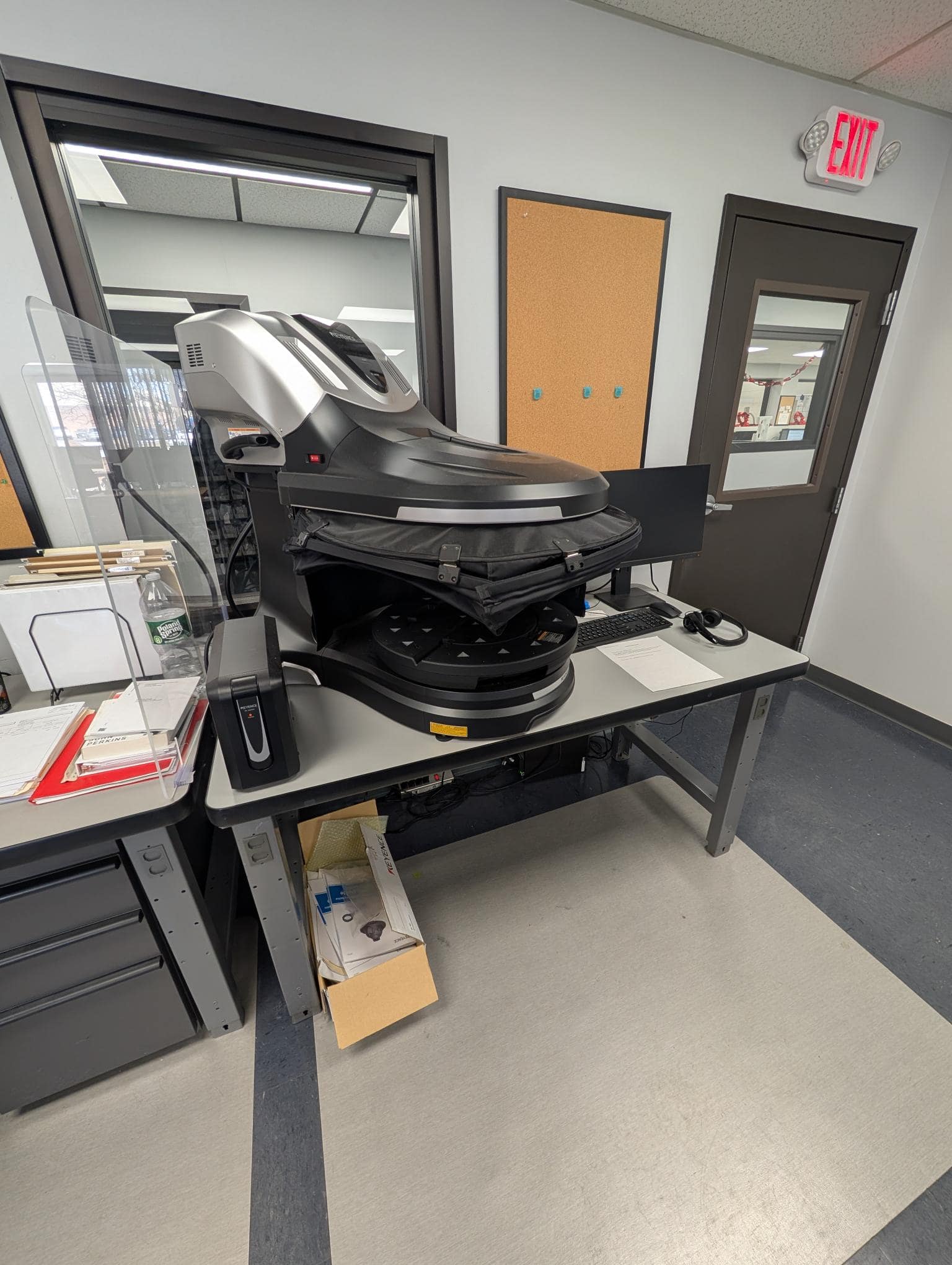

Keyence VL-770 3D Scanner CMM, 2023 – Fully Equipped, Low Hours

Optical Transmitter System: High-brightness dual projector module
Optical Receiver System: Low/high magnification offset dual optical module with wide dynamic range

Light Sources:
Measurement Light Source: Blue LED
Color Texture Light Source: LEDs in 3 colors (red, green, blue)
Captured Data Format: Full-color textured 3D mesh data
Repeatability (σ): 2 μm*1
Measurement Accuracy: ±10 μm*2
Measurement Resolution: 9 million points

Measurement Modes:
Low Magnification: High speed, Normal, Fine (wide field)
High Magnification: Normal, Fine (High resolution)
Measurement Range:
Low Magnification: ø300 × H 200 mm ø11.81″ × H 7.87″(wide field)
High Magnification: ø70 × H 50 mm ø2.76″ × H 1.97″(High resolution)

Automatic XY Combined Measurement Range
Low Magnification (2 × 2 composition): ø500 × H 200 mm ø19.69″ × H 7.87″
Low Magnification (3 × 1 composition): W 580 × D 300 × H 200 mm W 22.83″ × D 11.81″ × H 7.87″*3
High Magnification (2 × 2 composition): ø110 × H 50 mm ø4.33″ × H 1.97″
High Magnification (3 × 1 composition): W 150 × D 70 × H 50 mm W 5.91″ × D 2.76″ × H 1.97″*3

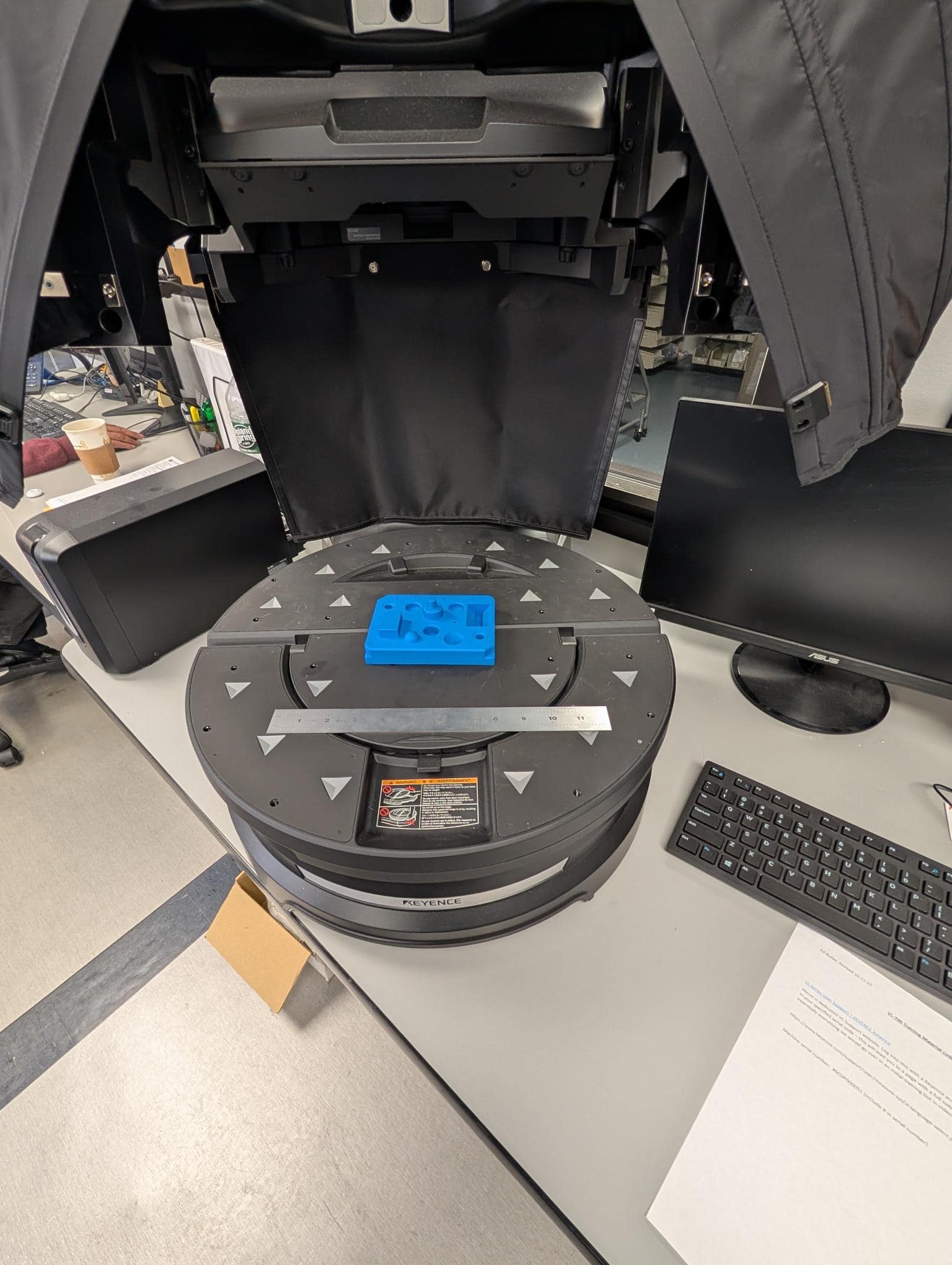

Stage Configuration: Motorized XYθ stage mechanism
Stage Top Panel Size: ø500 mm ø19.69″
Stage Rotation: 360° (infinite rotation)
Stage Movement Range: ø200 mm ø7.87″
Tilt Mechanism: Up to 45°
Load Capacity: 50 kg 110.23 lb
Control PC: Dedicated PC specified by KEYENCE
Power Supply:
Power Voltage: 100 to 240 VAC ±10%, 50/60 Hz
Power Consumption:
Controller/Measurement unit: 320 VA
Stage: 80 VA
Environmental Resistance:
Ambient Temperature Range: +15 to +30°C 59.0 to 86.0°F
Ambient Humidity Range: 20 to 80% RH (no condensation)
Weight:
Controller: 3.7 kg 8.16 lb
Stage: 26 kg 57.32 lb
Light-blocking Cover: 5.5 kg 12.13 lb
Measurement Unit: 19.6 kg 43.21 lb

Equipped With:
VL-700 Controlle
VL-770 Measurement Unit
VL-A3E Accessory Kit
VL-C35 Light Blocking Cover
VL-B1 Ball Gauge
VL-H3G GD&T Software
Op-88145 Calibration Board
