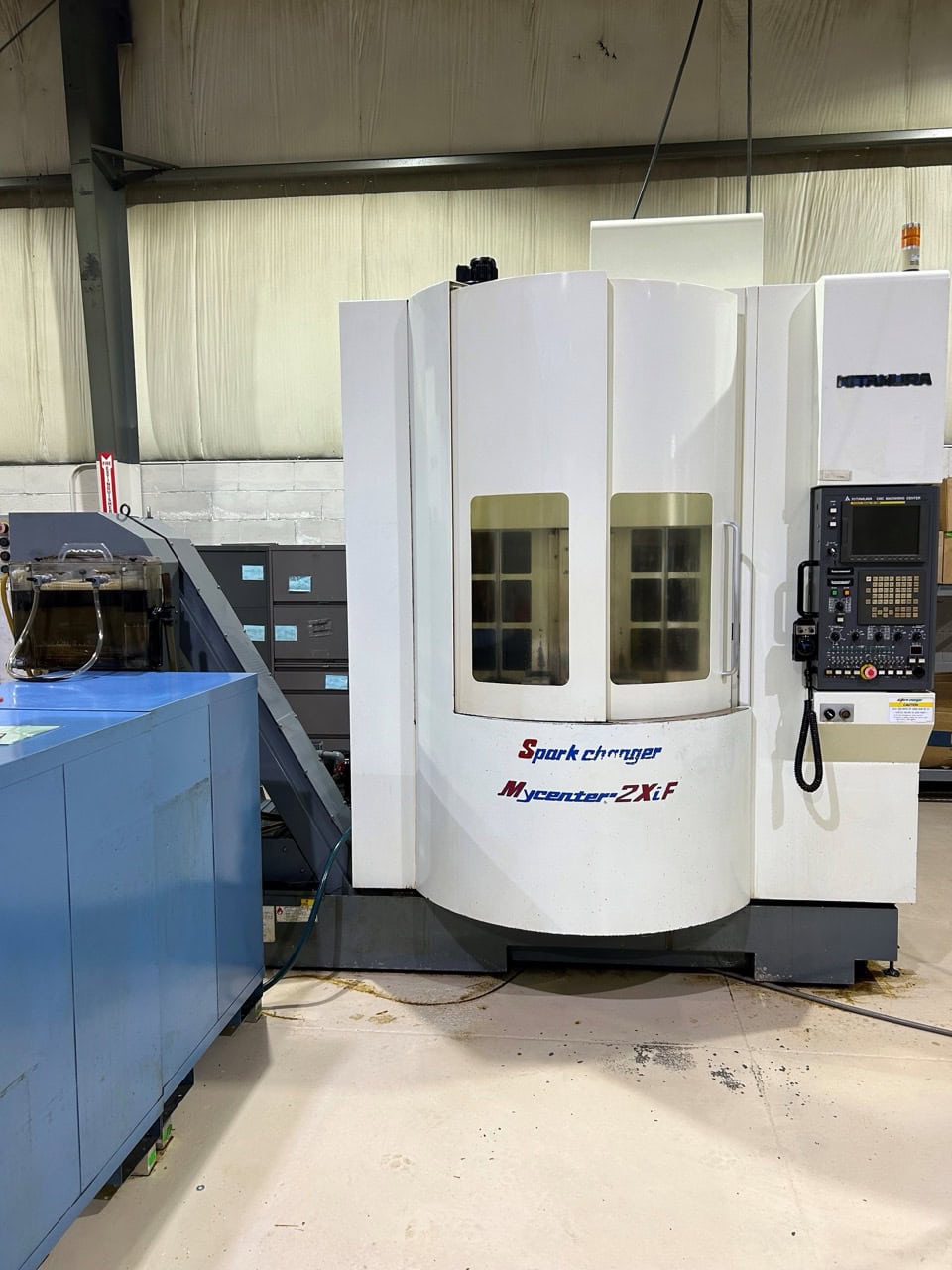

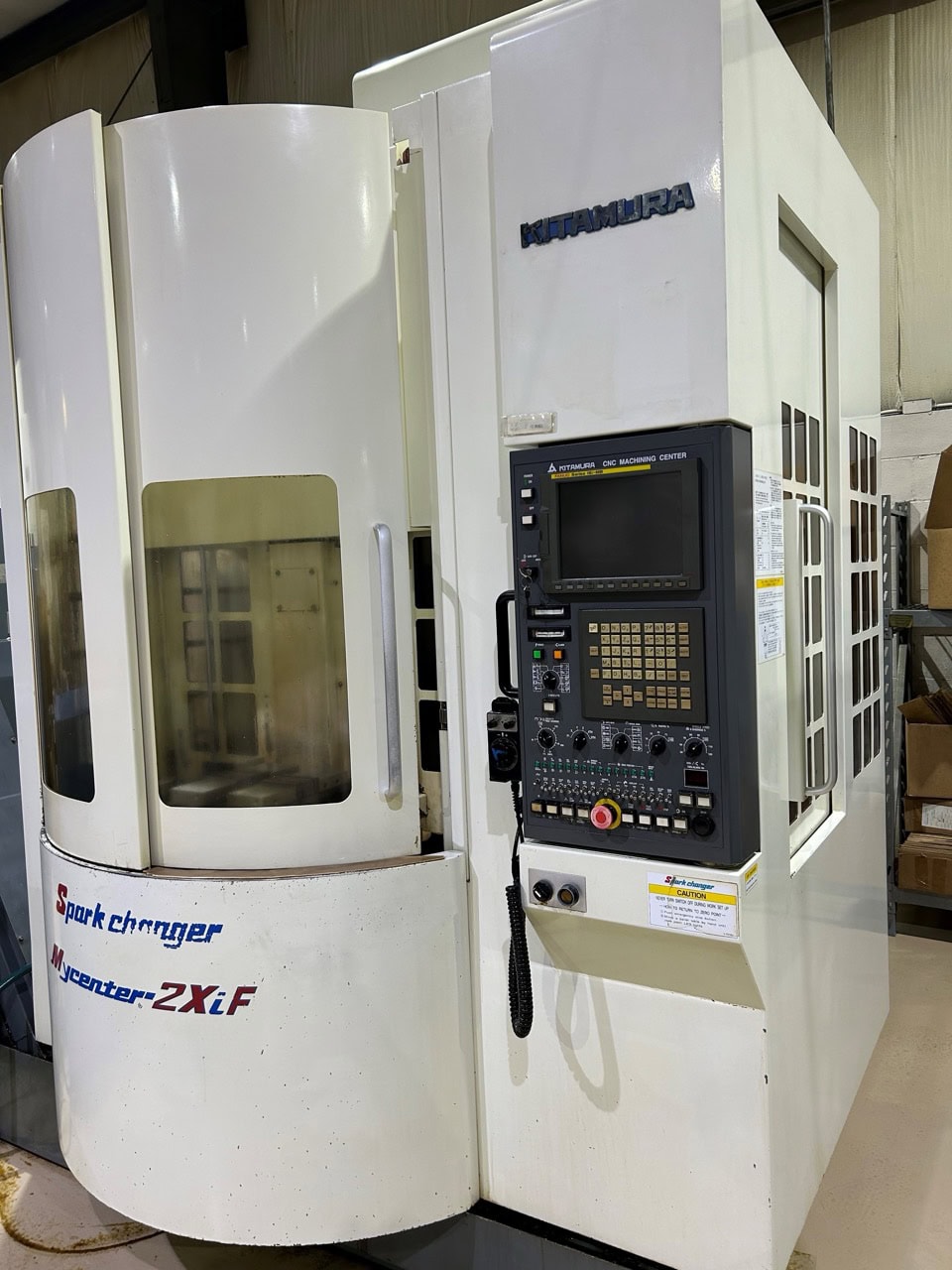

Kitamura 2XiF Spark Changer VMC, 2004 – TSC, 15K RPM Spindle

Table Size (x2): 14” x 22”
Maximum Table Load: 220 Lbs.

Travels
X-Axis Travel: 20”
Y-Axis Travel: 14”
Z-Axis Travel: 18”
Distance from Table Surface to Spindle Center: 2.5” to 20.6”
Distance from column slide way to table center line: 3.94 to 27.95
Spindle Taper: #40 NST
Spindle Speed: 20 to 15,000rpm
Spindle Motor: AC 13
Rapid Feed X, Y, : 1969 IPM
Rapid Feed Z, : 1417 IPM
Cutting Feed Rate: 0.04 – 1417 IPM
Positioning Accuracy: ±0.000079”
Repeatability: ±0.000039”

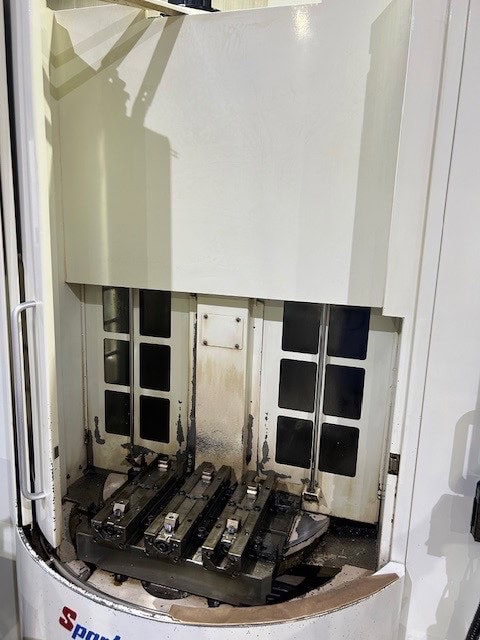

Number of Pallets: 2 APC
Tool Storage Capacity: 24 Tools
Power Requirement: 25 KVA, 200v AC, 3 Phase
Air Requirement: 90 psi, 12 cfm
Machine Dimensions: 139.6” x 102” x 117.3” Tall
Machine Net Weight: 14,300 Lbs.

Equipped With:

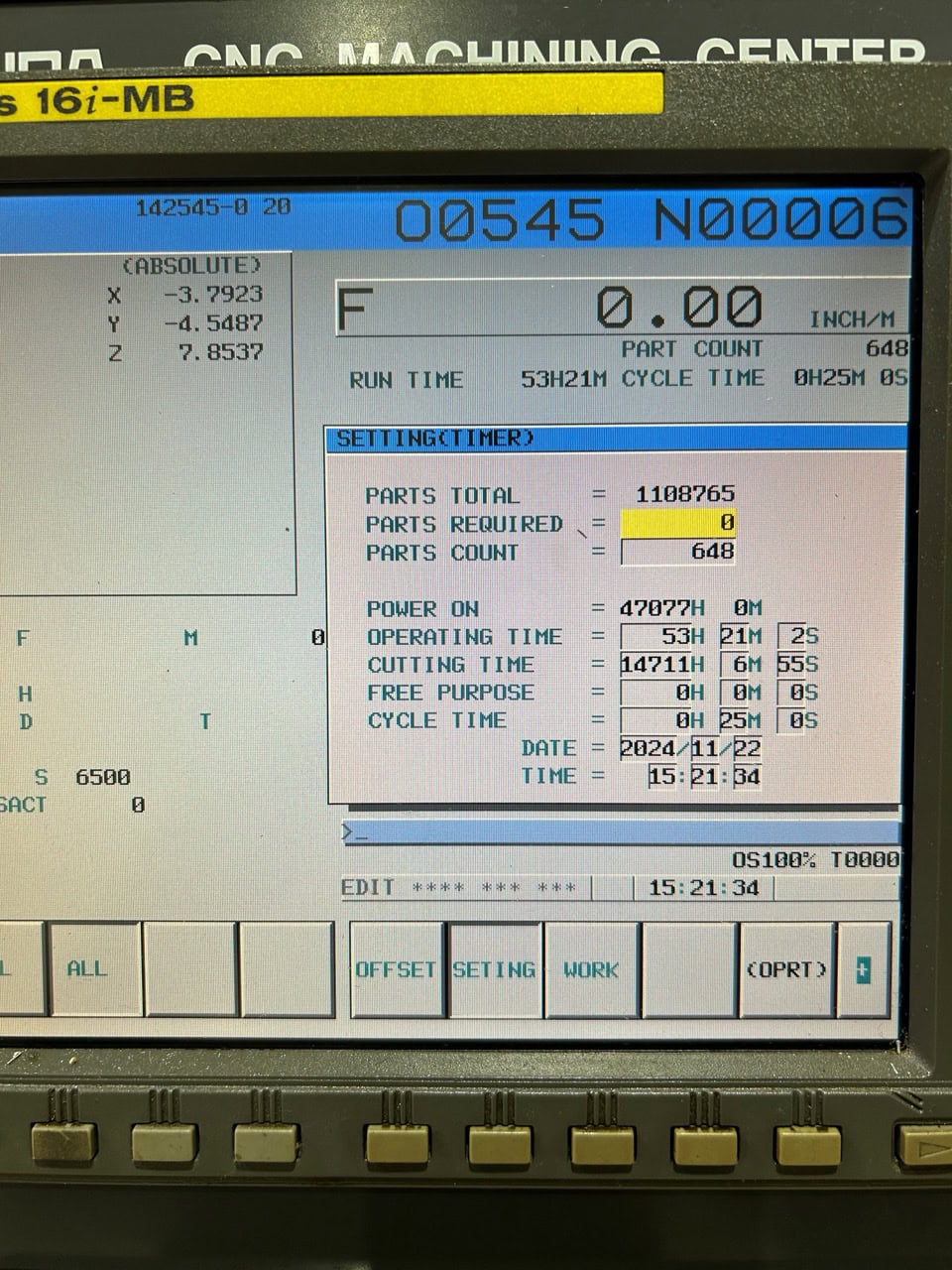

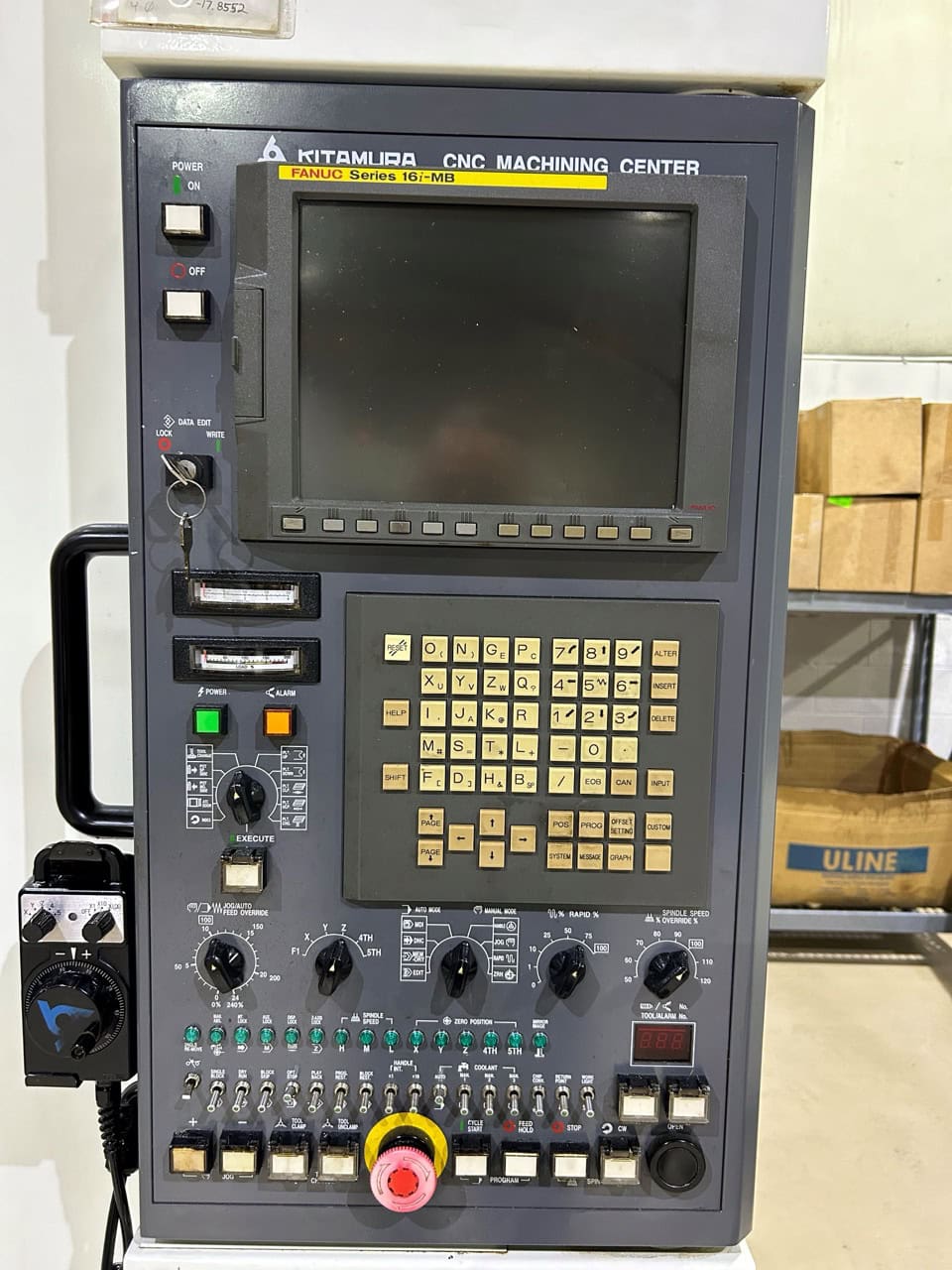

Fanuc 16i MB CNC Control
15,000 RPM Spindle
Coolant thru Spindle (220 psi)

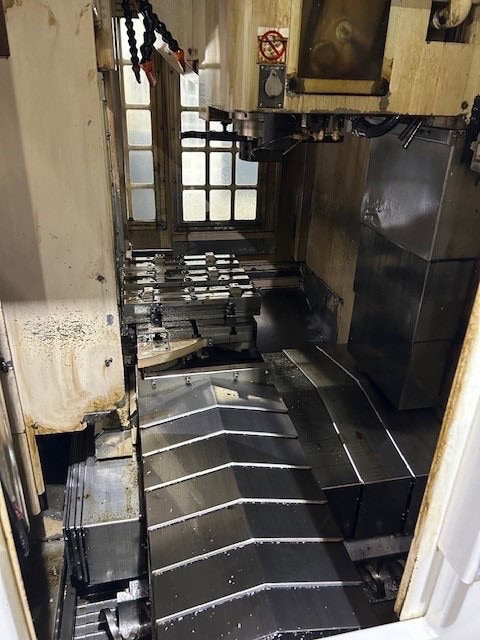

Solid Boxed Ways
Internal Chip Augers

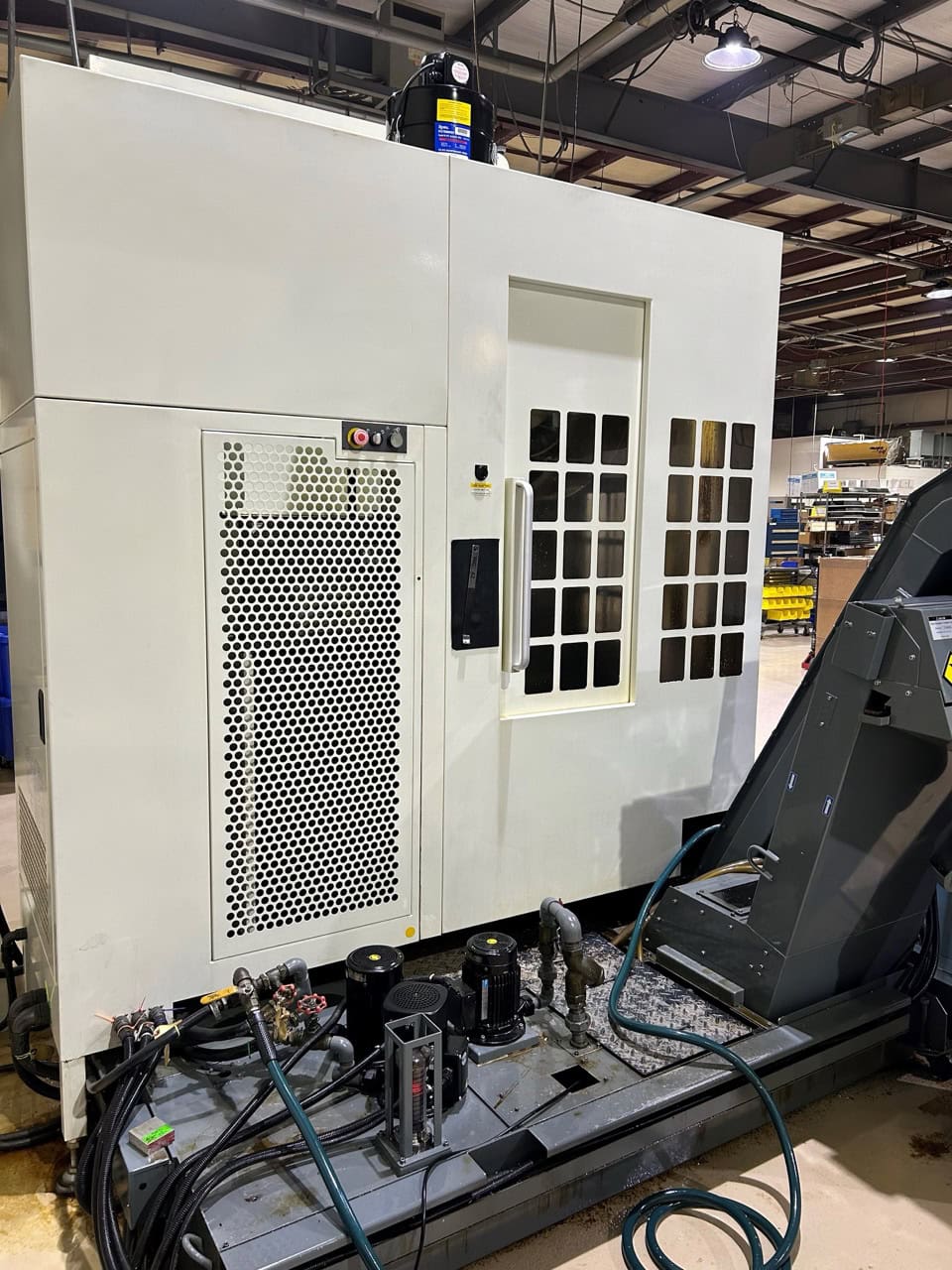

double decker style Chip Conveyor/Filtration system
Spindle orientation
Spindle nose air blow
Coolant device

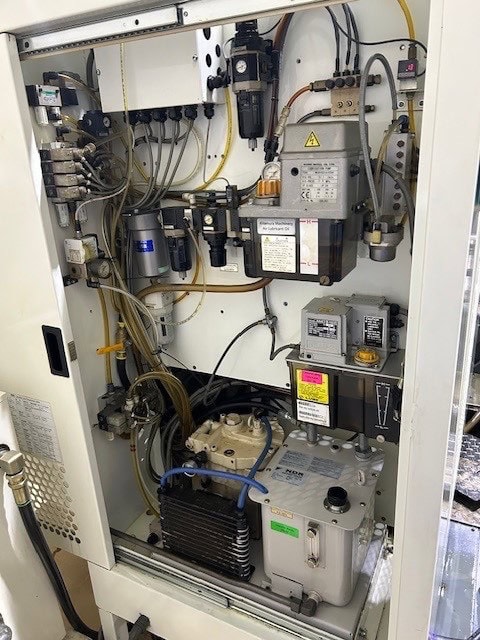

Automatic way lubrication
Self diagnosis function
Spindle speed meter
High-fence Splash guard
Stainless chip tray
Spindle oil cooler
Oil air unit (Single & Each axis0
Air FRL unit
High precision tapping function
4 additional M codes
Work light
Cycle finish indication lamp
24 tools ATC
Servo ATC magazine
ATC magazine manual indexing
ATC magazine safety guard
RS232C interface
Operation panel with M function indicator
Controlled counter balance
Separated manual pulse generator (for Sparkchanger)
Dual surface contact spindle
Door interlock
Intelligent advanced control
Chip Conveyor
