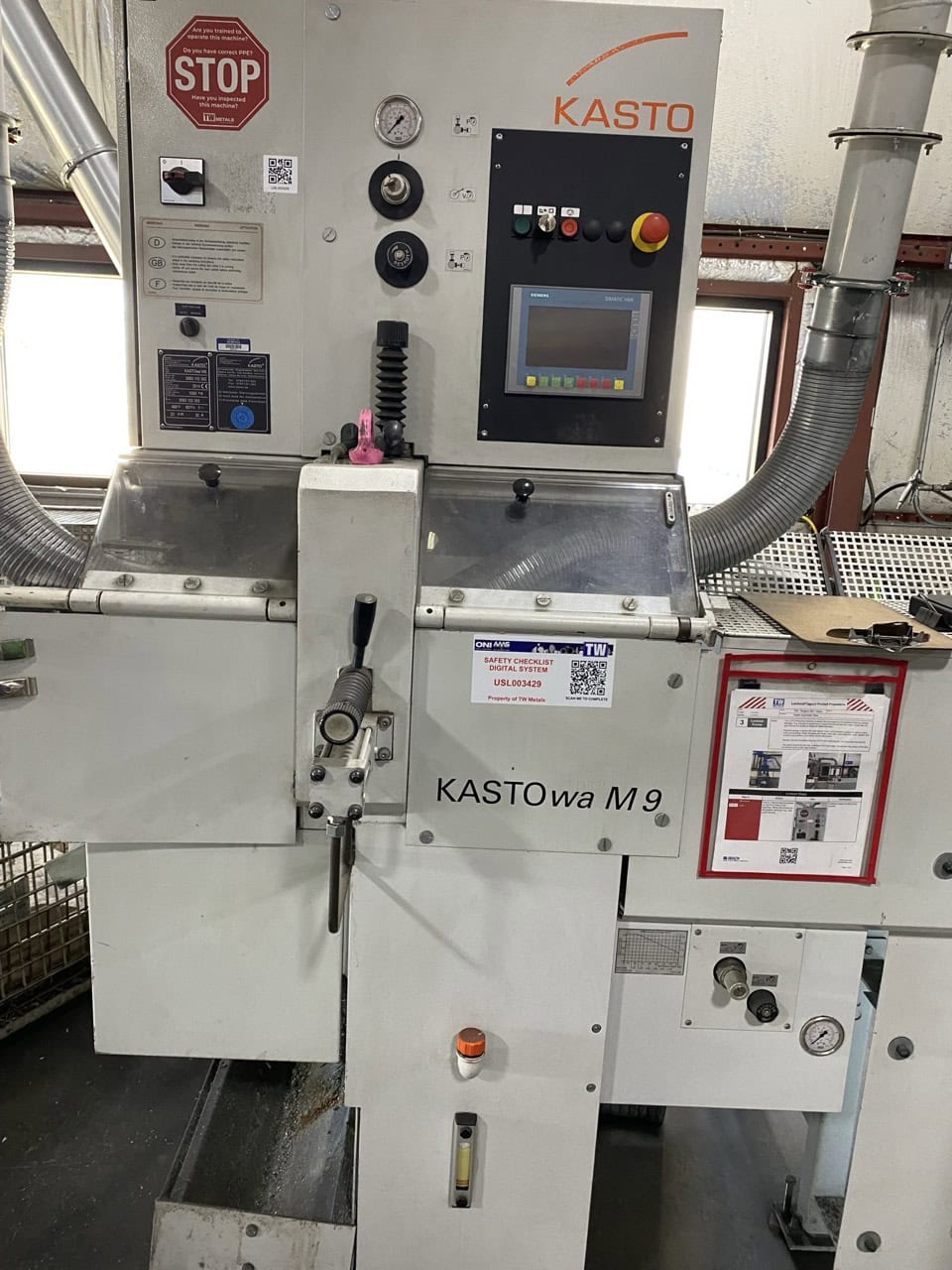

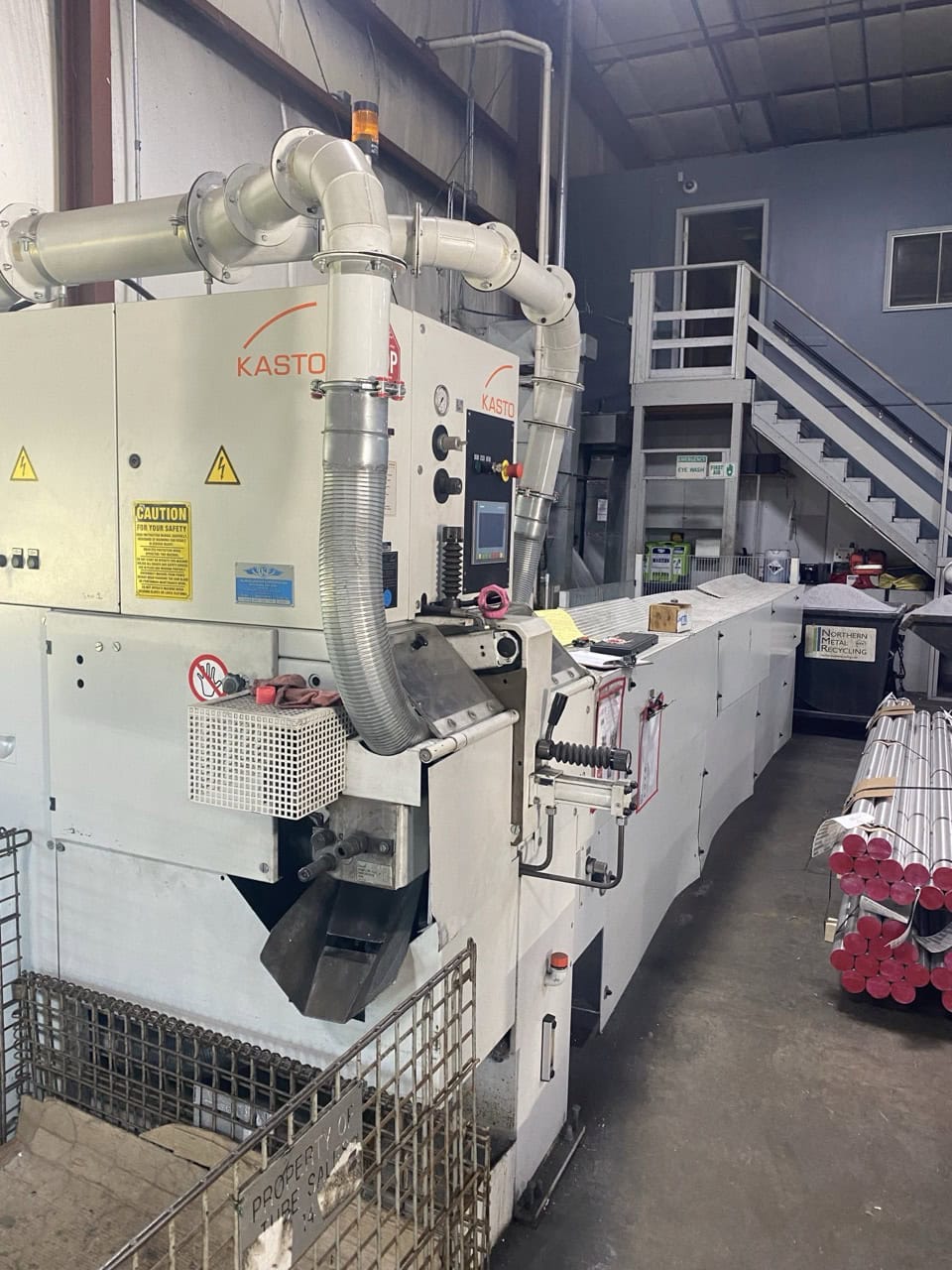

Klingelhofer KASTOwa-M9 Industrial Cold Saw, 2016

Machine Type: Industrial Cold Saw
Model Year: 2016
Manufacturer: Klingelhofer
Cutting Capacity:
Max Cutting Diameter: 120 mm (4.7 inches) to 250 mm (9.8 inches) depending on material and blade size
Max Pipe/Tube Size:
Round: Up to 250 mm (9.8 inches)

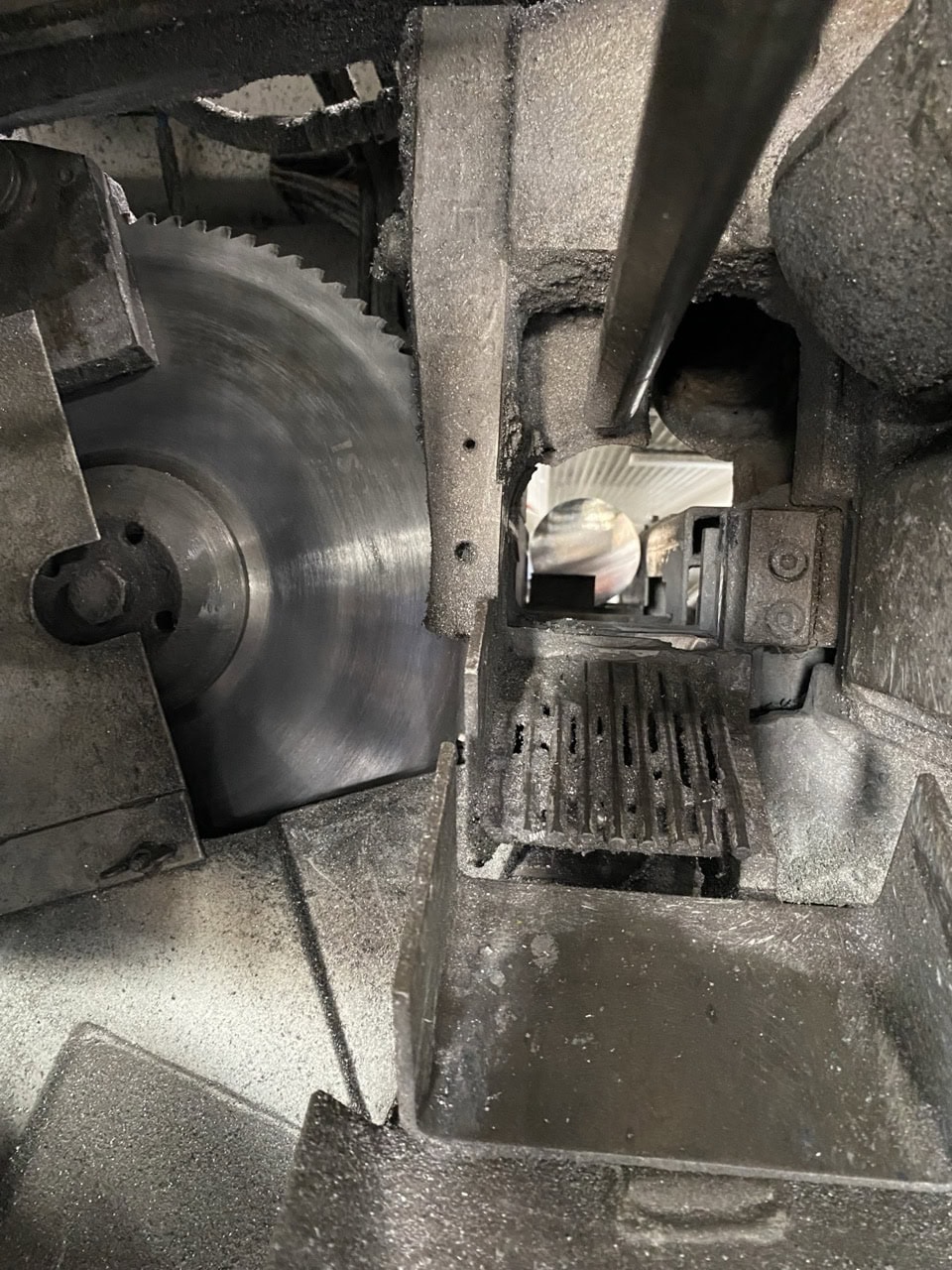

Blade Specifications:
Blade Diameter: 350 mm (14 inches) to 450 mm (18 inches)
Blade Type: High-Speed Steel (HSS) or Carbide-Tipped
Blade Speed: Variable, typically between 20 and 100 RPM
Motor Power:
Motor Power: 5.5 kW to 7.5 kW (7.5 HP to 10 HP)
Power Supply: 3-phase electric
Variable Cutting Speed: Adjusts to suit different materials and thicknesses
Feed Speed: Adjustable feed rate for precision cutting
Feed and Clamp System:

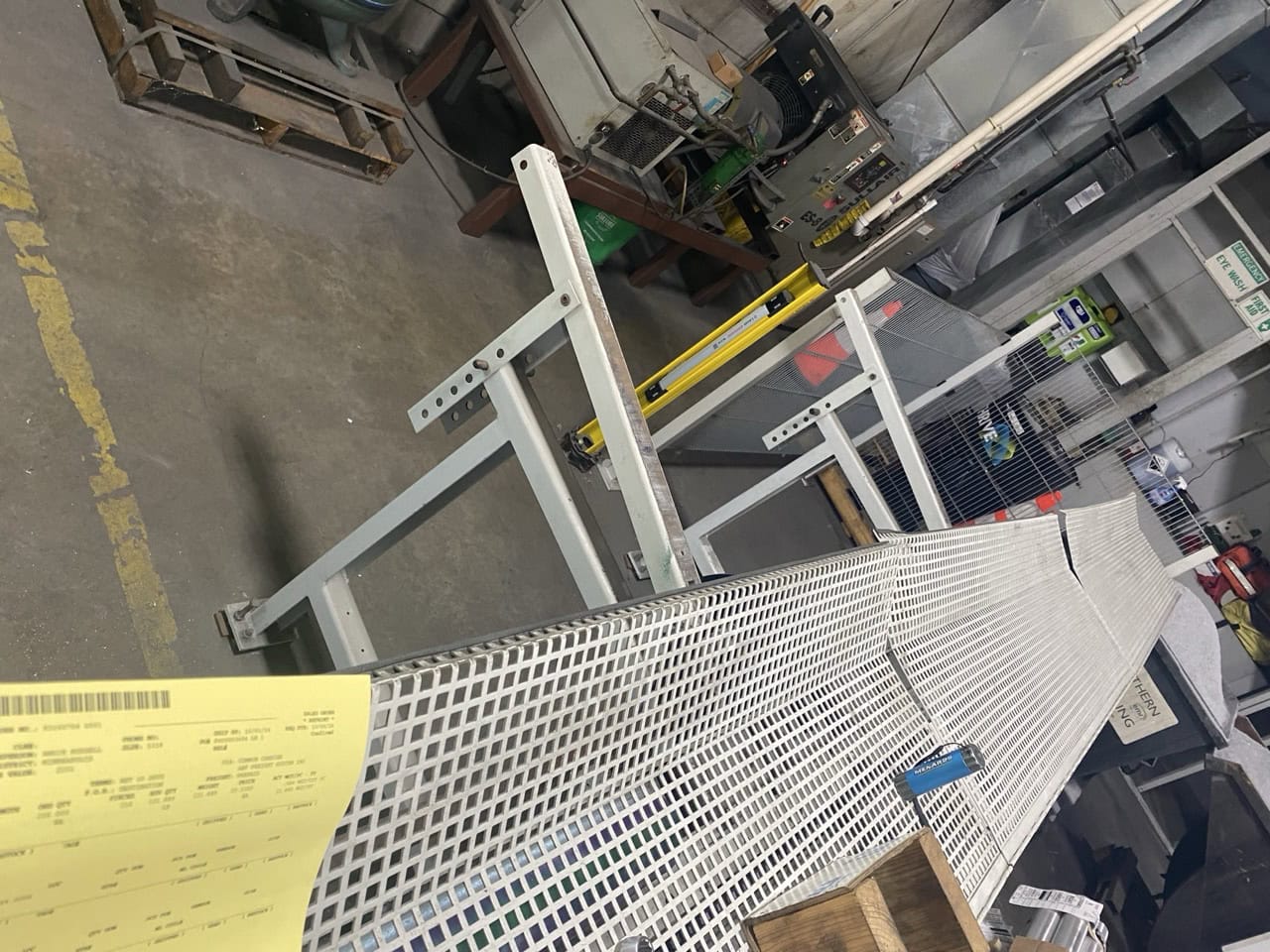

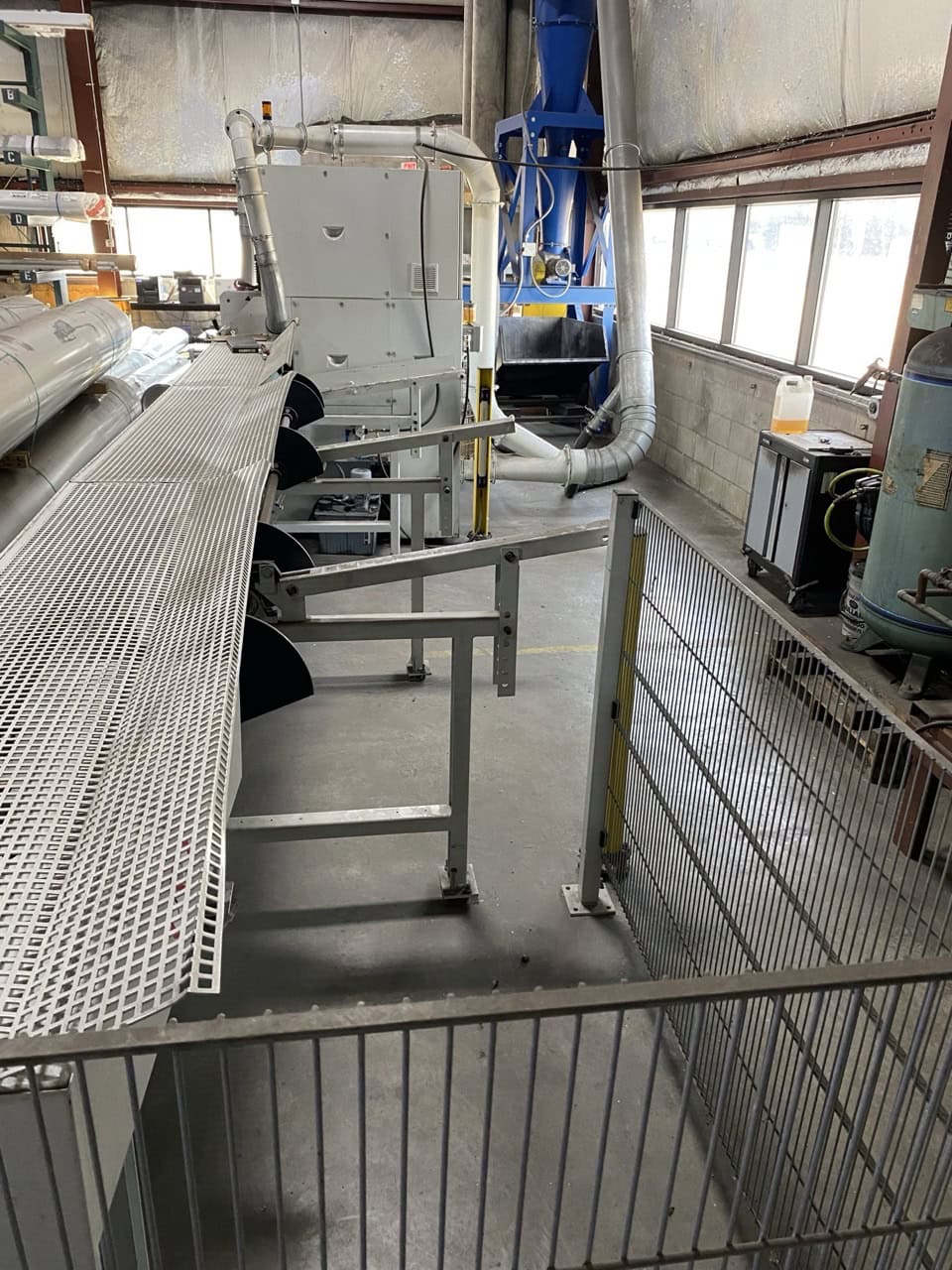

Automatic Feed: Precise material feed for consistent cuts
Clamp Type: Hydraulic Clamping System
Miter Range: ±45 degrees for angled cuts
Cooling System:
Flood Coolant System: To prevent heat buildup and extend tool life

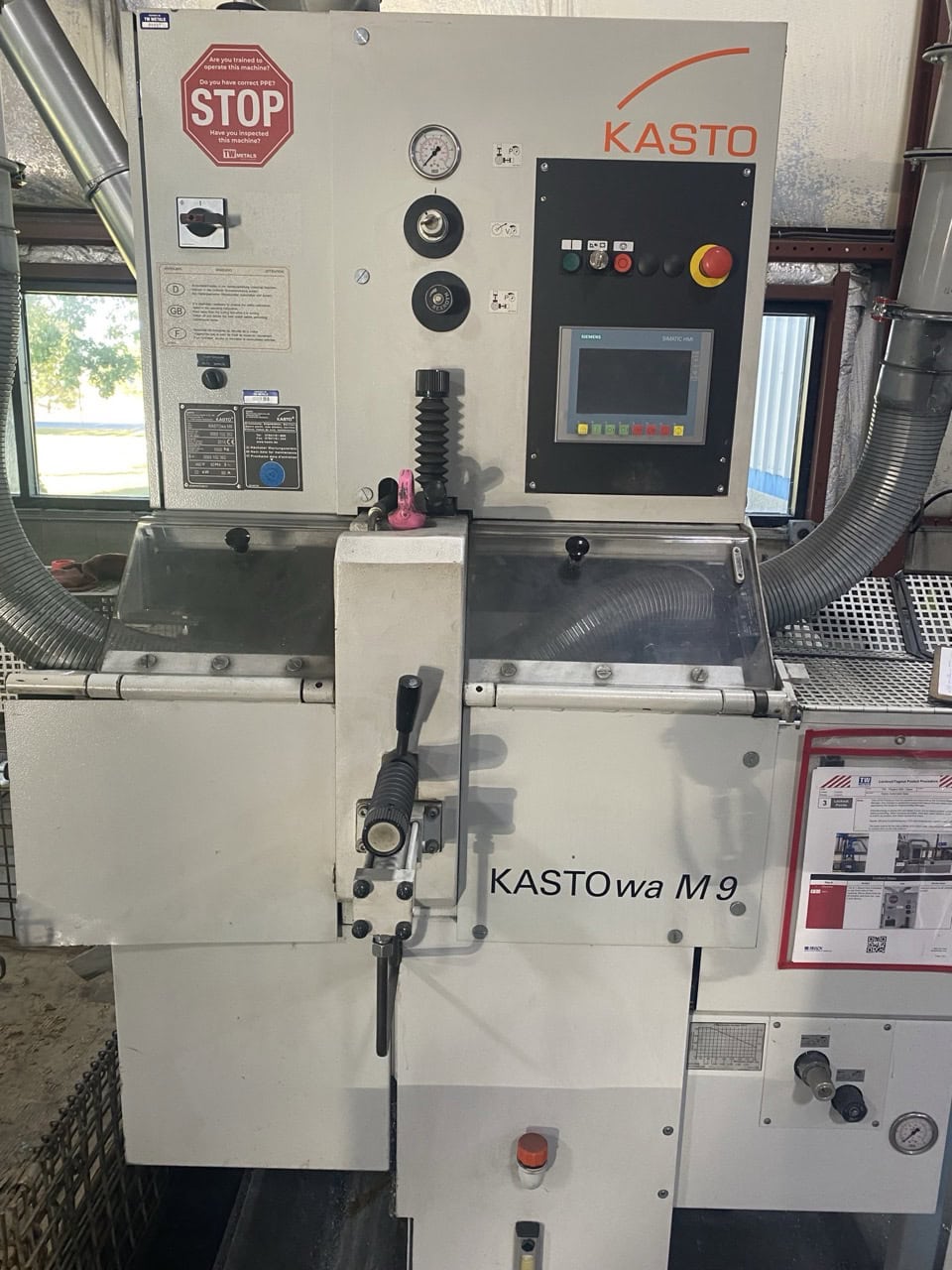

Control Type: Digital
Miter Angle and Speed Control: Allows operator to set parameters for each cut
Safety Features: Emergency stop, safety shields, and guarding around the blade
Dimensions and Weight:
Weight: 2,500 kg (5,500 lbs),
Footprint: Approx. 2.5m x 1.5m (8’ x 5’)
Safety Features:
Emergency Stop: Quick shutdown in case of issues
Blade Guarding: Full guard for operator safety during operation

Additional Features:

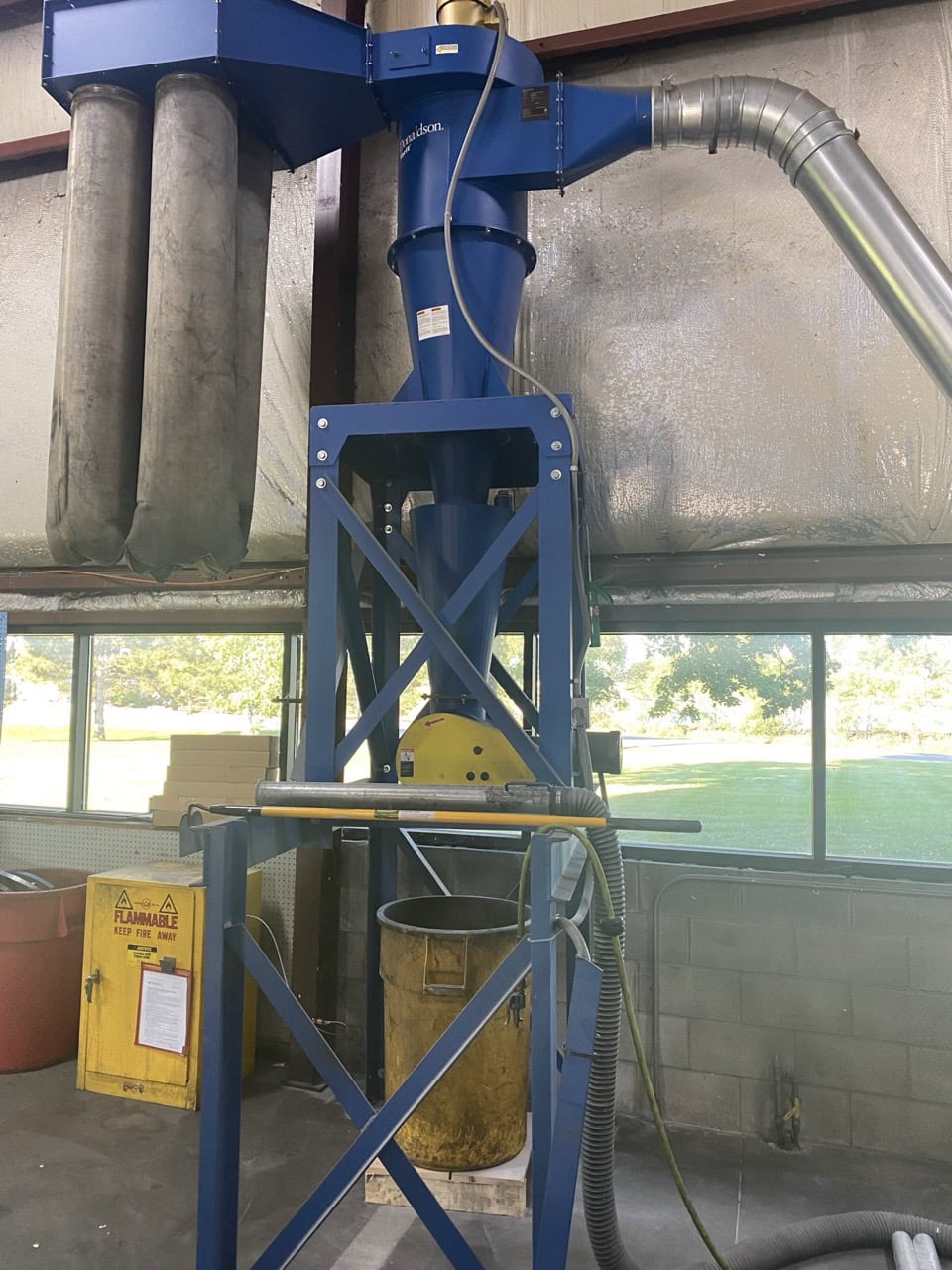

Dust Collection: Integrated system to collect chips and debris during cutting
Digital Length Measurement: For accurate cut length and repeatability
