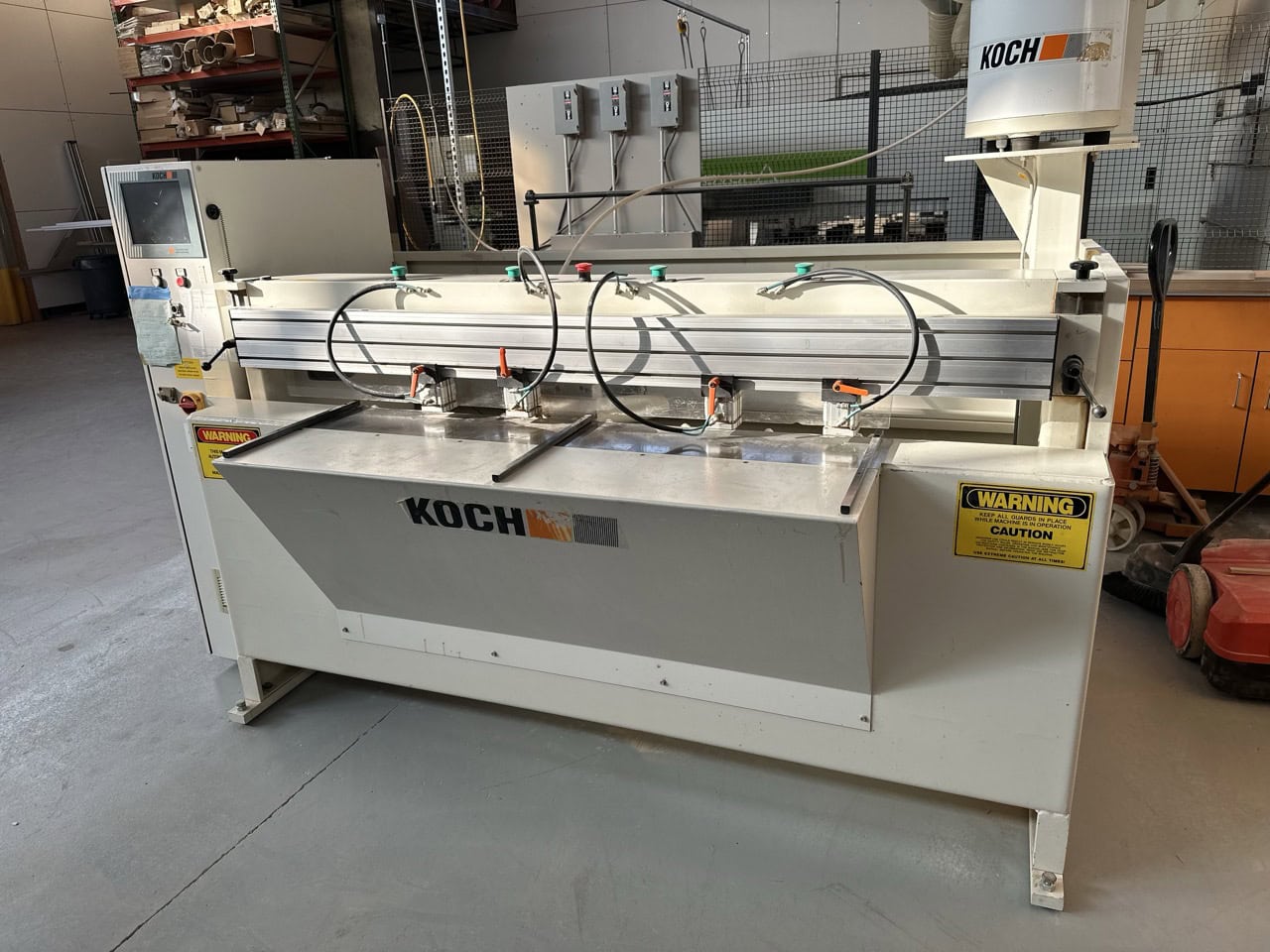

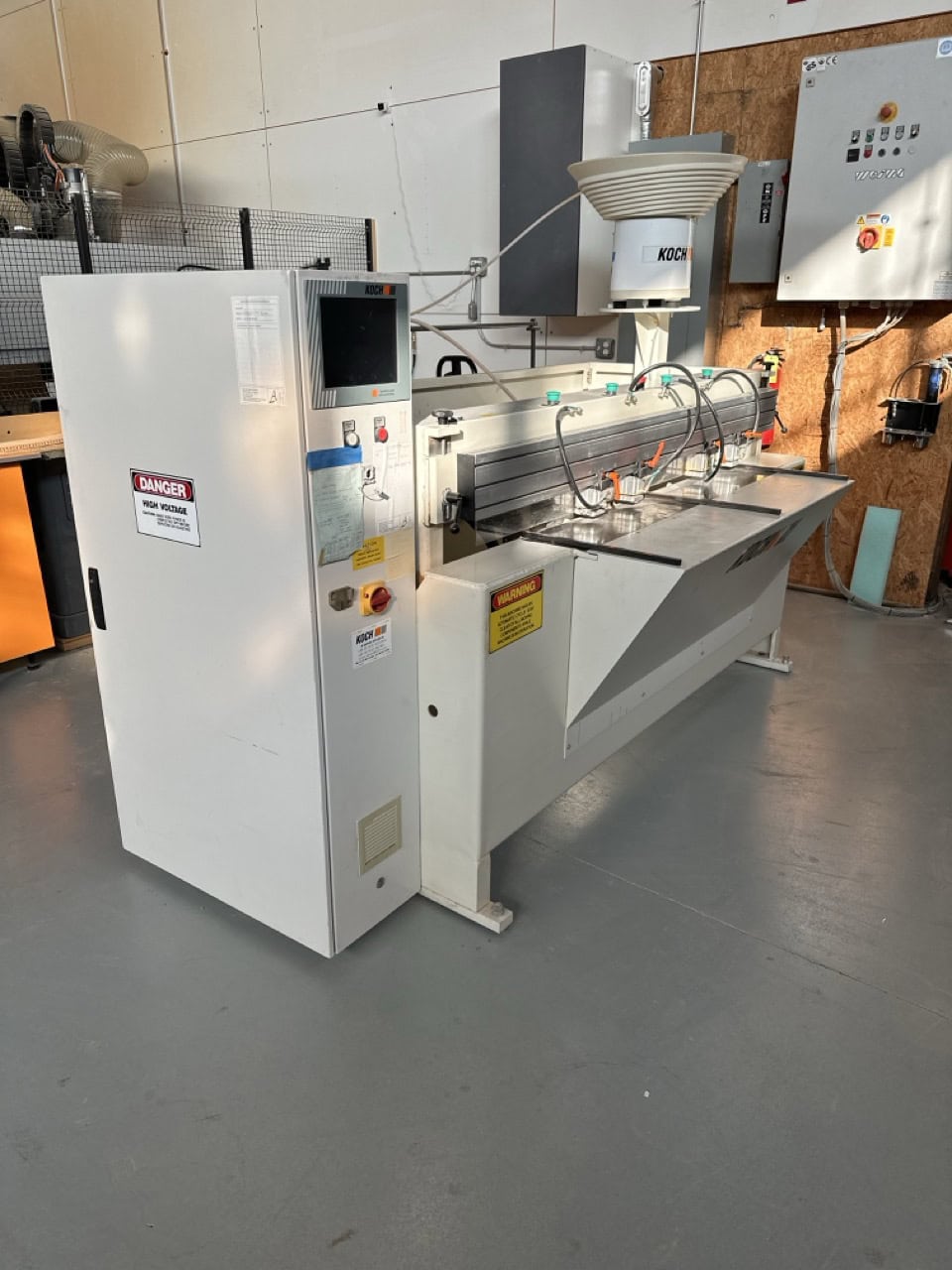

Koch Sprint PTP 3/1300 Automated Dowel Machine, 2007

Stock Length Range: 4.25″ – 31.5″
Stock Width Range: 0.75″ – 51″
Stock Thickness Range: 0.5″ – 2.4″
Horizontal Drilling Spindle Motor: 1.25 HP
Horizontal Drill Speed: 7,200 RPM
Max Drilling Depth: 1.1″
Drill Bit Shank Diameter: 0.39″
Dowel Diameter Supported: 0.31″ And 0.39″
Dowel Length Range: 1.2″ – 1.4″
Dowel Projection Range: 0.28″ – 0.55″
Control Interface: CNC With Color Touchscreen
Power Supply: 480 VAC 3 Phase
Machine Dimensions Approx: 103″ × 52″ × 80″
Approximate Weight: 2,000 Lbs

Equipped With

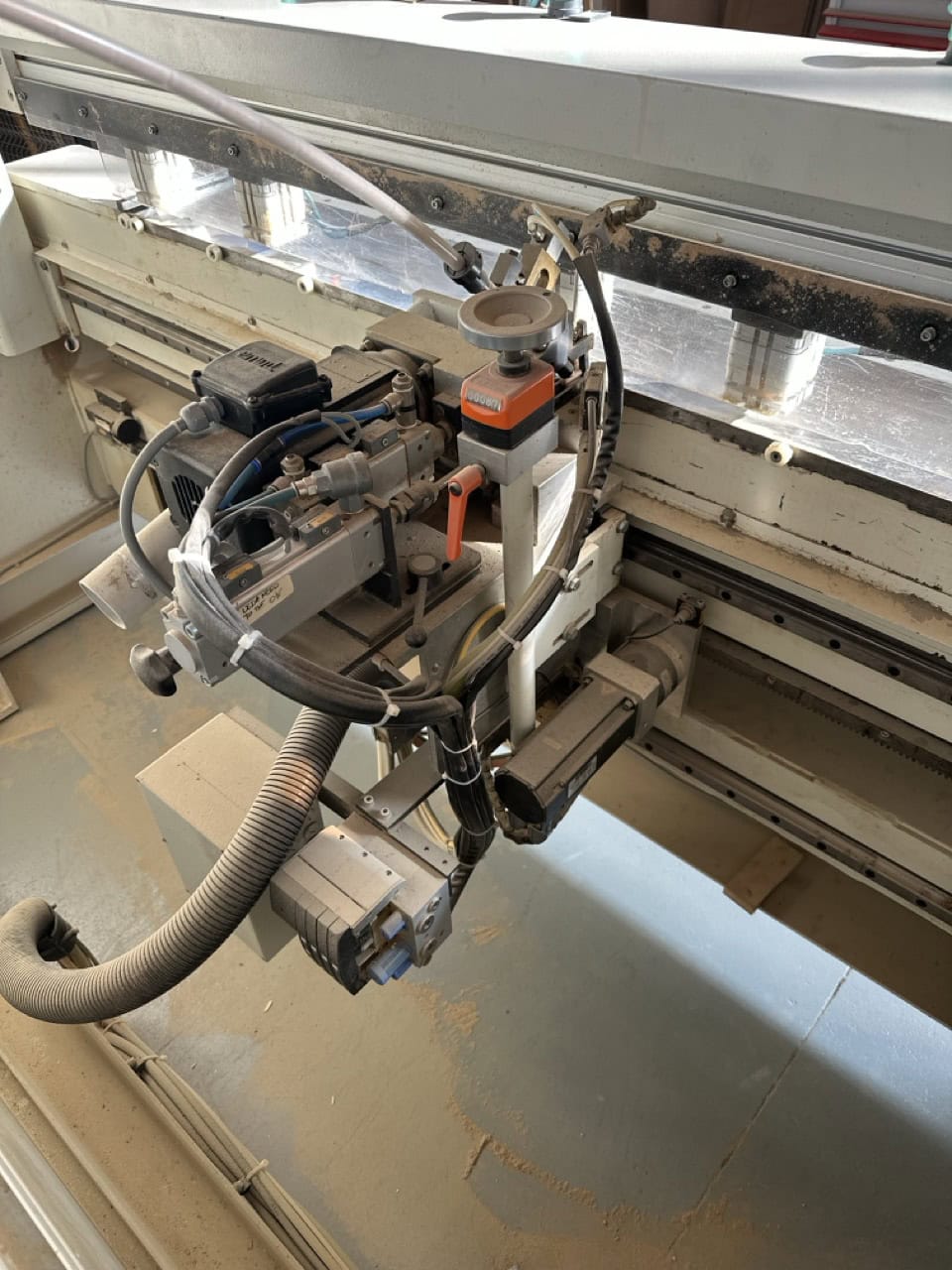

Horizontal Drilling Station
Glue Injection And Dowel Insertion System
Vibrating Hopper Dowel Feeder
Central Lubrication System

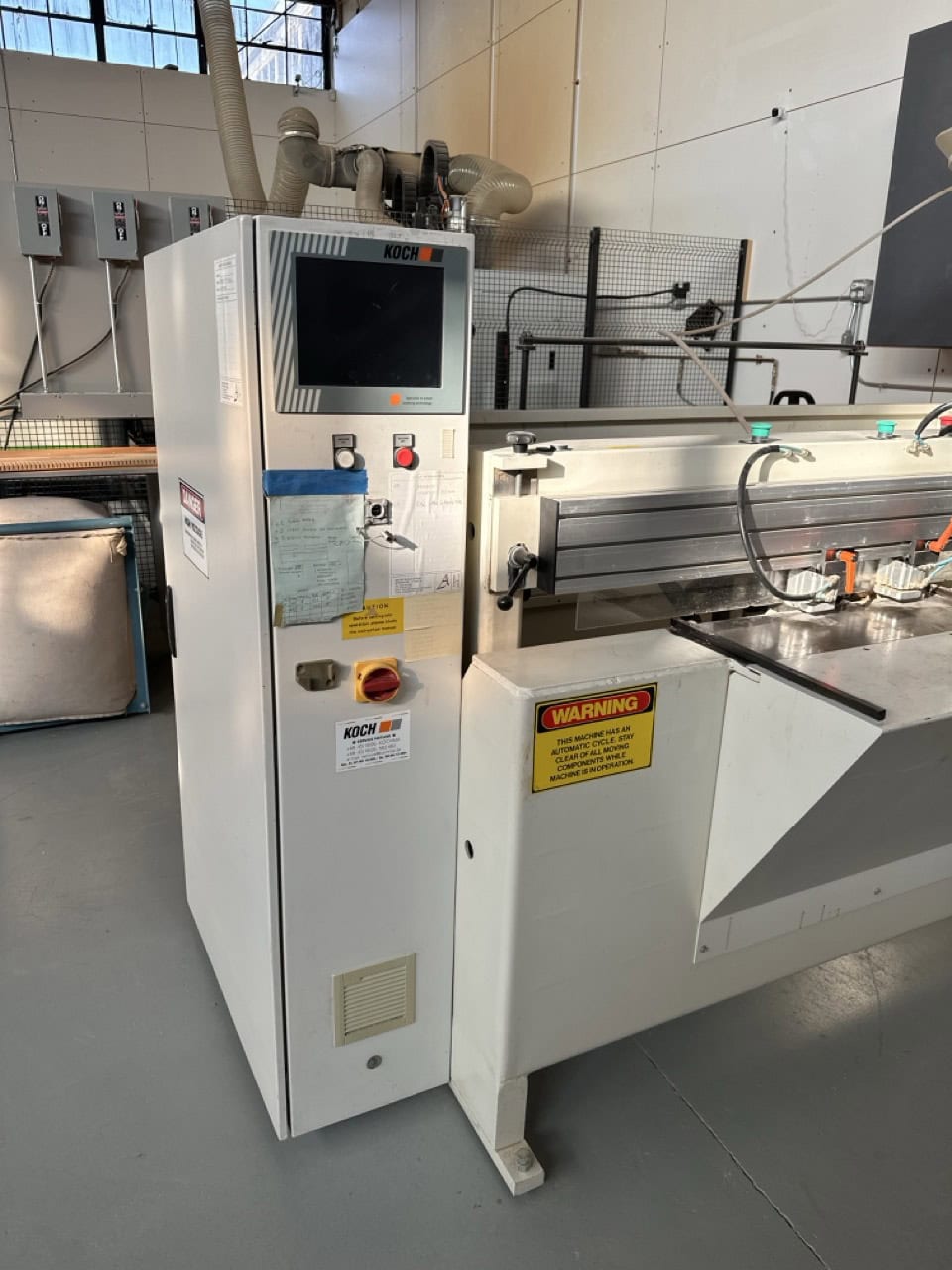

CNC Control With Monitor And Touchscreen
All Available Manuals
