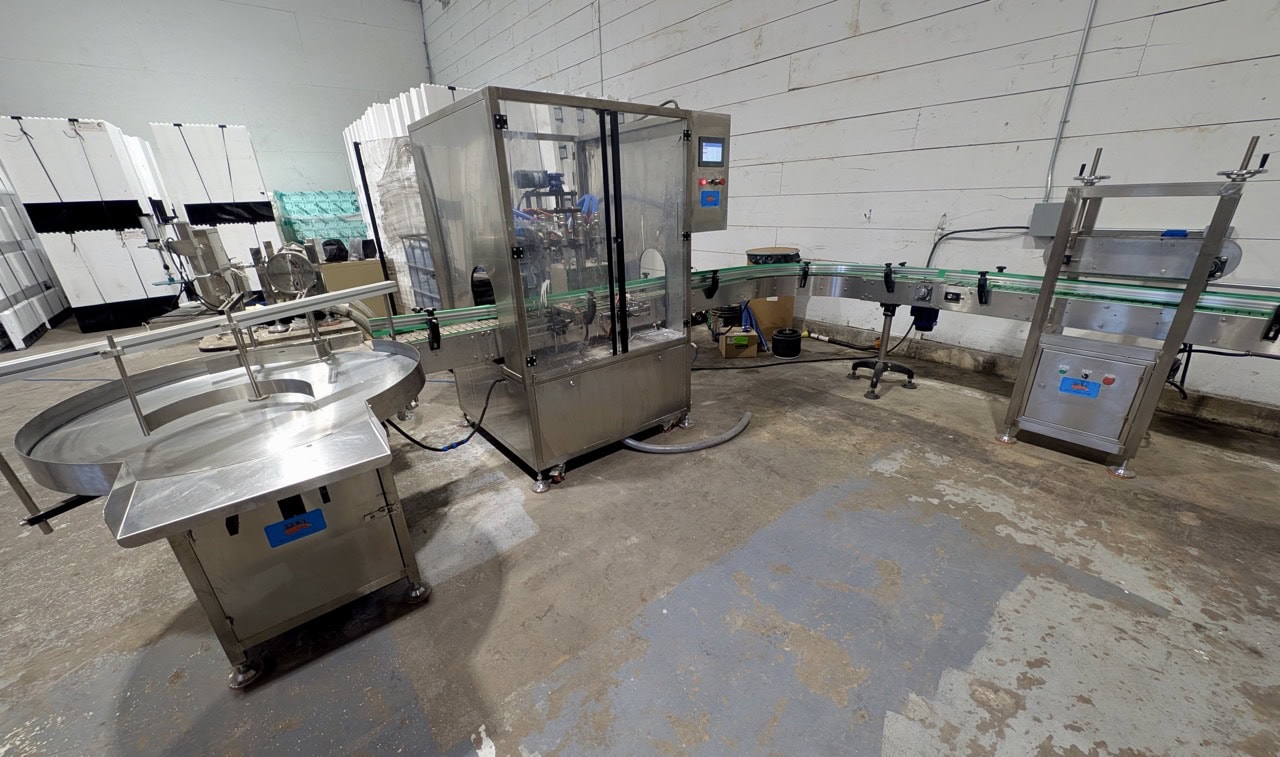

Liquid Filling Line with Automatic 4 Nozzle Servo Gear Pump Filler, Lid Presser, Labeler, Turntables, and Conveyors, 2024

Integrated Liquid Filling Line Purchased New and Used Only for Limited Pilot Runs (Approximately 2,000 Units Total) of Water-Based, Non-Toxic Paint. Fully Washed and Cleaned After Each Use. Recently Removed From Working Environment and Ready for Immediate Production.

The System is Designed for High Versatility and Straightforward Operation, Capable of Packaging 237 mL, 473 mL, 947 mL, and 3.785 L (1-Gallon) Containers with Simple Mechanical Adjustments and No Major Change Parts Required. Throughput Depends on Container Size and Operator Workflow.

Included Equipment:

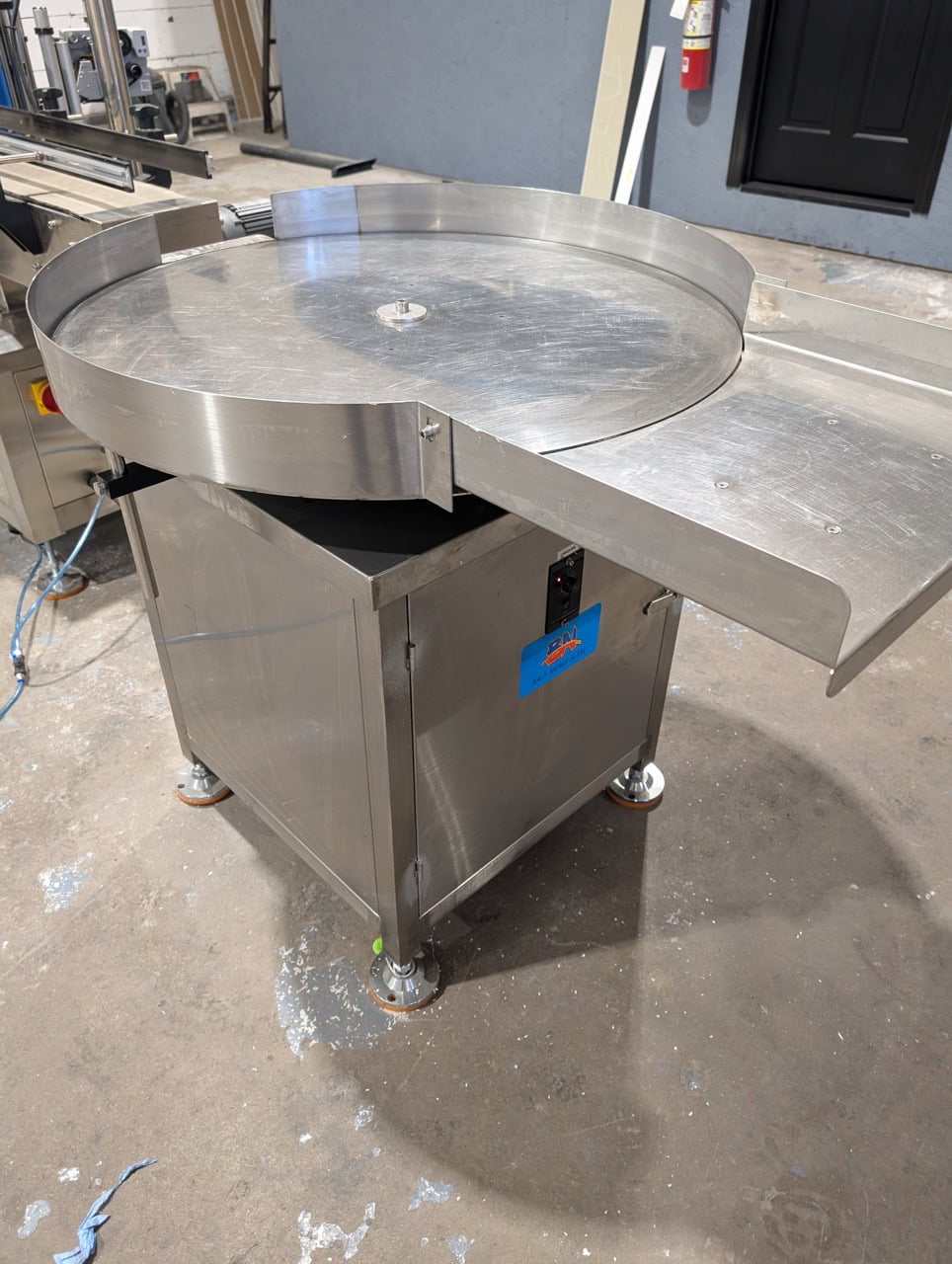

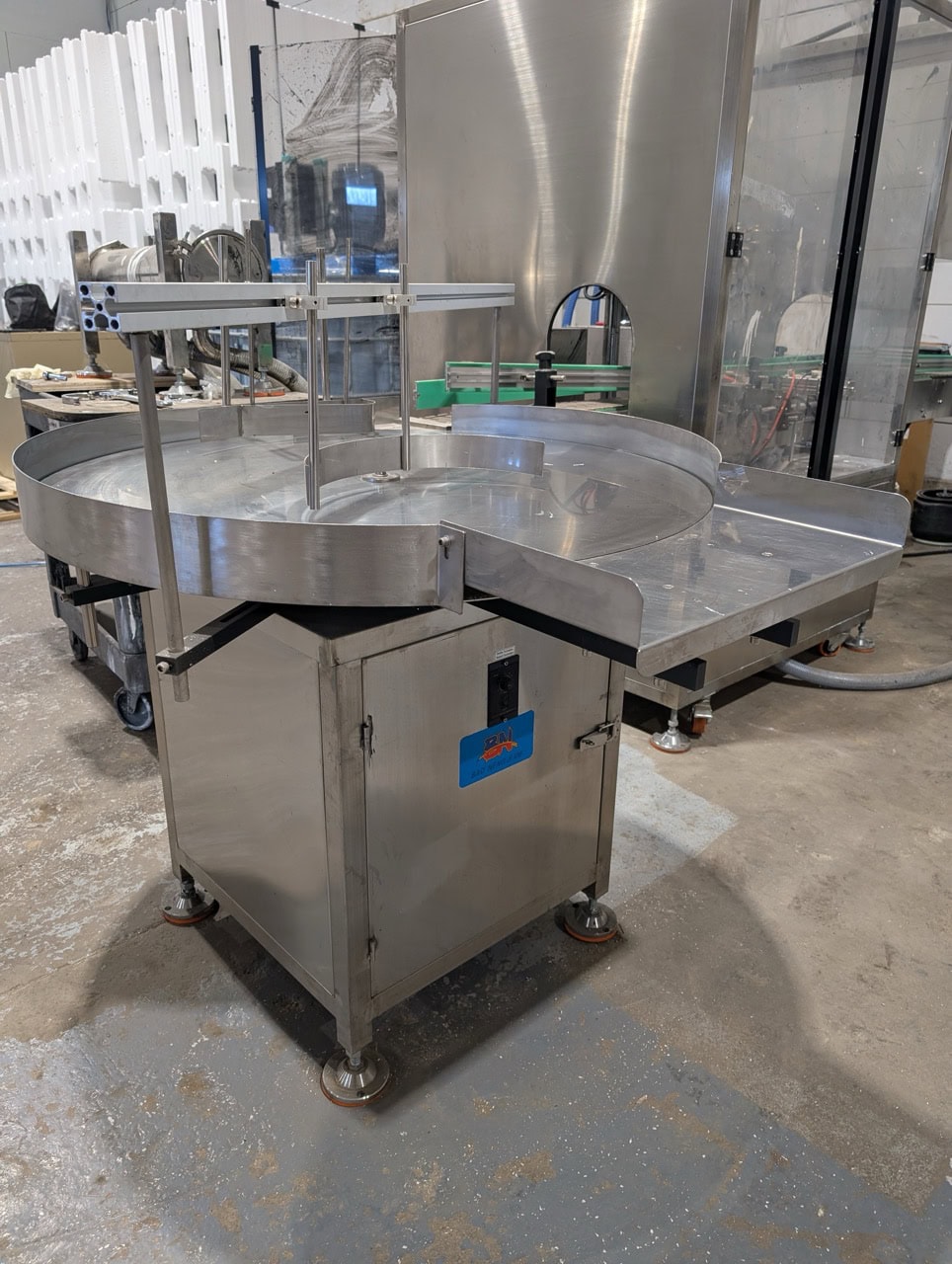

BNLP-1000 Stainless Steel Infeed Turntable:
– 1000 mm Diameter
– SUS304 Construction
– Adjustable for Ø50–180 mm Containers, Height 60–260 mm
– 220 V, 50/60 Hz, 0.2 kW

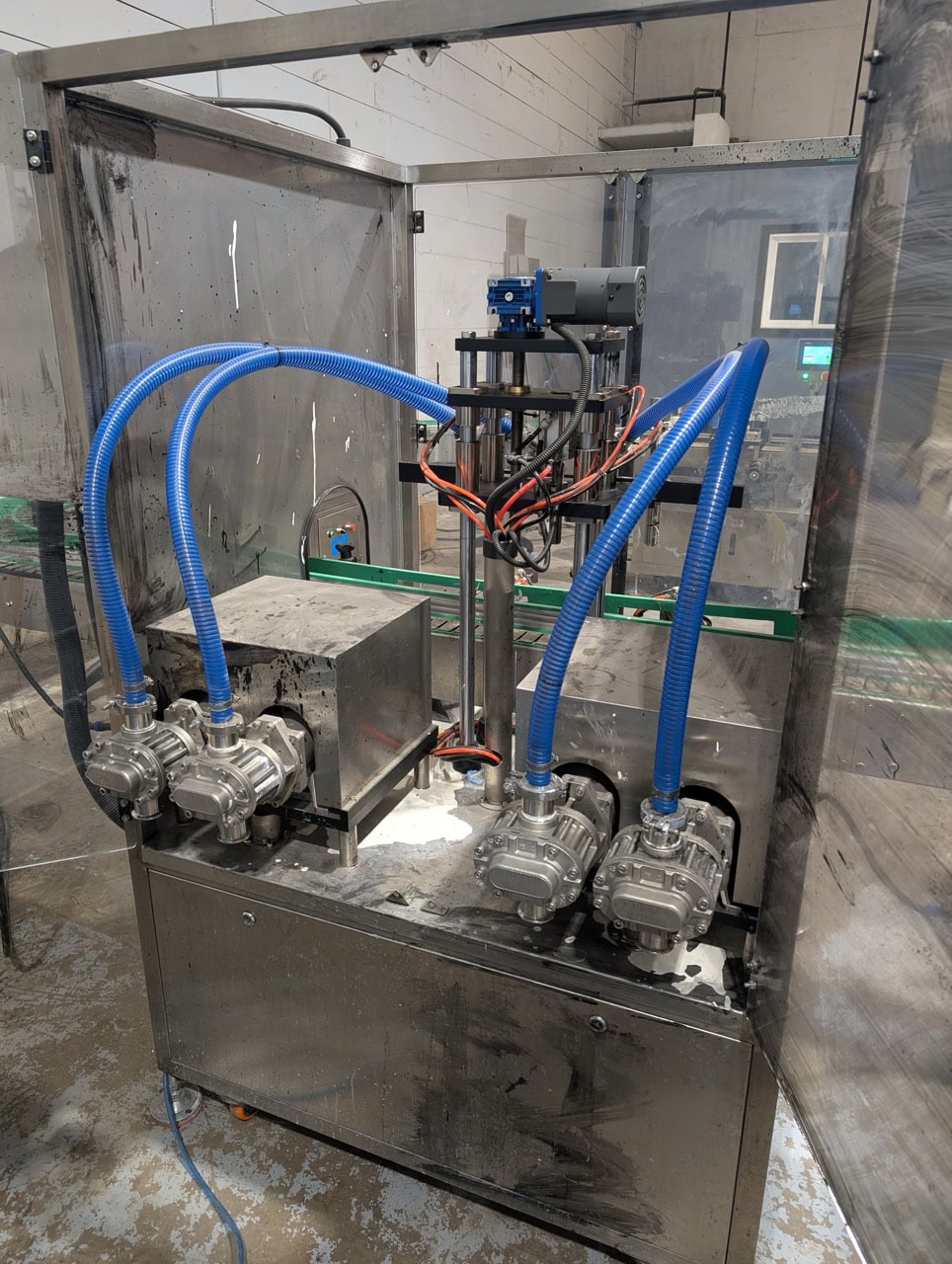

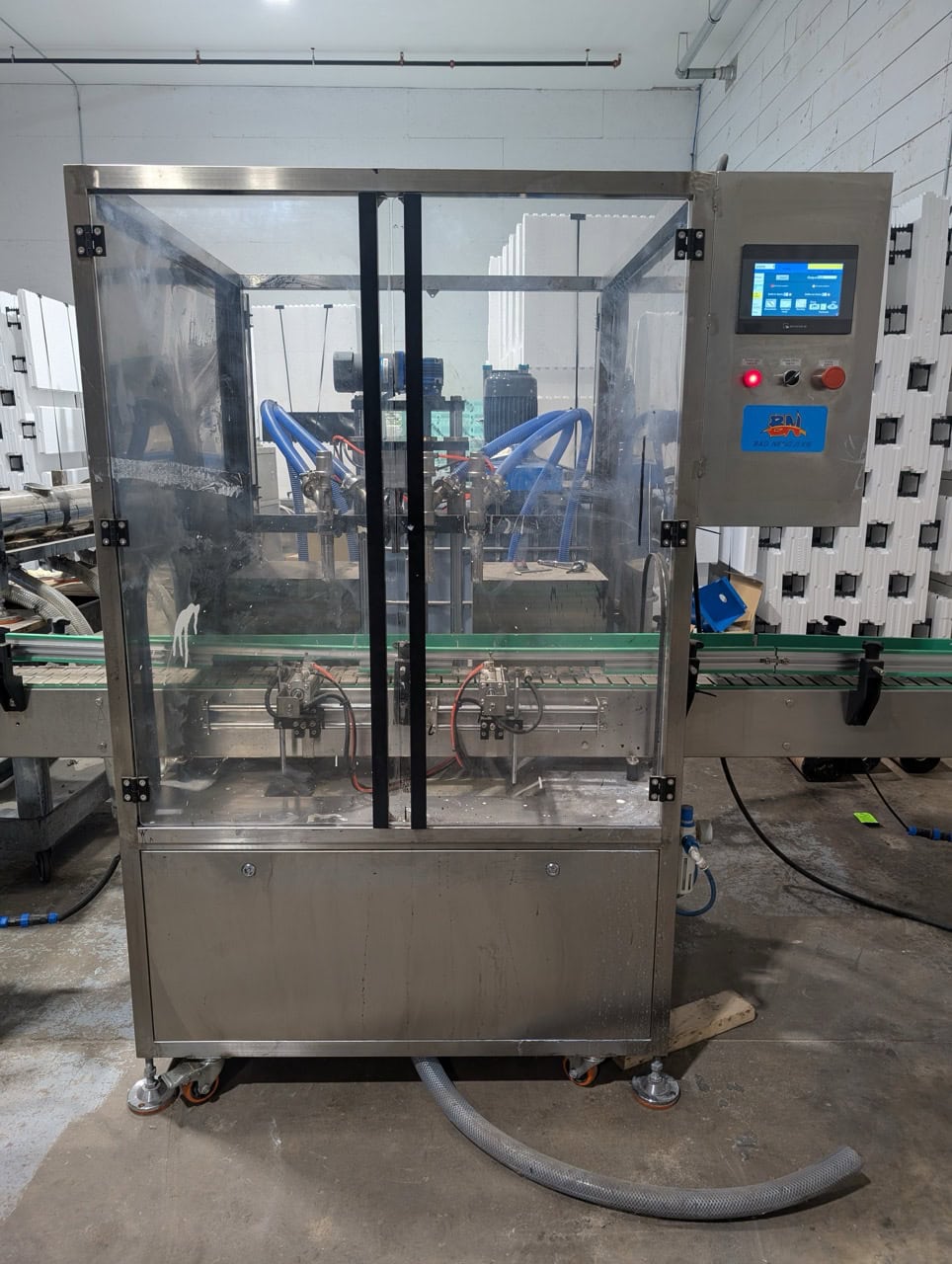

BNALF-GP4 Automatic 4-Nozzle Servo Gear-Pump Filler:
– Filling Range: 200–4000+ mL

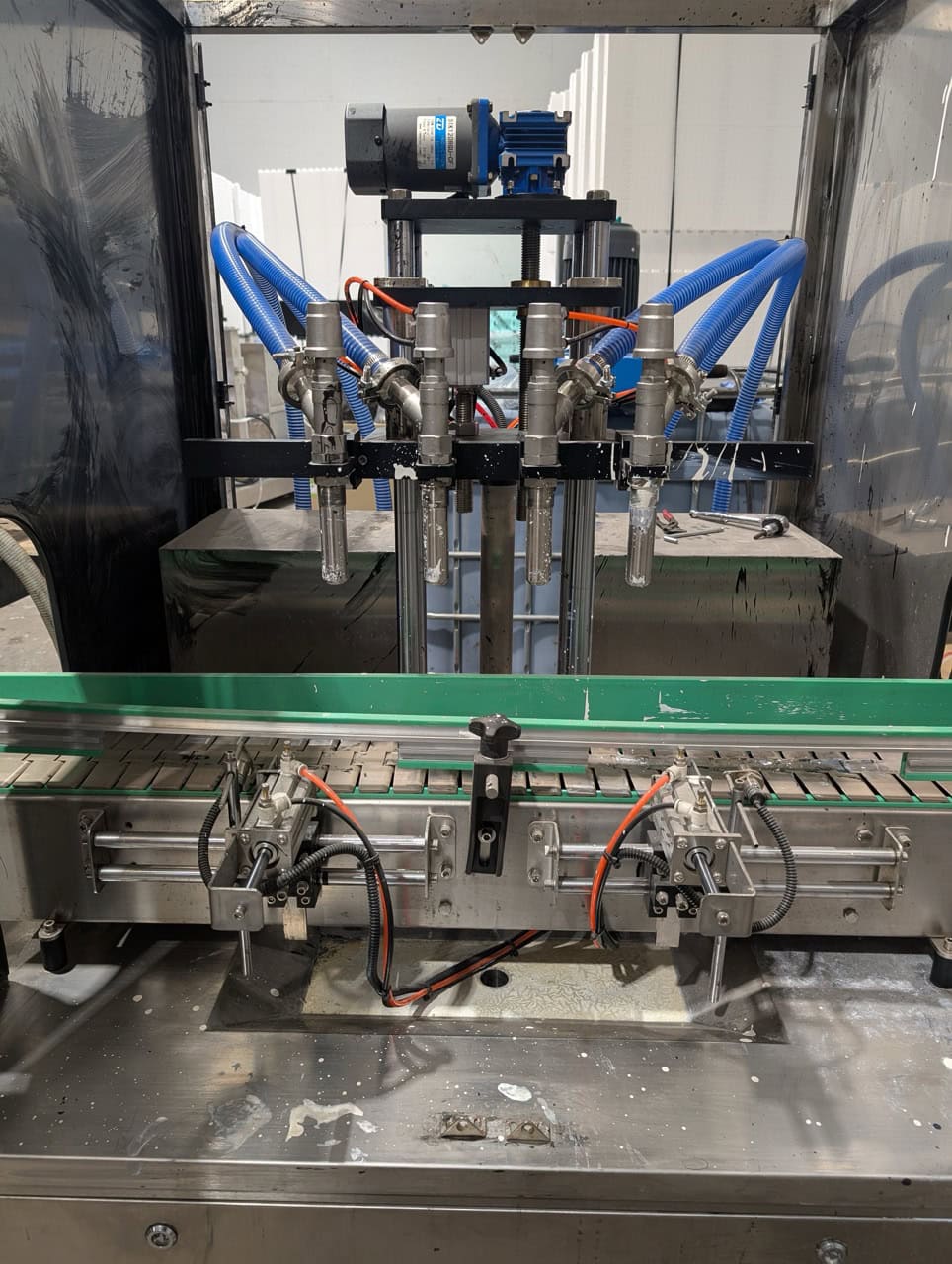

– Four Servo-Driven SUS304 Gear-Pump Heads
– Self-Priming From External Tank
– Anti-Drip Nozzle Assembly

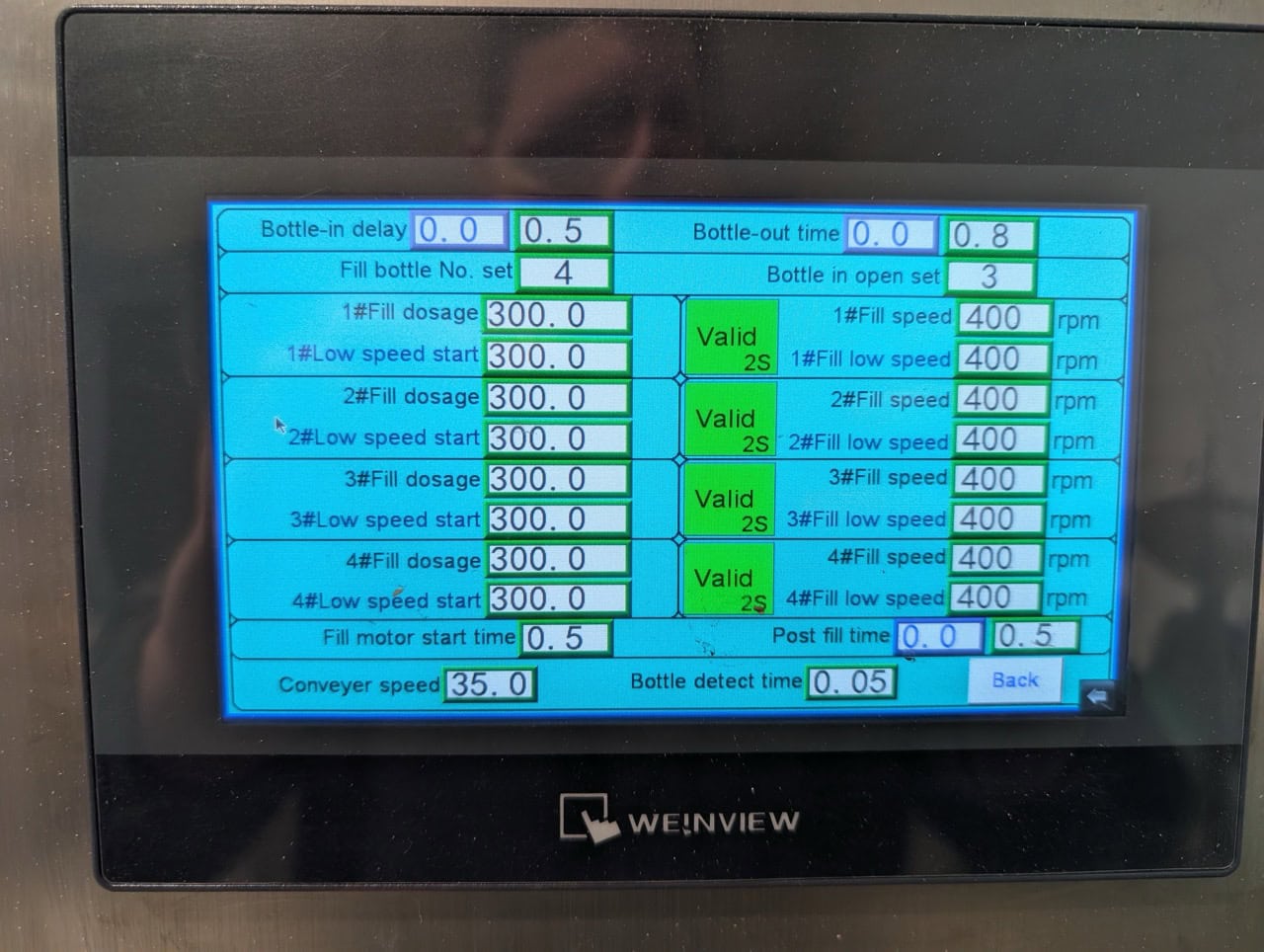

– PLC + Touchscreen with Recipe Storage
– “No Bottle / No Fill” Interlock
– Accessible Teardown for Cleaning

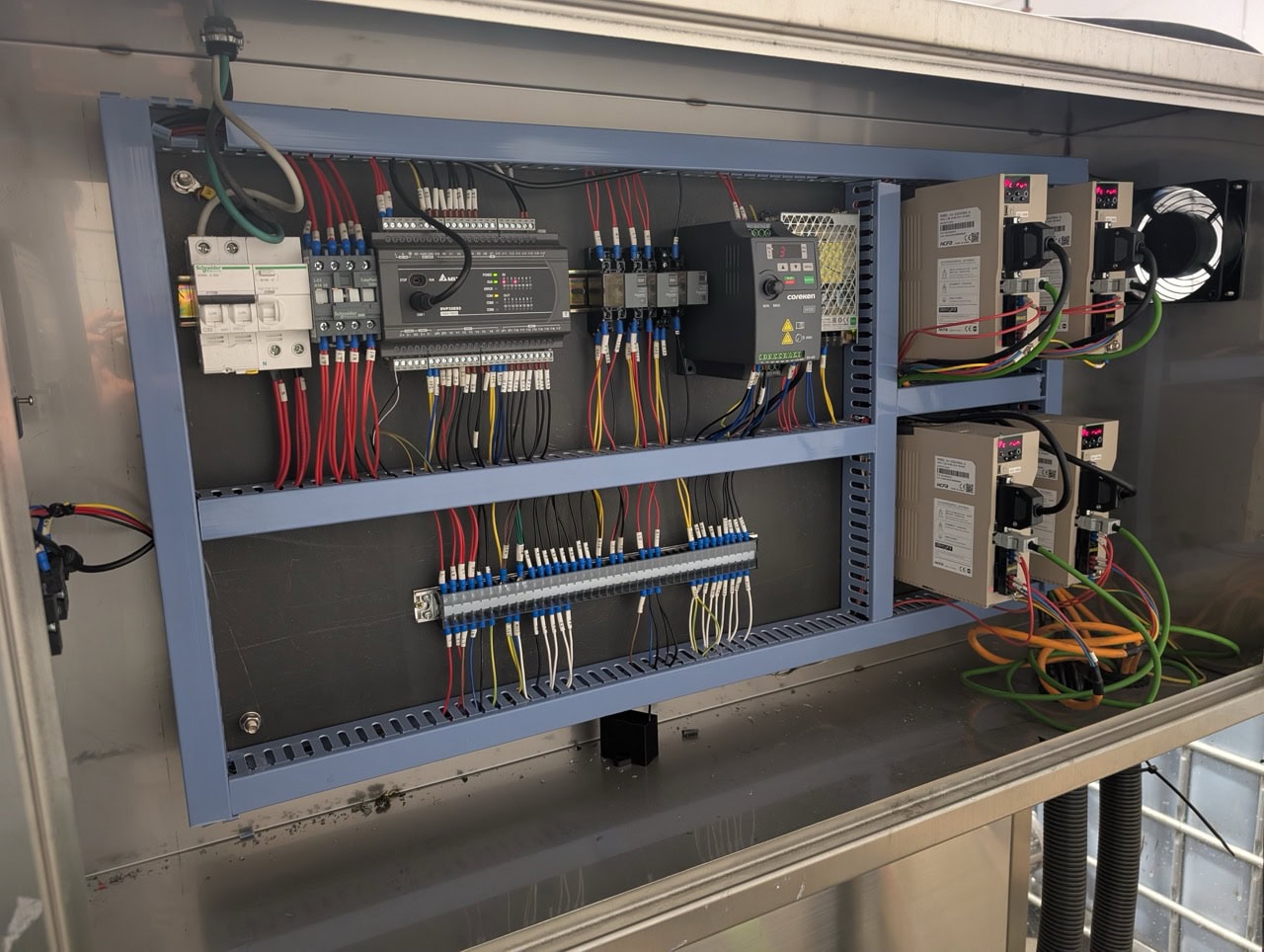

Electrical & Control Components:
– PLC: Delta (Taiwan)

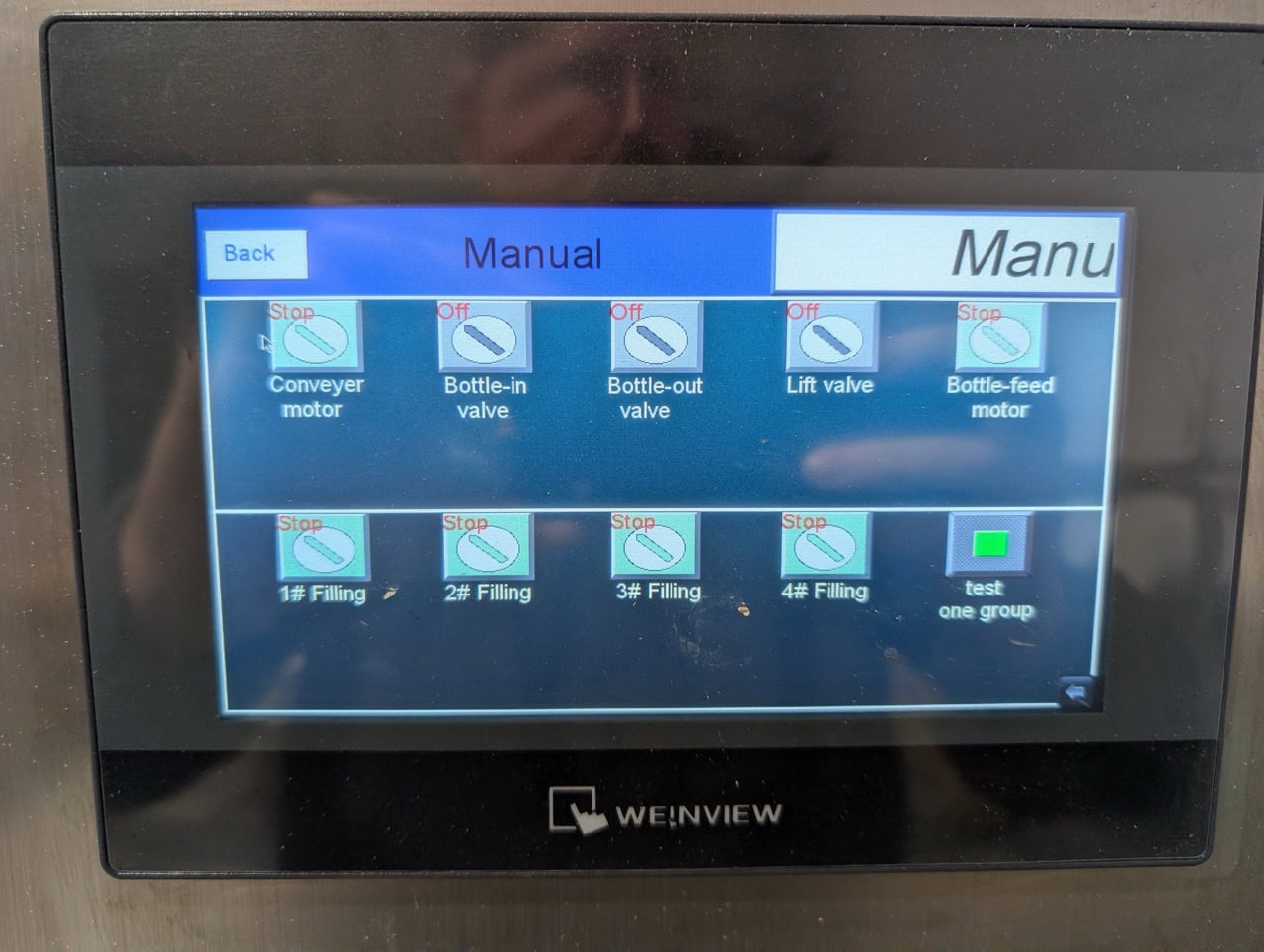

– HMI: Weinview (Taiwan)
– Low-Voltage Electrical: Schneider (France)
– Pneumatics: Airtac (Taiwan)
– Sensors: Autonics
– Servo Motor: HCFA
– Power: ~7 kW
– 220 V, 50 Hz
– Air: ~80 PSI
– Construction: SUS304 Throughout

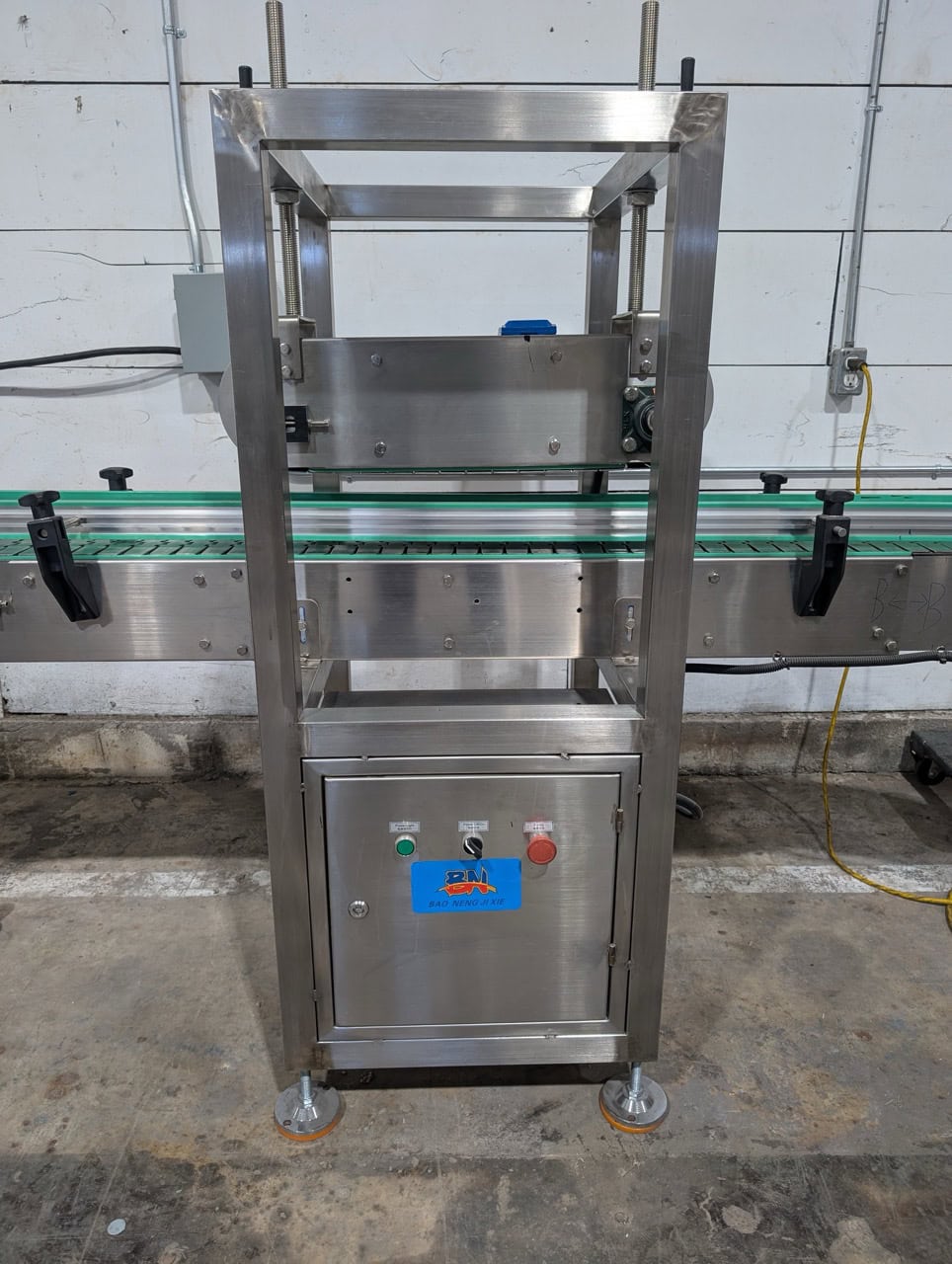

BNAC-PB Automatic Belt-Type Lid Pressing Machine:
– Continuous Inline Lid Pressing
– Buffer Conveyor for Ergonomic Manual Lid Placement
– SUS304 Frame
– 220 V, 1000 W
– Speed Control via Delta Inverter
– Electrical/Sensor Components: Schneider, Autonics

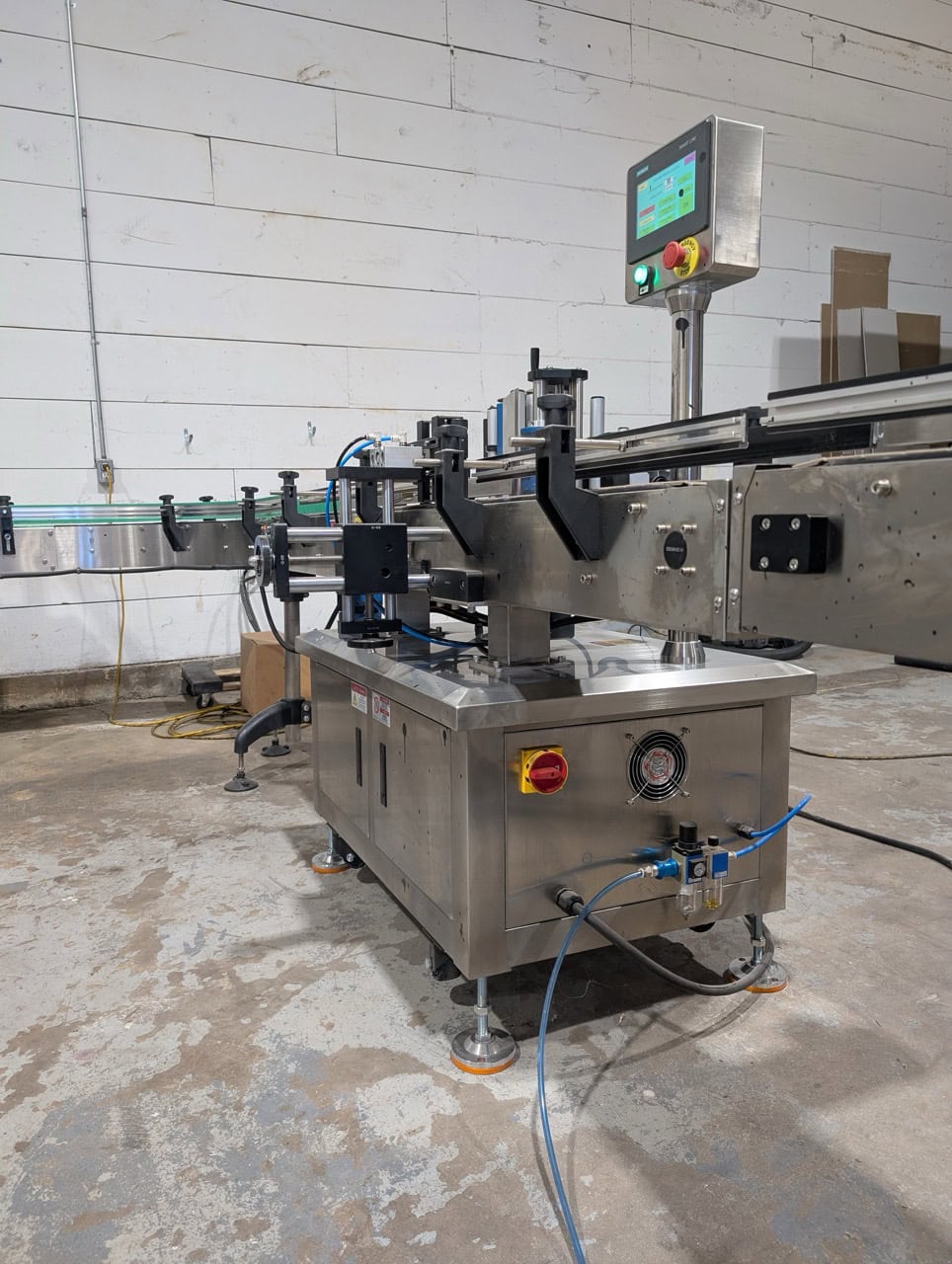

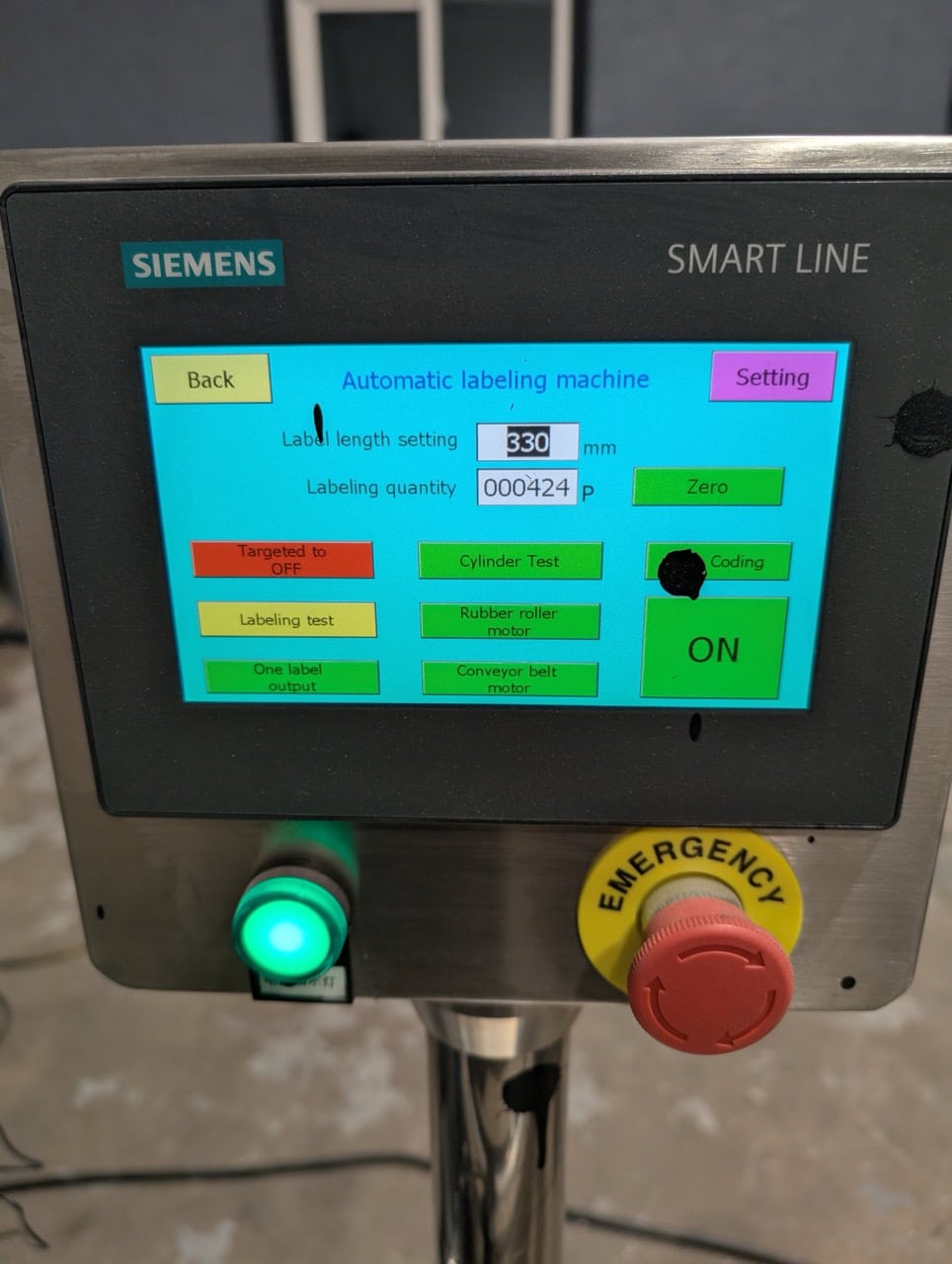

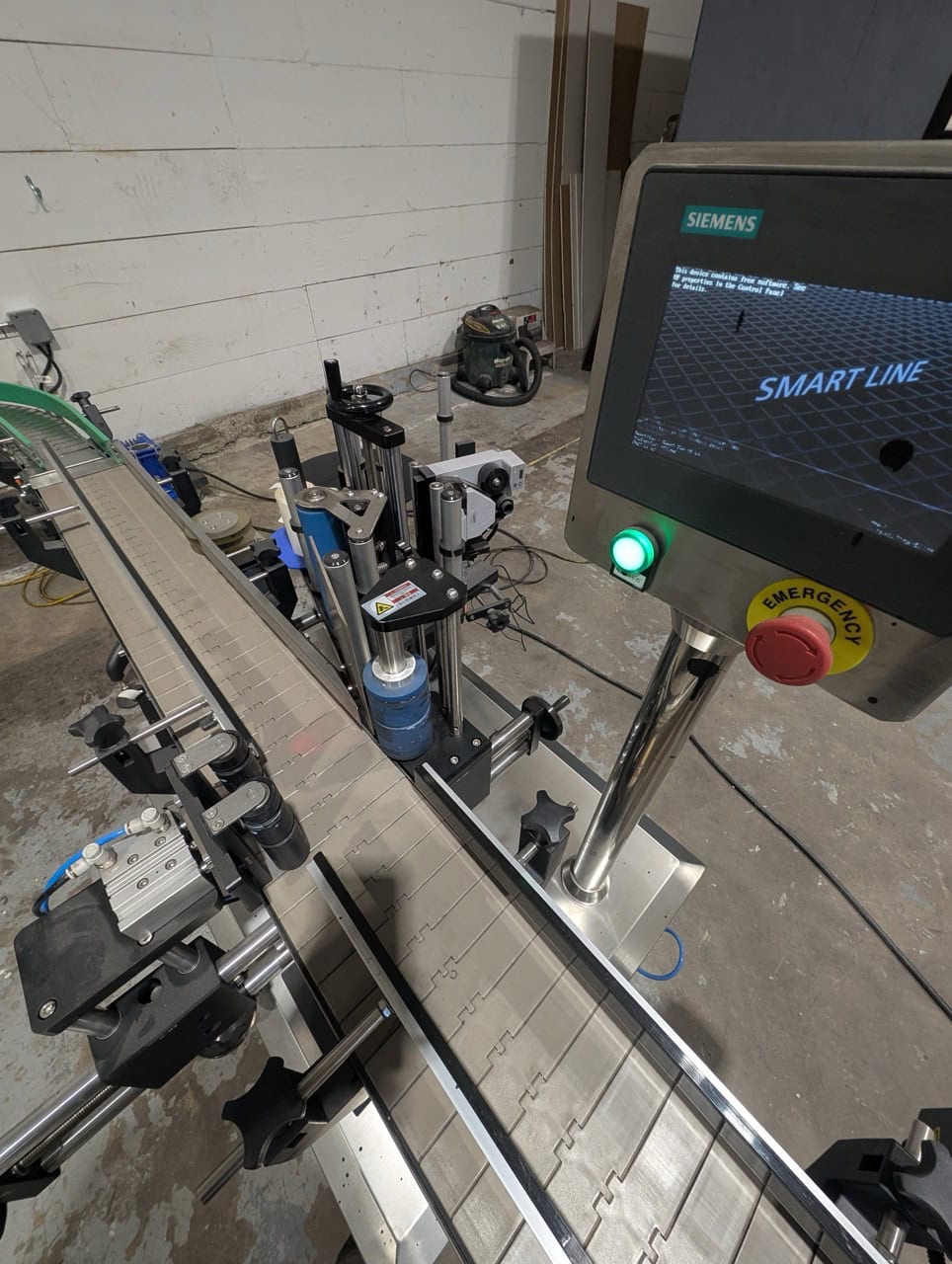

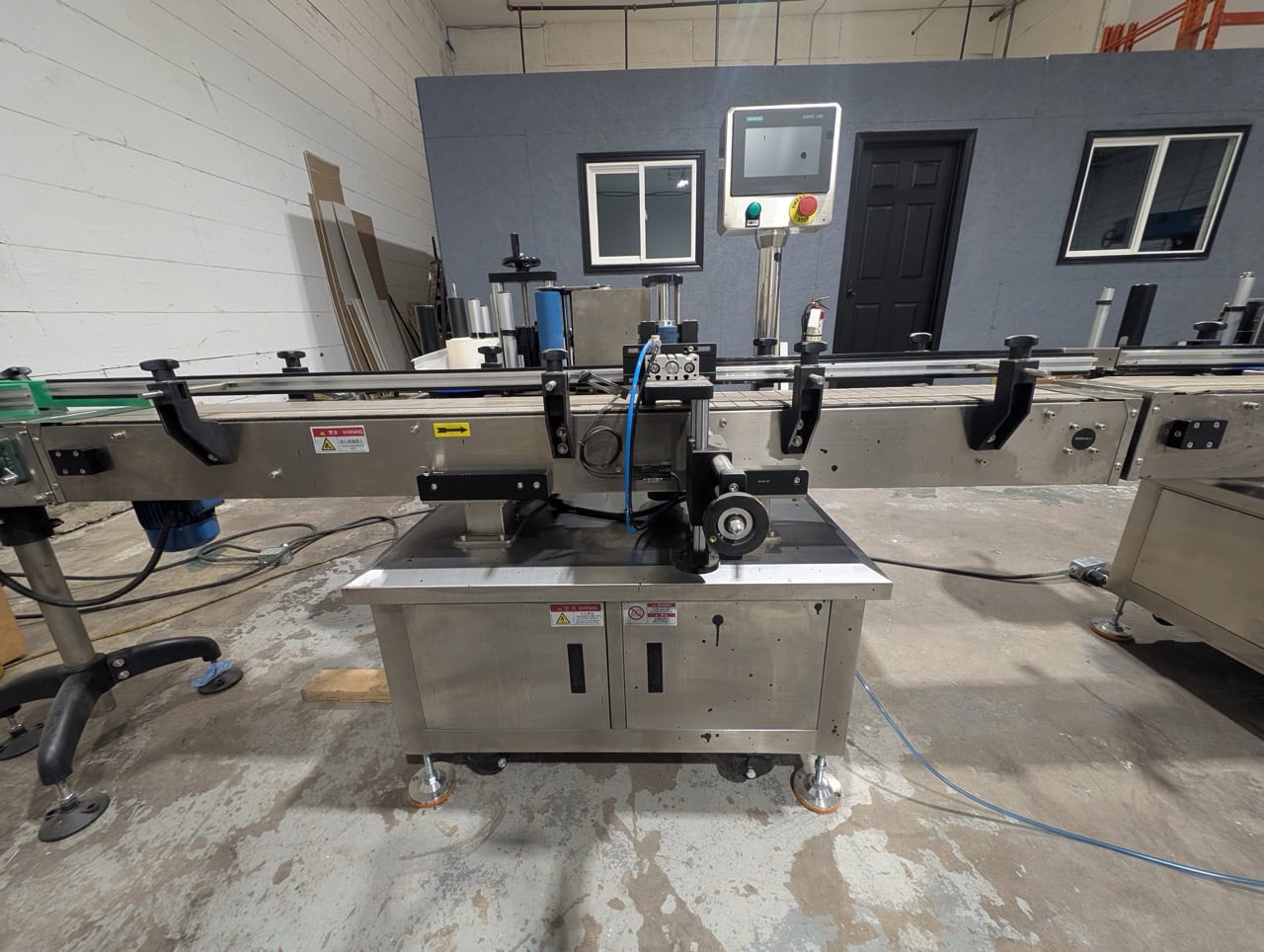

Automatic Round Bottle / Cylindrical Labeling Machine (with Date Coder):
– Compatible with 237 mL Through 1-Gallon Container Sizes
– Clamp-Type Positioning for Precise Wrap-Around Labeling
– Full or Partial Circumference Labeling
– Includes Ribbon Date Coder for Batch and Date Printing
– Label Size Range: L 20–200 mm × W 20–130 mm
– Labeling Accuracy: ≤ ±1 mm
– 110/220 V, 1 kW
– Construction: SUS304 and Aluminum
Control Components:
– PLC: Mitsubishi (Japan)
– Label Sensor: Sick (Germany)
– Object Sensor: Leuze (Germany)
– HMI: INVONACE

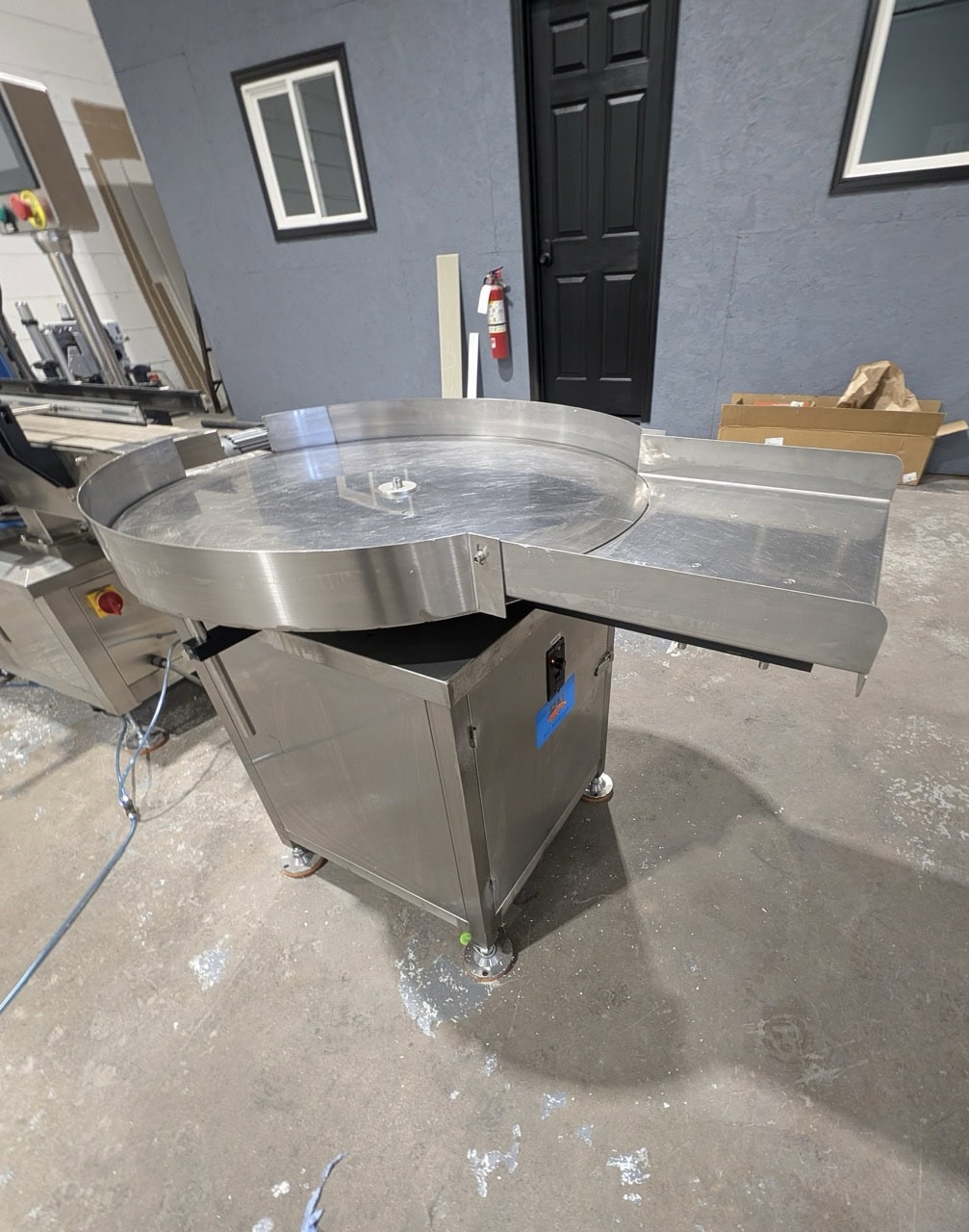

BNLP-800 Stainless Steel Outfeed Turntable:
– 800 mm Diameter
– SUS304 Construction
– 220 V, 50/60 Hz
– Serves as Final Accumulation and Inspection Area

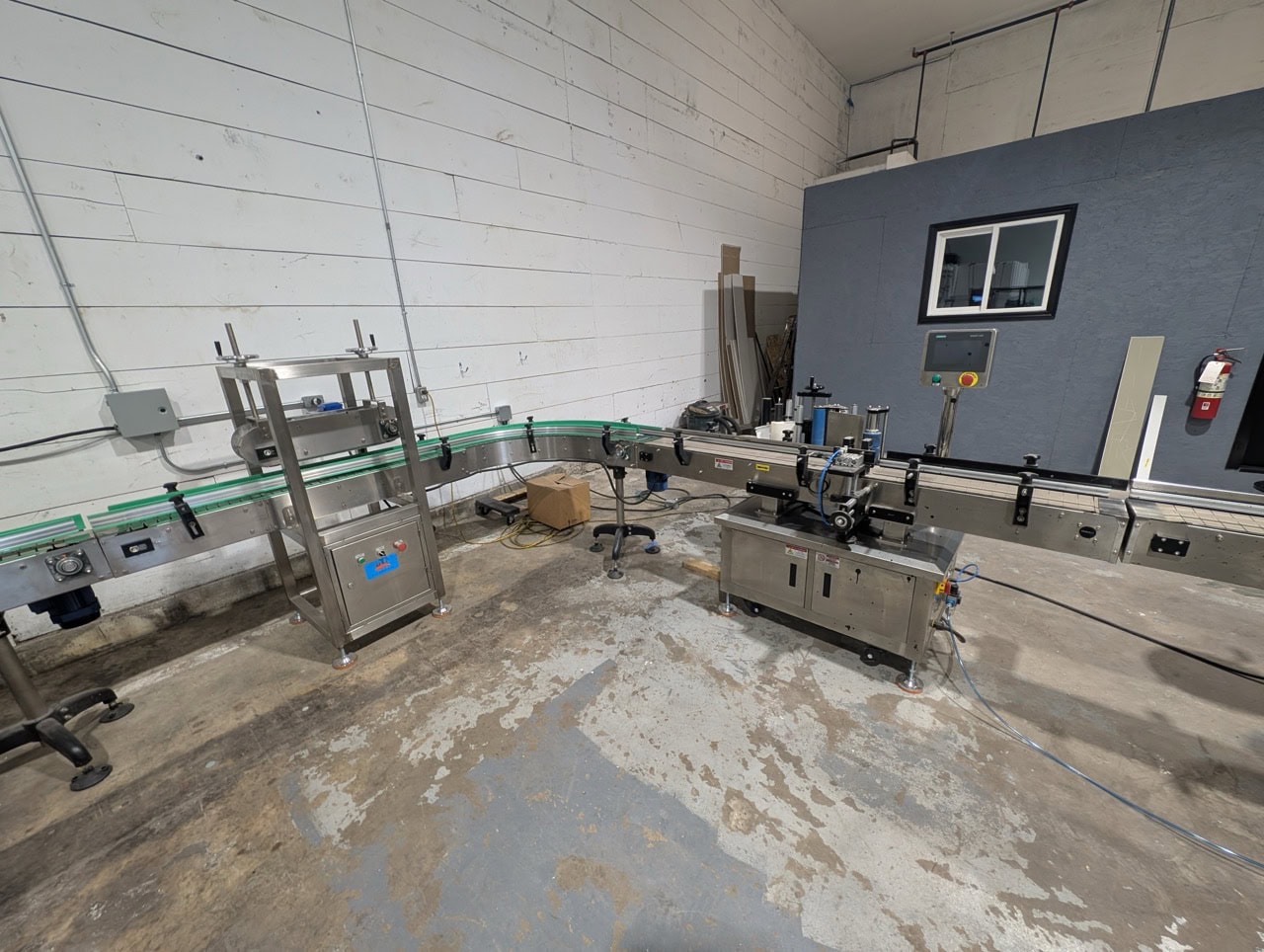

OEM Curved Conveyor Sections:
– Factory-Designed Connecting Conveyors
– Smooth Transfer From Filler → Capper → Labeler

Container Compatibility (Based on Prior Use):
– 237 mL (8 oz)
– 473 mL (Pint)
– 947 mL (Quart)
– 3.785 L (1 Gallon)
– All Stations (Filler, Lid Presser, Labeler, and Conveyors) Support the Full Container Size Range

Utilities / Requirements:
– Voltage: 220 V
– Air: ~80 PSI
– Construction: SUS304 Stainless Steel Throughout
– Footprint: Straight-Line Layout with Modular Stations
