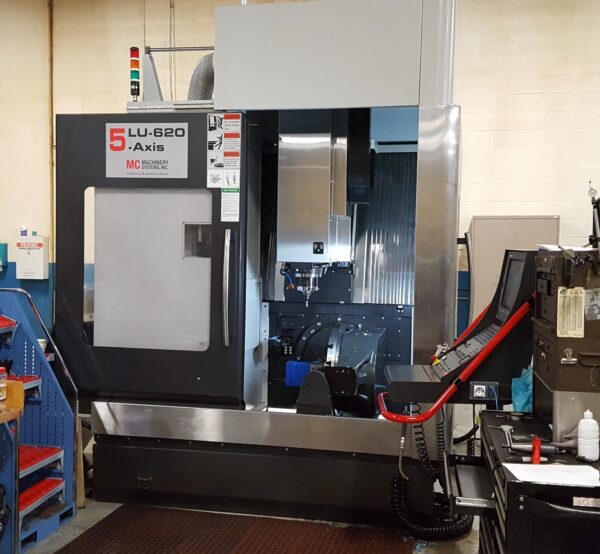

Litz Hitech LU-620 5 Axis VMC, 2014 – TSC, 12K RPM Spindle, Probe

Name: Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe
SKU: 35141100301

$54,000.00

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 2

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 3

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 4

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 5

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 6

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 7

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 8

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 9

Litz Hitech LU-620 5 Axis VMC, 2014 - TSC, 12K RPM Spindle, Probe - Image 10

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

X Axis Travel: 24.4″
Y Axis Travel: 20.5″
Z Axis Travel: 18.1″
B Axis Tilt Range: – 50° ~ + 110°
C Rotating Range: 360°
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Spindle Motor: 13.0 / 16.5 HP
Rapid Speed (X,Y,Z) : 1417 IPM

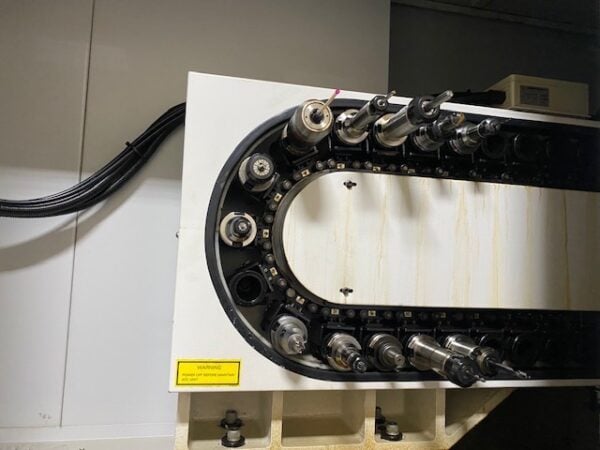

ATC: 32

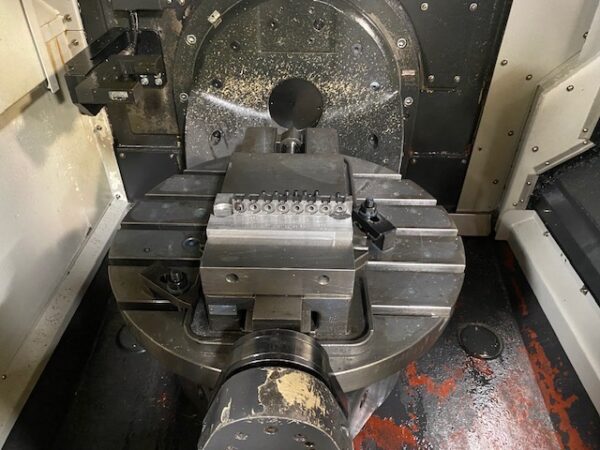

Rotary Table: 25.6″ / 19.7″ diameter
Max Load Capacity: 660 LBS
Machine Weight: 19,400lbs
Machine Footprint: 88.9″ x 100.8″ x 118.1″

Equipped With:

Heidenhain iTNC-530 HSCI Control
Through Spindle Coolant
Spindle Oil Chiller
Coolant Gun
Air Gun
Full Chip Enclosure
Roller Linear Guideways
Work Lamp
B/C Axis – Encoders
Laser Tool Length Measuring System
Chain Type Chip Conveyor
Chip Flushing System
Workpiece Measuring System (Probe)
Oil Skimmer
