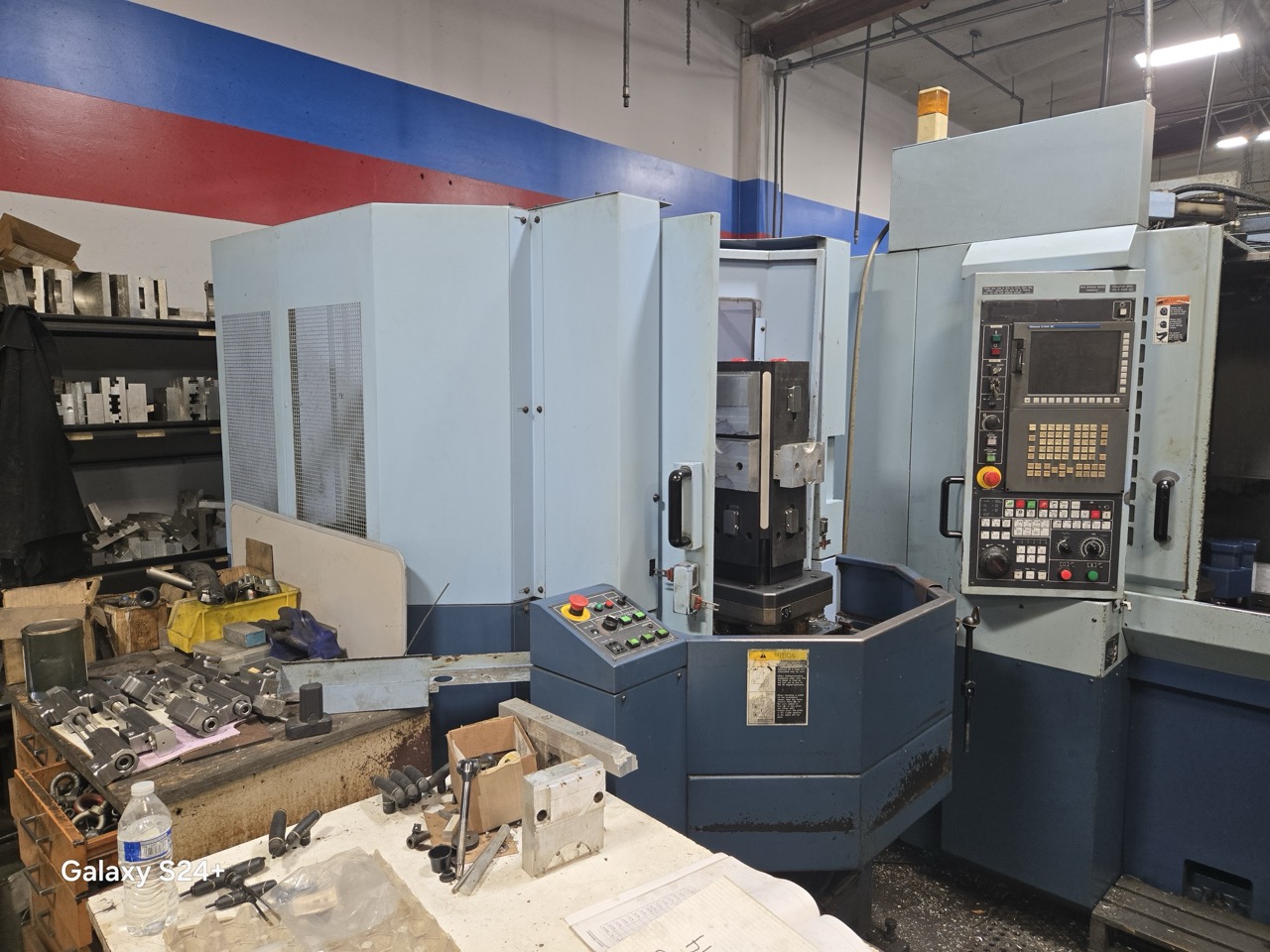

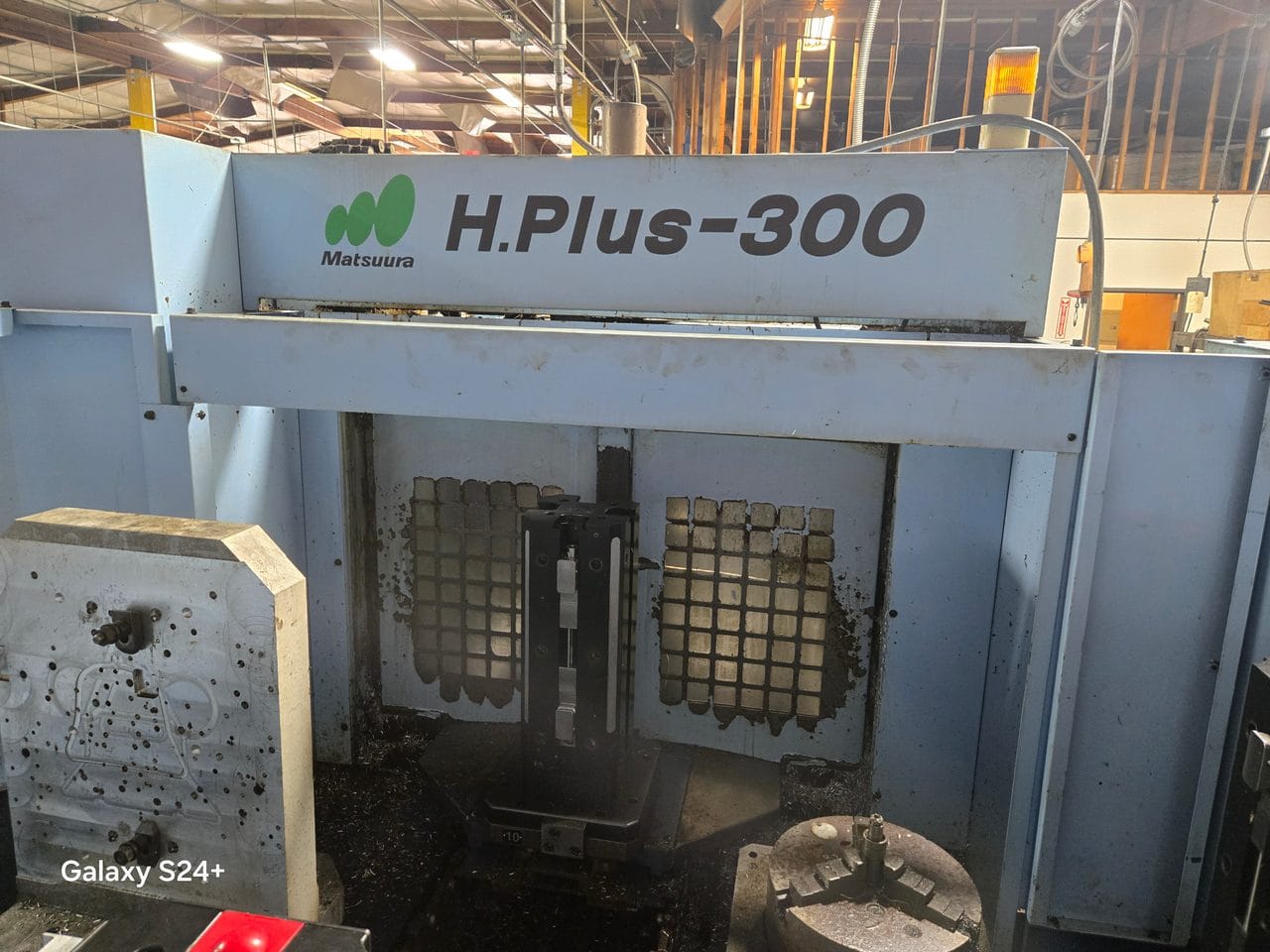

Matsuura H-Plus 300 HMC, 2006 – Chip Conveyor, Cool Through Spindle, Probing

Name: Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing
SKU: 64836141854

$49,900.00

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 2

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 3

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 4

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 5

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 6

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 7

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 8

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 9

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 10

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 11

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 12

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 13

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 14

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 15

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 16

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 17

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 18

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 19

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 20

Matsuura H-Plus 300 HMC, 2006 - Chip Conveyor, Cool Through Spindle, Probing - Image 21

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

X-Axis Travels: 19.68″
Y-Axis Travels: 22.04″
Z-Axis Travels: 19.68″
B-Axis Rotation: Full 4th-Axis
Max Workpiece Envelope: 20.86″ x 29.92″
Pallet Surface Dimensions: 11.81″ x 11.81″

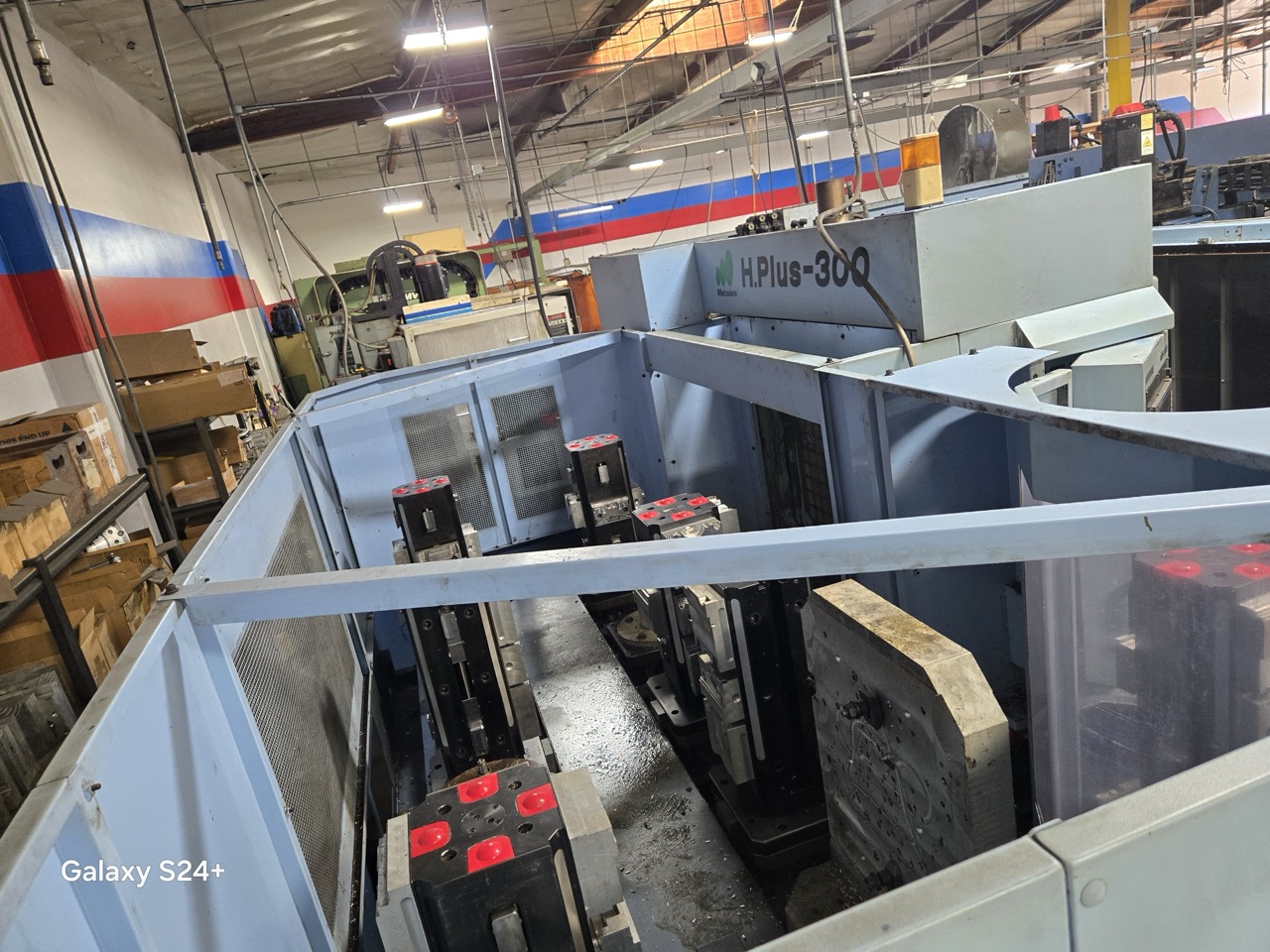

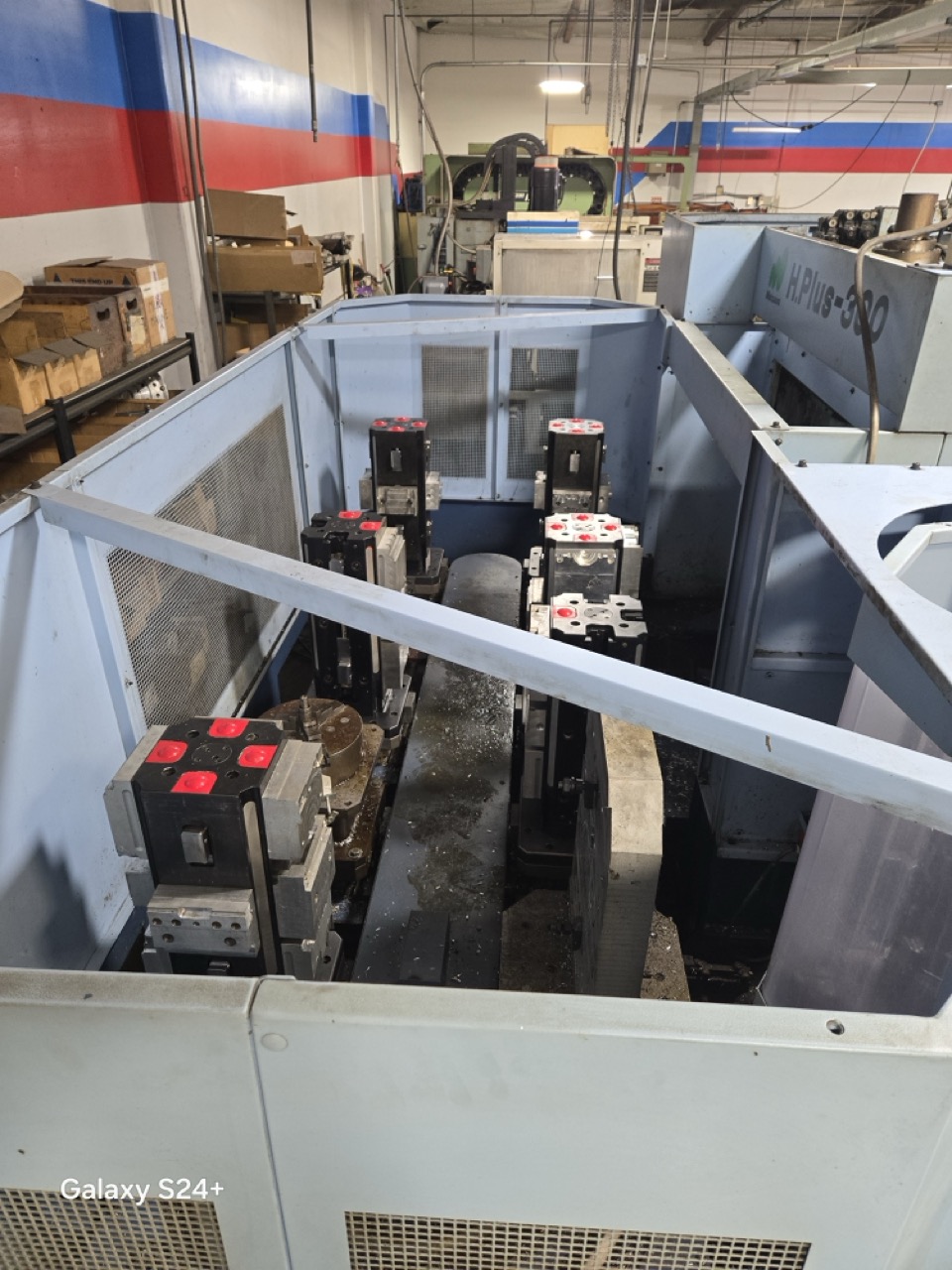

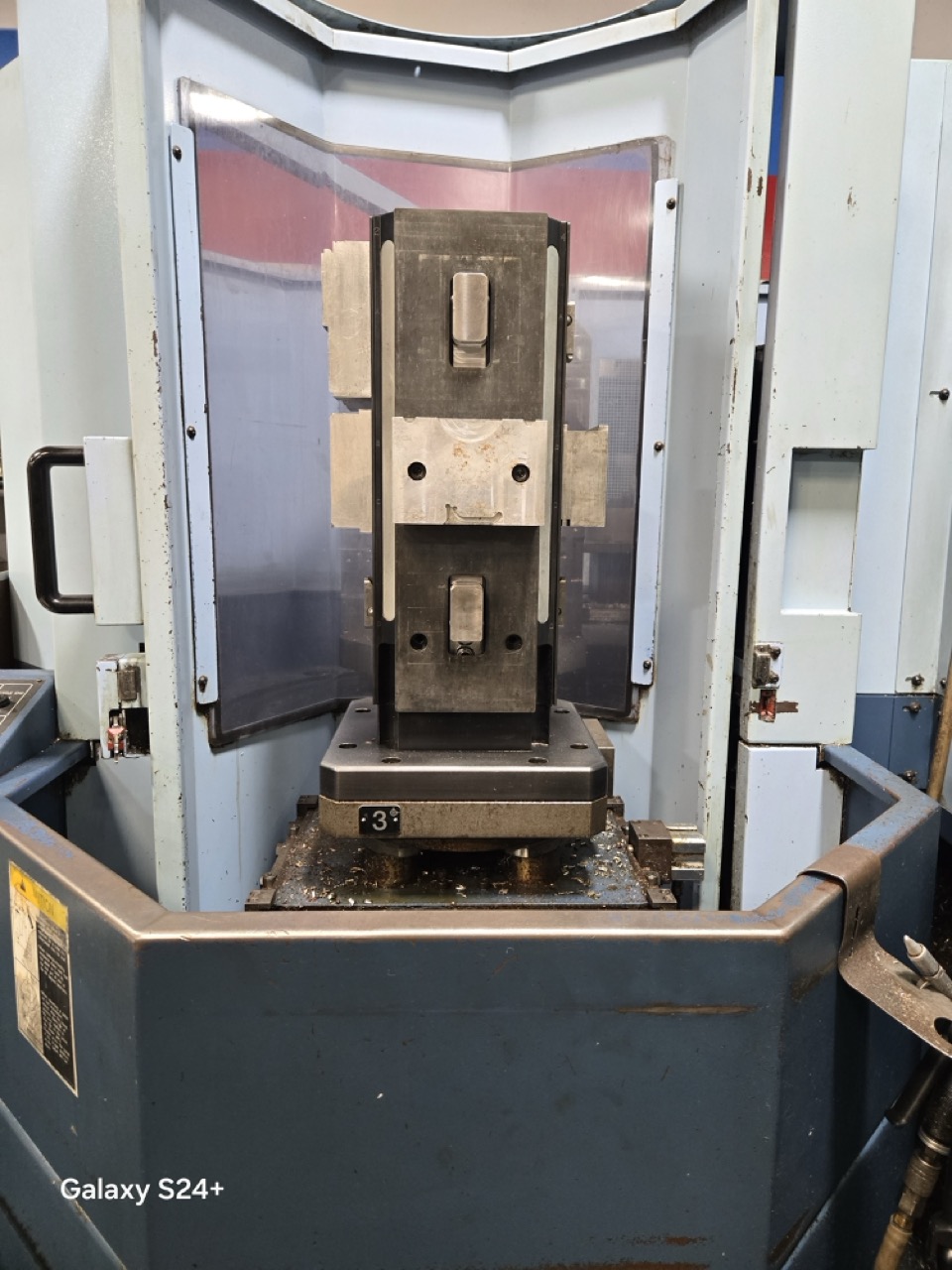

Pallet Changer Configuration: 2-Pallet APC
Max Load Capacity per Pallet: 551lbs
Pallet Change Time: ~6.0 seconds

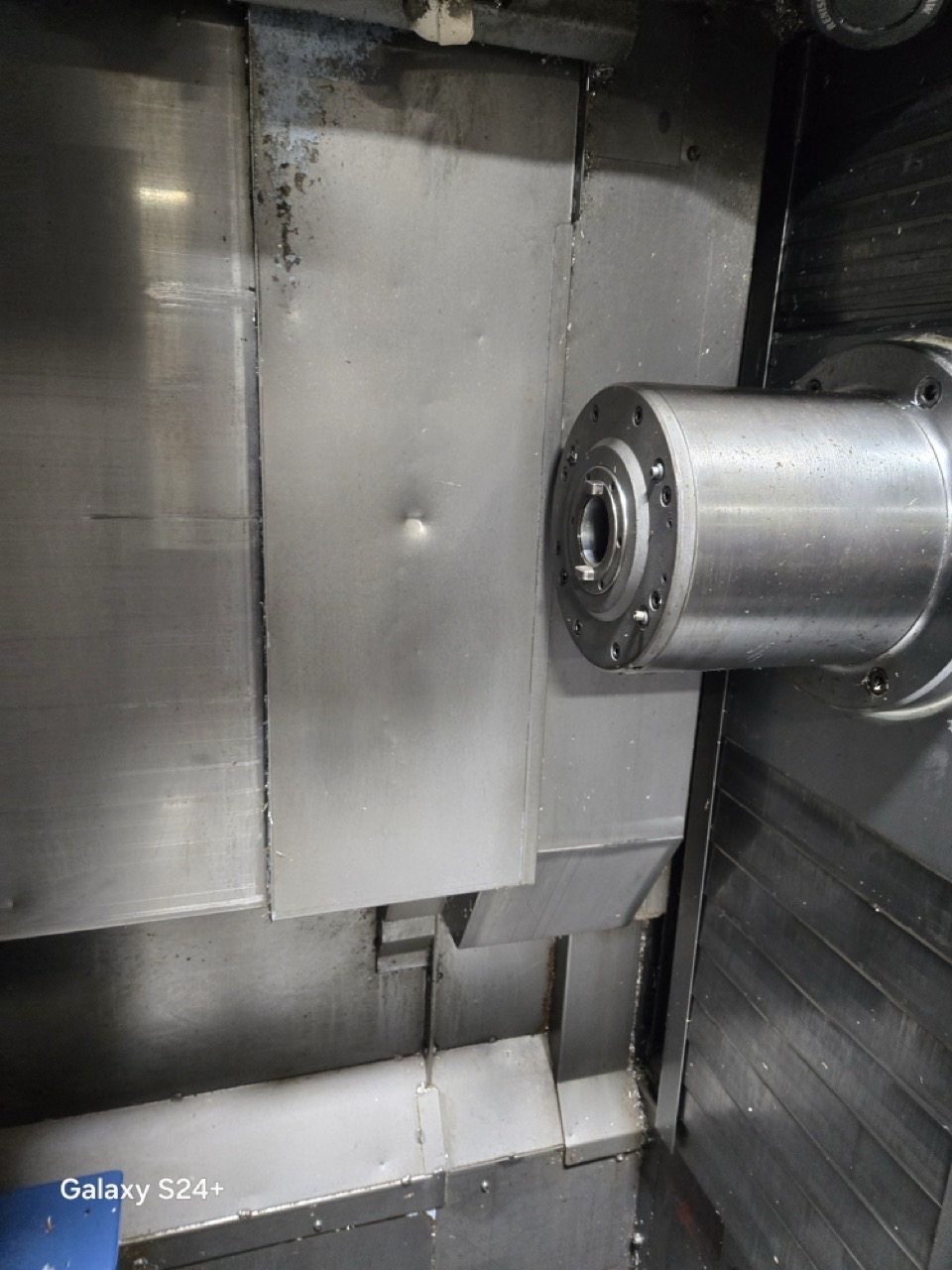

Spindle Speed: 15,000 RPM
Spindle Motor: 20 HP
Spindle Torque: 119.3 N·m

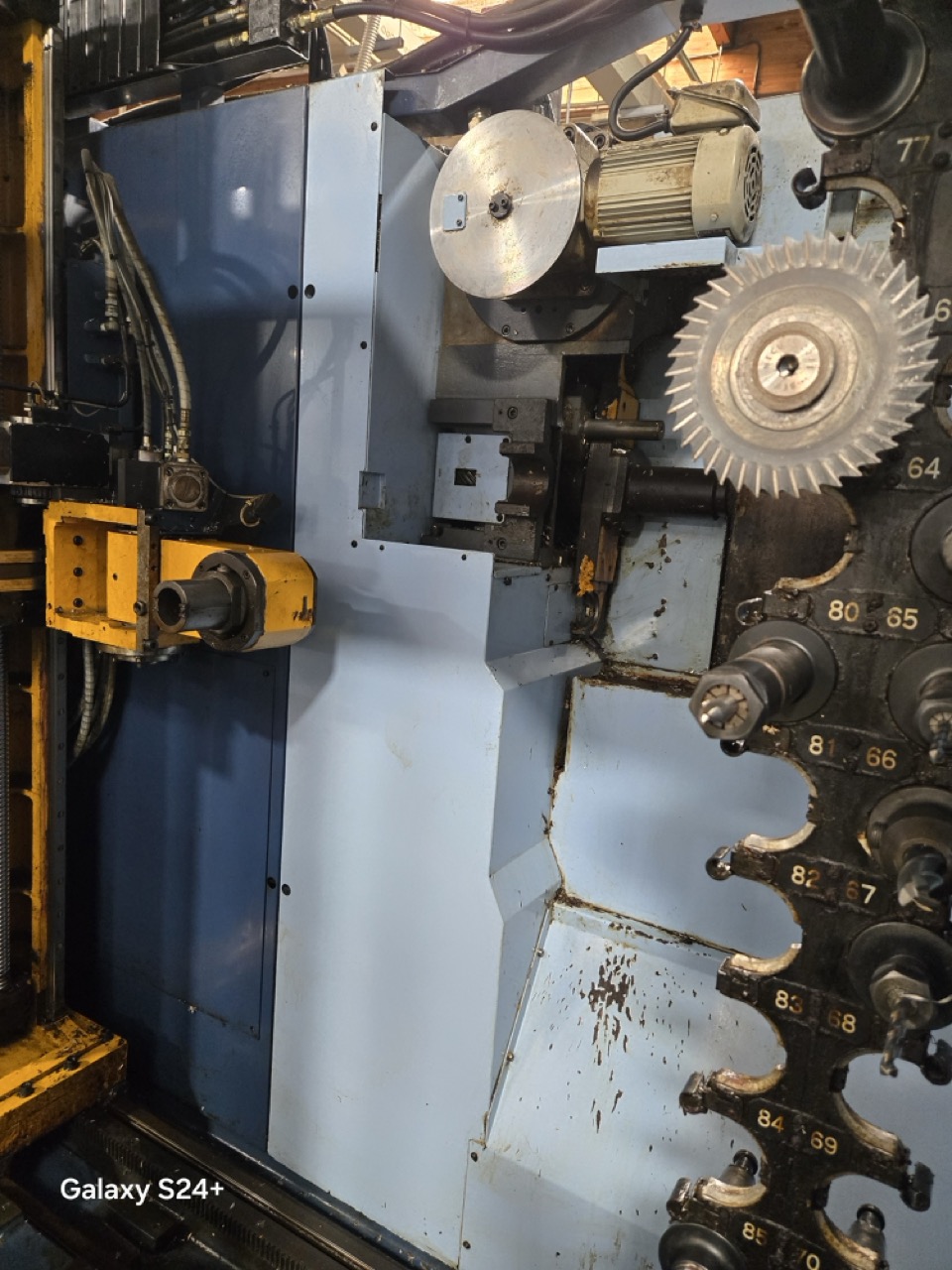

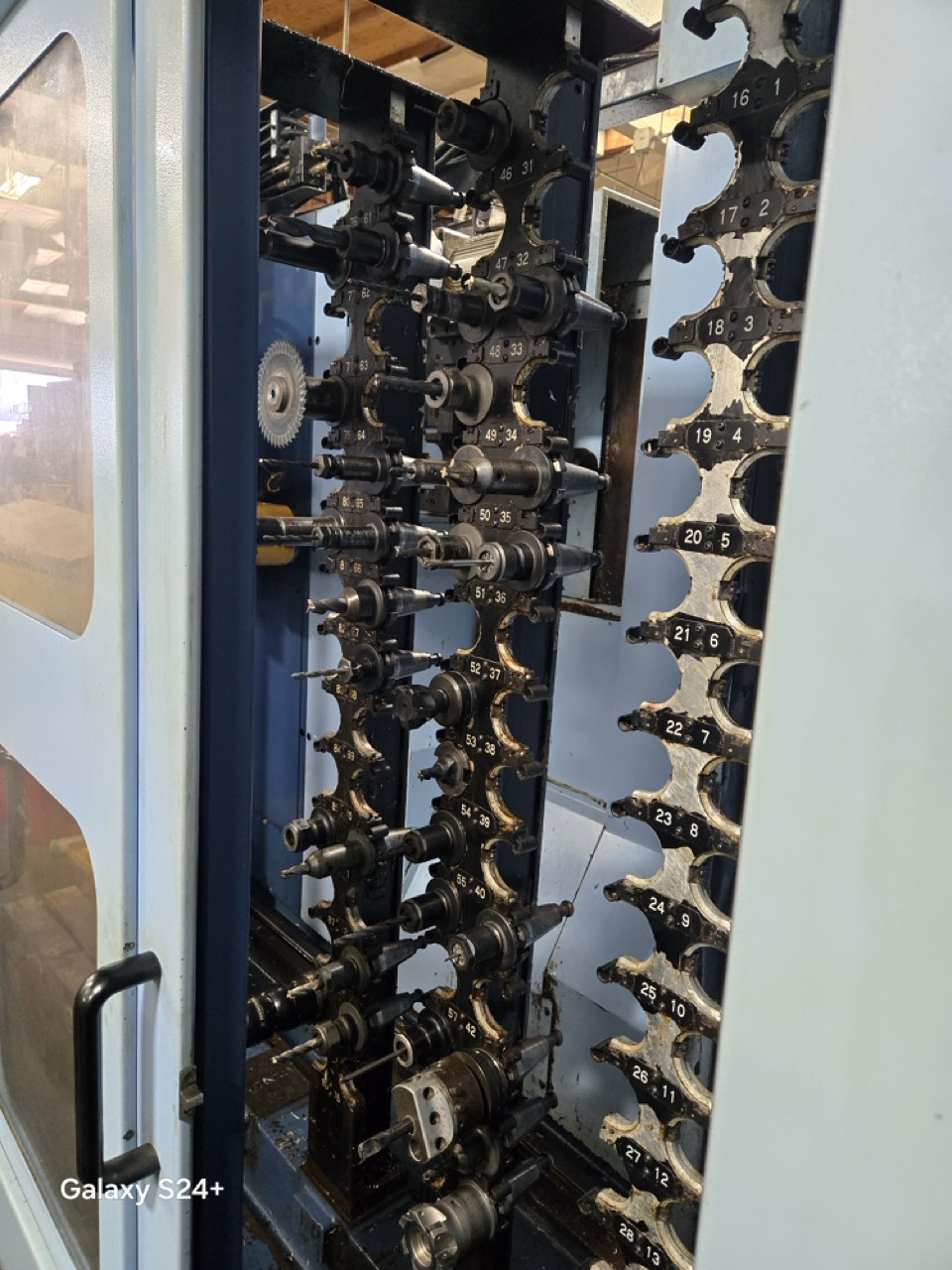

ATC: 60
Max Tool Diameter: 3.14″
Max Tool Length: 11.81″
Max Tool Weight: 17.6lbs
Rapid Traverse Rates X/Y/Z: 2,362 IPM
B-Axis Rapid Speed: 100 RPM

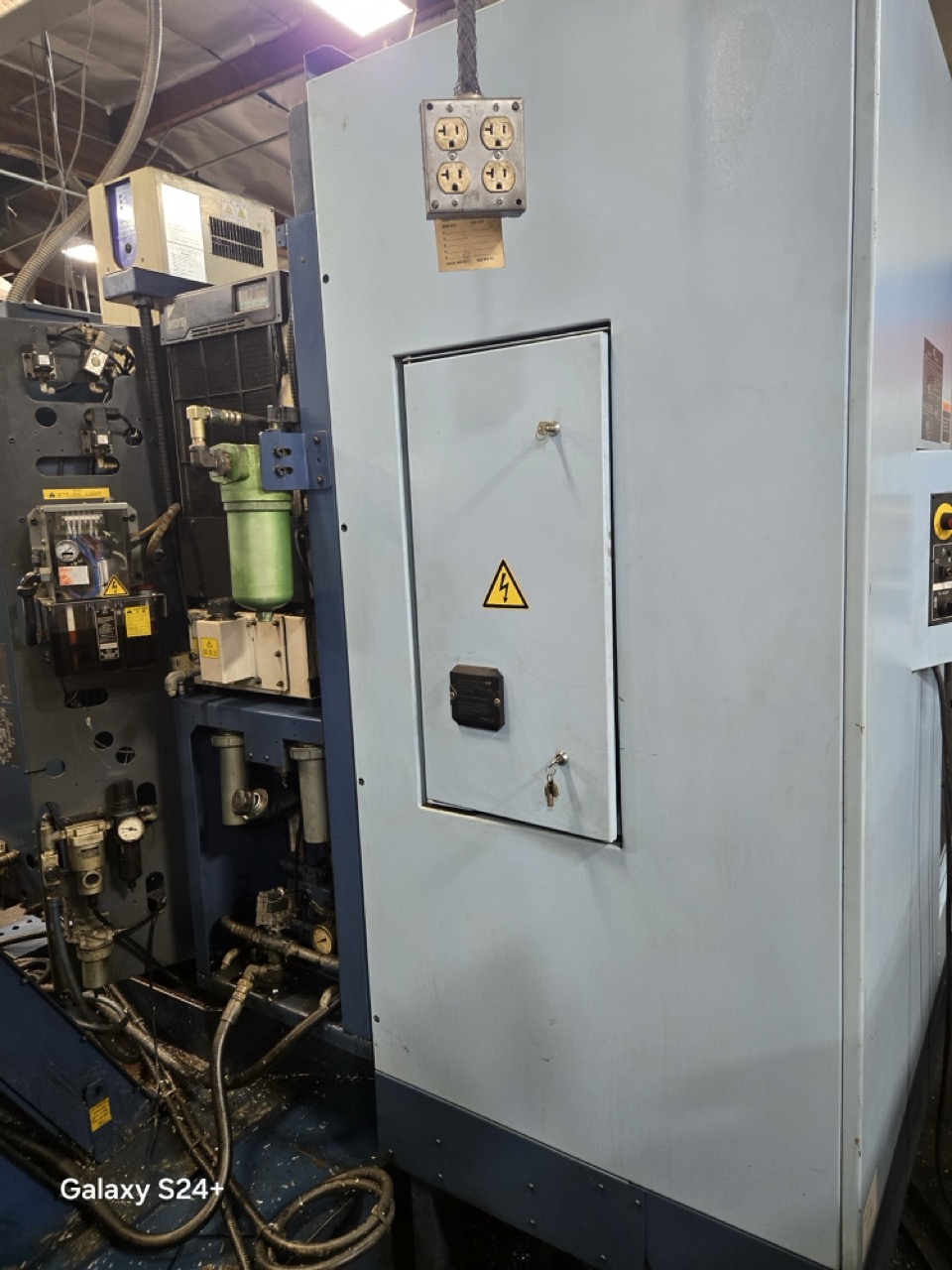

Electrical: 220V, 3-Phase
Approximate Machine Weight: 18,300lbs
Approximate Machine Dimensions: 85″ x 146″ x 101″

Equipped With

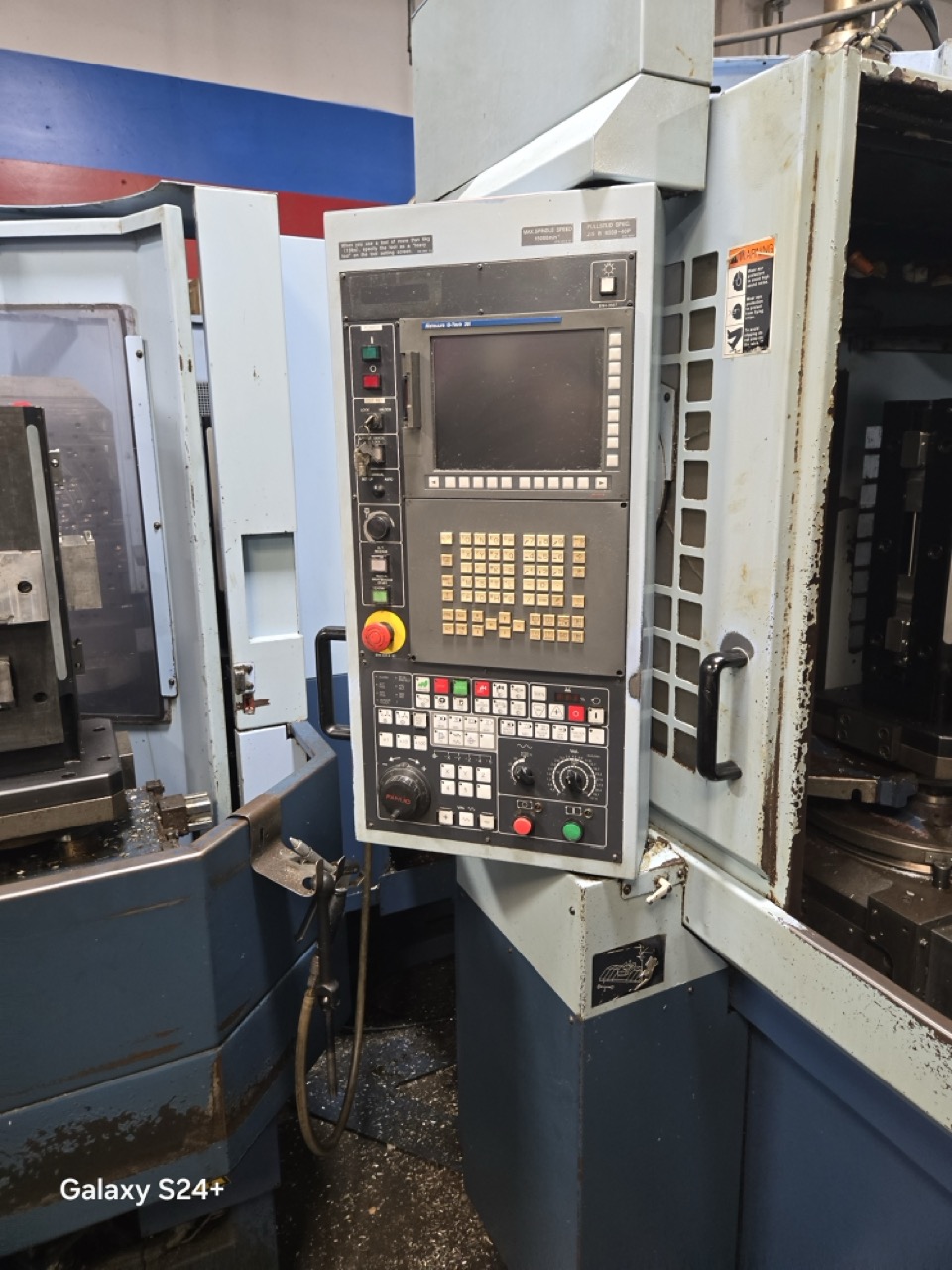

Matsuura G-Tech 30i/Fanuc 30i-A Series CNC Controller

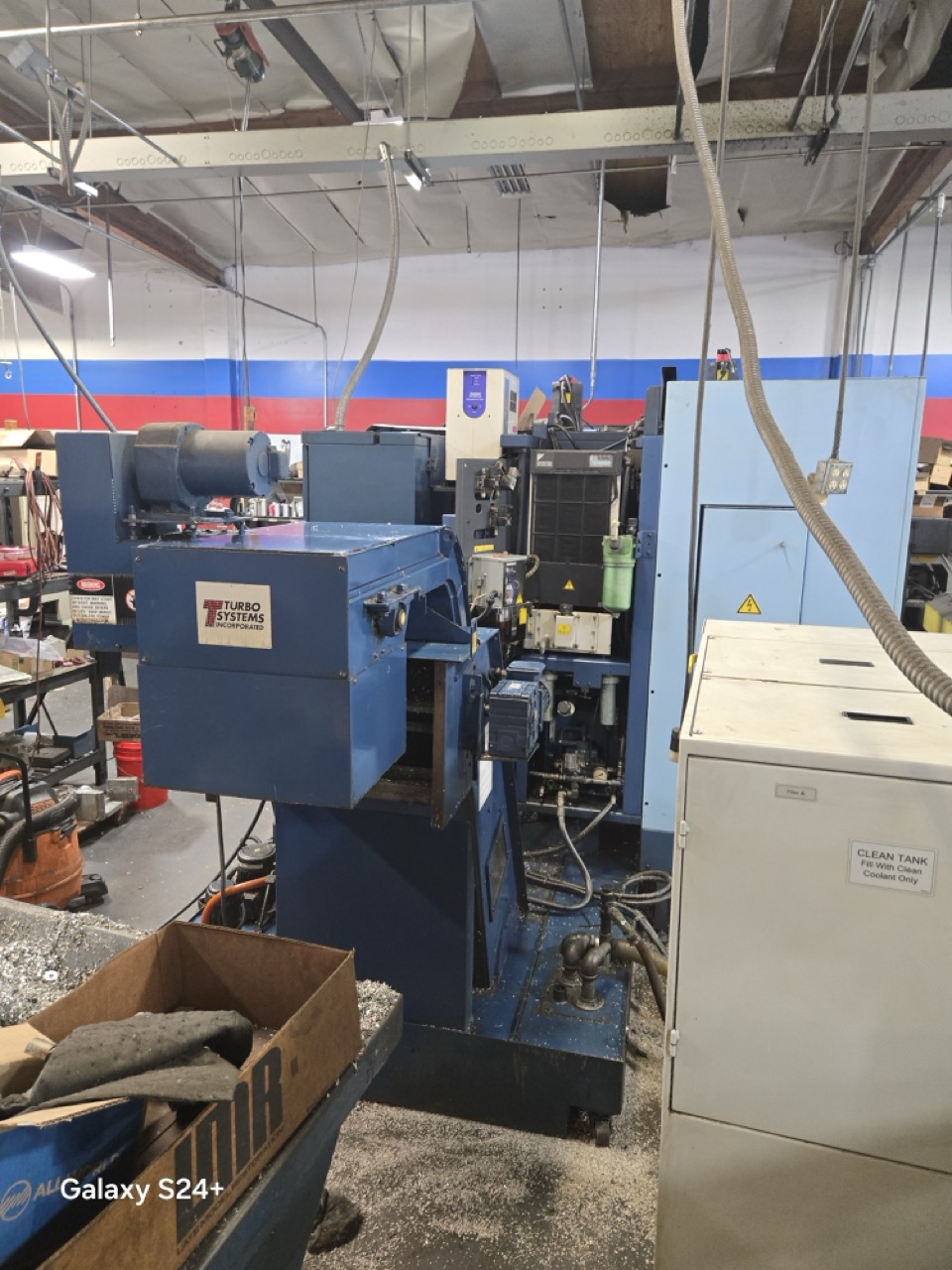

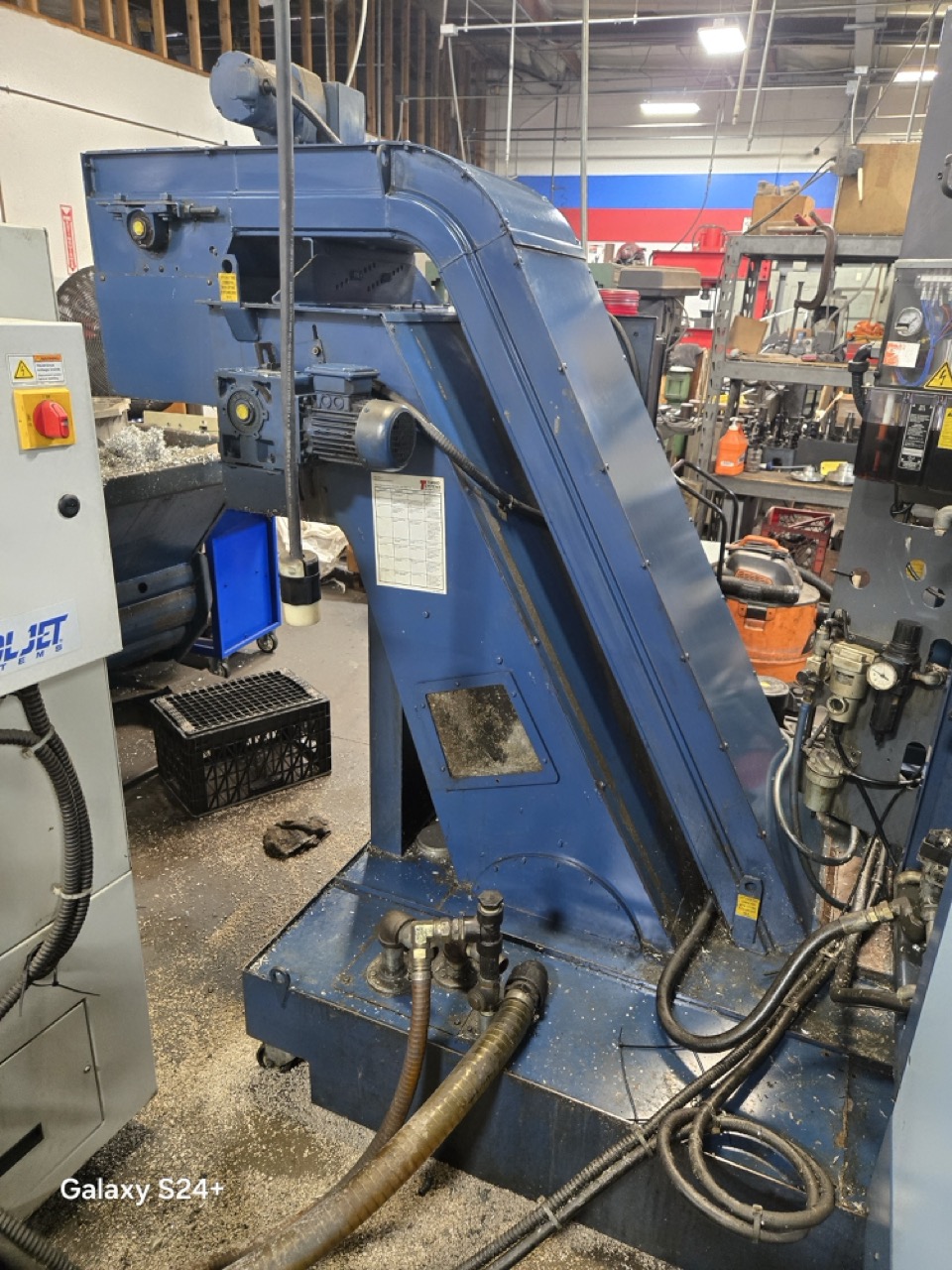

Chip Conveyor
Cool Through Spindle
Probing
