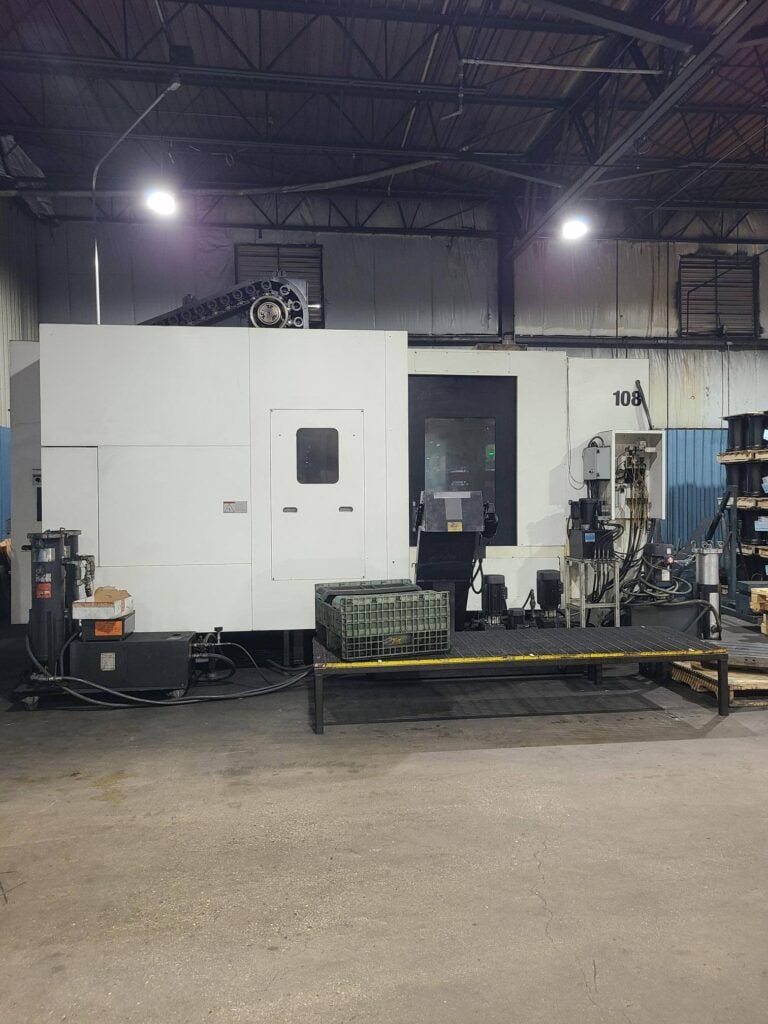

Mazak Orbitec 20/PC2 Horizontal CNC Lathe, 2012 – 2 pallet, 1,000 PSI CTS, Hydraulic fixturing, Robot Interface

Pallet Size 24.800 in
Maximum Workpiece Diameter 41.340
Maximum Workpiece Height 51.180 in
Spindle Spindle Taper Capto C8
Maximum Speed 600 rpm
Motor Output (30 minute rating) 40.0 hp
Magazine Number of Tools 60
Feed Axes Travel (X Axis) 11.02 in
Travel (Z Axis) 48.43 in
NC Position Table .001 Index

Equipped with:
Spindle Probe Package
Magnetic Scrapper Conveyor
PMC Prep.
3000 PSI Hyd ports 4Px2
2 ports for air
2 ports Hydraulic
Robot Interface
1,000 PSI thru spindle Coolant
