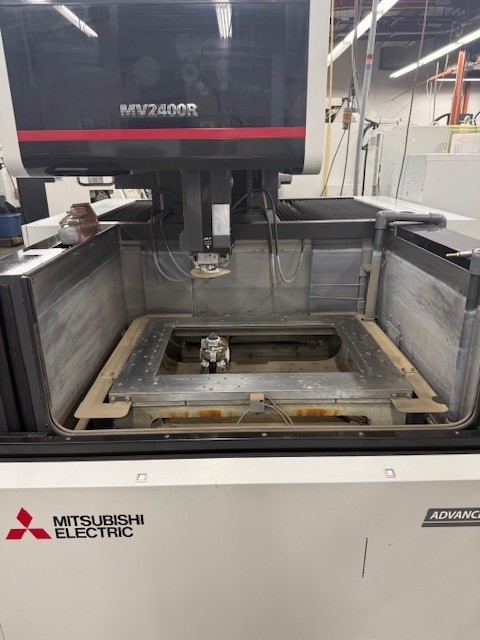

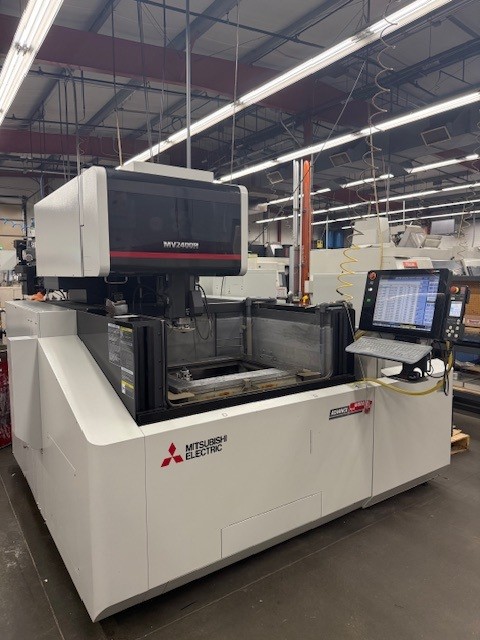

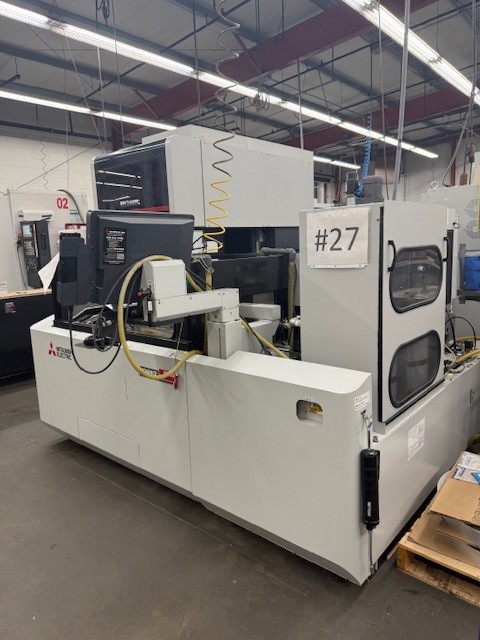

Mitsubishi MV-2400R Wire EDM, 2018 – Auto Threading, Wire Alignment Gauge
$99,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Dimensions: 33.0″ x 25.2″
Maximum Workpiece Dimensions: 41.3″ x 32.3″ x 12.0″
Max workpiece Weight: 3,300 LBS
X Axis Travel: 23.6″
Y Axis Travel: 15.7″
Z Axis Travel: 12.2″
U/V Travels (from center): ±3.0″ x ±3.0″
Taper Angle @ Thickness: 15 deg.@ 10.2″
Table Rapid Feed Speed: 51.2″/min
Wire Diameter Possible: 0.004~0.012″
Max. Wire Spool size On Machine / Cabinet STD: 22/44 LBS
Machine Weight: 8,000 LBS
Equipped With:
Mitsubishi CNC Control
Intelligent Auto-Threader
Chiller FTS
10 KG (22lb) Wire Spool
Wire Alignment Gauge
Auto Oiler
Auto Power Recovery
Advanced Hand Pendant Box (Provides extended features and LCD screen)
4-Sided Table (One-Piece Hardened Stainless)
Basic Workpiece Clamping Kit (Directly clamps parts to the machine table)
One set of 0.010″ Round Diamond Guides
Fast Fill Pump
16-Step Programmable Flushing Control
Angle Master (Guides and flush cups not included)
Linear Scales X,Y,U,V (50nm) 2 millionths absolute scales
Cylinderical LSM Drives (Linear Shaft Motors X,Y,U,V)
Small Wire Device .004″ (Does not include guides)

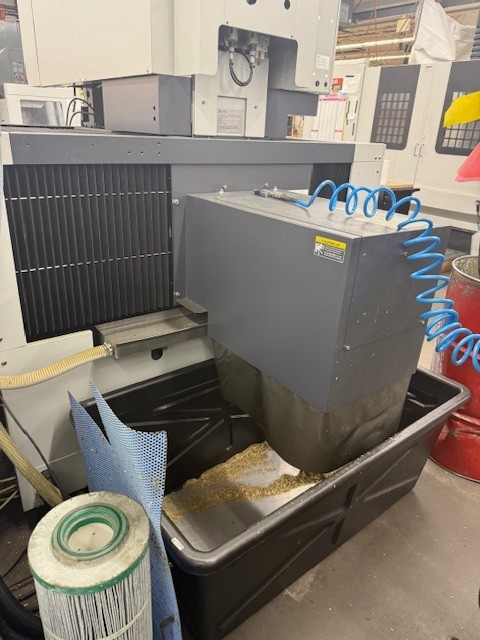

Wire Processor (Scrap Wire Chopper)
Fine Surface Machining (PF Circuit 11~12μ” Ra possible)
New HFS Fine Finish Circuit (7~8μ” Ra possible)

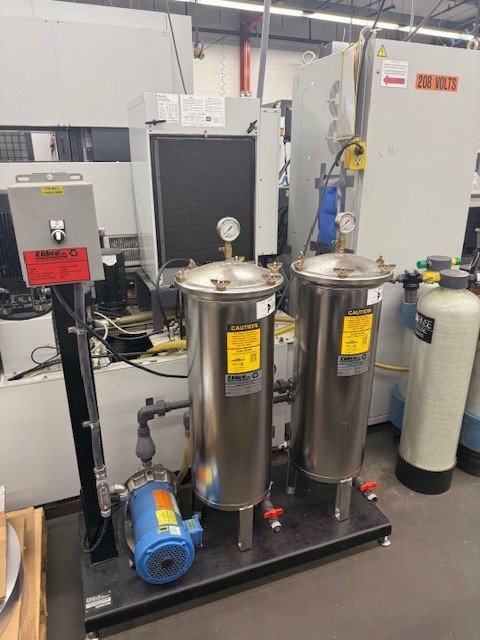

DI Resin System (1.4 cu. ft. fiberglass cylinder 2x)
2 USB Ports
DNC Hardware (Ethernet FTP)
McAfee Virus Protection
