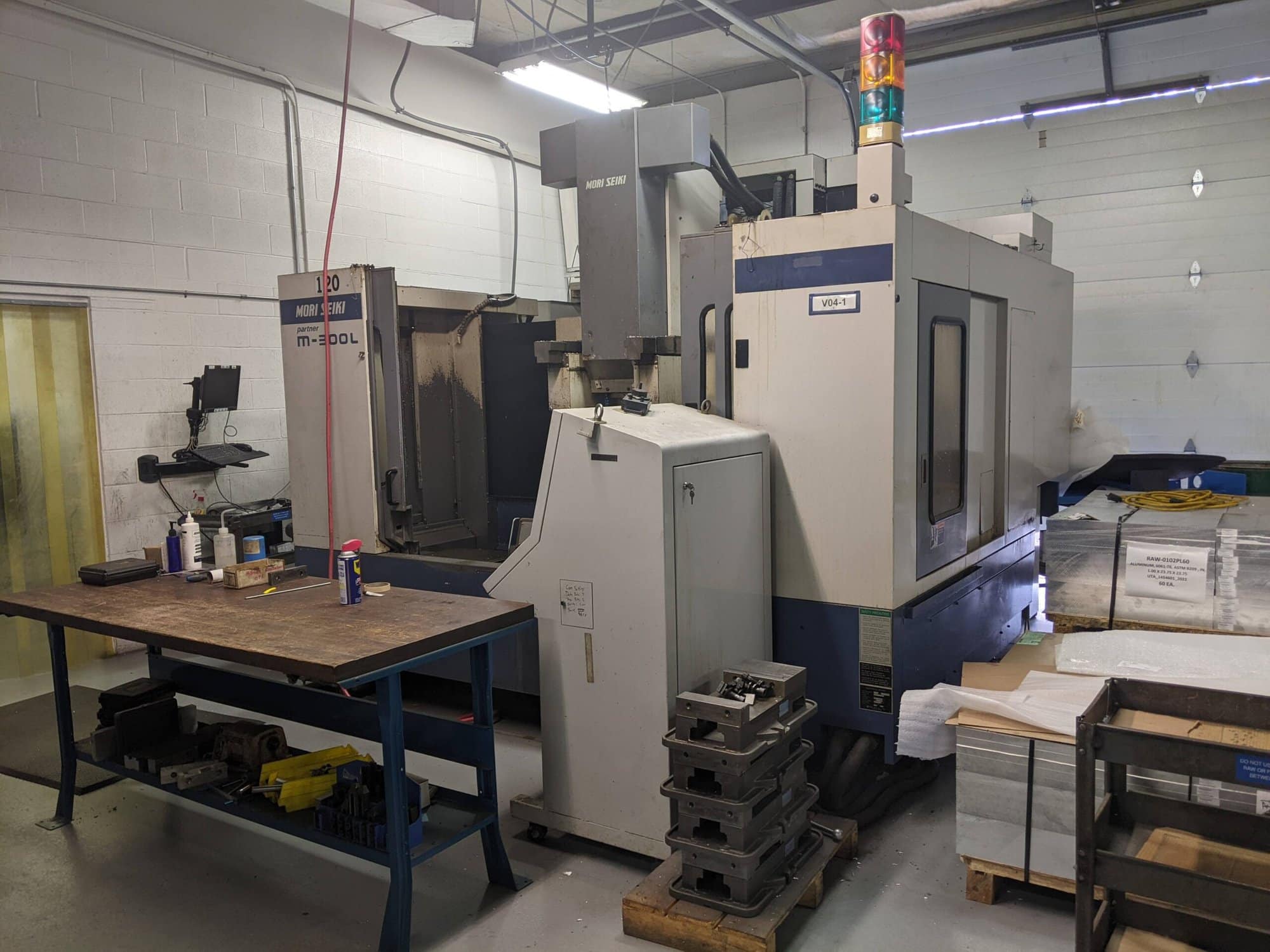

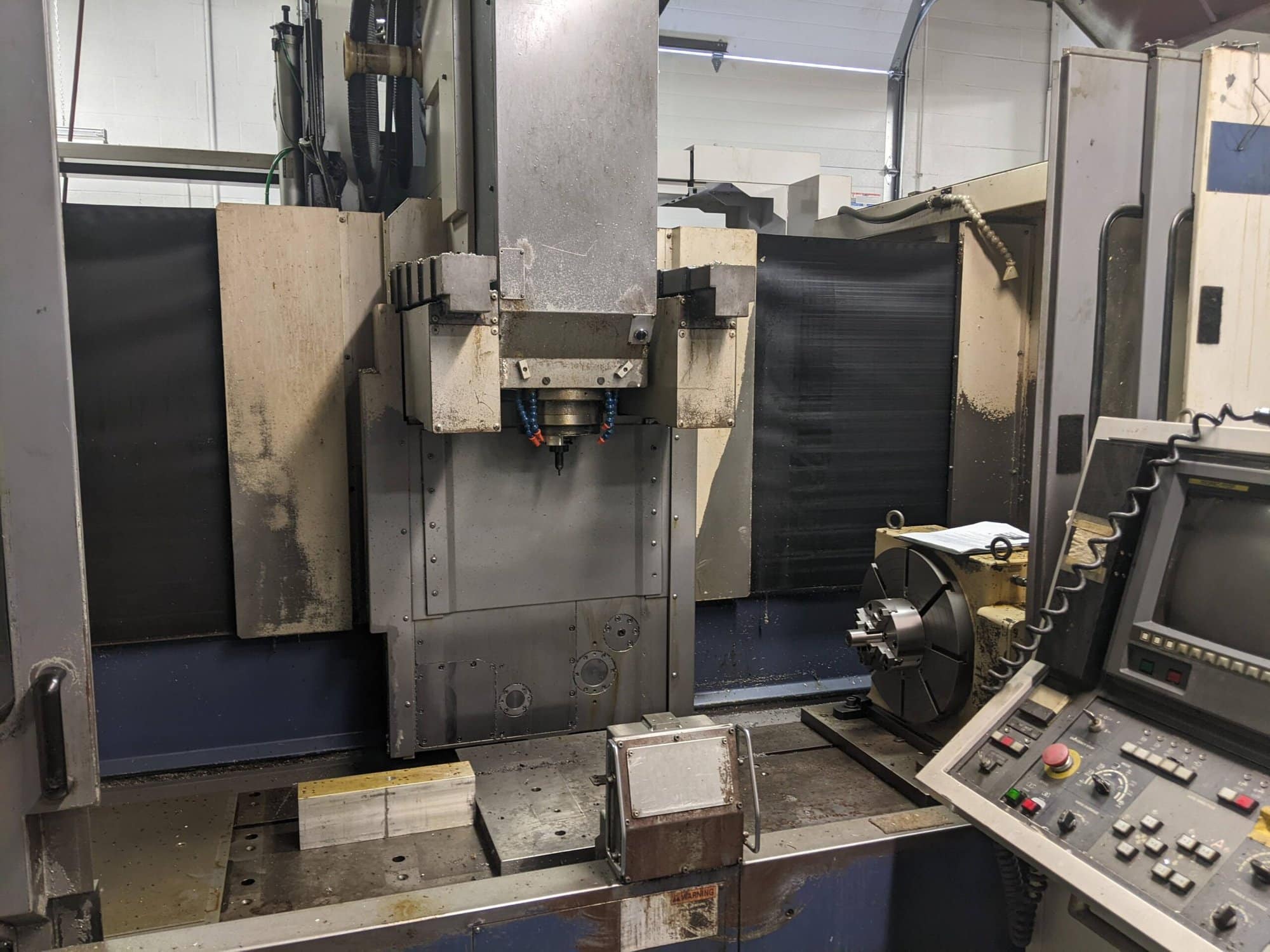

Mori Seiki M-300L VMC, 1996 – 4th Axis, Chip Conveyor, Available Immediately

$14,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Vertical Machining Centers
Model:
M-300 VMC
Make:
Mori Seiki
Year:
1996

Machine Travel: X-axis 62.99
Y-axis: 19.69
Table working area: 32.68×21.26
Table T -Slot: 0.71×3.94×5
Table loading capacity: 1540 lbs
Distance from spindle nose to table surface: 3.94-22.44
Distance from spindle center to ATC shutter: 5.31
Distance from floor to table surface: 32.28

Spindle speed: 100-6000 rpm
Number of spindle speed ranges: stepless/built-in
Spindle hole taper: 7/24
Spindle bearing I.D.: 2.76
Max spindle torque: 13.8 kgfm

Rapid traverse rate X/Y/Z: 944.88/944.88/944.88
Cutting feed rate: 0.04-196.85
Jog feed rate: 0-62.99 15 ranges

Tool shank: MAS BT-40
Pull-stud: Special type: 90*
Tool Storage Capacity: 30
max tool dia [w/o adjacent tools]: 3.15[4.92]
Max tool length: 9.84
Max tool weight: 17.6

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
