Newman CTE350 Tamper Evident Automatic Carton Labeler, 2007


Request a Quote to Instantly See Pricing

Call Now

Machine Type: Labeling Machines
Make: Newman Labelling Systems
Model: CTE 350
Year: 2007
Machine Location: Illinois
Stock #: 223841

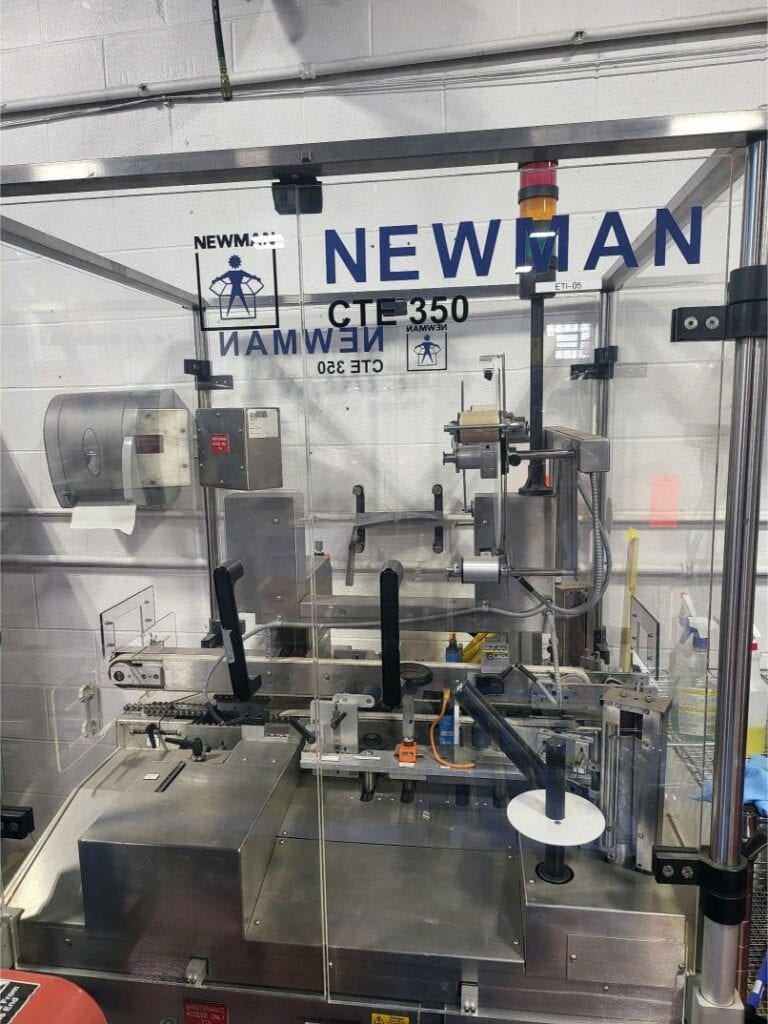

Newman CTE350 Tamper Evident Automatic Carton Labeler, 2007

The CTE350 is a fully automatic labelling system which applies self-adhesive tamper-evident and hologram labels (security labels) to erected cartons. Designed primarily for the pharmaceutical industry where line space is at a premium, the compact design permits easy integration into existing packing lines.

– Carton size minimum: 12mm(H) x 20mm(W) x 65mm(L)
– Carton size maximum: 120mm(H) x 120mm(W) x 240mm(L)
– Label size minimum: 10mm (H) x 10mm (L)
– Label size maximum: 40mm (H) x 25mm (L)
– Maximum label reel diameter: 300mm
– Speed: variable up to 350 CPM
– Net weight: 420 Kg
– Electrical supply: 230V-1Ph-50Hz, 1KW (60Hz option)
– Compressed air: 60psi/4.2 Bar
– Noise emission: <75dB @ 1m (subject to container type)
– Aeroplane and reverse tuck formats can be accommodated

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
