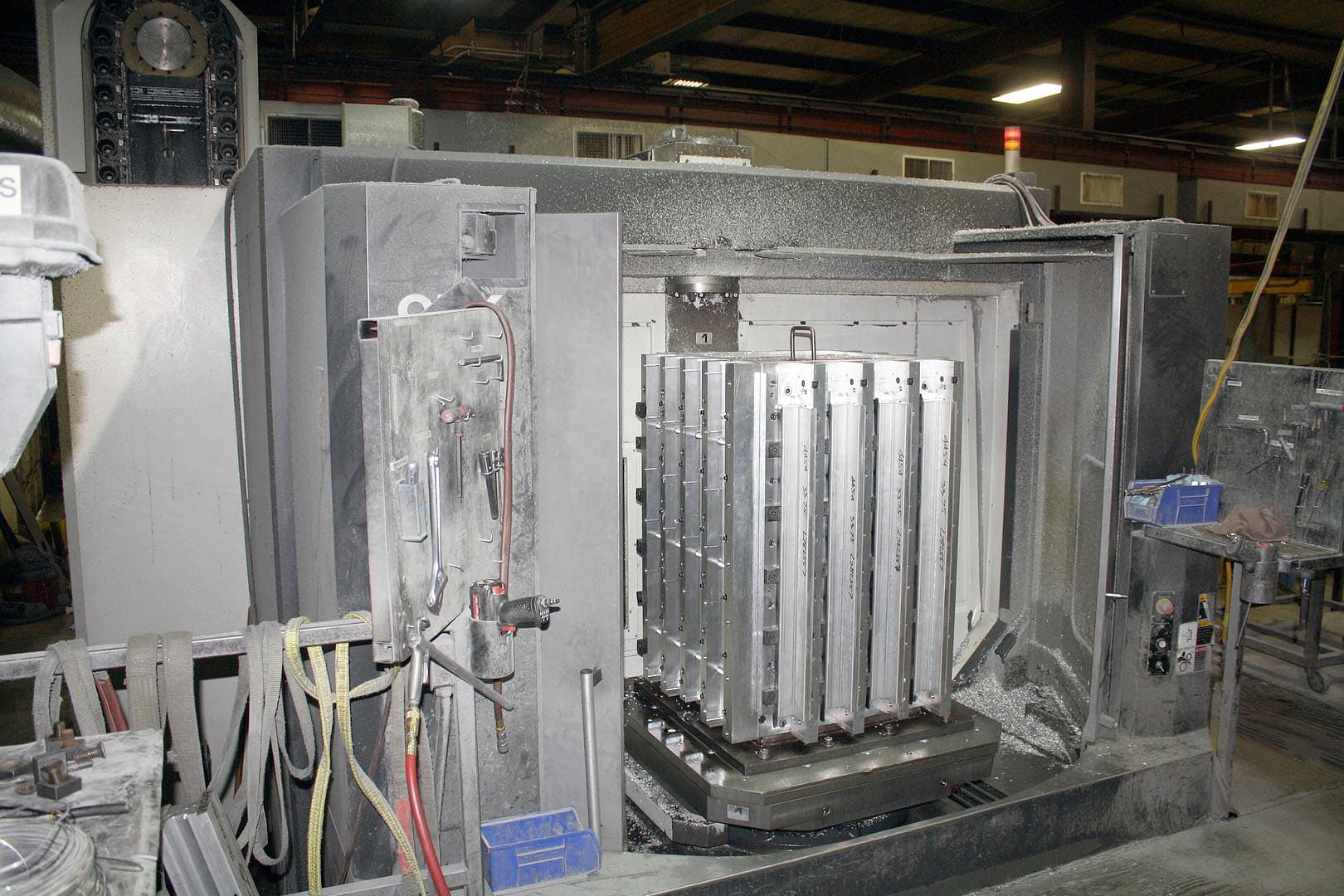

OKK HM-100S 1000mm HMC, 2006 – Full B, TSC, Fanuc Control

$179,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Horizontal Machining Centers
Model:
HM-100S
Make:
OKK
Year:
2006

Table/Pallet: Width: 39.37 ”
Length: 39.37 ”
Number of Table/Pallet(s): 2
Indexing: 360,000 °
Maximum Load: 5512 lbs
Travels: X-Axis Travel: 55.1 ”
Y-Axis Travel: 43.3 ”
Z-Axis Travel: 39.37 ”
Spindle:
Spindle Speed:
Minimum (RPM): 0 rpm
Maximum: 8000 rpm
Spindle Taper: #50
Main Motor (HP): 40/30 hp

Tool Changer:
Tool Changer Positions: 60 atc
Additional
Rapid Traverse (X,Y,Z): 1889 IPM

EQUIPPED WITH:
Fanuc 160is-MB/CRT CNC Control
High Pressure Coolant Through Spindle- 1,000 PSI
Full Coolant Enclosure
Flood Coolant System
Air Dryer
Spindle Chiller System
#50 Cat Taper
(60) Station Automatic Tool Changer
Rigid Tapping
High Speed Machining
Manual Pulse Generator
Linear & Circular Interpolation
RS-232 Interface
(2) Station Pallet Shuttle System
Chip Conveyor
Voltage: 200-220V/3/60
Max. Amps: 79
Multi-Tap Transformer
Work Light
Status Indicator Lights
Way Covers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
