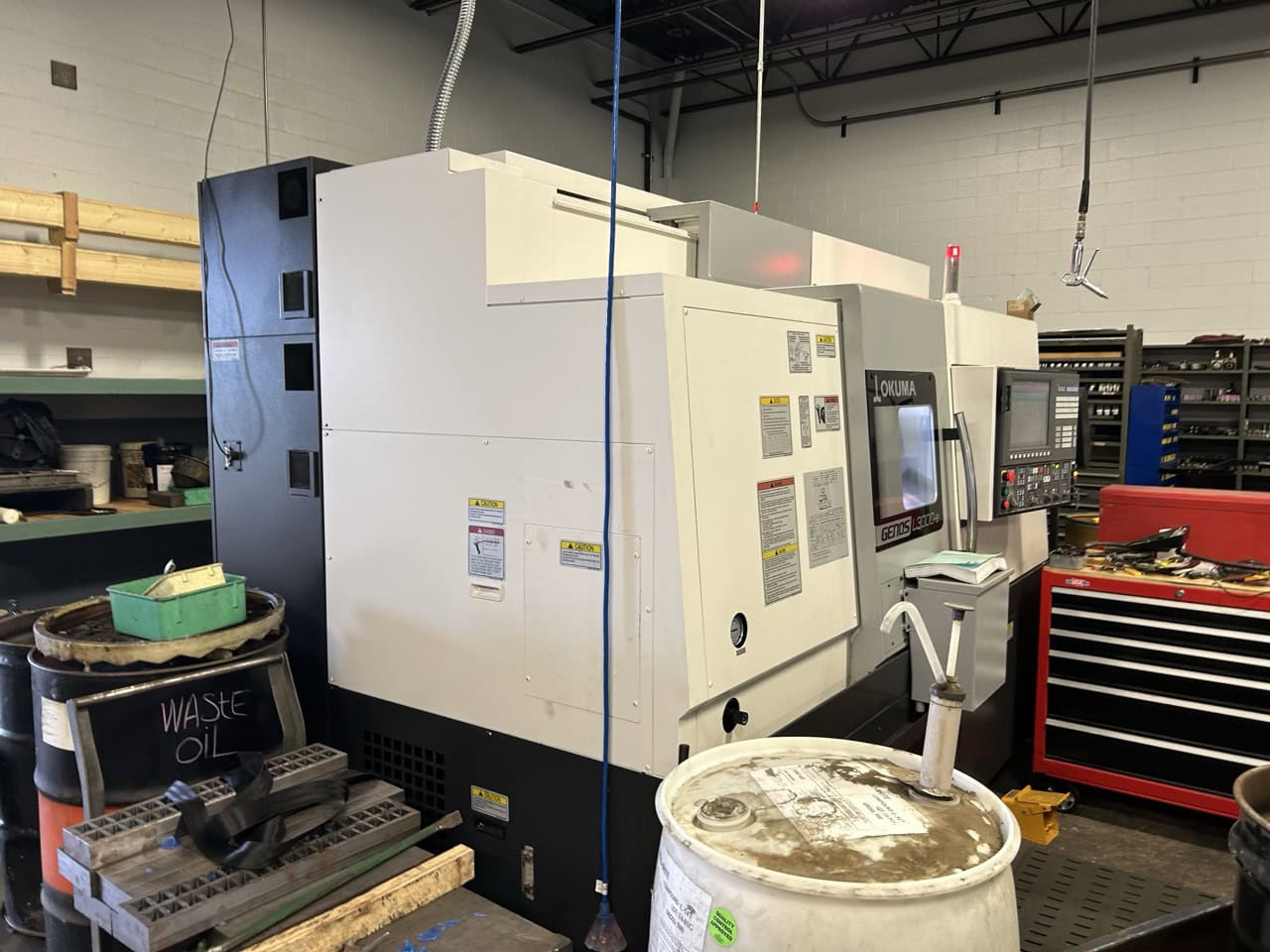

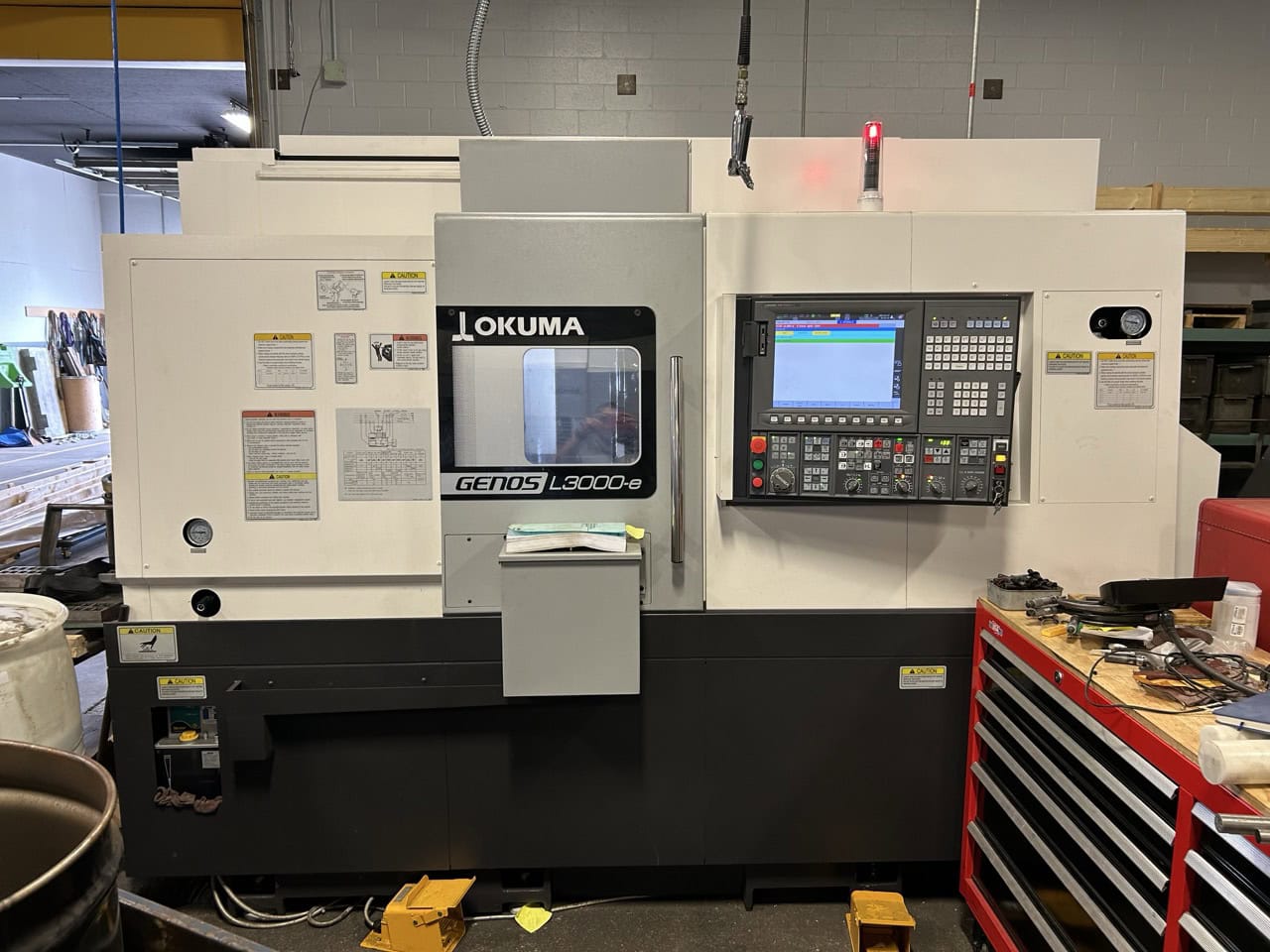

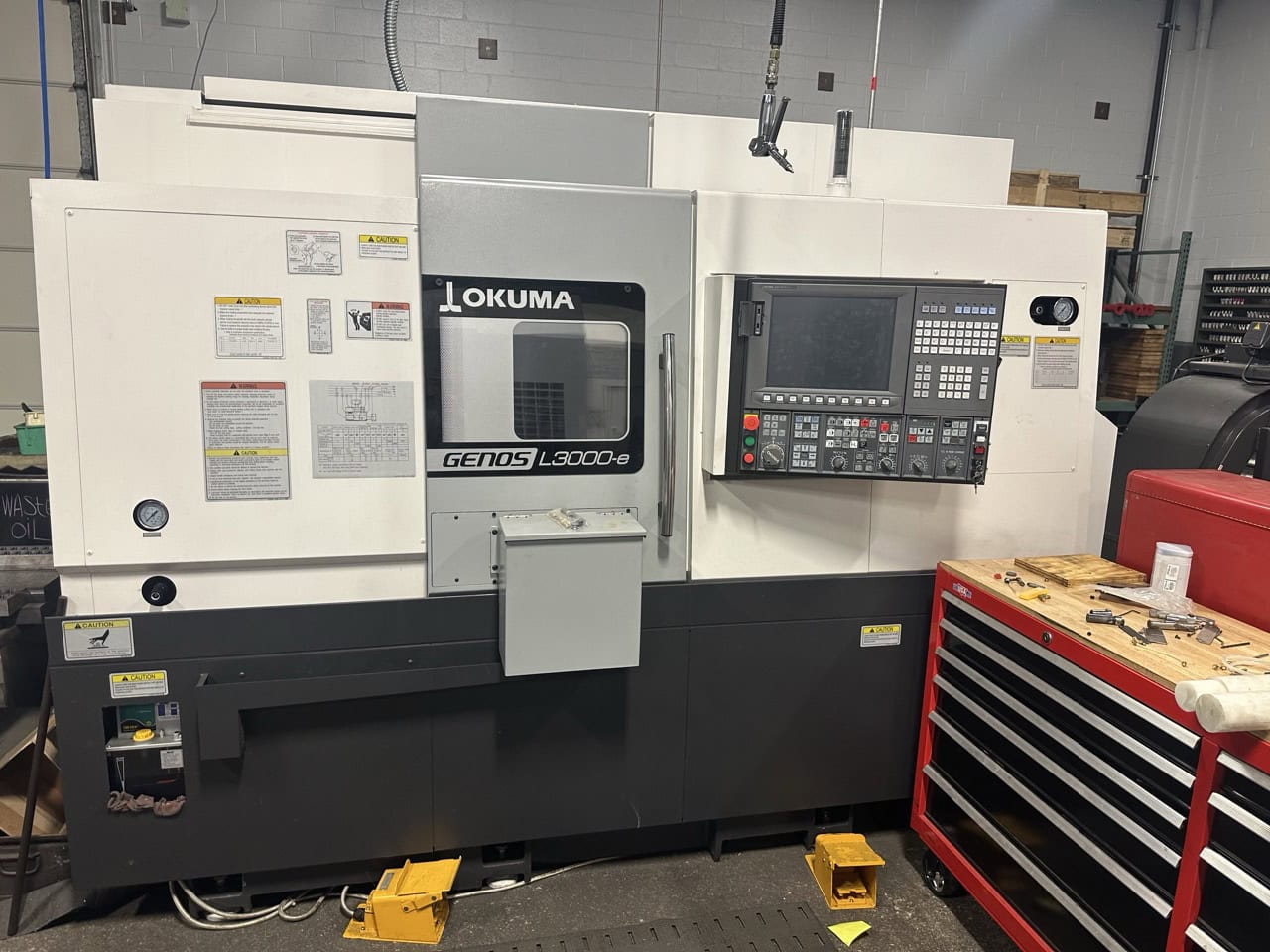

Okuma Genos L3000MYW-E X CNC Multi Axis Lathe, 2023 – Sub Spindle, Y Axis
$174,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing over Bed: 20.47″
Swing over Saddle: 10.24″
Max Recommended Turning Diameter:15.35″
X-Axis Travel: 9.25″
Y-Axis Travel: 3.94โ
Z-Axis Travel: 18.11″
Travel, W-Axis (Sub-Spindle): 20.47โ
Rapid Travel X-Axis: 984 IPM
Rapid Travel Y-Axis: 393 IPM
Rapid Travel Z-Axis: 1181 IPM
Rapid Travel W-Axis: 984 IPM
Main Spinle Motor: 30HP
Spindle Nose: JIS A2-8
Spindle Spindle: 3,800 RPM
Spindle Bore: 3.15″
Sub Spindle Speed: 6,000 RPM
Sub Spindle Bore Diameter: 2.09″
Sub Spindle Motor: 10 HP
Sub-spindle chuck type: Kitagawa B206
Turret: V12 multitasking radial bolt-on
Milling Spindle Speed: 6,000 RPM
Milling Spindle Motor: 4.9 HP
Floor Space Required W x D x H (without Chip Conveyor): 112.4โ x 82.56โ x 89.17โ
Weight (lbs): 13,640
Equipped With:
Okuma OSP P300LA-e Control
Sub Spindle
Y Axis
Live Milling
Parts Catcher
Barfeeder Interface
Touch Setter
Chip Conveyor
Negative Tool Radius Compensation
2 GB Ram Memory
2 USB Ports
3D Simulation
Ethernet Interface
Chuck, 3-Jaw Hydraulic Kitagawa B210
Tooling
