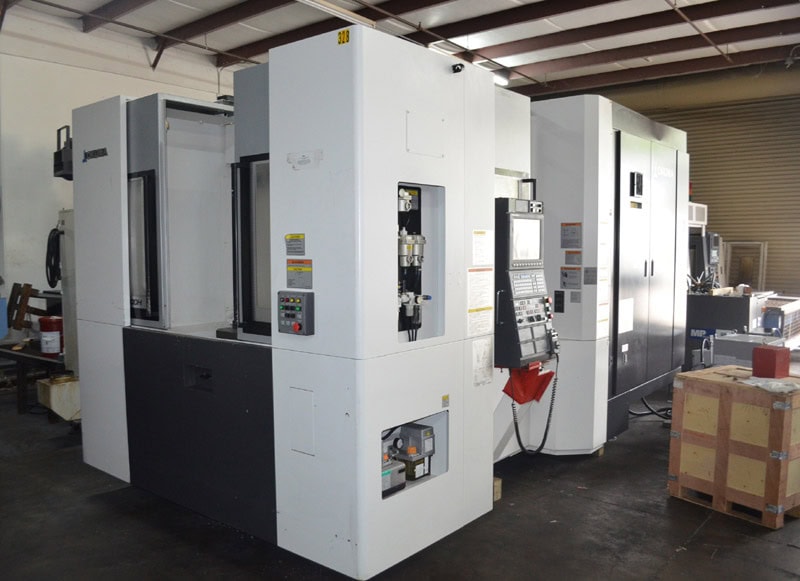

Okuma MB-5000H 500MM HMC, 2016 – TSC, Renishaw Probe, 64 ATC, XYZ Scales
$124,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Pallet Size: 19.69โ x 19.69โ
Max Load: 1100 lbs
Indexing Angle: .0001 Degree โ Full Rotary Table
Max Workplace Diameter: 31.5โ x 39.37โ
X-AXIS: 29.92″
Y-AXIS: 29.92″
Z-AXIS: 29.92″
Spindle Center to Pallet Top: 1.97โ โ 31.89โ
Spindle Nose to Pallet Center: 5.31โ โ 35.23โ
Spindle Speed: 50 โ 15,000 RPM
Rapid Traverse XYZ: 2362 IPM
Cutting Feedrate XYZ: 2362 IPM
Spindle Drive: 30/22 HP
Tool Shank Type: HSK A63
Magazine Capacity: 64 ATC
Max Tool Diameter /Empty: 2.76โ / 5.91โ
Max Tool Length: 17.72โ
Max Tool Weight: 22 lbs
Floor Space WxDxH: 106โ x 187โ x 113โ
Weight: 25,300 LBS
Equipped With:

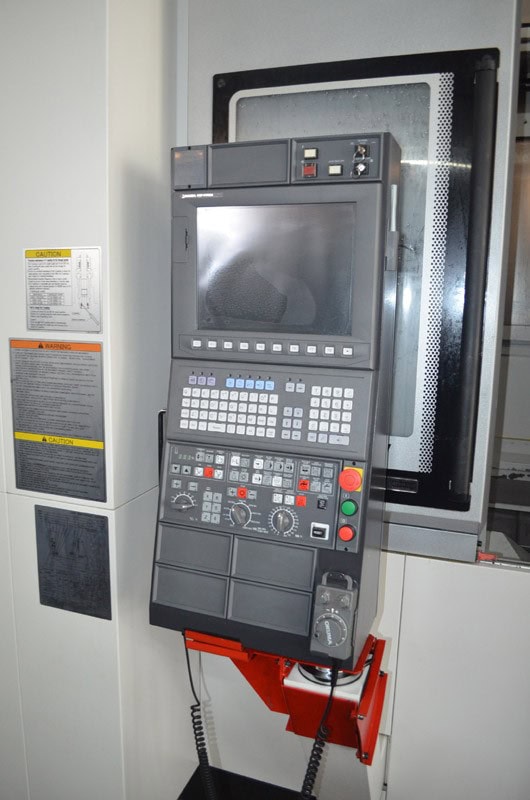

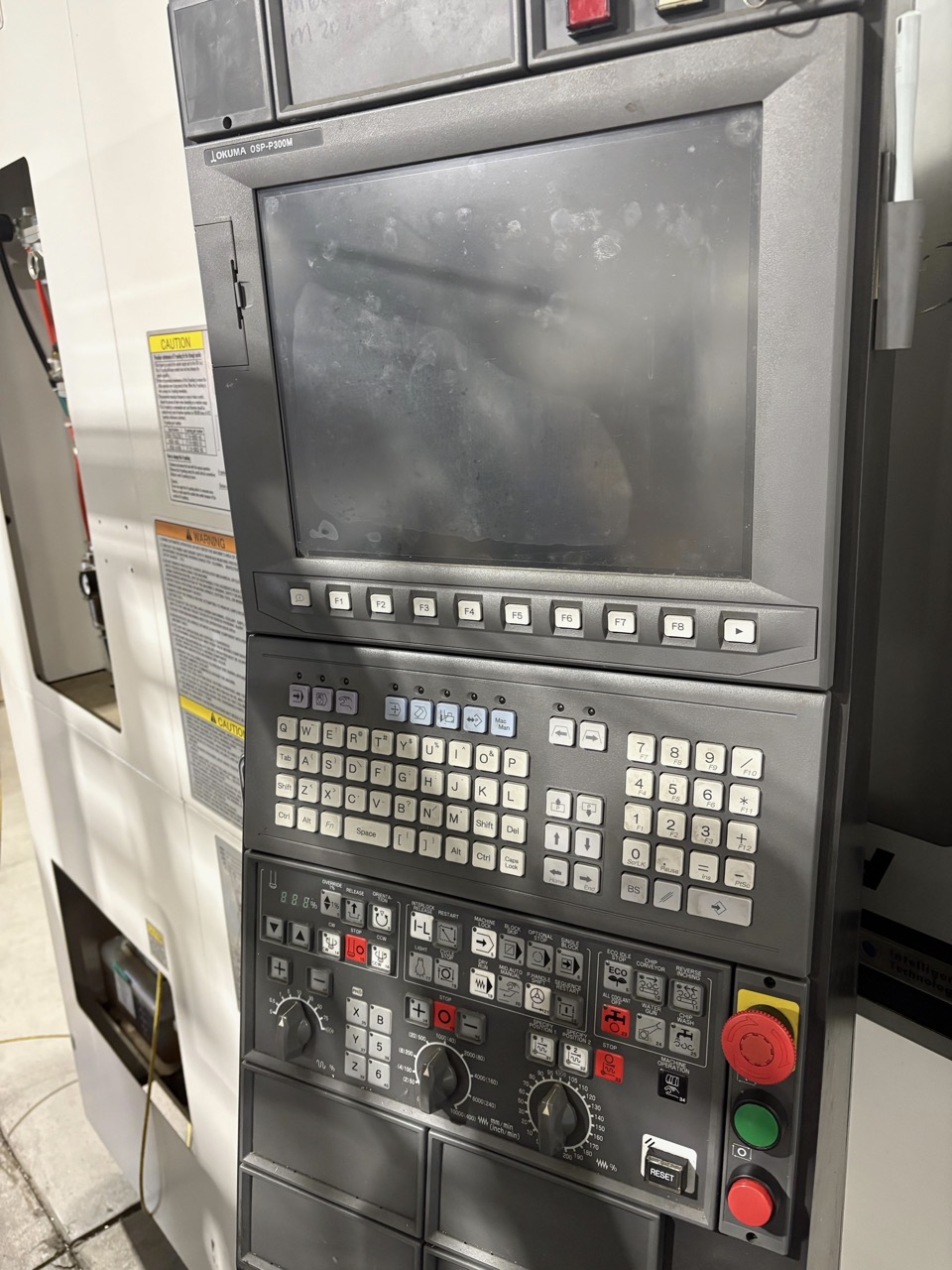

Okuma OSP-P300M Control
Hydraulic Fix I/F Link Type 8
Ballscrew Center Cooling
Tool Breakage Detection
Shower Coolant
64 ATC Chain โ HSK A63
M-Codes 8 Spare
HSK-A63 15,000 RPM Spindle
Auto Gauging

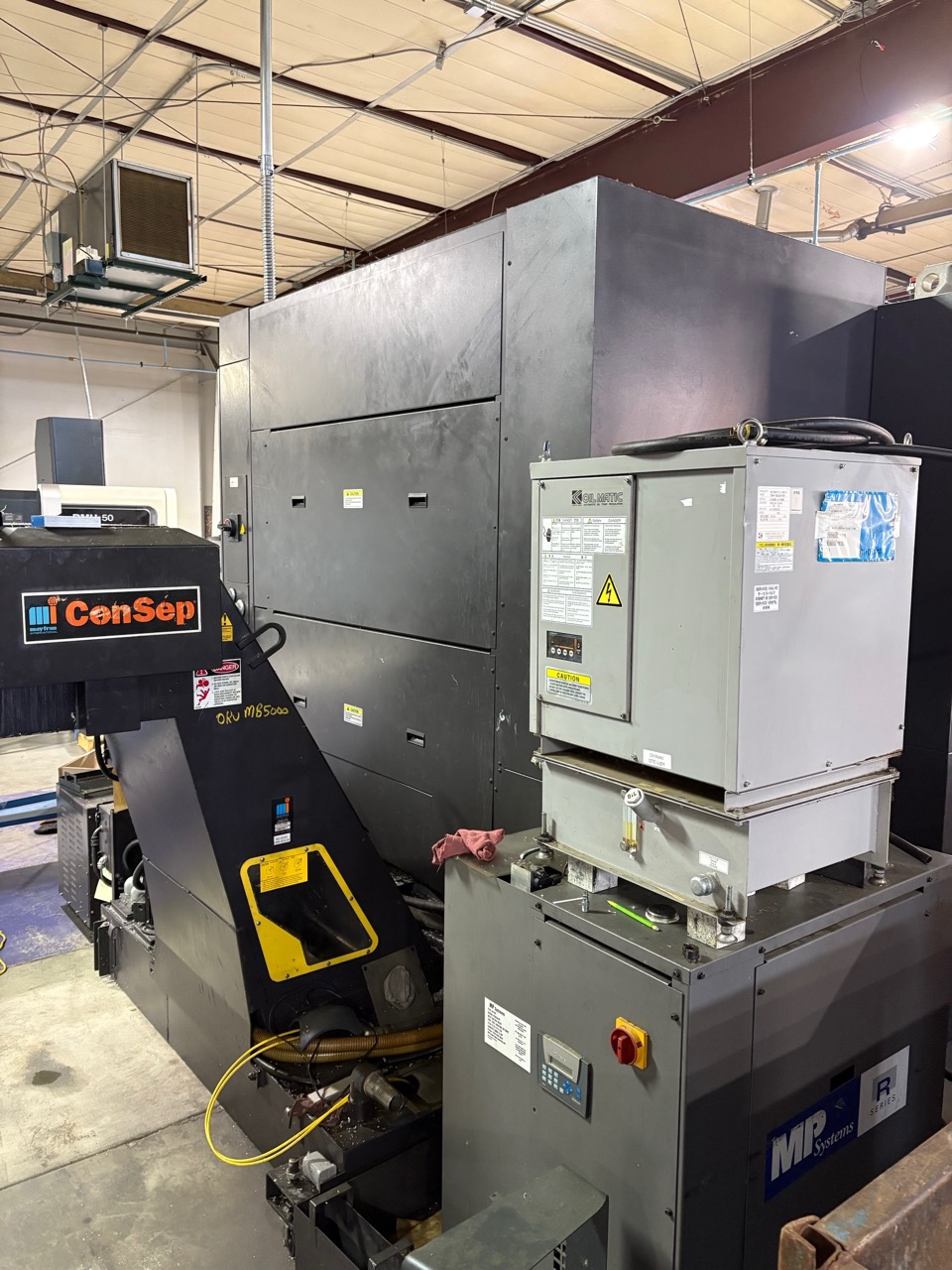

Chip Conveyor Consep 2000II (Mayfran)
ABSO Scales for XYZ
Renishaw RMP60 HSKA63
MP System: R Systems Type AT RF 480V DP โ High Pressure Coolant System
Through Spindle Coolant High Pressure
.0001 Degree Full Rotary Table
Color Display
Graphic
Helical Cut / One Direct Position
I/M Switch
3D R. Simulation
Area Machining
Playback (IMAP)
IMAP
Grahpic-IMAP
Hi-G
Machi. Mange
Synchro. Tapping
Manual. Gauging
TouchSens. MOVE
CoolantHigh Pressure 2
ShowerWash
Spindle Through Air
