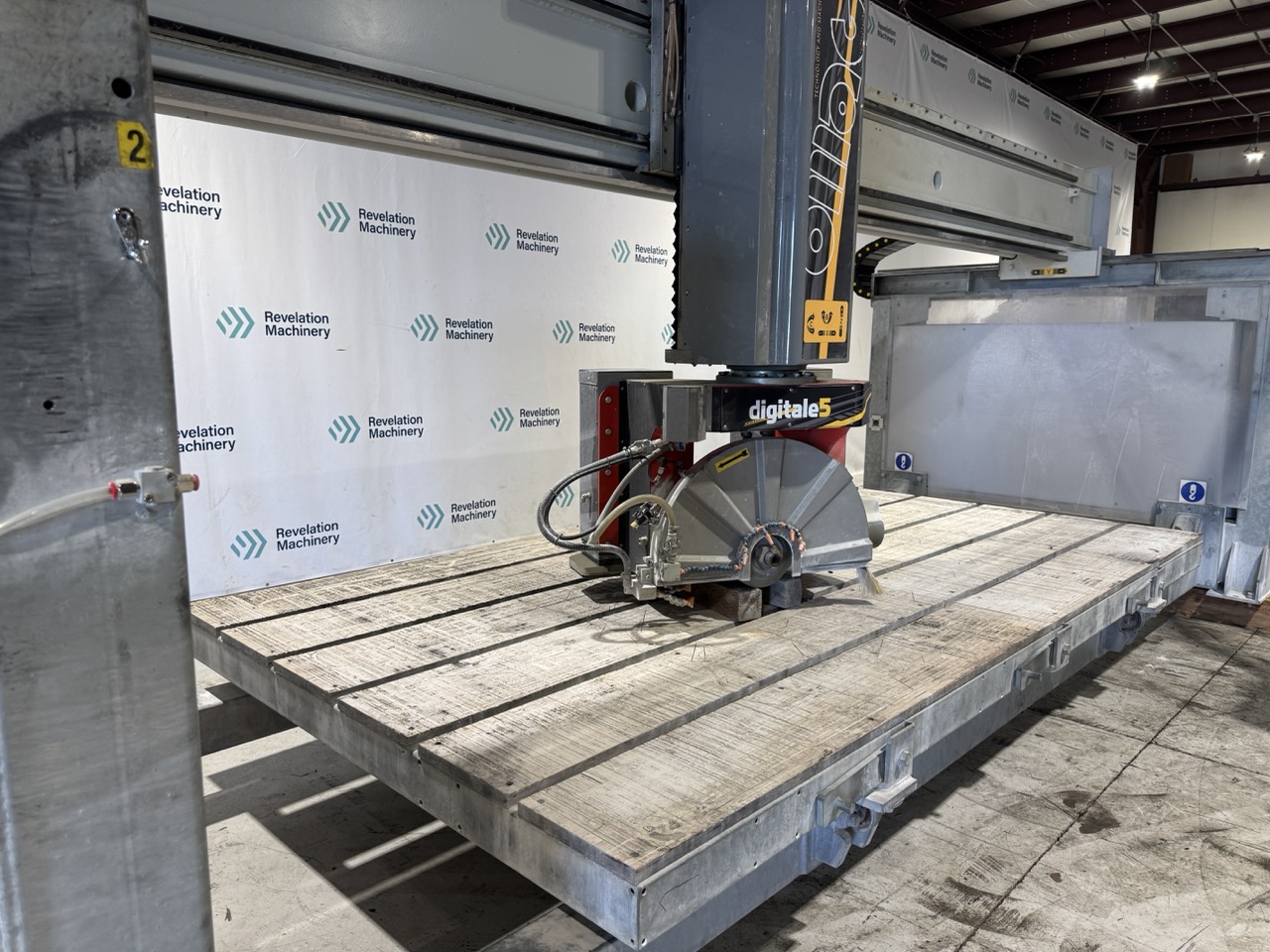

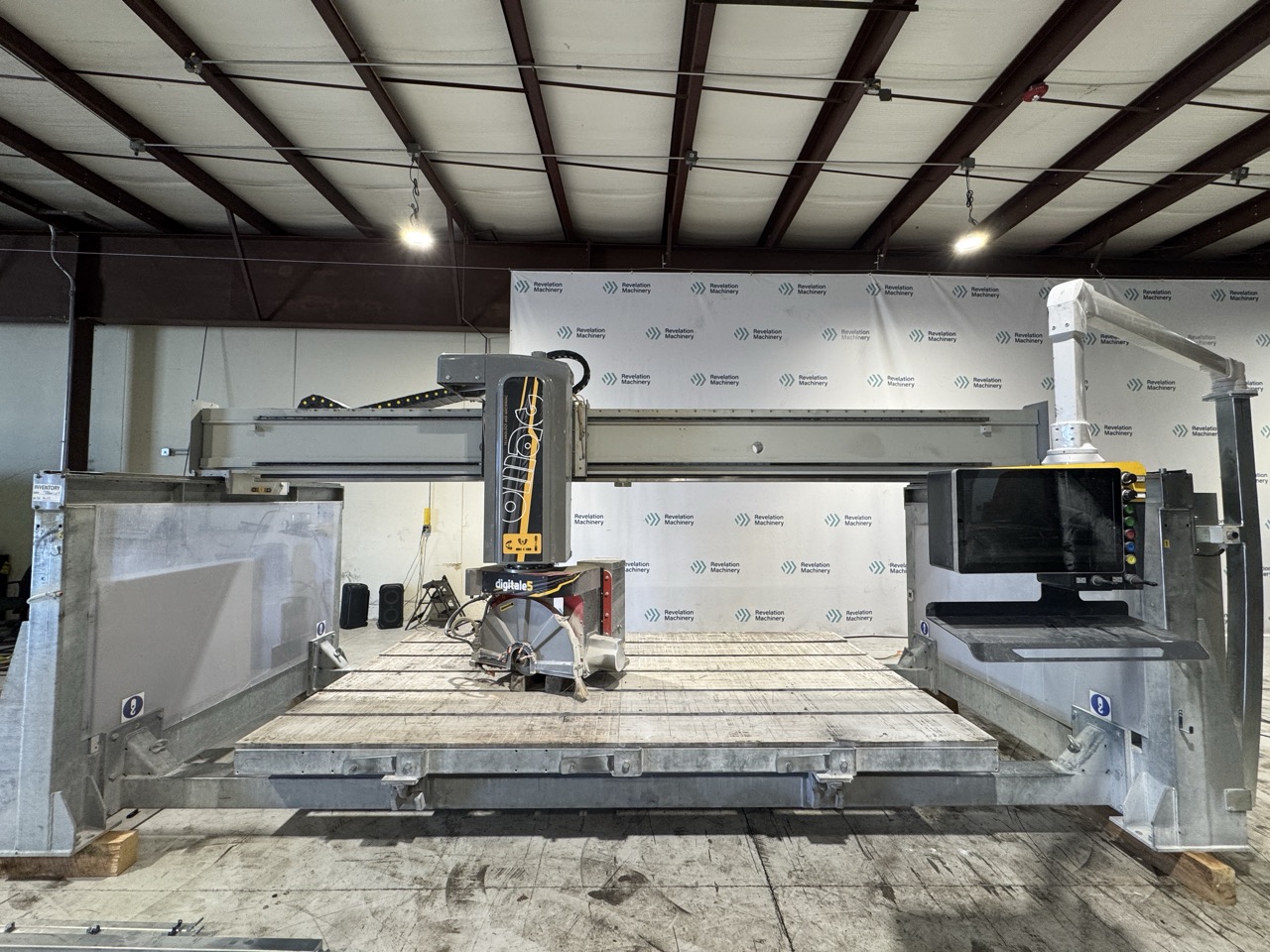

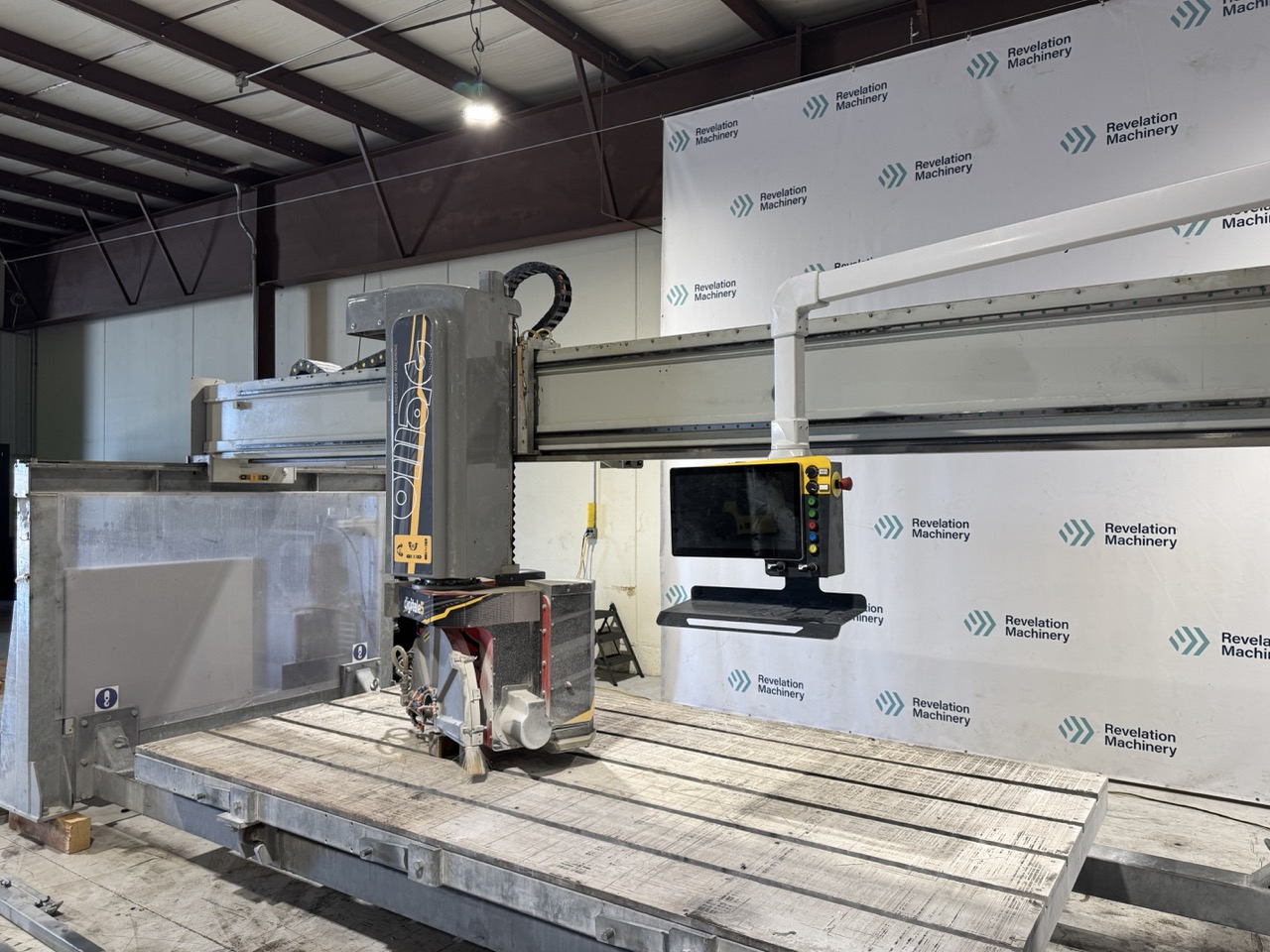

OMAG Digitale 5 Type 3600×2000 + 500×400 CNC 5-Axis Bridge Saw, 2024 – Stone Cutting & Milling Center for Granite, Marble, Quartz & Porcelain

Late-model 2024 OMAG Digitale 5 Type 3600×2000 + 500×400 5-axis CNC bridge saw and milling machine designed for precision cutting, mitering, drilling, shaping, and sink processing of granite, marble, quartz, porcelain, and ceramic slabs.
Updated Compact Spec Sheet:
Item Spec
Year 2024
Make OMAG
Model Digitale 5
Type / Configuration 3600 x 2000 + 500 x 400
Machine Type 5-Axis CNC Bridge Saw / Stone Cutting & Milling Machine
Controlled Axes 5
Workbench / Table Size 3,600 x 2,000 mm + 500 mm / approx. 141″ x 78.7″ + 19.6″

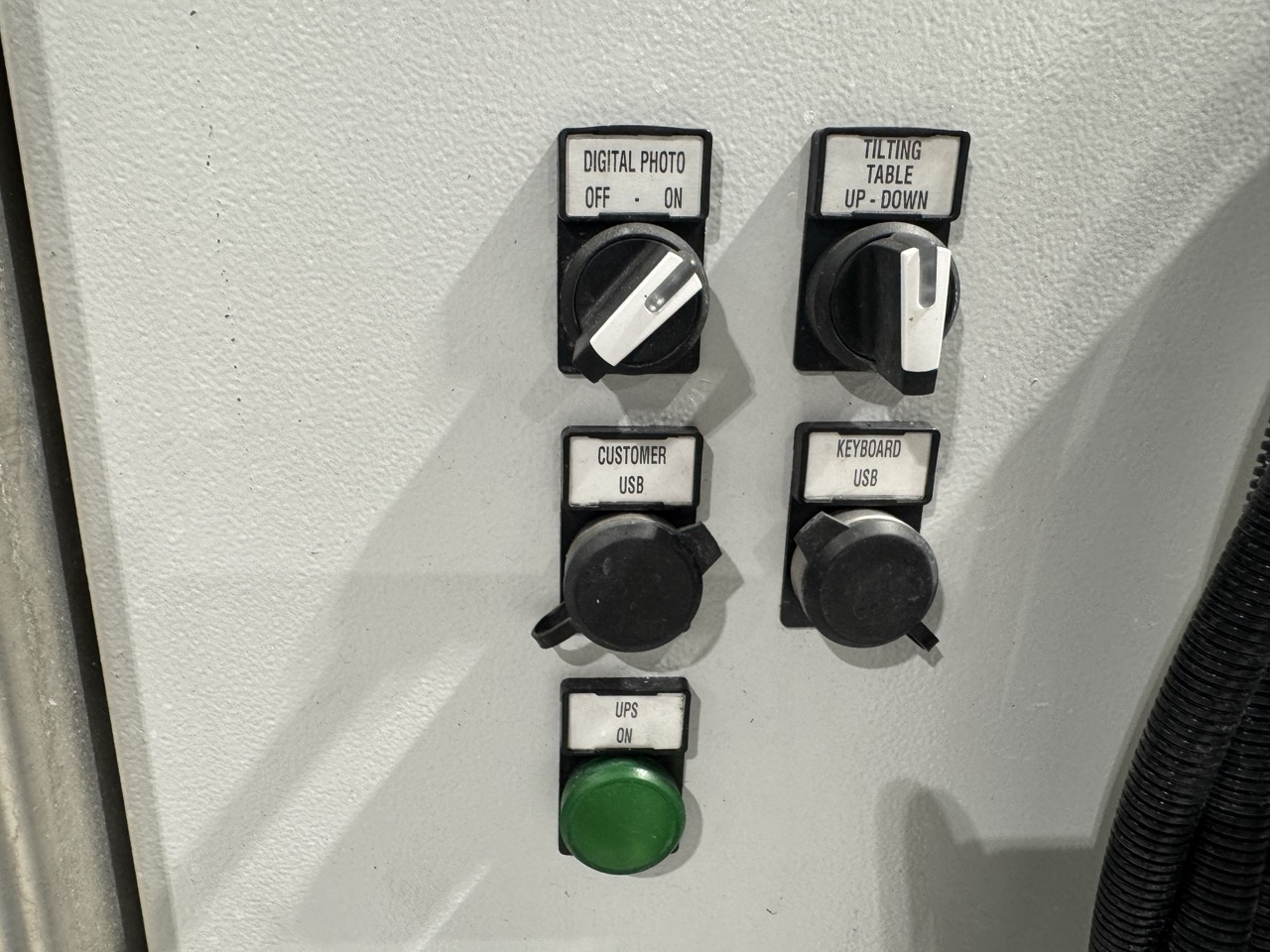

Tilting Table Up to 85° tilt; approx. 3,520 lb / 1,600 kg loading capacity on comparable Digitale 5 specs
X-Axis Travel 3,600 mm / approx. 141″
Y-Axis Travel Approx. 2,650 mm / 104″ on listed Digitale 5 configuration
Z-Axis Travel Approx. 400 mm / 15.7″ on listed Digitale 5 configuration

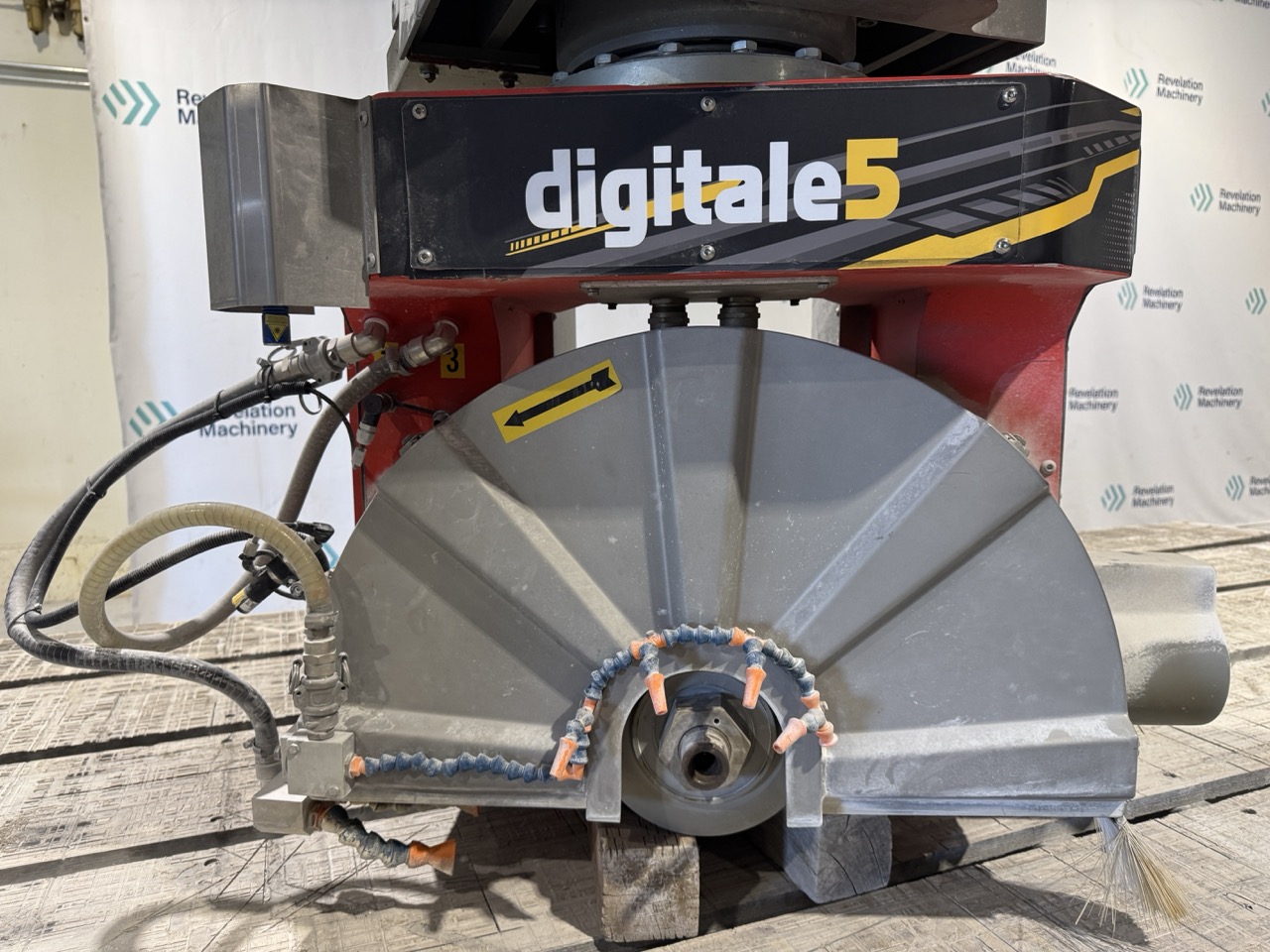

B-Axis Disc inclination 0° to 90°
C-Axis Rotation in disc axis approx. 0° ± 200°
Minimum Blade Diameter Approx. 350 mm / 13.7″
Cutting Thickness Approx. 200 mm / 7.87″ with 625 mm disc
