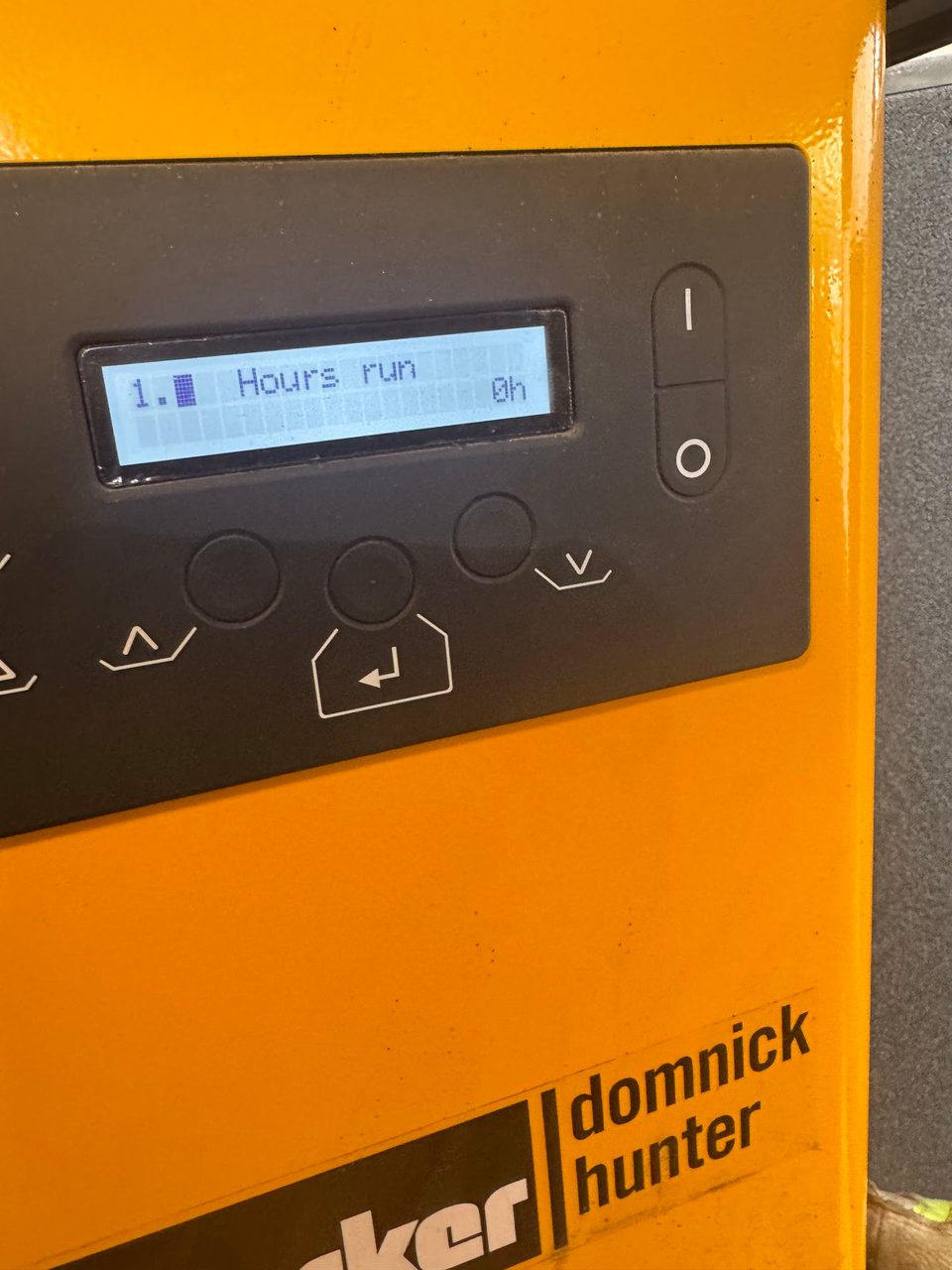

Parker NITROSource PSA N2-45PBLN Nitrogen Gas Generator, 2018

Gas Type Generated: Nitrogen

Gas Purity: Low

Oxygen Content: 0.1% to 5%

Flow Rate: 31.0 to 84.3 m³/h @ 7 barg

Inlet Pressure: 5 to 13 barg (72.5 to 217 psig)

Noise Level: < 80 dB (Average)

Energy Saving Mode: No

Connections:

Inlet Port Size: G 1

Outlet Port Size: G 1/2

Port Type: BSPP

Electrical & Environmental:

Electrical Requirements: Yes

Input Voltage: 100–240 VAC ±10%, 50/60 Hz

Ambient Temperature Range: 5 to 50 °C (41 to 122 °F)

Ingress Protection Rating: IP20 / NEMA 1

Air Quality Requirements:

Inlet Air Quality: ISO 8573-1:2010 Class 2.2.2 (2.2.1 for high oil vapor content)

Physical Dimensions & Weight:

Height: 1894 mm (74.6 in)

Width: 550 mm (21.7 in)

Depth: 1388 mm (54.6 in)

Weight: 553 kg (1217 lb)
