Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008

$39,900.00

Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008
Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008 - Image 2
Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008 - Image 3
Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008 - Image 4
Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008 - Image 5
Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008 - Image 6
Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008 - Image 7

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Beam Drill Lines
Make: Peddinghaus
Model: MDL 1000
Year: 2008
Machine Location: California
Stock #: 445154

Max. Drill Diameter: 1-9/16”
Max Profile Height: 39″
Max Beam Length: 480”
Max Speed (X-Axis):1417 IPM
Max Speed (Y-Axis):1417 IPM
Maximum Thickness: 6″
Spindle Speeds: 200 – 850 RPM
Spindle Motor Power: 13.5 HP
Drilling Feed Rate: 2 – 10 IPM
Drill Spindle Rapid:192 IPM
Maximum Spindle Stroke:13″

Equipped With:

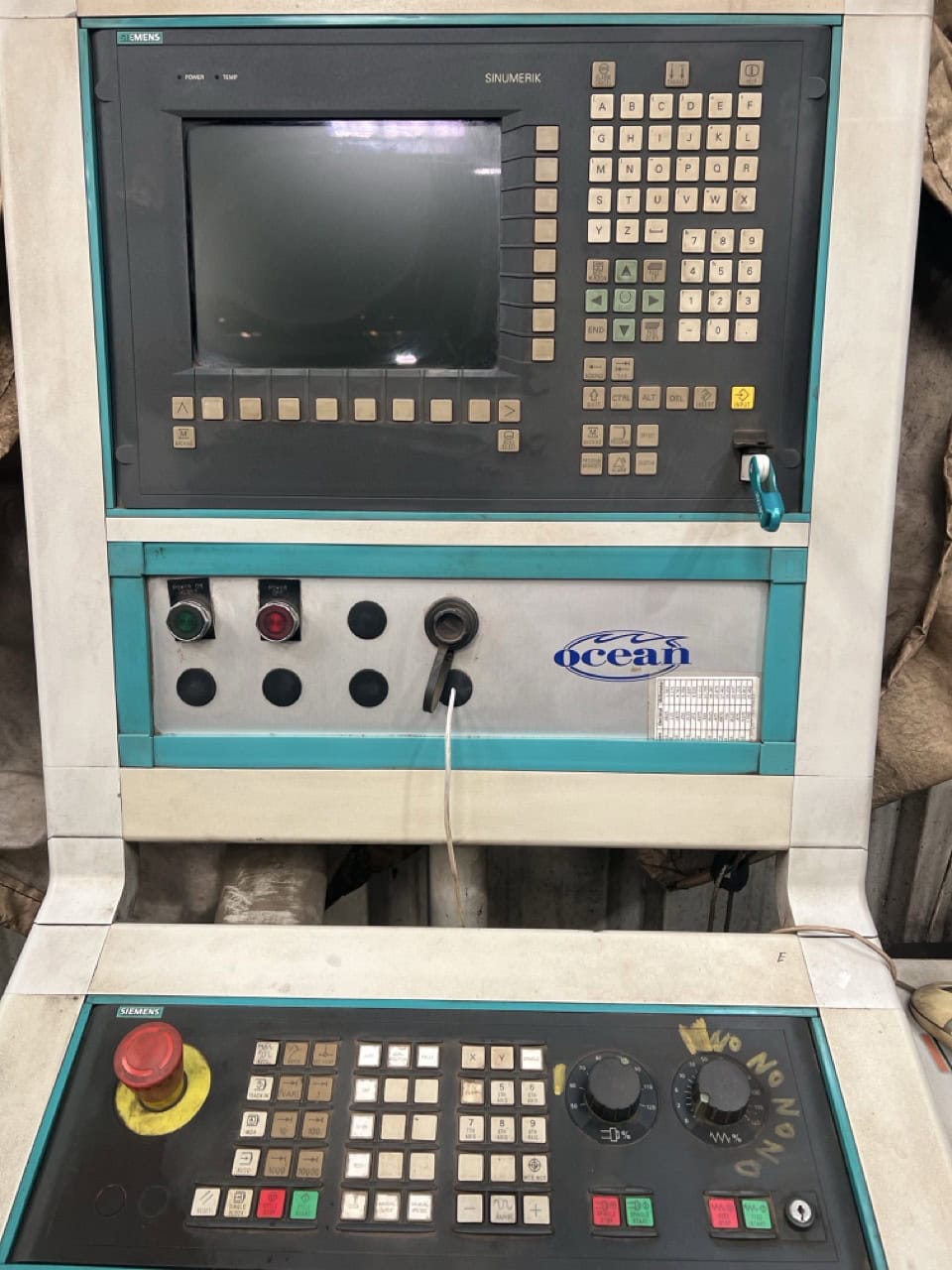

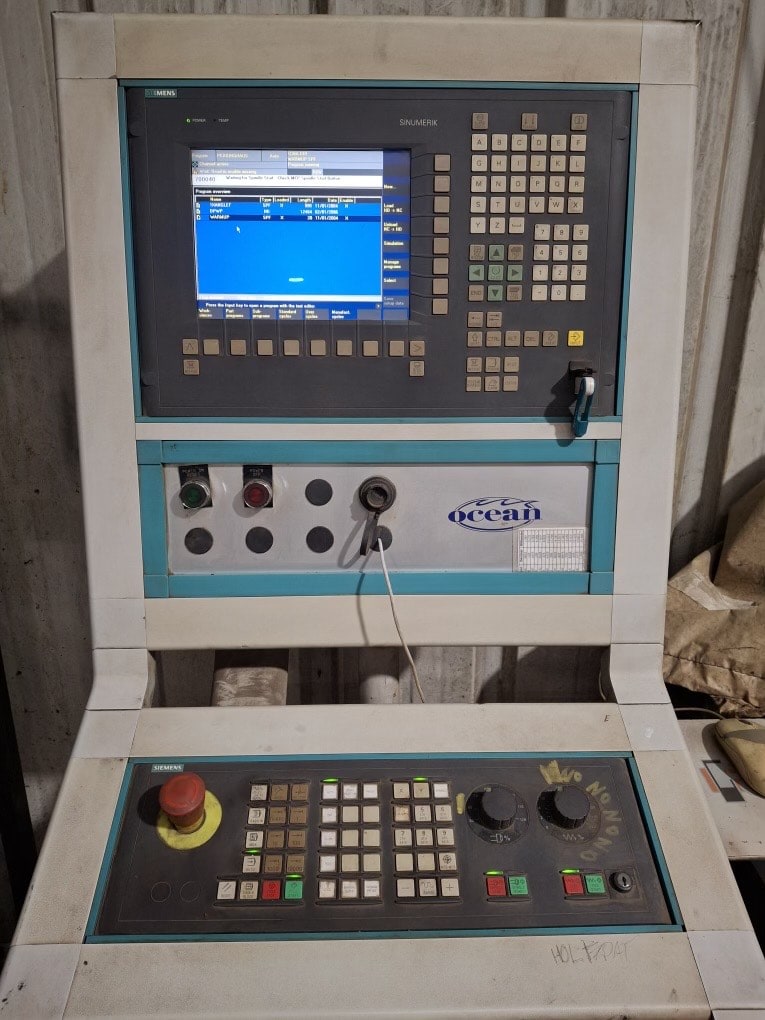

Siemens CNC Control

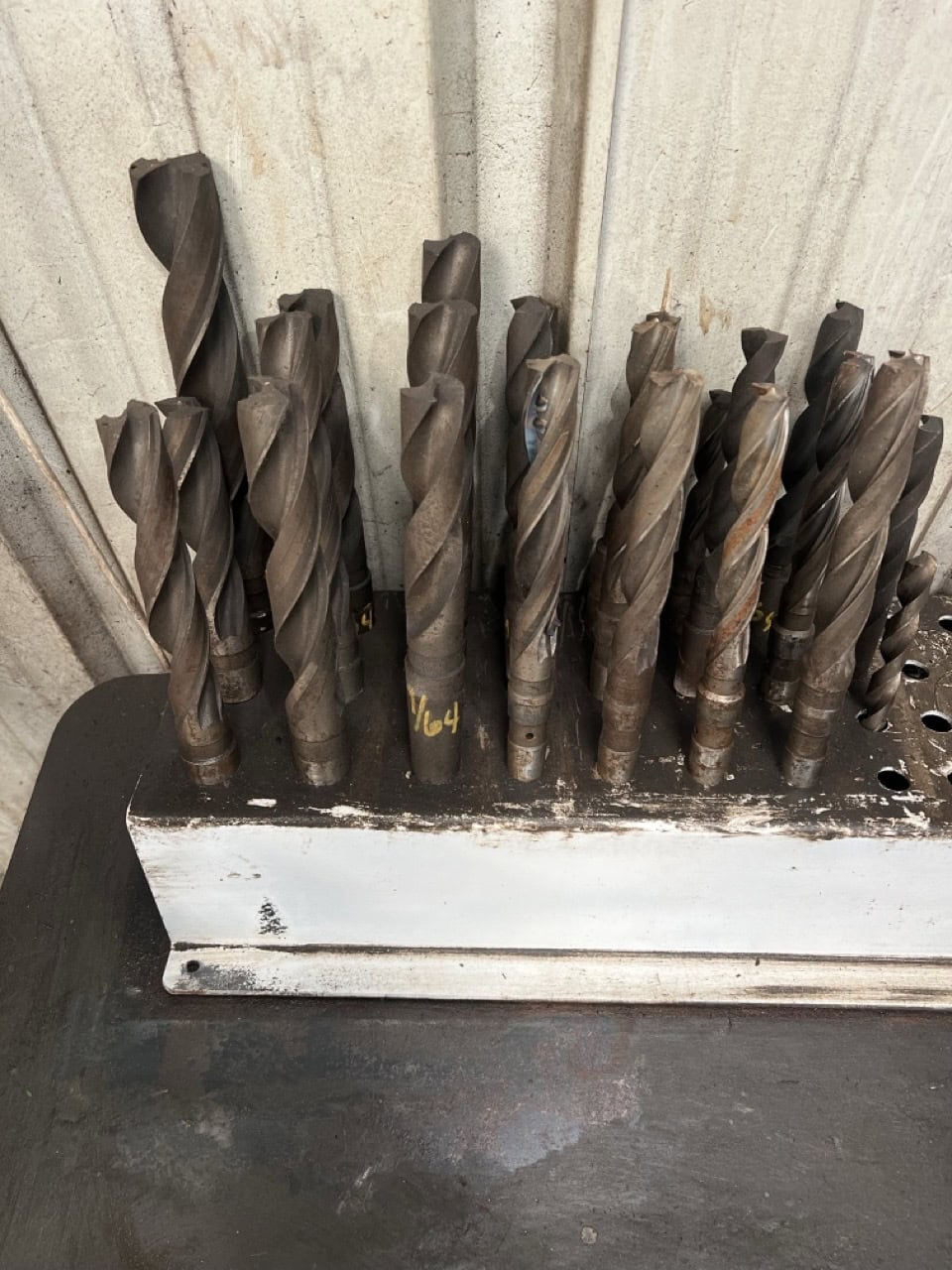

Available Tooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.



Need parts or tooling for this machine? Browse the latest inventory at MROExchange.com.
