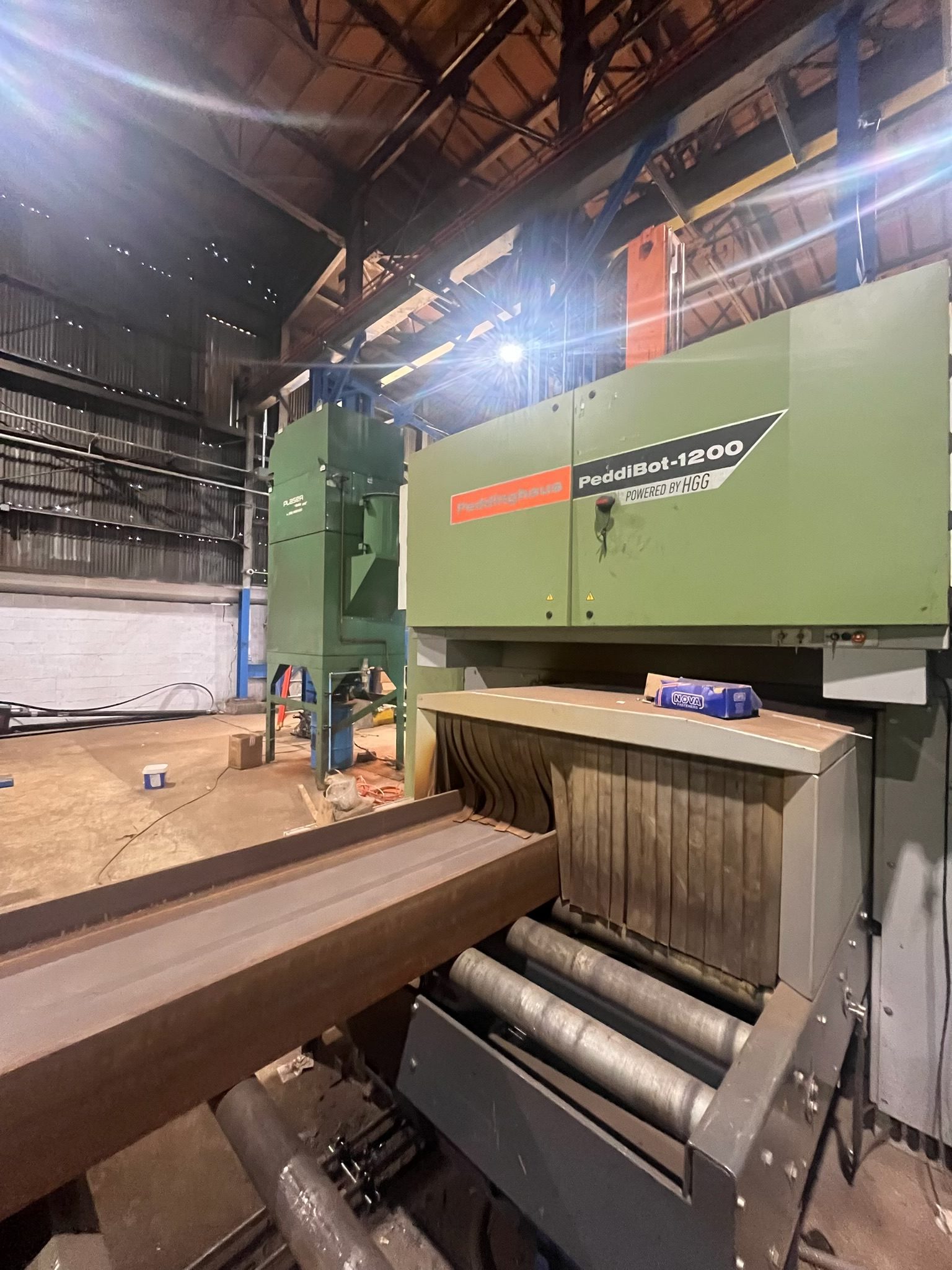

Peddinghaus Pedibot-1200 6-Axis Robotic CNC Thermal Cutting Machine, 2022

Max Profile Dimensions: 48″ x 16.5″
Min Profile Dimensions: 3″ x 3″
Max Profile Thickness: 2″
Min Profile Thickness: 0.1875″
Max Profile Weight: 26,455 lbs
Max Bevel Angle: 45º
Material Processing: 4 Sides

Max Plasma Edge Start Thickness: 2″
Max Plasma Piercing Thickness: 2″
Plasma Processing Speed: 20″/min @ 2″;
70″/min @ 1/4″
Torch Amps: 440

Plate Width: 7-7/8″ x 48″
Plate Thickness: 5/16″ x 1-5/8″
Plate Length: 11-13/16″ x 120″
Effective Cutting Zone: 48″ x 59″

Equipped With

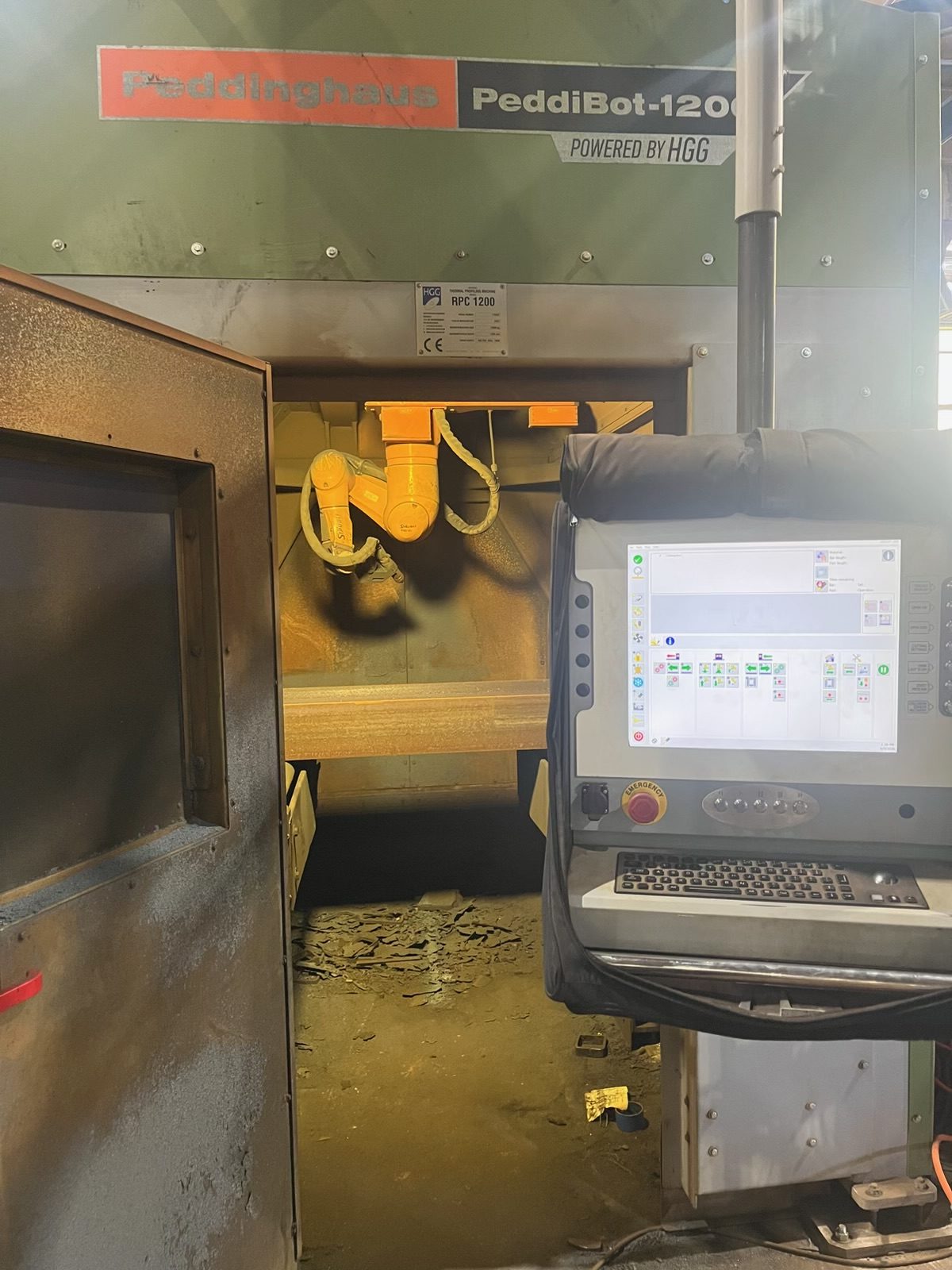

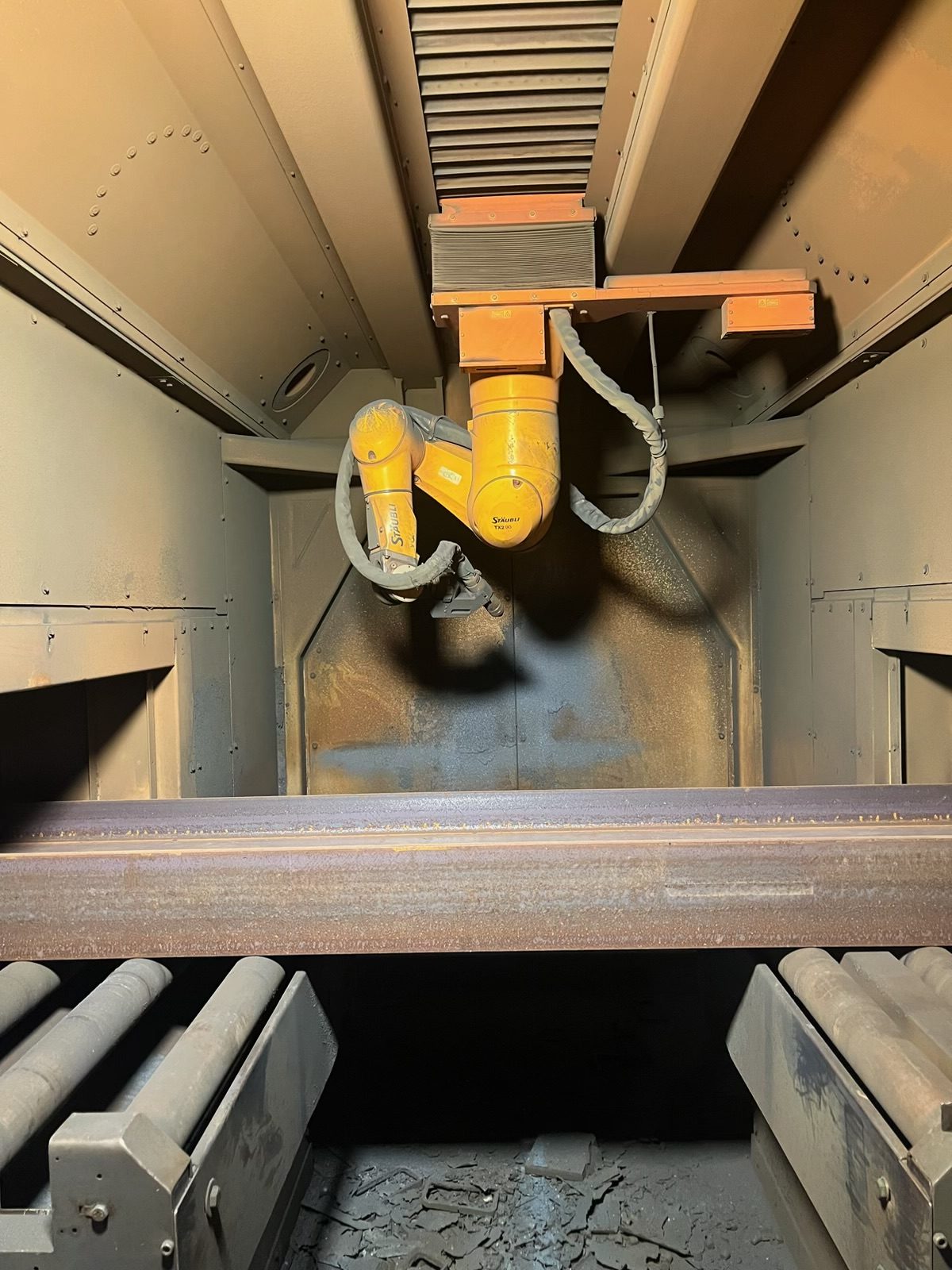

6-Axis Stäubli Robot Arm

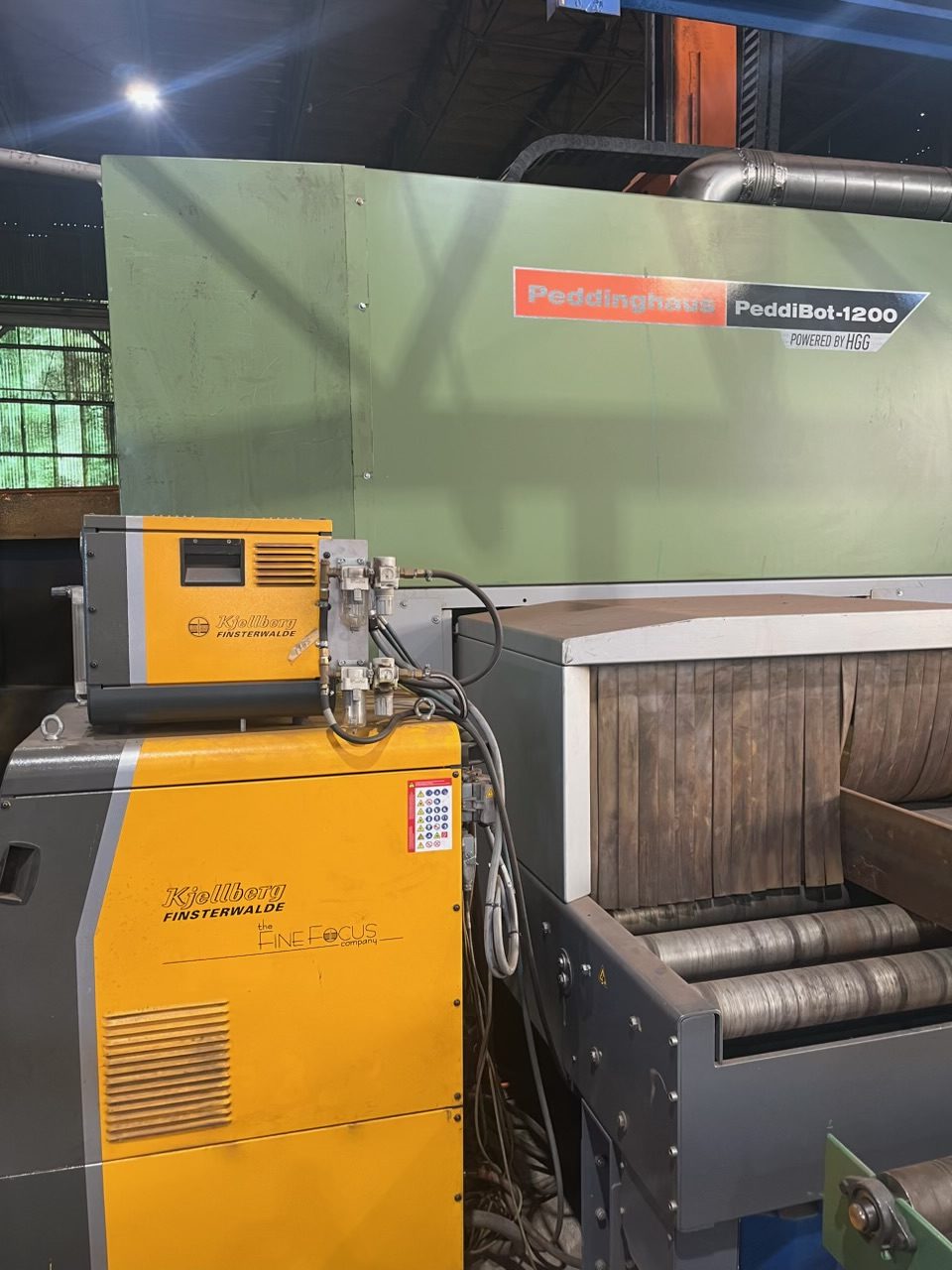

Kjellberg HiFocus 440i Plasma Torch

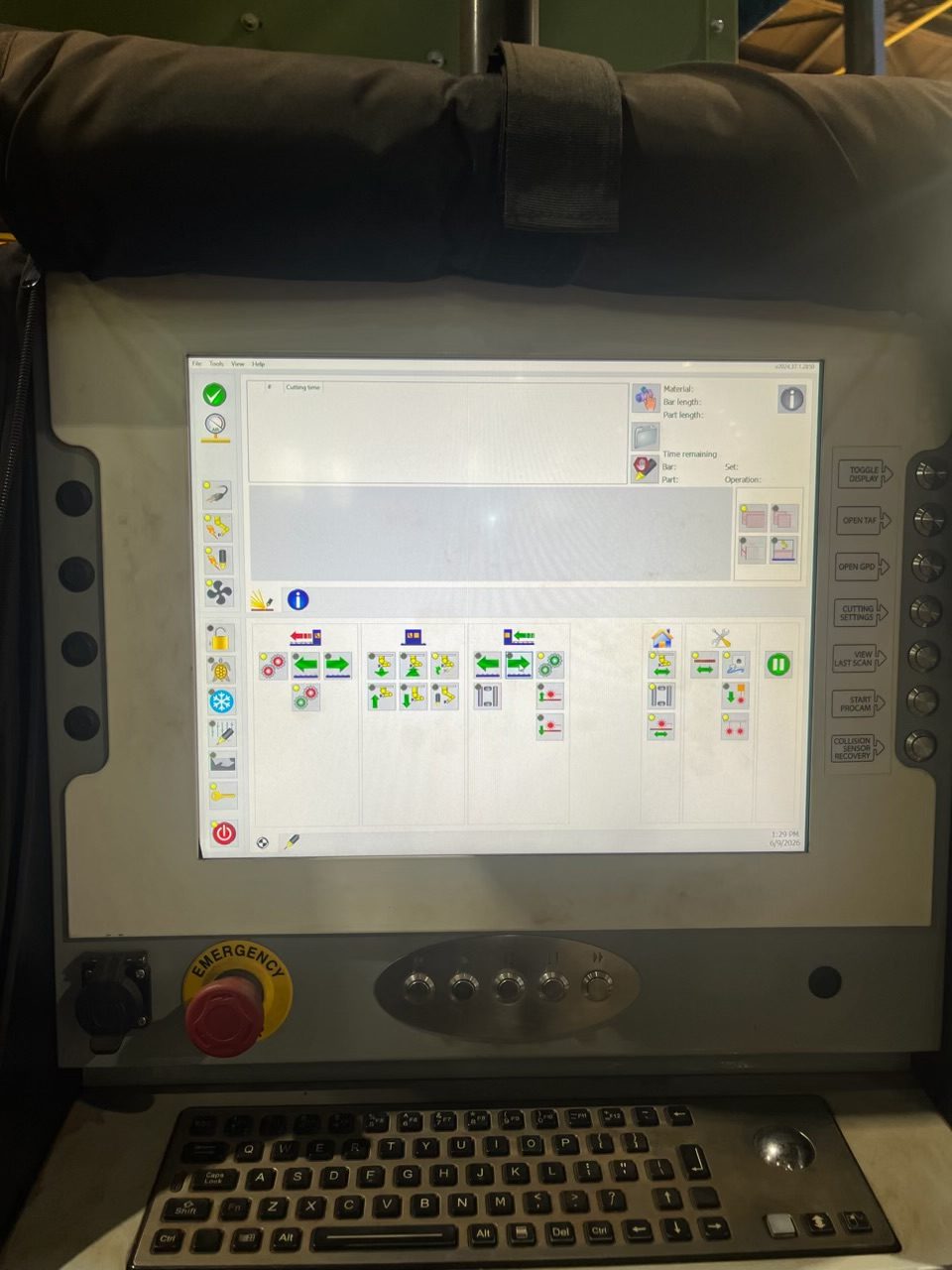

Raptor 3D CAD/CAM Software Integration
Trailing Edge Detection

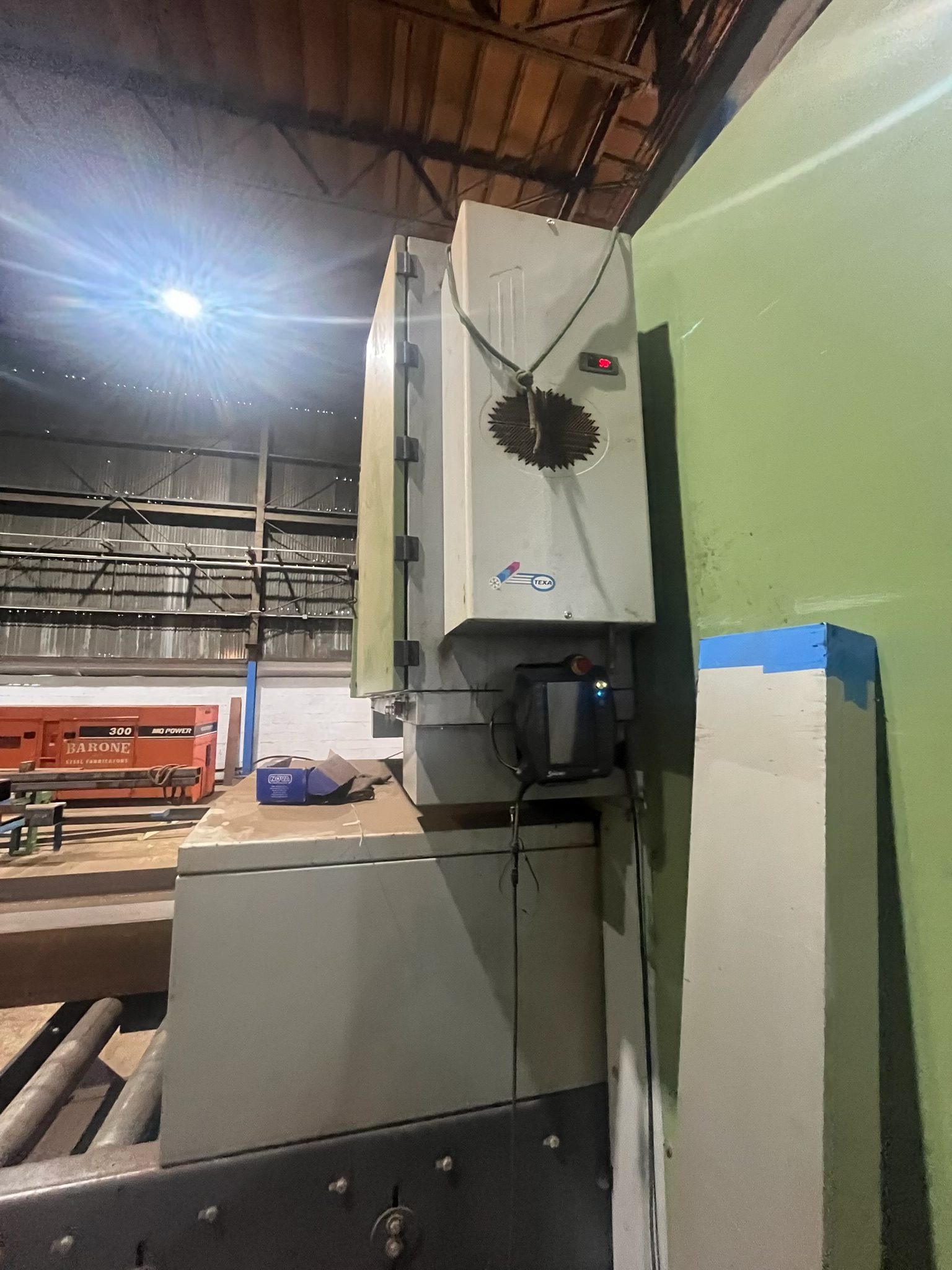

Machine Housing
Profile Scanning System
4-Sided Layout Marking
