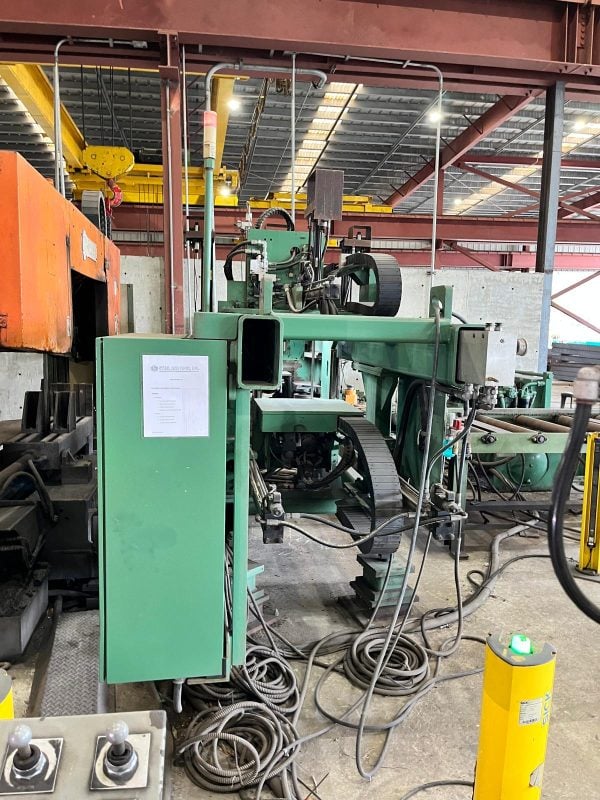

Peddinghaus PCD-1100/3B 3-Head Automated Beam Drill Line, 2018 – Power Conveyor, Transfer Table, Horizontal Band Saw

$149,900.00

Peddinghaus PCD-1100/3B 3-Head Automated Beam Drill Line, 2018 - Power Conveyor, Transfer Table, Horizontal Band Saw
Peddinghaus PCD-1100/3B 3-Head Automated Beam Drill Line, 2018 - Power Conveyor, Transfer Table, Horizontal Band Saw - Image 2
Peddinghaus PCD-1100/3B 3-Head Automated Beam Drill Line, 2018 - Power Conveyor, Transfer Table, Horizontal Band Saw - Image 3
Peddinghaus PCD-1100/3B 3-Head Automated Beam Drill Line, 2018 - Power Conveyor, Transfer Table, Horizontal Band Saw - Image 4
Peddinghaus PCD-1100/3B 3-Head Automated Beam Drill Line, 2018 - Power Conveyor, Transfer Table, Horizontal Band Saw - Image 5
Peddinghaus PCD-1100/3B 3-Head Automated Beam Drill Line, 2018 - Power Conveyor, Transfer Table, Horizontal Band Saw - Image 6

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Beam Drill Lines
Make: Peddinghaus
Model: PCD-1100/3B
Year: 2018
Machine Location: Upon Request
Stock #: 899311

Drill Speed: Variable, up to 850 RPM
Maximum Drill Diameter: 1-9/16″
Drill Power (Per Spindle): 13.5 HP
Minimum Material Thickness: 1/8″
Maximum Material Thickness: 18″
Minimum Material Width: 3″
Maximum Material Width: 43.3″
Minimum Material Length: 62″
Maximum Workpiece Weight: 18,000 Lbs.
Maximum Length / Weight: 300 Lbs. / Ft.
Maximum Length Of Miter: 31″
Rapid Traverse Feed Rate: 192 in/min
Number Of Spindles: 3
Drill Heads: Three (3) Multispindle CNC Drill Heads
Drill Tooling Type: #4 Morse Taper
Machine Weight: 10,500 Lbs.

Equipped With:
Siemens CNC Control System
Raptor Software/PC Integration

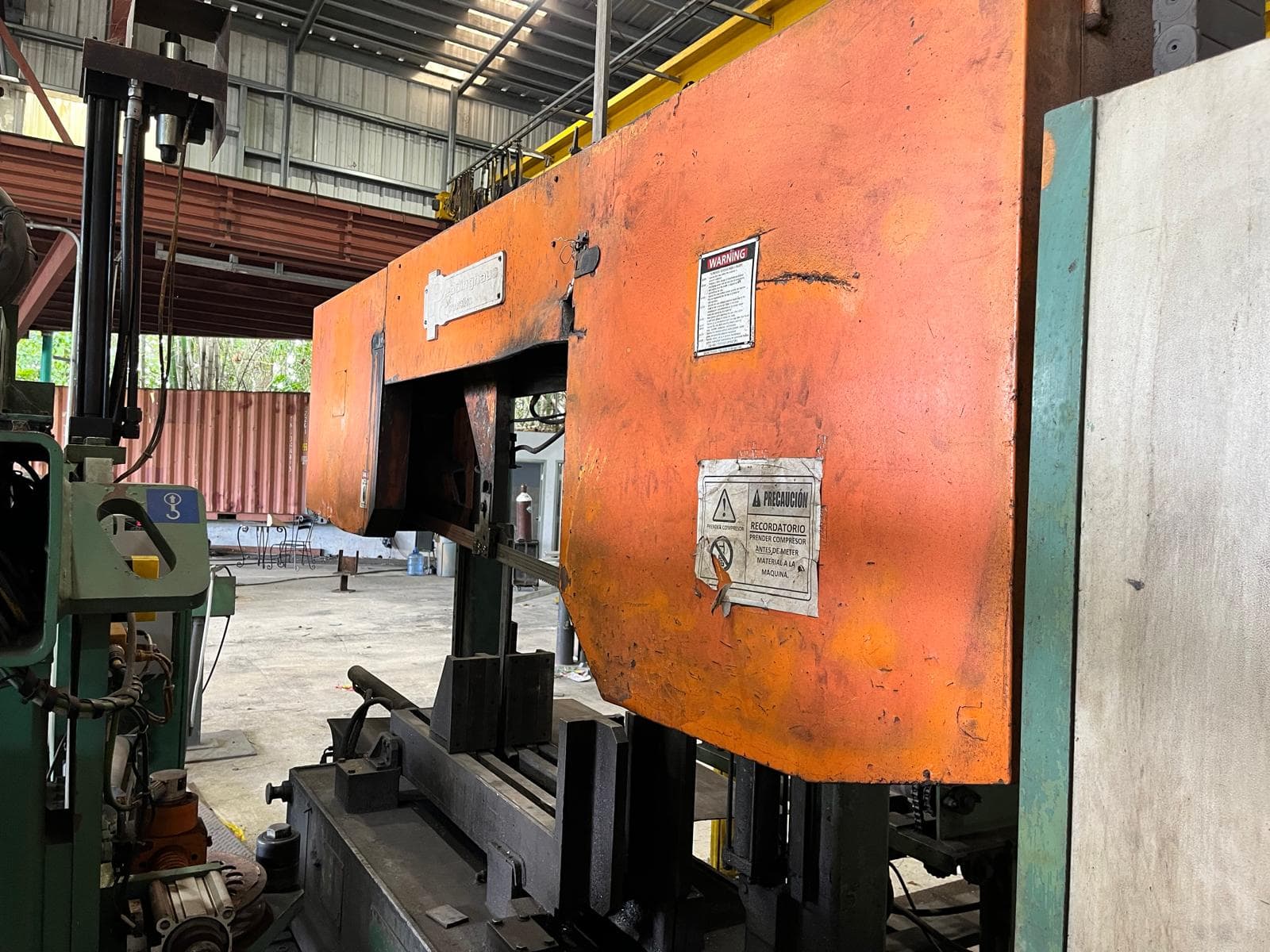

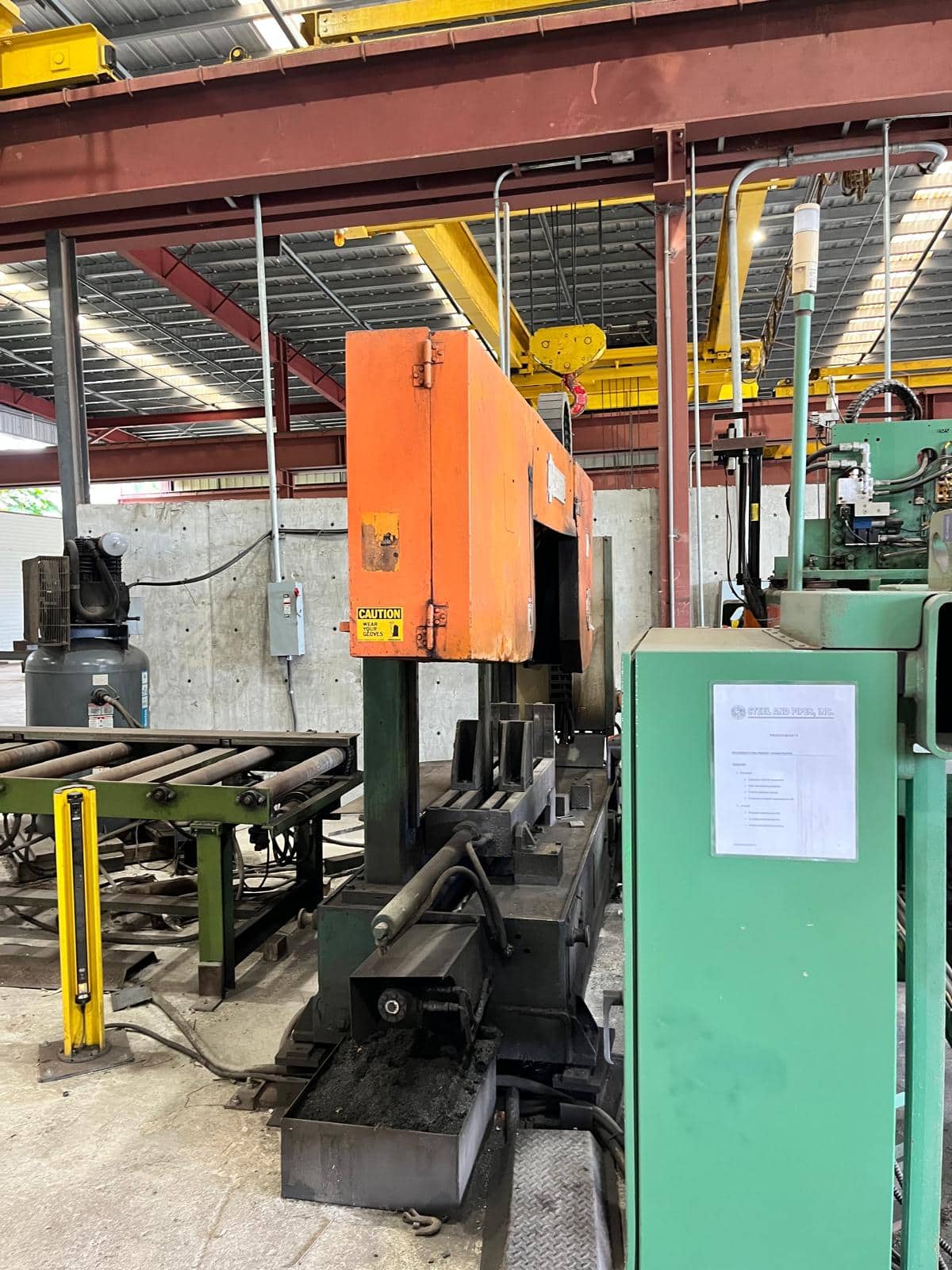

Fully Operational Horizontal Band Saw
60′ Motorized Infeed/Outfeed Conveyor
17′ Motorized Transfer Table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
