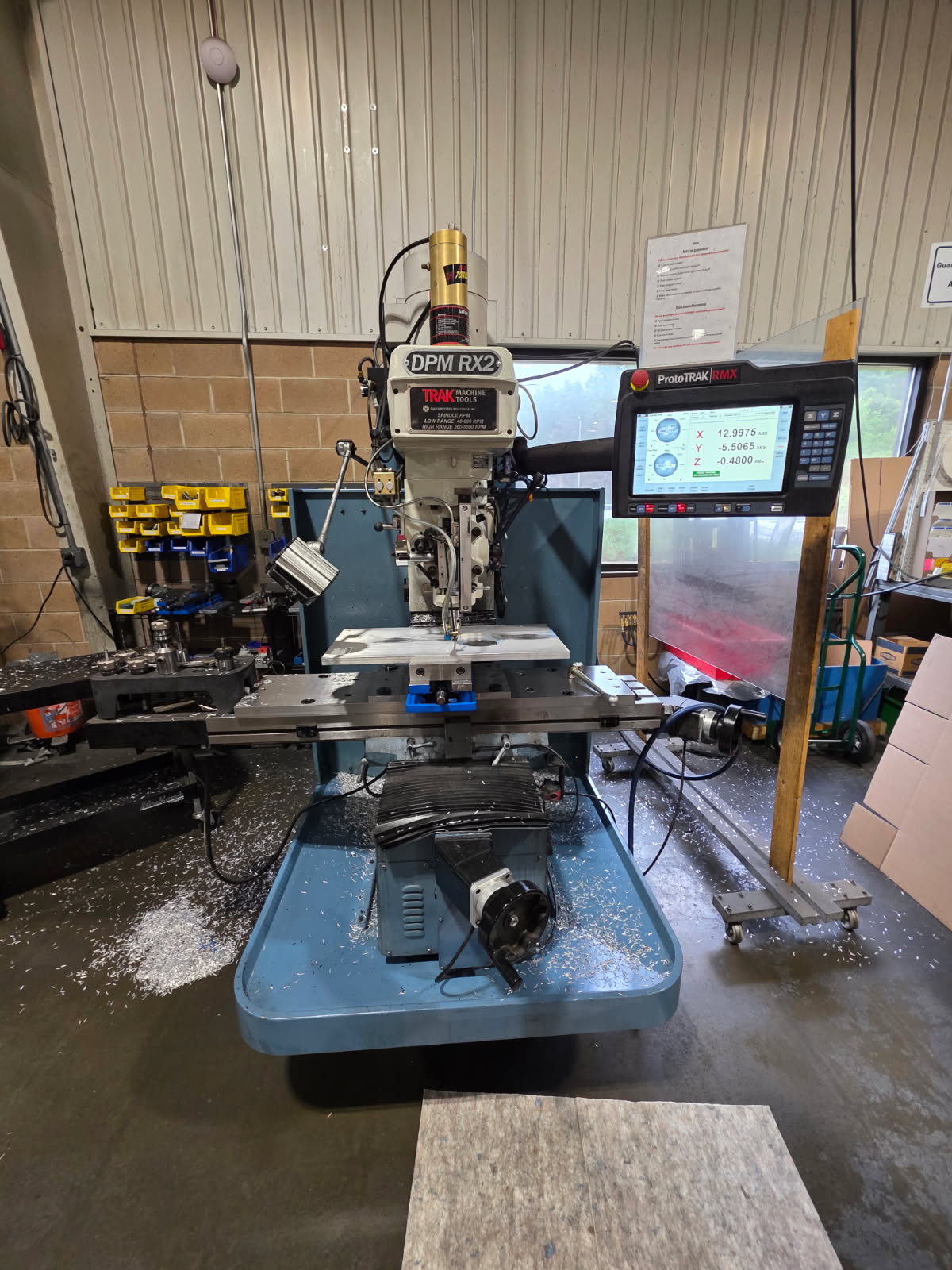

ProtoTrak DPMRX2 Toolroom Bed Mill, 2023

Table Size: 49″ x 9″
T-Slots (3): 0.63″ x 2.5″
Max Workpiece Weight: 1,320lbs
Table Height from Floor: 36.75″

X-Axis Travels: 31″
Y-Axis Travels: 16″
Z-Axis Travels: 22″
Quill Travels: 5″
Quill Diameter: 3.375″

Spindle Taper: R8
Spindle Motor: 3 HP
Spindle Speed: 5000 RPM
Max Spindle Nose to Table: 26.75″

Approximate Machine Weight: 3,200lbs
Approximate Machine Dimensions: 73.31″ x 71.25″ x 91.75″
Electrical: 200/240V, 3-Phase
