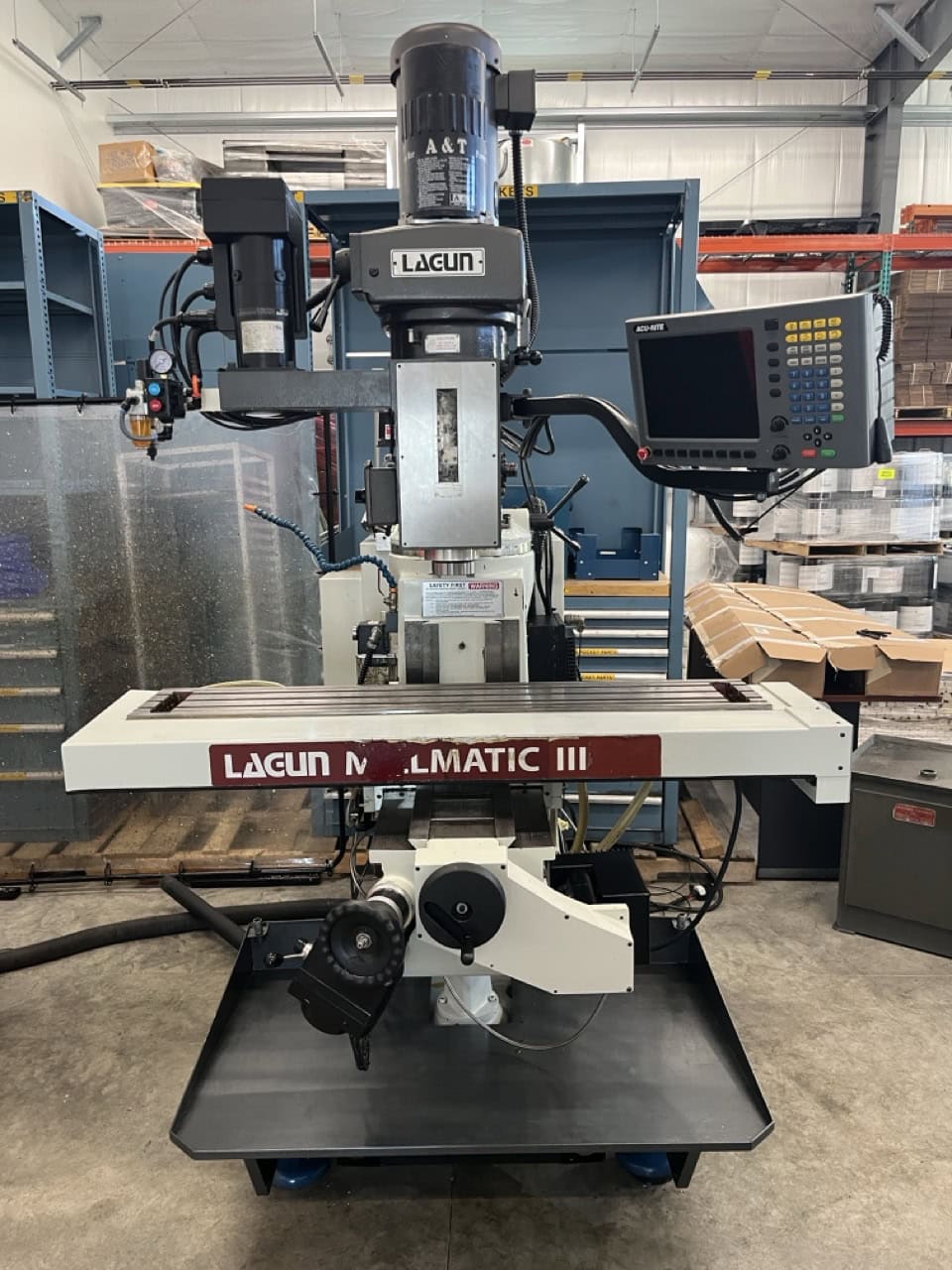

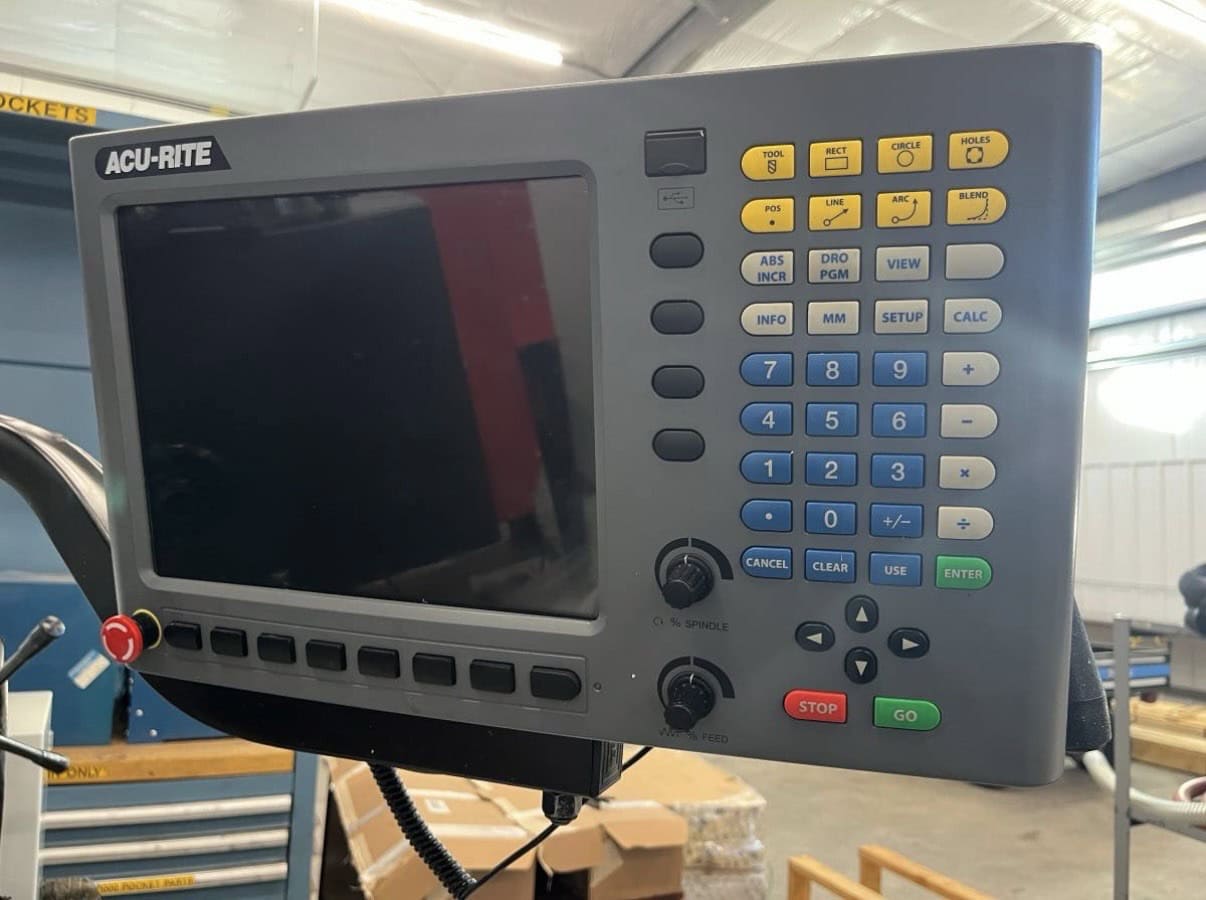

Republic Lagun MM III Manual Vertical Knee Mill, 2020 – Acu Rite DRO
$34,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

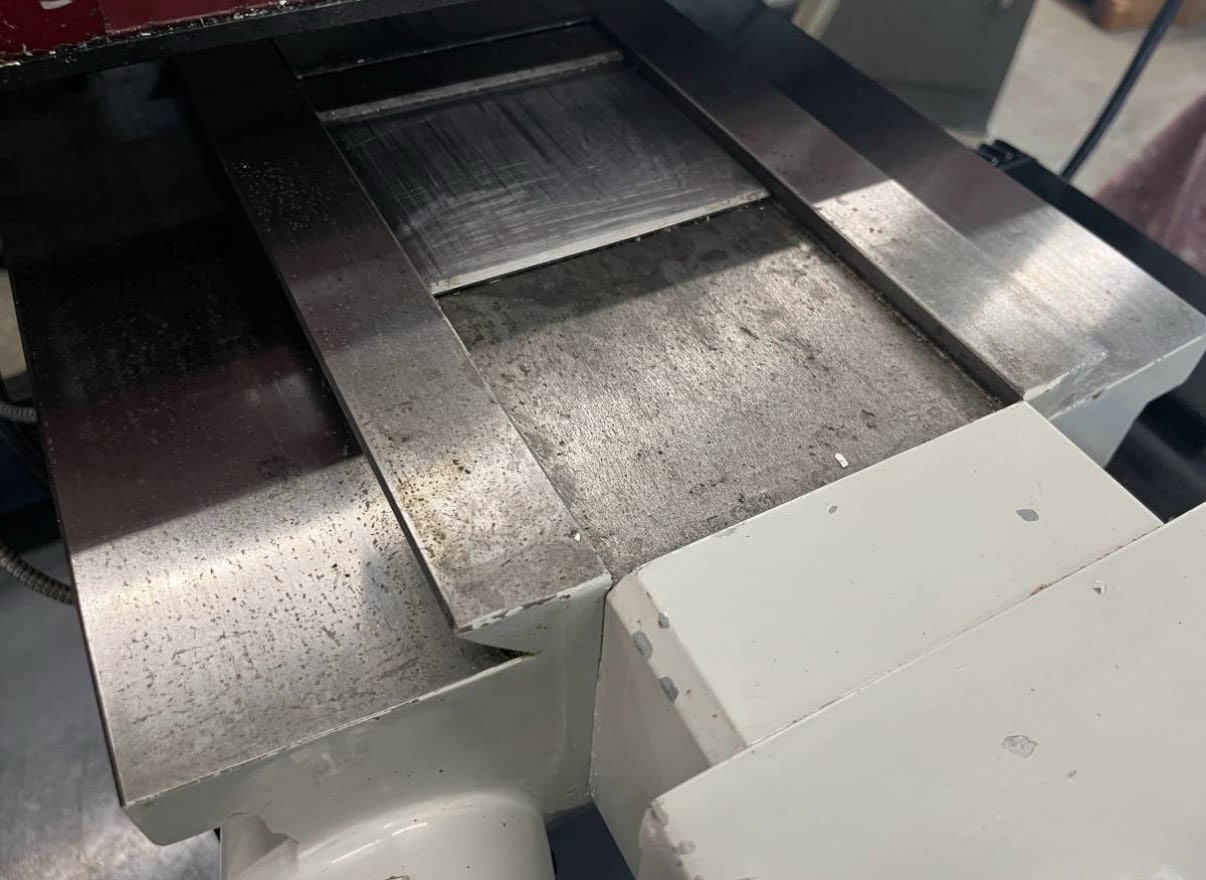

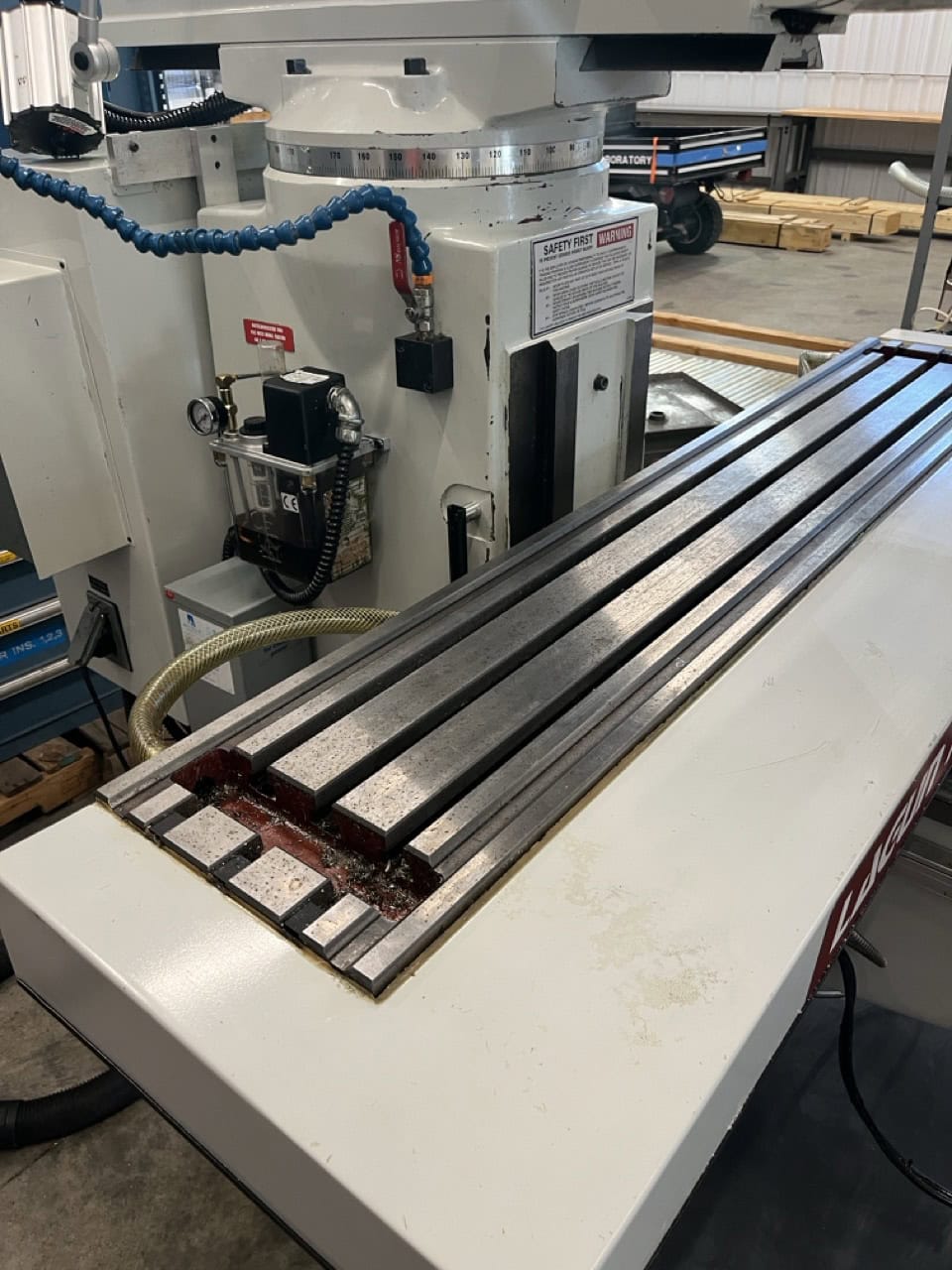

Table Size: 55.25″ x 10″
T-Slots: 3 on 2.5″ centers
T-Slot Size: 5/8″
Max Weight on Table: 750lbs
X-Axis Travel: 36″
Y-Axis Travel: 15.25″
Z-Axis Travel: 16″
RAM Travel: 22.2″
Spindle Taper: R-8
Quill Diameter: 3 3/8″
Quill Travel, Z-Axis: 5″
Main Motor: 5 hp
Electronic Variable Speed (EVS), 2 Ranges: 55 to 4,250 rpm
Head Swivel: +/- 90ยฐ
Head Tilt: +/- 45ยฐ
Distance, Spindle-Column: 5″ to 27″
Distance, Spindle-Table: 0″ to 18″
Column Turret Diameter (graduated): 15″
Knee Width: 11.5″
Knee-Column Bearing Length: 18″
Saddle & Table Bearing Length: 23″
RAM & Turret Bearing Length: 19″
RAM Total: 36″
