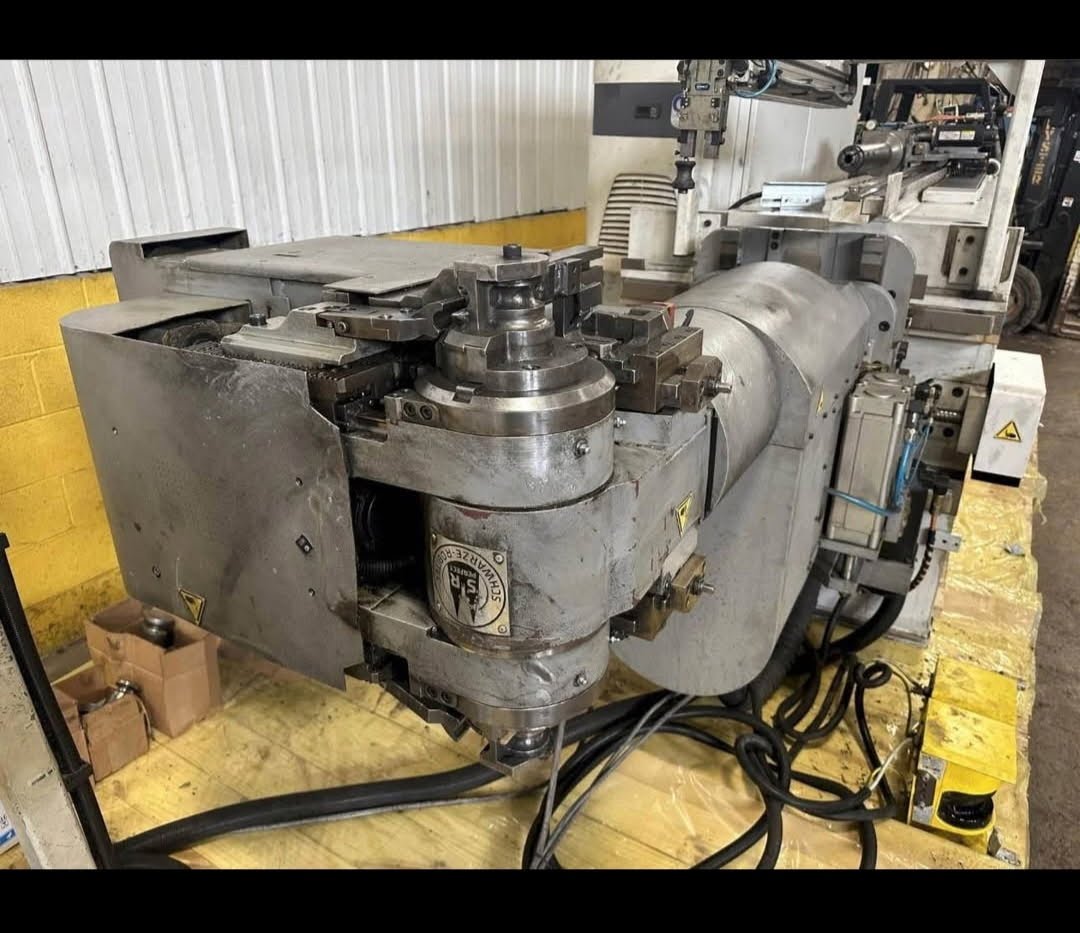

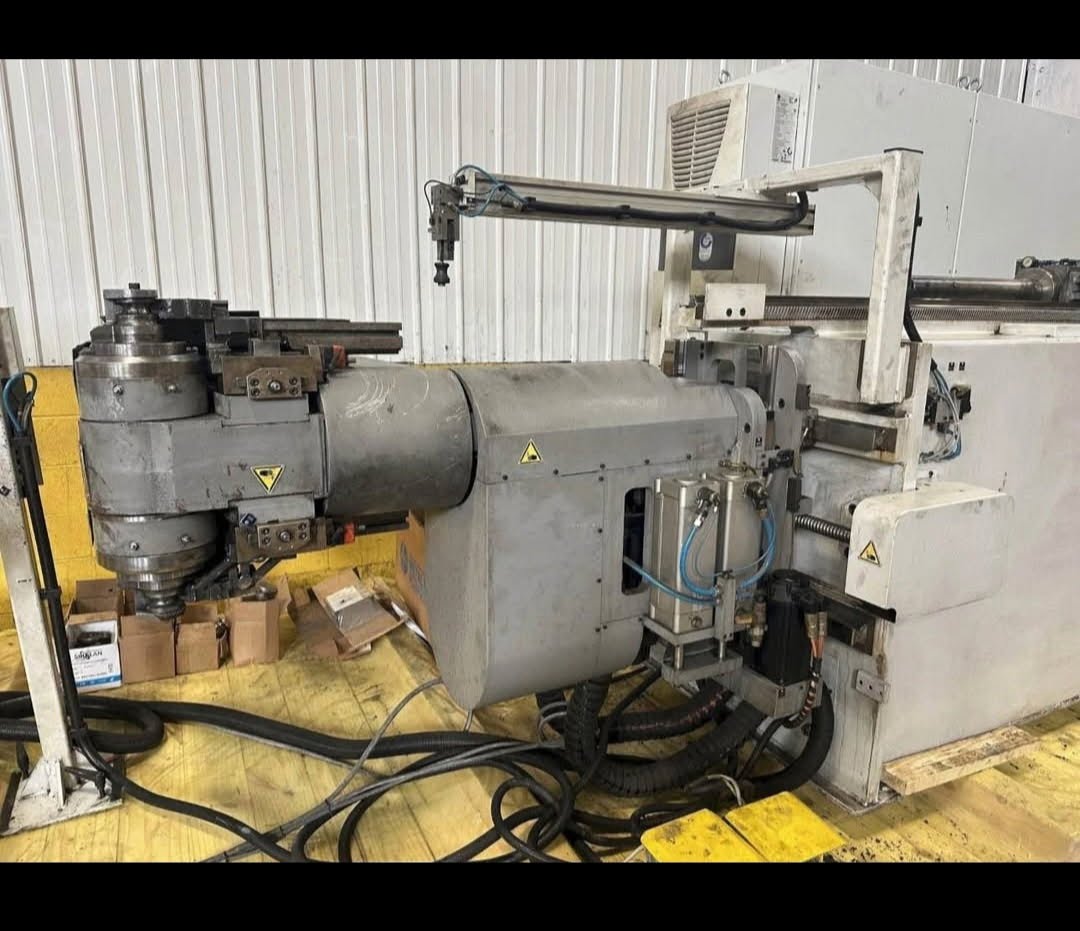

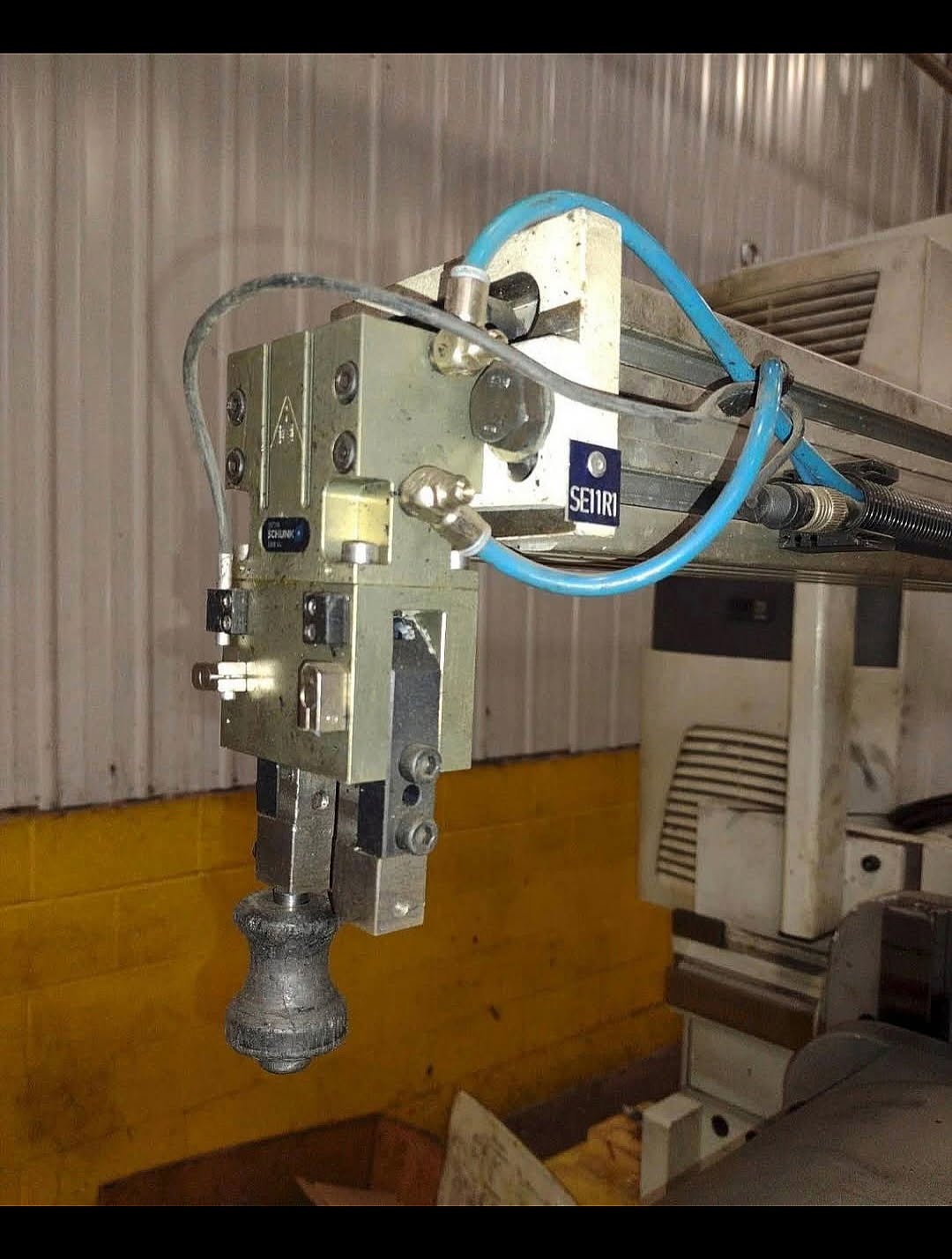

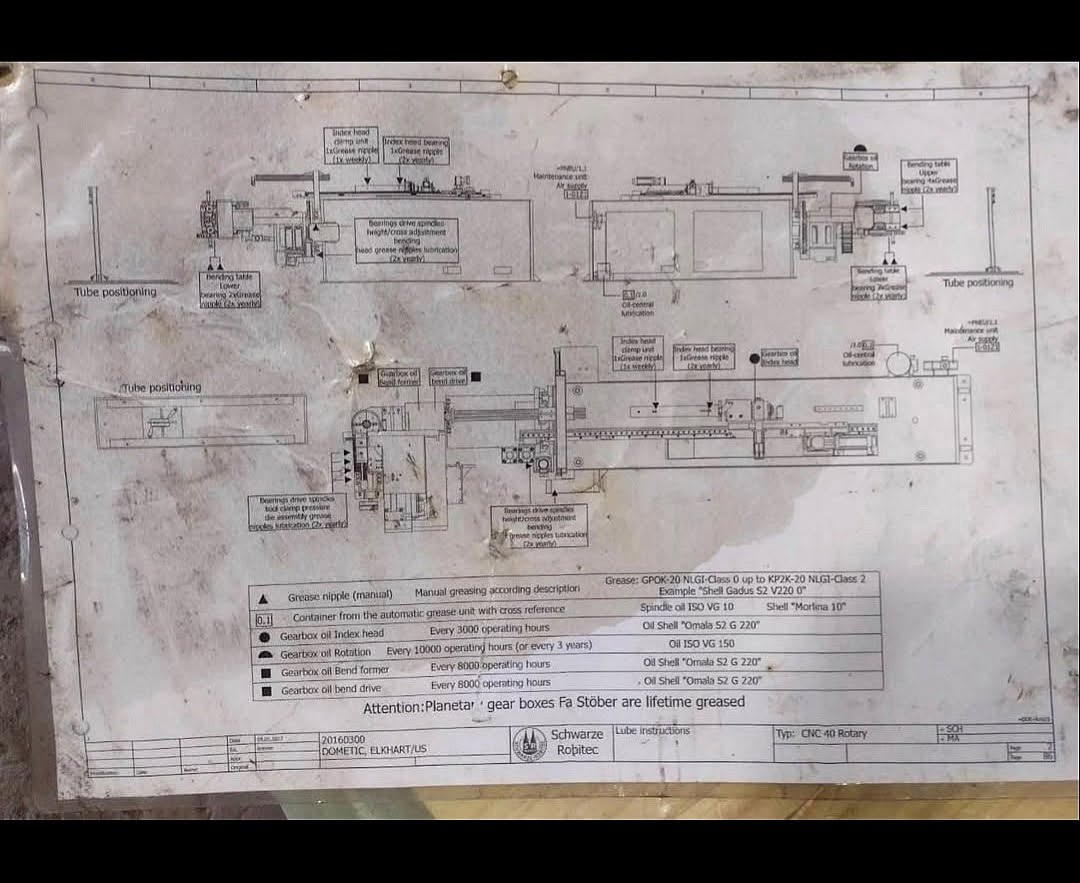

Schwarze Robitec CNC 40 Rotary 6 Axis Tube Bender, 2017
$89,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

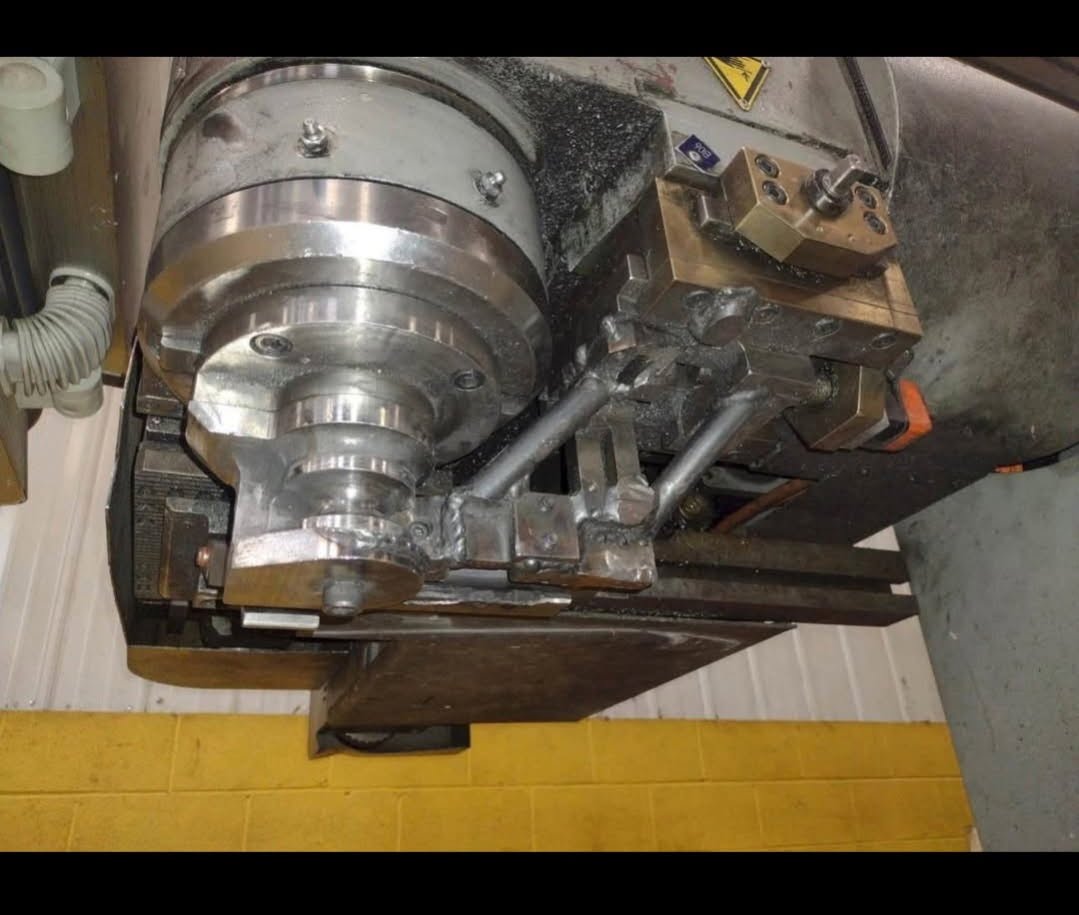

New tooling in 2021
New PC Board 2024
–SPECIFICATIONS–
Tube Capacity: 1.25 collet
Max centerline radius: 5.9”
Max bending rotation: 185 degrees
Bending rotation: left to right
Max. bending capacity of the machine: tube OD x wall thickness
Standard steel: 40 x 2 mm 1.57 x 0.08 In
Stainless steel: 32 x 1,5 mm 1.26 x 0.06 In
Max. modulus of section: approx. 2,2 cmยณ 0.9 Inยณ
Max. tensile strength of material to be bent:
Standard steel: 450 N/mmยฒ
Stainless steel: 750 N/mmยฒ
Min. tube OD: 8 mm 0.31 In
Max. bending radius (CLR): 125 + 25 mm 4.9 + 0.98 In
Min. bending radius (CLR): 10 mm 0.39 In
Max. tube length: 2000 mm 6.56 feet
Max. bending angle: 185ยฐ
Max. bending angle accuracy: ยฑ 0,1ยฐ
Max. bending speed:

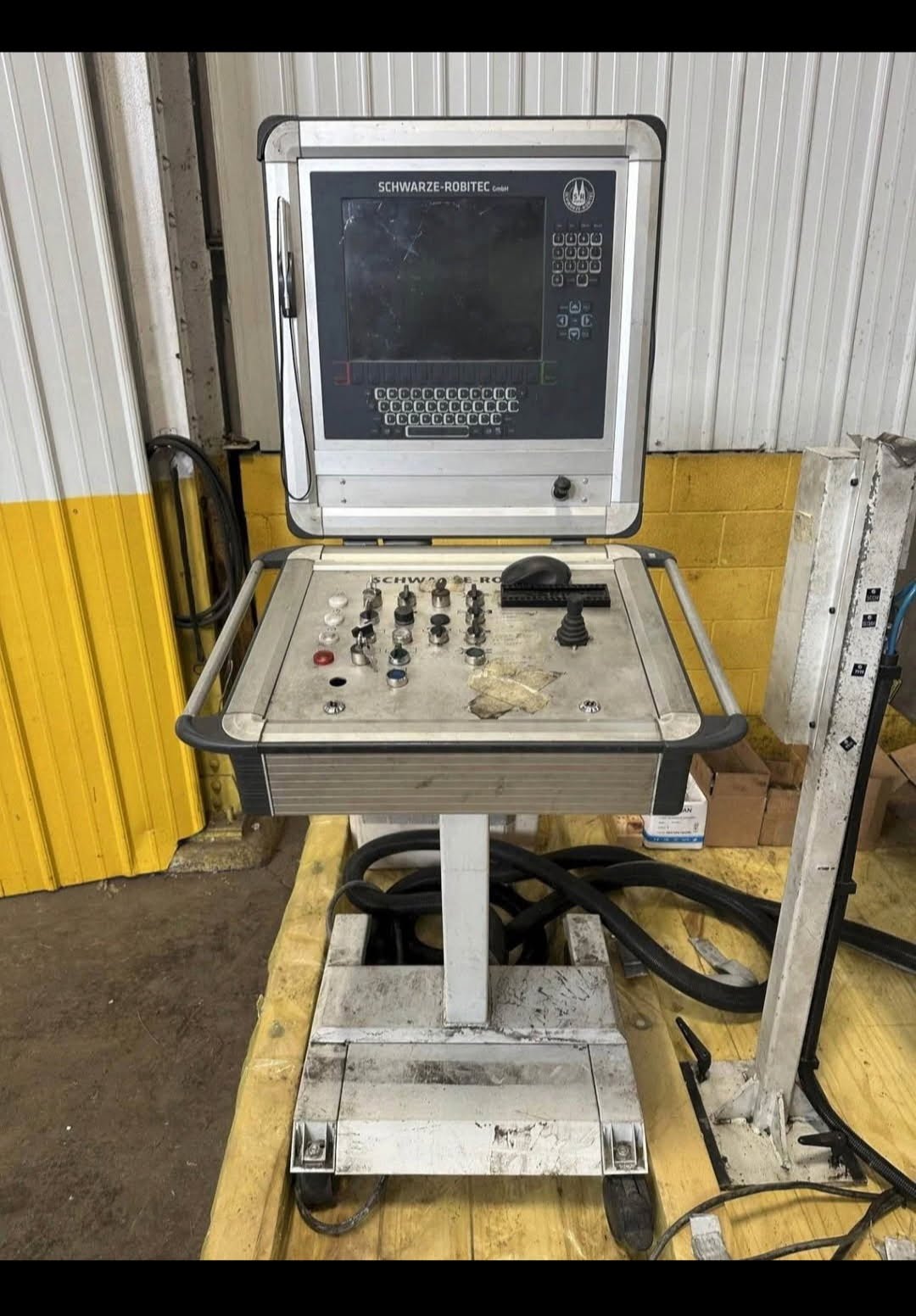

forward, steplessly adjustable and programmable from CNC panel: 45,0 1/ min.
Return, constant: 45,0 1/ min.
Bending direction: Right โ Left
Total power requirement: 25 kW
Operating voltage: 400 V, 50 Hz, 3 Phases, PE, N
Control voltage: 24 V=
Solenoid valve voltage: 24 V=
Machine: RAL 7035 light grey
Moveable parts: RAL 7037 dust grey

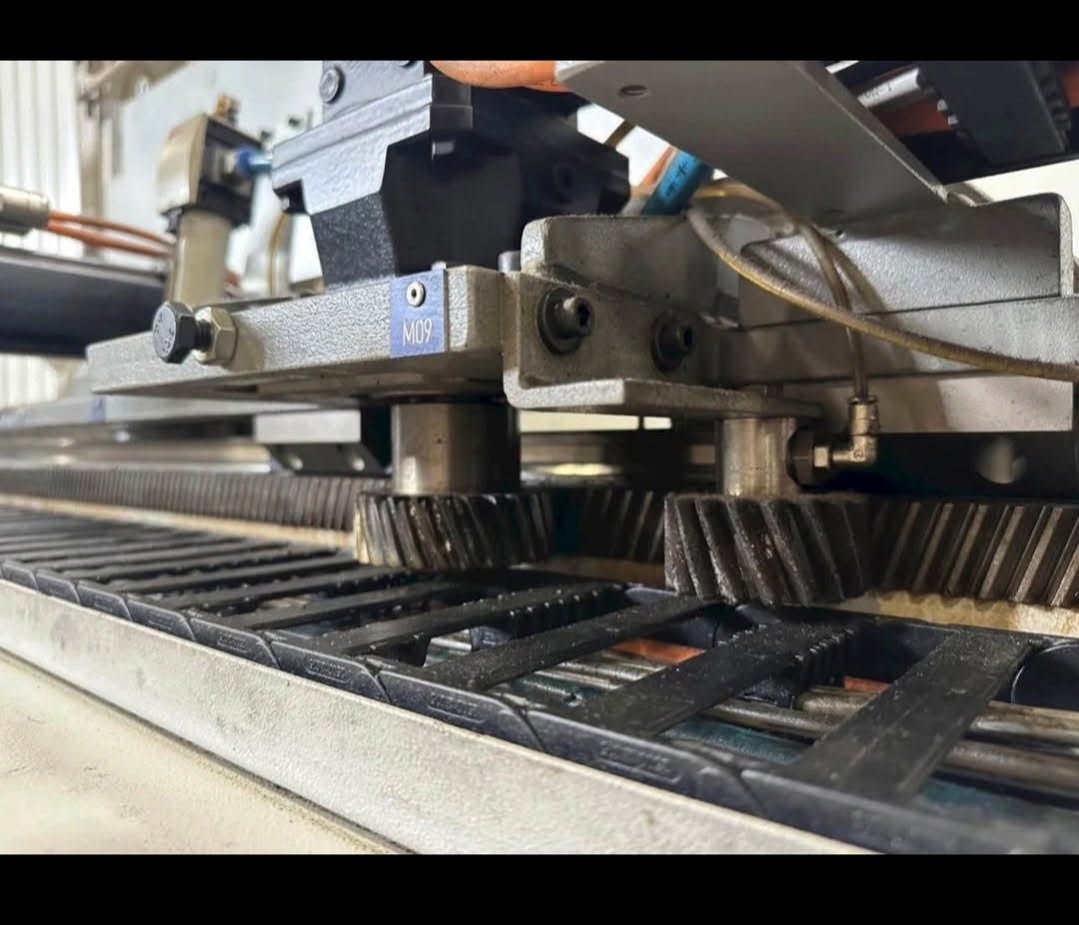

–Tube positioning device– (Transport and Orientation)
Max. orientation angle: 360ยฐ
Max. orientation accuracy: ยฑ 0,1ยฐ
Max. orientation speed: 120 1/ min.
Max. transport speed: 65 m/ min. 213 ft/ min.
Transport accuracy: ยฑ 0,1 mm
Speeds are steplessly adjustable and programmable from control panel.
