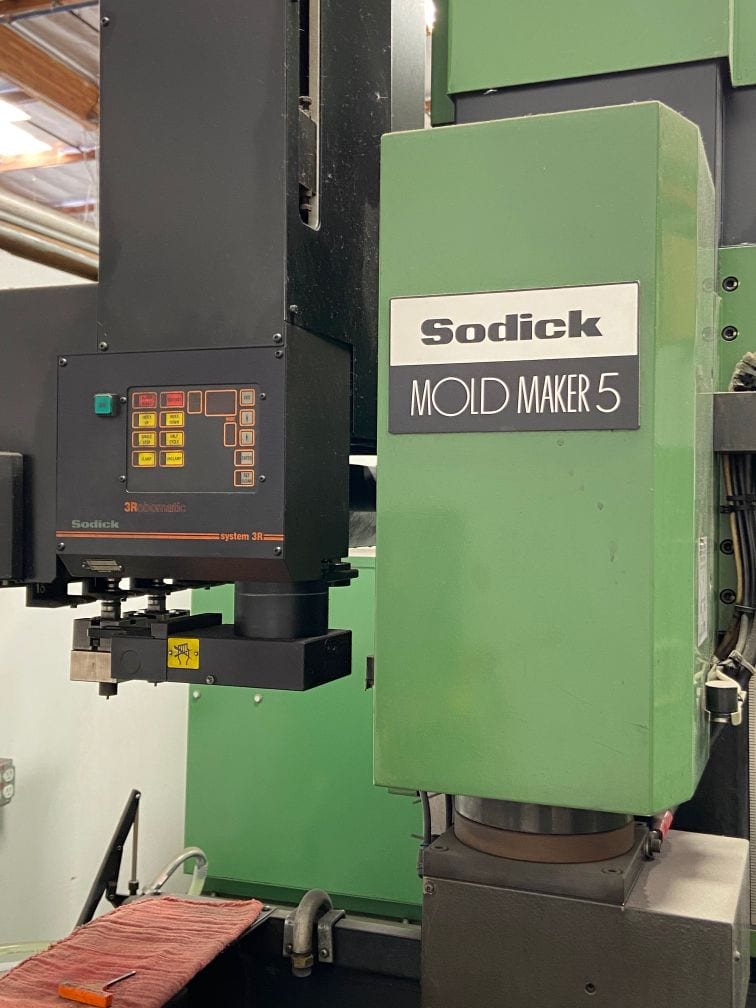

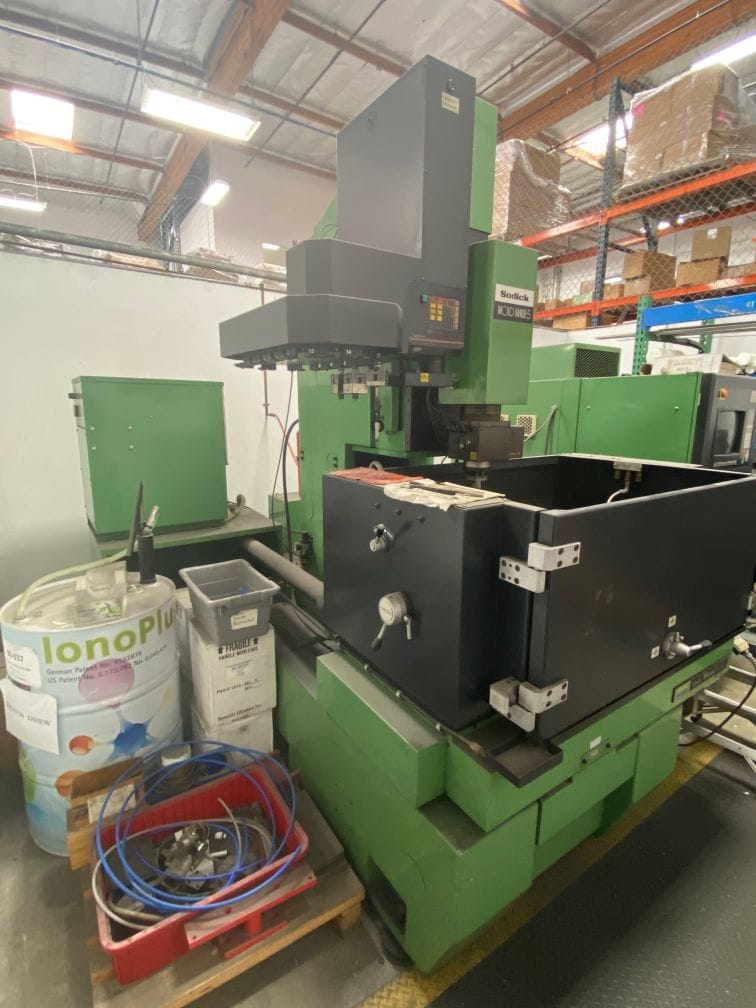

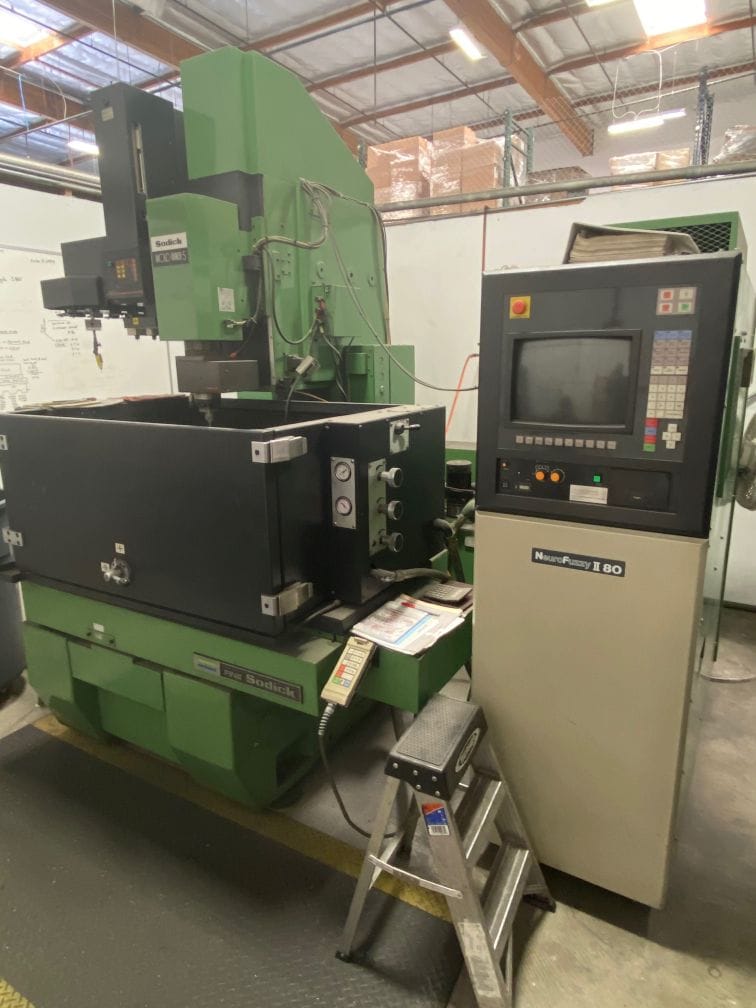

Sodick Mold Maker 5 Sinker EDM, 1999 – Available Immediately
$7,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size: 35.4″ x 19.6″
Inner Tank Dimensions: (WxDxH) 43.3″x31.4″x17.7″
Tank Fluid Level: (Min to Max) 9.5″ to 15.7″
Travels:
X: 19.6″
Y: 15.7″
Z: 13.7″
Max Work Piece Weight: 2200lb
Max Weight of Electrode: 220lb
Dimension of Electrode Holder: 7.8″x7.8″
Machine Dimensions: (WxDxH) 67″x63.6″x103.6″
