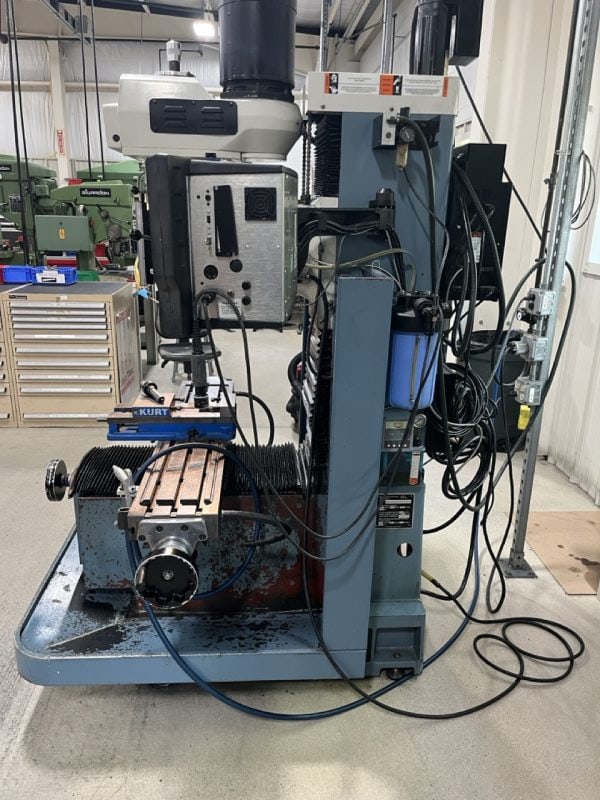

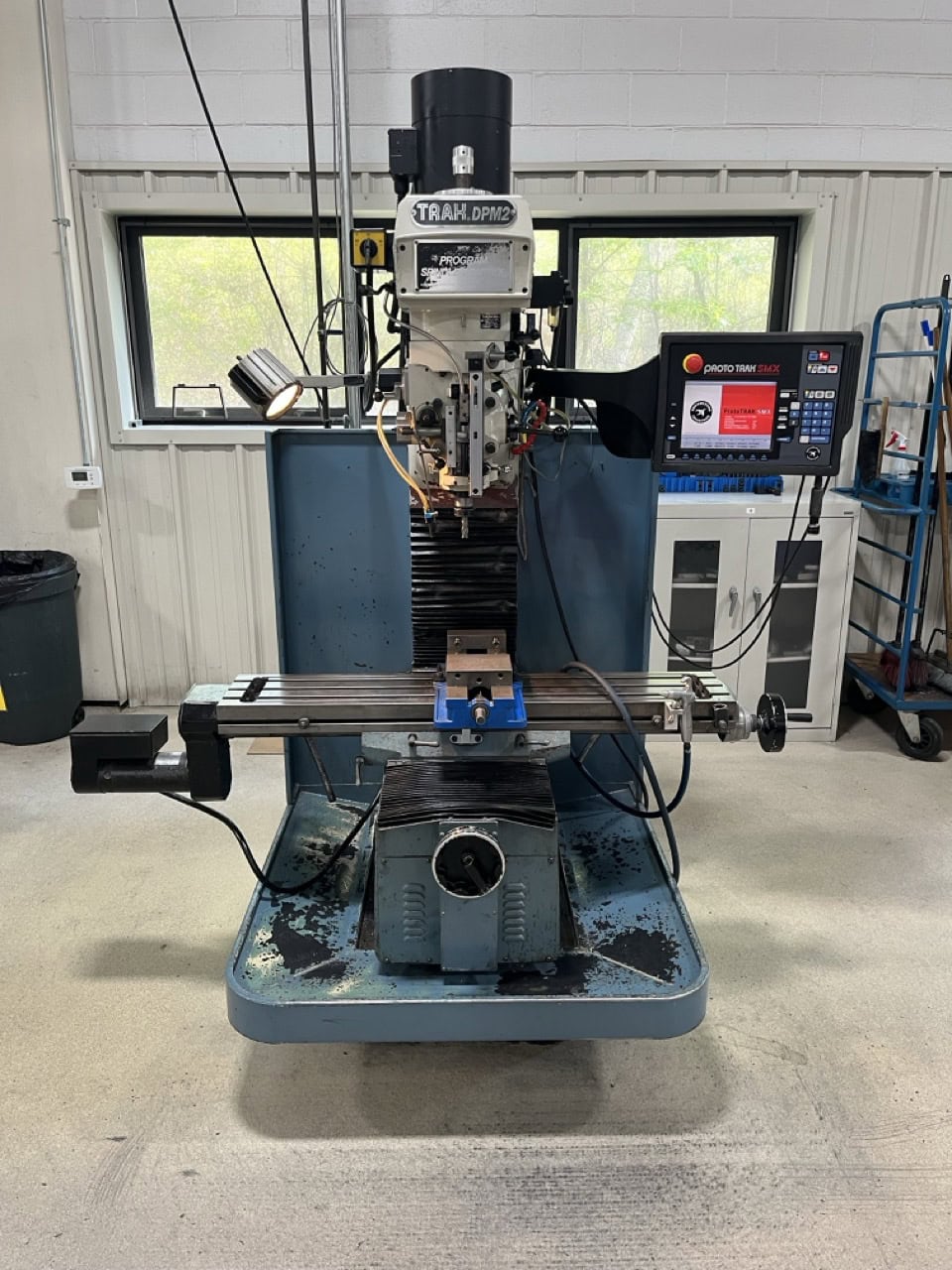

Southwestern Industries TRAK DPM SX2P Bed Mill, 2005
Southwestern Industries TRAK DPM SX2P Bed Mill, 2005 - Image 2
Southwestern Industries TRAK DPM SX2P Bed Mill, 2005 - Image 3
Southwestern Industries TRAK DPM SX2P Bed Mill, 2005 - Image 4
TV
38066416304

Southwestern Industries TRAK DPM SX2P Bed Mill, 2005

$12,900.00

Southwestern Industries TRAK DPM SX2P Bed Mill, 2005
Southwestern Industries TRAK DPM SX2P Bed Mill, 2005 - Image 2
Southwestern Industries TRAK DPM SX2P Bed Mill, 2005 - Image 3
Southwestern Industries TRAK DPM SX2P Bed Mill, 2005 - Image 4

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Vertical Machining Centers
Make: Southwestern Industries
Model: TRAK DPM SX2P
Year: 2005
Machine Location: New Jersey
Stock #: 416304

Table Size: 49″ x 9″
Table Load Capacity: Up to 1,320 lbs:
X-Axis Travel: 31″
Y-Axis Travel: 16″
Z-Axis Travil(Quill Travel): 23.5″
Spindle Speed Range: 40 to 5,000 RPM
Motor Power: 3 HP
Taper: NST #30

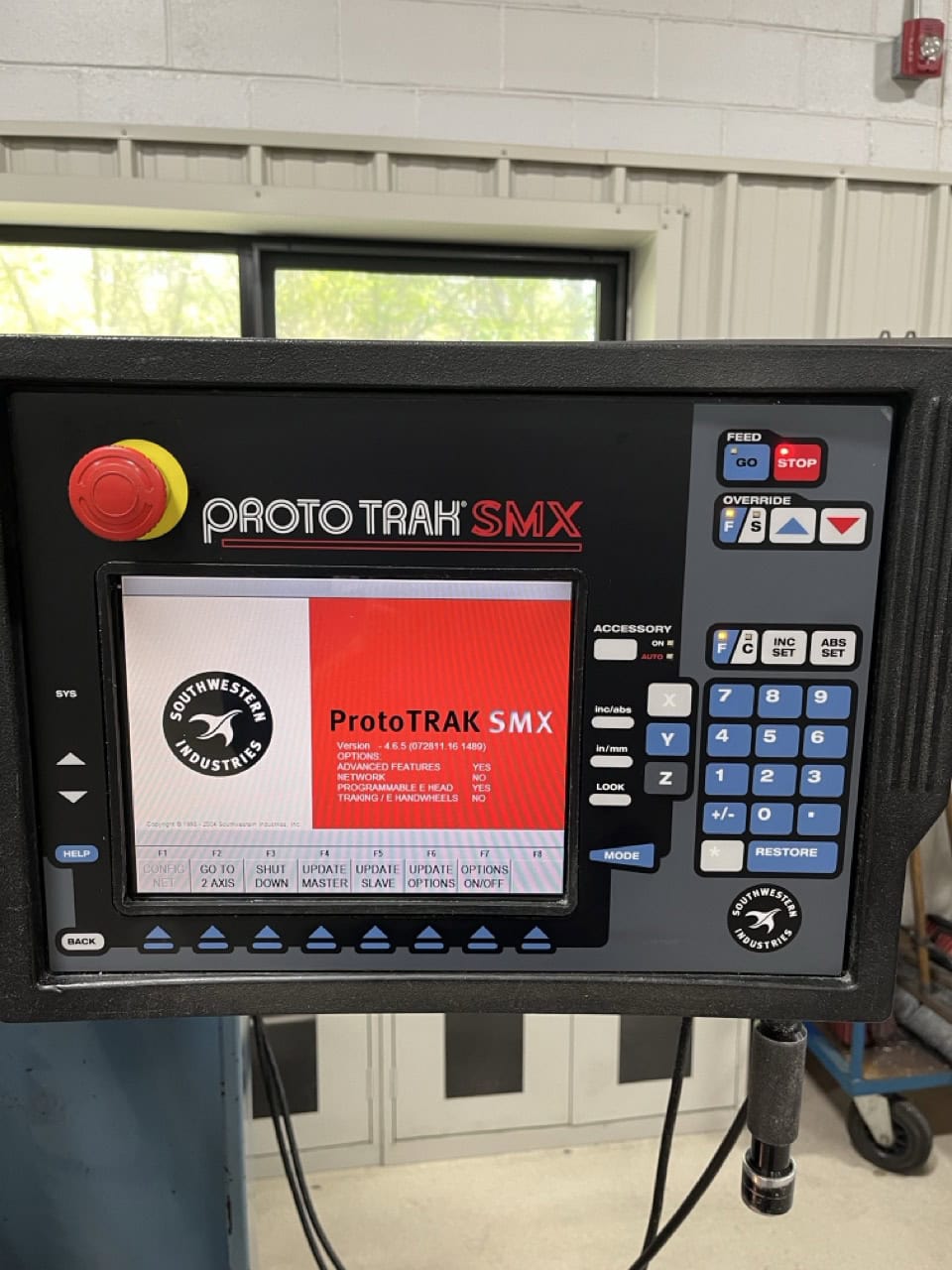

Control System: ProtoTRAK SMX CNC (3-axis control)
Approx. Machine Dimensions: 64″ x 72″ x 98″
Approximate Weight: 3,200 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
