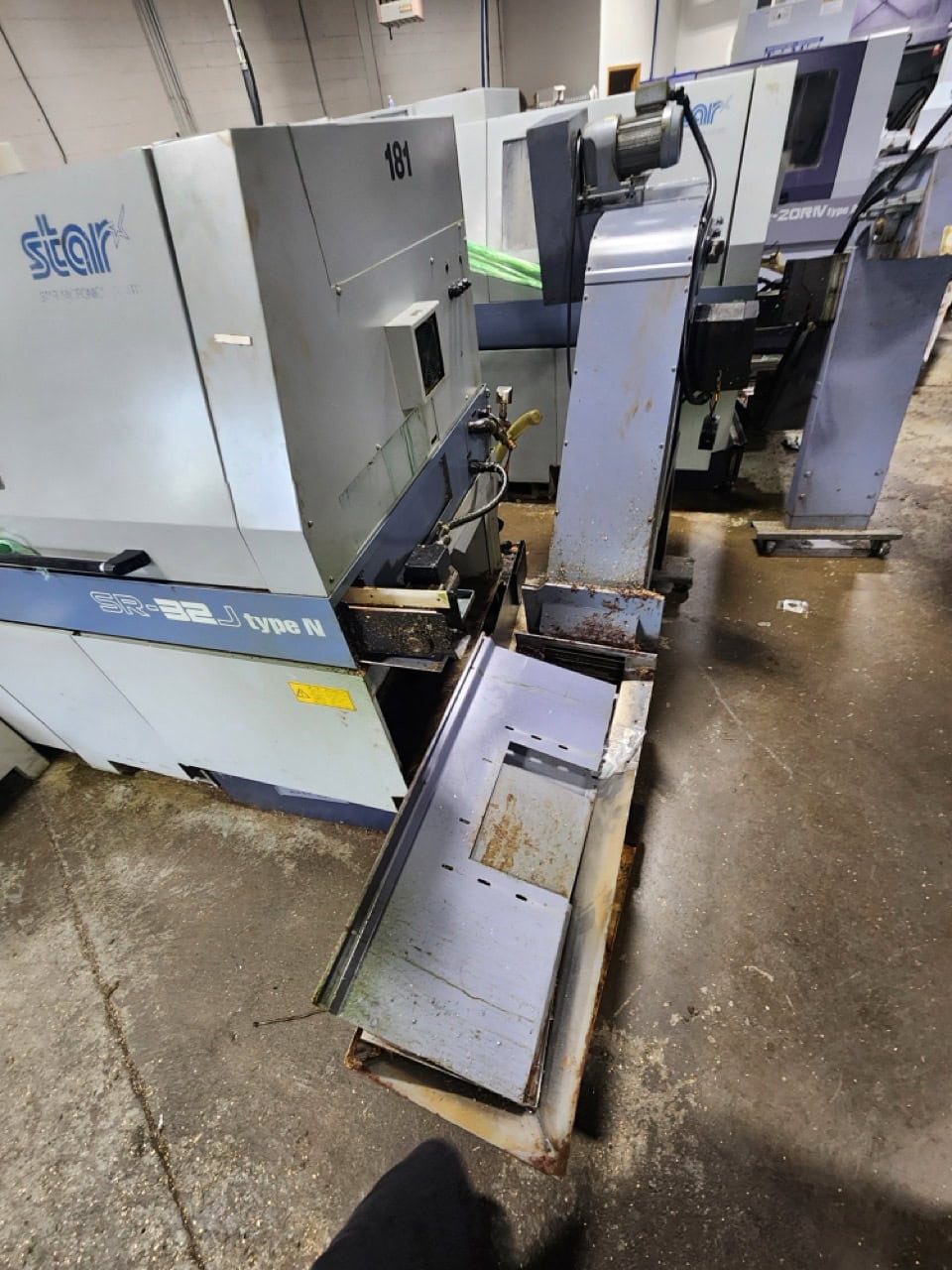

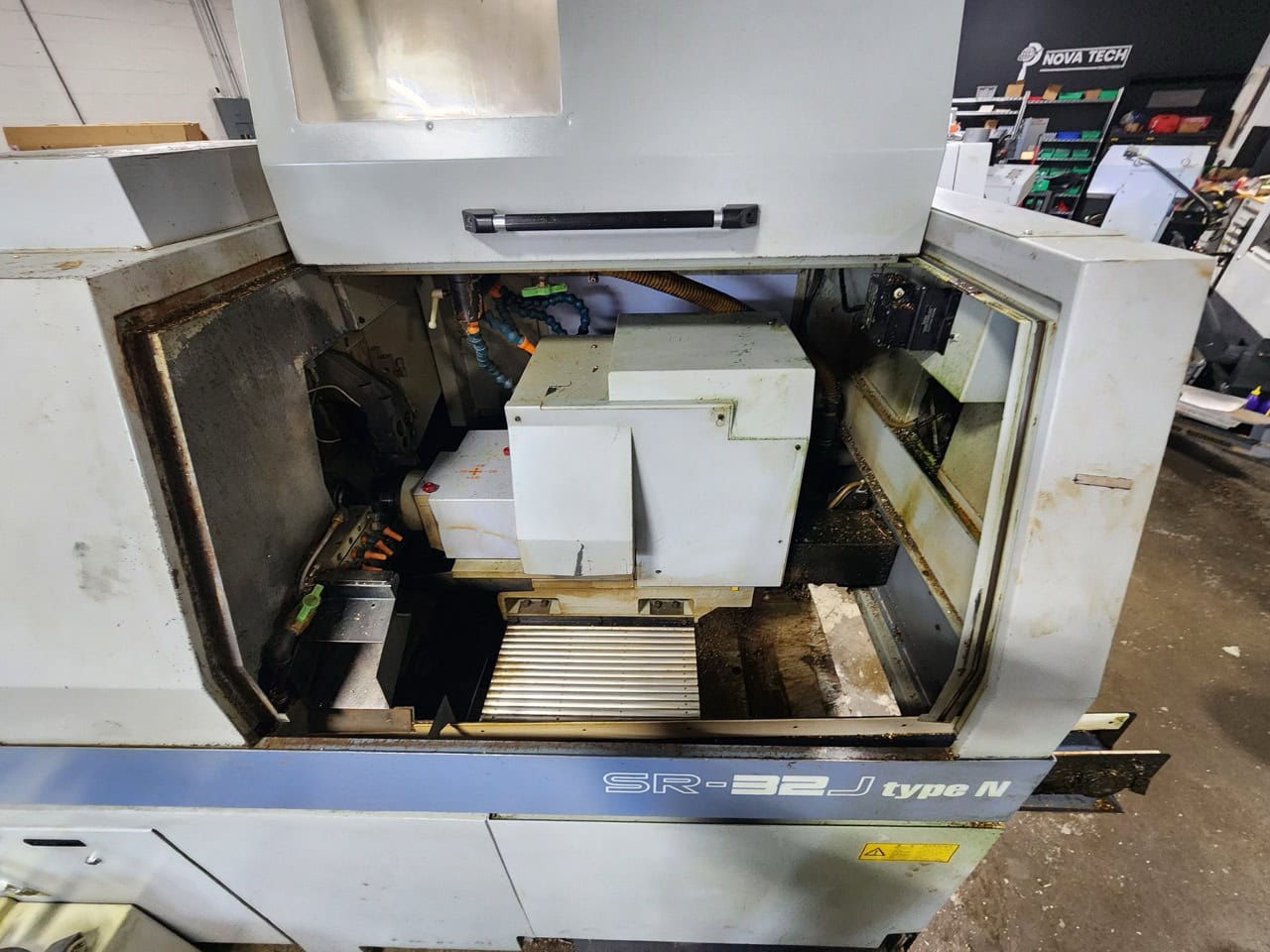

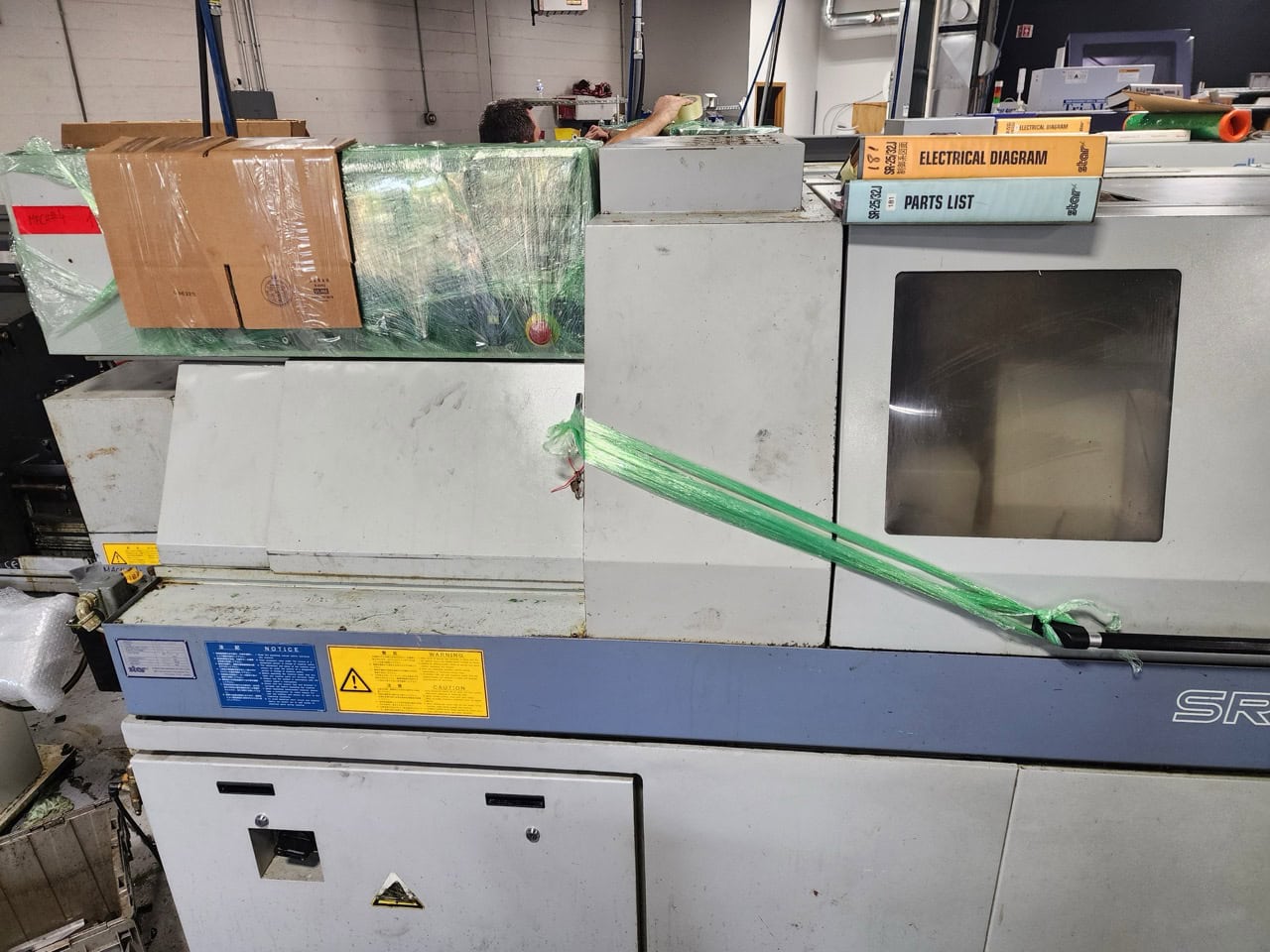

Star SR-32J CNC Swiss Lathe, 2010 – 32 mm Bar Capacity | 8-Axis Sliding Headstock | Fanuc Control
$49,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Manufacturer Star Micronics Co., Ltd.
Model ST-32J
Year 2010
Machine Type CNC Swiss-Type Automatic Lathe

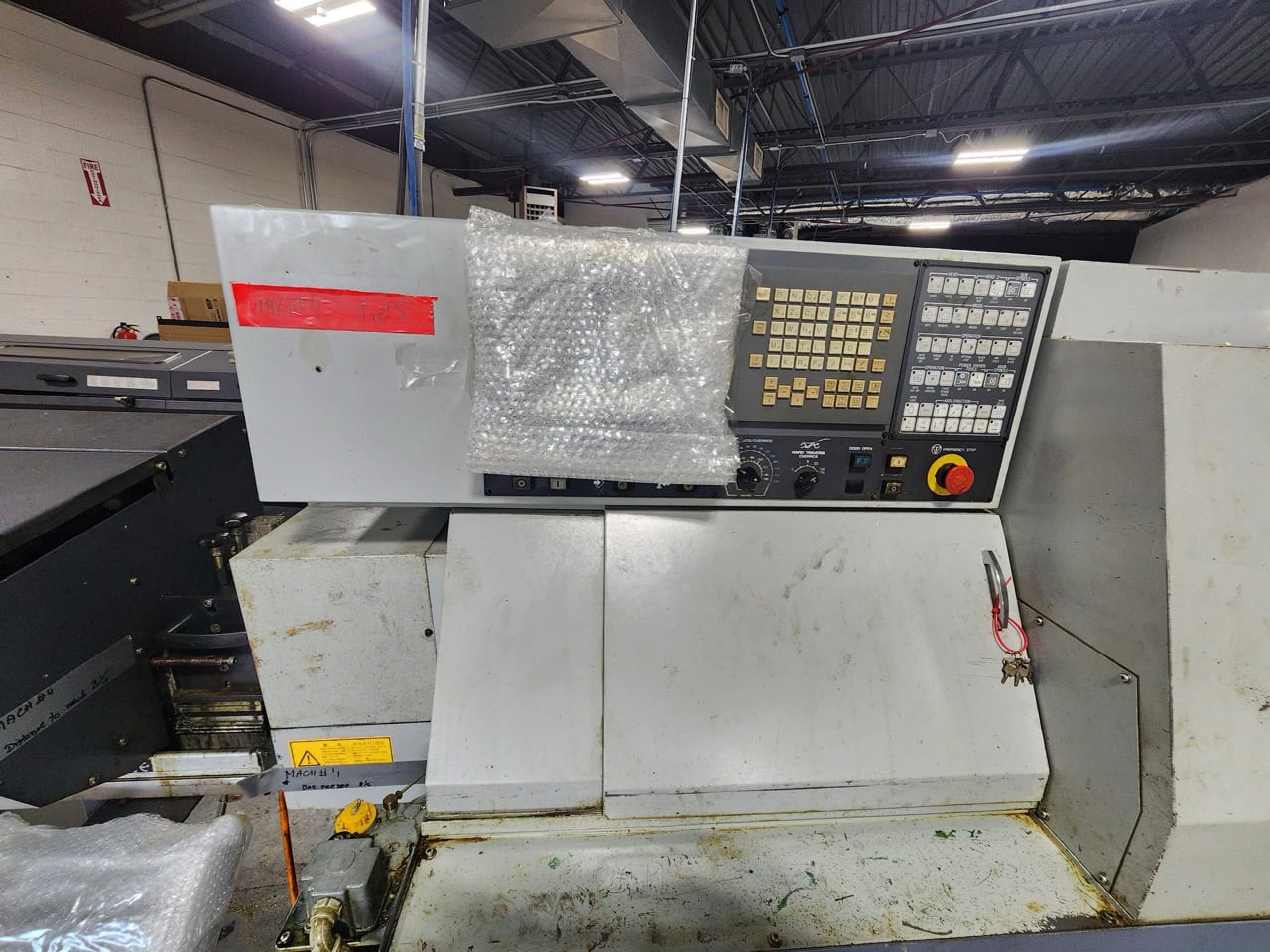

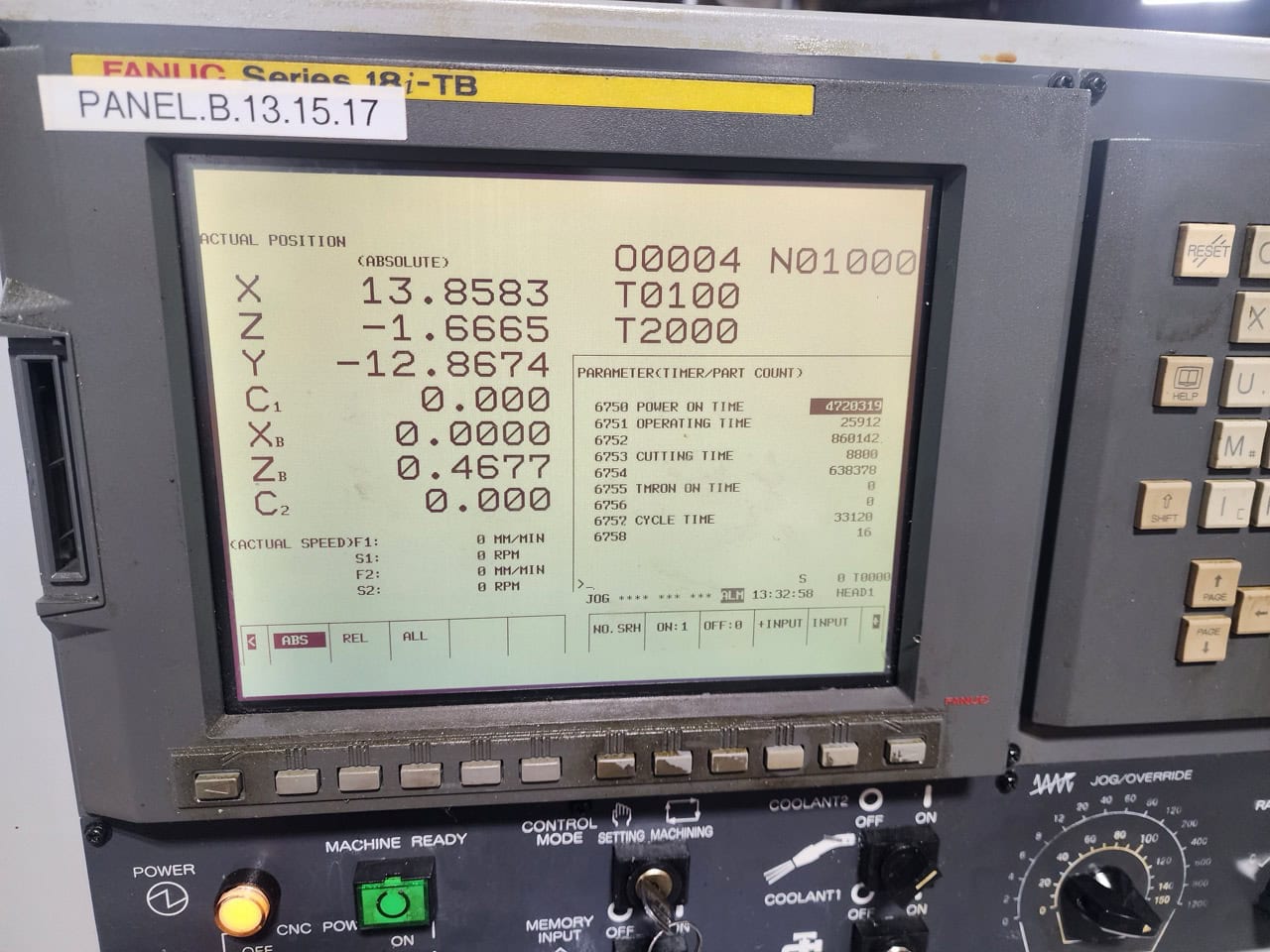

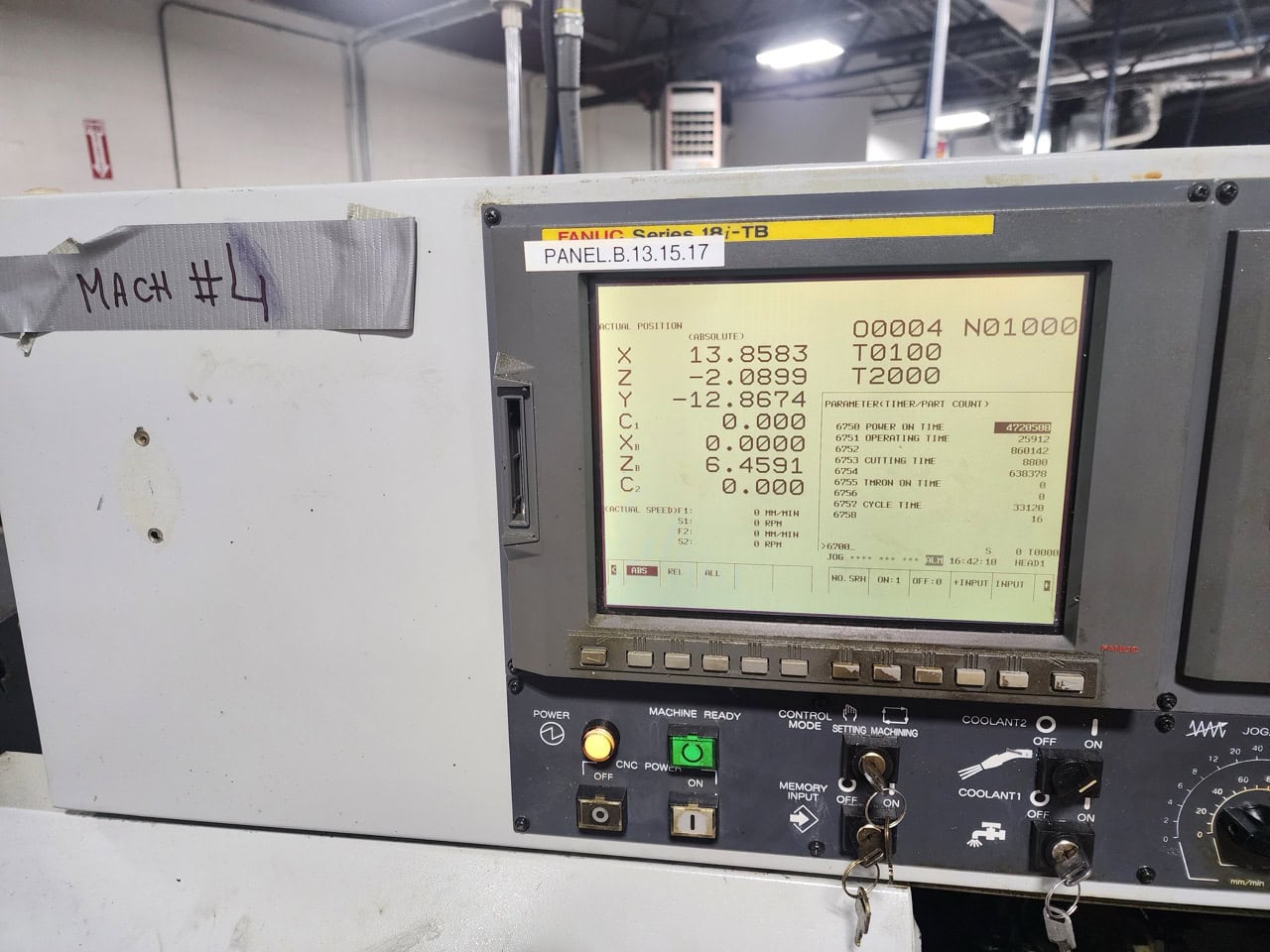

Control Fanuc CNC Control 18i-TB
Bar Capacity 1.26 in (32 mm)
Max Turning Length 12.6 in (320 mm)
Main Spindle Speed Up to 8,000 RPM
Sub Spindle Speed Up to 8,000 RPM
Number of Axes 8 (X1, Y1, Z1, C1 + X2, Z2, C2 + optional Y2)
Main Spindle Motor 5.5 / 7.5 kW (7.5 / 10 HP)
Sub Spindle Motor 3.7 kW (5 HP)
Live Tool Speed Up to 5,000 RPM
Tool Capacity Approx. 28 total positions
Cross-Drilling Stations 6 front + 4 rear live tools
Back-Working Tools 8 stations (drilling, tapping, milling)

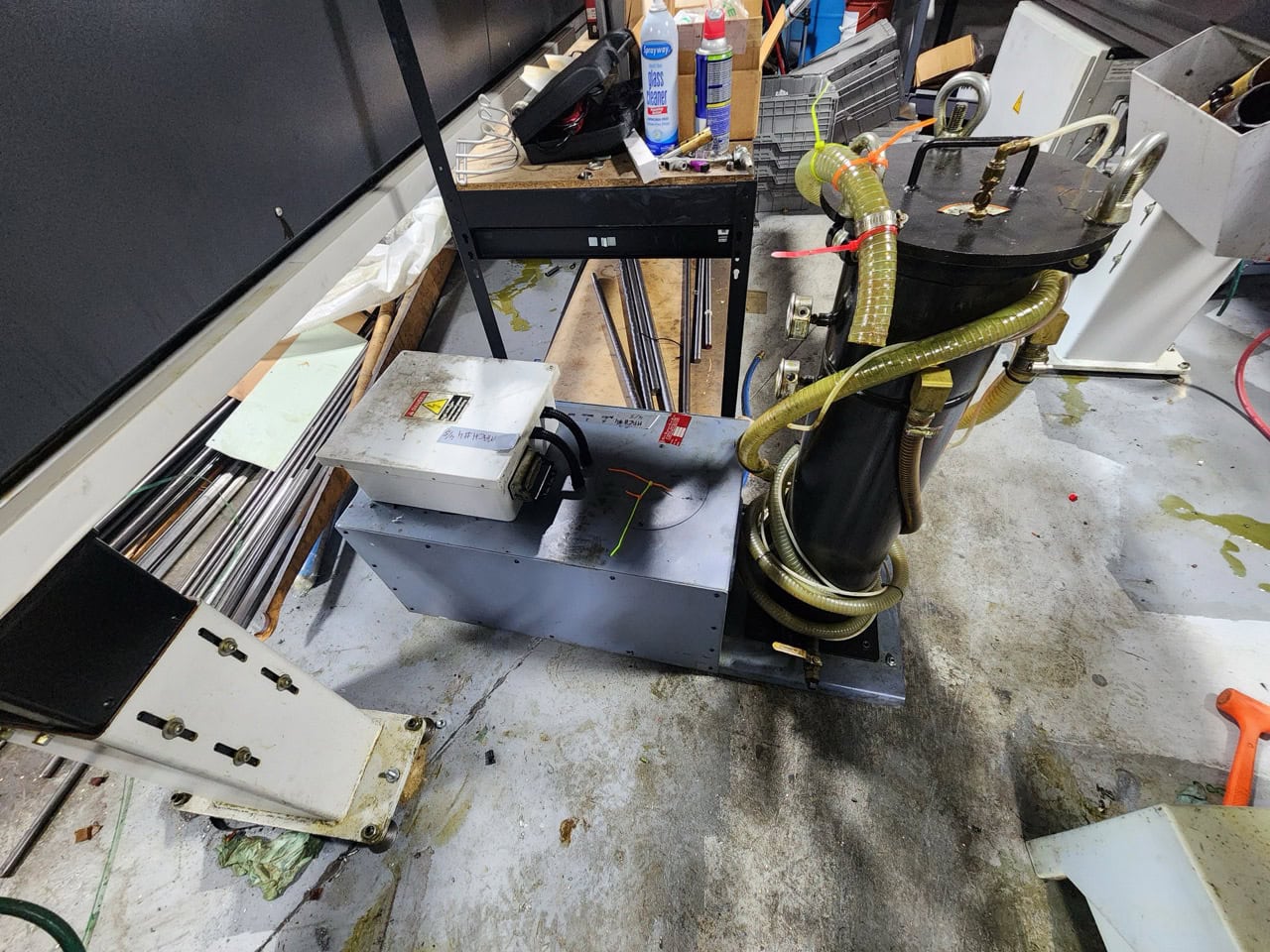

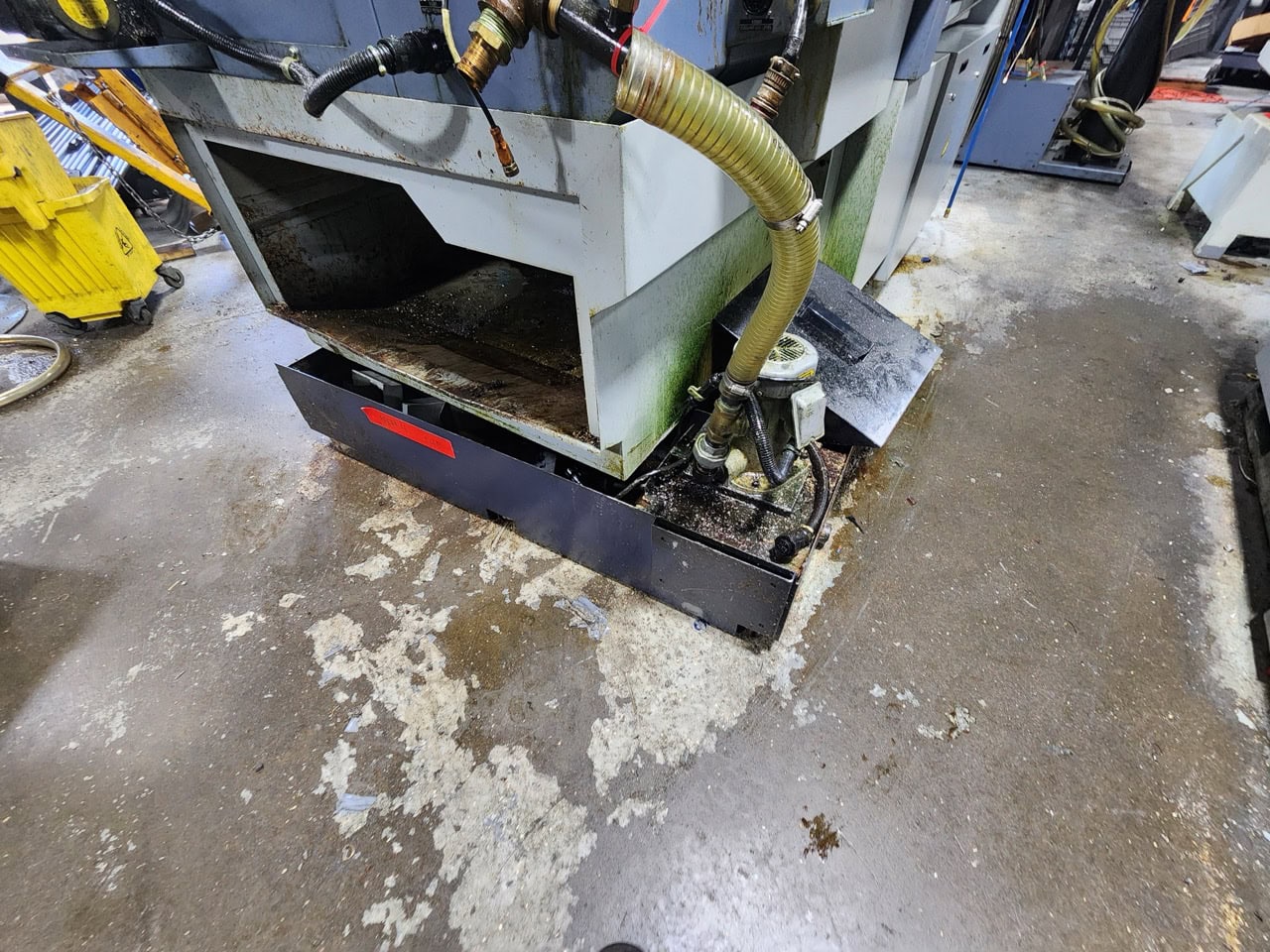

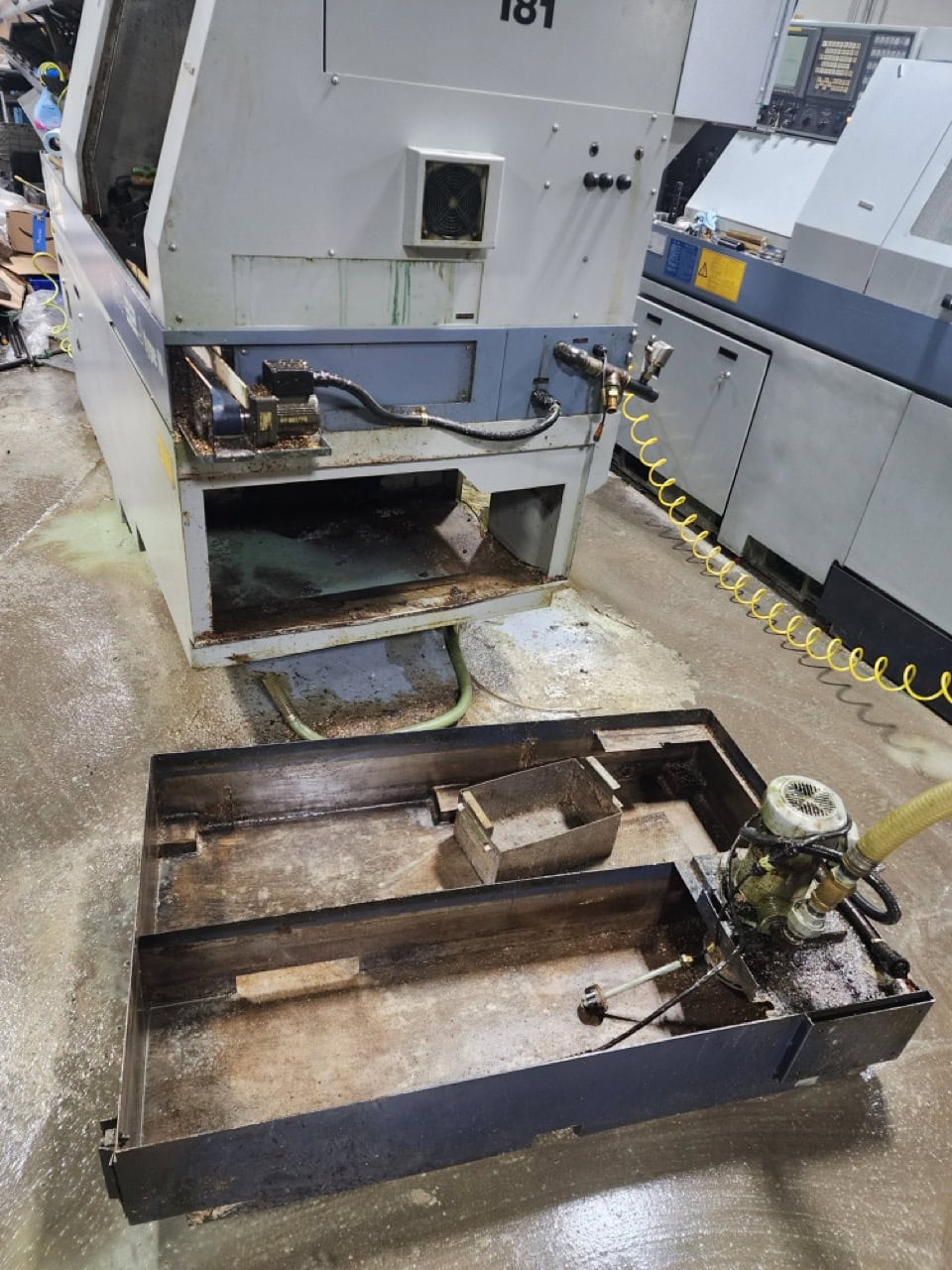

Coolant System Flood coolant (high-pressure option available)

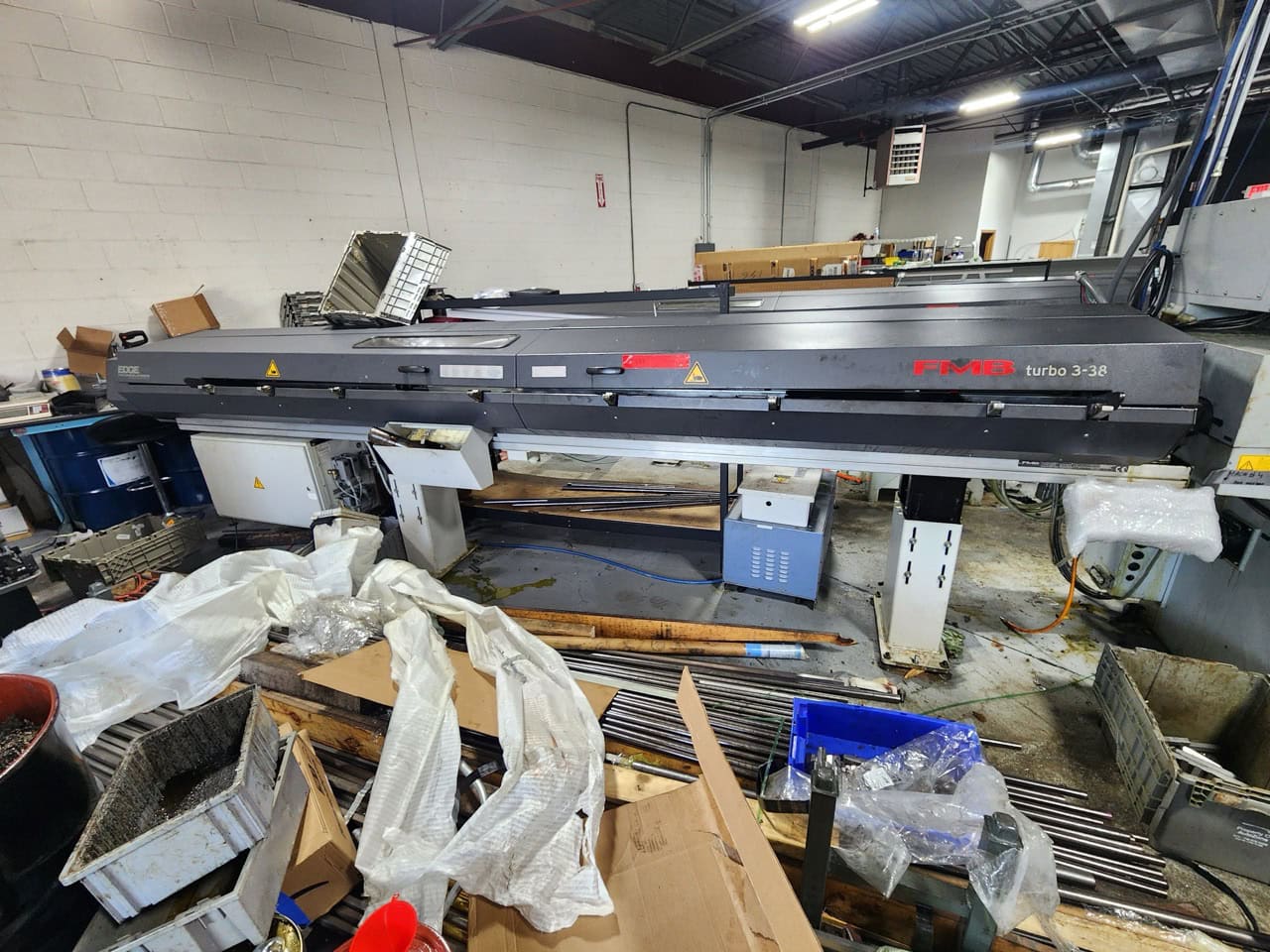

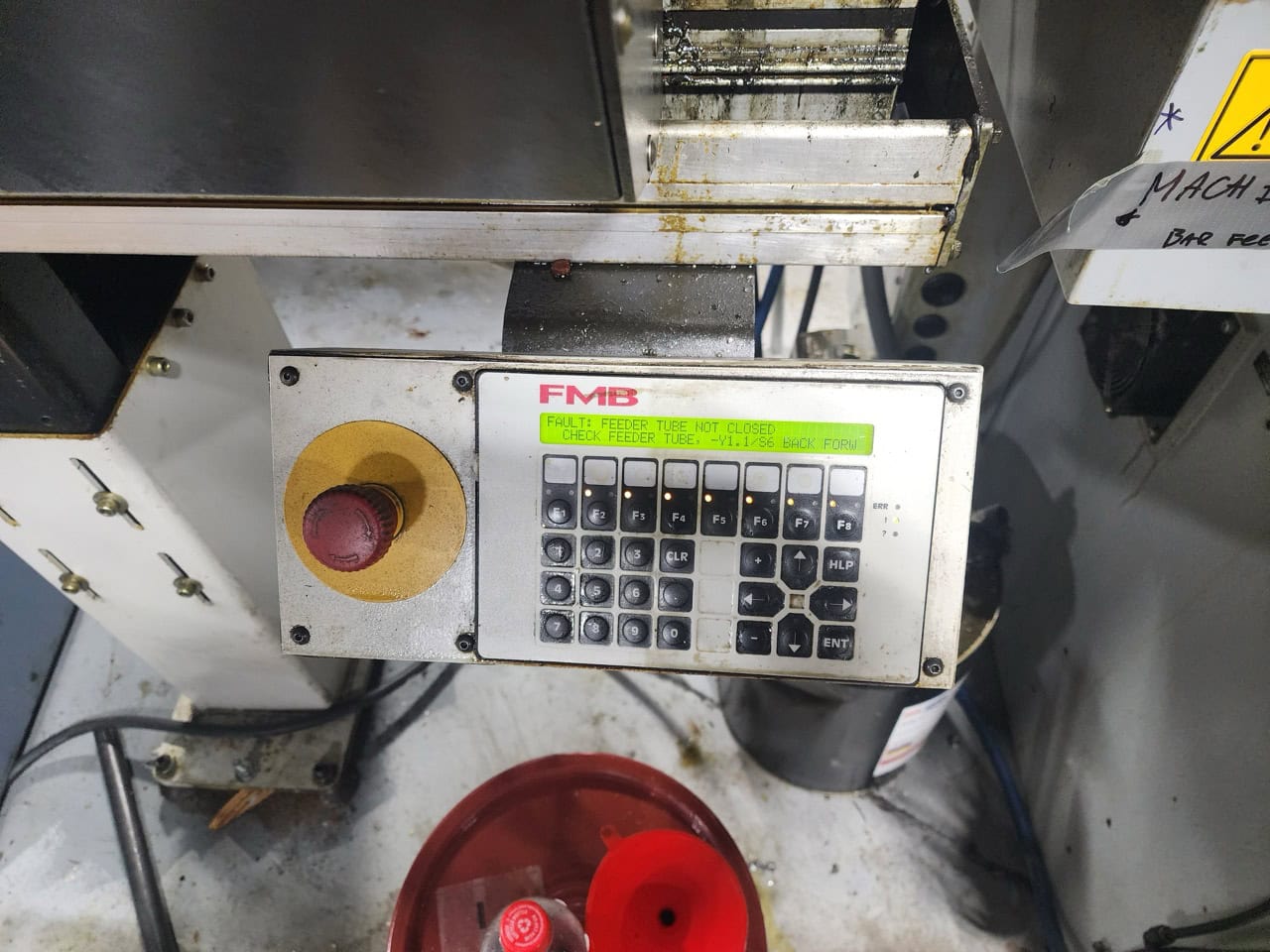

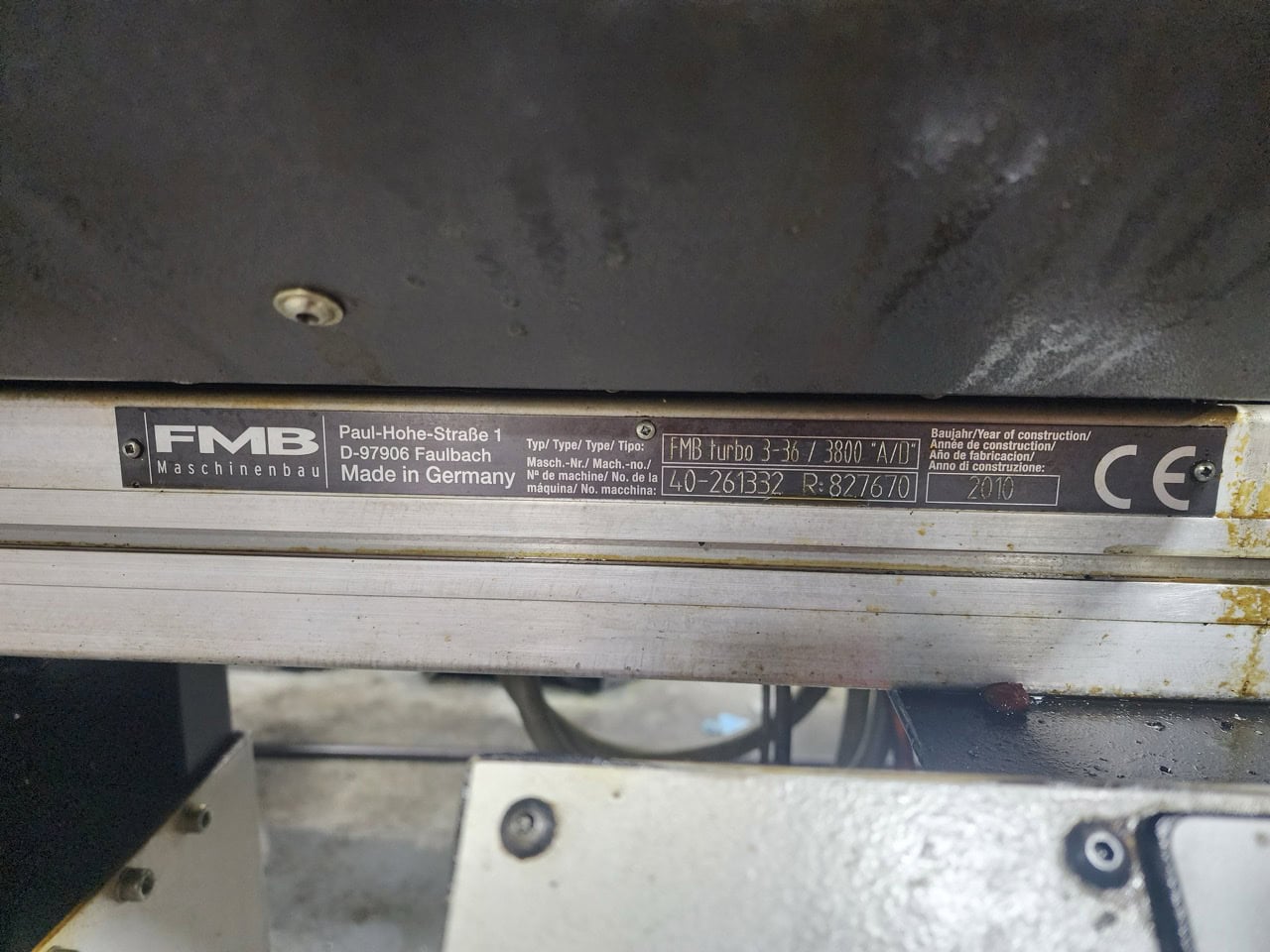

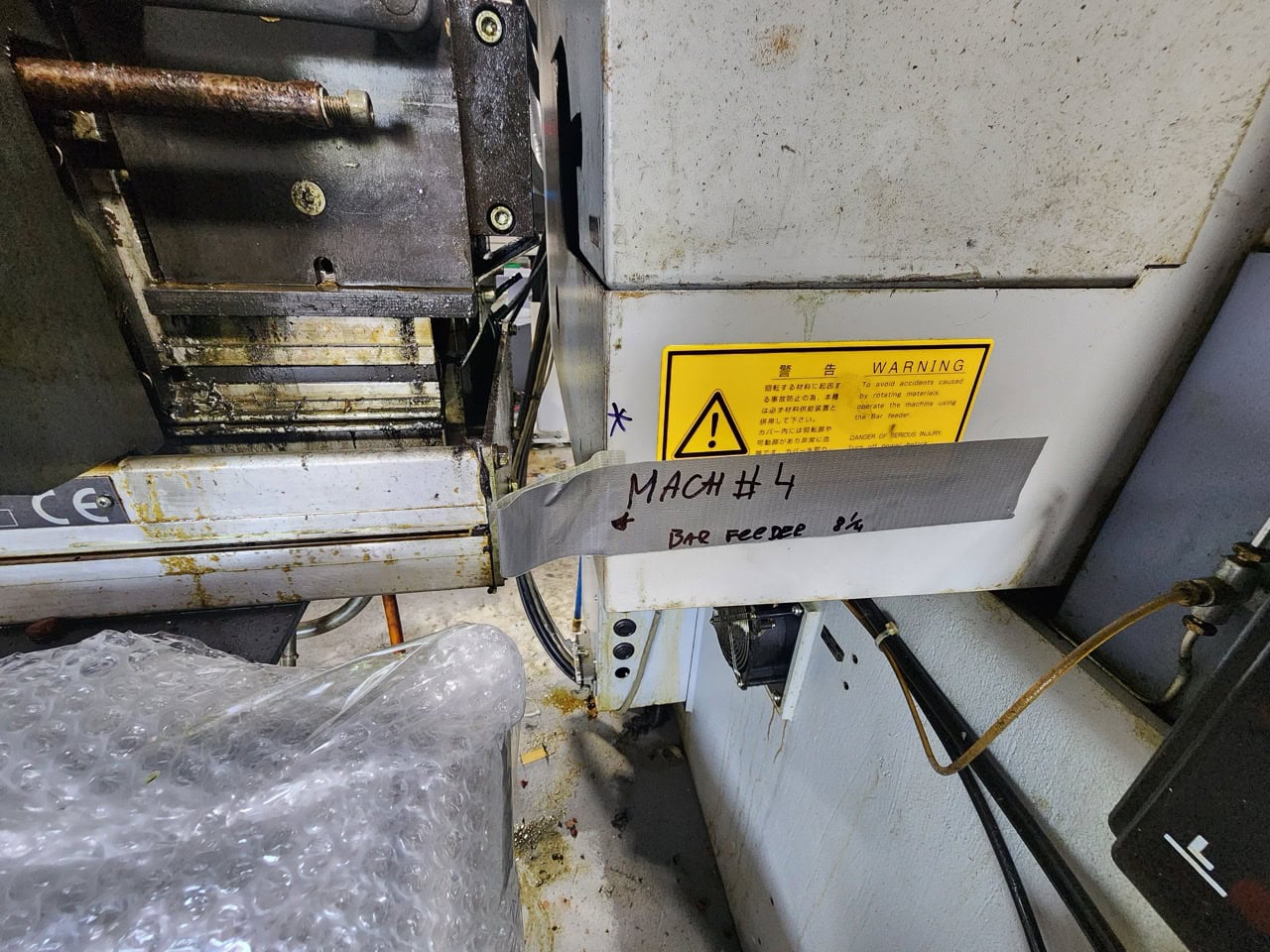

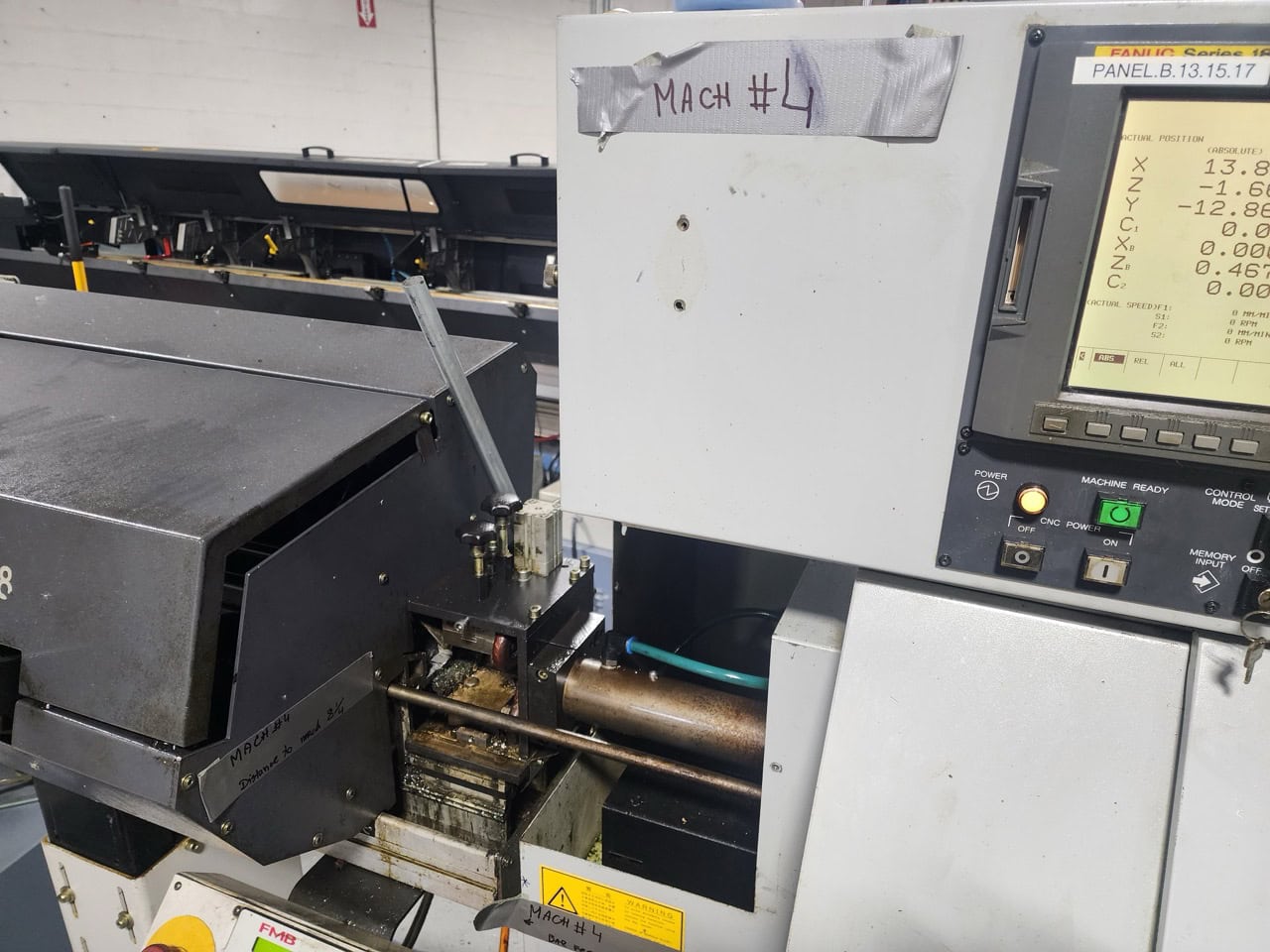

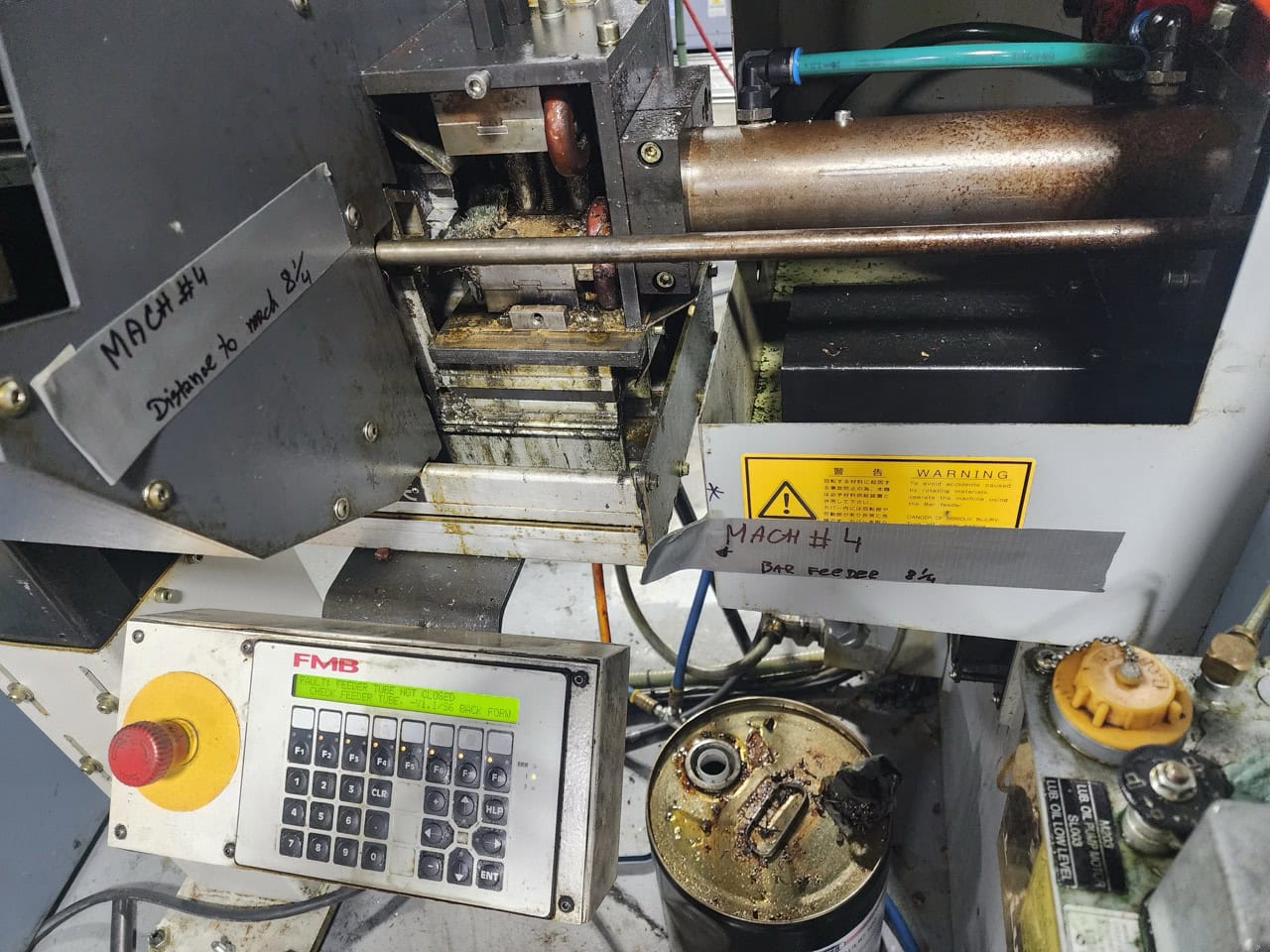

Bar Feeder Compatibility FMB
Dimensions (L × W × H) ≈ 100″ × 55″ × 65″ (2,540 × 1,397 × 1,651 mm)
Approx. Weight ≈ 6,500 lb (2,950 kg)
