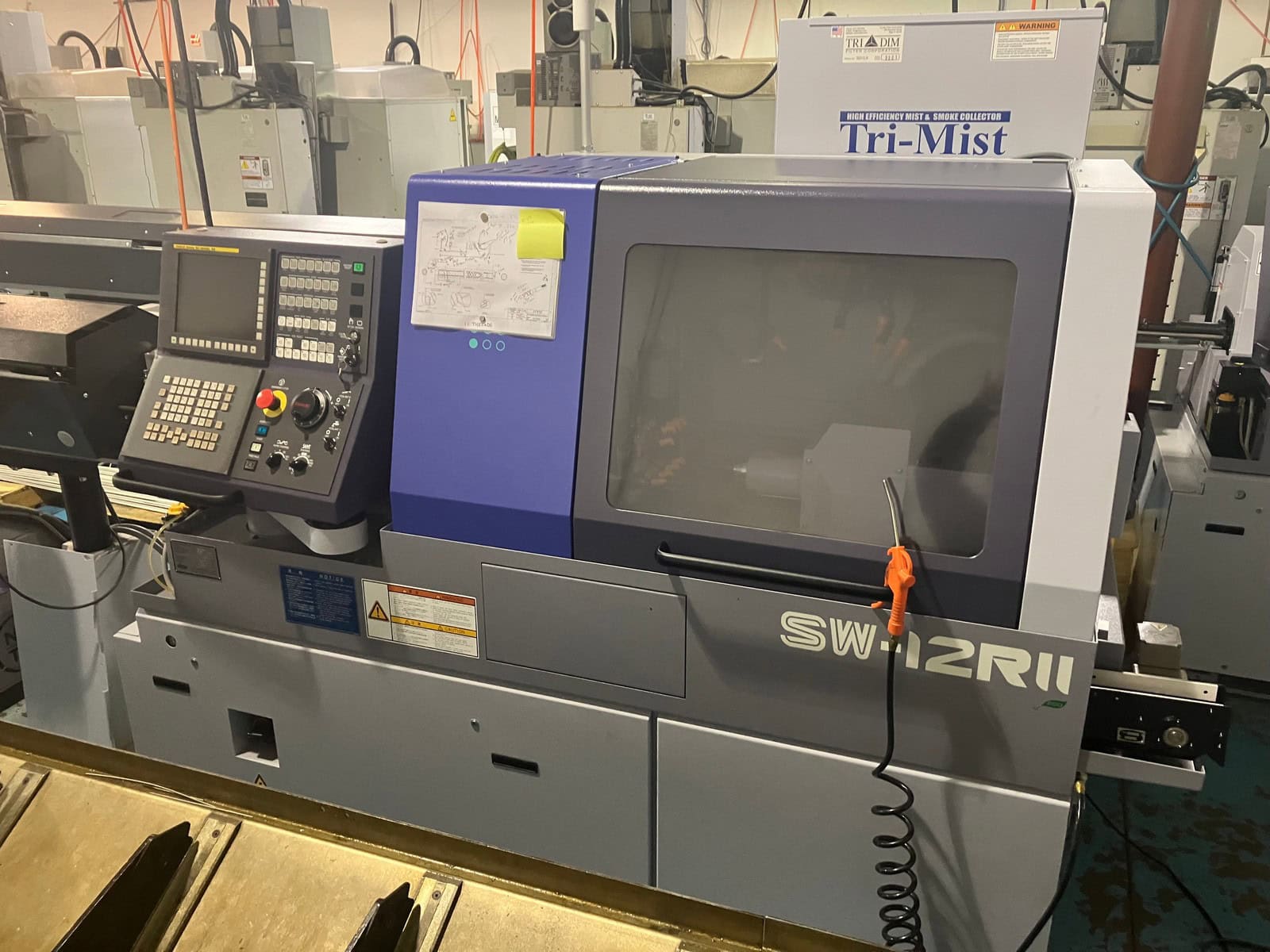

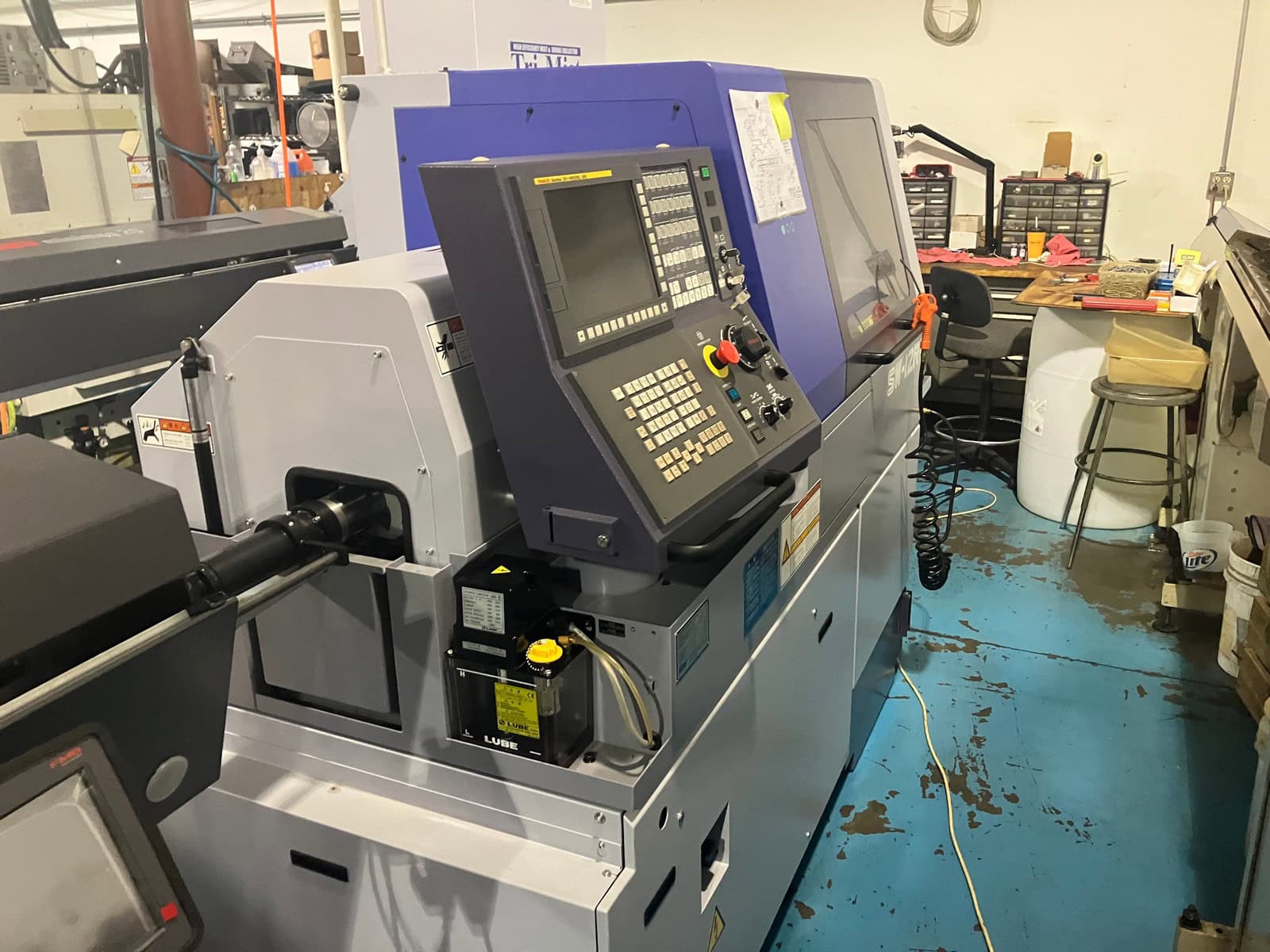

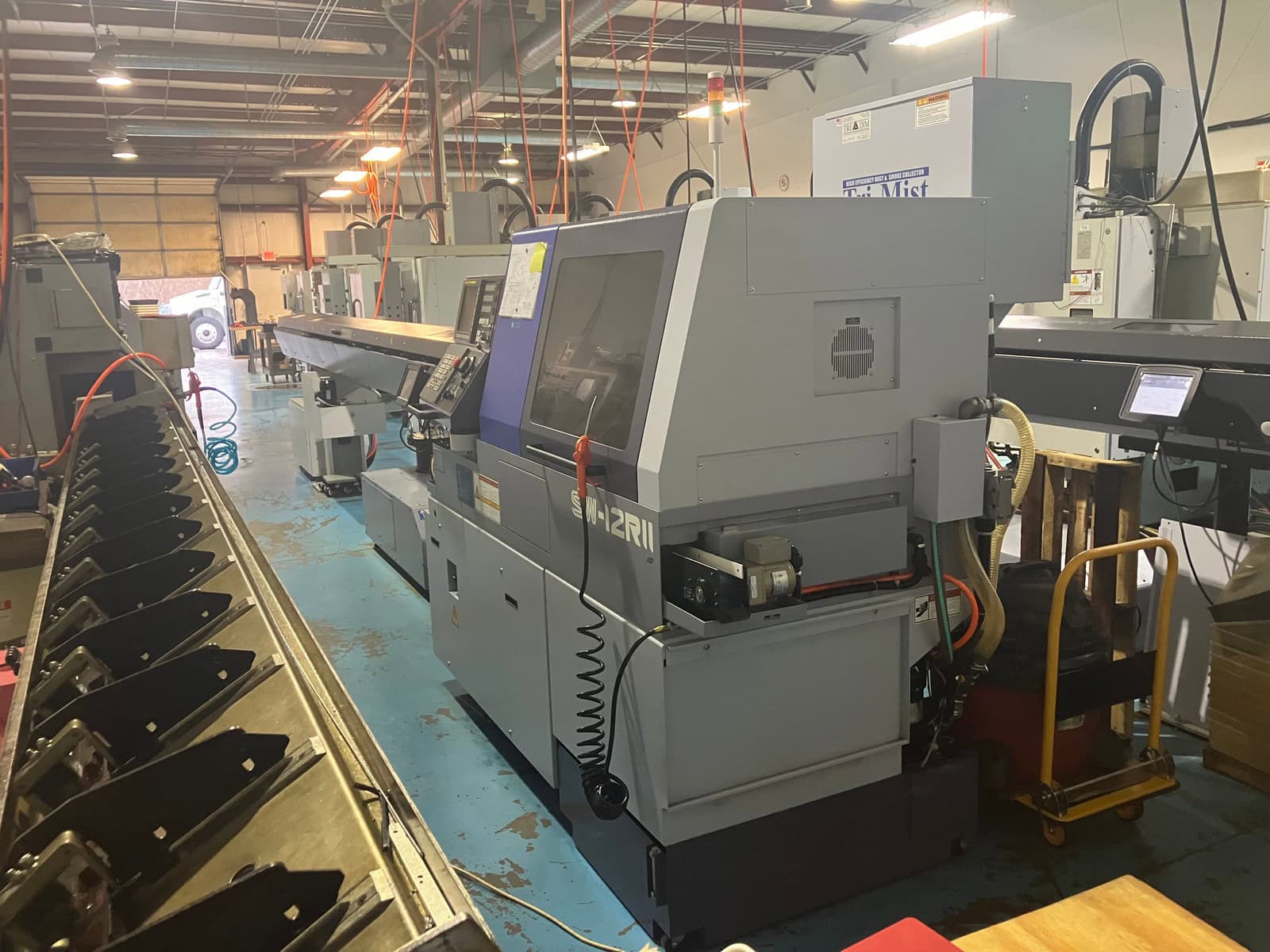

Star SW-12RII Swiss CNC Lathe, 2022 – Star Smart Control, Rotary Magic Guide Bushing, NETC Pressure Tech Pump, FMB Mimimag Bar Feeder, Axial Shift Device

$169,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Swiss-Type Lathes
Make: Star
Model: SW-12RII
Year: 2022
Machine Location: Upon Request
Stock #: 787661

Max. Machining Diameter: 13 mm
Headstock Stroke: 30-135 mm
Axis: 10
Front Tool Post Configuration: Turning Tool + Power-Driven
Rear Tool Post Configuration: Turning Tool + 4 Spindle Sleeve Holder + Power-Driven
Front Tools: 5
Rear Tools: 2
Tool Shank: 10 mm

4-Spindle Sleeve Holder:
-Number of Tools: 4 Front & 4 Rear
-Max. Drilling Capability: 5 mm
-Max. Tapping Capability: M4xP0.7
-Max. Spindle Speed: 12,000 RPM

Rapid Feed Rate (X2, Y1, Y3, Z1, Z2): 35 m/min
Rapid Feed Rate (X1, X3): 24 m/min
Rapid Feed Rate (Y2): 15 m/min
Main Spindle Indexing Angle: C-Axis Control
Main Spindle Max. Speed: 15,000 RPM
Coolant Tank Capacity: 139 L

Max. Chucking Diameter: 13 mm
Max. Length for Front Ejection: 80 mm
Max. Parts Projection Length: 20 mm

Back Spindle Tools: 8
Back Spindle Max. Drilling Capability: 8 mm
Back Spindle Power Driven Spindle Speed: 12,000 RPM
Sub Spindle Indexing Angle: C-Axis

Equipped With:

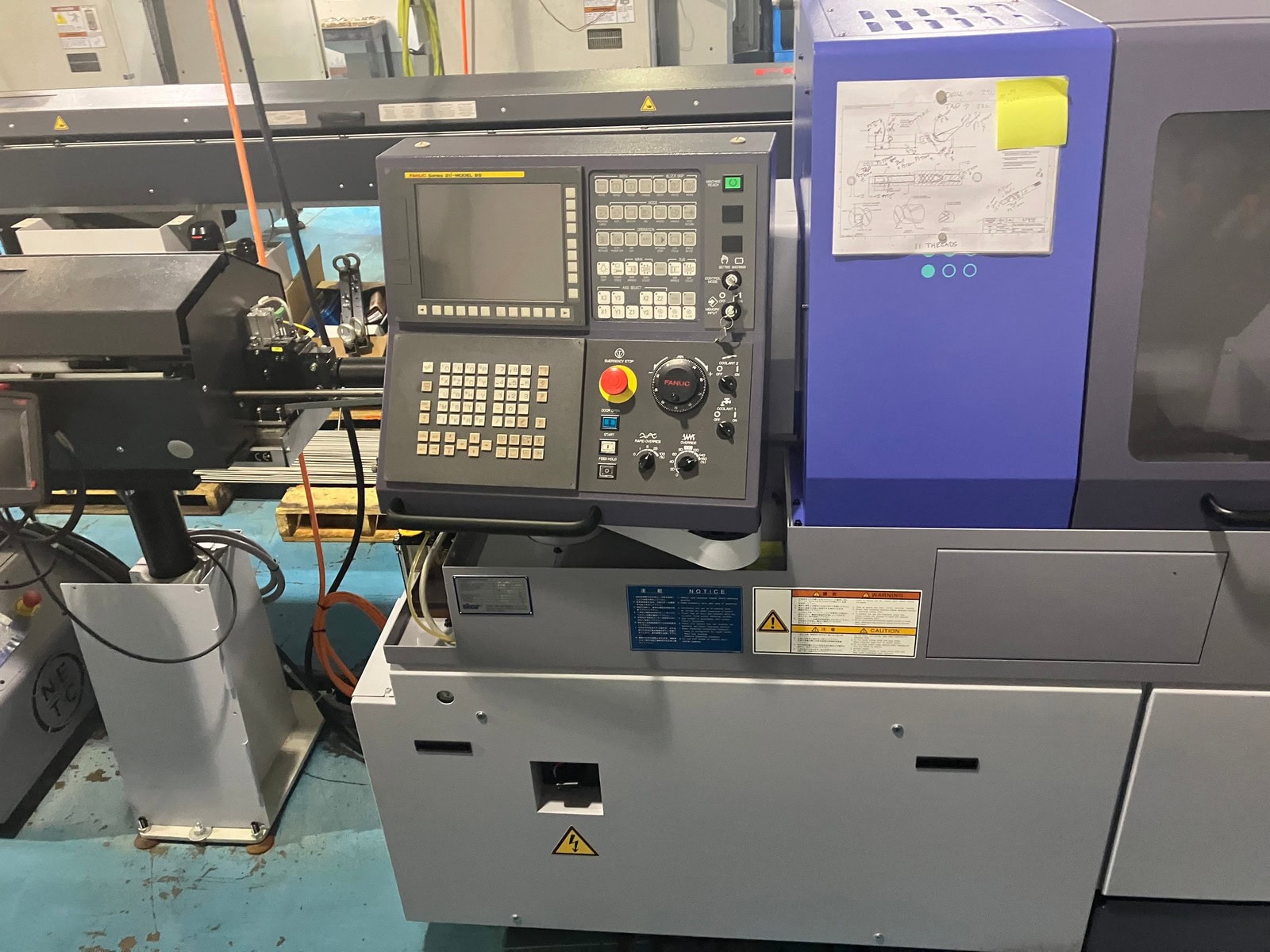

Fanuc 31I-B5 Controller
Star Motion Control
Rotary Magic Guide Bushing
NETC Pressure Tech Pump
Mist Buster

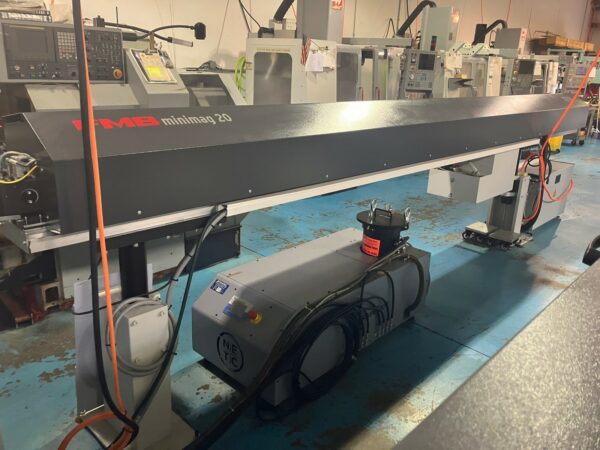

FMB Mimimag 20 12′ Bar Feeder
Axial Shift Device

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
