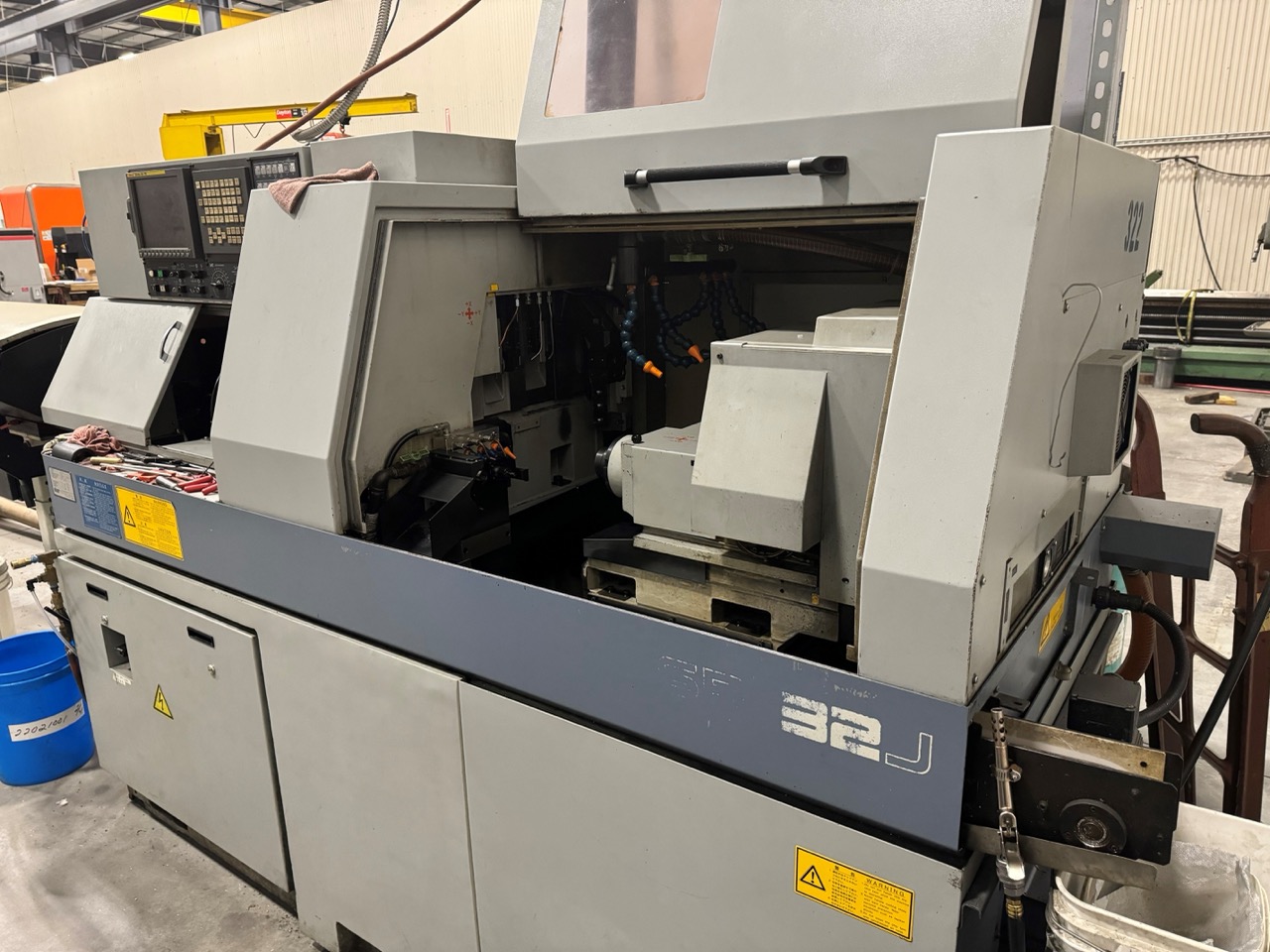

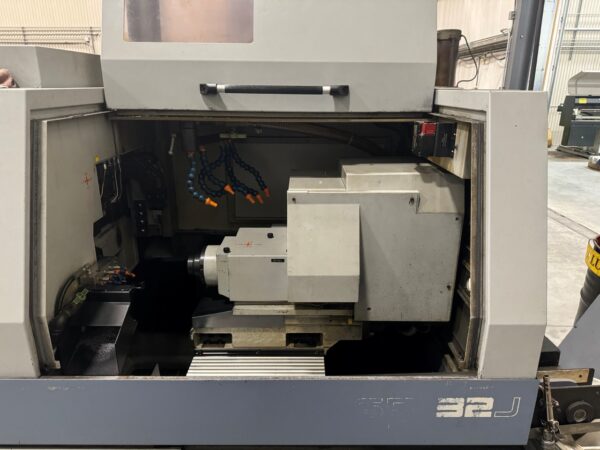

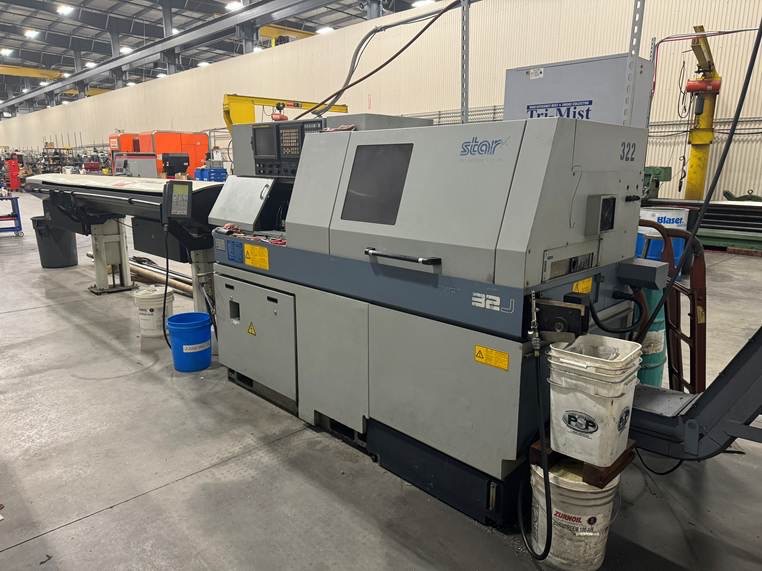

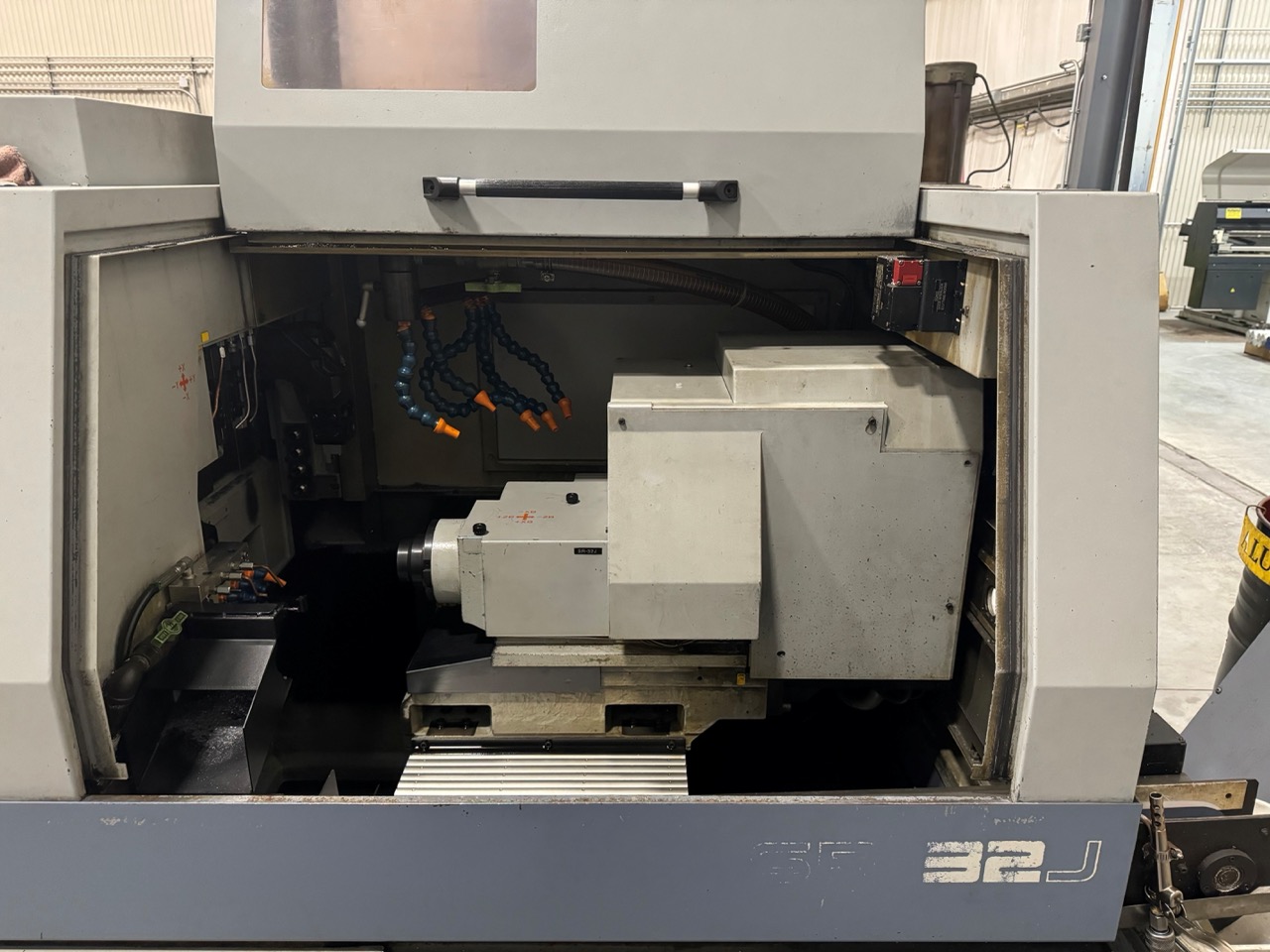

Star Swiss SR32J Swiss Lathe, 2011 – LNS Hydrobar Barfeed, Chip Conveyor, Fanuc 18i-TB Control

Max. Machining Diameter: 32mm (1-1/4in)

Max Headstock Stroke
– Standard: 310mm (12-13/64in)
– With RMGB Unit: 280mm (11-1/32in)

Tool Shank: 16mm x 95-155mm
4-Spindle Sleeve Holder
– Max Drilling Capability: 13mm (1/2in)
– Max Tapping Capability: M12 x P1.75
– Max Die Cutting Capability: M10 x P1.5

Power Driven Attachment
– Max Drilling Capability: 8mm (5/16in)
– Max Tapping Capability: M6 x P1.0
– Max Milling Capability: 10mm (25/64in)

Main Spindle Speed: max 7,000 min-1
Main Spindle Motor (continuous/30min): 5.5kw/7.5kw
Power-Driven Att. Spindle Speed: max 5,000 min-1
Power-Driven Att. Drive Motor: 1.0 kw

Backworking Attachment
Max Chucking Diameter: 32mm (1-1/4in)
Max Length for Front Ejection: 125mm (4-59/64in)
Max Parts Projection Length: 45mm (1-49/64in)

4-Spindle Backworking Unit
– Max Drilling Capability
– – Stationary Tool: 13mm (1/2in)
– Max Tapping Capability
– – Stationary Tool: M10 x P1.5
Sub Spindle Speed: max 7,000 min-1
Sub Spindle Motor(continuous/15min): 2.2kw/3.7kw
Approx. Dimension: 9′ x 4′ x 5’6″
Approx. Weight: 8300 lbs

Main Spindle Indexing: Full C
Sub Spindle Indexing: Full C
Live Back Working Tools: Yes
B-Axis: No

Equipped With:
FANUC 18i-TB CNC CONTROL
Chip Conveyor
Parts Catcher with Exit Conveyor

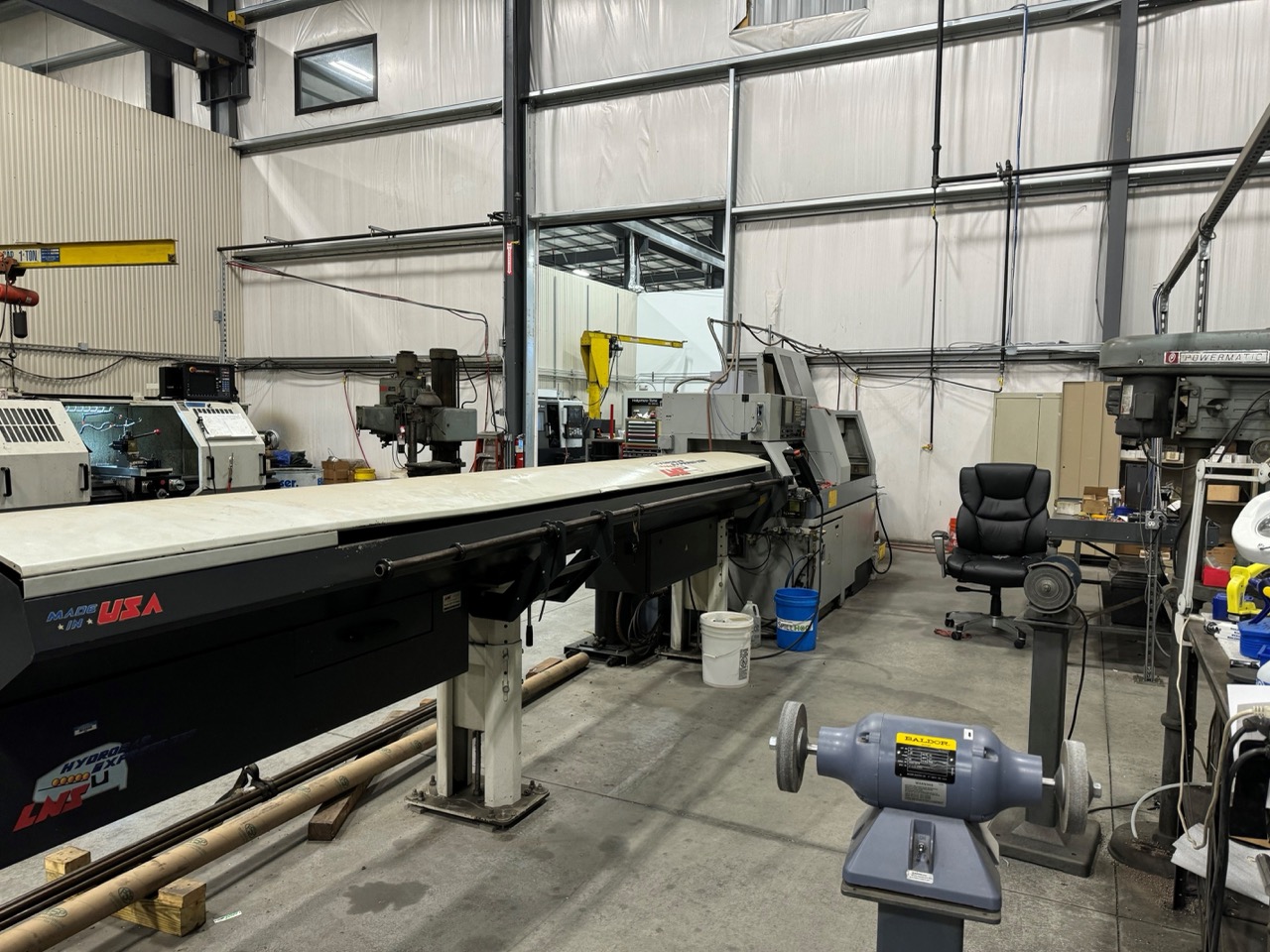

LNS Hydrobar Barfeed
