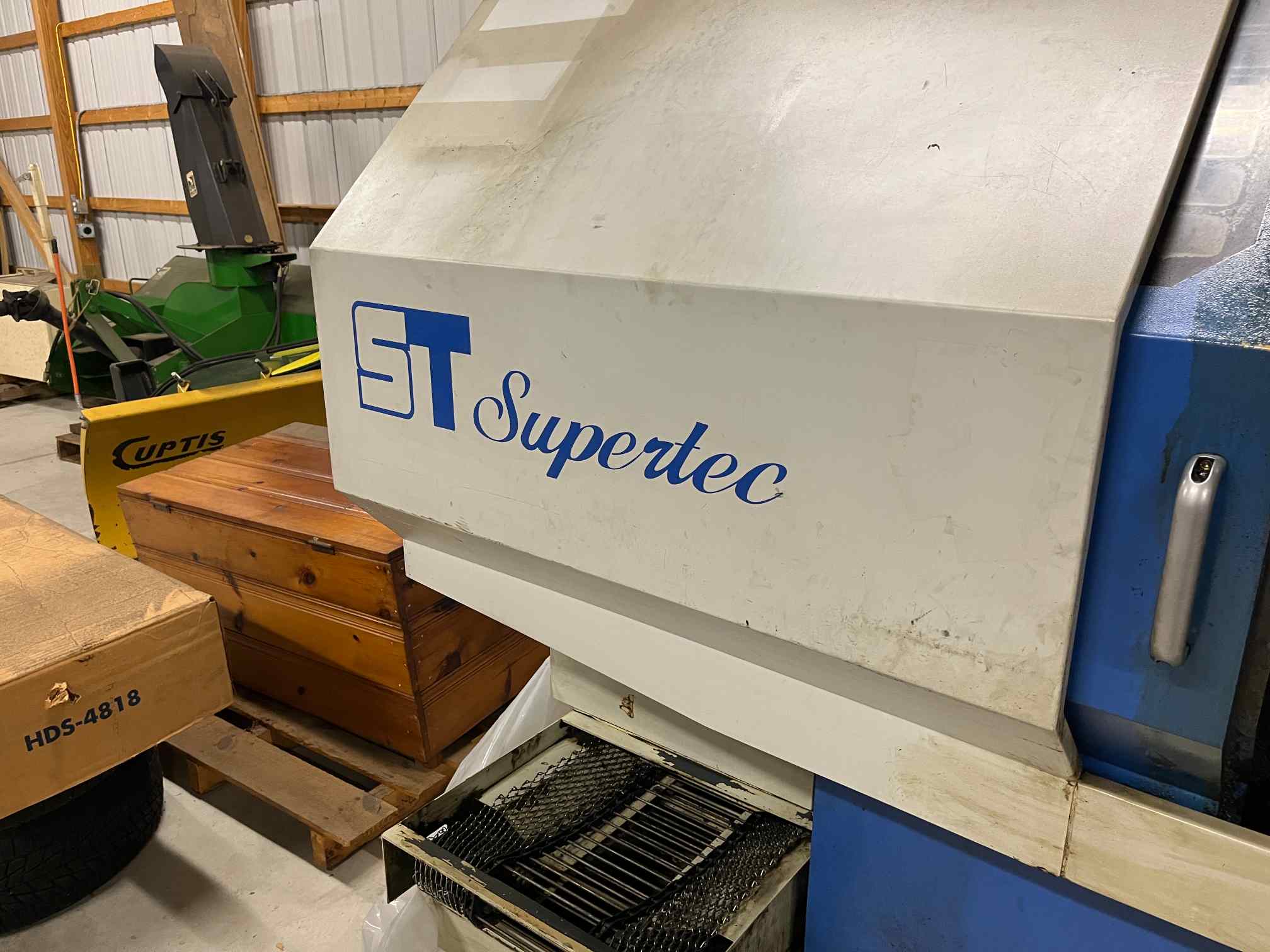

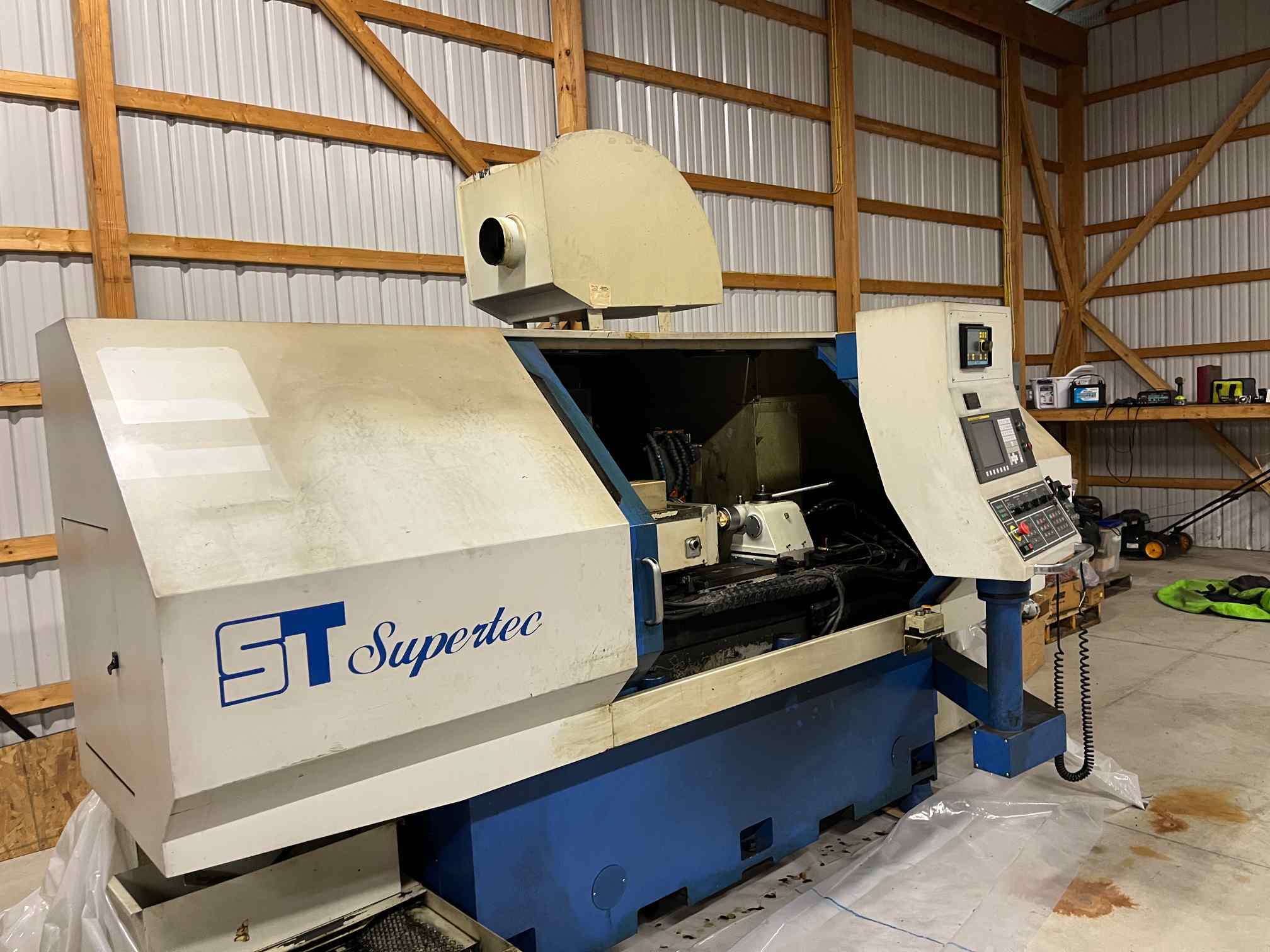

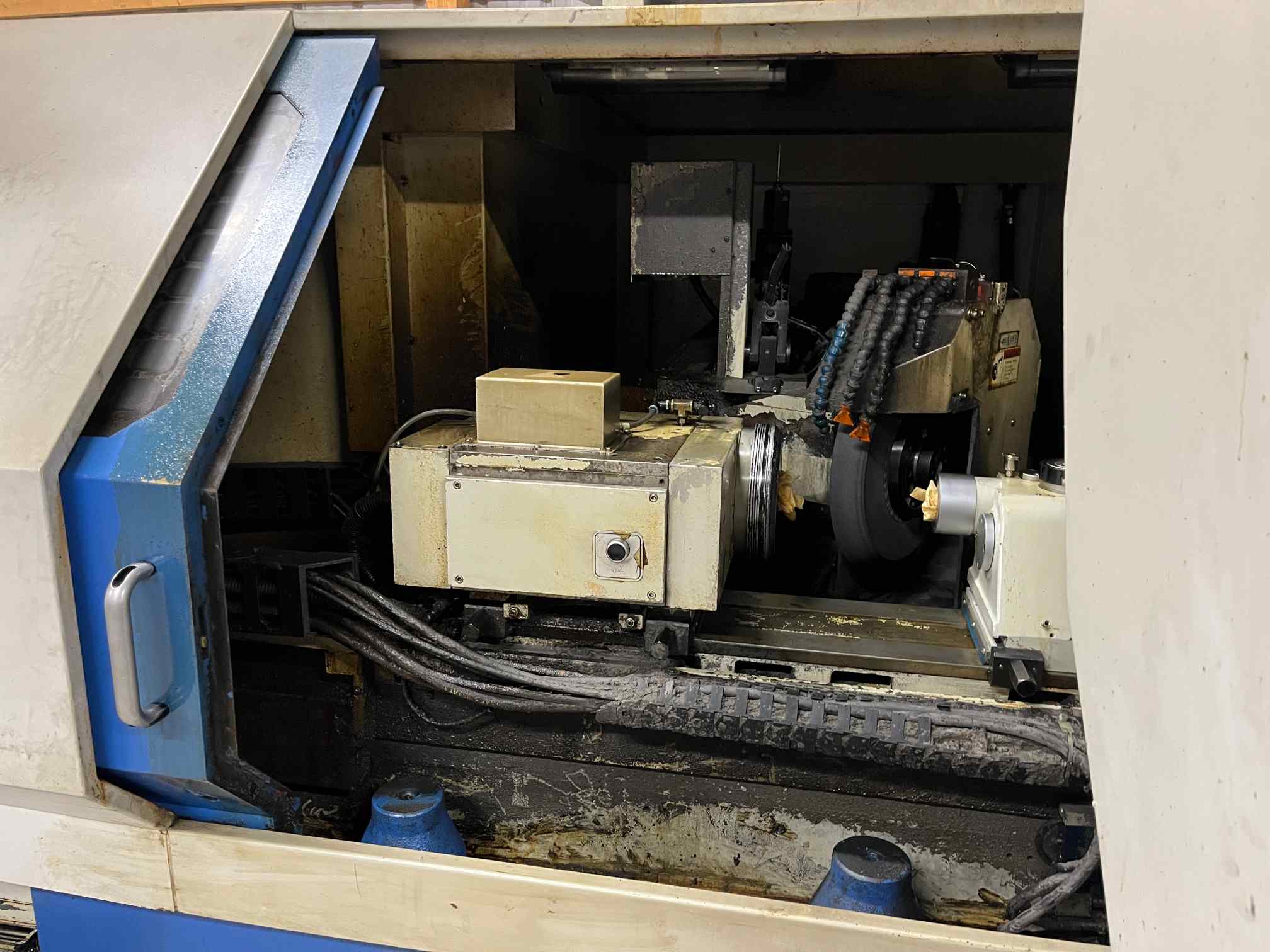

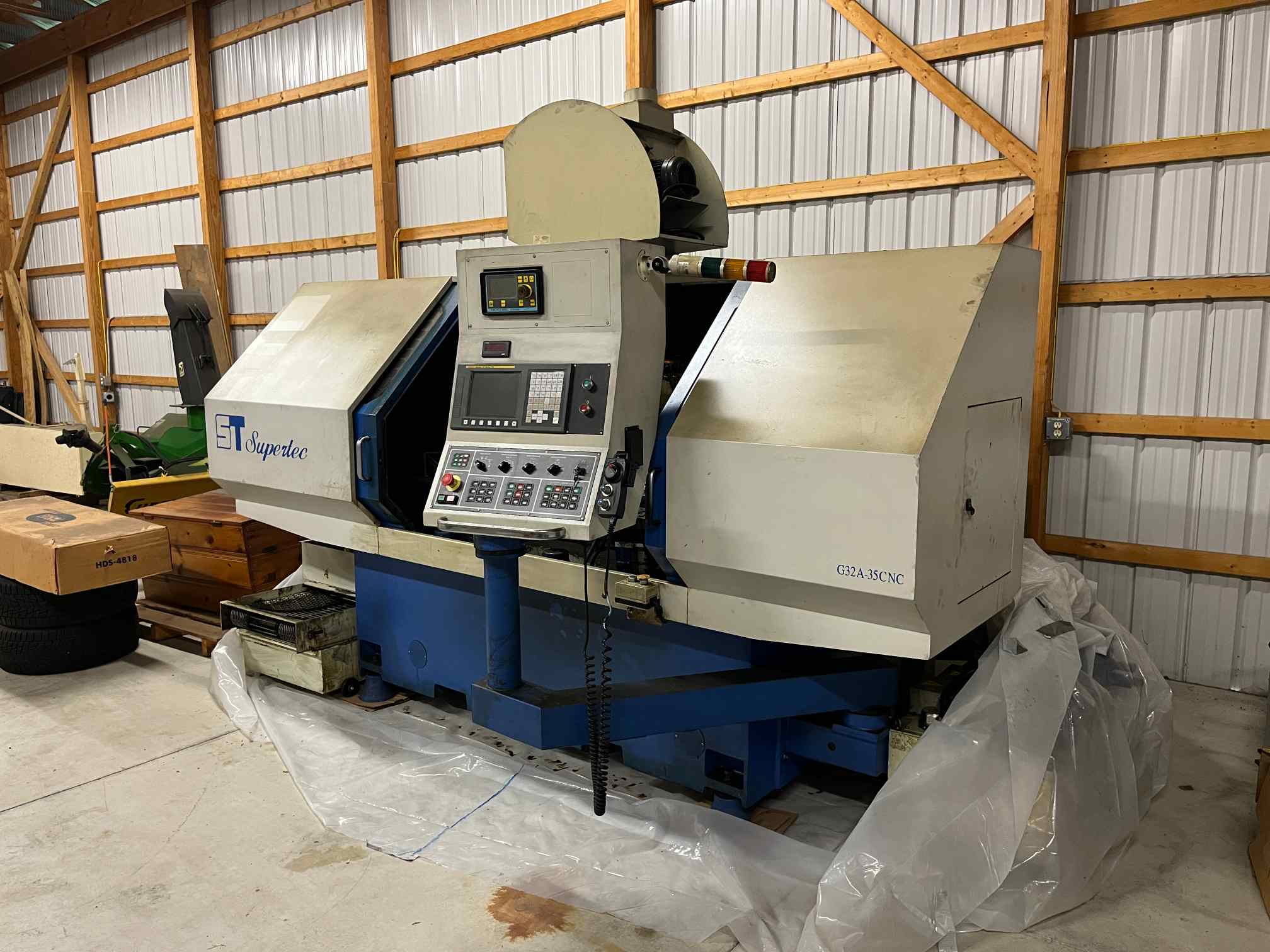

SuperTec G32A-35CNC Cylindrical Grinder, 2012

$24,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Swing Over Table: 12.6″
Distance Between Centers: 14″
Max Grinding Diameter: 12″
Max Load Between Centers: 330lbs

Grinding Wheel Dimensions: 20″ x 3″ x 6″
Wheel Speed: 1390RPM
Max Peripheral Speed: 121’/sec

Spindle Speed: 500RPM
Spindle Motor: 10HP
Center Taper: MT3
Spindle Type: Fixed & Rotary
Diameter of Bore: 0.91″

Electrical: 230V, 3Phase

Equipped With

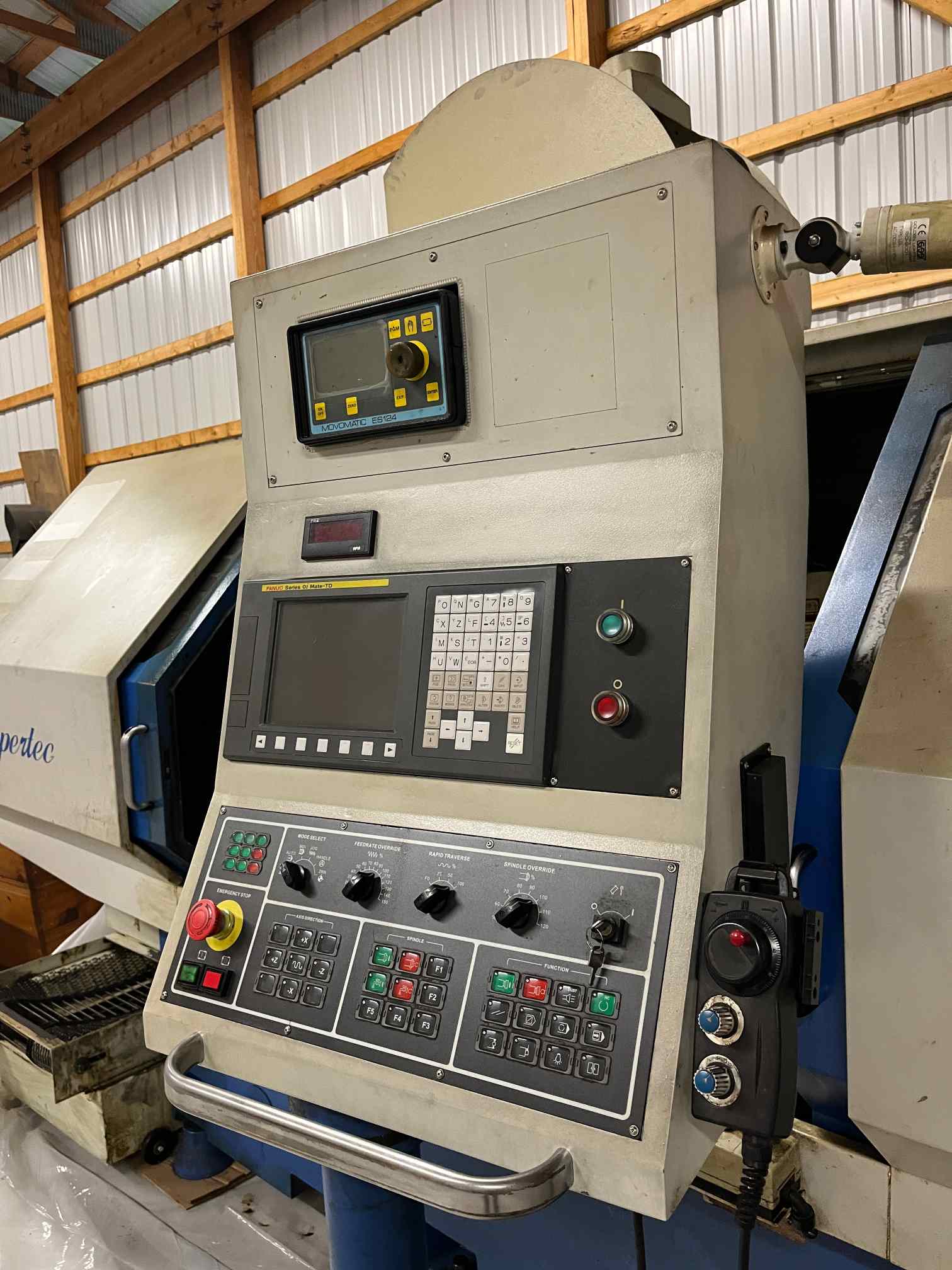

Fanuc Series Oi-TD CNC Control
