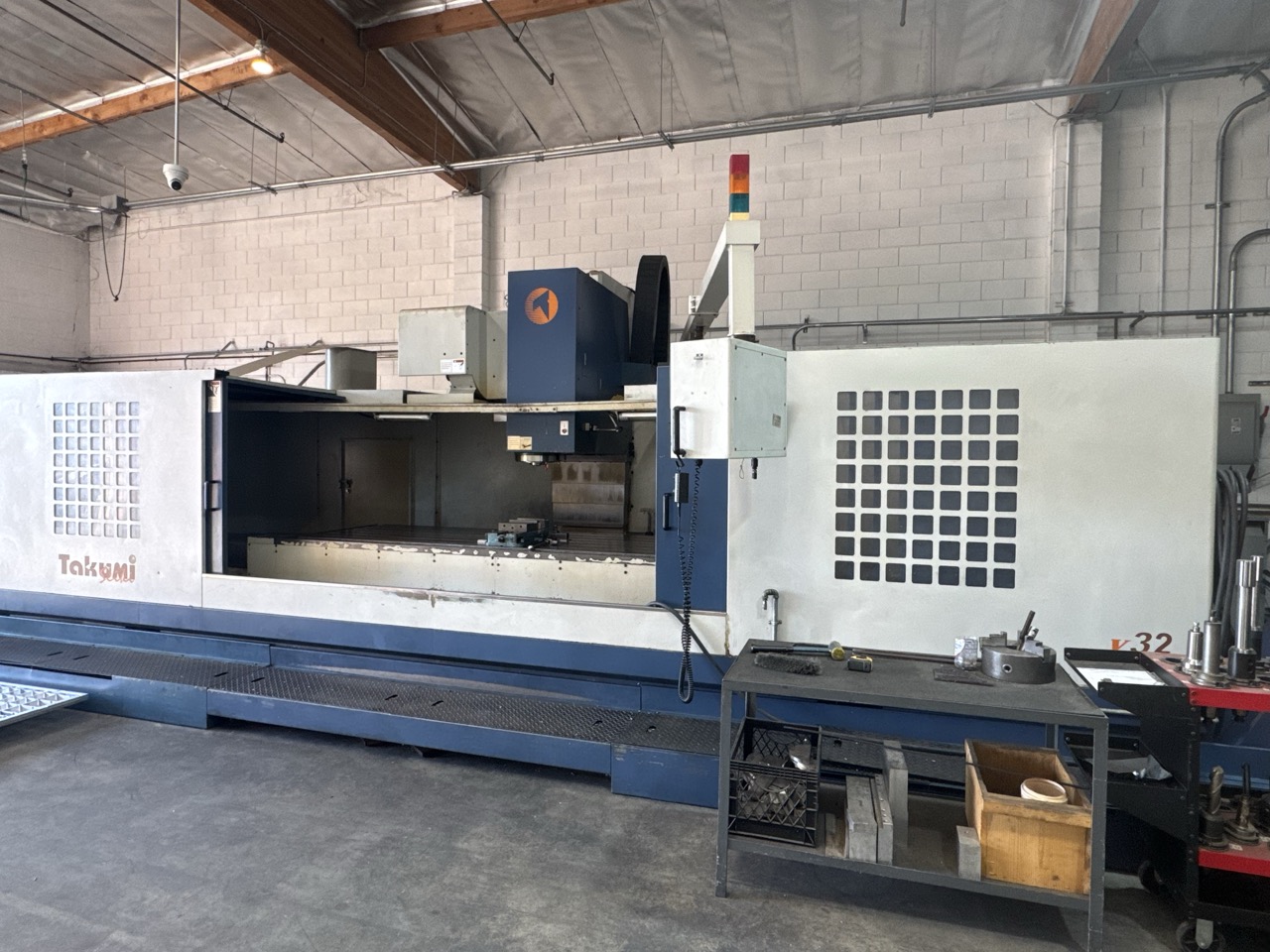

Takumi V32 VMC, 2007 – 4th Axis, CAT50, Box Way, TSC, Chip Conveyor

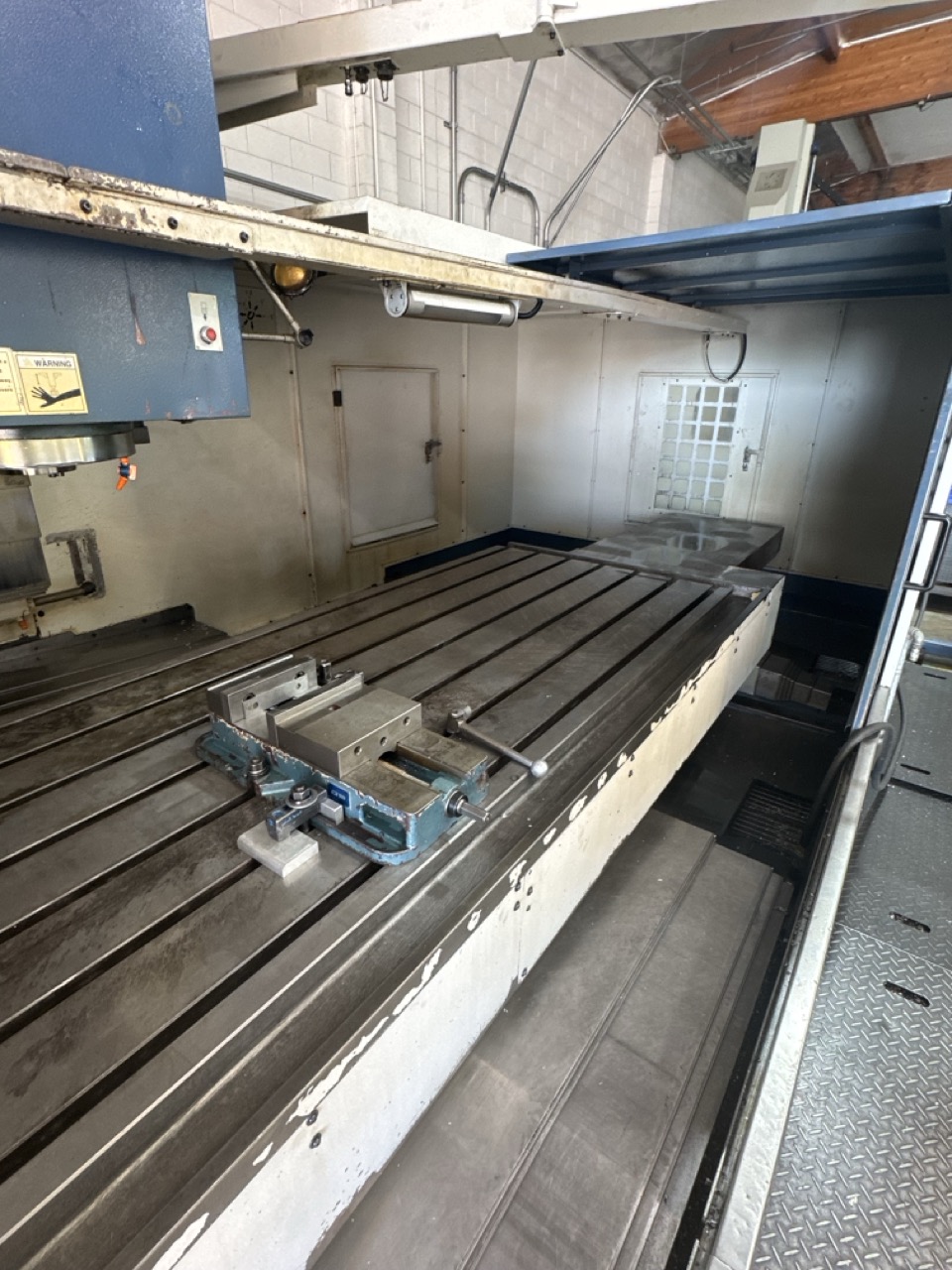

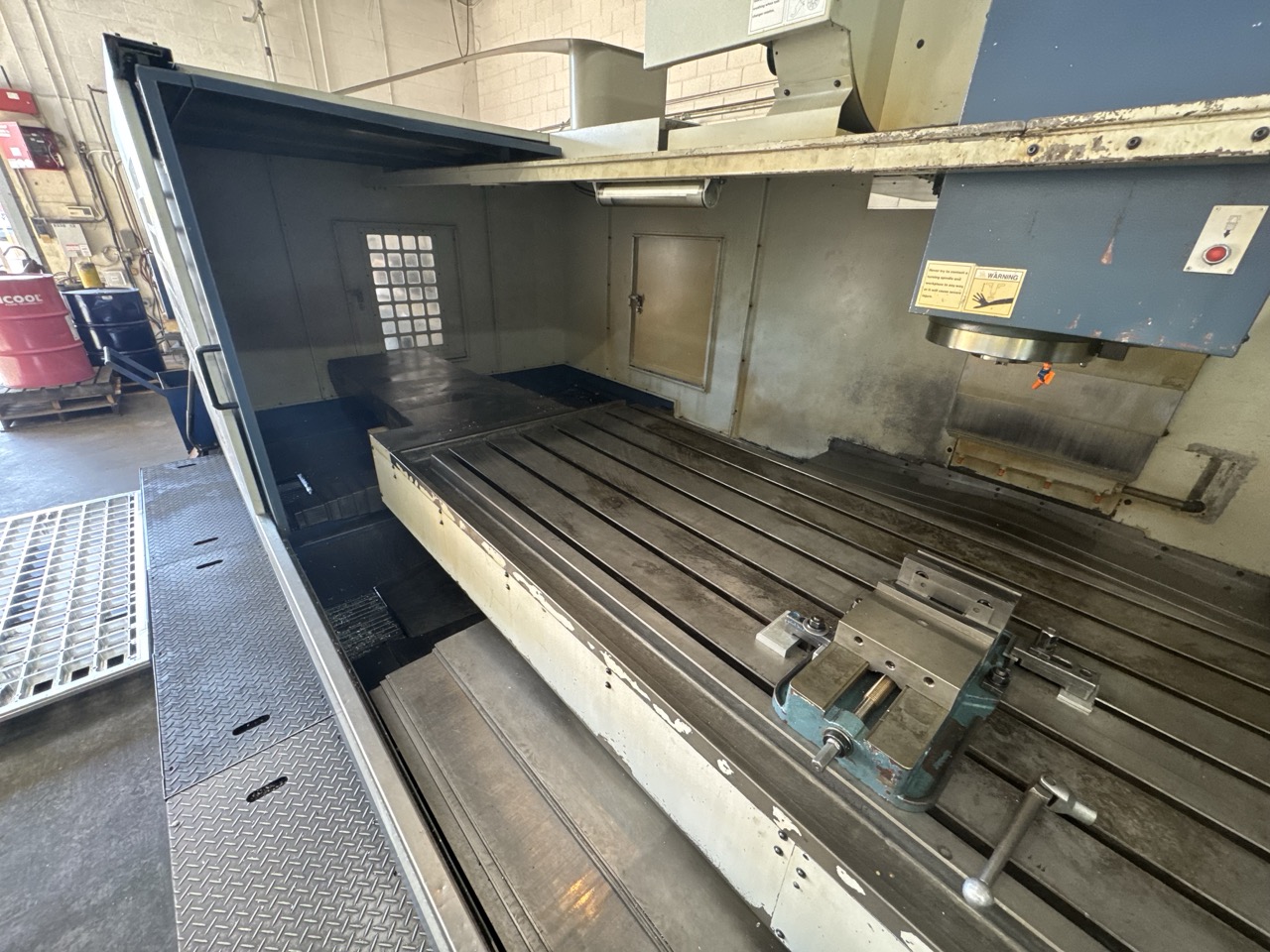

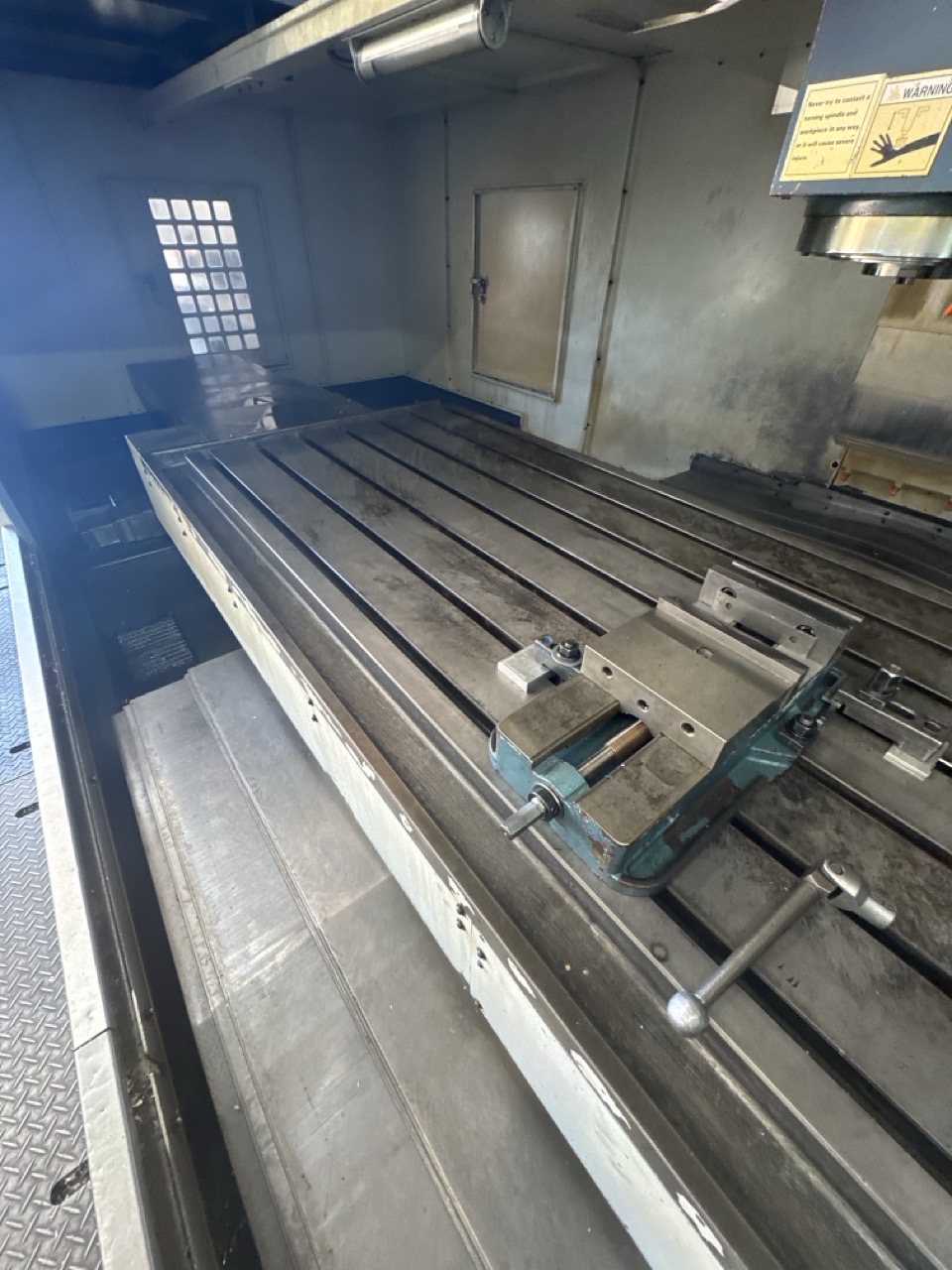

Table Size: 126″ x 40″
Max Table Load: 9,920 lbs
X-Axis Travel: 126″
Y-Axis Travel: 42″
Z-Axis Travel: 30″
Spindle Taper: CAT 50
Spindle Motor: 35 HP
Spindle Speed: 6,000 RPM
ATC: 32

Machine Dimensions: 295″ x 173″ x 140″
Machine Weight: 52,500 lbs

Equipped With:

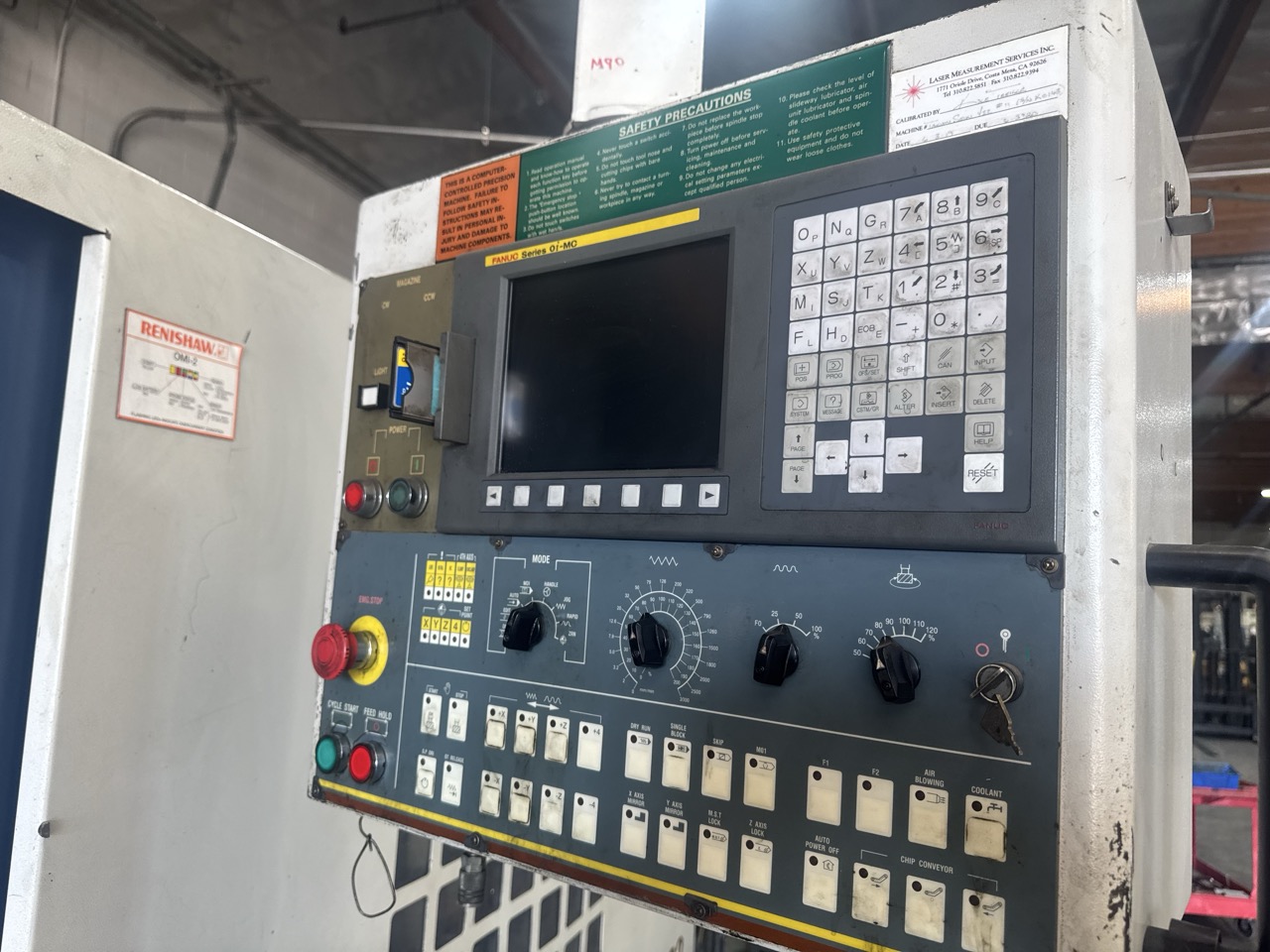

Fanuc 0i-MC Control

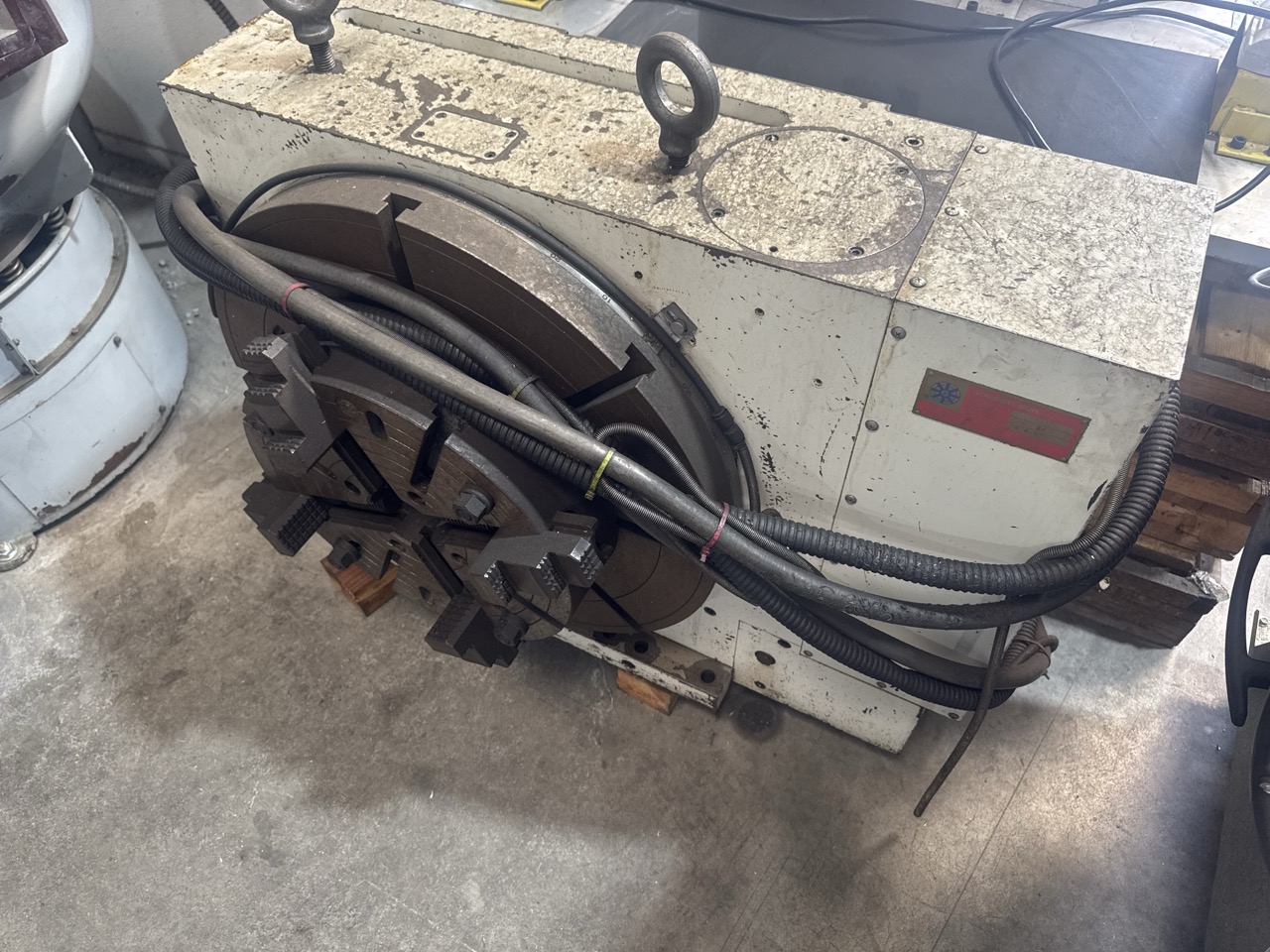

4th Axis Rotary Table – 25″ DIA
Boxed Ways
6K Gear Driven Spindle
Thru Spindle Coolant
Chip Conveyor
All Available Manuals
