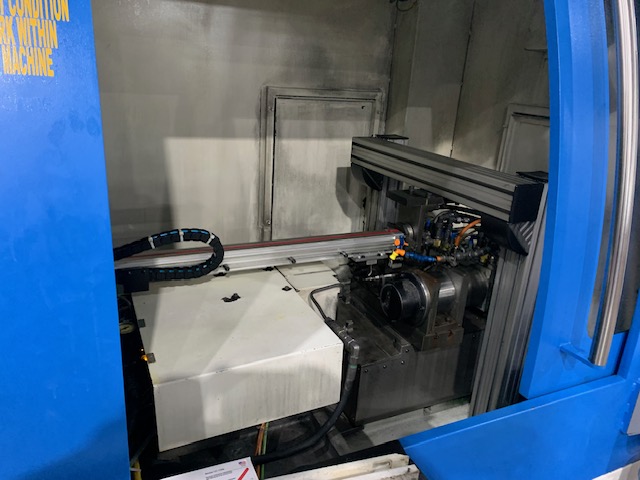

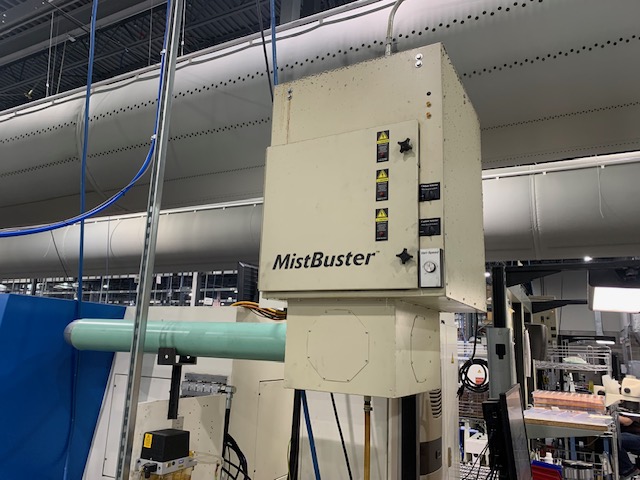

Voumard CNC 130F Gang Style 3 Spindle CNC ID Grinder, 2009 – Mist Collector
$31,650.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travels: 11.81″
Y-Axis Travels: 7.87″
Z-Axis Travels: 9.84″
Spindle Motor: 5.5 HP
Max Grinding Wheel Diameter: 5.91″
Max Grinding Wheel Width: 0.59″
Grinding Spindle Speed: 12,000 RPM
Grinding Wheel Dimensions: 5.91″ x 0.59″ x 1.97″
Center Height: 6.5″
Workpiece Length: 7.87″
Grinding Depth: 7.87″
Workhead Spindle Speed: 1,000 RPM
Workhead Swivel Range: -30/+120°F
Internal Grinding Spindle Speed: 42,000 RPM
Electrical: 460V, 3-Phase
Equipped With
Fanuc 21i CNC Controller
