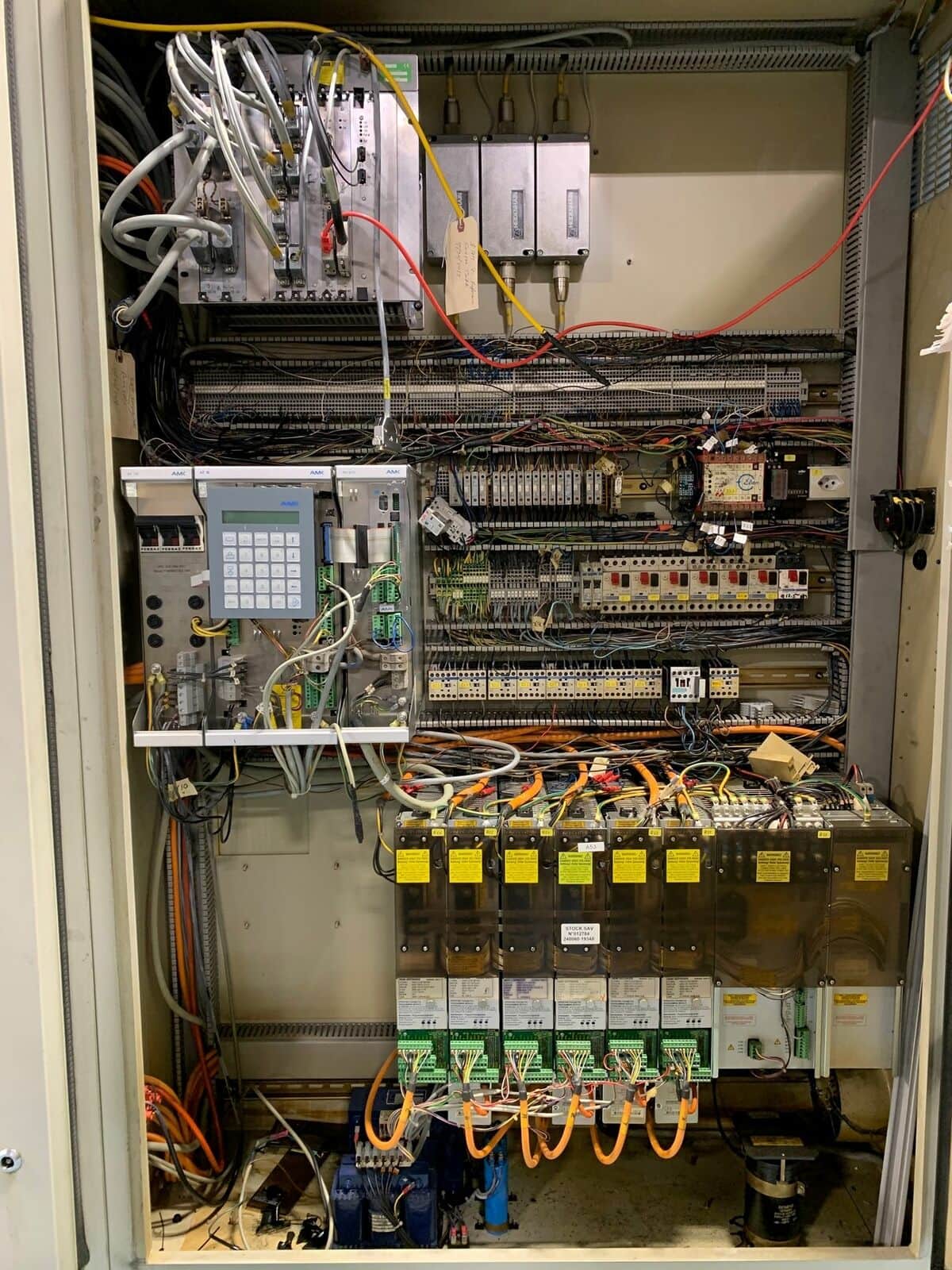

Willemin W418 VMC, 1996 – All New Drives, Available Immediately

$12,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

9 HP 5-Axis Vertical Machining Center with C-Axis Rotary & B-Axis Spindle
Machine Type: Machining Center
Num. of Axes: 5
Work Support: Table
Column Construction: Single
Column Style: Travelling
Operation Type: CNC
CNC Brand: NUM 1060 M Opt: Fanuc 15MB
TABLE/WORK SUPPORT
Table Size L x W (in.) 7.870 x 7.870
Max. Workpiece Weight (lbs) 110
Pallet Changer: Optional
No. of Pallet 2: Opt. 10
Rotary Table Standard
SPINDLE(S)
Num. Main Spindles: 1
Opt. 2, 4
Orientation: Vertical
Taper: ISO 25
Opt. ISO 30, HSK A-40
Articulated Axis: “B”
Top RPM 12,000 Opt: 18,000, 30,000
Horse Power (30 min rating) 9.00
# Speed Ranges 1
Type: Fixed
TOOLING
Primary Tool Carrier(s): ATC
Number of Tools 24
Opt. 180
Tool Change Time C-to-C (sec) 5.00 1.00 sec tool-to-tool
Max. Tool Length (in.) 4.720
Max. Tool Diameter (in.) 1.969 (with empty adacent pockets)
Max. Tool Weight 3.00
AXES AND TRAVELS
Number of Axes: 5 Articulated Axis: “B”
Travel Max Feed Rapid Rate
X1 Std. 19.685 in. 787 ipm
Y1 Std. 9.842 in. 787 ipm
Z1 Std. 15.748 in. 787 ipm
B Std. 110.000 deg 40 rpm
C Std. 360.000 deg 50 rpm
WEIGHTS AND MEASURES
Machine Dimensions (l x w x h)(in.) 79 x 73 x 96
Machine Weight (lbs) 5,830
