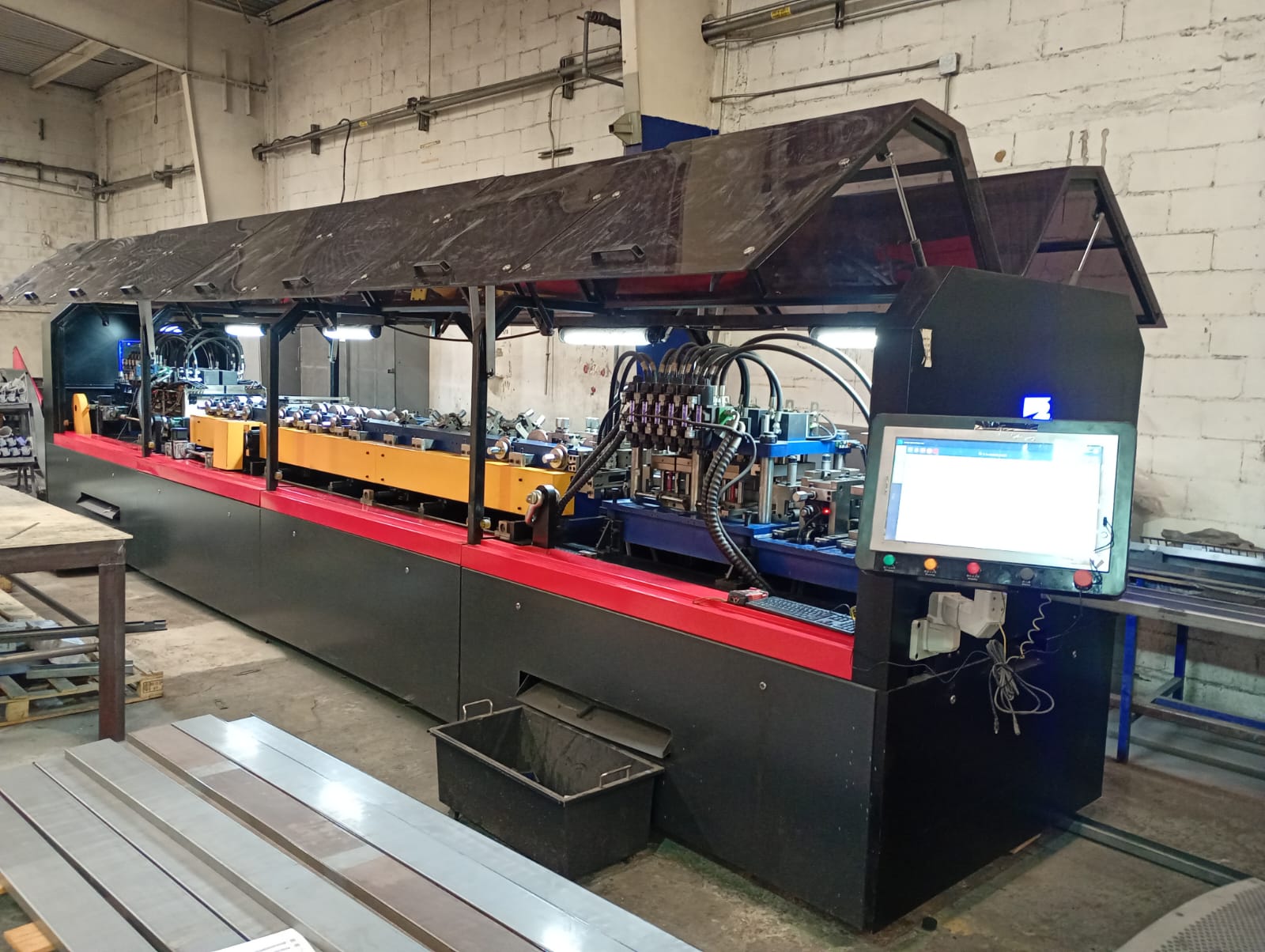

Xiamen MF1600T Roll Former, 2022 – Hydraulic Decoiler, CAD/CAM Integration, Multi‑Operation Tooling

-Material: Galvanized coil, zinc coil, G550
-Thickness: 0.75-1.6mm
-Width:75-200mm changeable
-Height: 41mm(it can be updated to 32/41/51mm,cost extra)
-Lip: 8-15mm

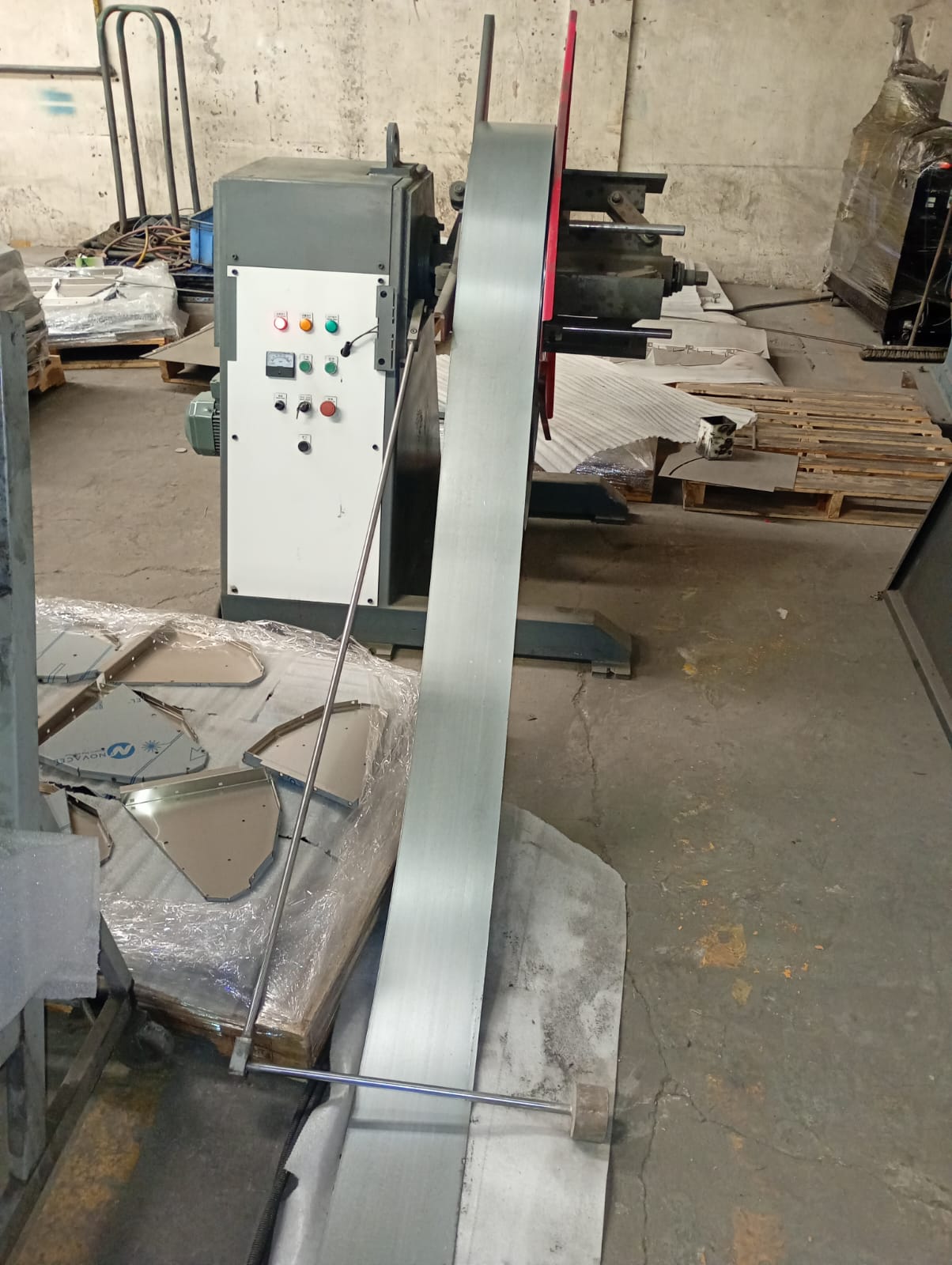

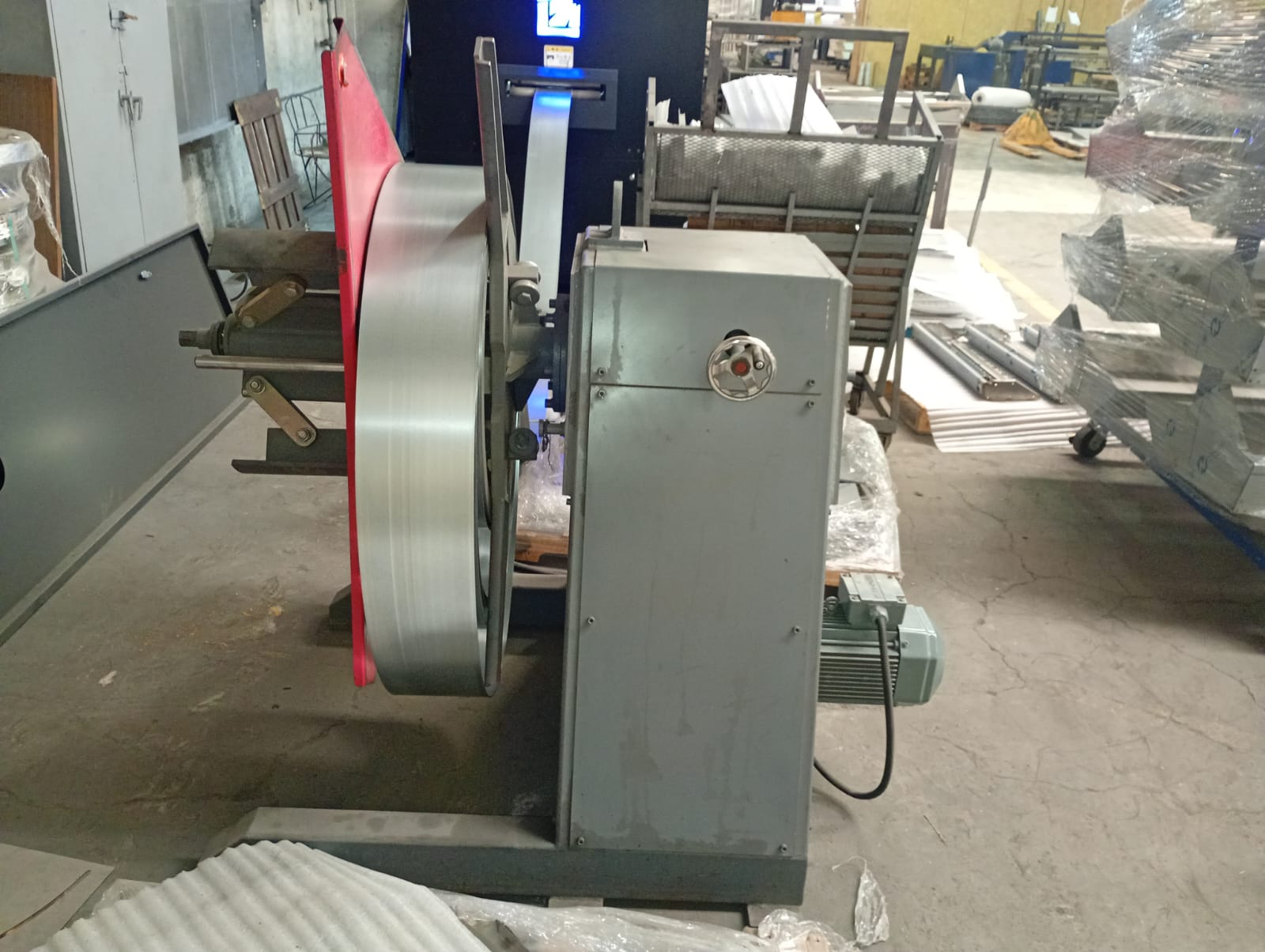

Decoiler:
De-coiler Type: Hydraulic auto de-coiler
Weight capacity: Max 5.0T
Diameter of inner: 480-510mm
Diameter of outer: 800mm
Motor power: 3.0Kw,50Hz, 380V(Customized)
Control type: Electric button control
Function: Auto rotation feed sheets into roll forming parts. Semi auto for loosening
and tightening coil;
Weight of de-coiler: 1000KGS. 10) Side Locks provided on de-coiler to fix coil.

Rolling Forming System
Main motor type: 3 phases
Main motor power: 15Kw, 60Hz, 380V (suits Australian power requirements)
Servo motor brand: INNOVANCE
Speed of forming: 25m/min
Comprehensive speed: 5-12m/min

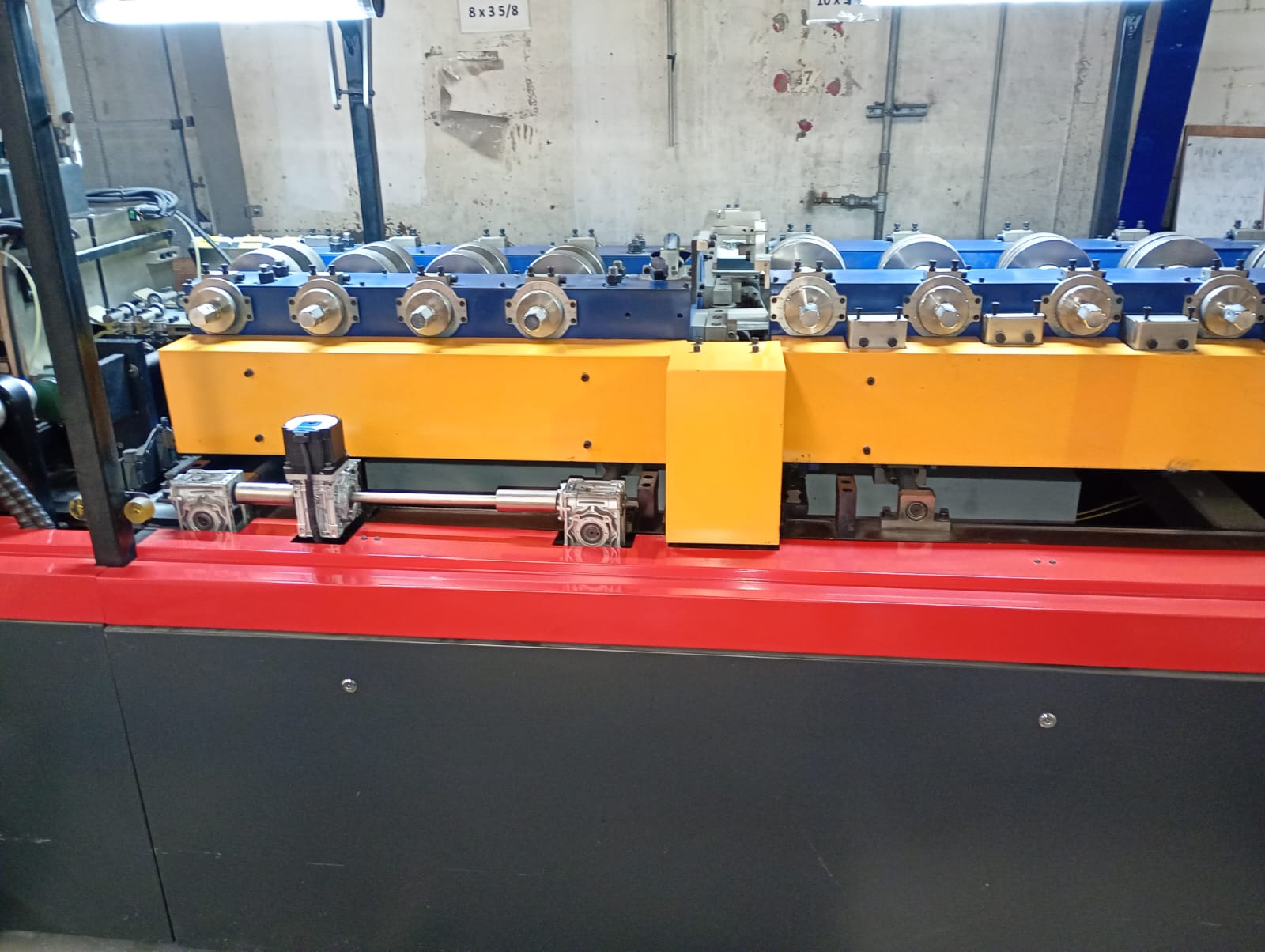

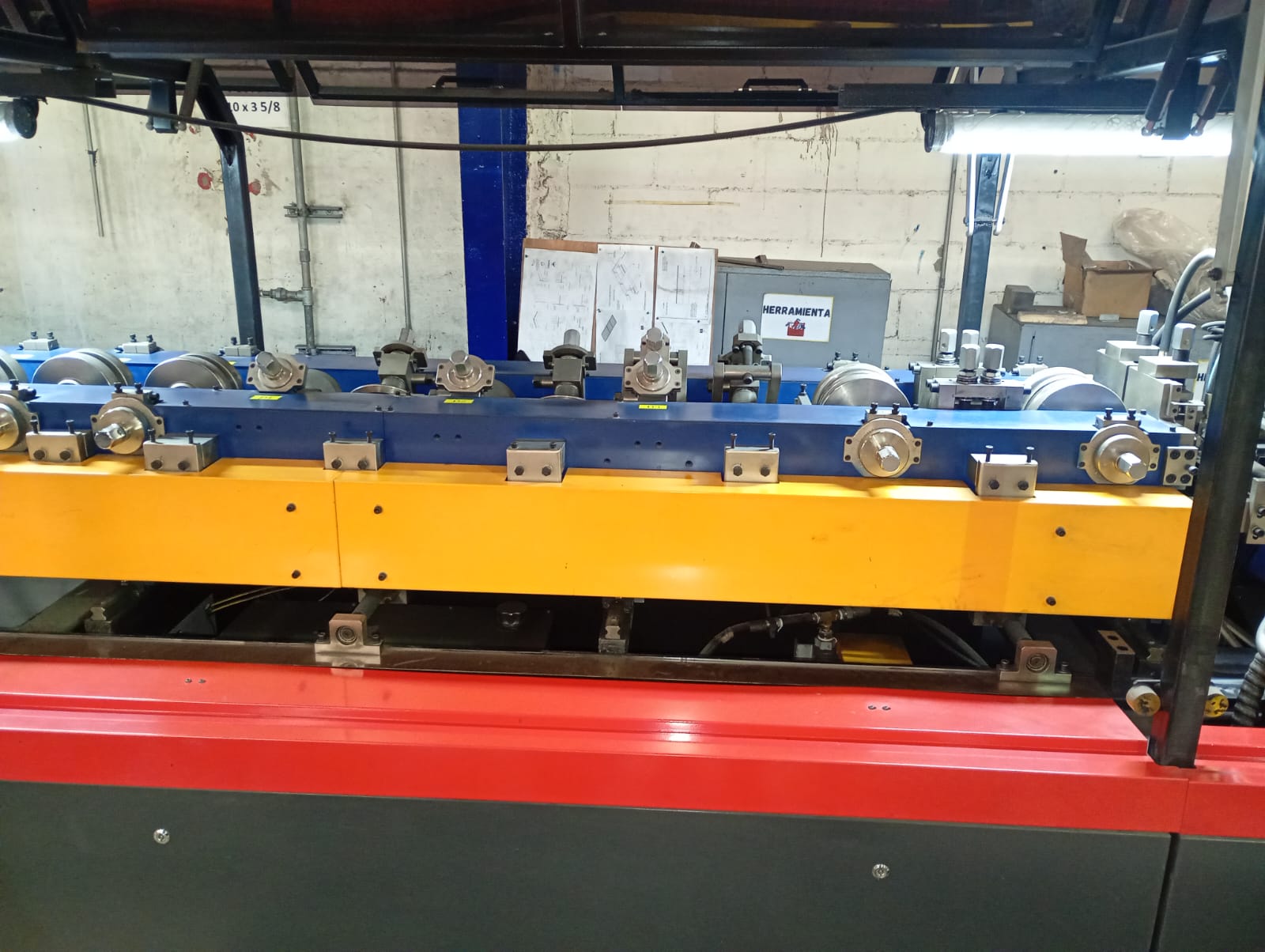

Roller: 17 groups rollers

Equipped With:

PLC Control System LG-R1
Hydraulic Decoiler

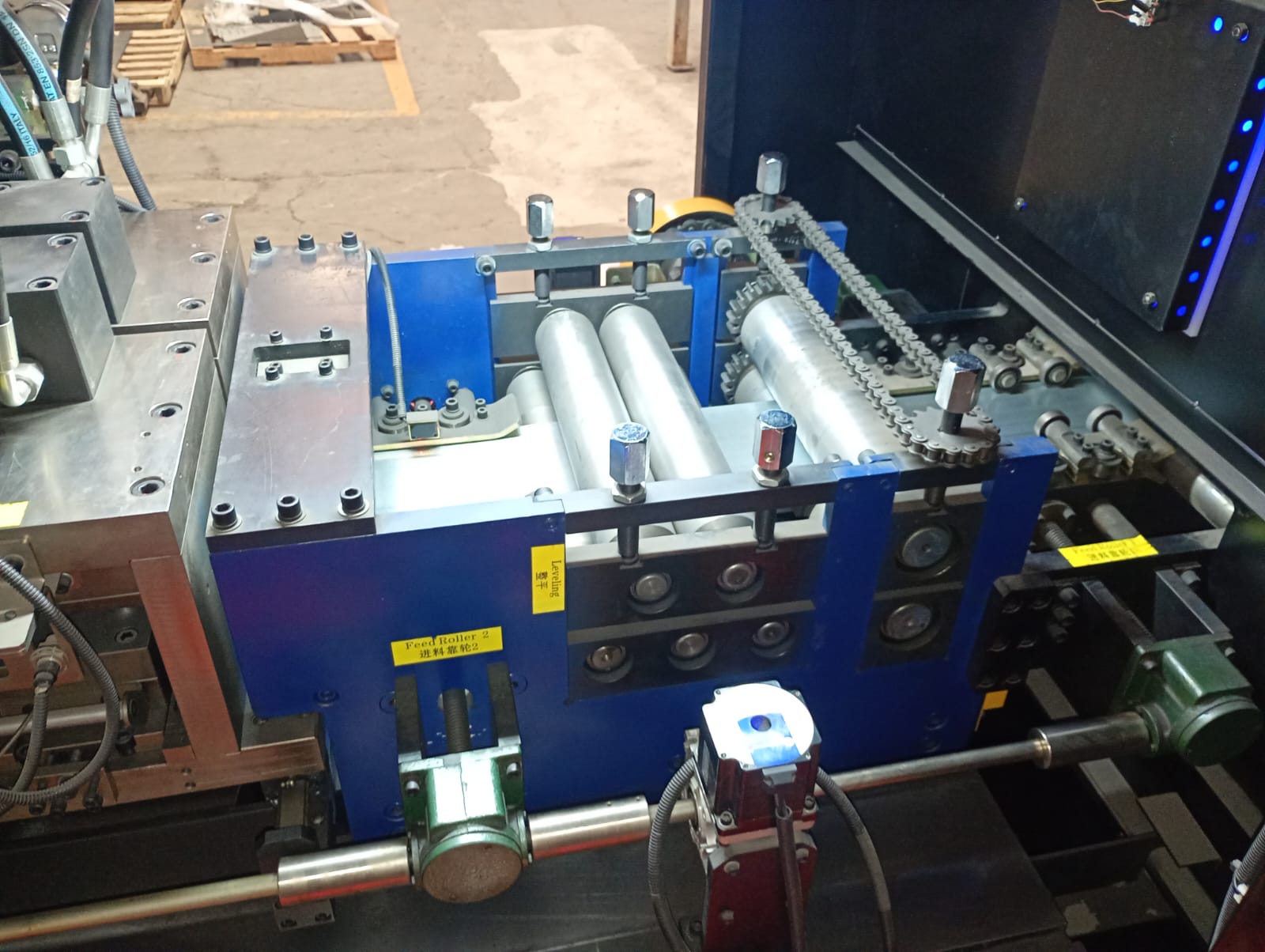

Leveling Device

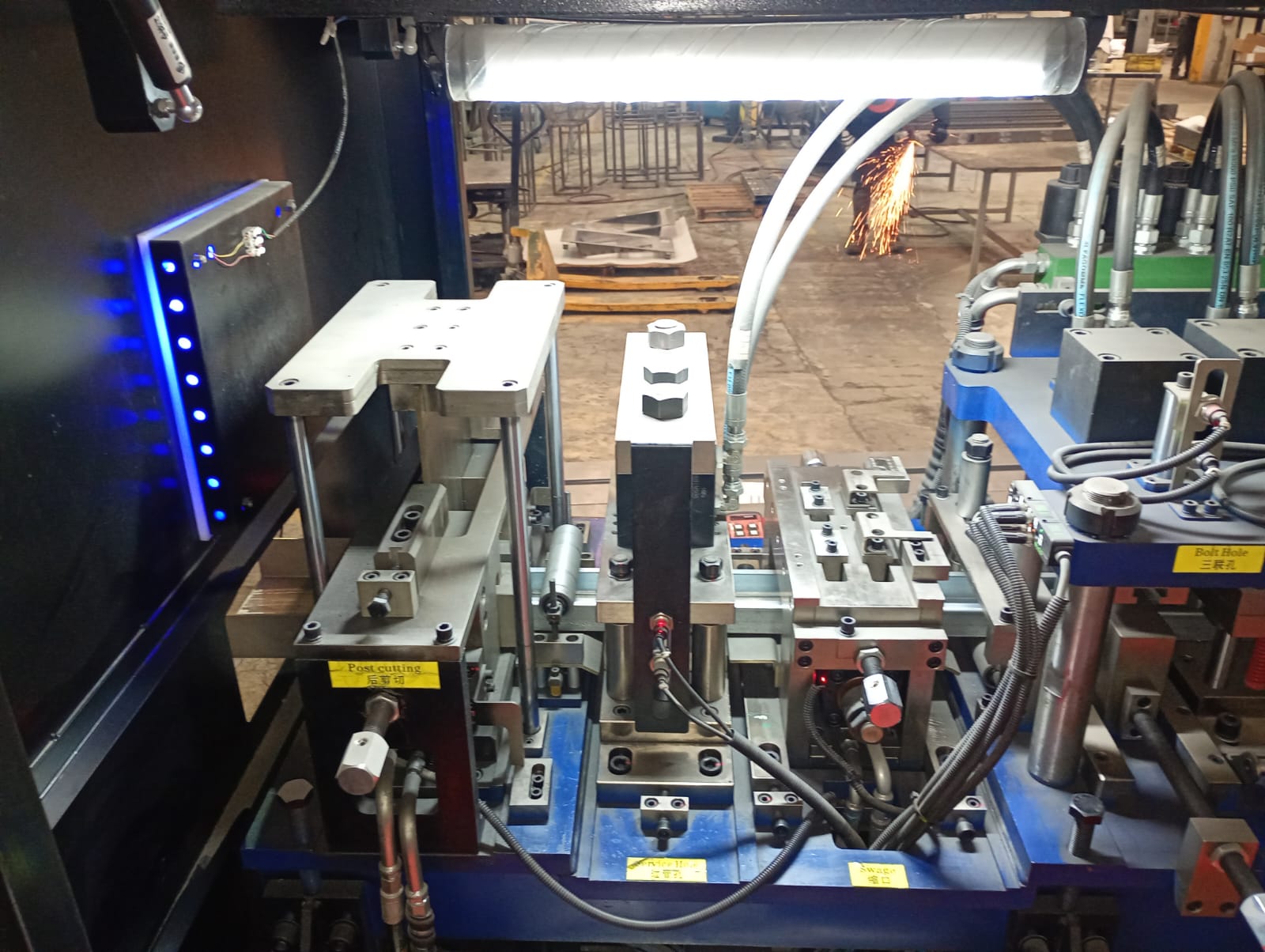

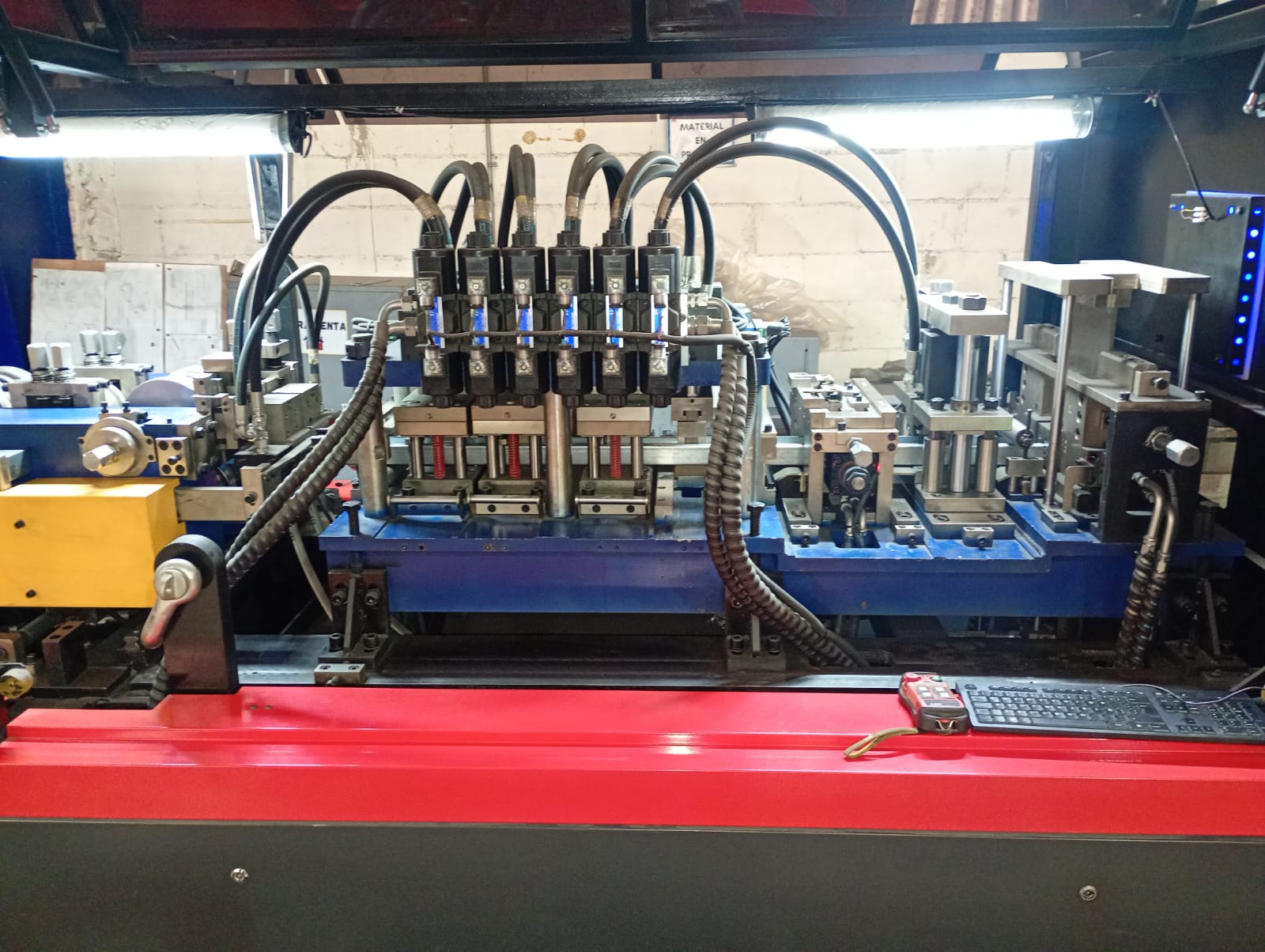

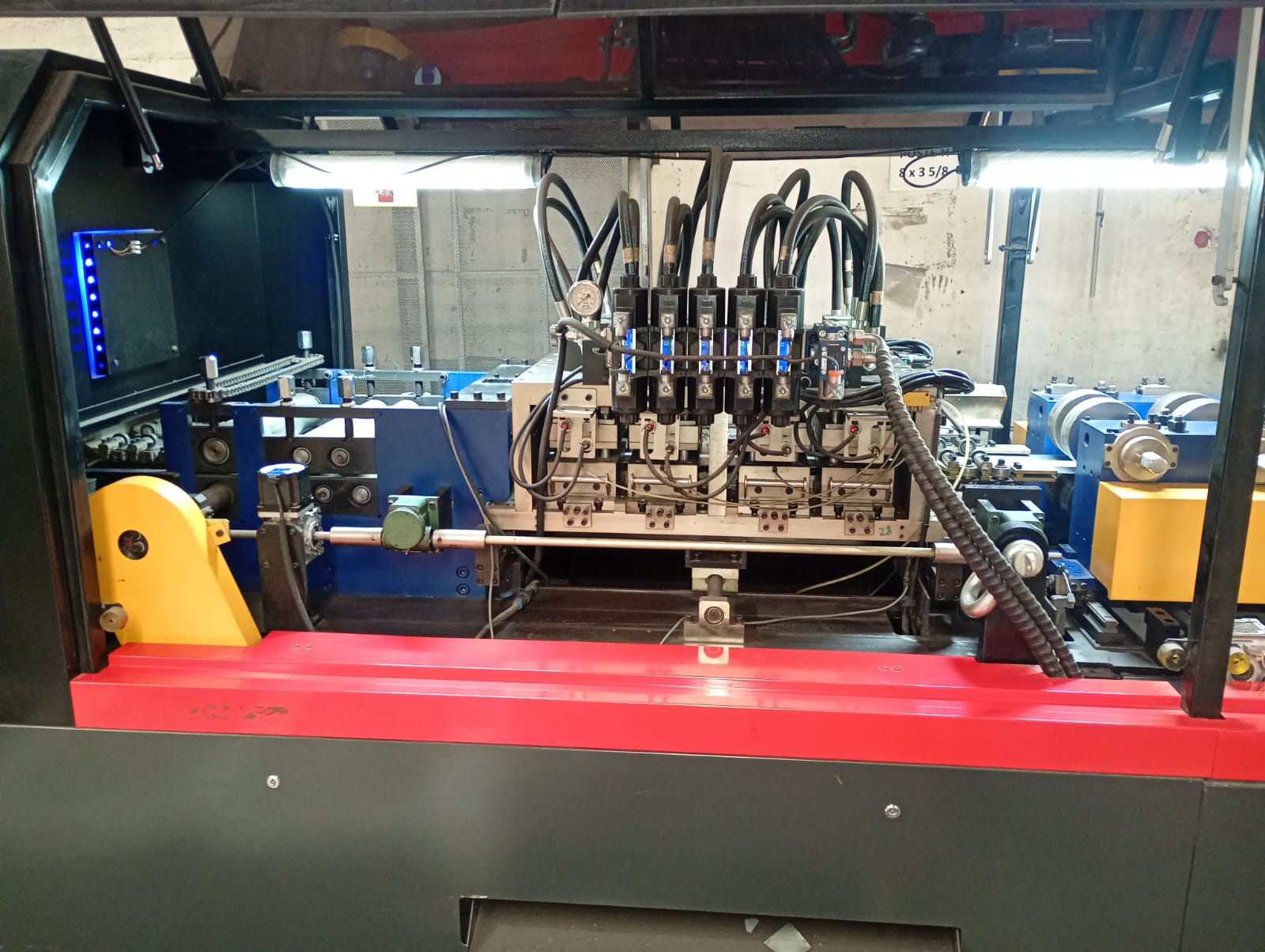

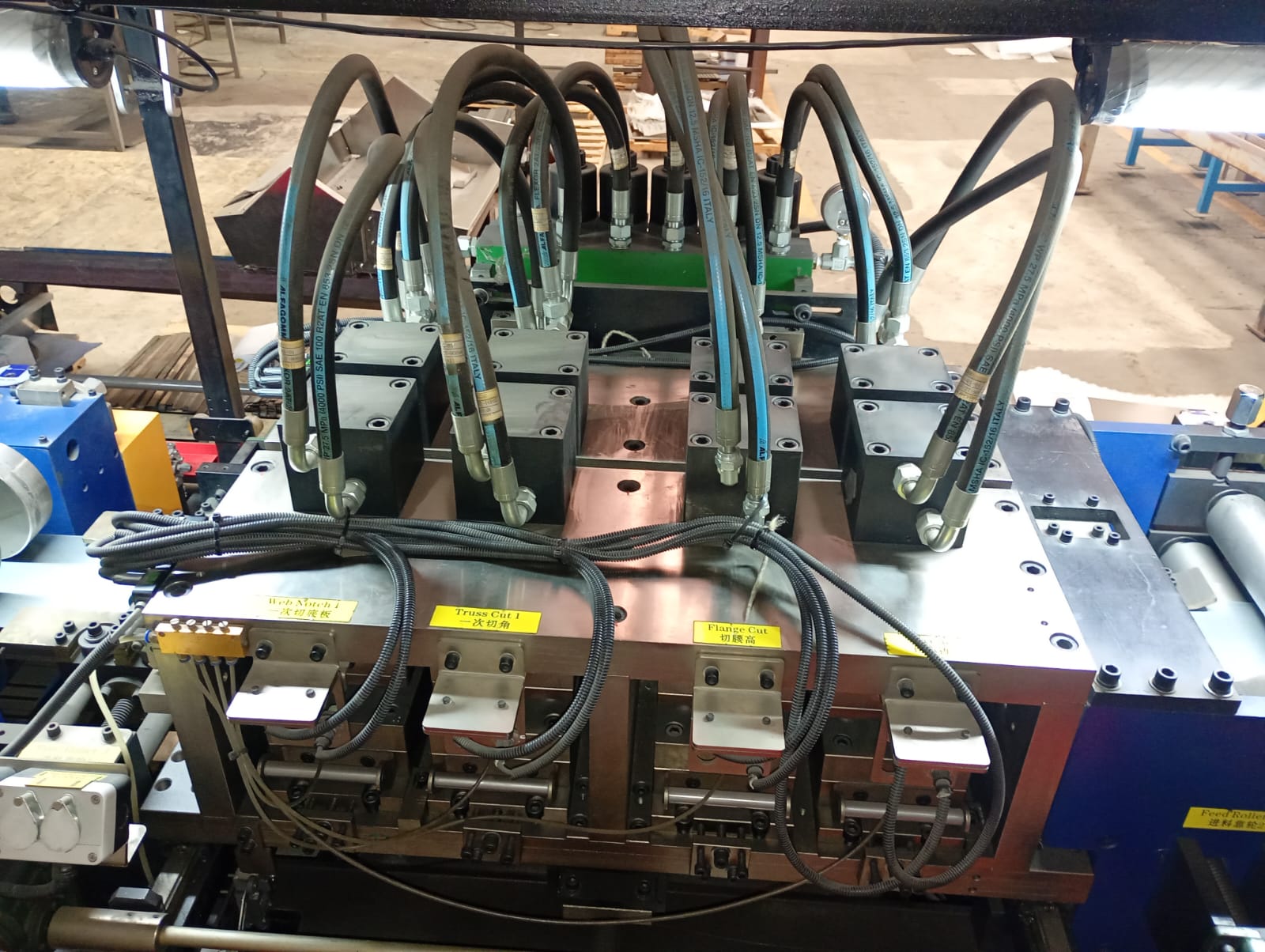

Pre-punching Device
Roll Forming System

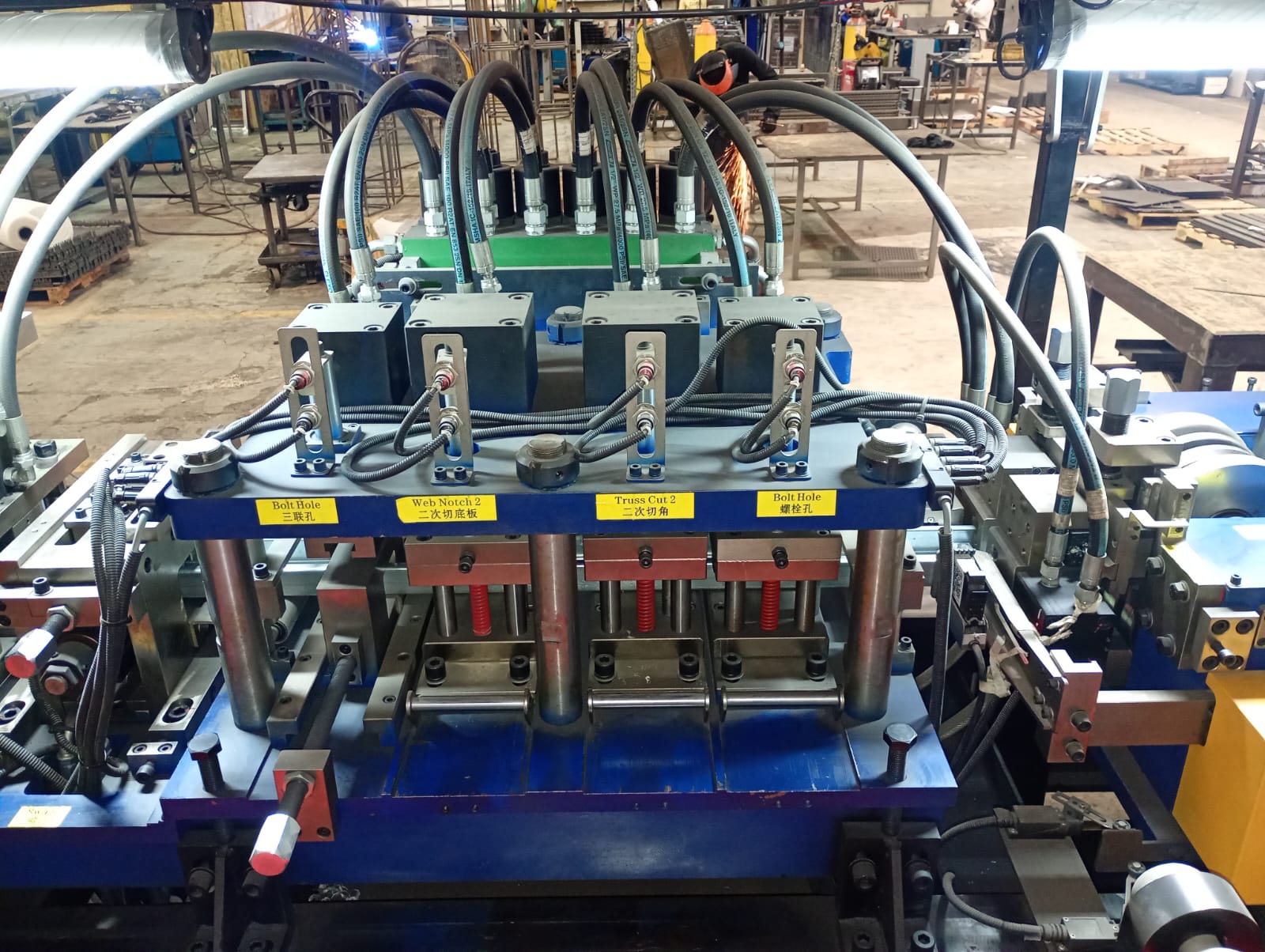

Post-Punching Device

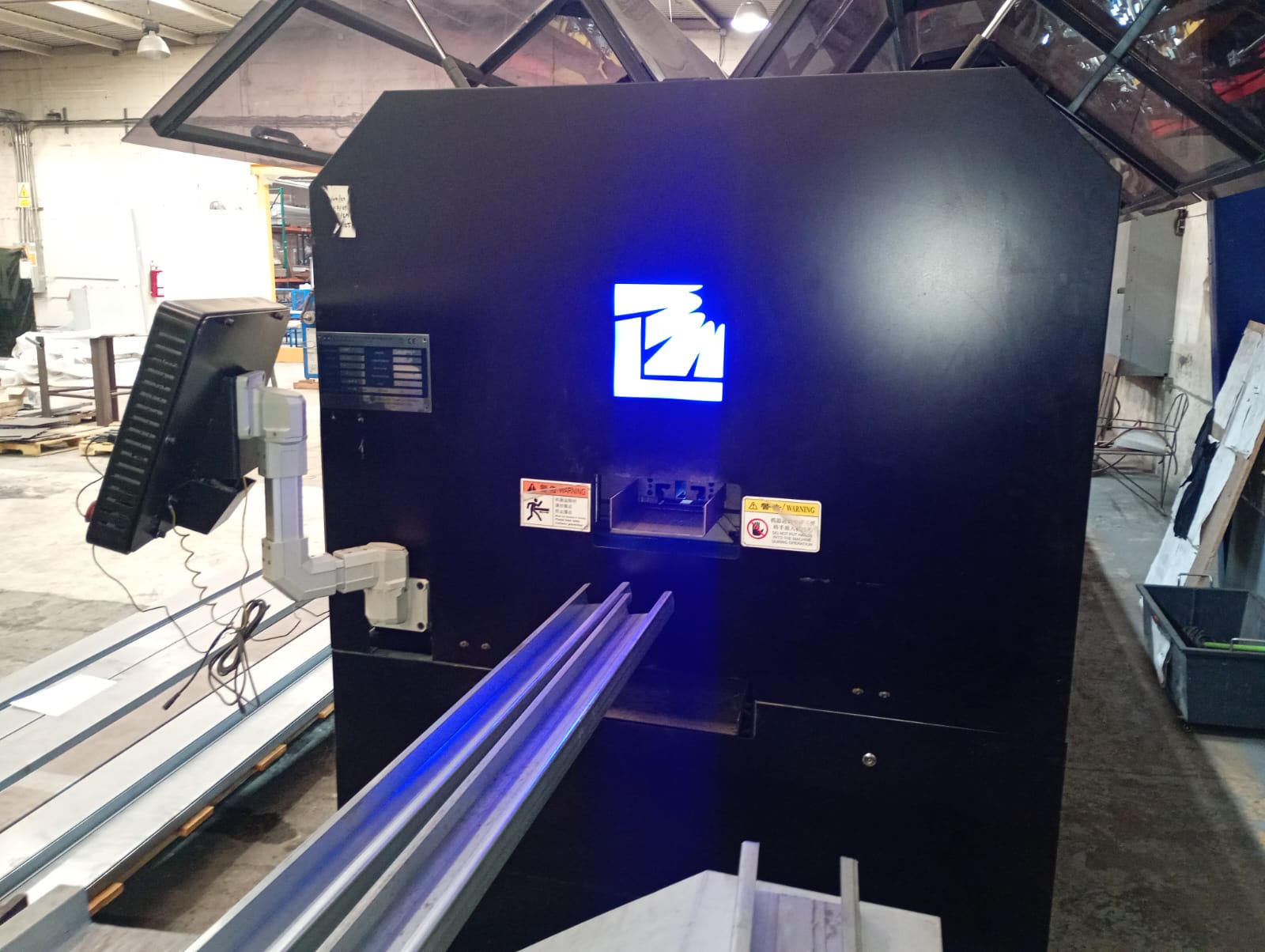

Cutting Device
Outlet Table
Safety Guard Covers
