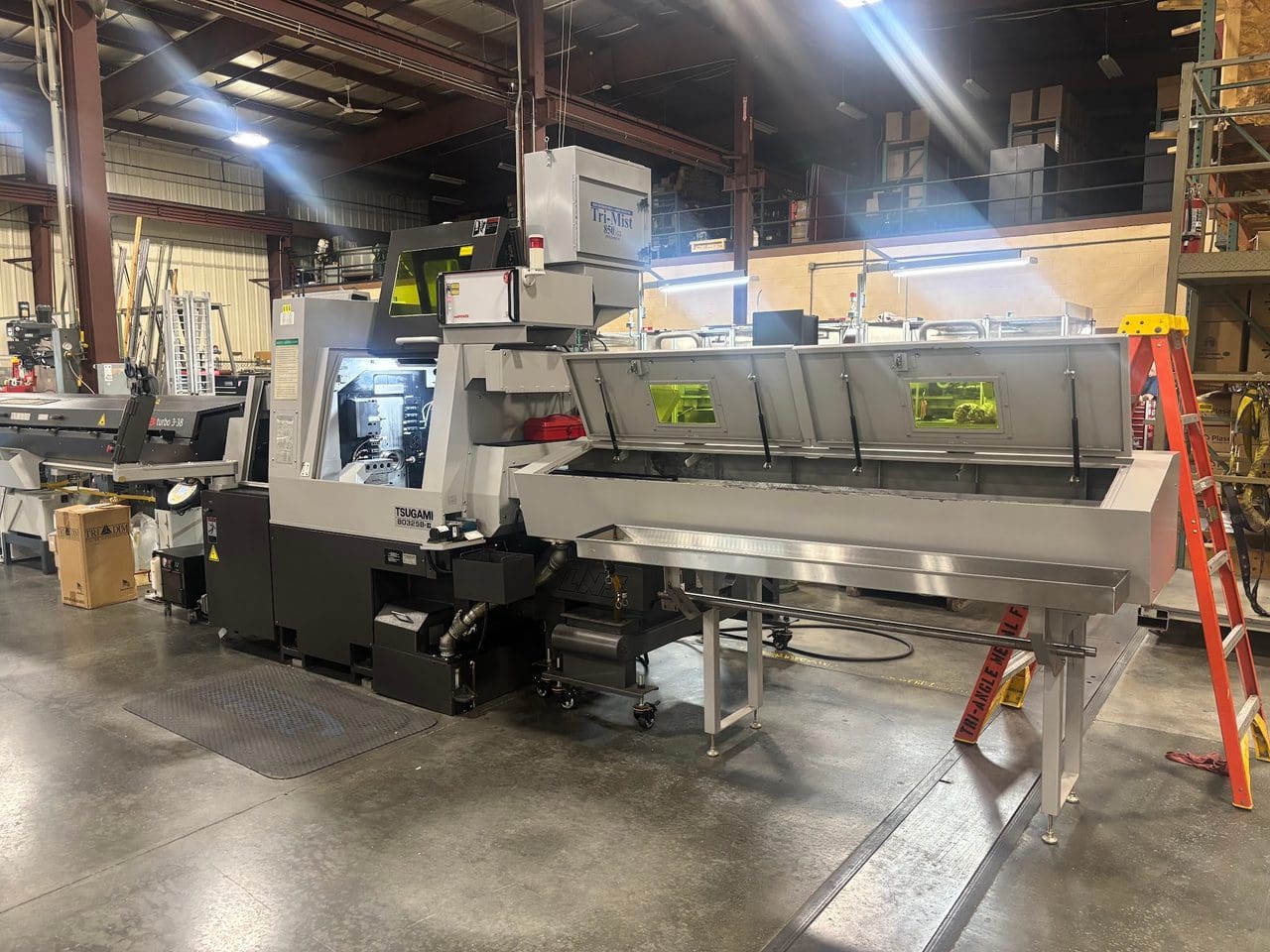

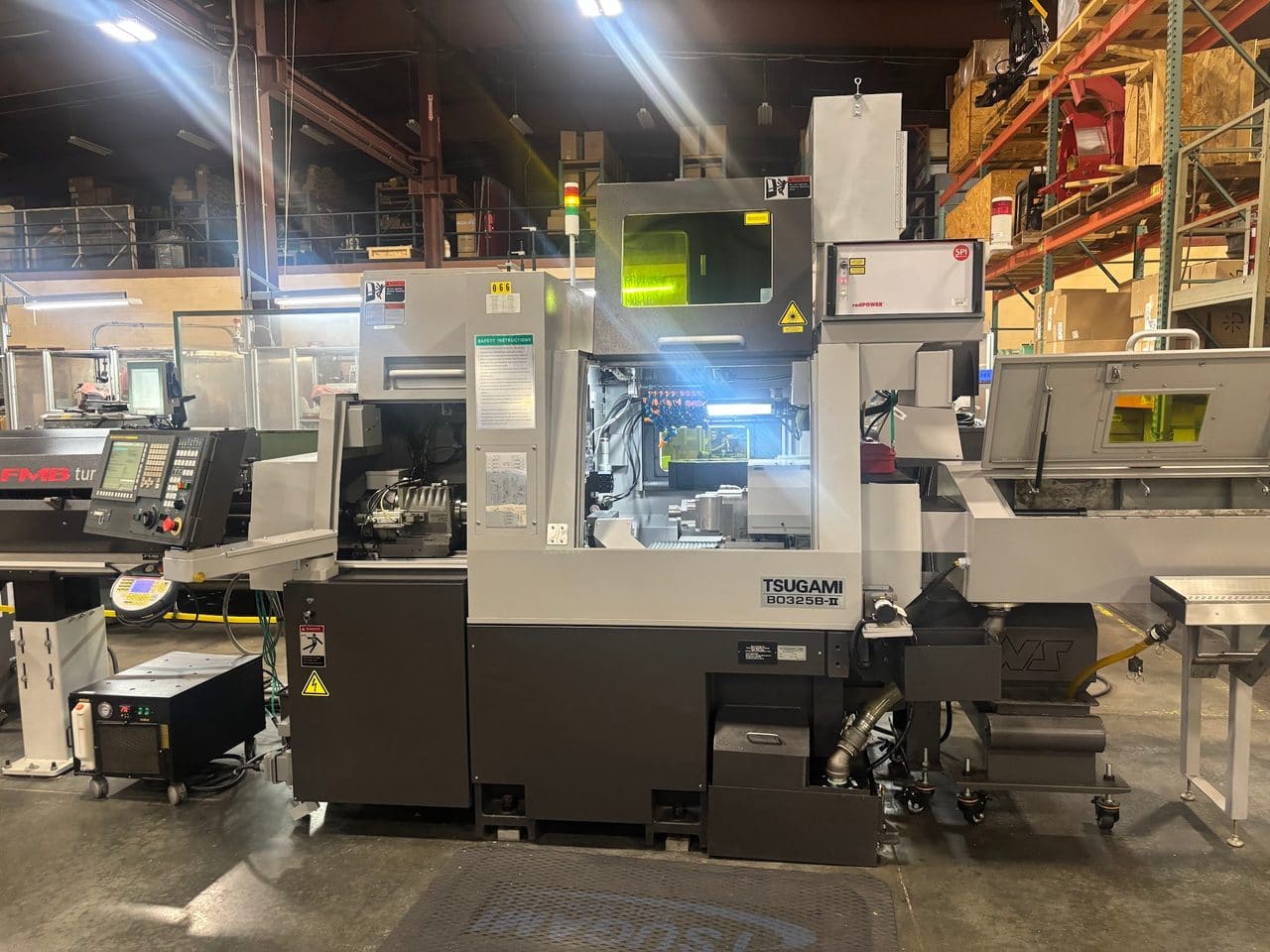

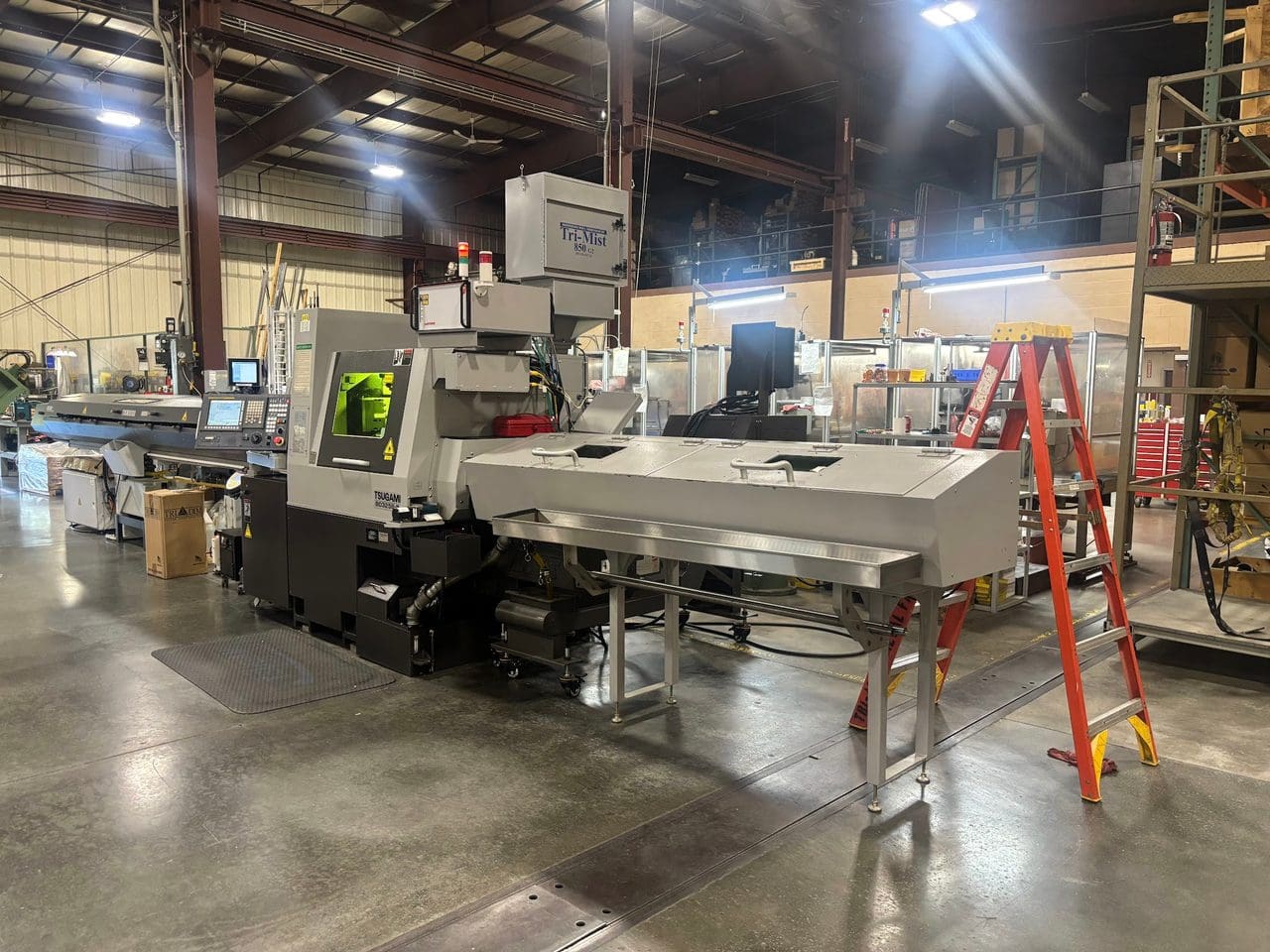

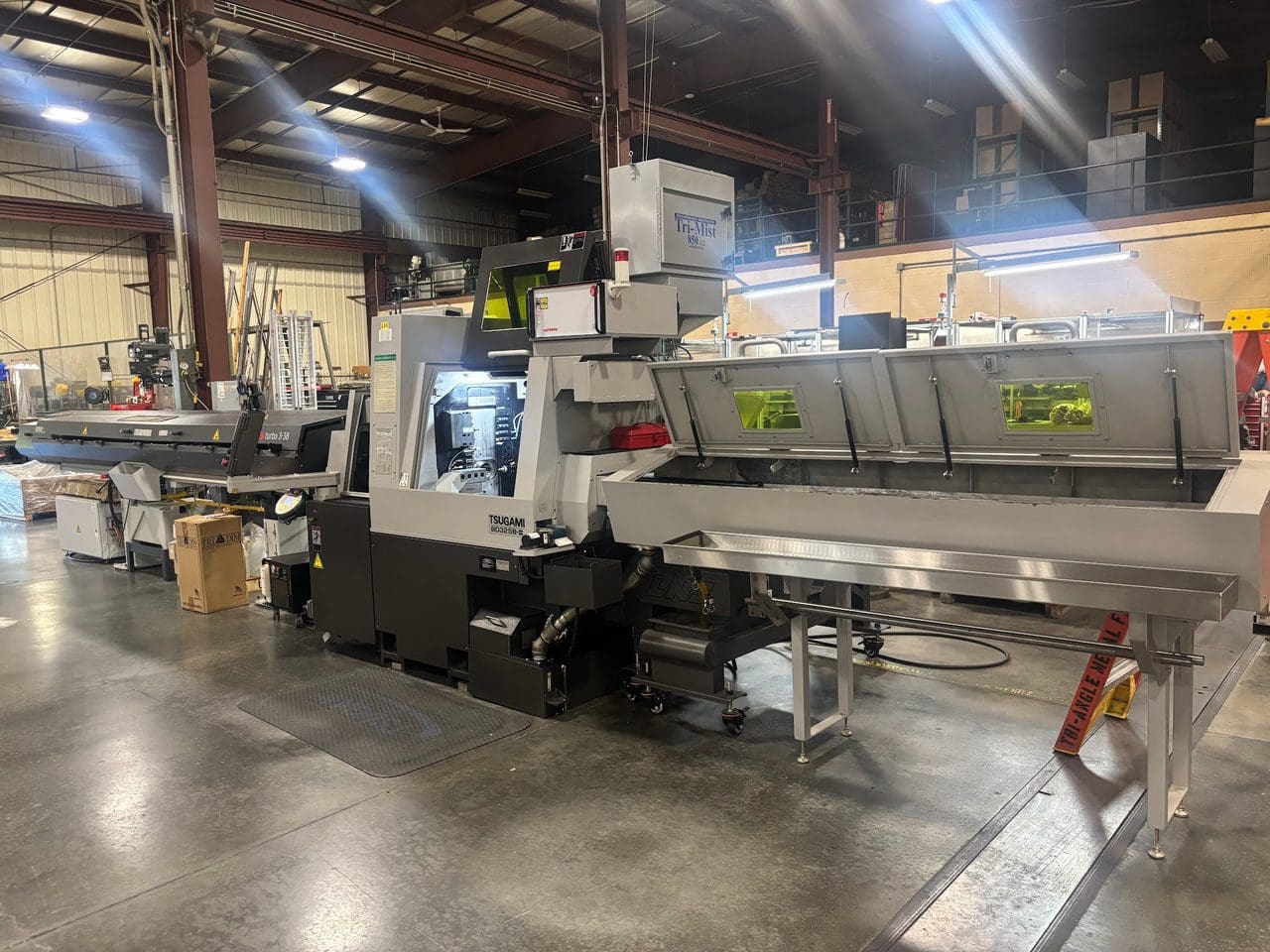

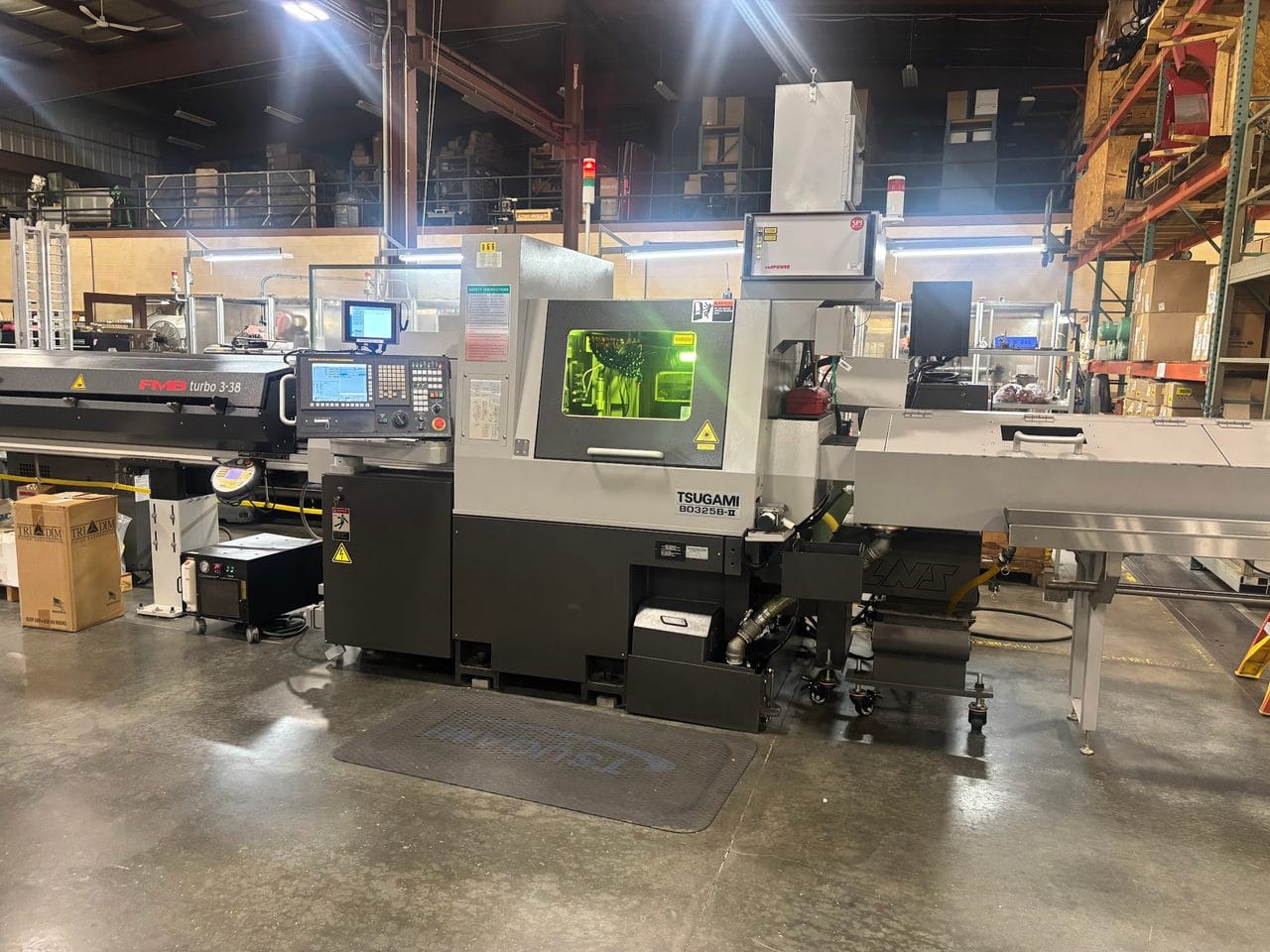

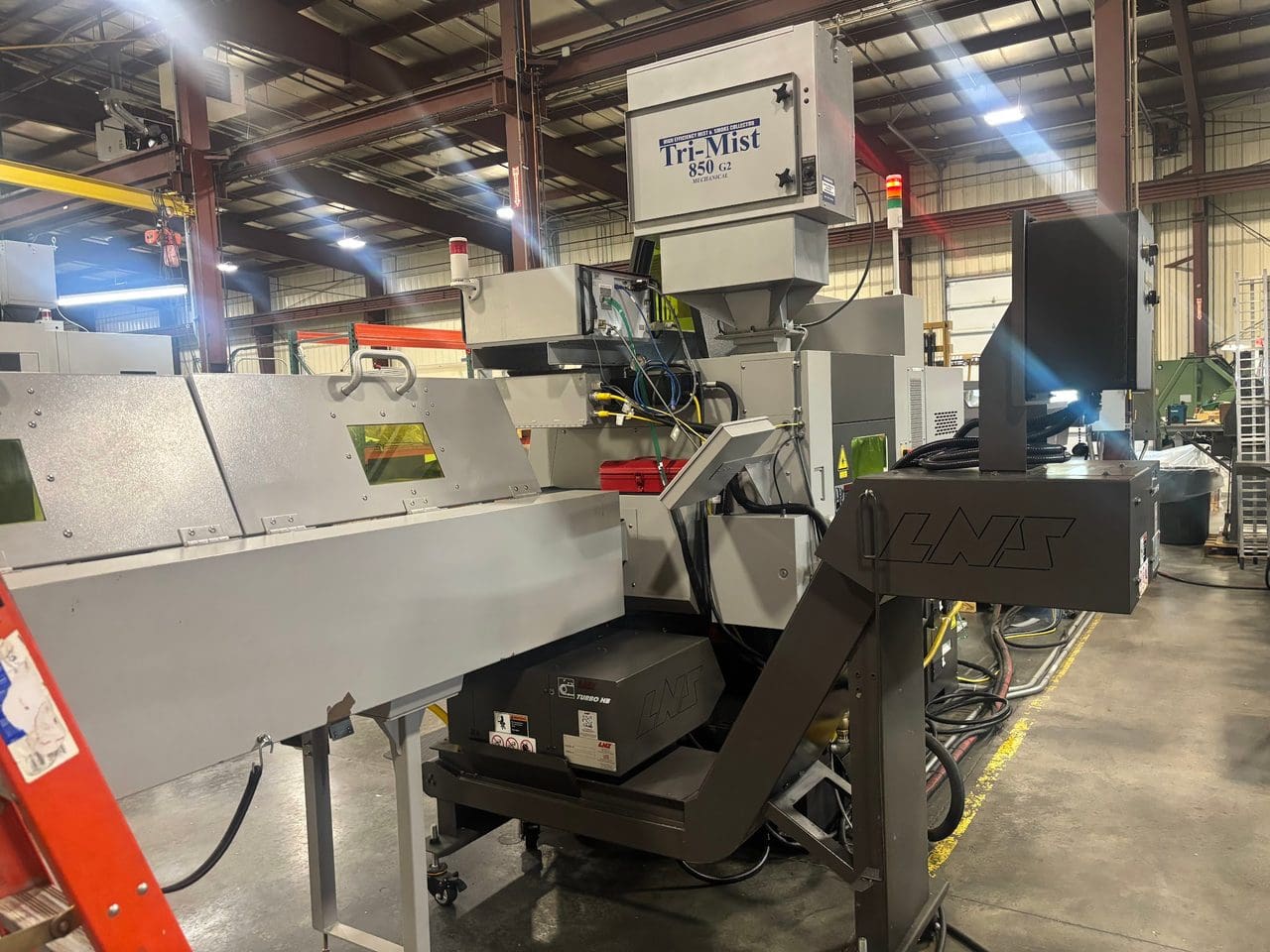

Tsugami B0325B-II CNC Swiss Lathe, 2019 – Fiber Laser Interface, Bar Feeder, Low Hours

Maximum Machining Dia.: 1.25″
Maximum Machining Length: 12.59″
Max. Drilling Diameter: 0.39″
Max. Tapping Diameter: M10
Max. Back Spindle Chucking Barstock Diameter: 1.26″
Max. Back Spindle Drilling Diameter: 0.39″
Max. Back Spindle Tapping Diameter: M8
Max. Tool Spindle Slotting Cutter Diameter: 1.77″
Stroke In Chucker Mode: 2.75″

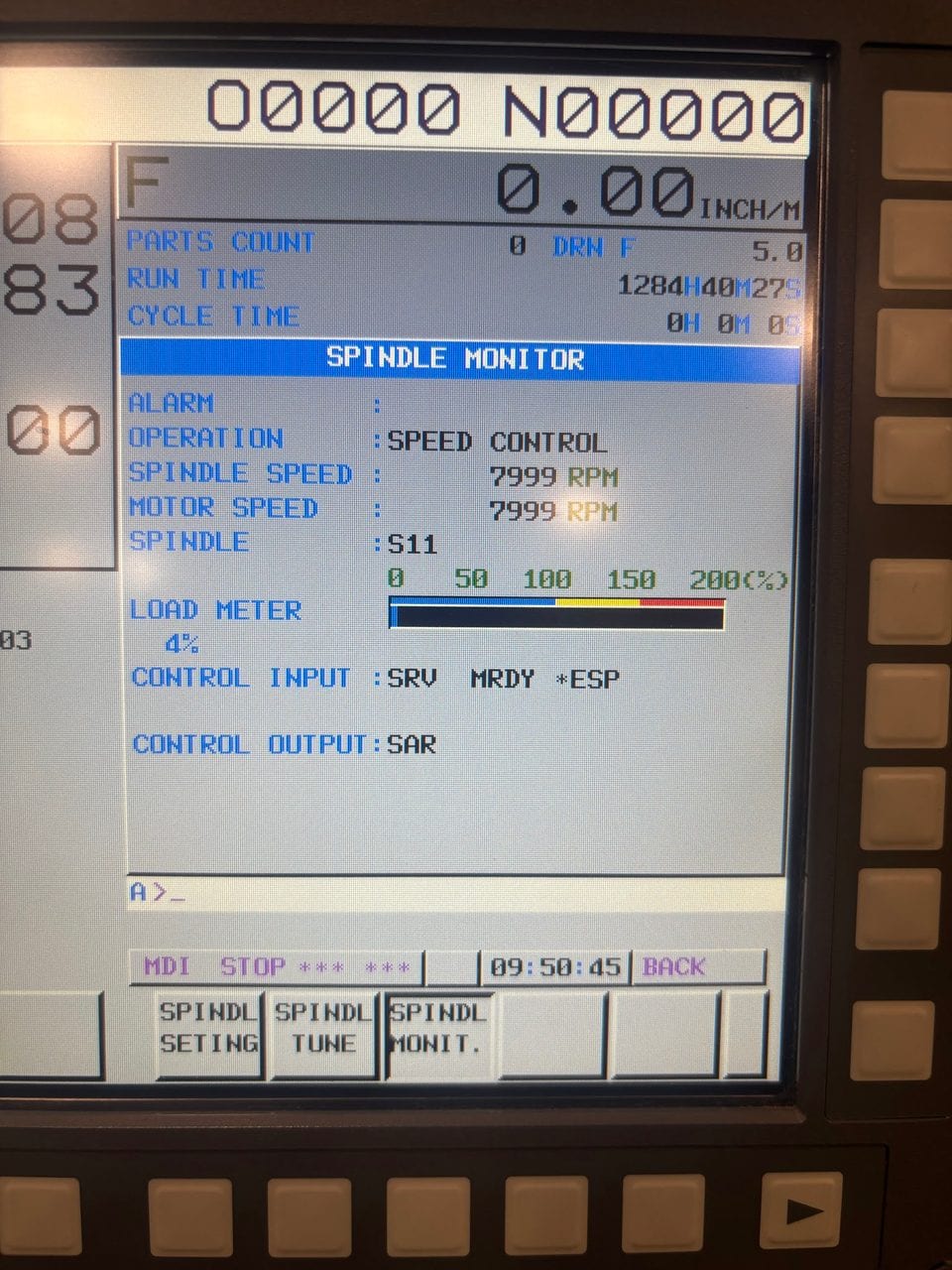

Main Spindle Speed: 200~8,000 RPM
Rotary Tool Spindle Speed: 200~6,000 RPM
Total Tool Number: 31
Back Spindle Maximum Machining Dia: 1.25″
Back Spindle Front Ejection maximum length: 3.9″
Back Spindle Speed: 200~8,000 RPM
Rapid Traverse Rate: 32 M/min
Spindle Center Height: 39.37”
Weight: 7,500 lbs.

Motors

Main Spindle: 7.5 hp
Back Spindle: 5 hp
Rotary Tool: 1.5 hp continuous
Coolant: 0.5hp

Mountable Tools

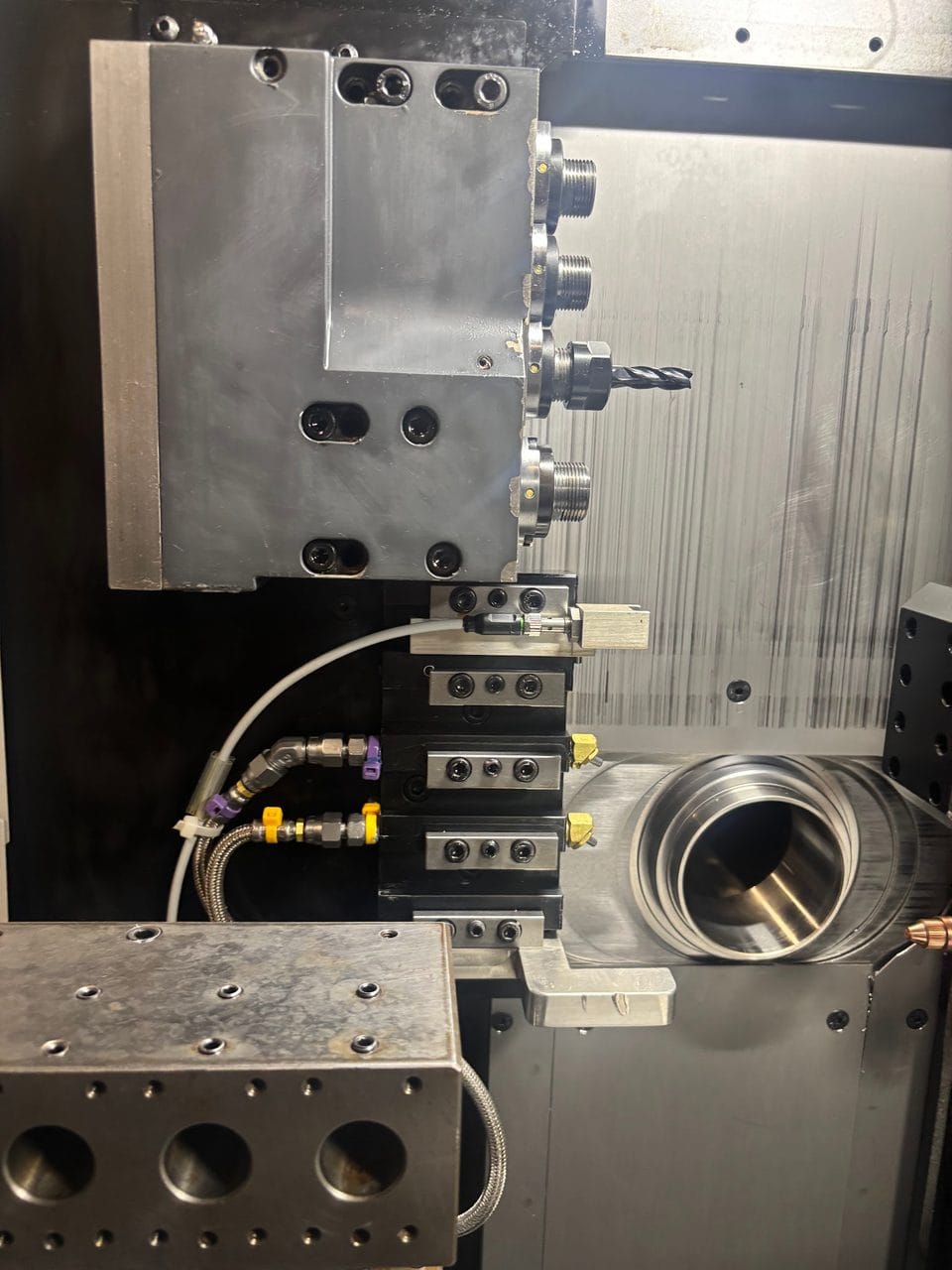

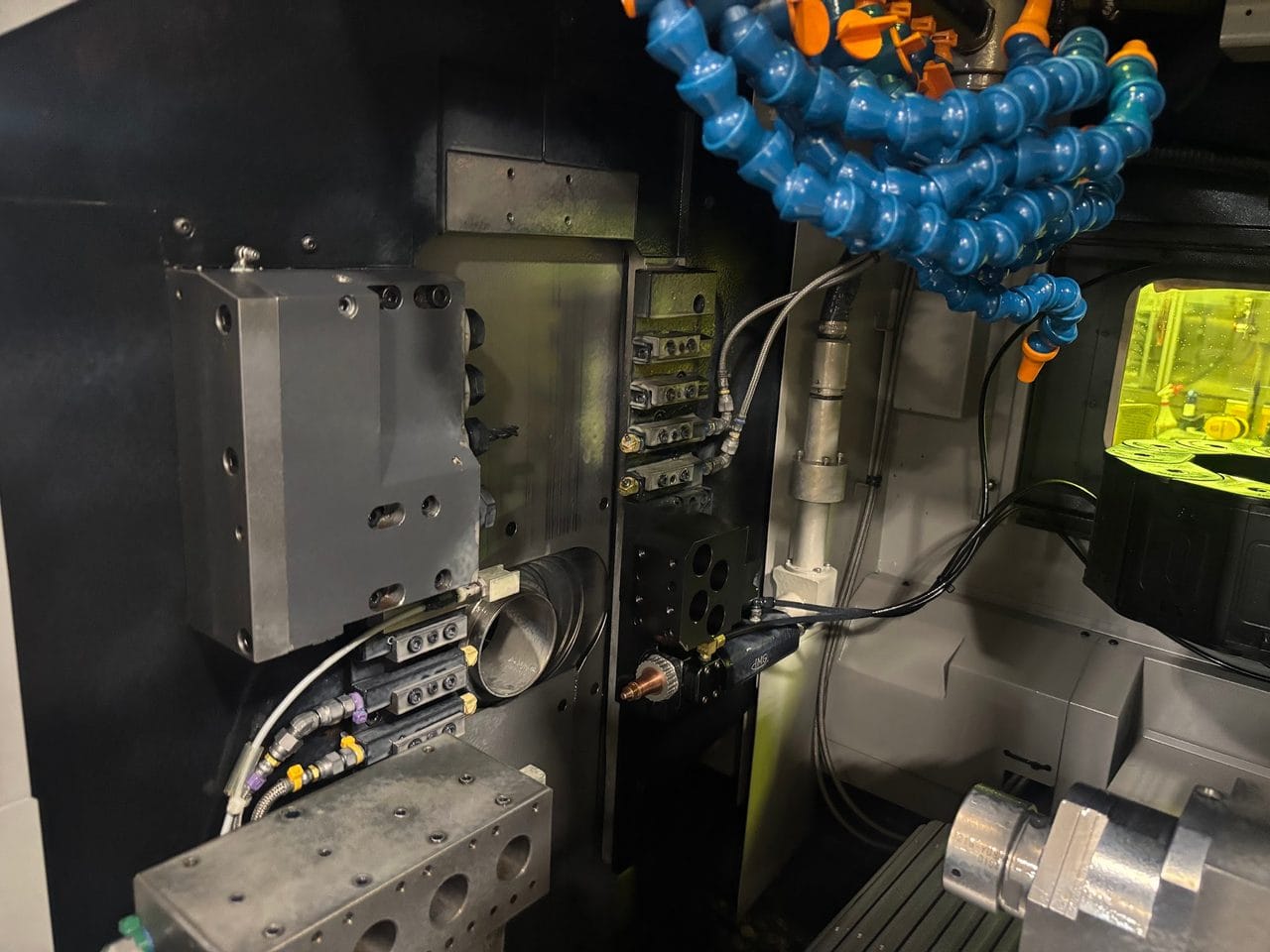

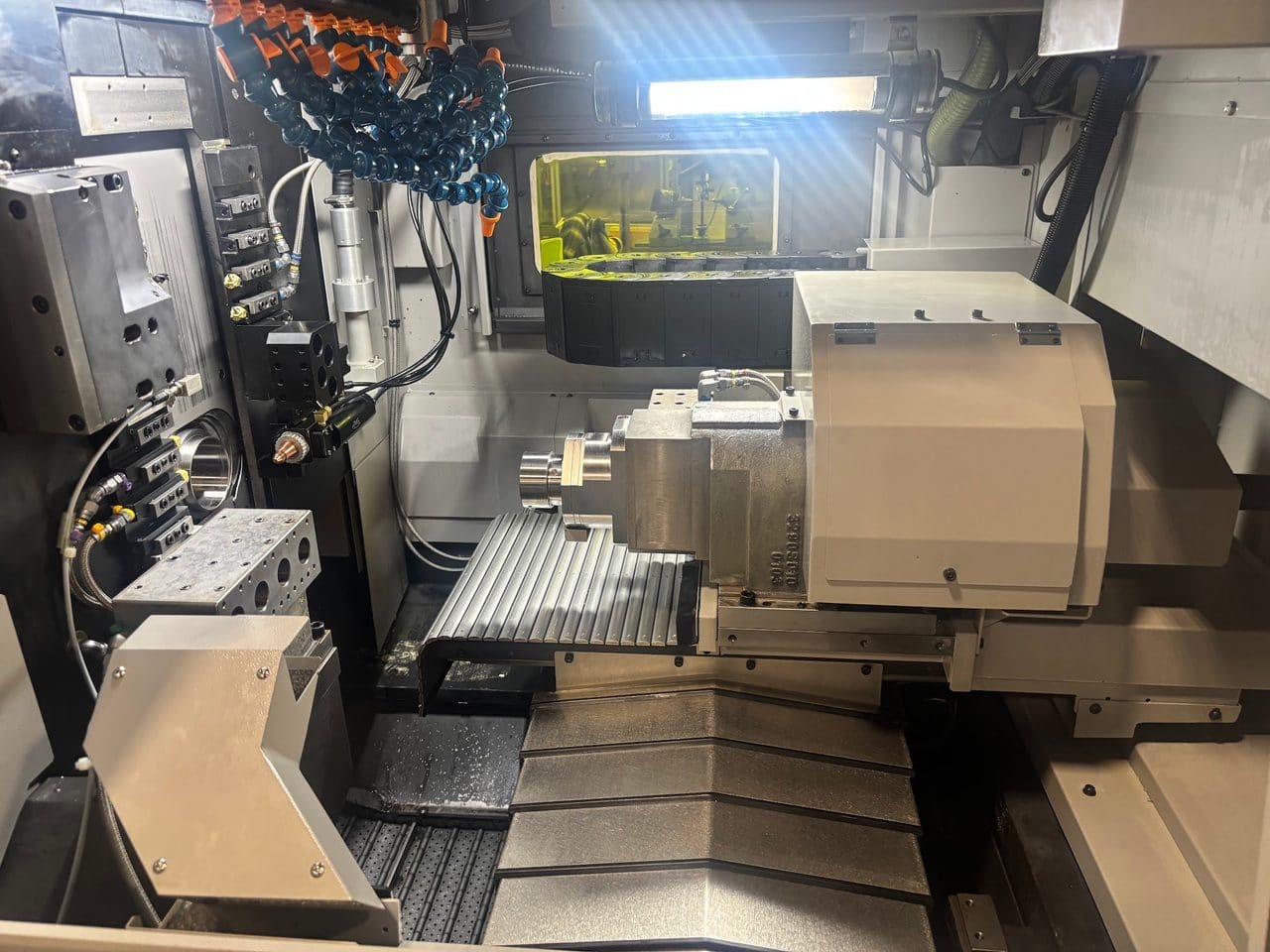

Gang Tool Post (turning): 8
Gang Tool Post (live): 4
Front Drilling: 7
Front Drilling Deep Hole: 2
Back Drilling: 9

Equipped With:

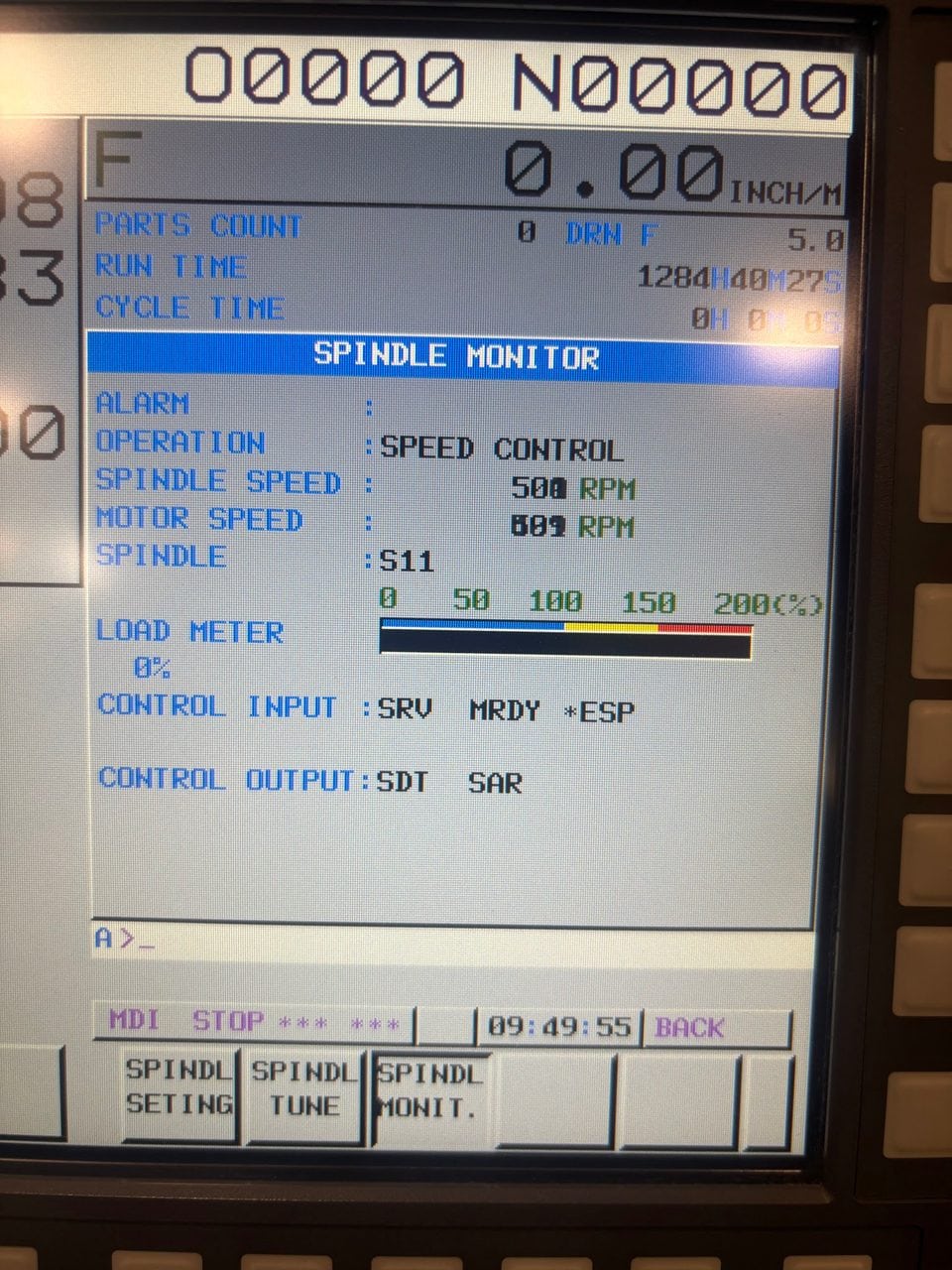

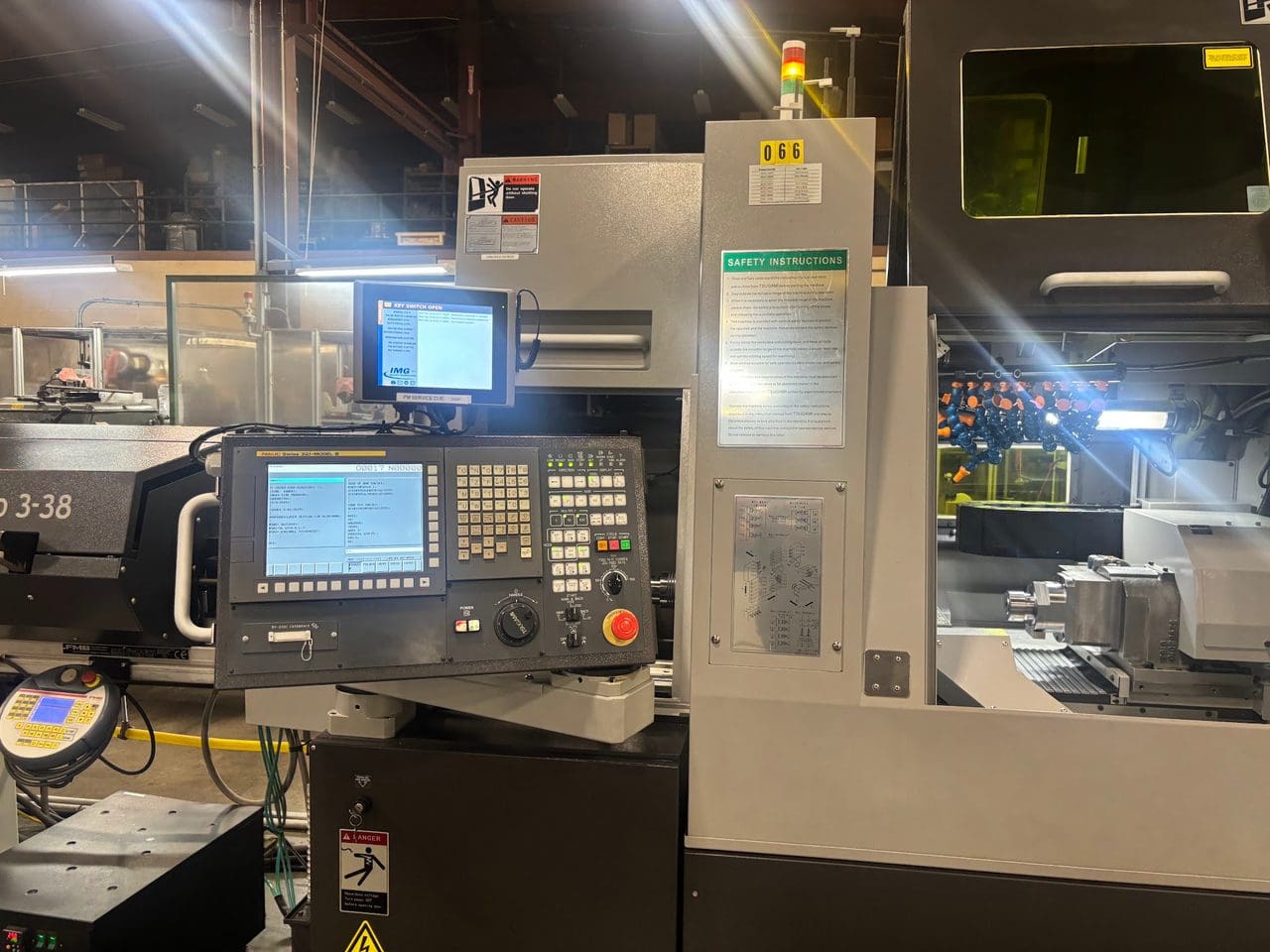

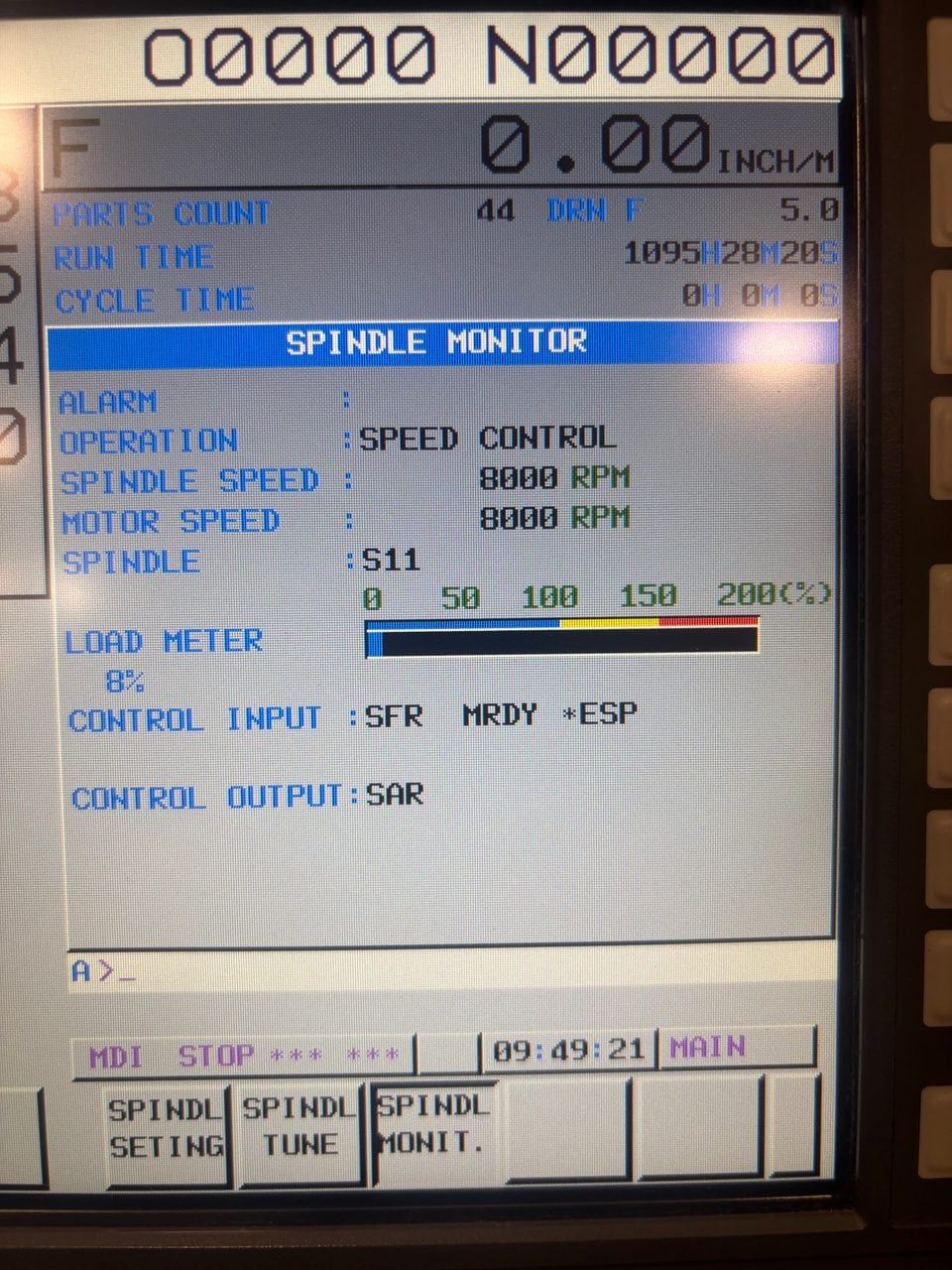

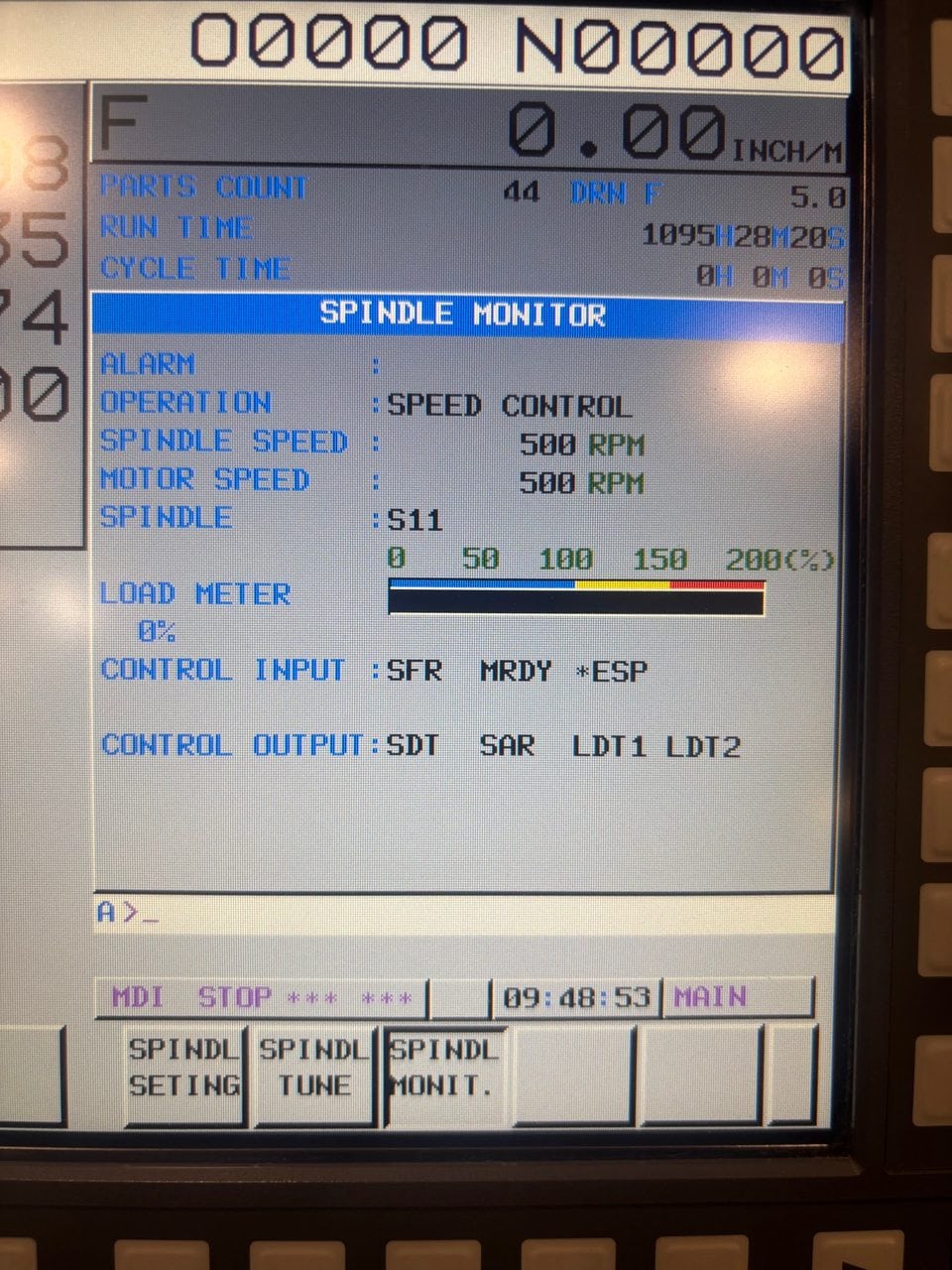

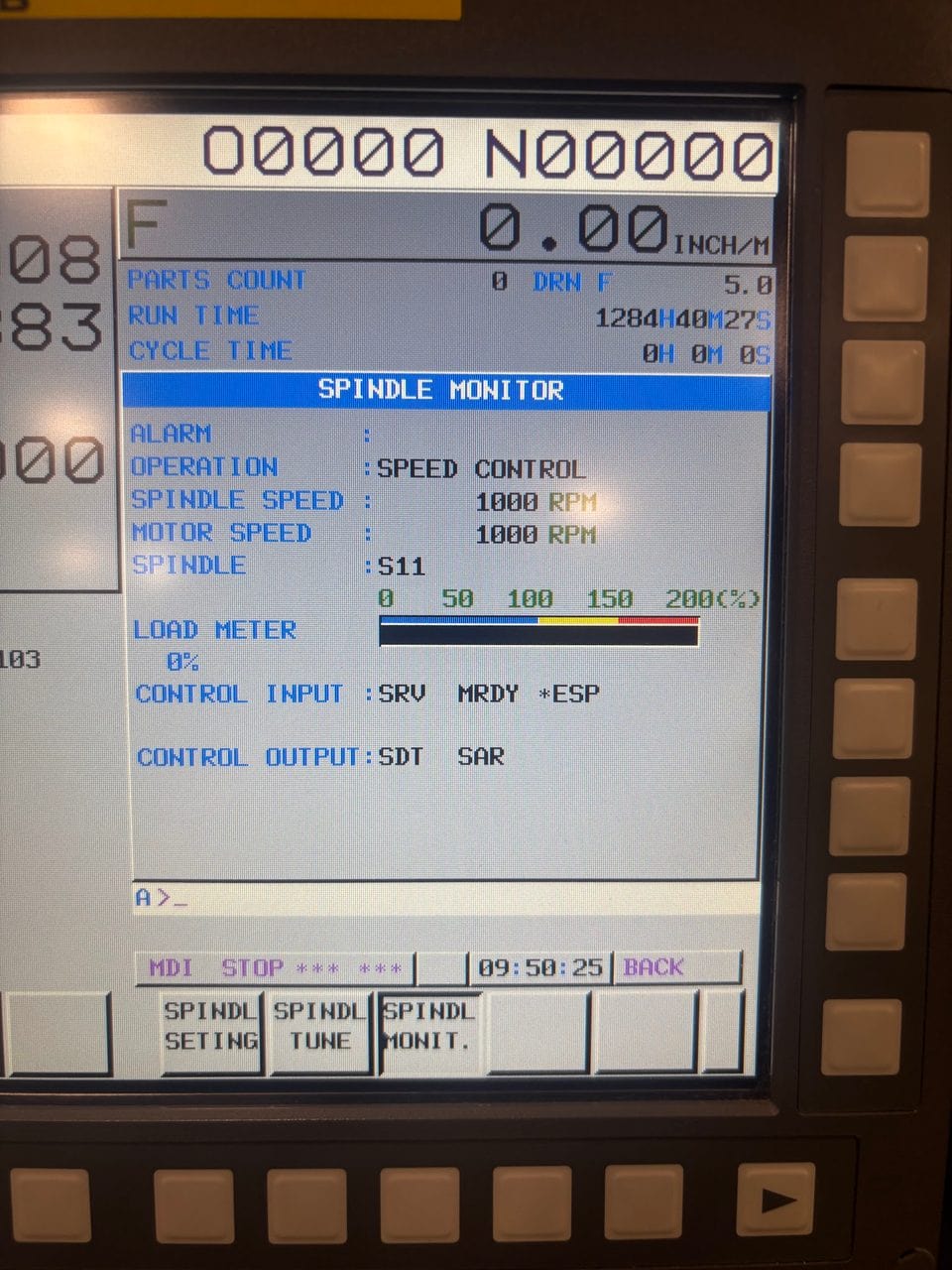

Fanuc 32i-B CNC System
Simultaneous all axes control

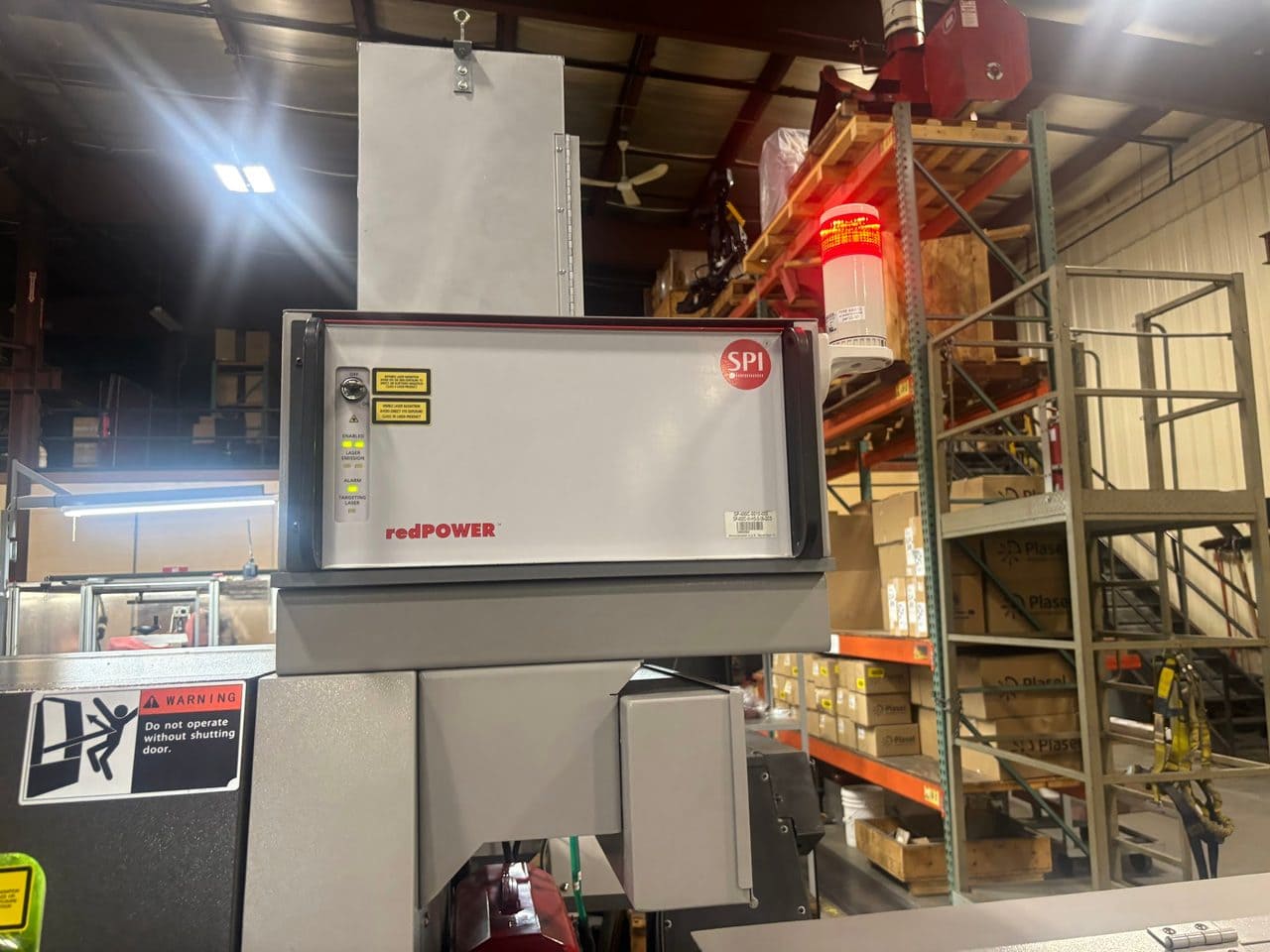

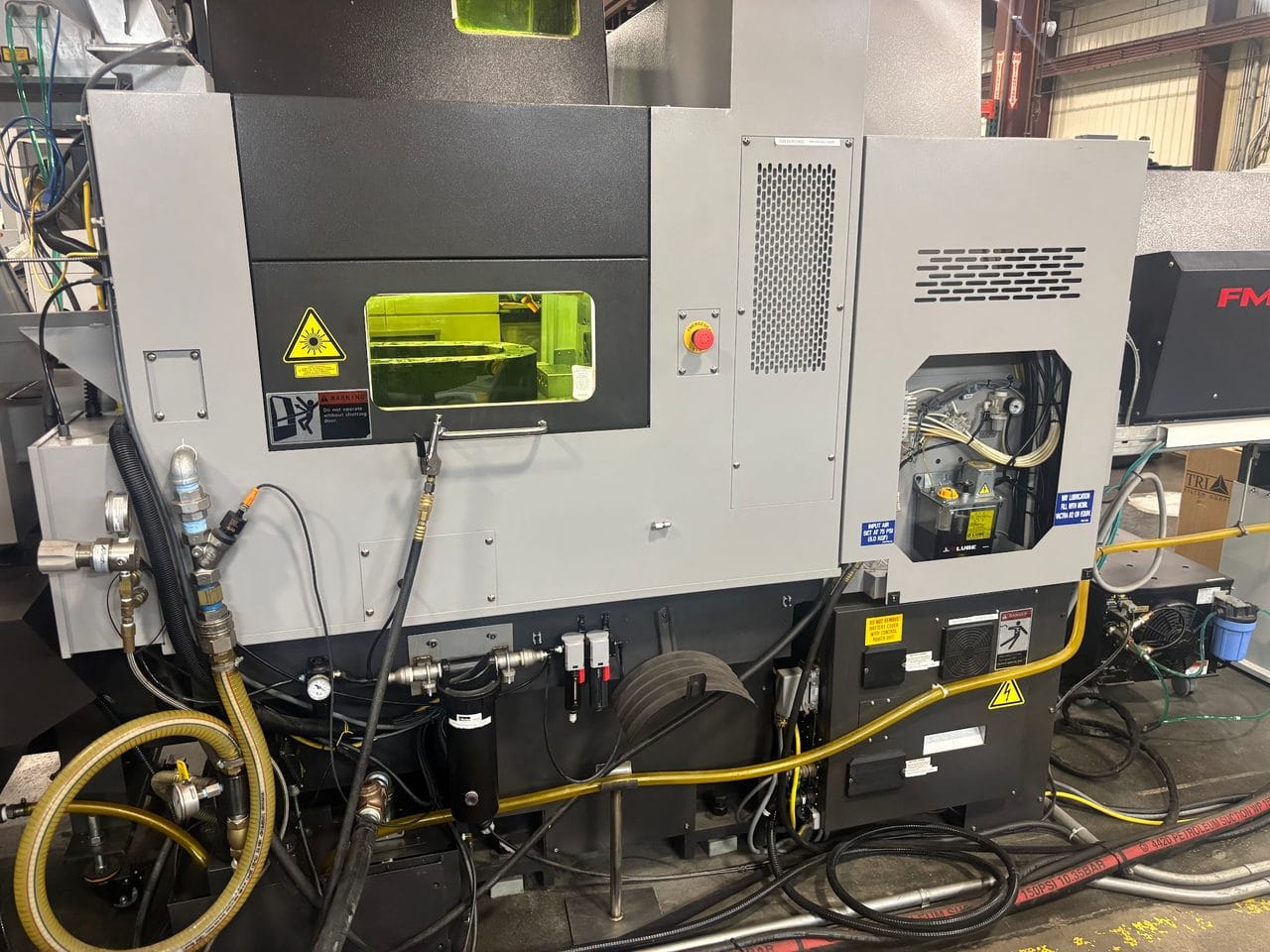

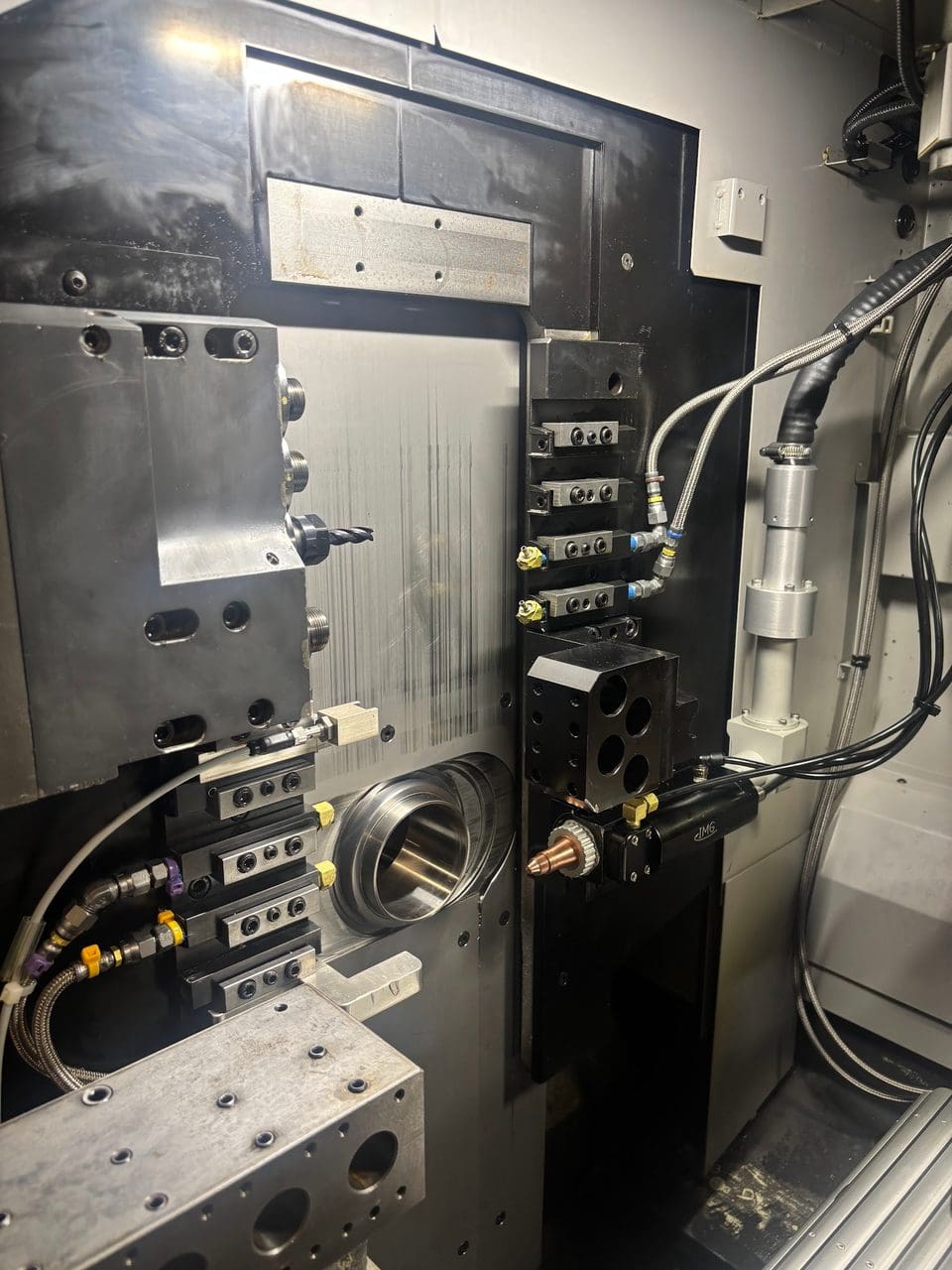

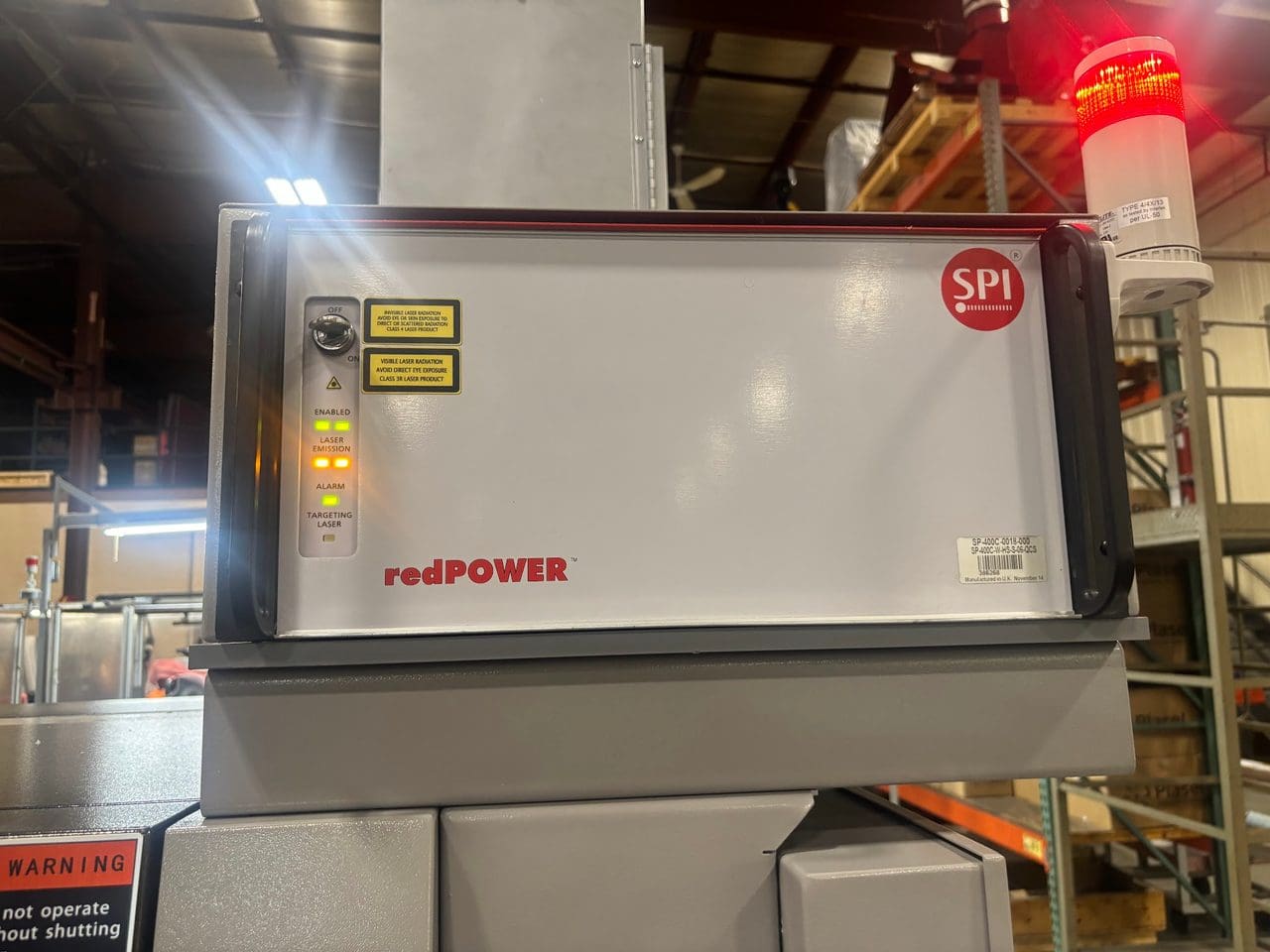

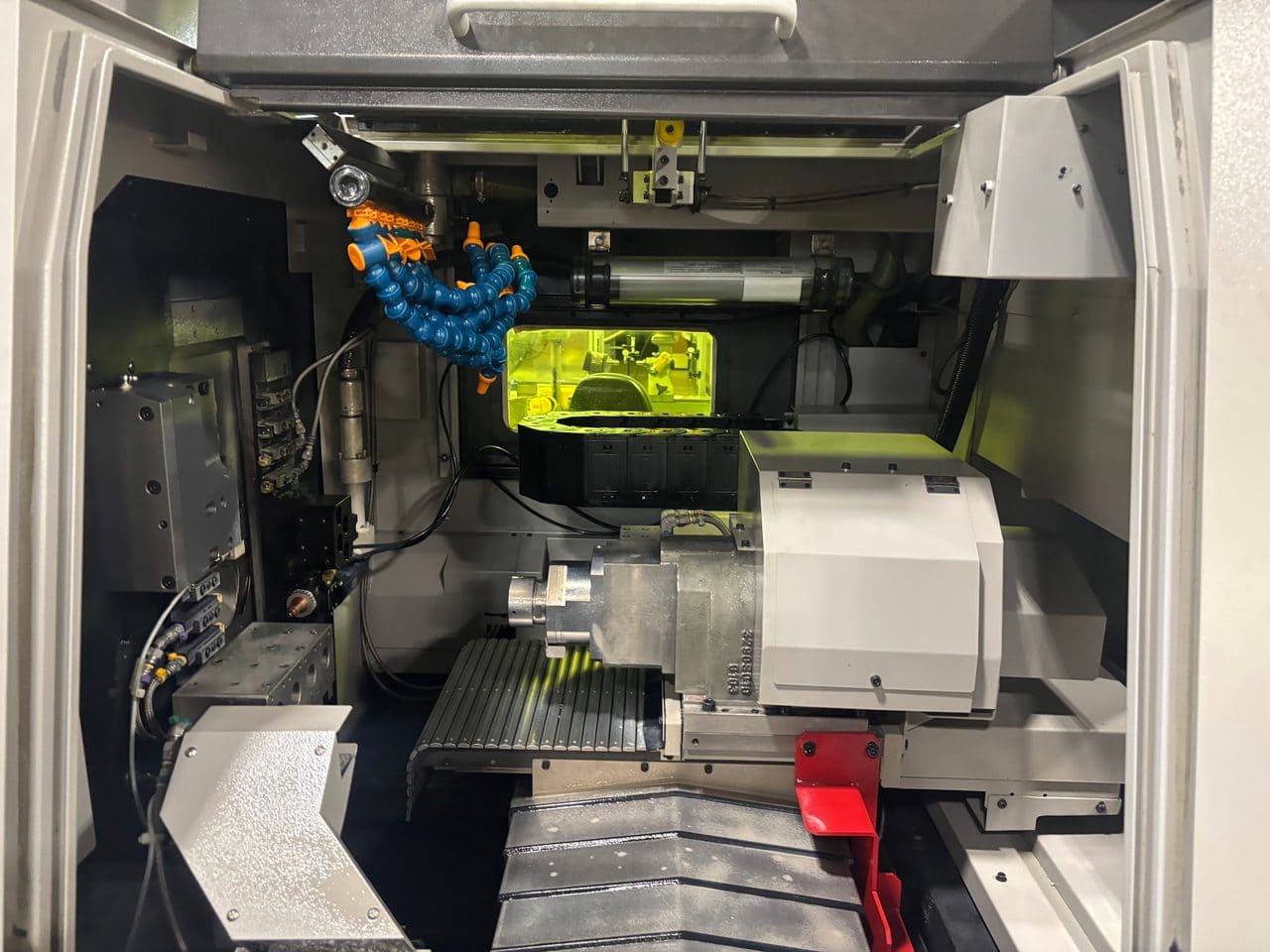

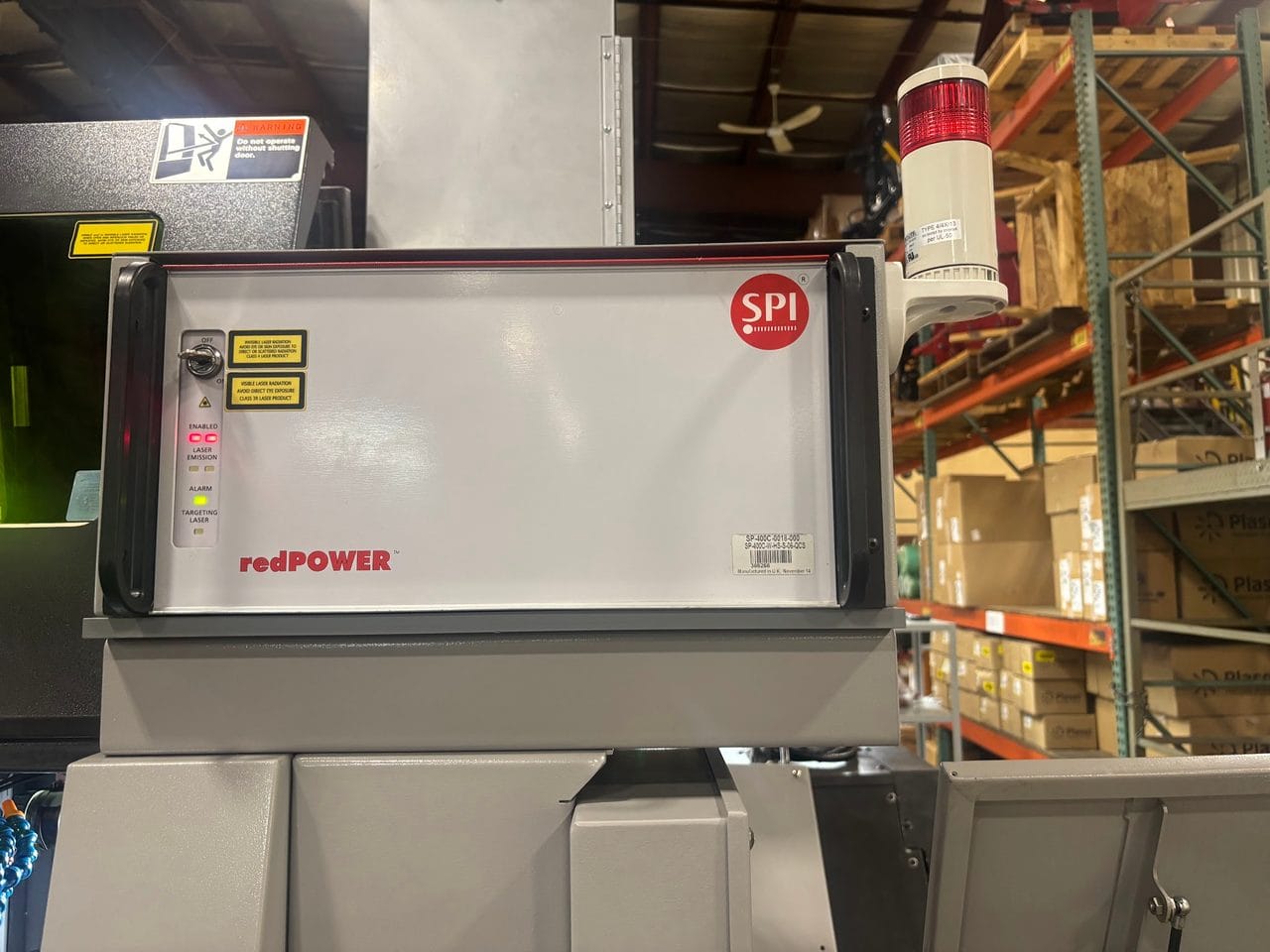

Tsugami Automation Laser Cutting Head

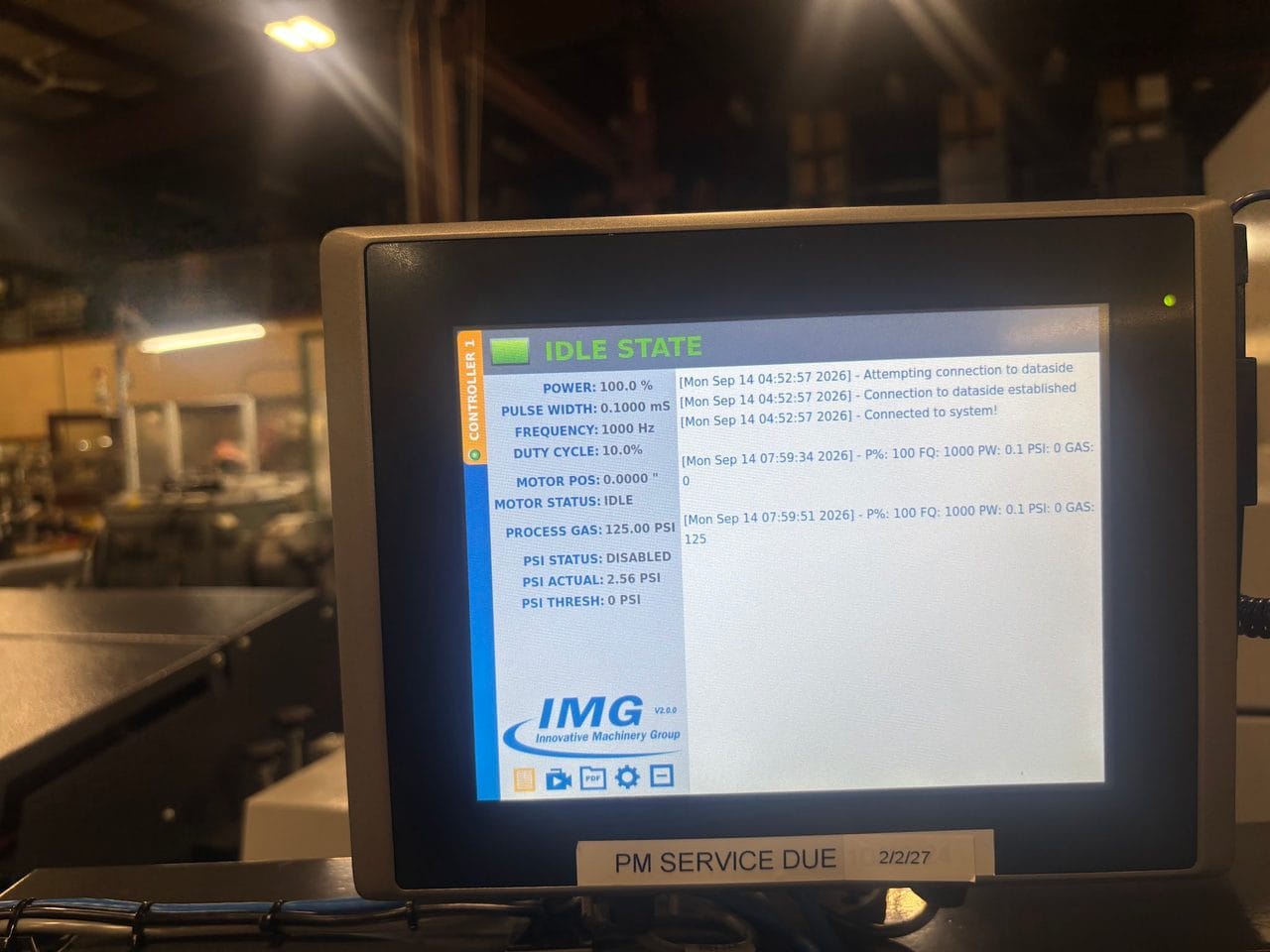

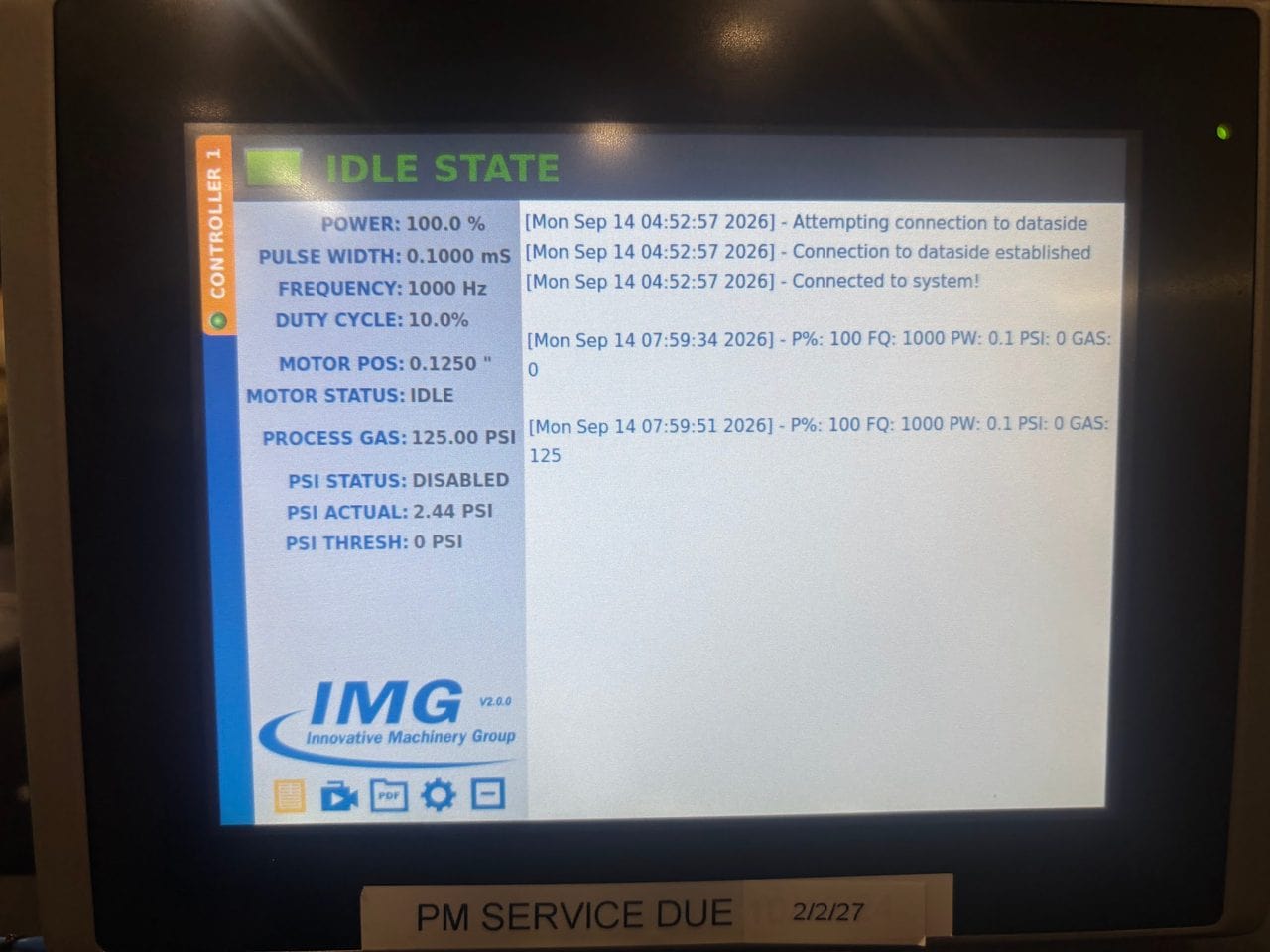

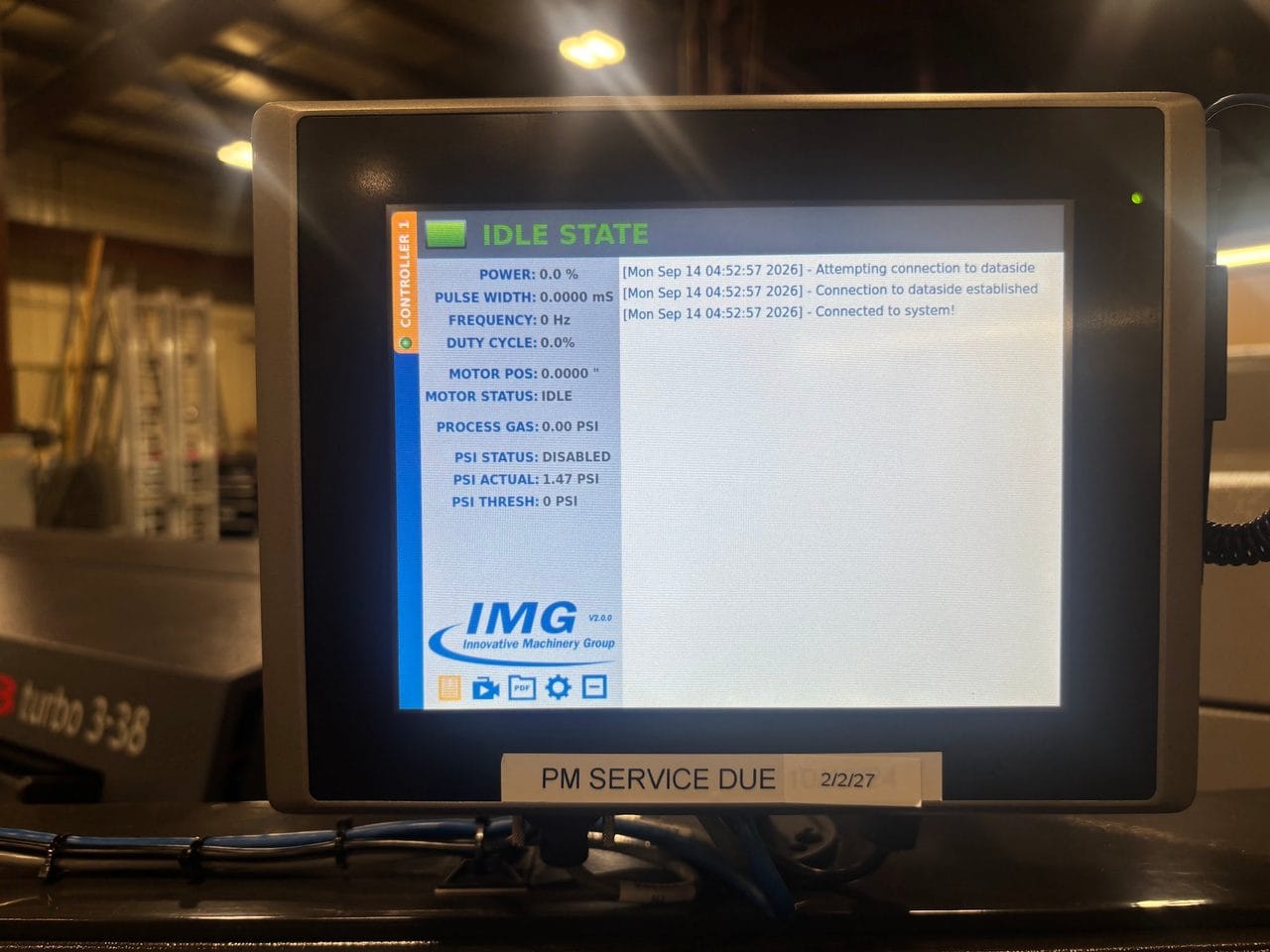

Tsugami Automation Laser Interface
Magnetic Scales
Patrol Light

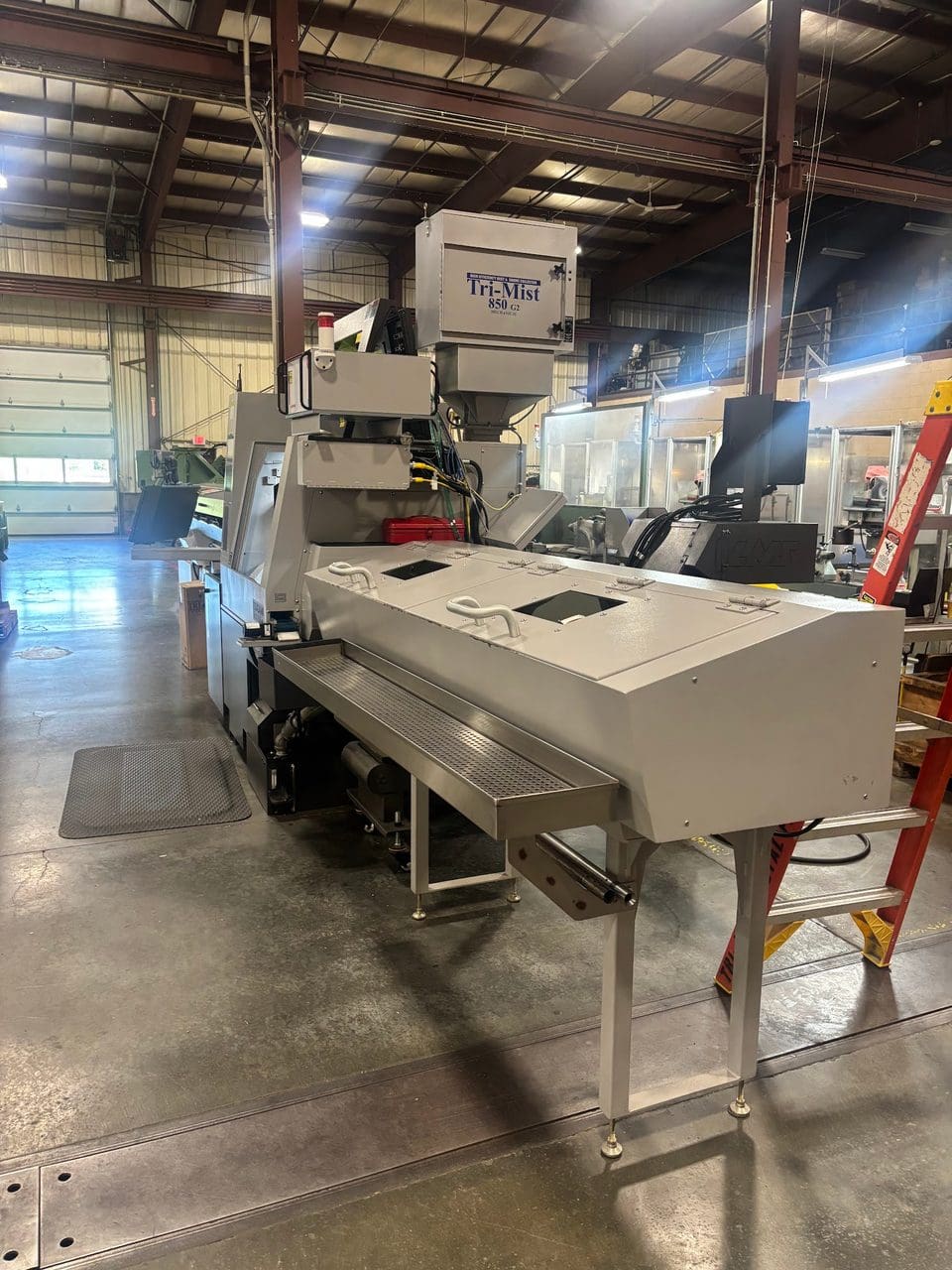

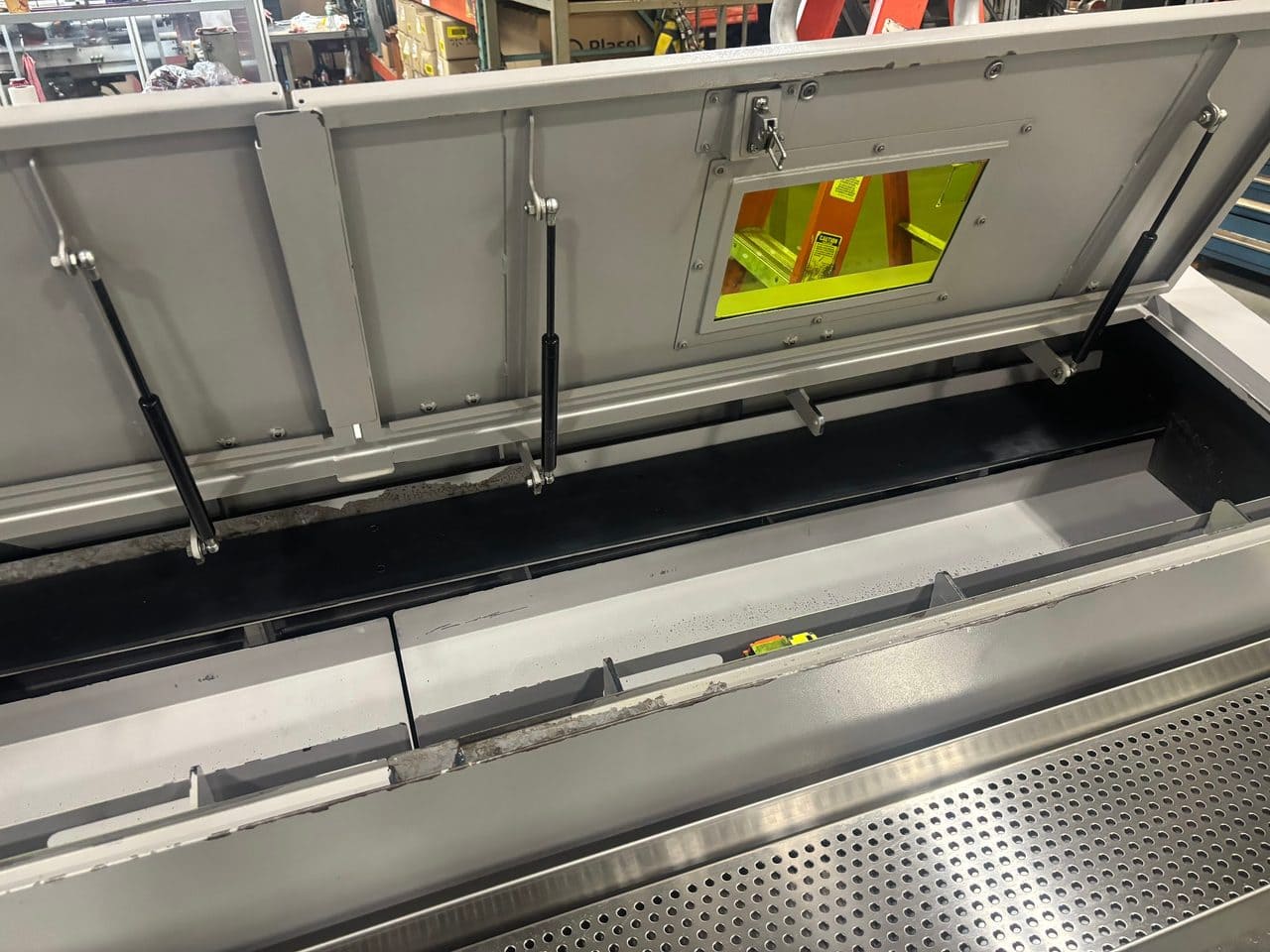

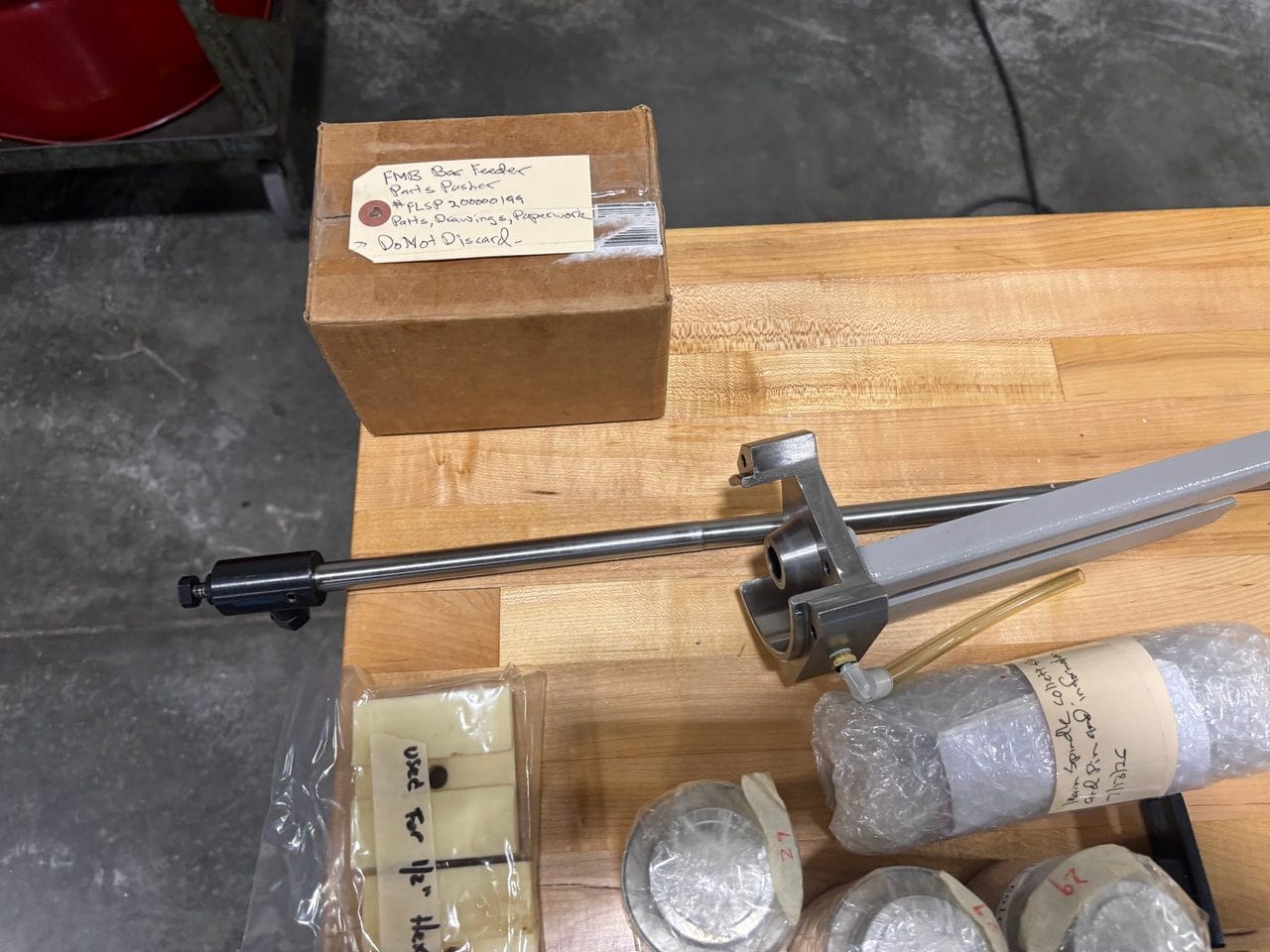

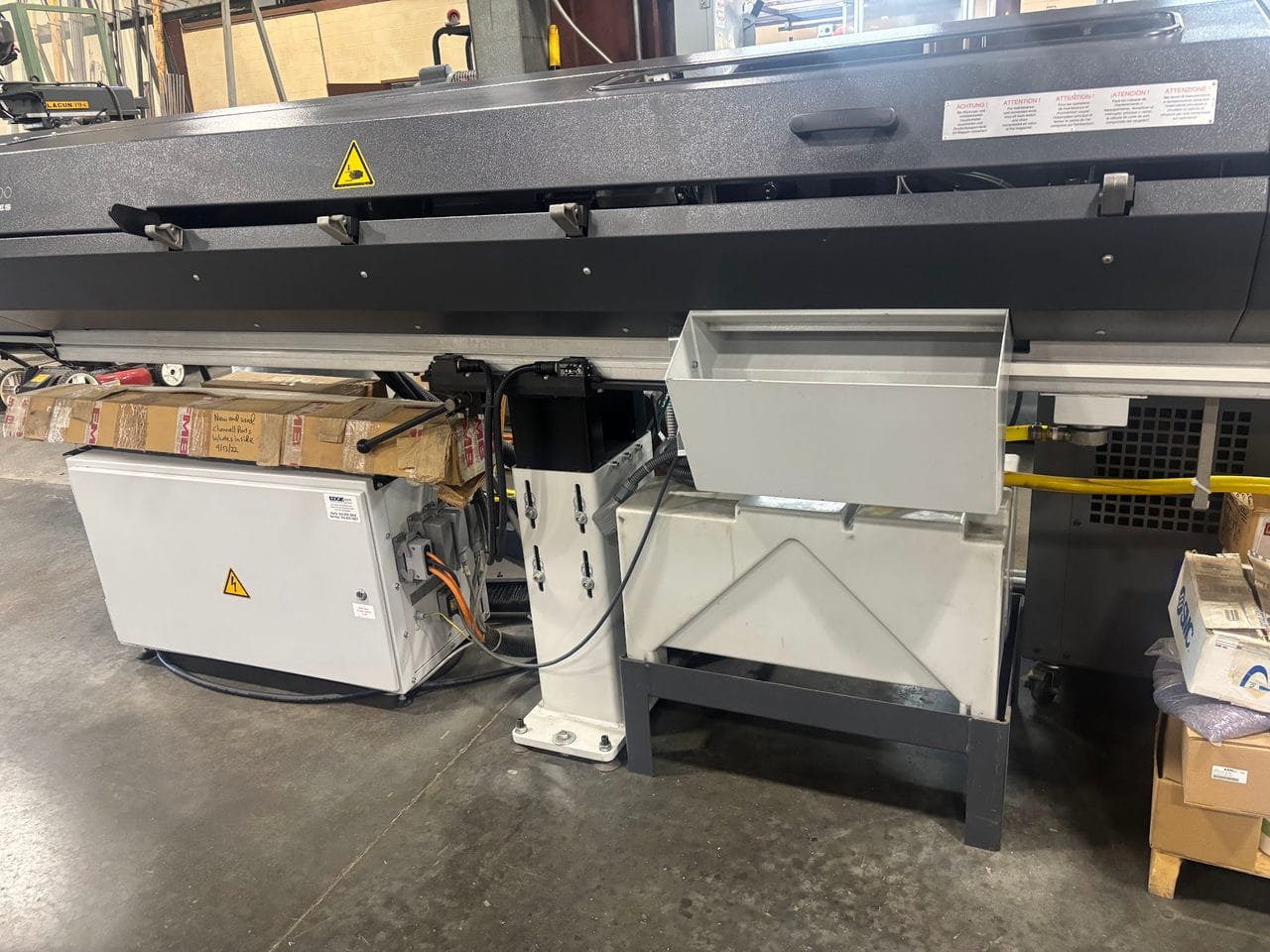

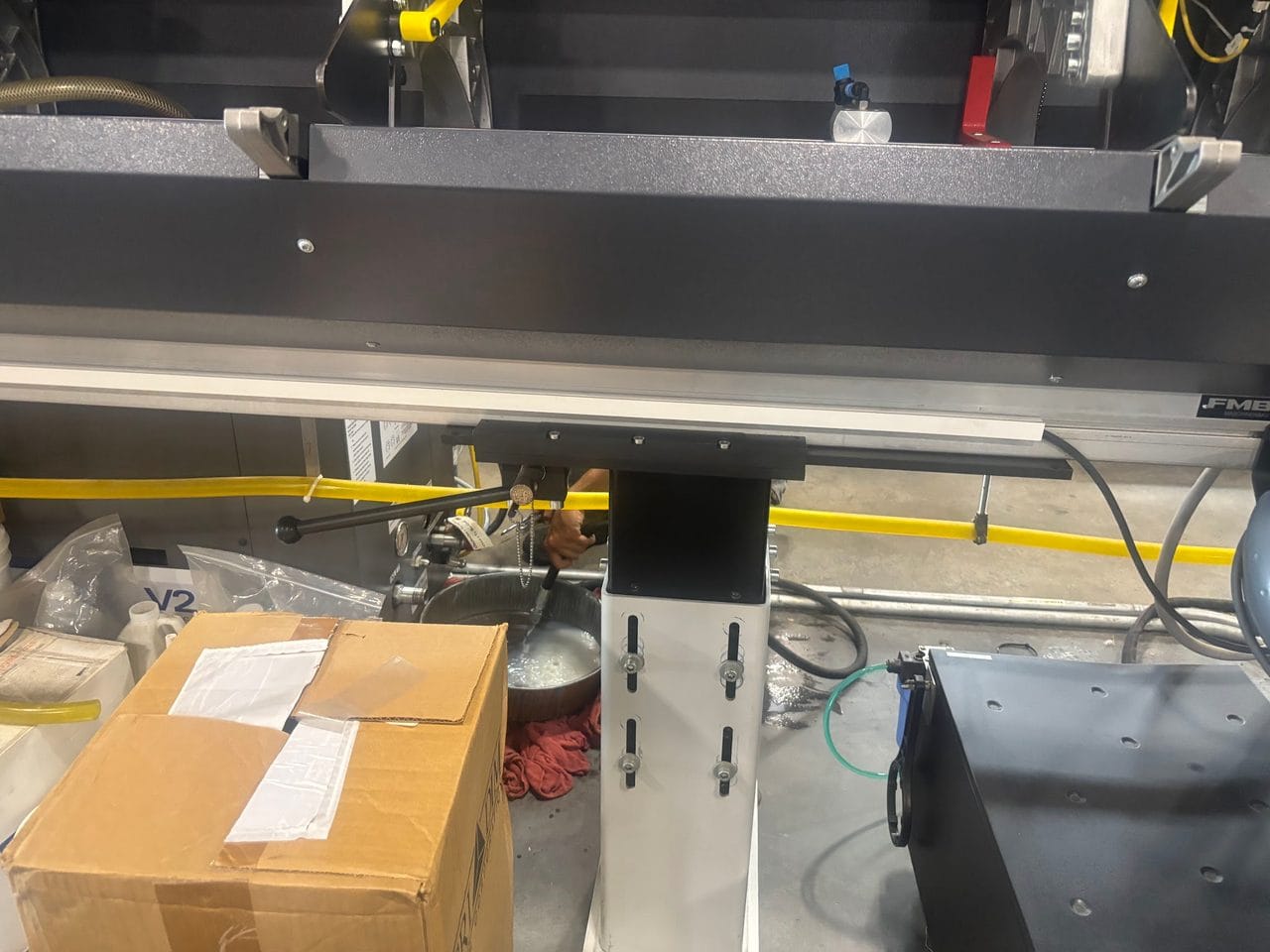

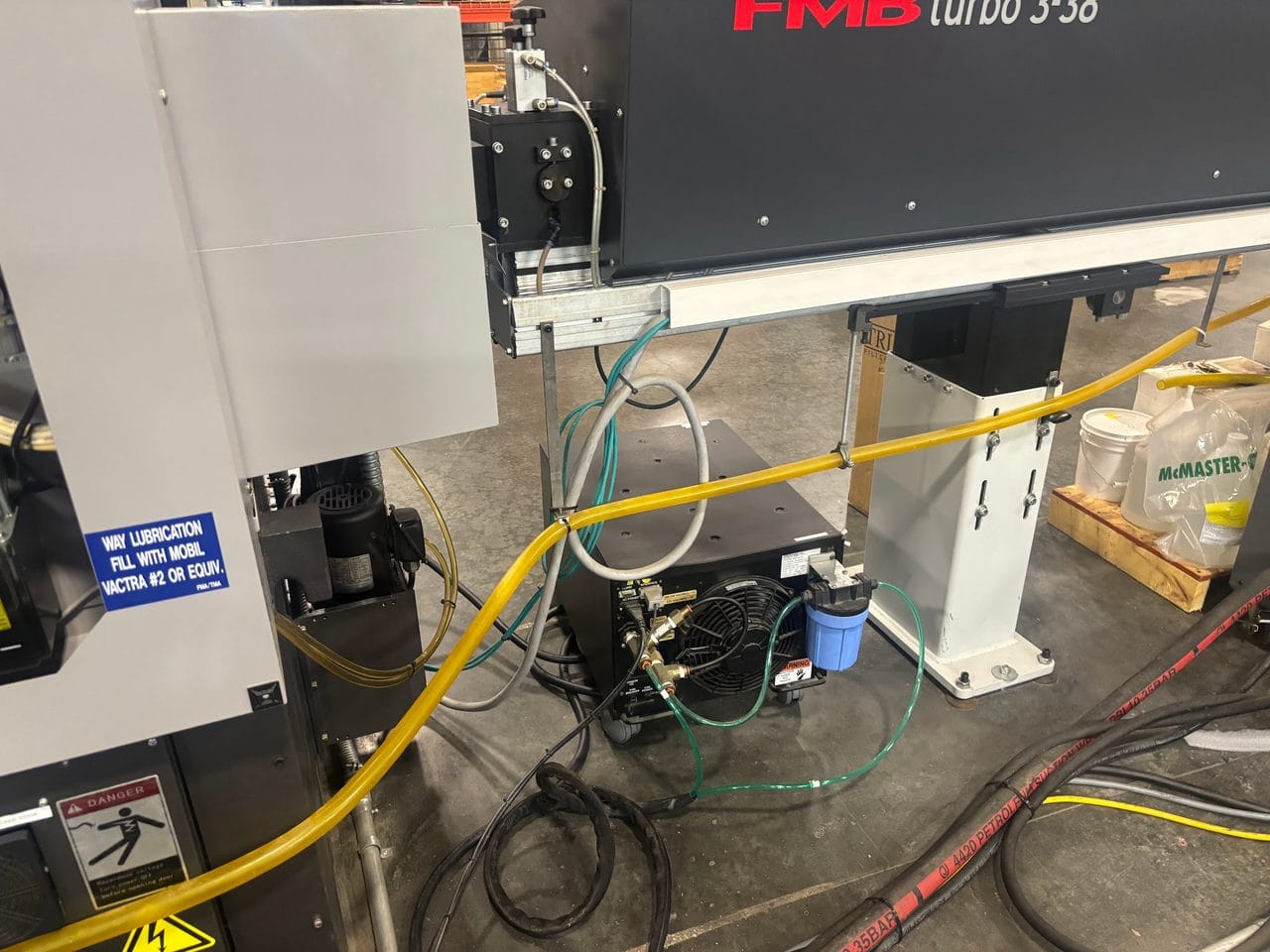

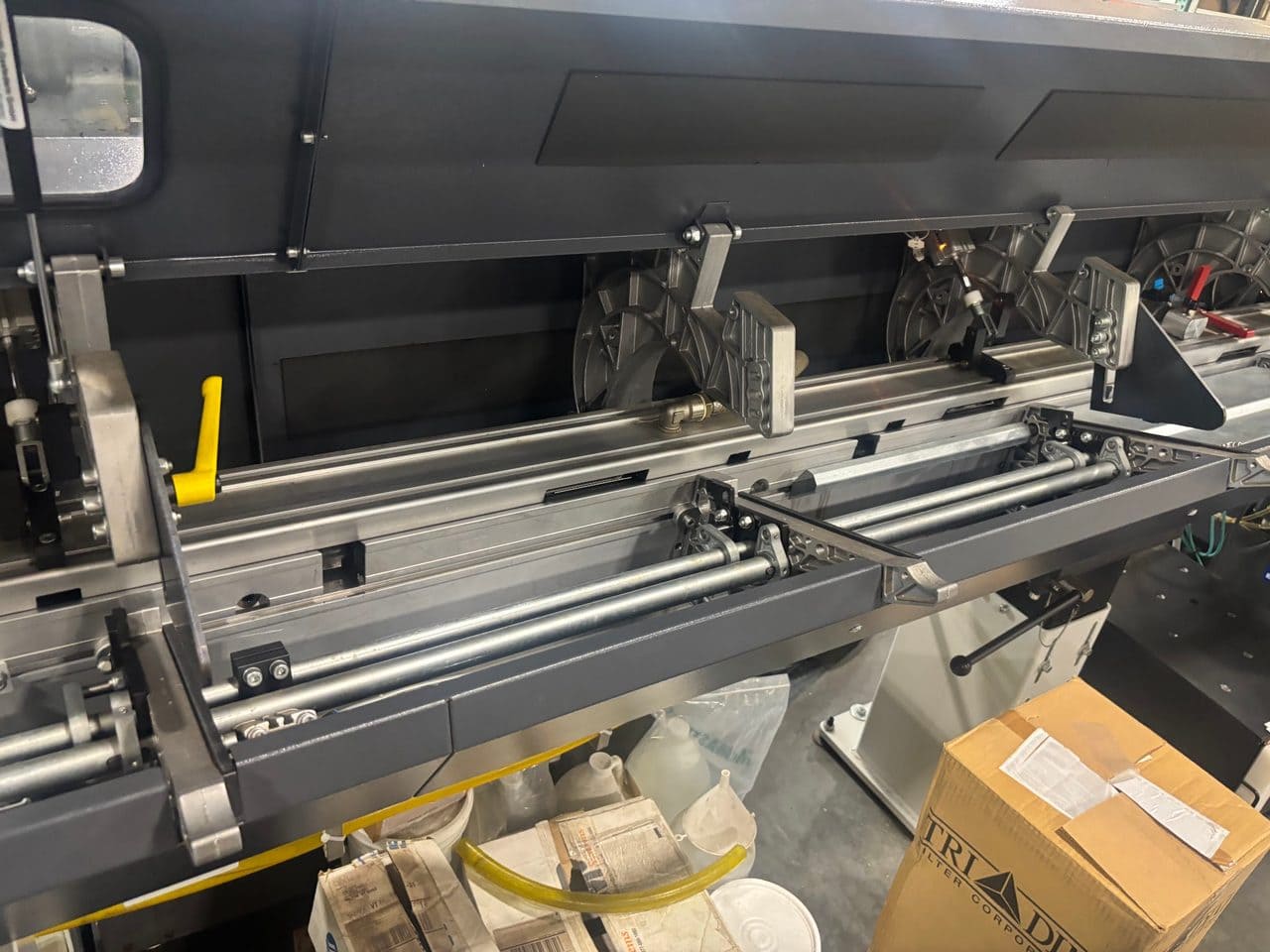

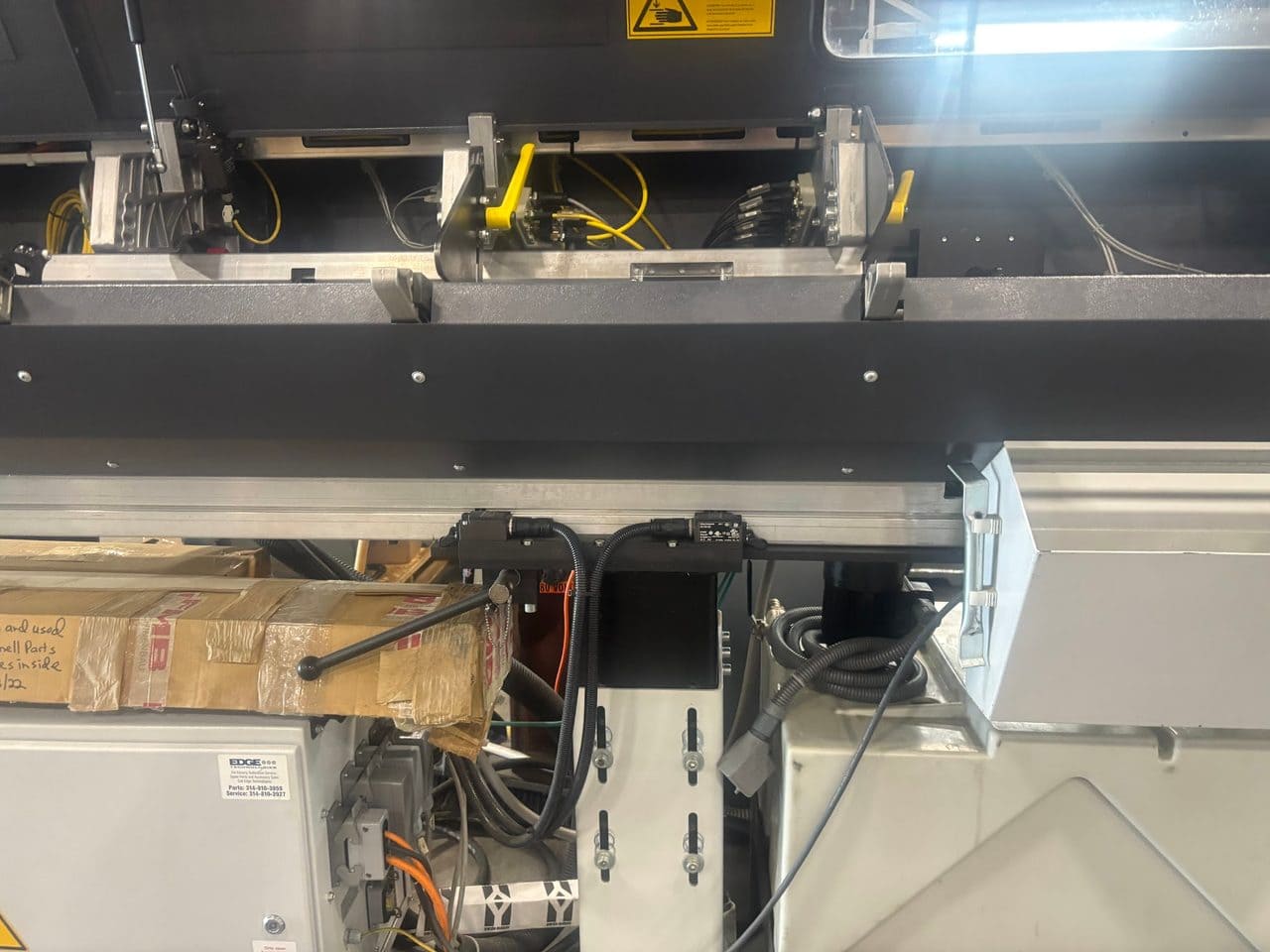

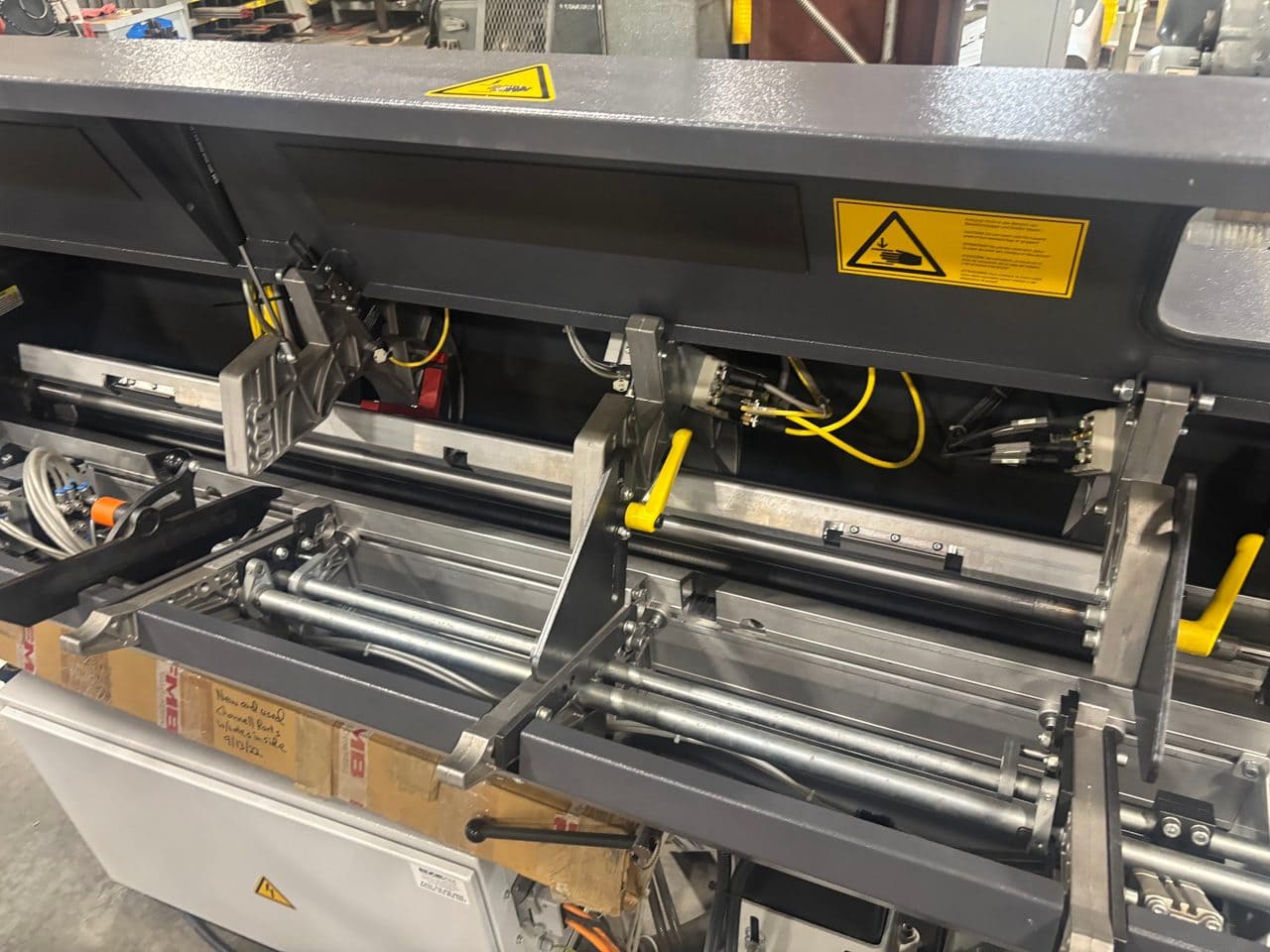

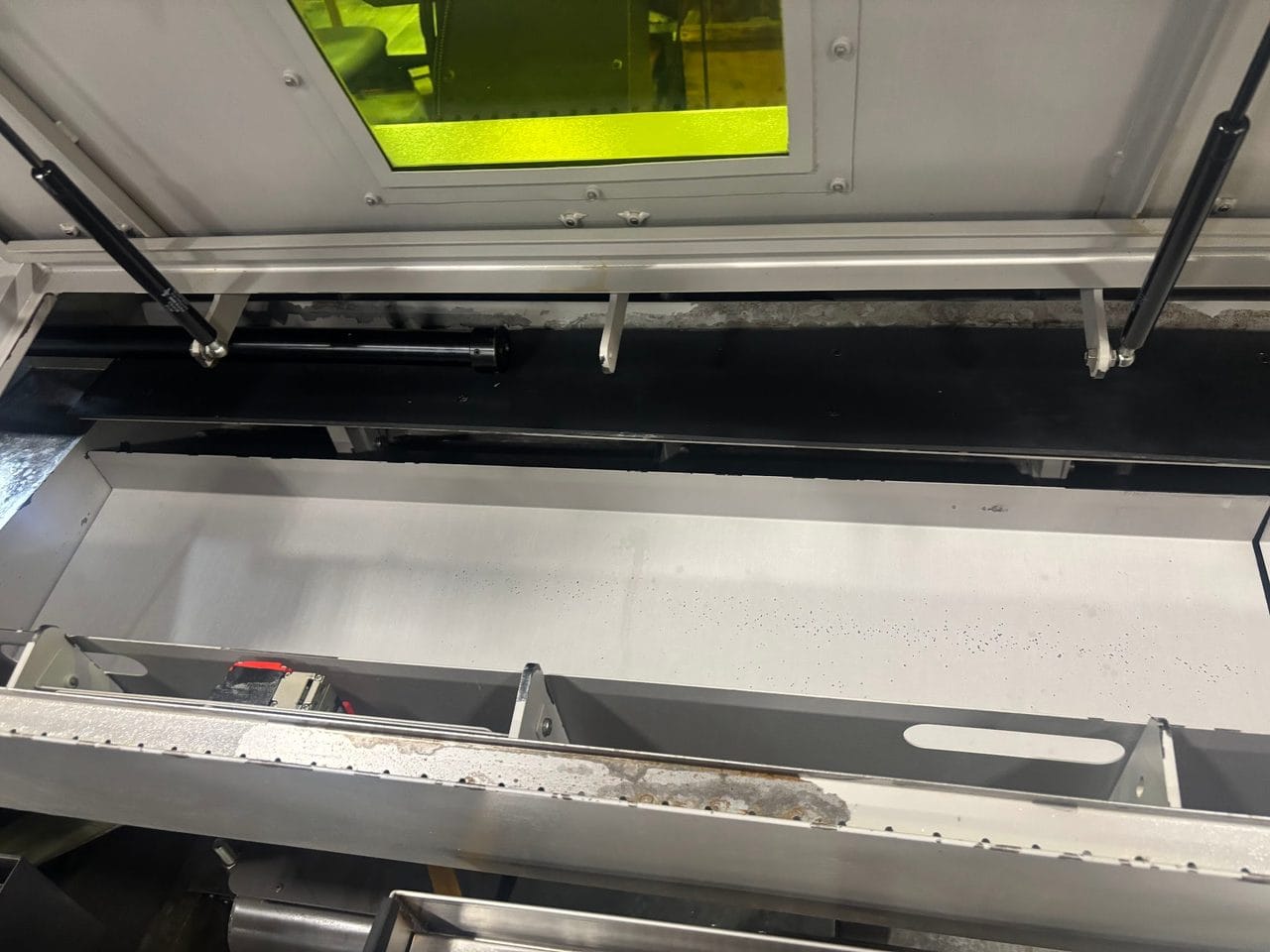

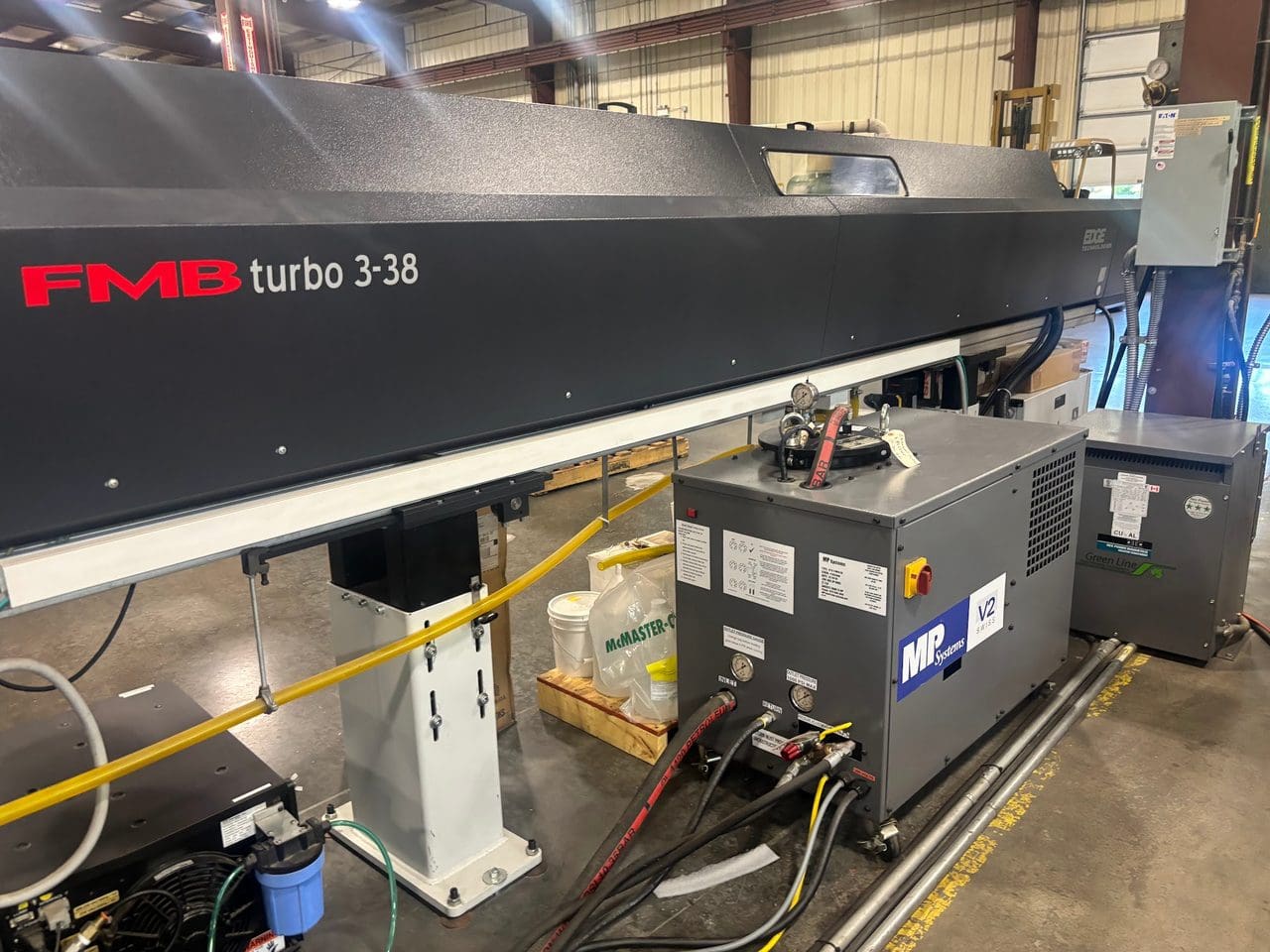

FMB Turbo 3-38 Barfeeder

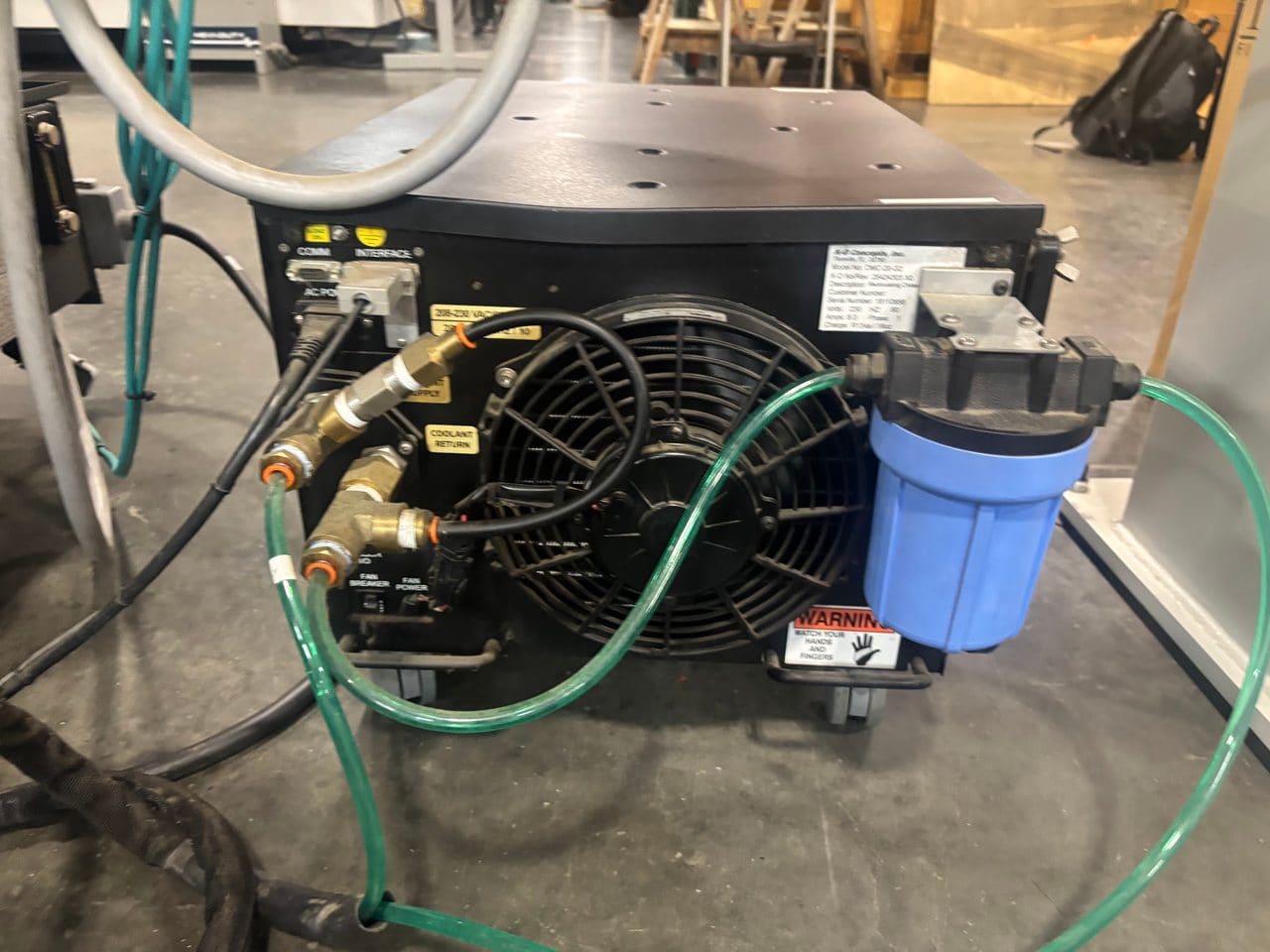

V2-HW8 MP Systems 1,000 PSI Coolant System

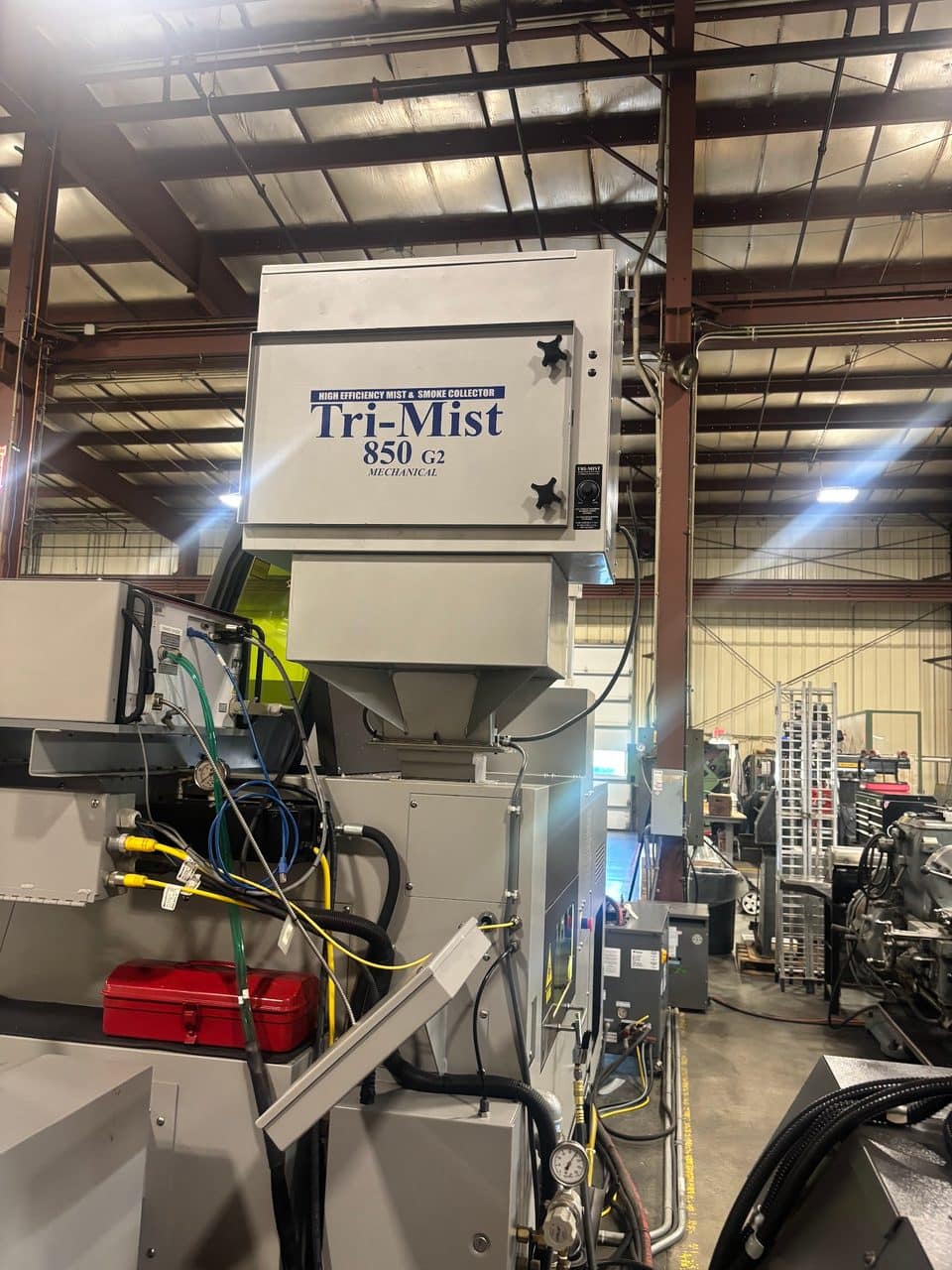

Mist Collector

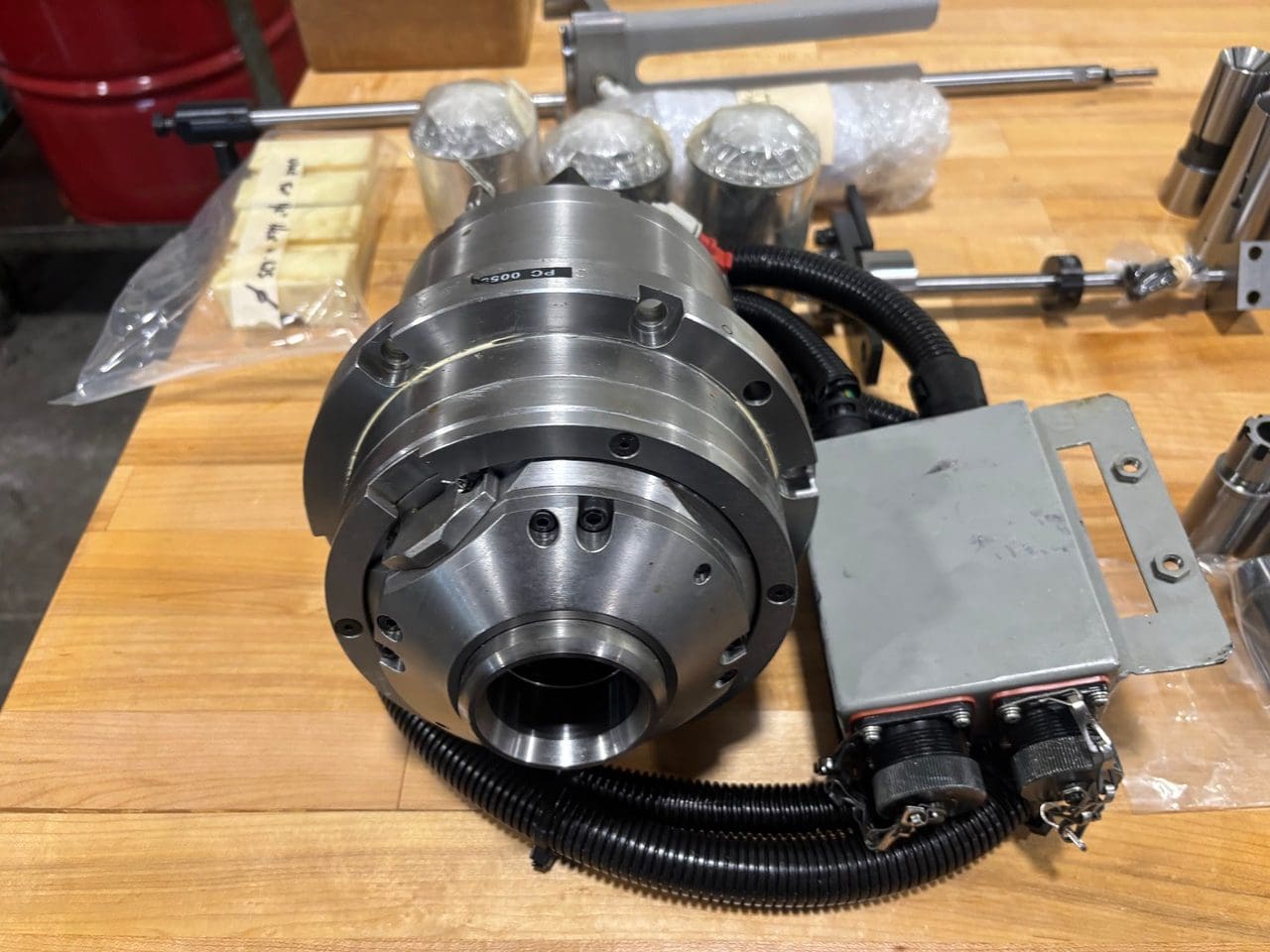

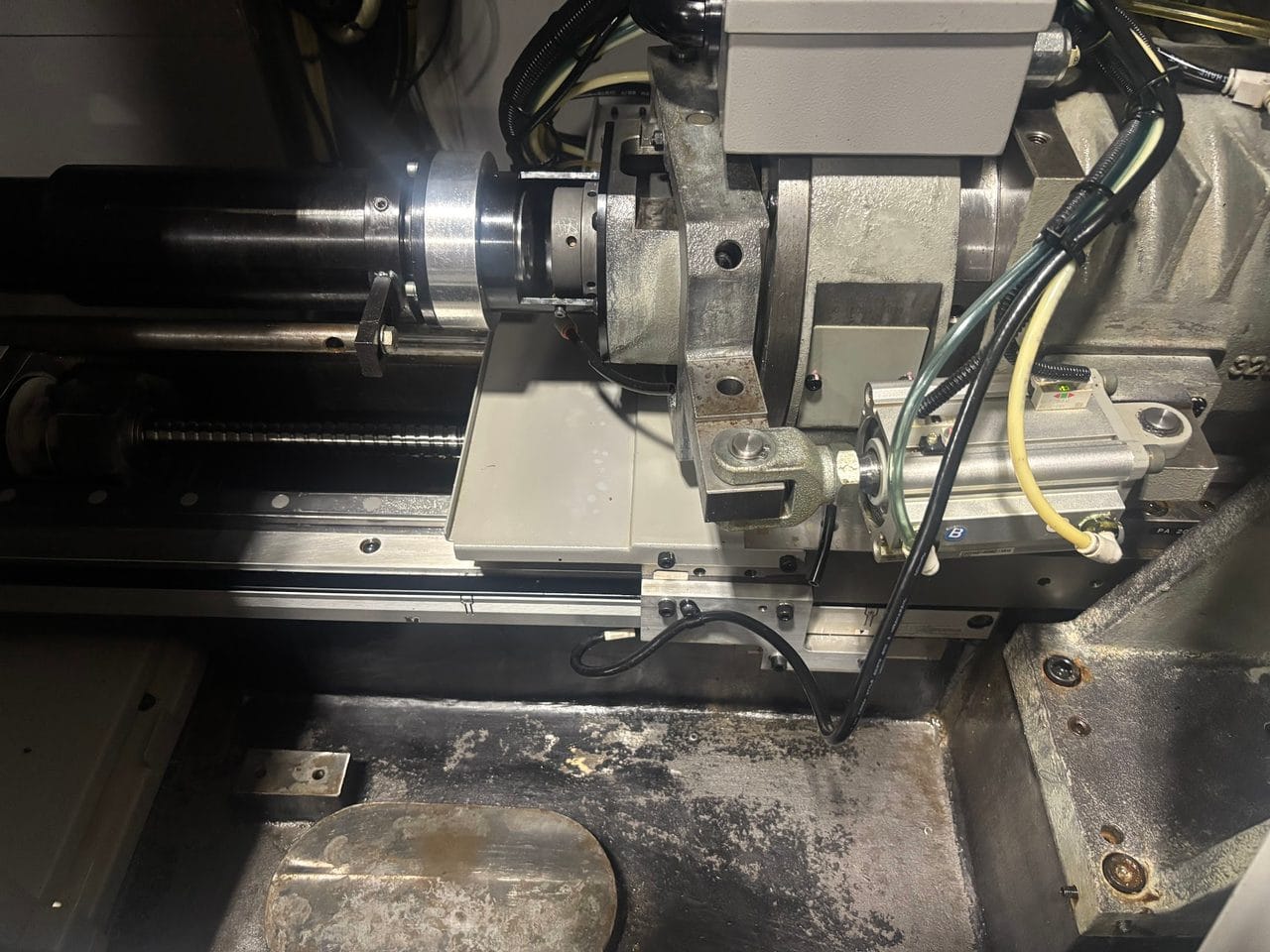

Guide Bushing
Custom Rear Work Collection
LNS Chip Conveyor
Sub spindle air blast
Door interlock with switches
Direct Driven Servo Rotary Guide Bushing
Main spindle C axis with brake

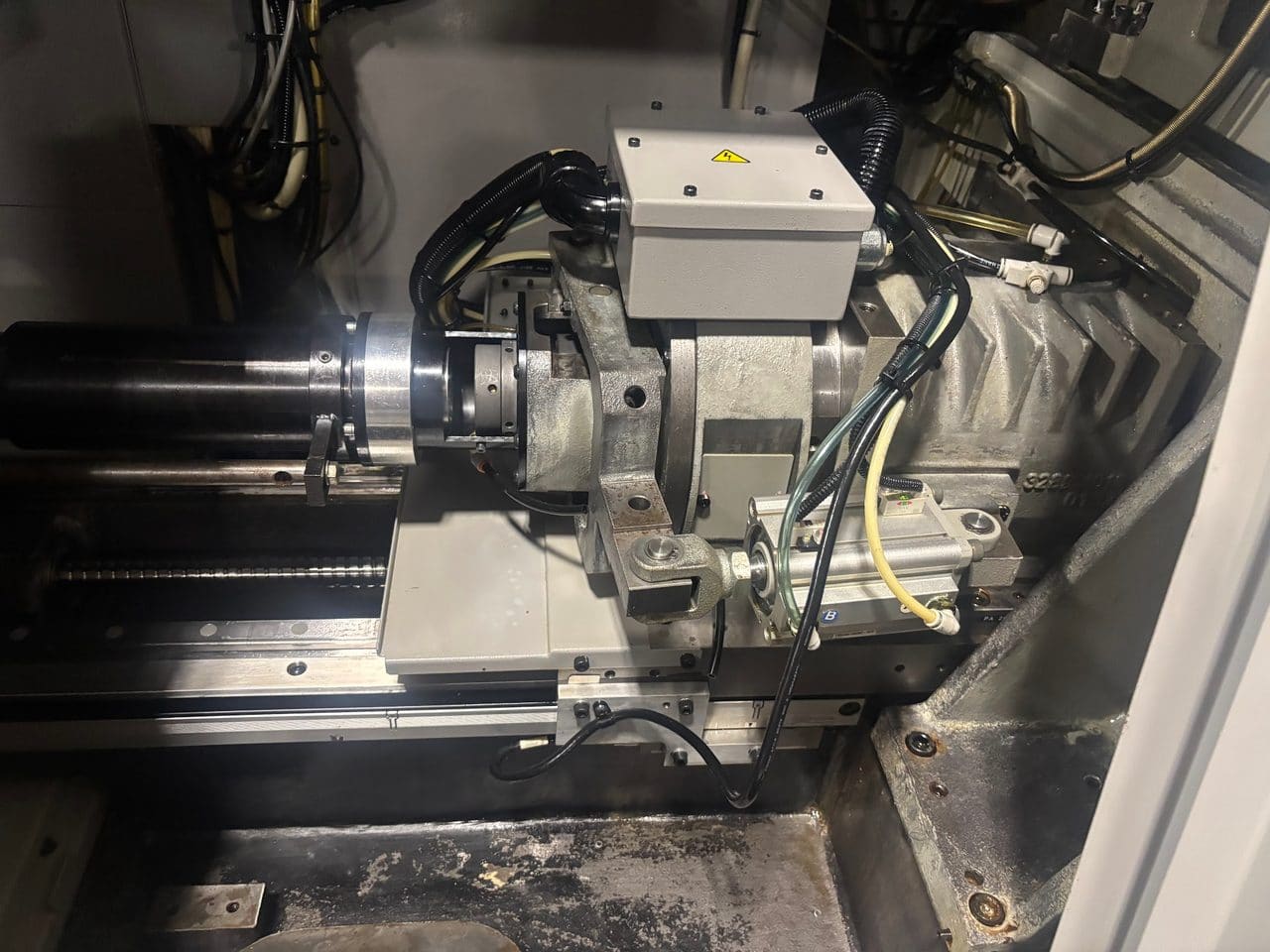

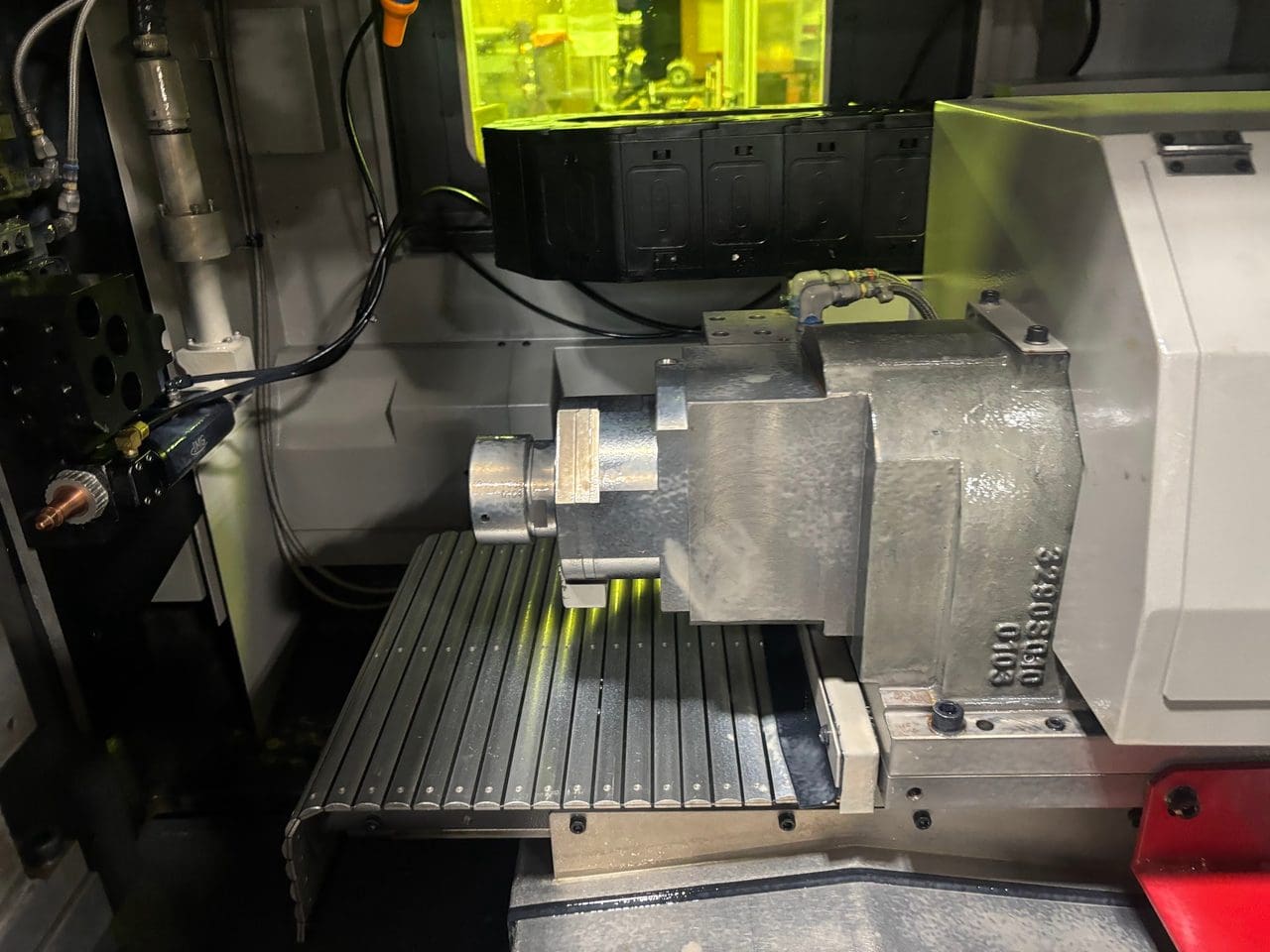

Back (Sub) spindle C axis with brake

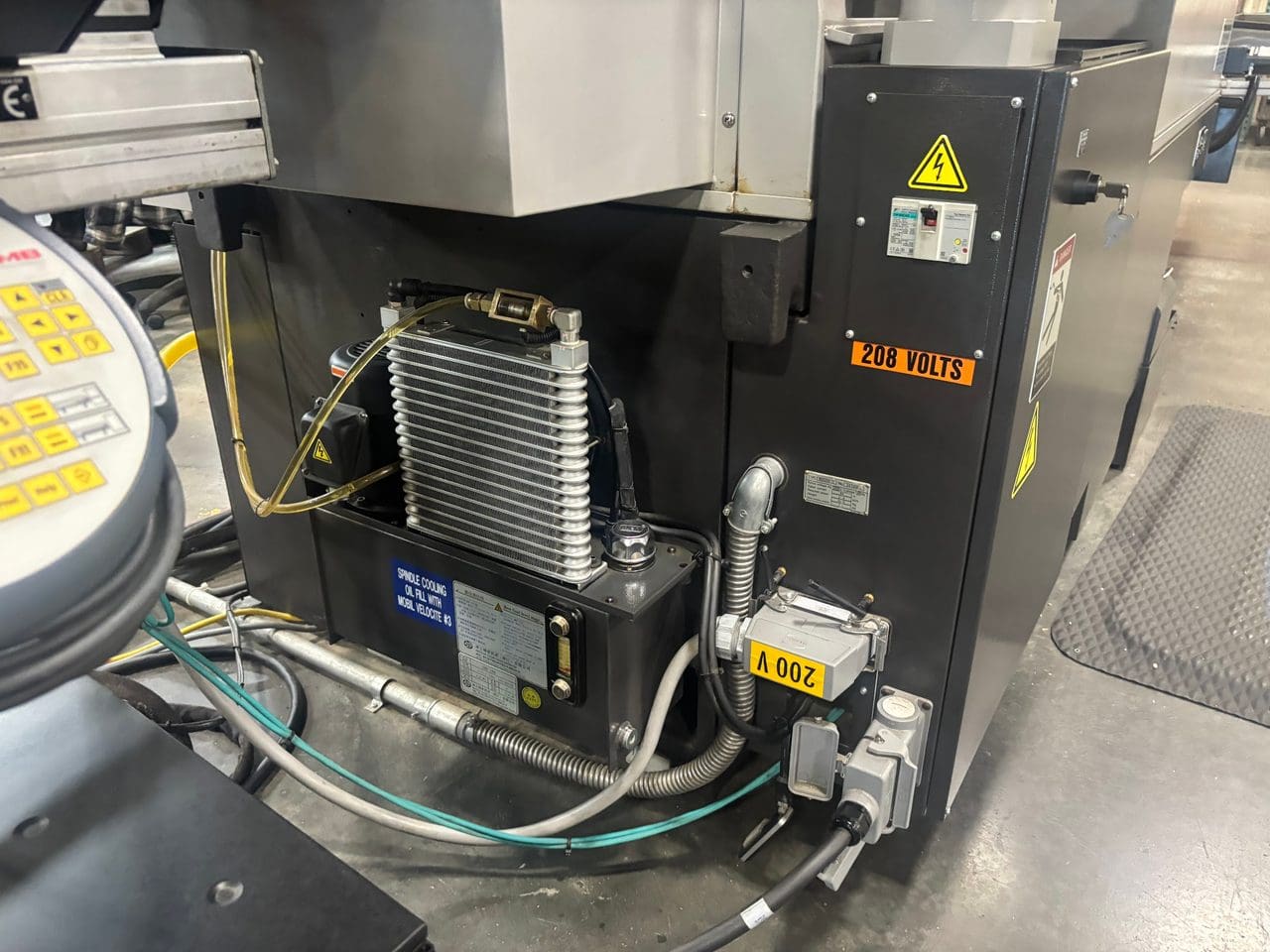

Spindle Cooling for Main, Sub and Guide Bushing Motors
Air pressurized guide bushing unit

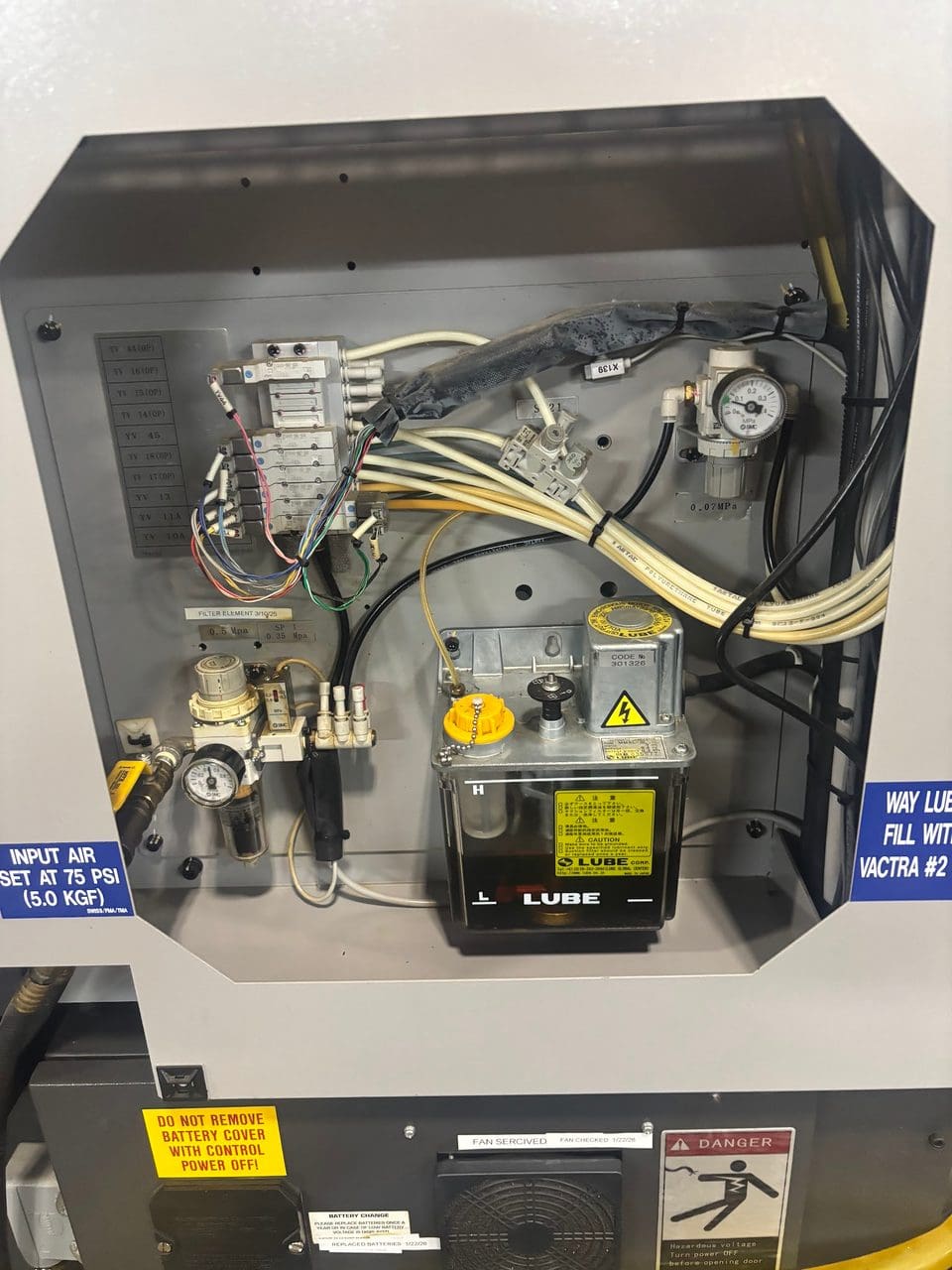

Centralized lubrication system w/oil level detector
Parts catcher with exit conveyor and basket
Cutting oil tank with coolant tank level detector
Embedded PC For Bar Feed Communication
Continuous Thread Cutting
Custom Macro B
Cut Off Breakage Detection
Cylindrical Interpolation
Helical Interpolation
Main/Back Spindle Synchronization
Rigid Tapping Main, Sub and Cross Tools

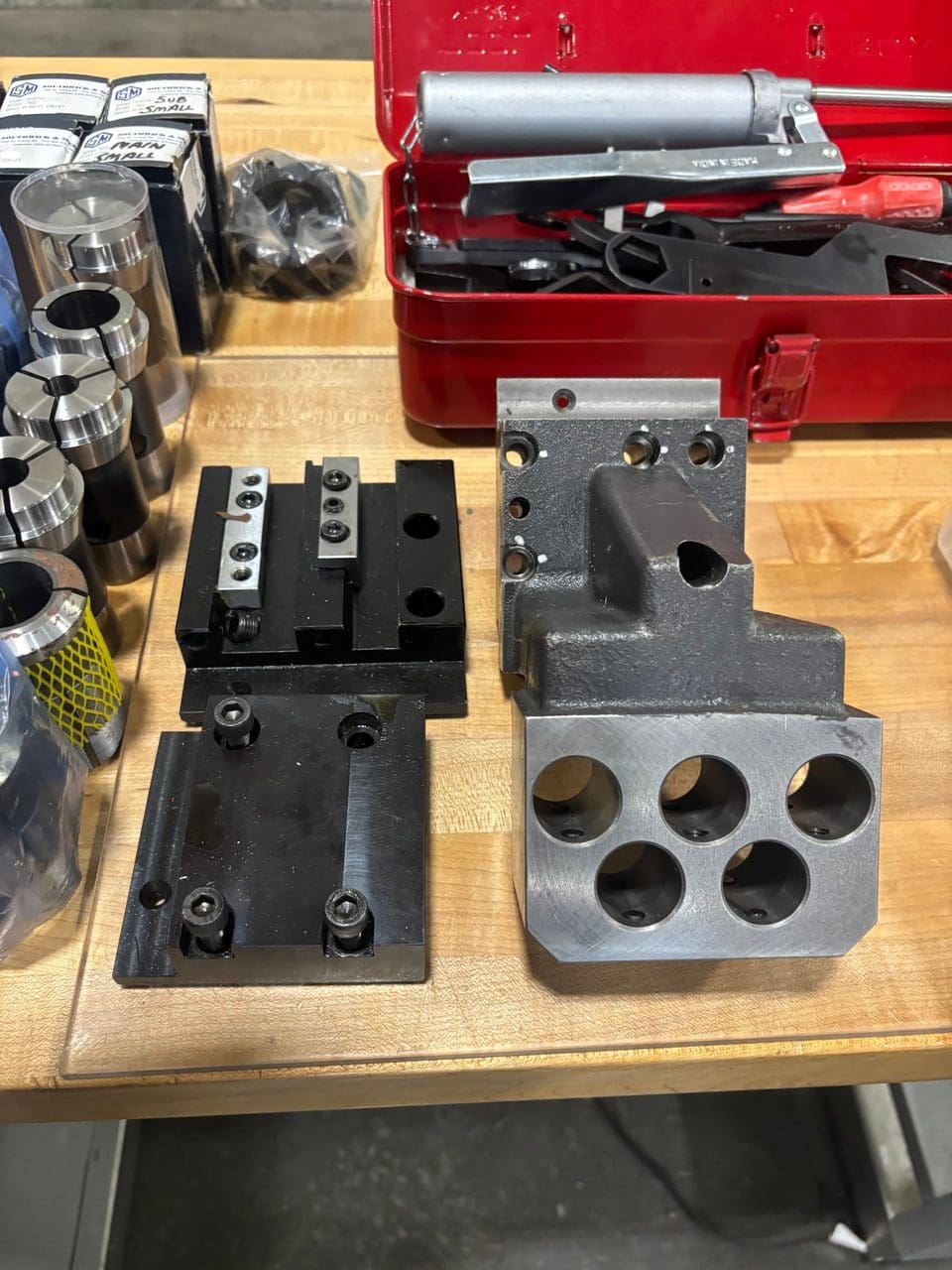

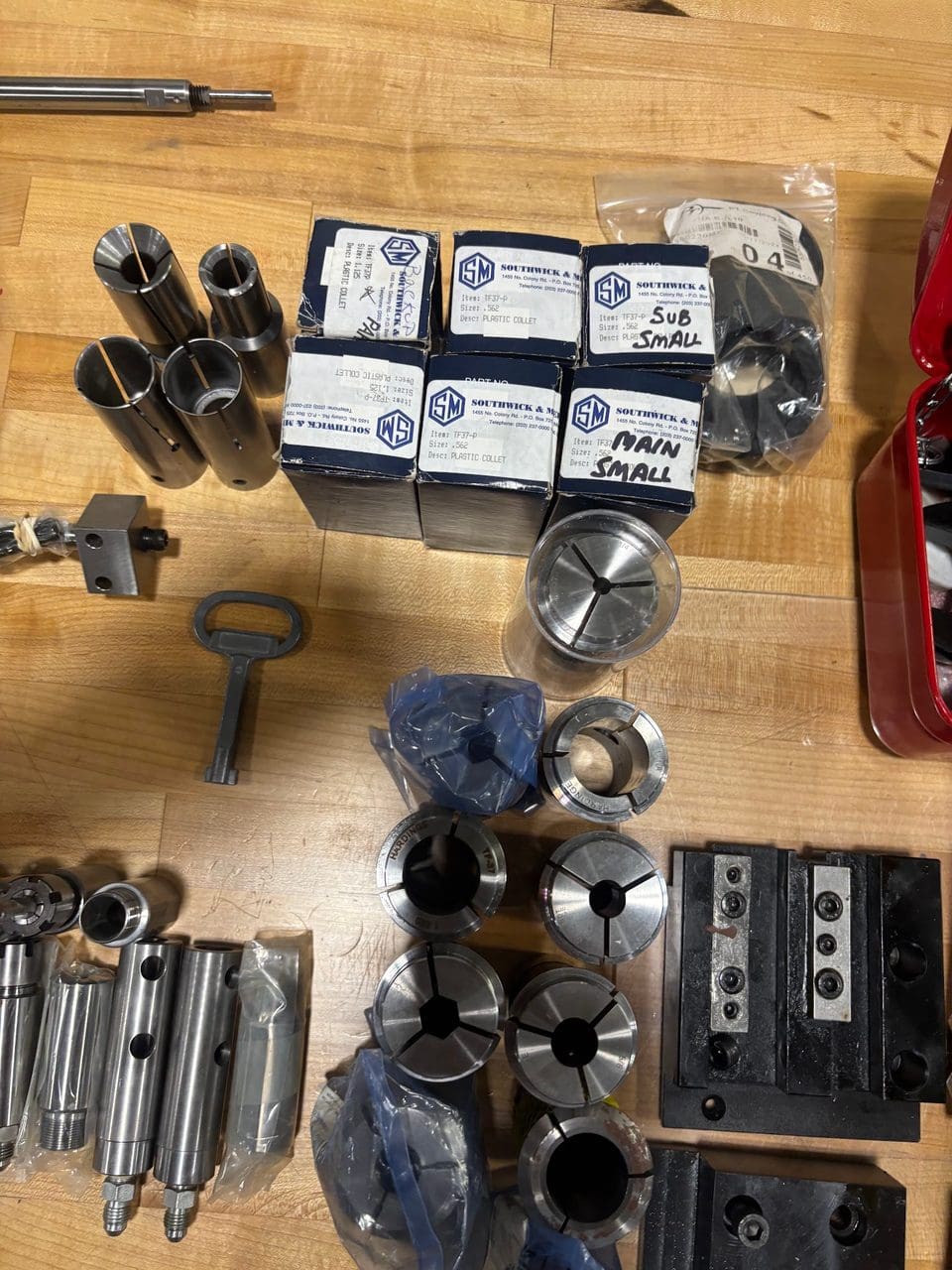

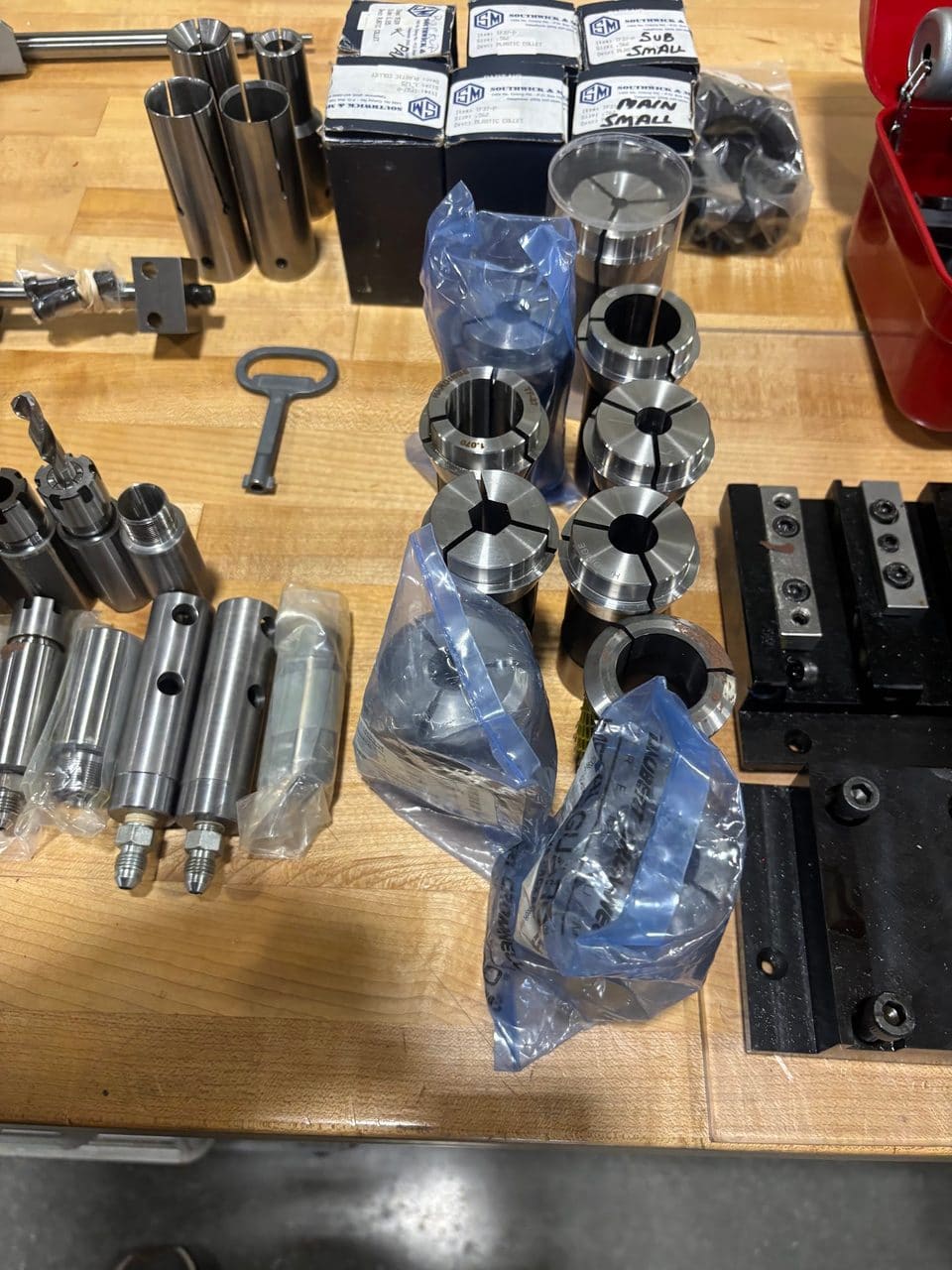

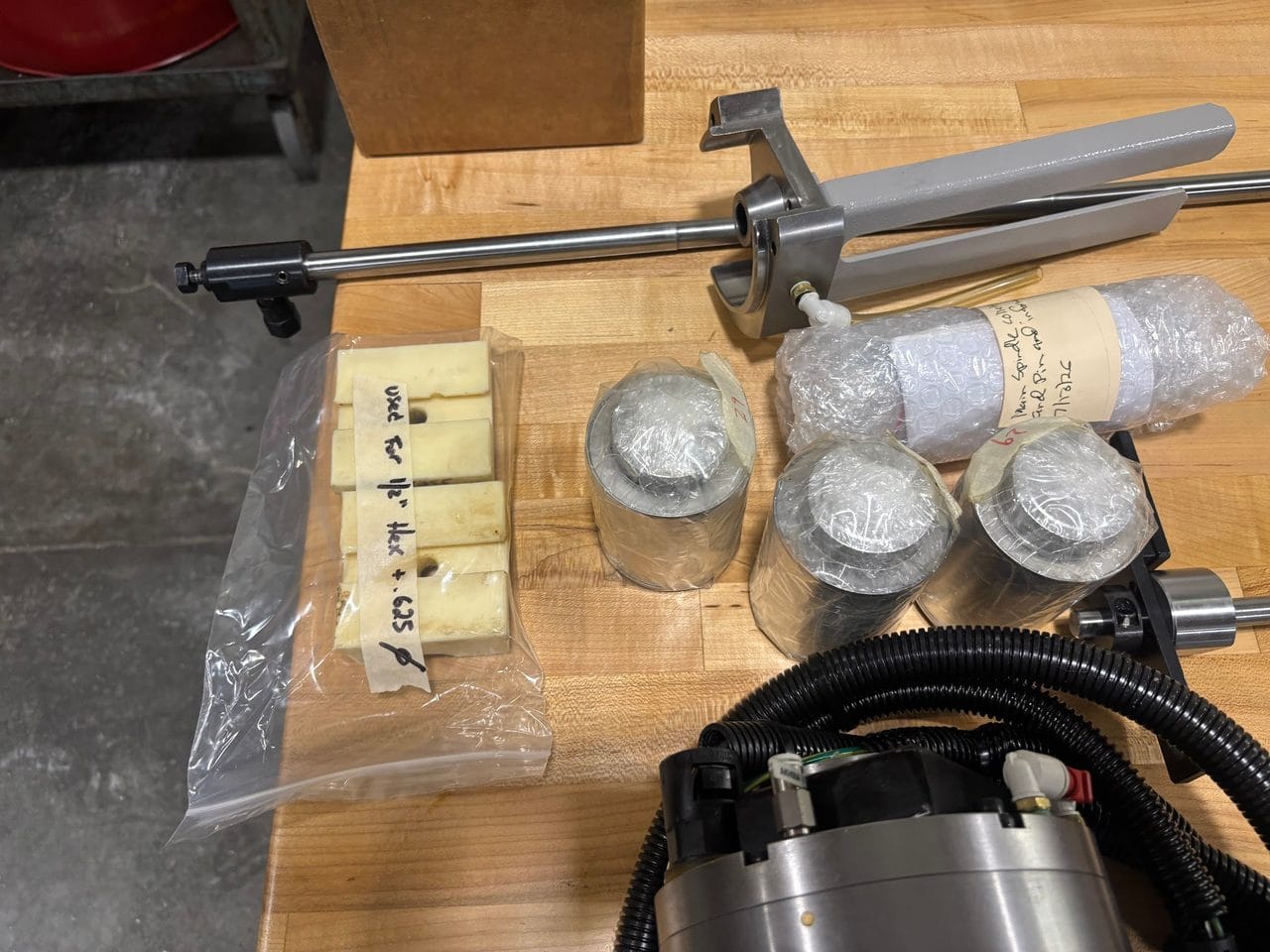

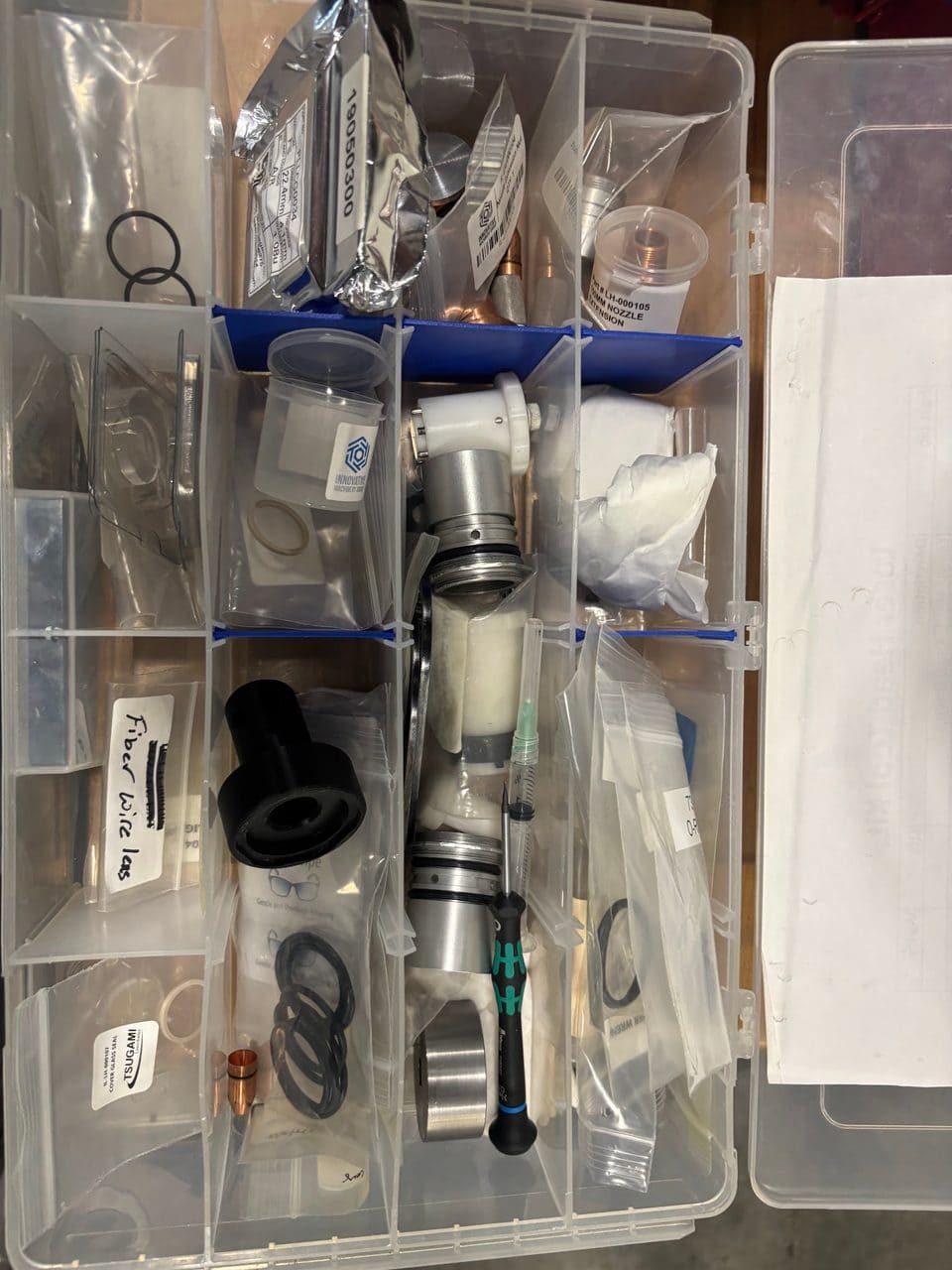

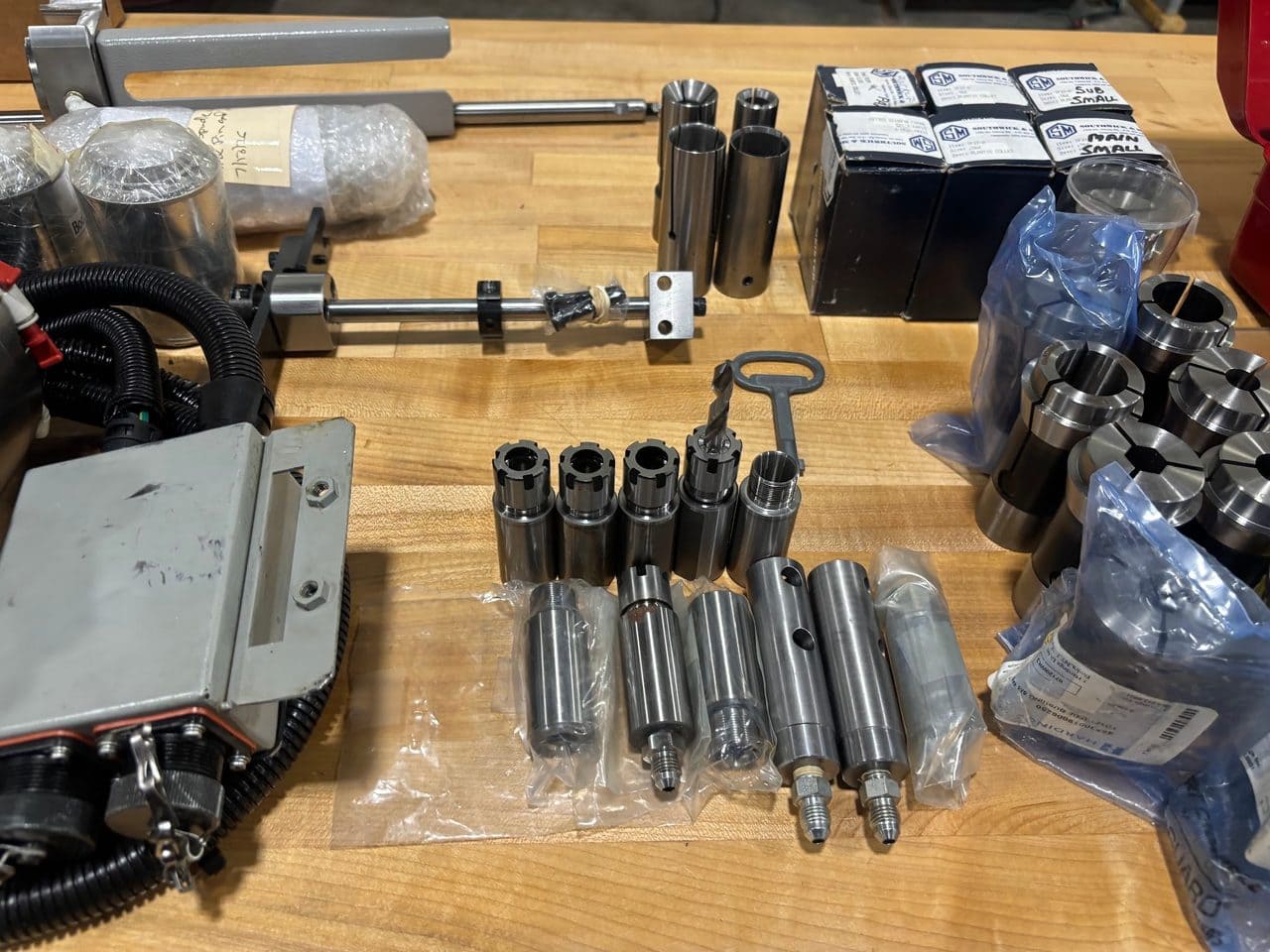

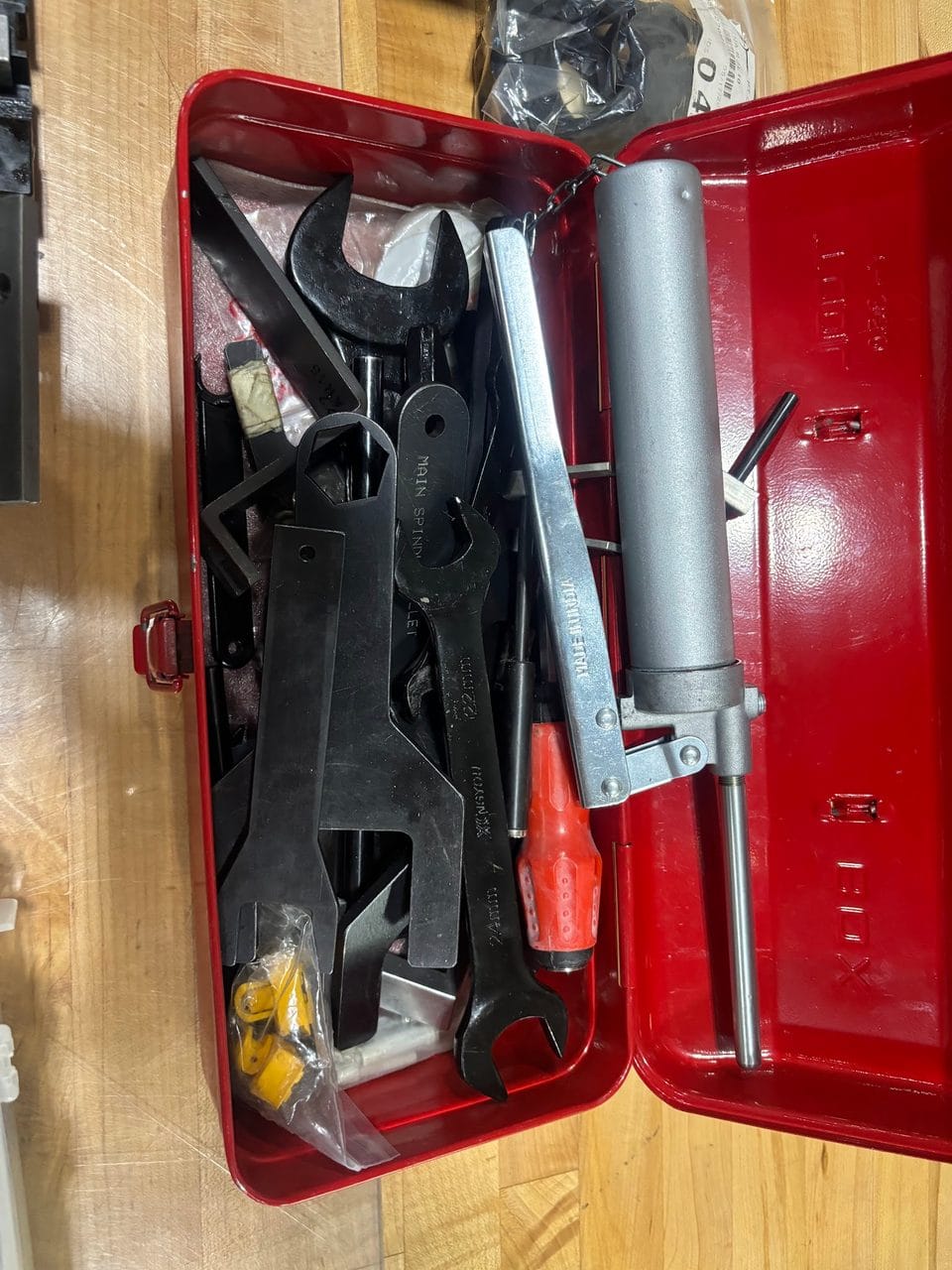

Tooling
