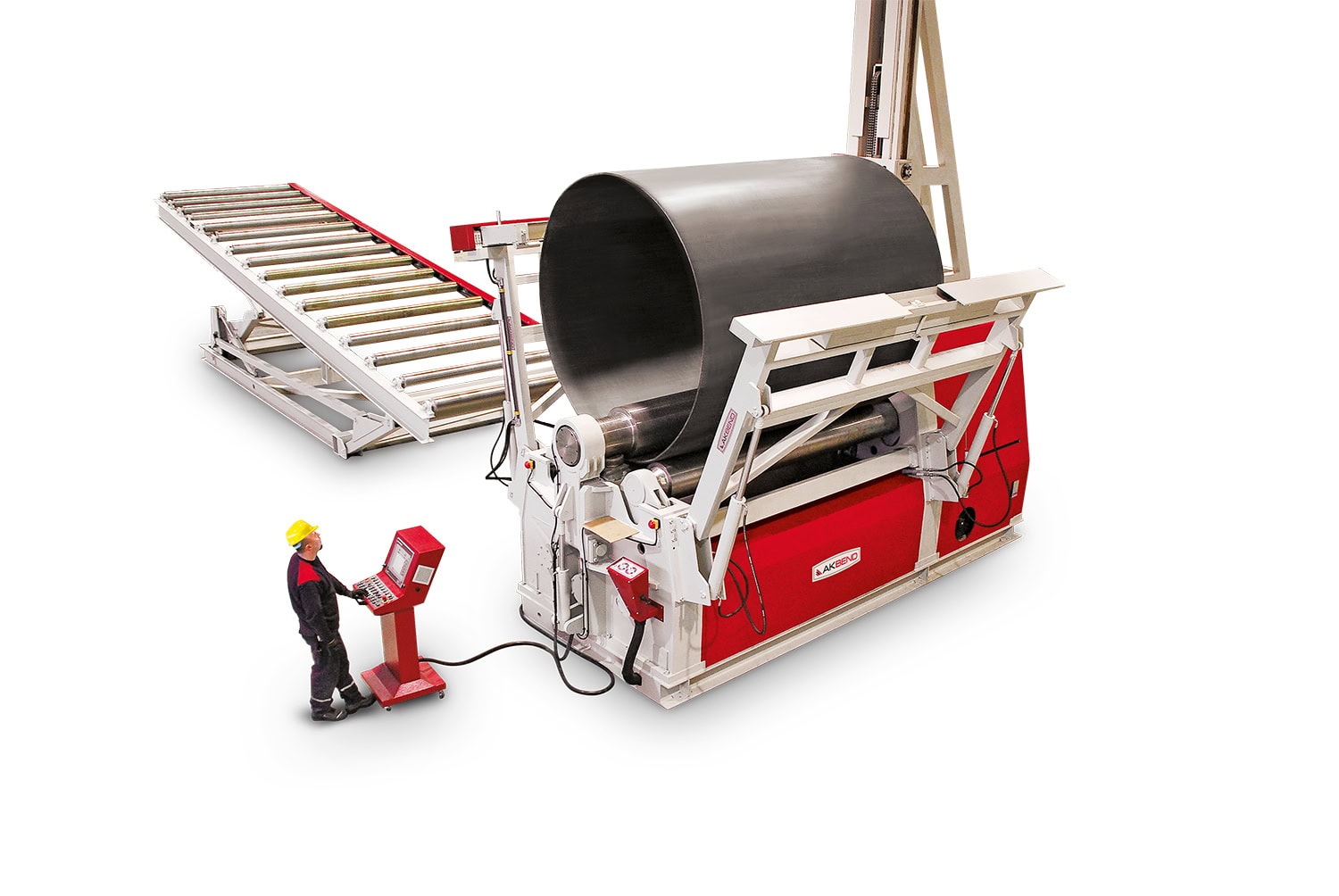

1″ x 10′ Akyapak AHS 3020 Plate Roll, 2024
$255,000.00
Machine Type: Plate Rolls
Make: Akyapak
Model: AHS 3020
Year: 2024
Capacity: 1” x ‘
Machine Location: Upon Request
Stock #: 681458
Model AHS-30-20
Condition New
Working length 10 Feet
Max thickness 1 Inch
Pre-bend thickness 13/16 Inch
Top roll dia. 15.4 Inch
Bottome roll dia 14.2 Inch
Side roll dia 11.8 Inch
Motor power 25
Length 19 Feet
Height 6.6 Feet
Width 6.9 Feet
Weight 37,699
Min. bending diameter (top roll diameter = trd) TRD x 3
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
