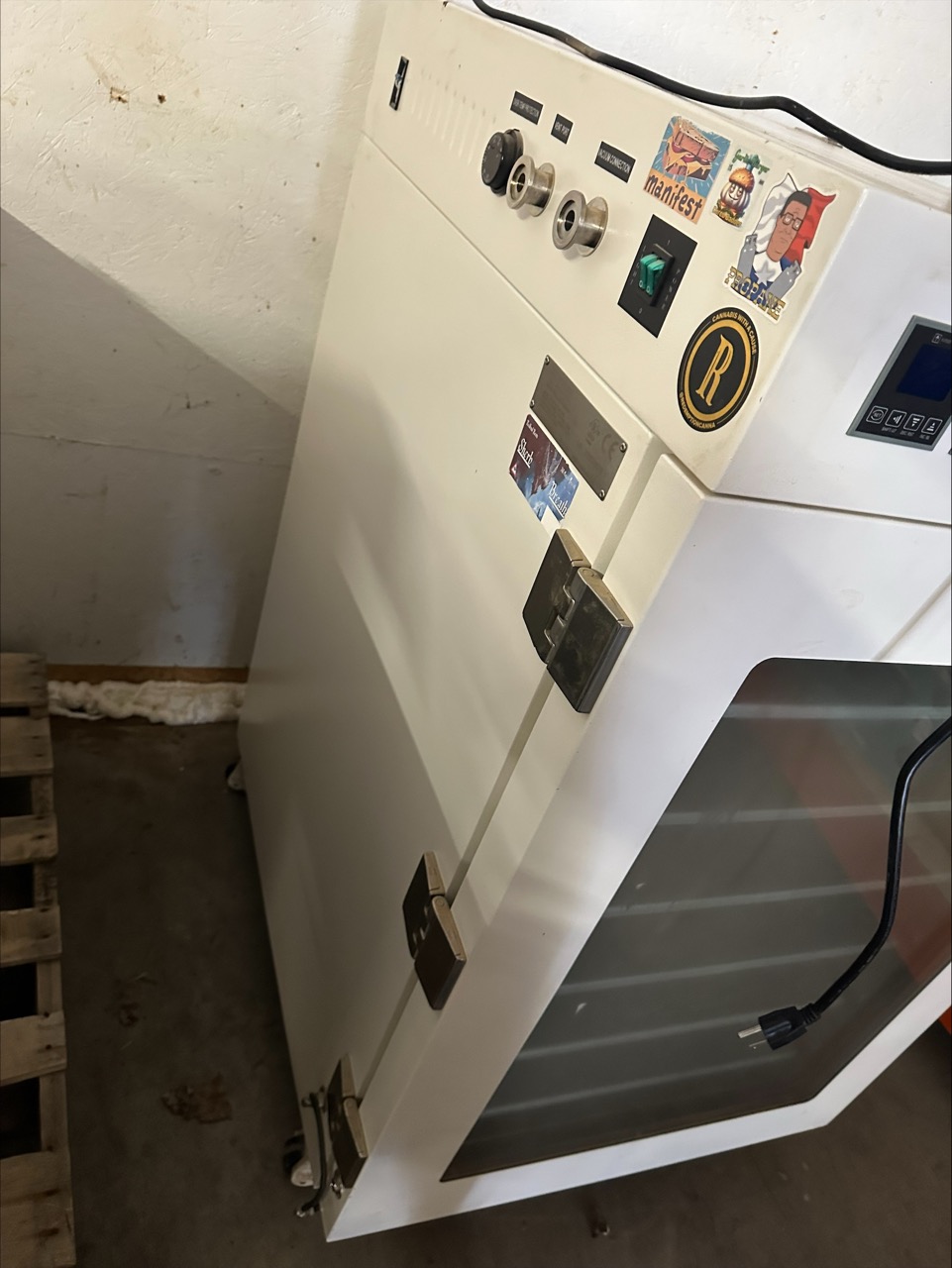

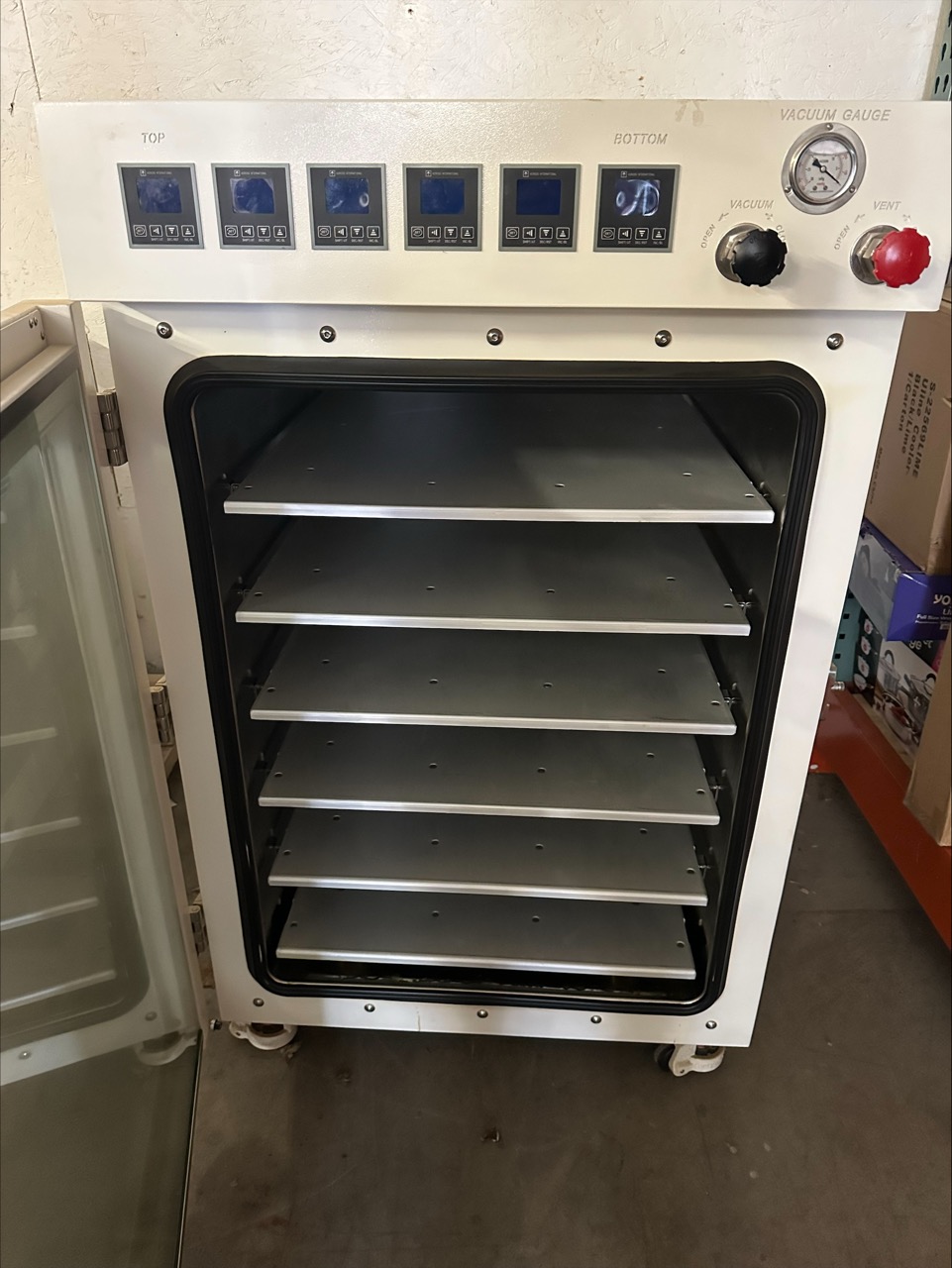

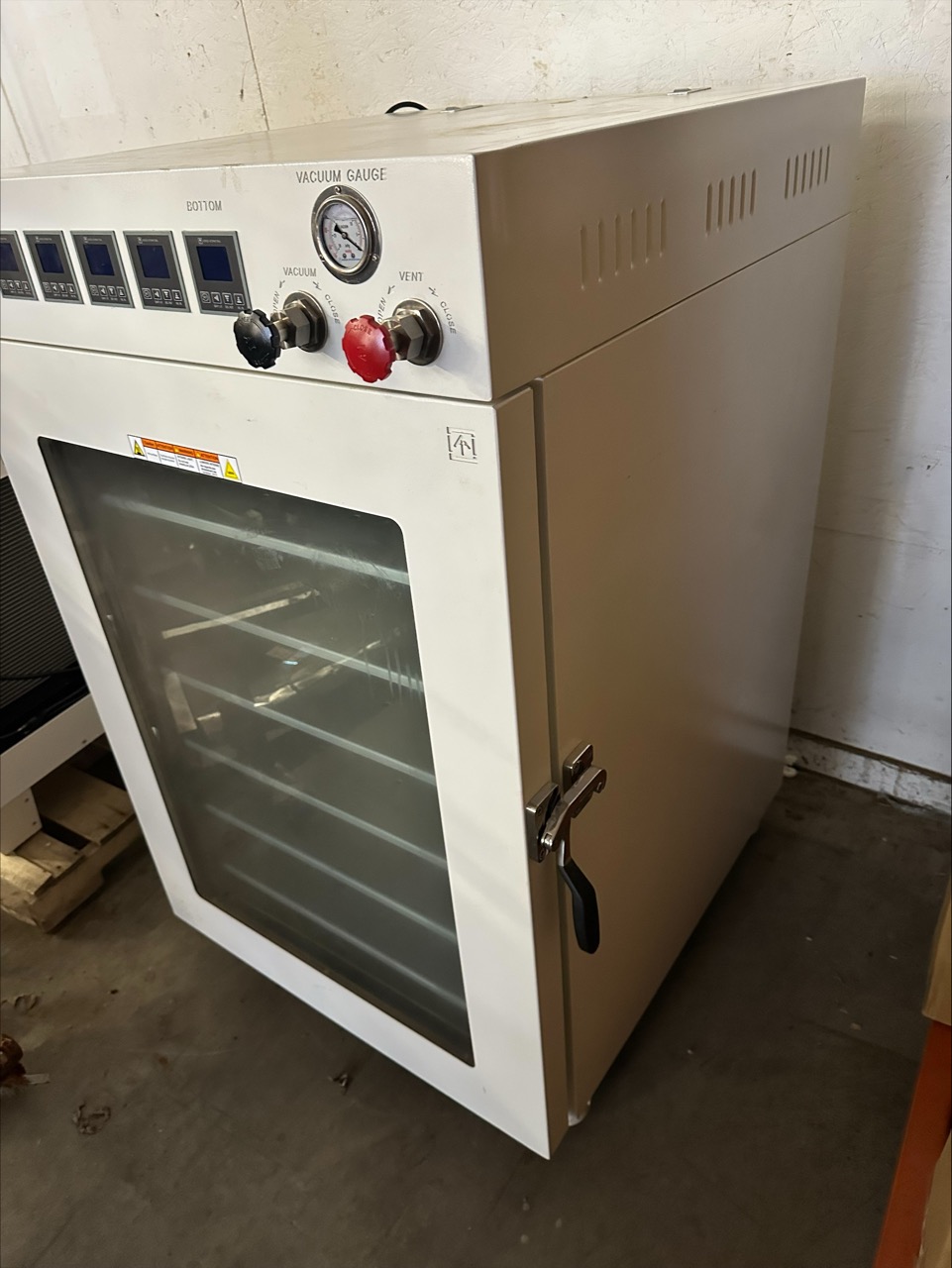

100°C Across International AT160 Vacuum Oven, 2020

Electrical Requirements

110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts

Heating

250 watts x 6, built into 6 aluminum shelves for the fastest, most energy efficient and uniform heating

Chamber

Dimensions: 25.6 x 30 x 35.5″ (WxDxH)
Material: Stainless steel
Capacity: 16 cubic feet

Temperature Control

Controller: Low proportional gain, microcomputer PID controlled with LCD display
Range: Ambient to 100°C (212°F)
Display units: Fahrenheit or Celsius
Uniformity: +/- 5% of setpoint
Dwelling timer range: 1 to 9,999 minutes

Vacuum

Ultimate vacuum level: Better than 500 microns/millitorrs (may vary based on altitude)
Mechanical vacuum gauge range: 0 to 30 inch mercury
Mechanical vacuum gauge type: Oil-filled
Vacuum port: KF25 flange x 1
Vent port: KF25 flange x 1
Vacuum pump: Sold separately

Weight & Dimensions

Unit weight: 710 lbs | Shipping weight: 1,114 lbs
Unit dimensions (WxDxH): 33 x 37 x 52″
Shipping dimensions: 46 x 39 x 60″

Shelves

6 non-removable heated aluminum shelves, 25 x 29.25″ (WxD) each
Optional stackable aluminum shelves: 25 x 29.25 x 2.375″ (WxDxH)
Shelf spacing (without stackable shelves): 5″
Shelf spacing (with 6 stackable shelves): 2.375″
Total shelf area: 30 sq ft / 4,386 sq in (without stackable shelves)
Total shelf area with stackable shelves: 60 sq ft / 8,772 sq in
Max. load capacity per shelf: 20 lbs

Door & Viewing

Door gasket material: Silicone or Viton
Observation window: 1/2″ tempered safety glass

Safety Features

Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial

Interior Lighting

White LED

Compliance

UL Listed (E482564), CE
