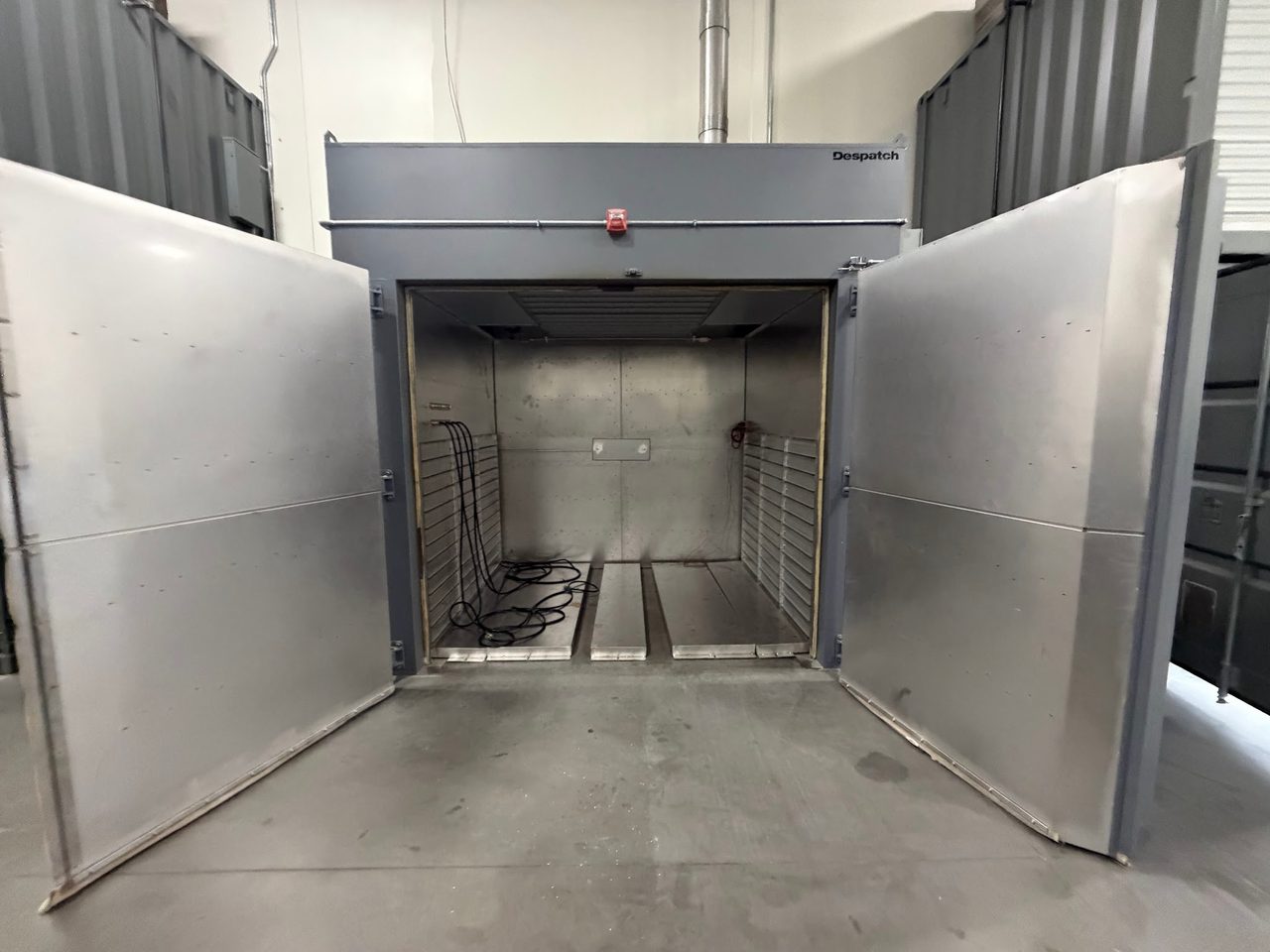

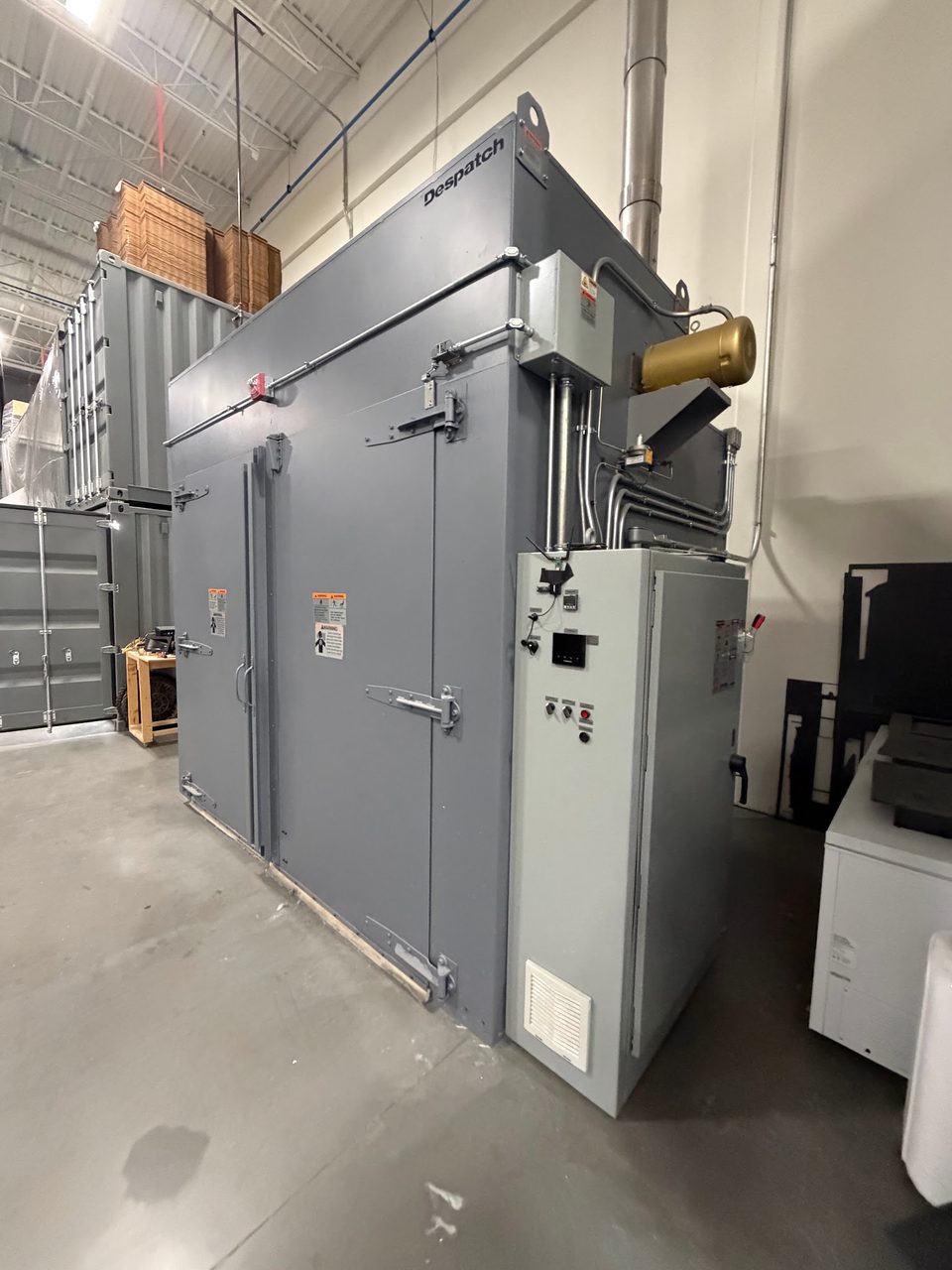

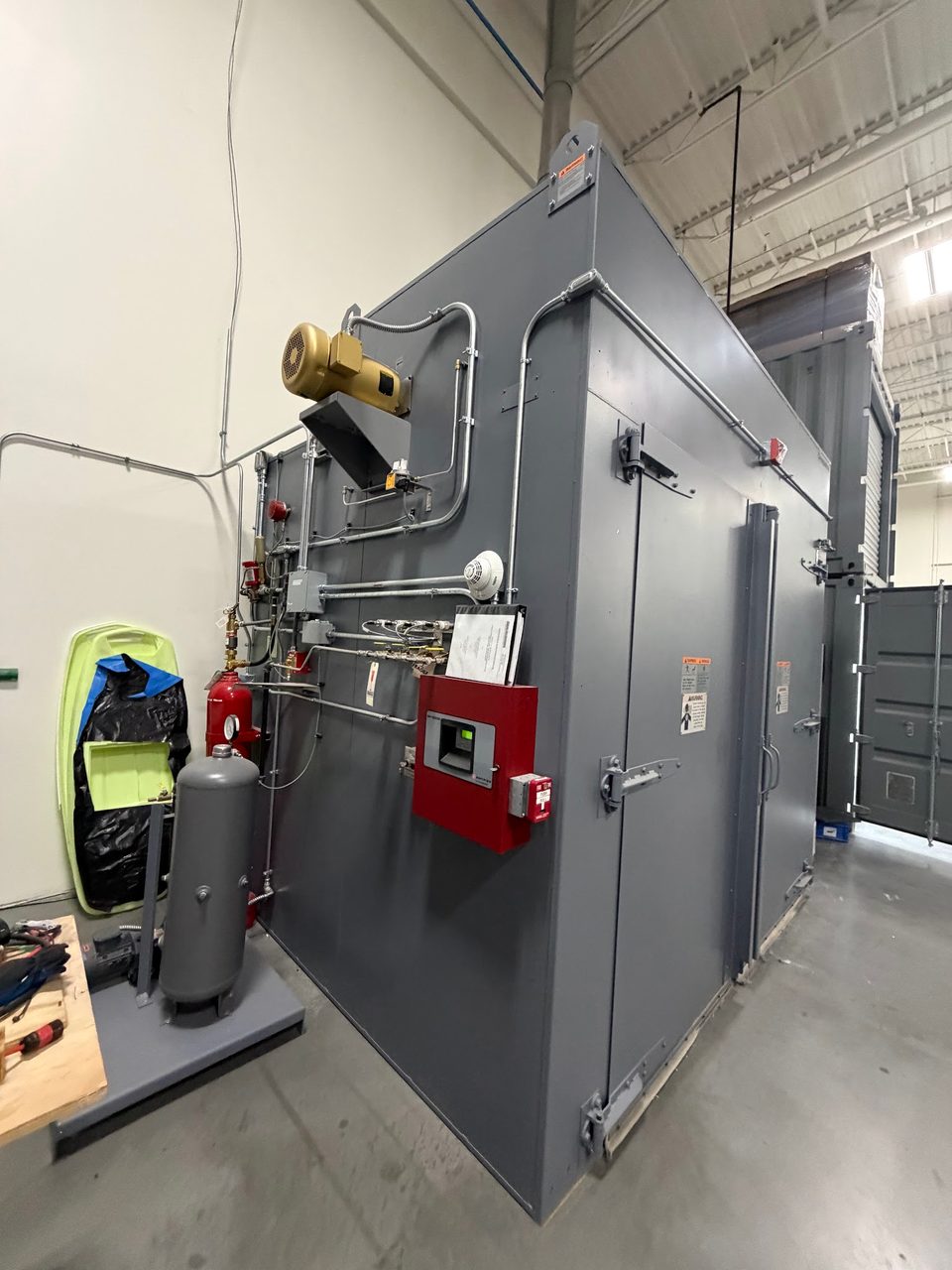

Despatch TFD3-48 Curing Oven, 2022 – With Chimney, Fire Suppression System, Lightly Used

Model: TFD3-48-1E
Class A Walk-In / Truck-In Industrial Batch Oven
Heating Type: Electric
Class A Rating: NFPA 86, Configured for Flammable Solvent Processing
Maximum Operating Temperature: 650°F (343°C)
Operating Temperature Range: 93°F–650°F (34°C–343°C)
Work Chamber Dimensions (W x D x H): 102″ x 84″ x 96″
Chamber Capacity: 476 Cubic Feet
Overall Dimensions (W x D x H): 171″ x 94″ x 130″
Electrical Requirements: 480V / 3 Phase / 60 Hz
Heater Capacity: 108 kW
Maximum Amp Draw: 160 FLA
Heating Elements: Fast-Response Open-Coil Electric Heaters
Recirculation Motors: (2) 10 HP
Recirculation Airflow: 11,200 CFM
Airflow Design: Horizontal Uniflow with Side Supply Ducts and Ceiling Return
Temperature Uniformity: ±1.5% at Setpoint After Stabilization
Temperature Controller: Watlow F4T Cascade Control PID
Controller Modes: Manual, Timer, and Profile
Communication: RS-485 Modbus, Ethernet, and USB
Exhaust System: Forced Exhaust with 2 HP Motor
Exhaust Capacity: 400–1,000 CFM
Exhaust Outlet: 5″ x 13.5″
Construction: Mild Steel Exterior with Aluminized Steel Interior
Insulation: 5″ High-Grade Insulation
Doors: Bi-Parting Doors with Spring Latches
Safety Features: High-Limit Temperature Protection, Audible/Visual Alarm, Door Interlock, Purge Timer, and Pressure Relief
Electrical Panel Certification: UL / C-UL 508
Approximate Weight: 9,100 lbs (Standard Model Reference)

Equipped with;
Class A NFPA 86 Flammable Solvent Configuration
Insulated Floor with Standard Truck Track Spacing
3″ Rockwool Floor Insulation
Lifting Lugs
Modulating Fresh Air and Exhaust Dampers
Bank of (4) Vacuum Transducers, 0–30″ Hg
Vacuum Pump Skid with 7.1 ACFM Pump
(2) Vacuum Manifold Assemblies with (4) Connections Each
Watlow F4T Controller with Part Monitoring Batch Feature
(8) Type J Thermocouple Monitoring Connections
