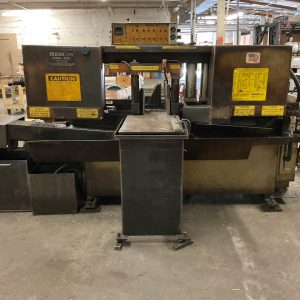

13″ X 15″ DoAll DC-330NC Series Automatic Horizontal Band Saw, 2012

$14,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Horizontal Saws
Make: DoAll
Model: DC-330NC
Year: 2012
Capacity: 0” x 0“
Machine Location: Oklahoma
Stock #: 364131

Voltage: 230 V, 60 Hz, 3-Phase
Full Load Amps: 22 A
Motor Power: 5 HP (3.7 kW)
Speed Range (variable): 52 to 430 fpm
Cutting Capacity
Round: 13″
Rectangle: 15.75″ x 13″
Saw Blade: 1.25โ€ณ x 0.042โ€ณ x 167โ€ณ
Hydraulic System
Motor: 1hp
Reservoir: 16 gallons
Coolant System
Pump: 1/6 hp
Tank: 24 gallons
Indexer / Automation
Incremental Stroke (single): ~19.68โ€ณ
Max Multiple Index Stroke: 177โ€ณ
Machine Dimensions: 89โ€ณ x 87โ€ณ x 56โ€ณ
Machine Weight: 4,410 lbs

New replacement cost $48,000

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
