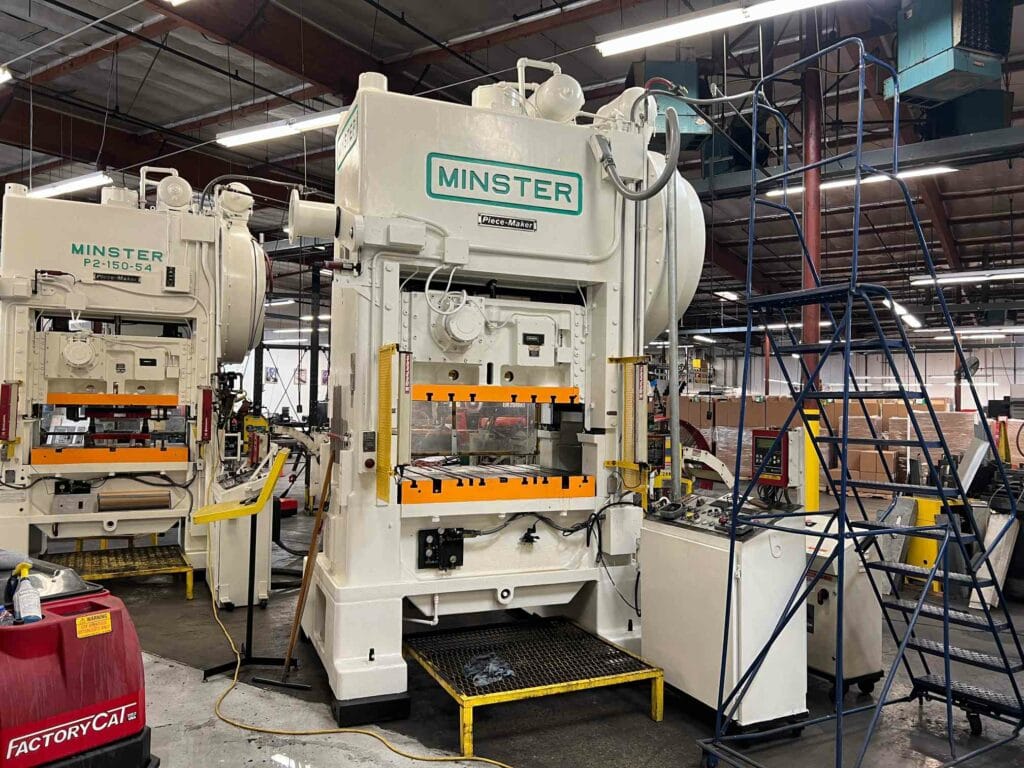

150 Ton Minster Punch Press P2-150-54, 1977

$99,900.00

Request a Quote to Instantly See Pricing

Machine Type: Presses
Make: Minster
Model: P2-150
Year: 1900
Capacity: 150 Ton
Machine Location: Upon Request
Stock #: 382172

CAPACITY: 150 TONS
STROKE: 6″
MAX. SHUT HEIGHT TO BED: 23″
BED AREA: 54″ X 40″ (RL X FB)
SPEED: 45-90 STROKES PER MINUTE
RAM ADJUSTMENT: 4”
RAM AREA: 54″ X 23″ (RL X FB)
BOLSTER PLATE: 54″ X 40″ (RL X FB)
DISTANCE BETWEEN UPRIGHTS APPROX: 56″
FLOOR TO BED : 40.5”
WINDOW SIZE : 20″ WIDE
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION
PRESS CONTROLS UPDATED ROCKFORD SSC-1500 CONTROLLER
ELECTRICS : 480V-3-60
APPROX. DIMENSIONS: 132″ X 84″ (RL X FB) X 168″ HIGH
APPROX. WEIGHT: 50,000 LBS.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
