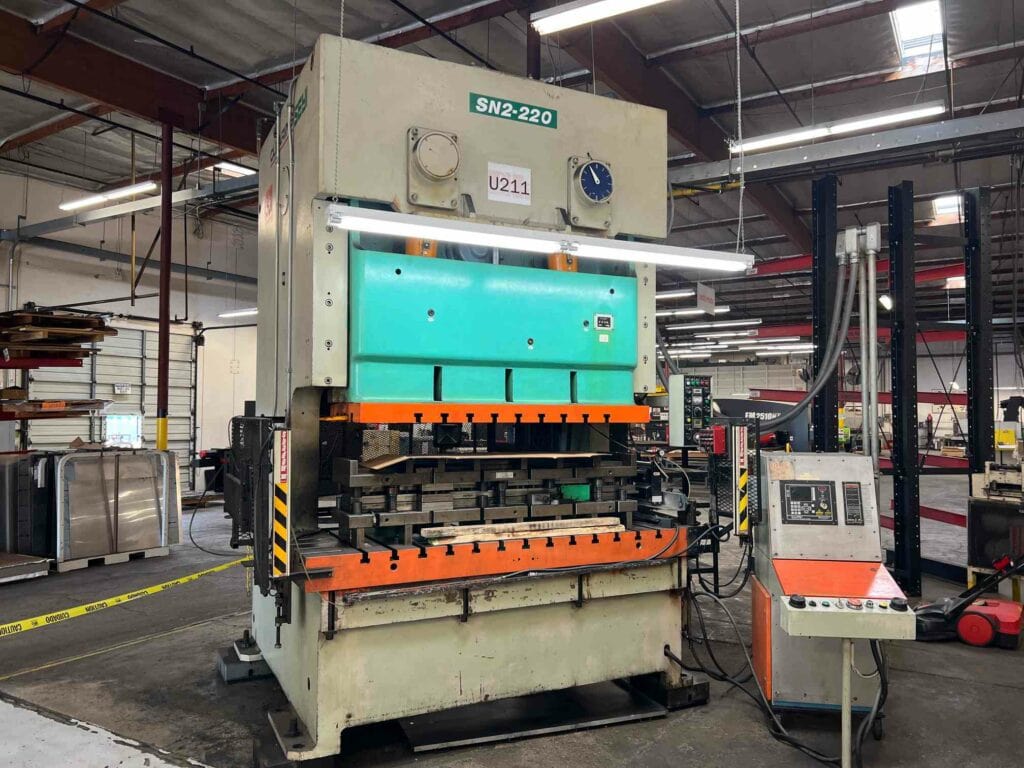

220 Ton Seyi SN2-220 Punch Press, 1998

CAPACITY 220 US TONS
STROKE 9.1″
MAX SHUT HEIGHT 19.7″ SDAU OVER BOLSTER
BED AREA 95.3″ RL X 33.1″ FB
SPEED 25 – 45 SPM
RAM ADJUSTMENT 4.3″ MOTORIZED
RAM AREA 72.8″ RL X 25.6″ FB
BOLSTER PLATE 95.3″ RL X 33.1″ FB
DIST UPRIGHTS / FLOOR TO BED 76″ / 32″
CLUTCH SEYI AIR CLUTCH / BRAKE COMBINATION
ELECTRICS 25 HP 1750 RPM 240/480V-3-60 MOTOR & OMNILINK PRESS CONTROL
APPROX DIMENSIONS 148″ H X 107″ RL X 88″ FB
APPROX WEIGHT 60,000 LBS
