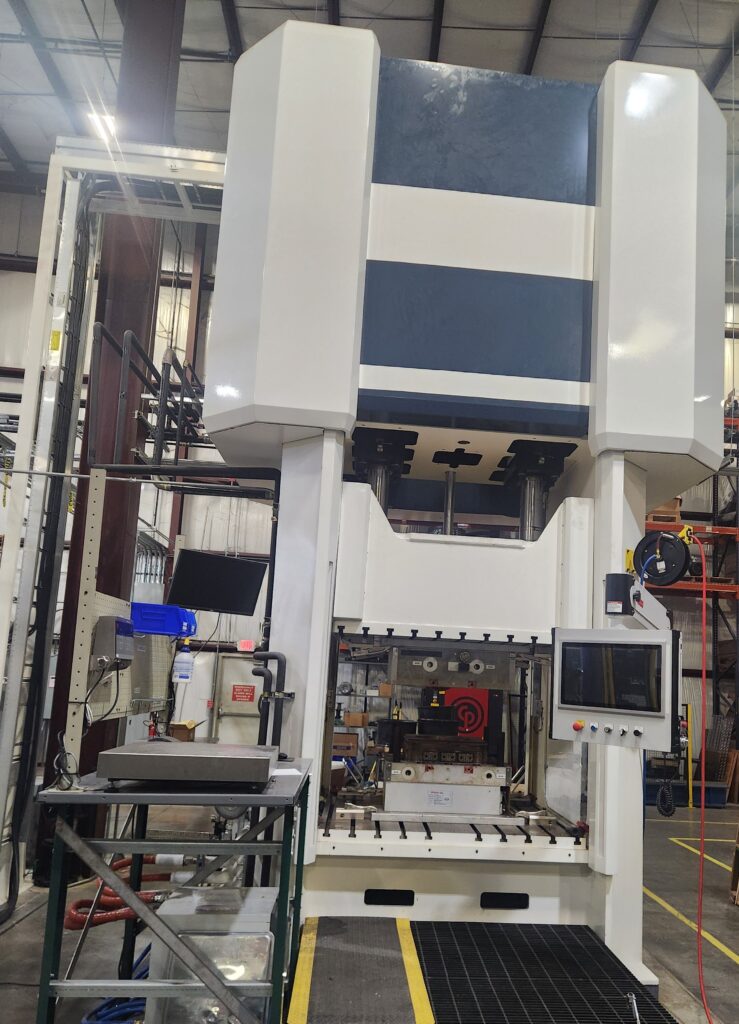

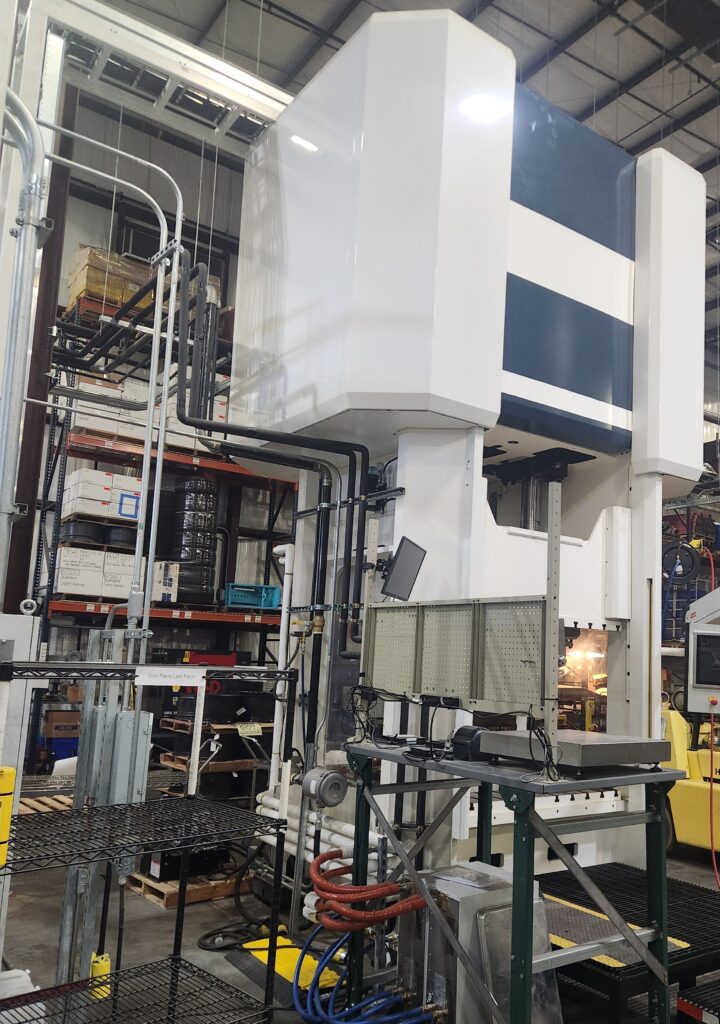

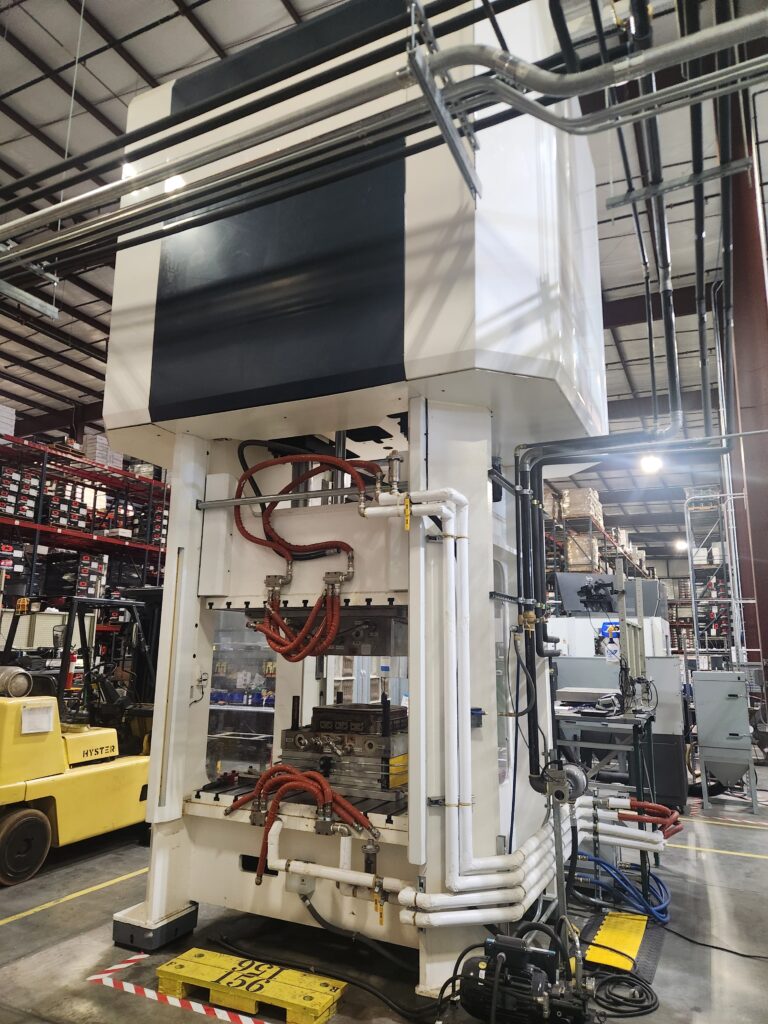

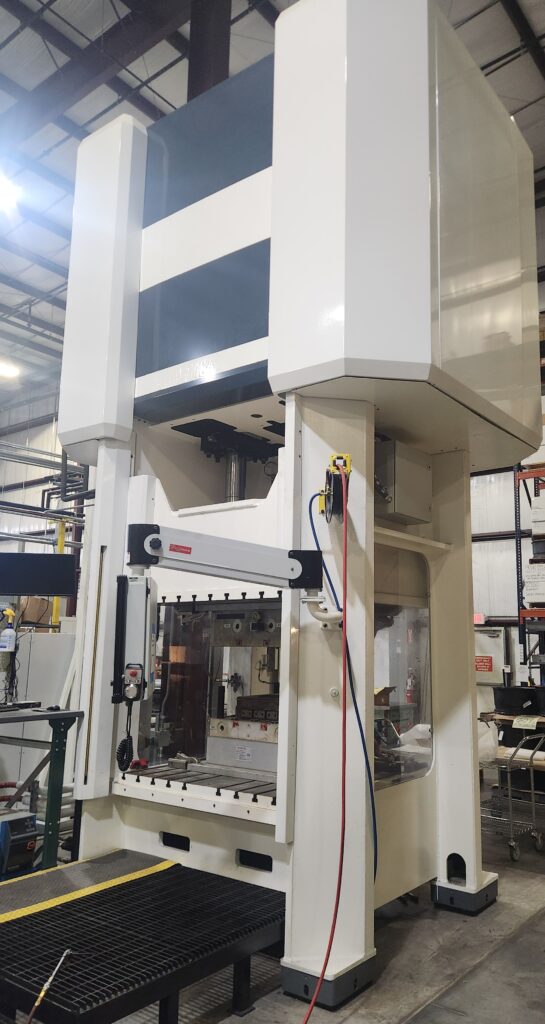

250 Ton Beckwood LSP-250-6464 Linear Servo Screw Press, 2023

– Linear Servo Press’s Nitches:

– Off center loading

– Draw and Punching Work with Nitrogen Die Systems

– Heated Platen Applications

– Precision Forming

– High Cleanliness Requirements

– Capacity: 13 to 250 Tons

– Stripping Capacity: 187 Tons

– Day Light: 60″

– Stroke: 36”

– Shut Height: 24″

– Slide Area: 64” x 64″

– Bolster Area: 64” x 64”

– T-Slots: 6″ Centers – Ram and Bolster

– Fast Approach / Retract Speed: 0.01 to 6 in/sec

– Pressing Speed: 0.01 to 0.6 in/sec

– Dwell Capability: Infinite – Near zero energy drawn to maintain the dwell (brake holds tonnage)

– Window: ?″ Wide x ?″ Tall – Must Confirm

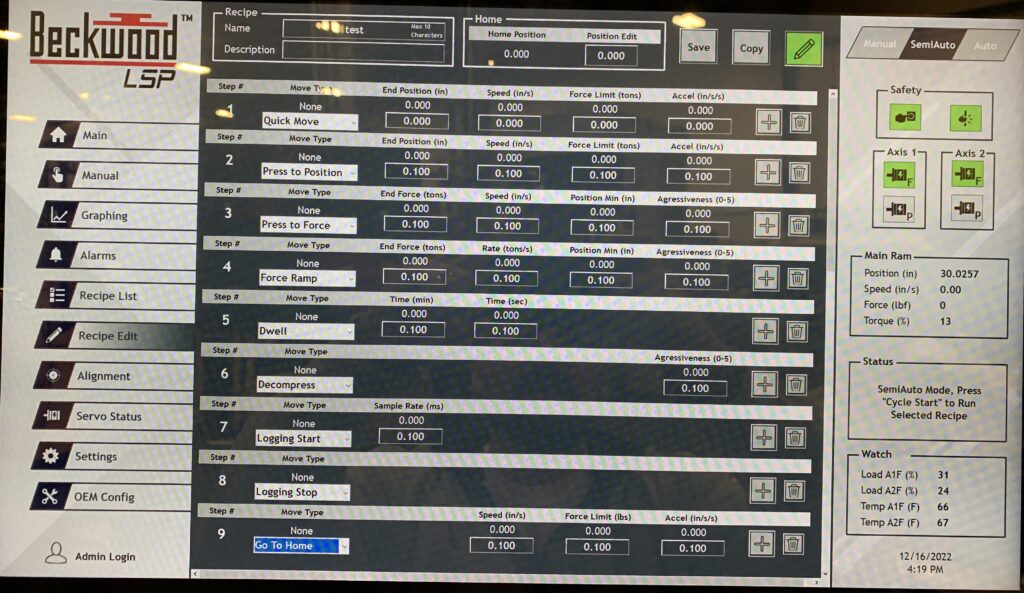

– Press Control: Allen Bradley CompactLogix 5069-L306ER – Programmed for up to 15 Steps

– Pressing Motor: Two @ 22 kW (Two @ ~30 HP)

– Fast Approach Motor: Two @ 30 kW (Two @ ~40 HP)

– Power: 480 Volt, 3 Phase, 60 Hz

– Full Load Amps: 295 Amps

– Pneumatics: 90 psi minimum (estimated 2 SCFM)

– Weight: 81,500 lbs

– Manufacturing Date: 6-2023
