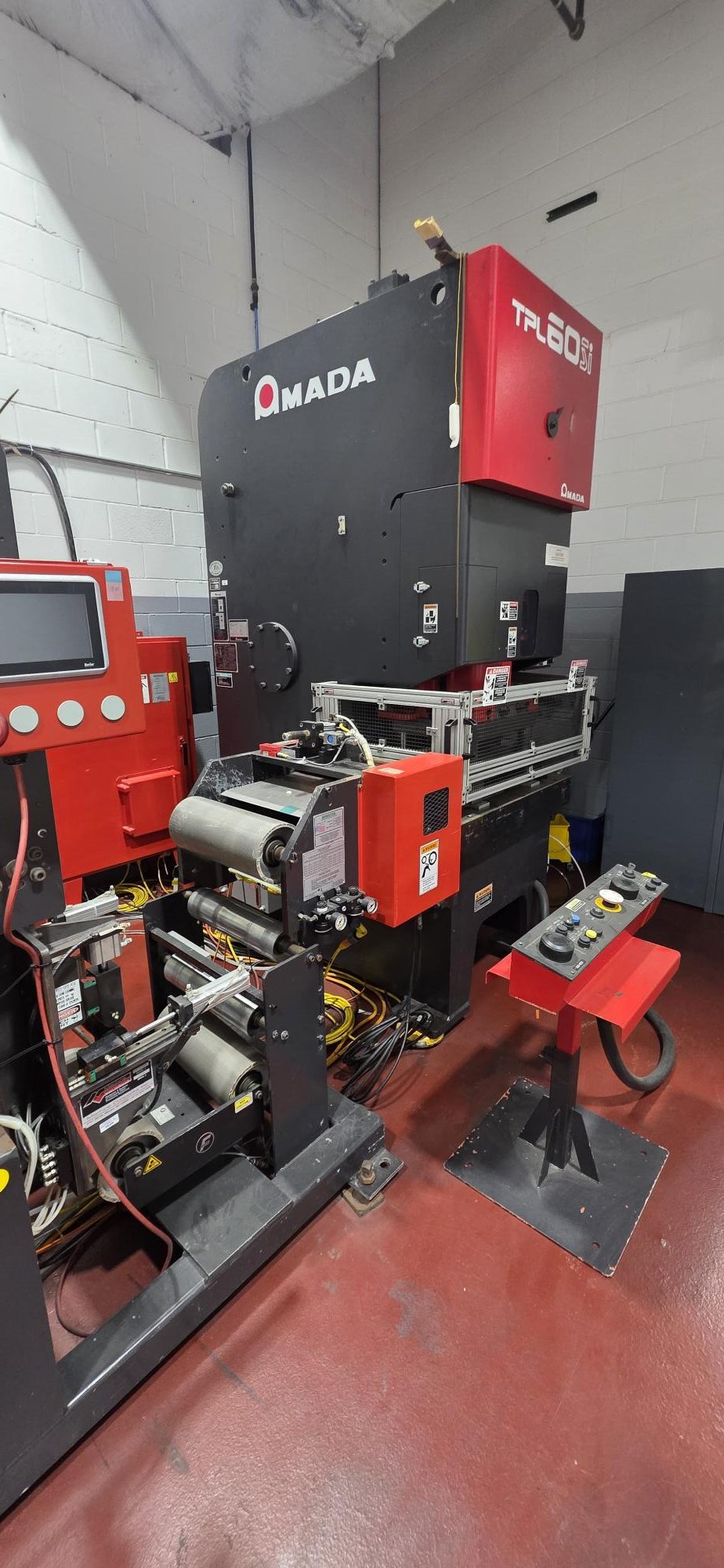

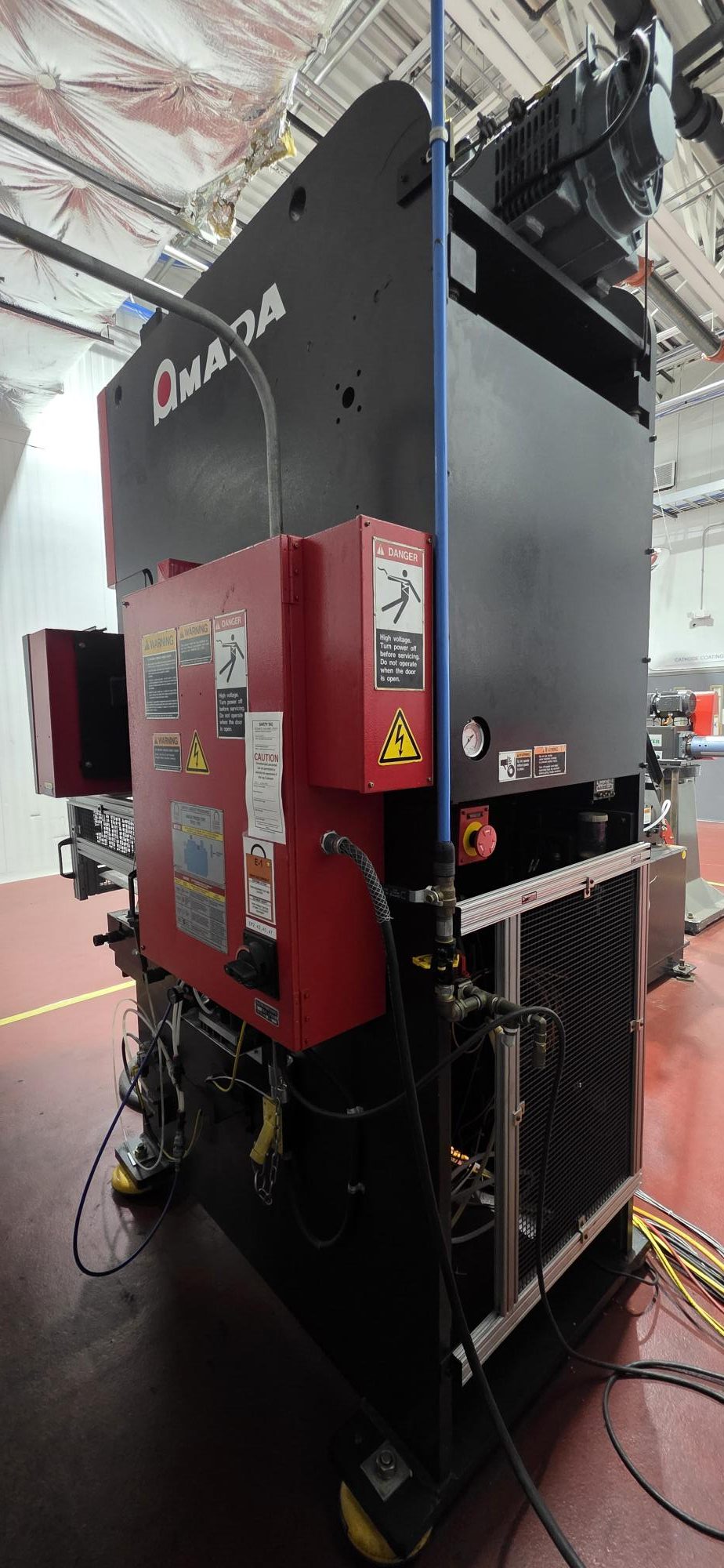

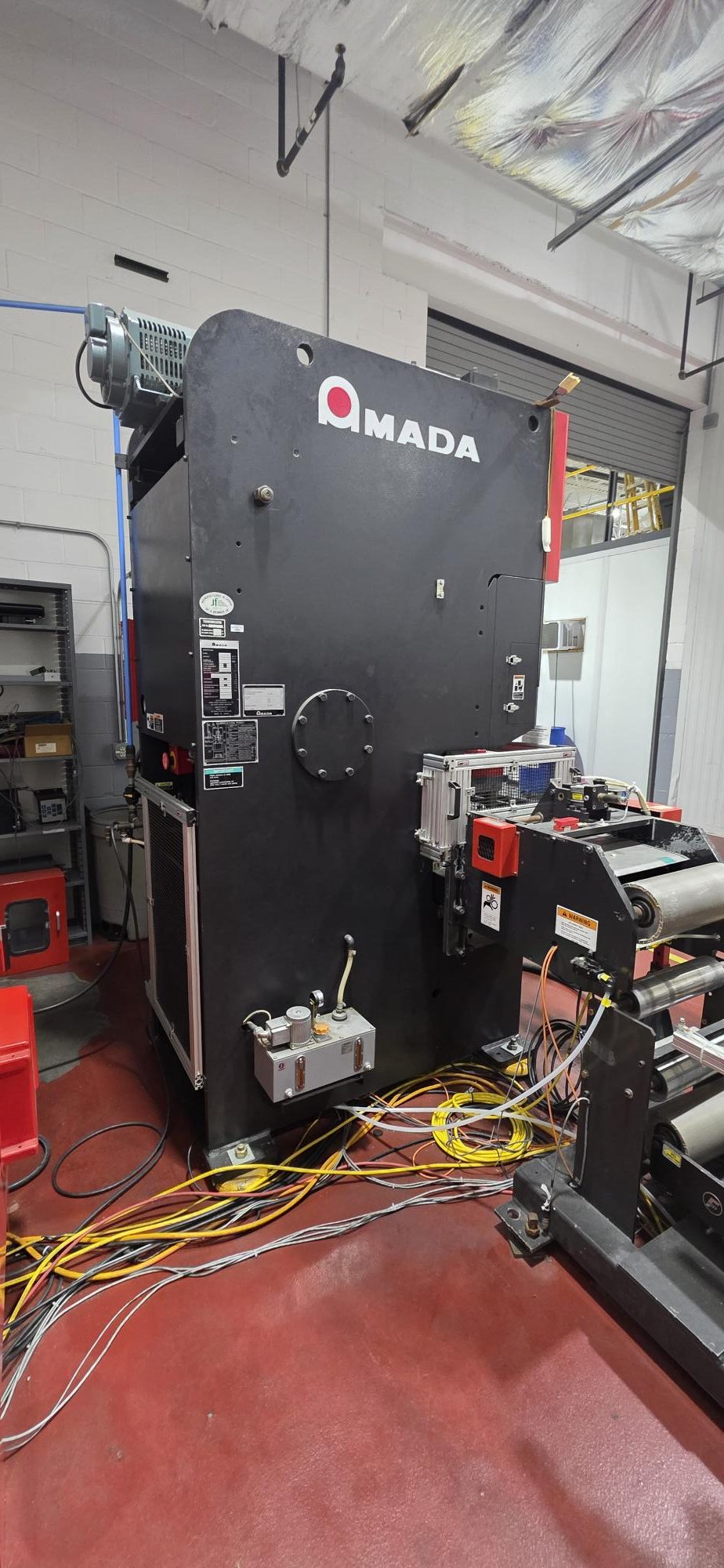

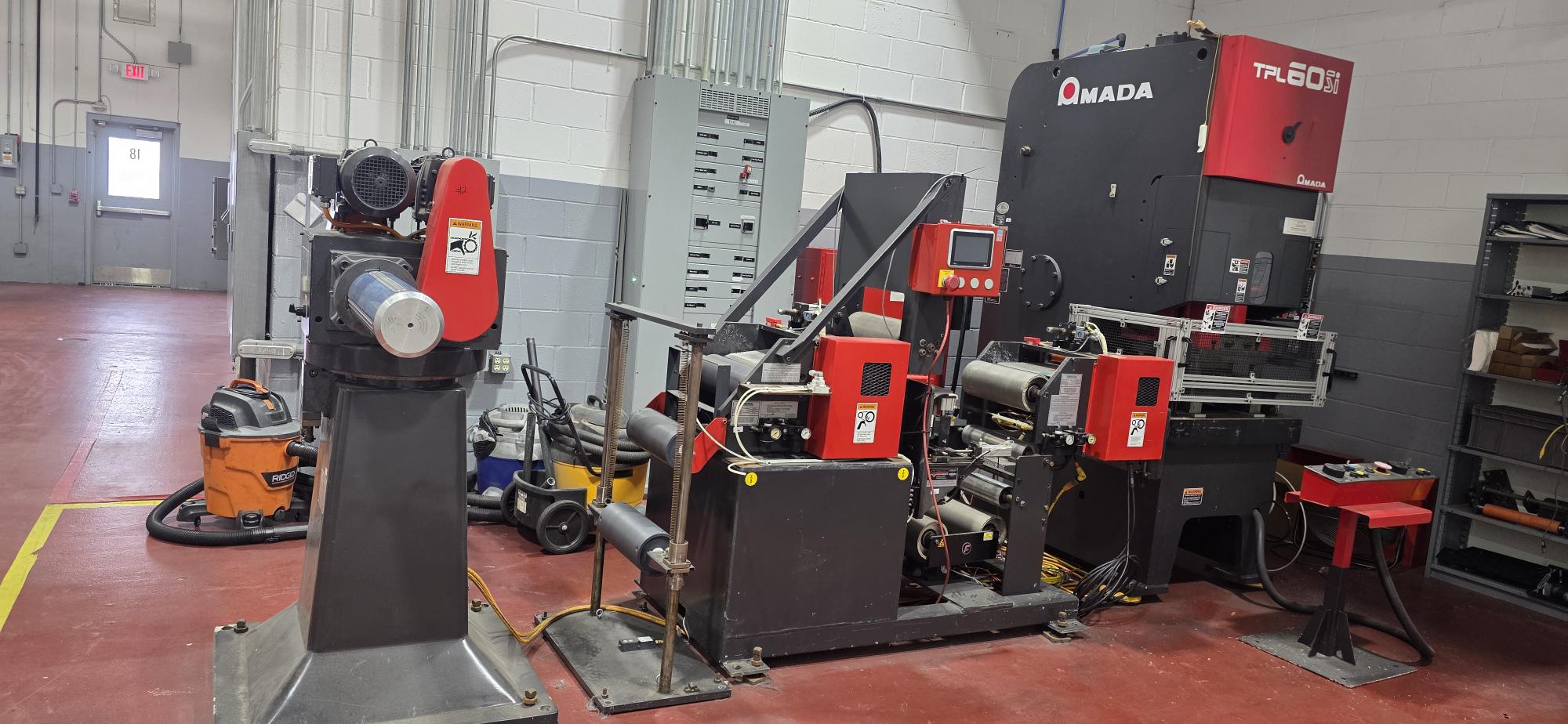

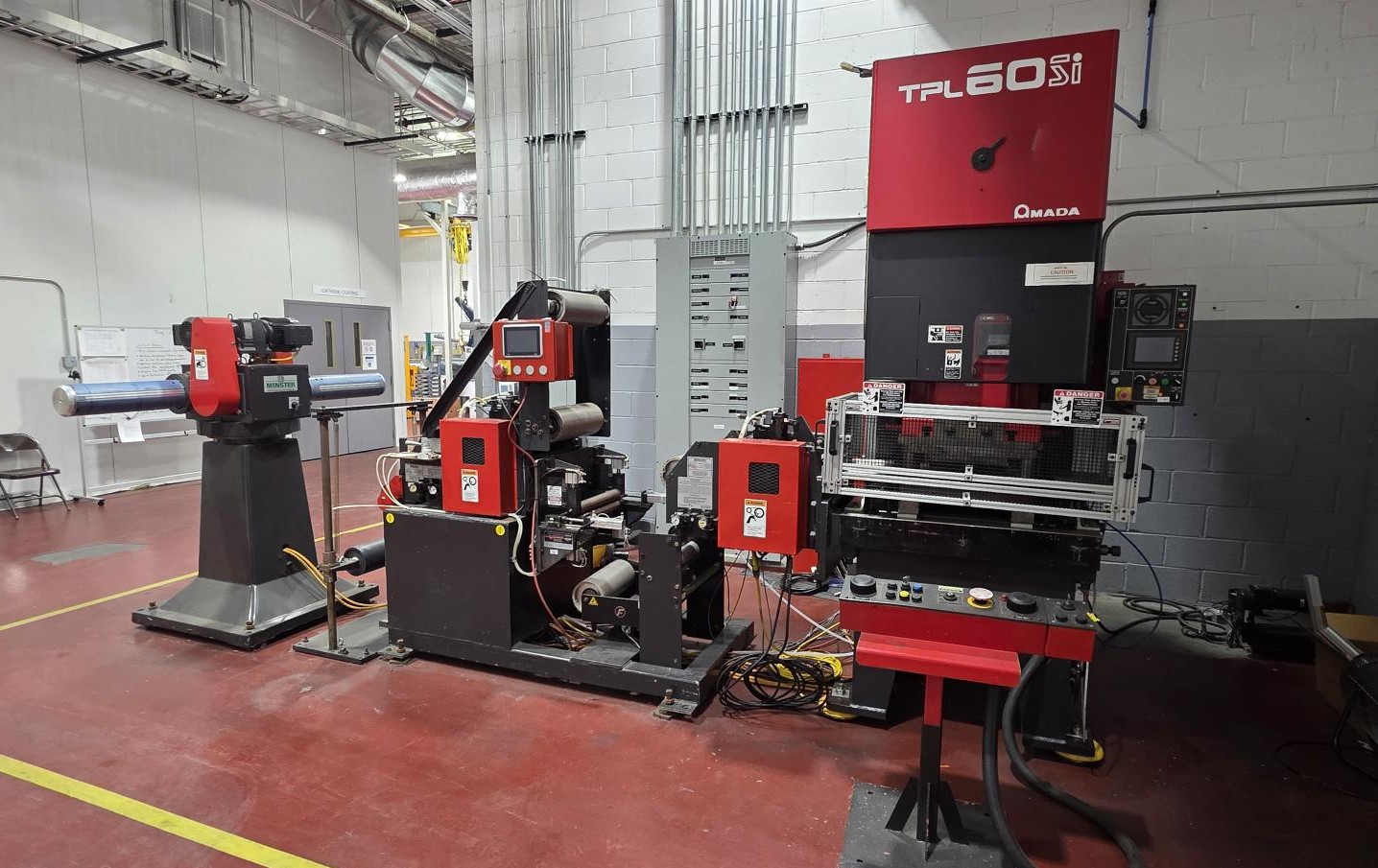

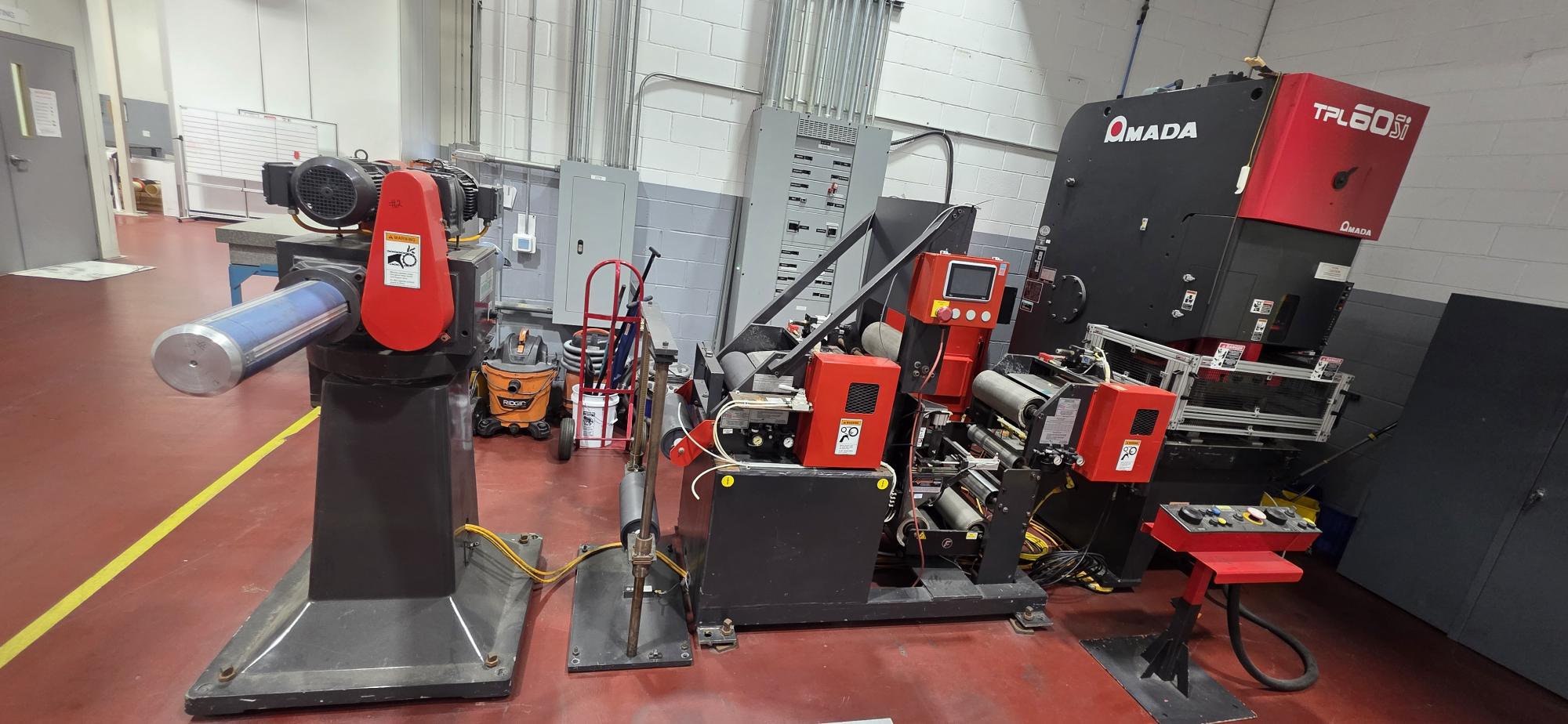

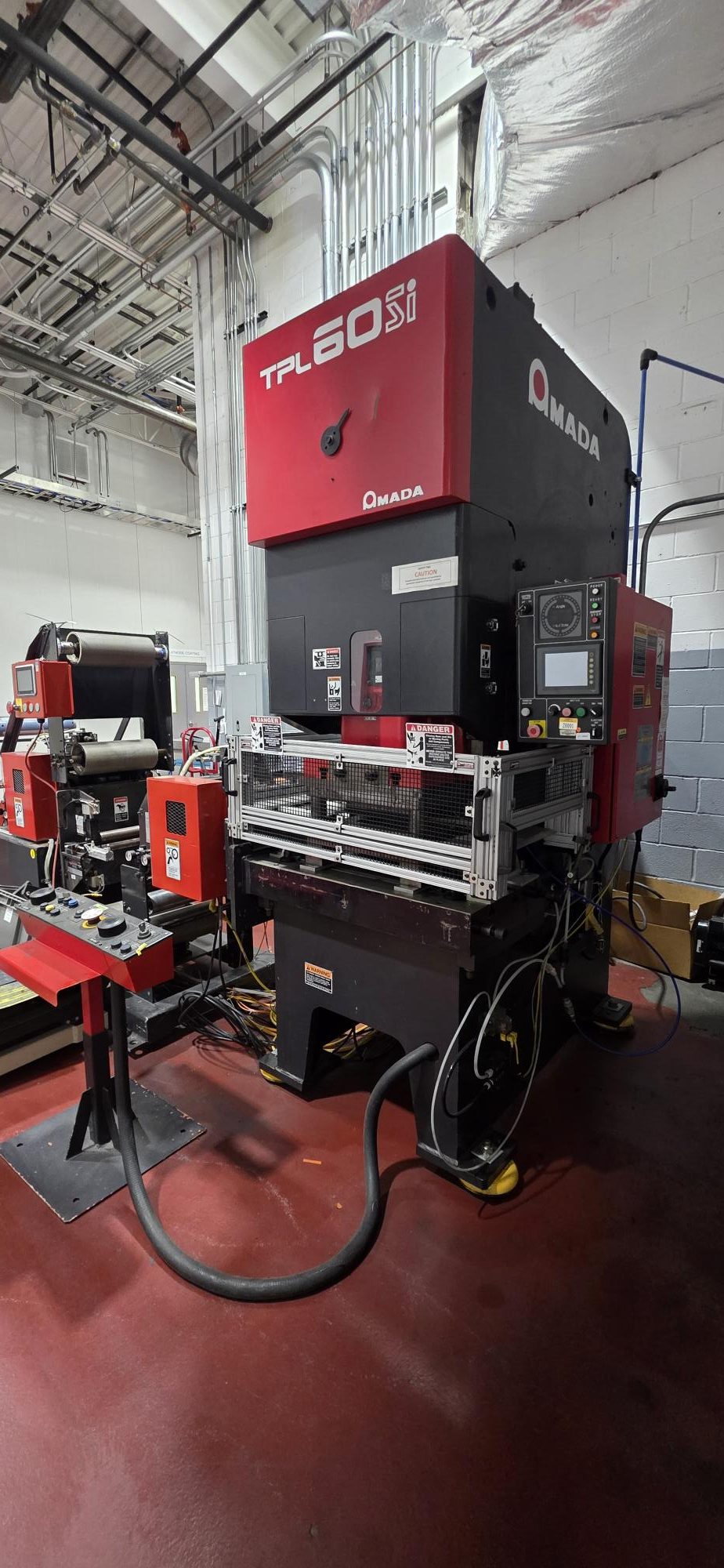

60 Ton Amada TPL60 SI Stamping Press, 2004 – Minster Uncoiler/Feeder

$44,900.00

60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 2
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 3
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 4
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 5
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 6
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 7
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 8
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 9
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 10
60 Ton Amada TPL60 SI Stamping Press, 2004 - Minster Uncoiler/Feeder - Image 11

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Presses
Make: Amada
Model: TPL60 Si
Year: 2004
Capacity: 60 Ton
Machine Location: Indiana
Stock #: 582257

Capacity: 60 metric tons (66 short tons)
Speed: 65–150 strokes per minute
Stroke: 3.54″ (90 mm)
Slide Adjustment: 2.76″ (70 mm)
Shut Height: 16.34″ (415 mm)
Slide Area: 19.69″ x 15.75″ (500 x 400 mm)
Bolster: 36.22″ x 21.65″ x 4.92″ (920 x 550 x 125 mm)
Main Motor: 7.3 HP (5.5 kW), 4-pole
Air Requirement: 71 psi
Power: 220V, 3-phase, 60 Hz

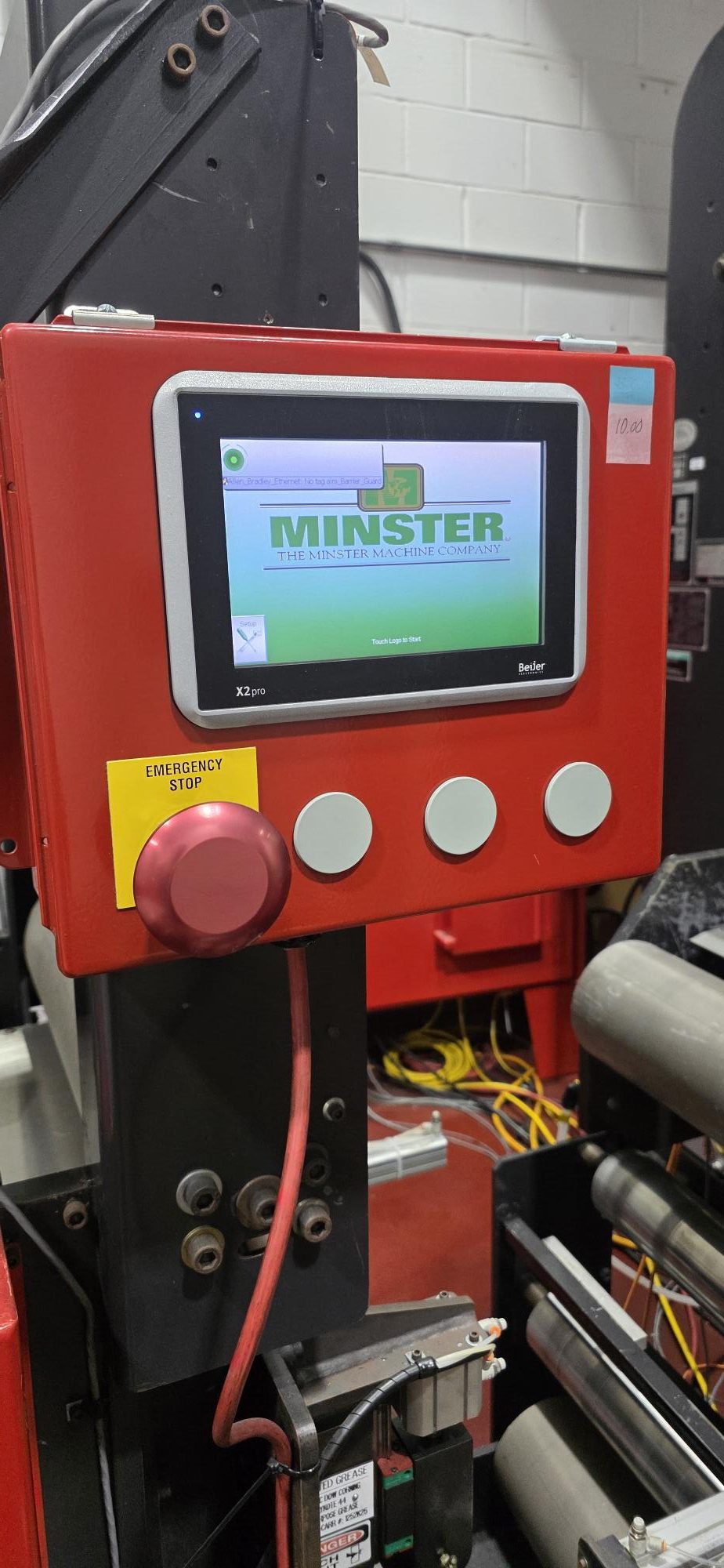

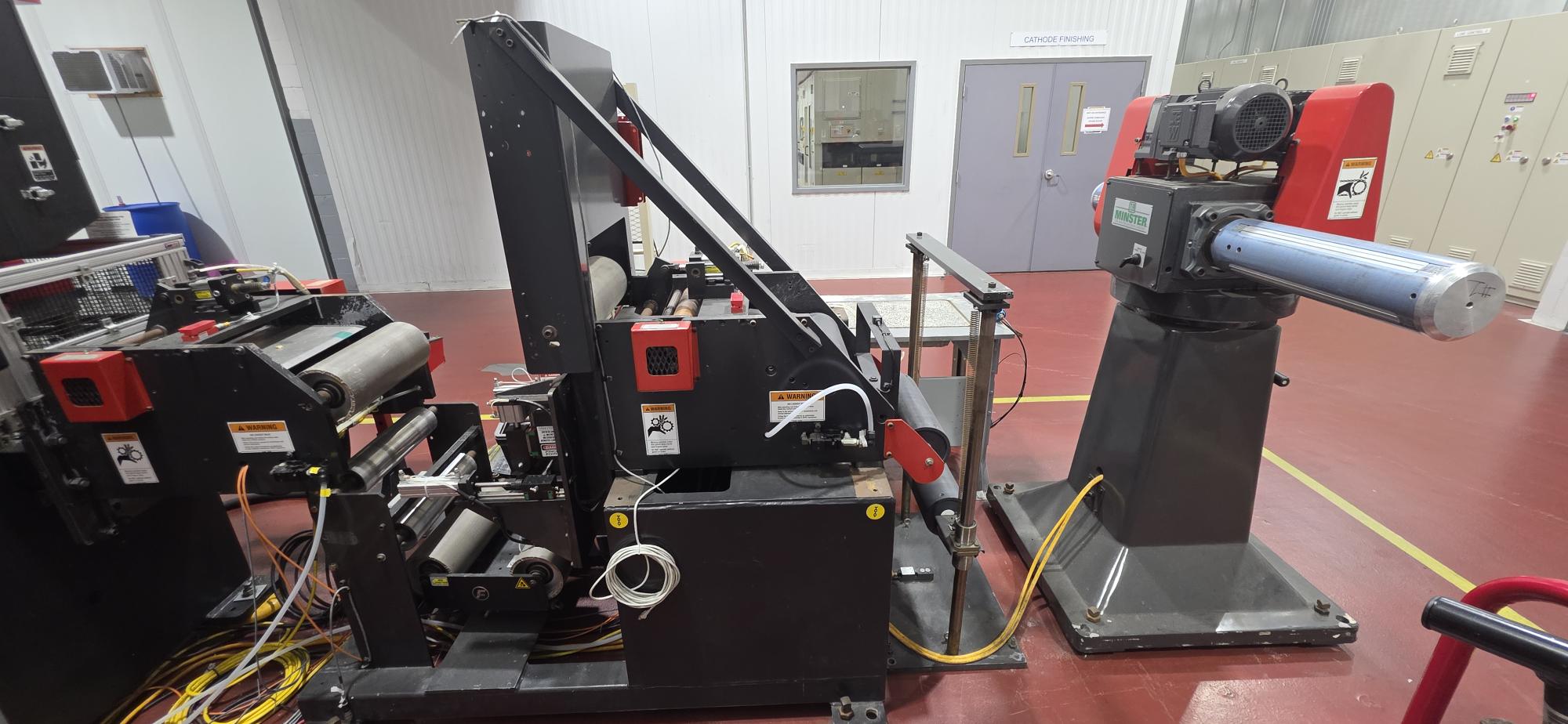

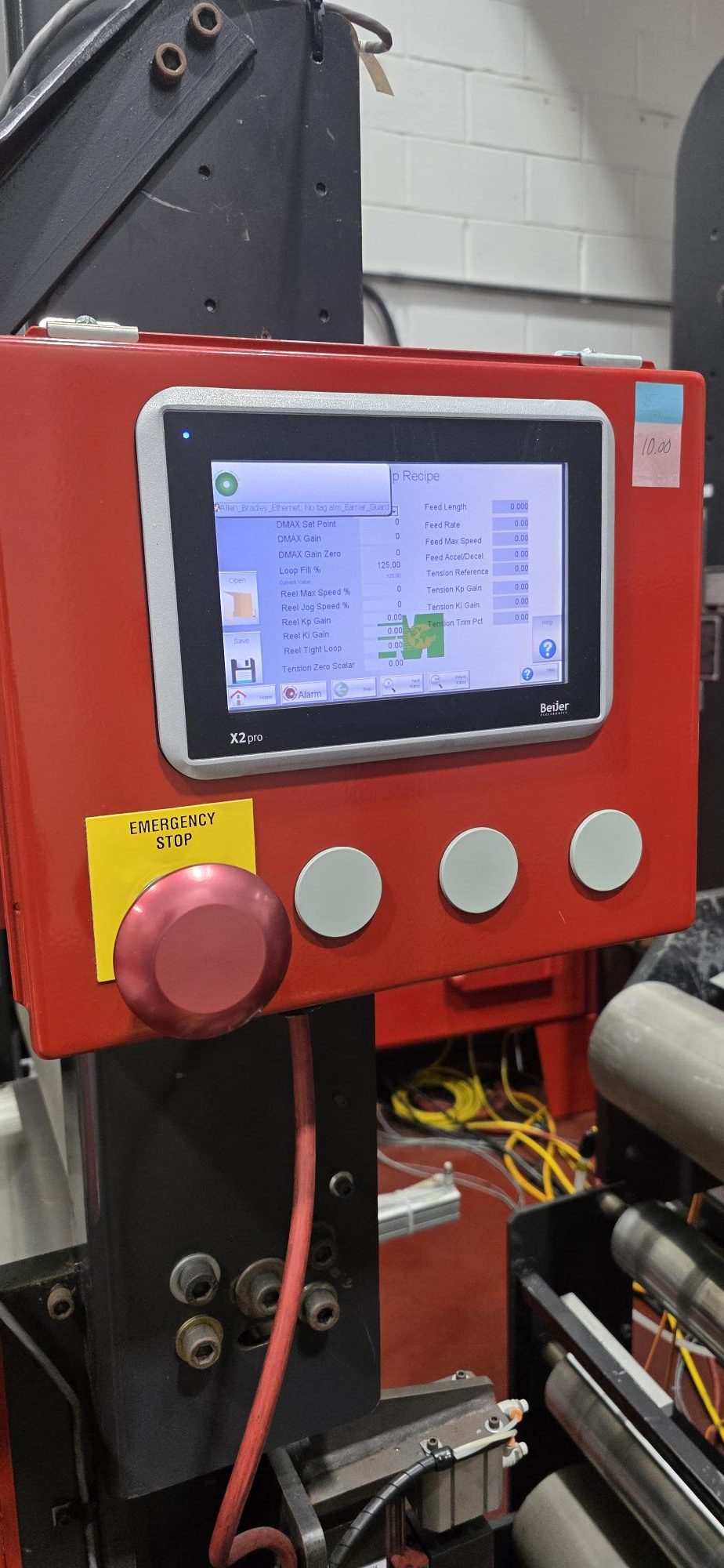

Minster Servo Feed
Model: MEF2-14D
Weight: 575 lbs
Pinch Roll Pressure: 0–80 psi

Minster Reel
Model: MRE2-20D
Weight: 5,000 lbs
Max Coil Weight: 2,000 lbs
Max Coil OD: 20.0″
Coil ID Range: 5.969″– 6.125″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
