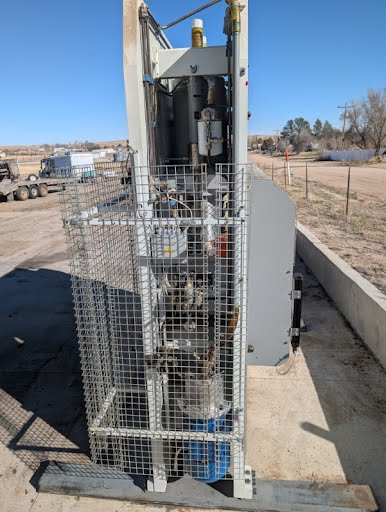

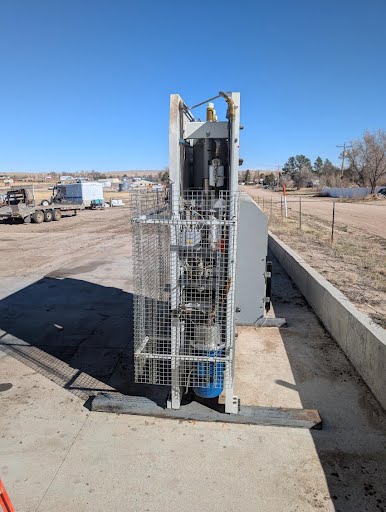

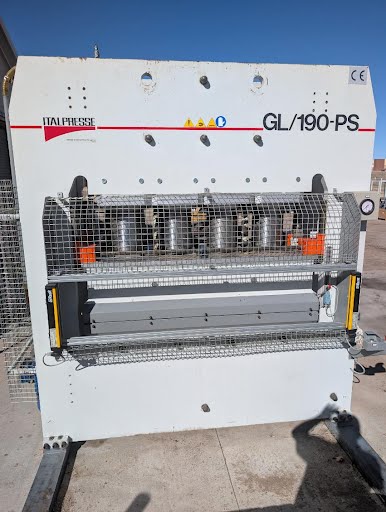

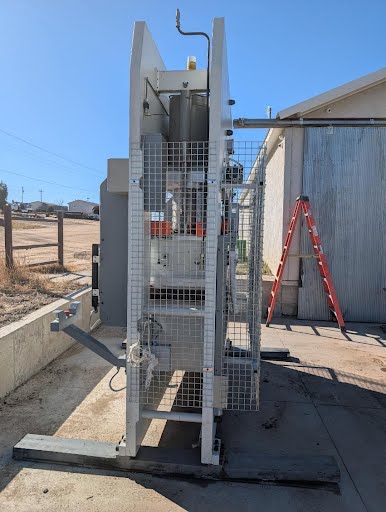

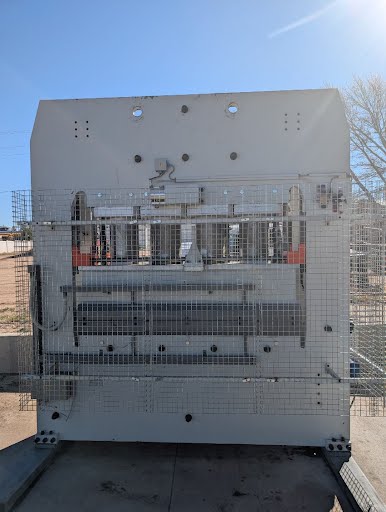

Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 2
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 3
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 4
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 5
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 6
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 7
DD
58208867127

Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000

$59,900.00

Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 2
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 3
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 4
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 5
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 6
Italpresse GL/190‑PS High‑Temperature Hydraulic Hot Press, 5‑Daylight, 2000 - Image 7

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Presses
Make: Italpresse
Model: GL/190‑PS
Year: 2000
Capacity: 500 Ton
Machine Location: Upon Request
Stock #: 867127

Application: High‑temperature hydraulic hot press for wood, composite, and similar panel/forming applications

EST TONNAGE IS 500

Plate 75 1/2″ long 23 1/2 ” wide

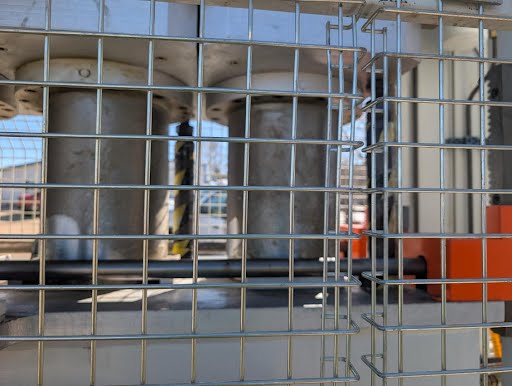

4 cylinders 101/2″ wide

Heating system: Thermal oil‑heated platens using AGIP Alaria 3 diathermic oil

Hydraulic system oil: AGIP OSO 46 hydraulic oil

Platen size: Approx. 1900 x 1300 mm (about 75″ x 51″) on GL/190‑PS hot presses

Construction: Heavy welded steel frame with hydraulic cylinders and heated steel platens

Temperature range: Designed for high‑temperature curing/pressing (exact max °C to be taken from the machine’s tech plate/manual; many Alaria‑oil systems run in the 200–300 °C range)

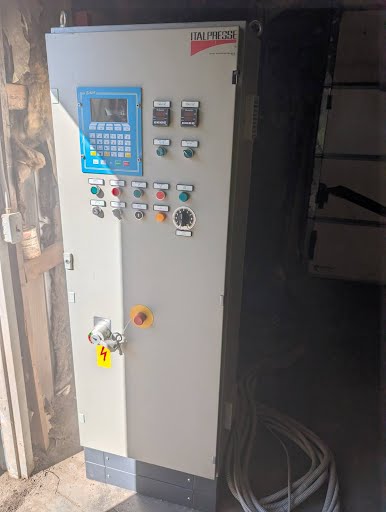

Controls: 24V control voltage per plat

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
