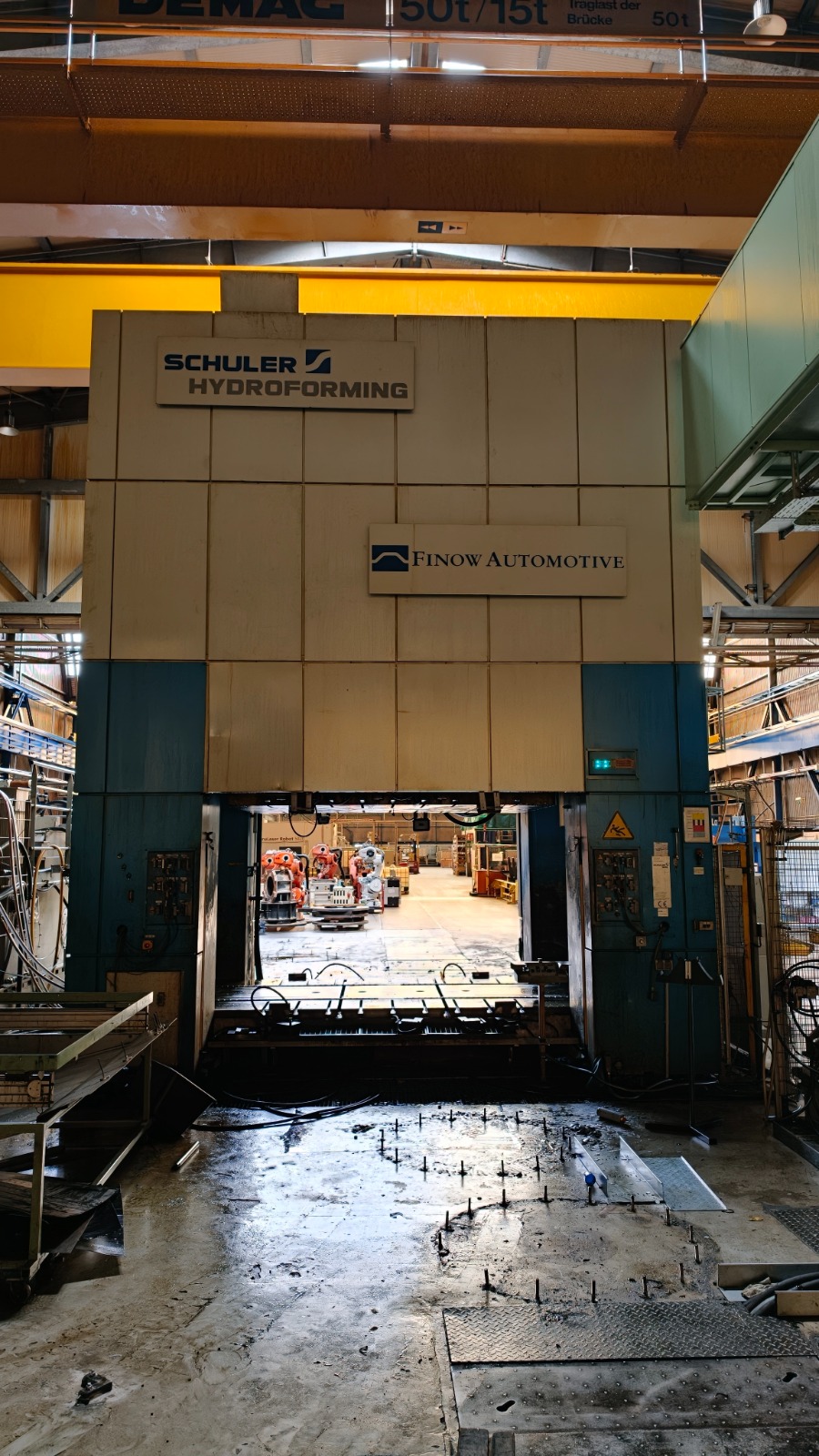

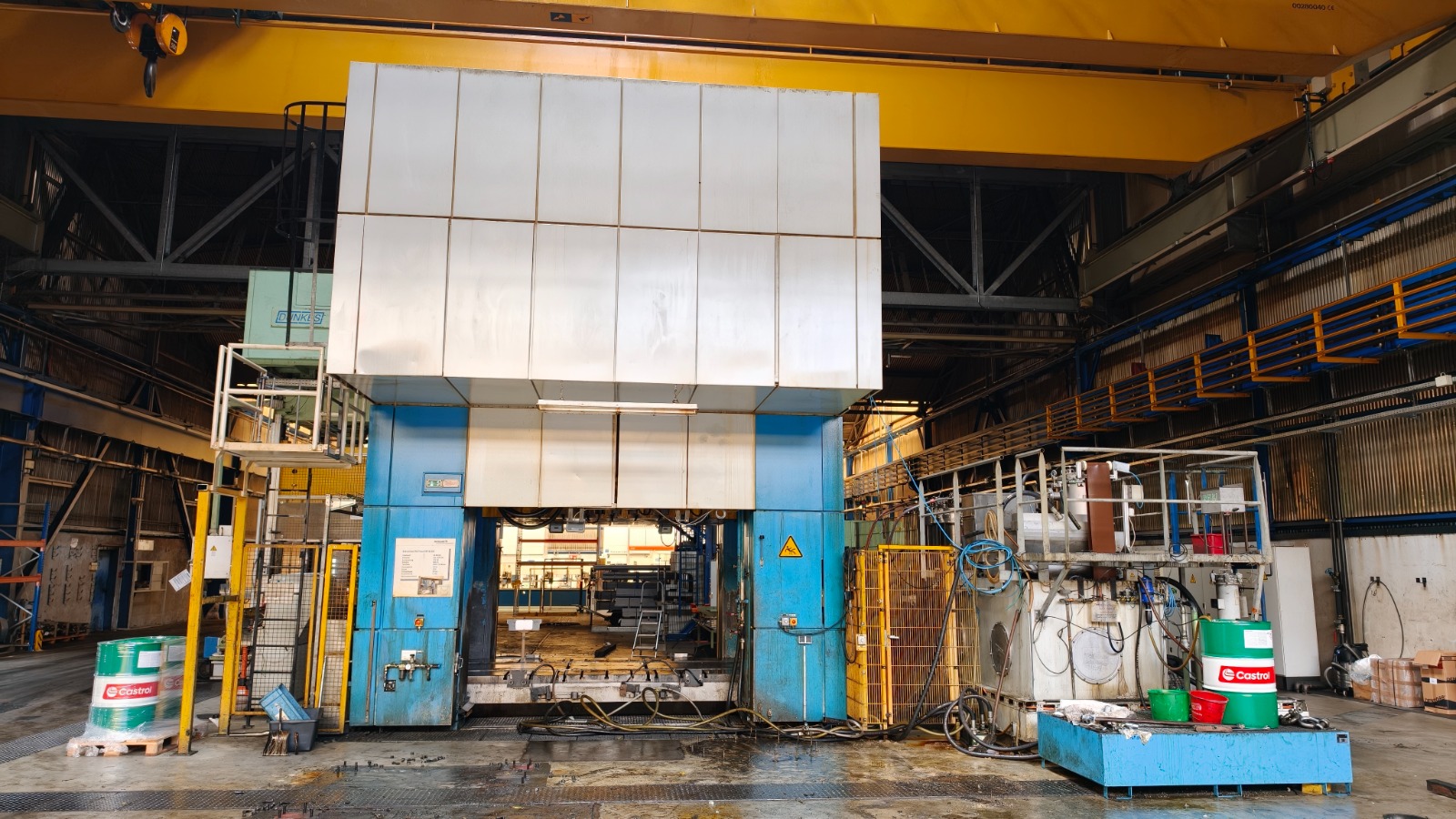

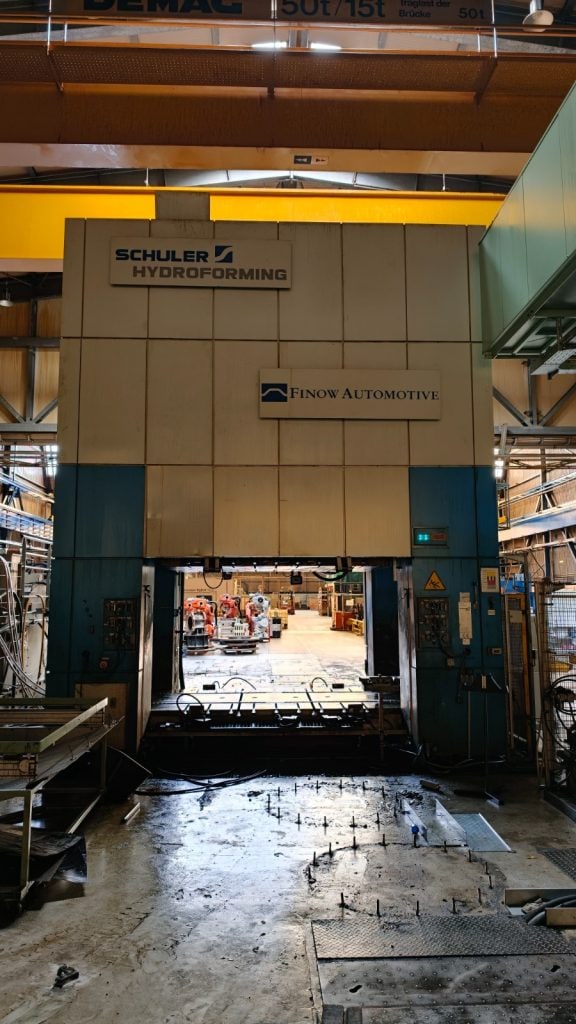

5000 Ton Schuler Hydroforming Press, 2000

4520 X 2150 mm Table

900 mm Stroke

Ram return force 1.390 kN

Ram stroke 900 mm

Die space (ram up) 1.900 mm

Ram area (width x depth) 3.150 x 2.150 mm

Table area (width x depth)4.520 x 2.150 mm

Clear distance between uprights (left–right) 3.280 mm

Clear distance between uprights (front–back) 2.200 mm

Main drive power 2 x 160 kW

Pump capacity 2 x 350 l/min at 1800 rpm

Rapid approach speed 360 mm/s

Return speed (infinitely adjustable) 234 mm/s

Working speed 6.5 mm/s

Drive up/down – X / –

Machine weight – approx. 303.000 kg

Oil quantity per tank filling – approx. 5.000 l

Operating voltage, three-phase current 400 V

Control voltage, AC 230 V

Valve voltage, DC 24 V

Frequency 65 Hz
