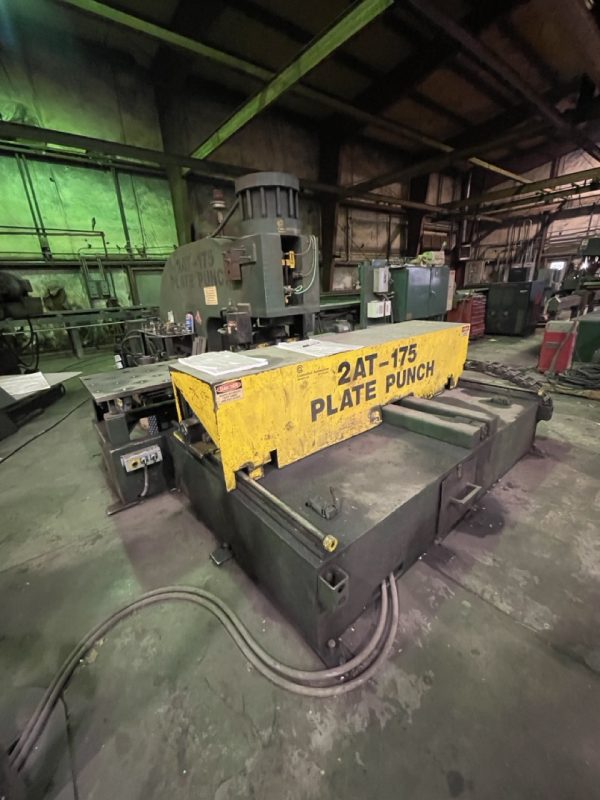

175 Ton Controlled Automation 2AT-175/CG Plate Punch, 1996
$29,576.43
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Tonnage Capacity: 175 Tons
Throat Depth: 30โณ
Max Plate Size: 30โณ X 60โณ
Max Material Thickness: 1-1/2โณ
Max Hole Size: 2-5/16โณ
Max Angle Capacity: 8โณ X 8โณ X 1-1/8โณ
Min Angle Capacity: 2-1/2โณ X 2-1/2โณ X 1/8โณ
Max Punch Stroke: 2โณ
Material Clamping Force: 2,000 lbs
Punch Frame: 19,000 lbs
Roller Tabel: 4,400 lbs
HPU: 1,300 lbs
Approx. Weight: 15,000 lbs
Software Controls were updated in 2021(windows 10, as updated as it can be currently)
