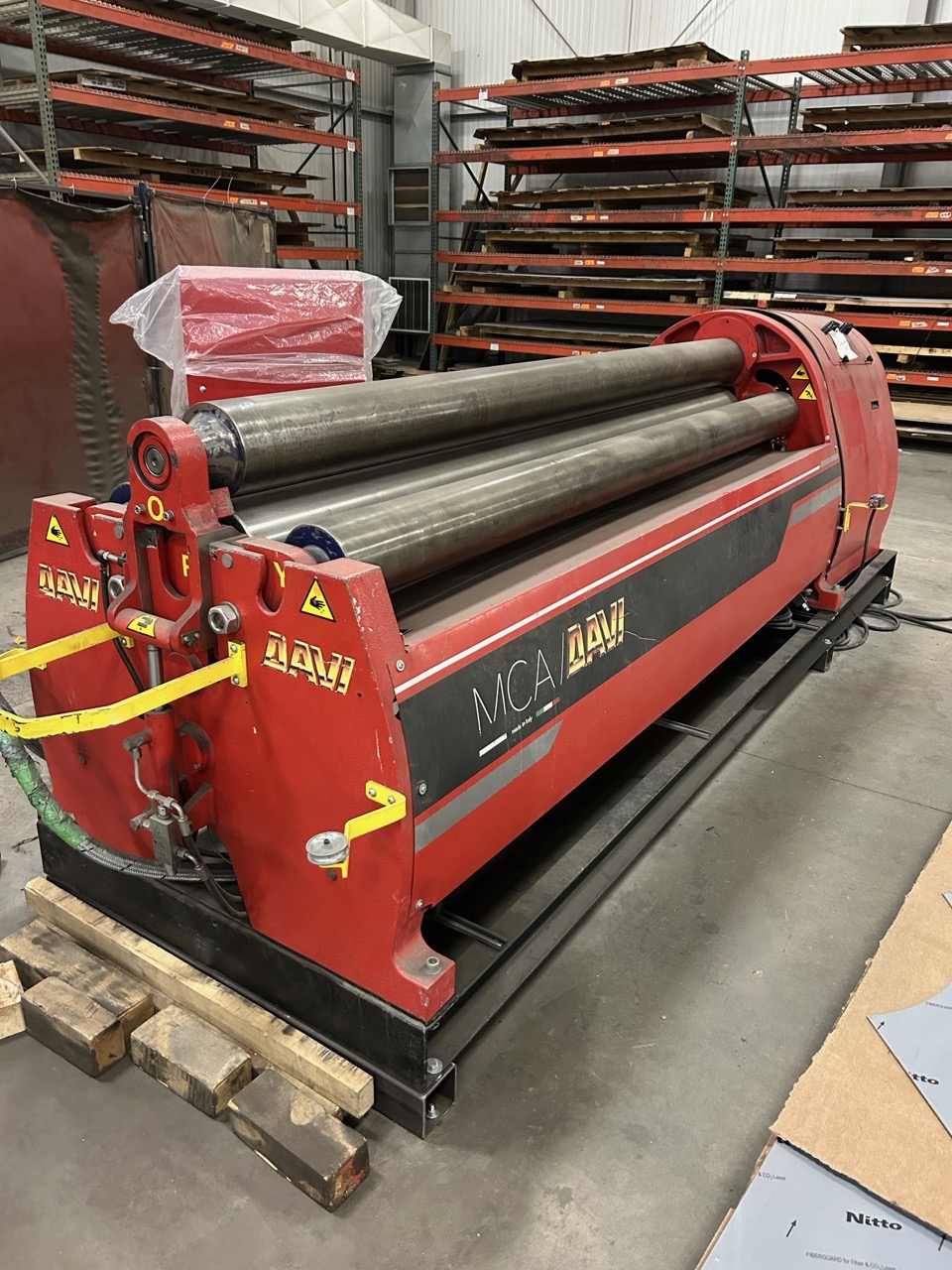

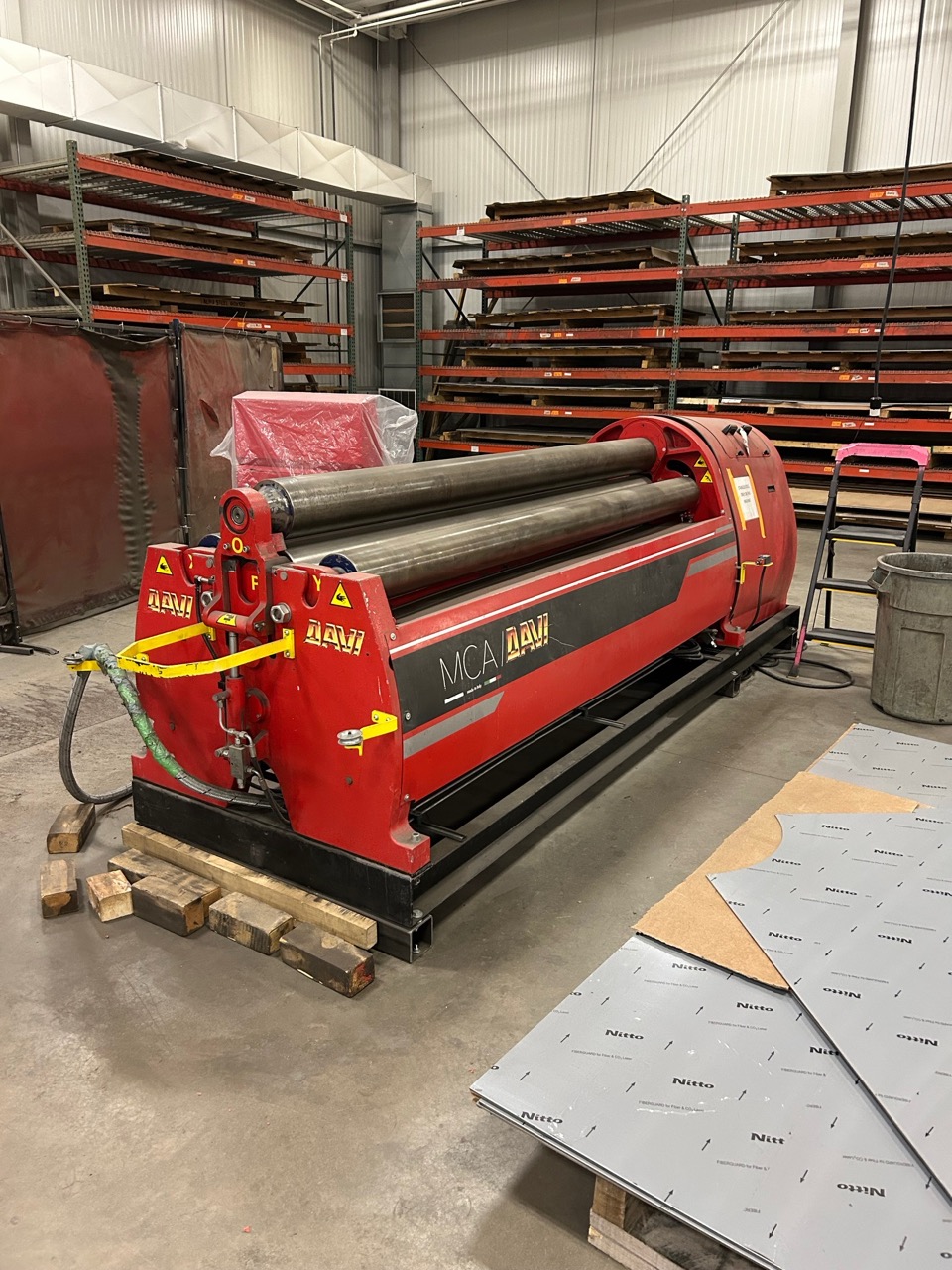

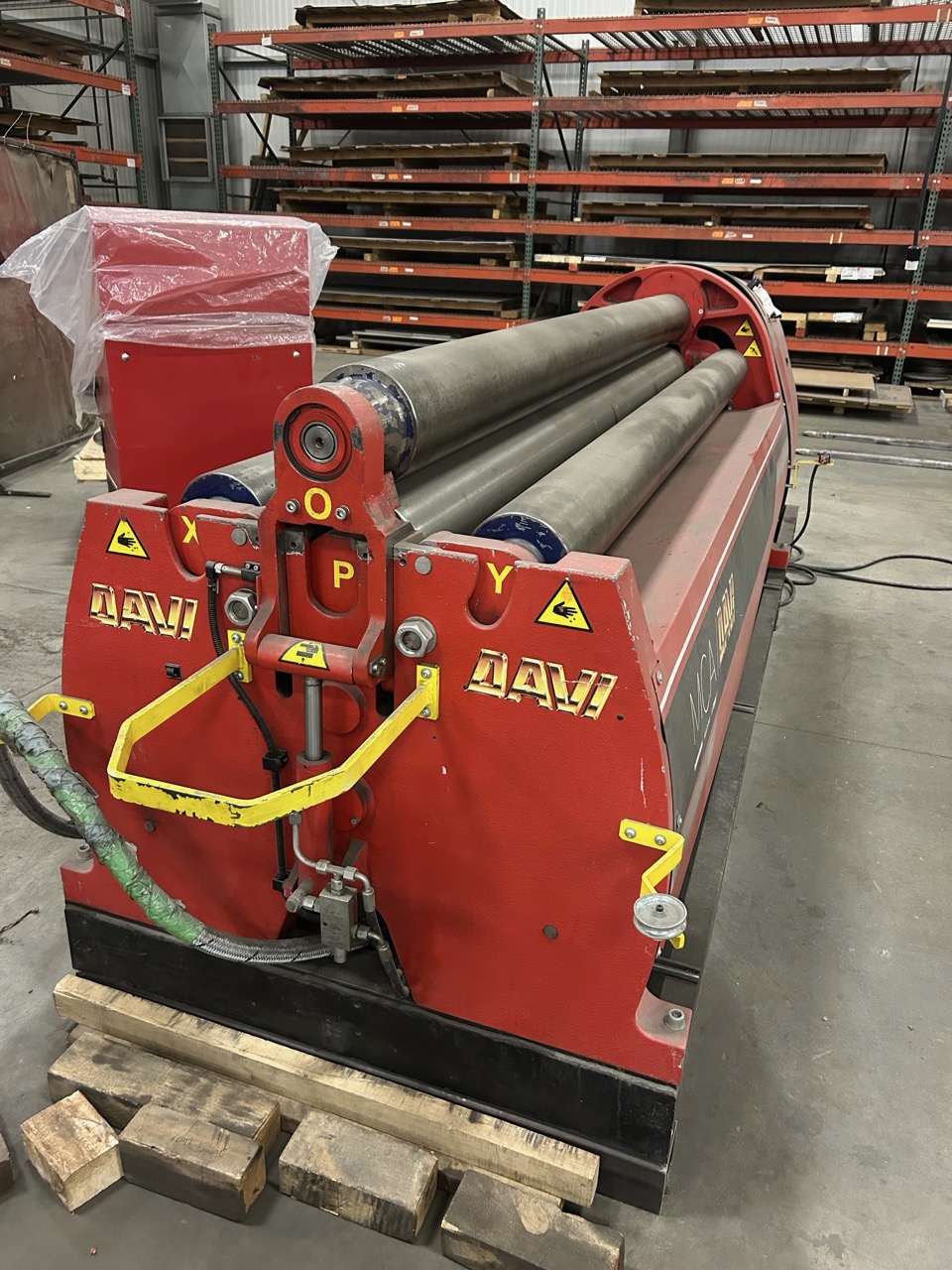

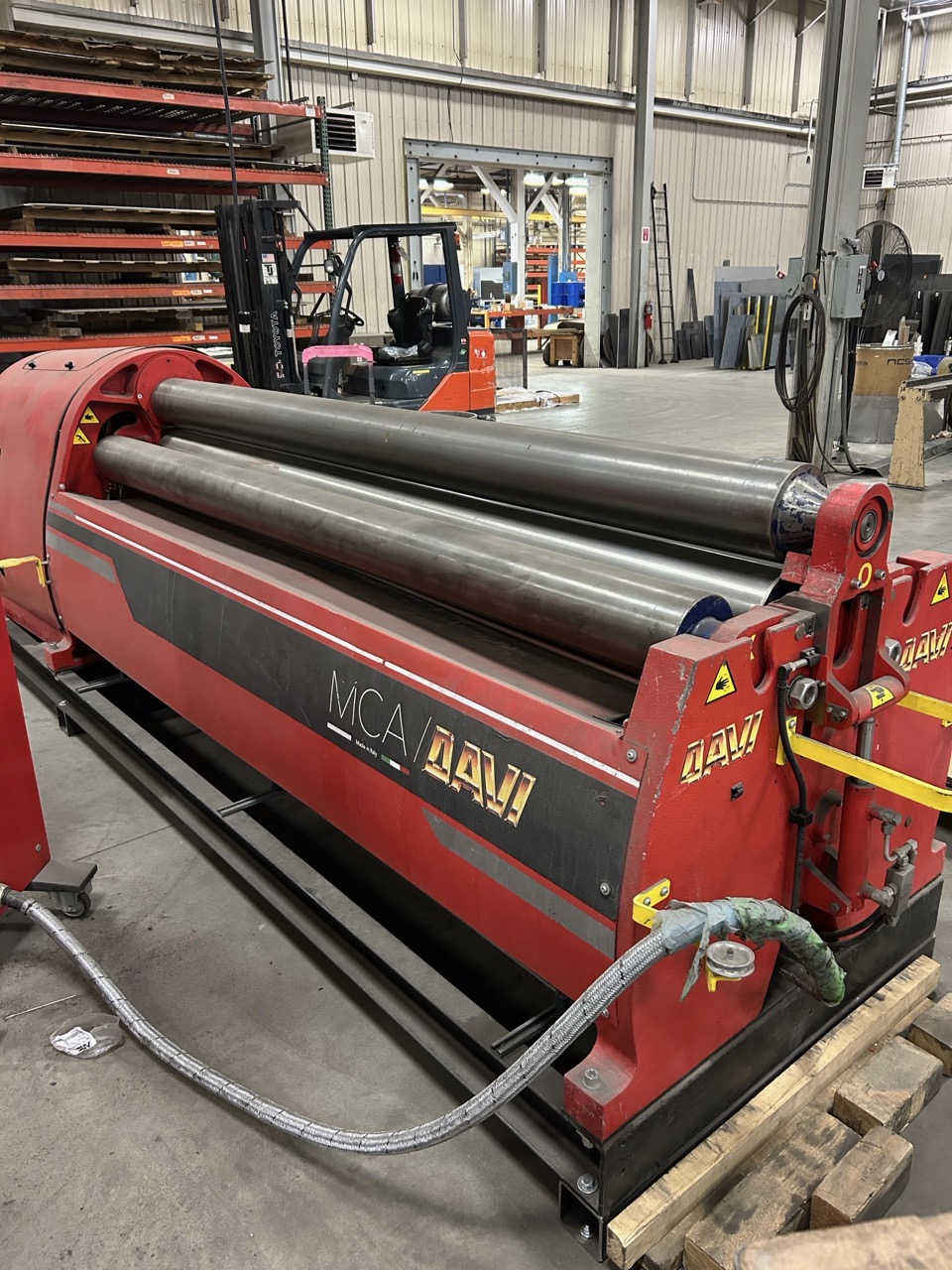

3/8″ X 8’ Davi MCA 2522 CNC Plate Roll, 2018

$89,900.00

3/8" X 8’ Davi MCA 2522 CNC Plate Roll, 2018
3/8" X 8’ Davi MCA 2522 CNC Plate Roll, 2018 - Image 2
3/8" X 8’ Davi MCA 2522 CNC Plate Roll, 2018 - Image 3
3/8" X 8’ Davi MCA 2522 CNC Plate Roll, 2018 - Image 4
3/8" X 8’ Davi MCA 2522 CNC Plate Roll, 2018 - Image 5
3/8" X 8’ Davi MCA 2522 CNC Plate Roll, 2018 - Image 6
3/8" X 8’ Davi MCA 2522 CNC Plate Roll, 2018 - Image 7

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Plate Rolls
Make: Davi
Model: MCA 2522
Year: 2018
Capacity: 0.4” x ‘
Machine Location: Upon Request
Stock #: 758756

Length of Rolls: 100″
Max Thickness: 0.39″
# of Rolls: 4
Top Roll Diameter: 6.5″
Bottom Roll Diameter: 7.9″
Side Rolls Diameter: 6.3″
Rolling Speed: 19.5′ / Min
Machine Weight: 19,500 LBS

Equipped With:

Rolls crowning
Rolls guiding Friction-Free, Mill-Scale-Proof, Lubrication-less planetary
guides
Rolls position Linear transducer with an accuracy of 0.004″
Servo-Tronic©(DAVI patent)
Rolls rotation drive (DAVI Exclusive) Both clamping rolls are driven in rotation as standard feature
Transmission drive
Wiring system (DAVI Exclusive)
Rolls tilting for cone bending

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
