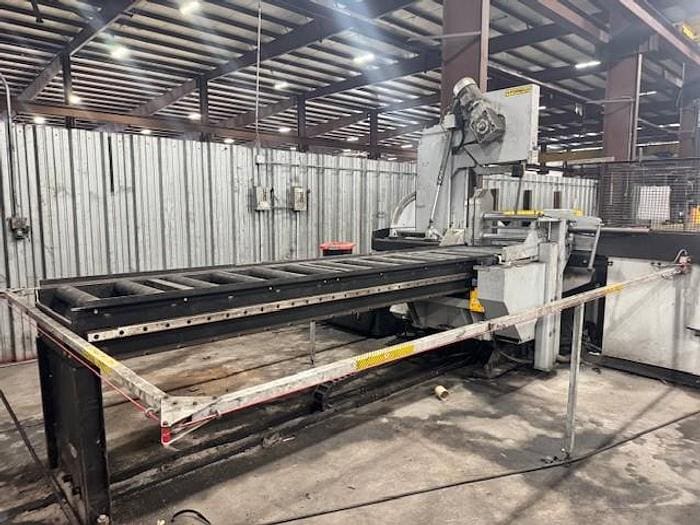

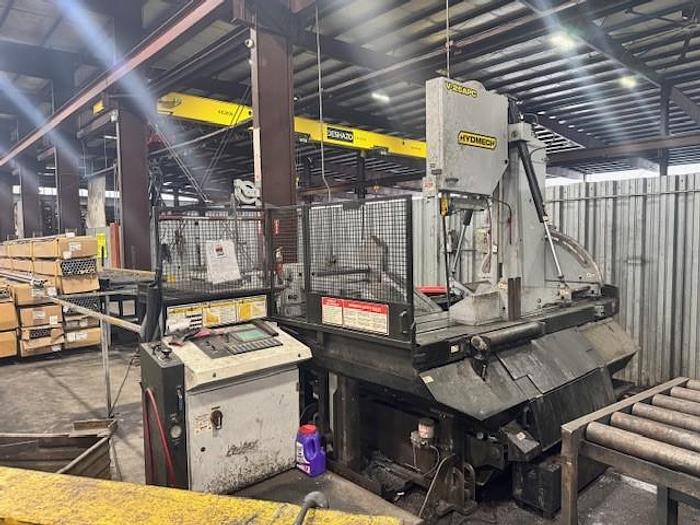

30″ x 25″ HydMech V25APC Vertical Saw, 2021

• 6° canted head allows for efficient cutting and improved blade life

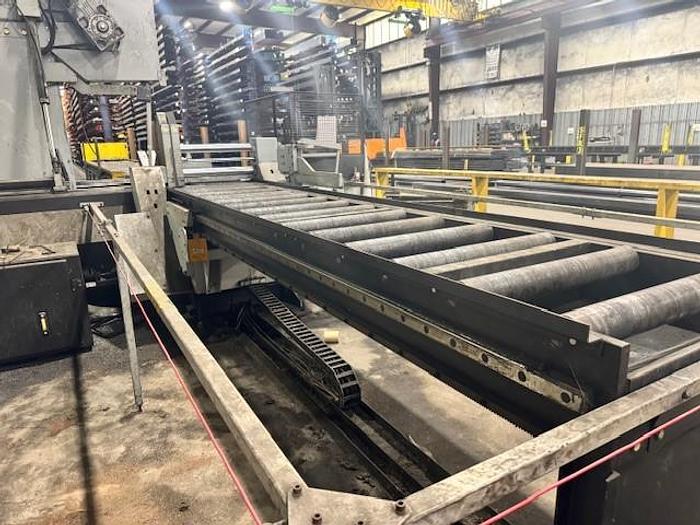

• 120” bar feed, left side
• Shuttle features automatic multi-indexing up to 120” in a single stroke with automatic kerf compensation.
Powered by a rack and pinion servo drive.
• Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
• Hydraulic head tilt
• Cast iron band wheels
• Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.
• Two full stroking hydraulic vises
• Hydraulically powered, programmable guide arm attached to saw column.
• 10 HP VFD. True direct blade drive – no belts/pulleys
• Blade chamber separates material from cut part
• Hydraulic chip conveyor
• Replaceable blade brush
• Robust steel base
• Out of stock switch
• Blade breakage switch
• Easy access electrical panel and hydraulics
• Pop-up feed roller – one, opposite bar feed
• Hydraulic band tensioning with digital readout
• Replaceable carbide guide inserts
• 3 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Variable vise pressure

Included Optional Machine Features

• Hydraulic overhead bundling
• Out feed vise
